The Sushi Box FX Secret Society
- Thread starter kranahan
- Start date
What is Bassmaster and why does it need 2 knobs?
You park a car in your garage?!?! Fancy.I feel this. My double garage is FULL to the rafters and we only park one car in there.
Last edited:
Alright, figured something out with the CNC. For the round holes if I slow down to the same speed as the old CNC it goes fine. On the vent slots I can actually get away with going a little faster, and I just figured out (totally not a machinist) how to run two different speeds for different parts of the CNC program, so this will still save a bit of time, especially since the slots was always the slowest part on the old CNC.
I am also not a machinist but I work with machinists so I've picked up a few basic things. Not sure if this is helpful but here goes: Aluminum is a pretty gummy material and has a habit of sticking to tools, which can dull the cutting surface, causing premature wear and buildup of heat. It is important to select tooling that is designed for cutting aluminum, know if said tool requires coolant, and set your spindle speed correctly to give the proper surface feet per minute at the cutting diameter of the tool (larger diameter tools require slower spindle RPM compared to smaller diameter tools to produce the same speed).
With the correct tooling it should be possible to cut aluminum very quickly without the need for coolant. Also another tip, make sure your parts are well secured because getting chatter (especially with cutting through thin material) can decrease the efficiency of the process.
Thanks
I was actually realizing today that the end mills I've been using are on the cheap side and probably not the best fit for aluminum. I found some better suited and higher quality, they'll be here Saturday. Until then I've found a good feed/speed combo that gives good results in reasonable time with my cheap bits.And definitely a good note on securing, on the previous machine it was weak enough that a friction-fit into my wooden jig was enough to hold it, but I tried that on the new machine and the enclosure jumped right out. So I got some heavy duty clamps, and the boxes aren't going anywhere.
I actually just finished the last batch for the night, and it went much better now that I balanced out the speeds.
Thanks
And definitely a good note on securing, on the previous machine it was weak enough that a friction-fit into my wooden jig was enough to hold it, but I tried that on the new machine and the enclosure jumped right out. So I got some heavy duty clamps, and the boxes aren't going anywhere.
I actually just finished the last batch for the night, and it went much better now that I balanced out the speeds.
Awesome, sounds like you are on the right track! I don't own any sushi yet but am watching this space for some of the new things you're cooking up! Toobz!!!
Good to hear you are dialing in the process but please pace yourself some - that post was at 2:19 east coast time . That’s a long day and as one who was once young and now isn’t - those days can catch up with you later on and wreck what might be an otherwise very healthy middle age . I know I sound like a grinchy old fart but the real race goes to the tortoise rather than the hare . Enjoy your family and take care of yourself - the pedal fanboys can wait a little ! .... And I count myself amongst them for sure - KellyThanks
And definitely a good note on securing, on the previous machine it was weak enough that a friction-fit into my wooden jig was enough to hold it, but I tried that on the new machine and the enclosure jumped right out. So I got some heavy duty clamps, and the boxes aren't going anywhere.
I actually just finished the last batch for the night, and it went much better now that I balanced out the speeds.
Are you cutting these dry? Using a coolant or even brush kerosene or cutting oil on can make a massive difference.
Lowendtech
Happily trending in my own peculiar direction.
I’ve done my fair share of machining aluminum parts for race bikes. I always use cutting oil for clean cuts and to prevent aluminium from galling on the cutting bit.
Even if I’m cutting quick and easy on a mill on small parts, I’ll use some “6 in 1” spray.
Nothing good happens with dry cutting over time. Sooner or later it catches up with either your bits or your parts. Even a quick small spritz of lube on the bit can be very helpful.
Interesting article on single flute cutters. Not sure if they come small enough for your slots over the valve though.
I'm getting better, I promise
I don't think I have a legitimate illness, but I have trouble sleeping when I still have problems left to solve. It's not so much "things to do" as I will ALWAYS find things to do, but if something isn't working I have trouble walking away from it until it's fixed.I used to use oil on the old machine, but I stopped because it was cutting just as well dry, but that's a good point, I'll pick up some cutting oil to use. I wash all the enclosures before powdercoating anyway, won't hurt anything to have a little oil on there.

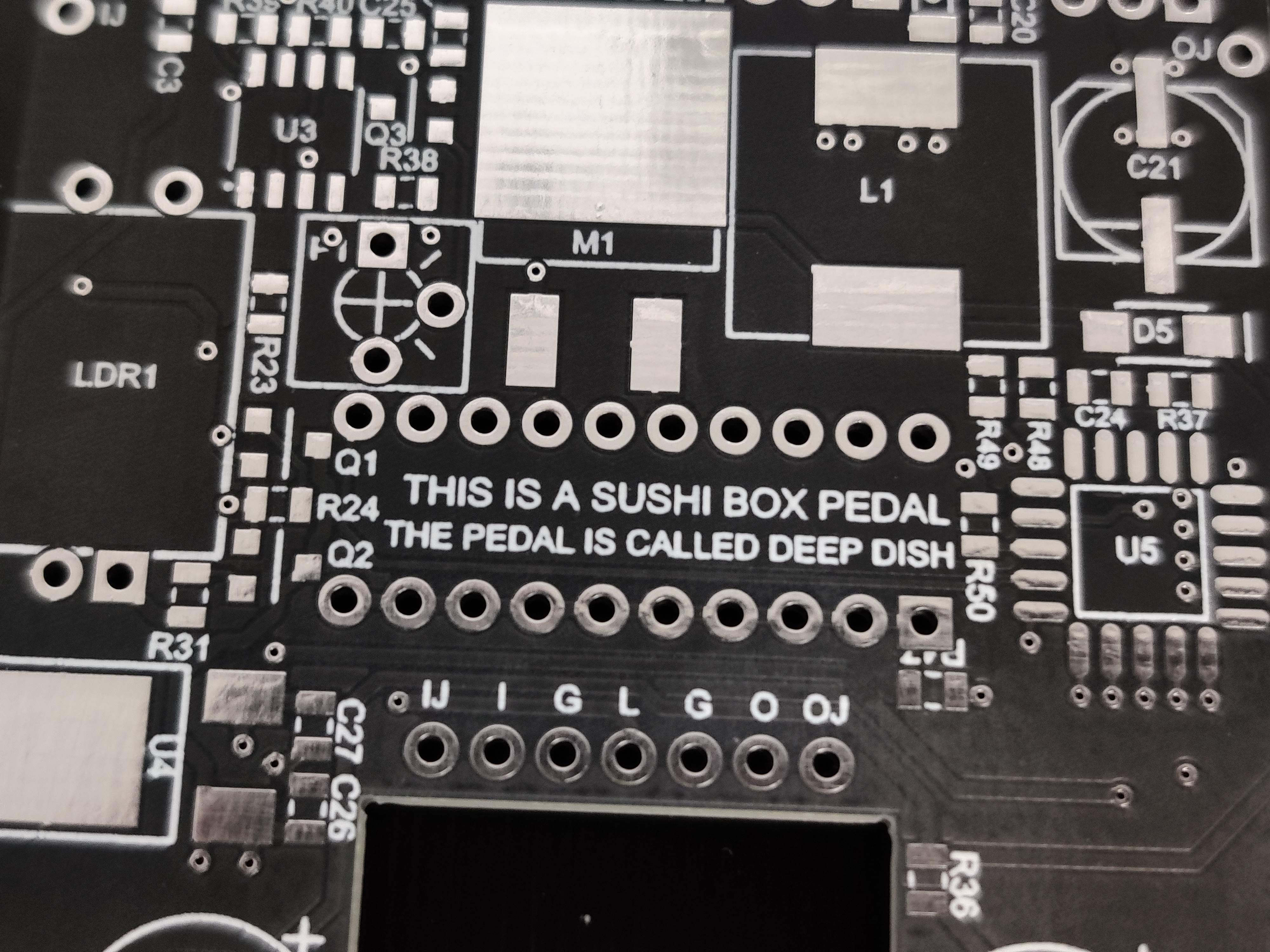

On an unrelated note, I was really tired when I was re-doing the Deep Dish layout, so when it was time to put the logo on there I decided to go for the Black Keys approach and save myself a couple minutes.

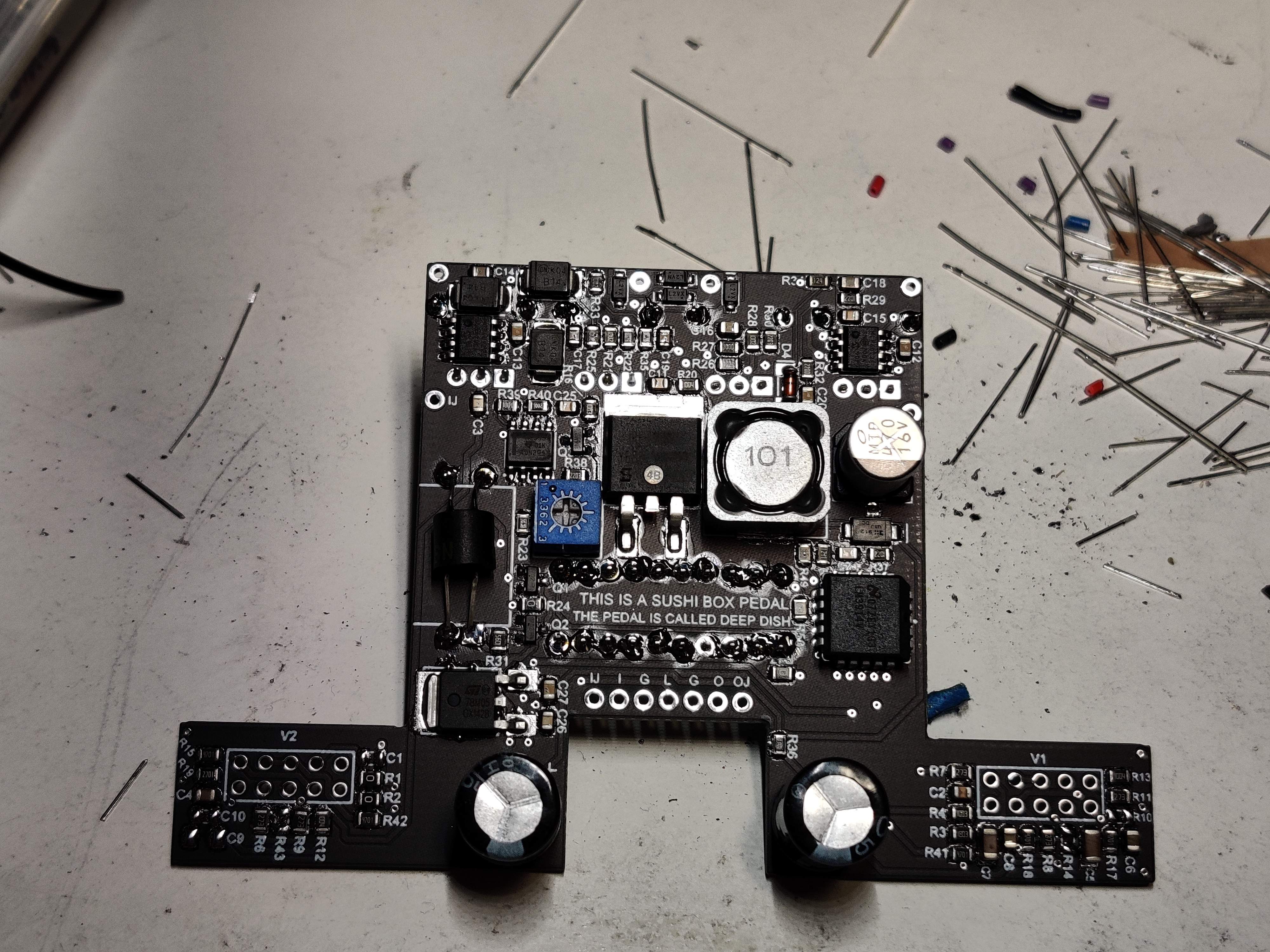

Oh the new boards just showed up by the way.
Oh the new boards just showed up by the way.
I'm a Toolmaker by trade, but I've been in emergencies services for many years now. Most of my milling and lathe work was manual, but did a little bit of programming and CNC milling operations.I'm getting better, I promise
I used to use oil on the old machine, but I stopped because it was cutting just as well dry, but that's a good point, I'll pick up some cutting oil to use. I wash all the enclosures before powdercoating anyway, won't hurt anything to have a little oil on there.
Most materials cut better with a good coolant using a soluble oil, but non ferrous metals often react better to kerosene, or similar.
