Where in the world is Carmen Mirandiego?
Once you get it all working it might make a nice stack, but you’ll need a roadie to move it.
Once you get it all working it might make a nice stack, but you’ll need a roadie to move it.
For sure
I got it from my tailgate to just in the front door by essentially hugging it
And then just slid it across the carpet to where it is now
It's a bit heavier than the Max 250; I'll try & scale it tomorrow
(wait, it's tomorrow already, isn't it?
)Other than being dirty, it's actually in pretty good cosmetic shape.
As far as a stack....the cab is 4 ohm - the Max only takes 8 ohm
But I may have a solution brewing, so....work-in-progress

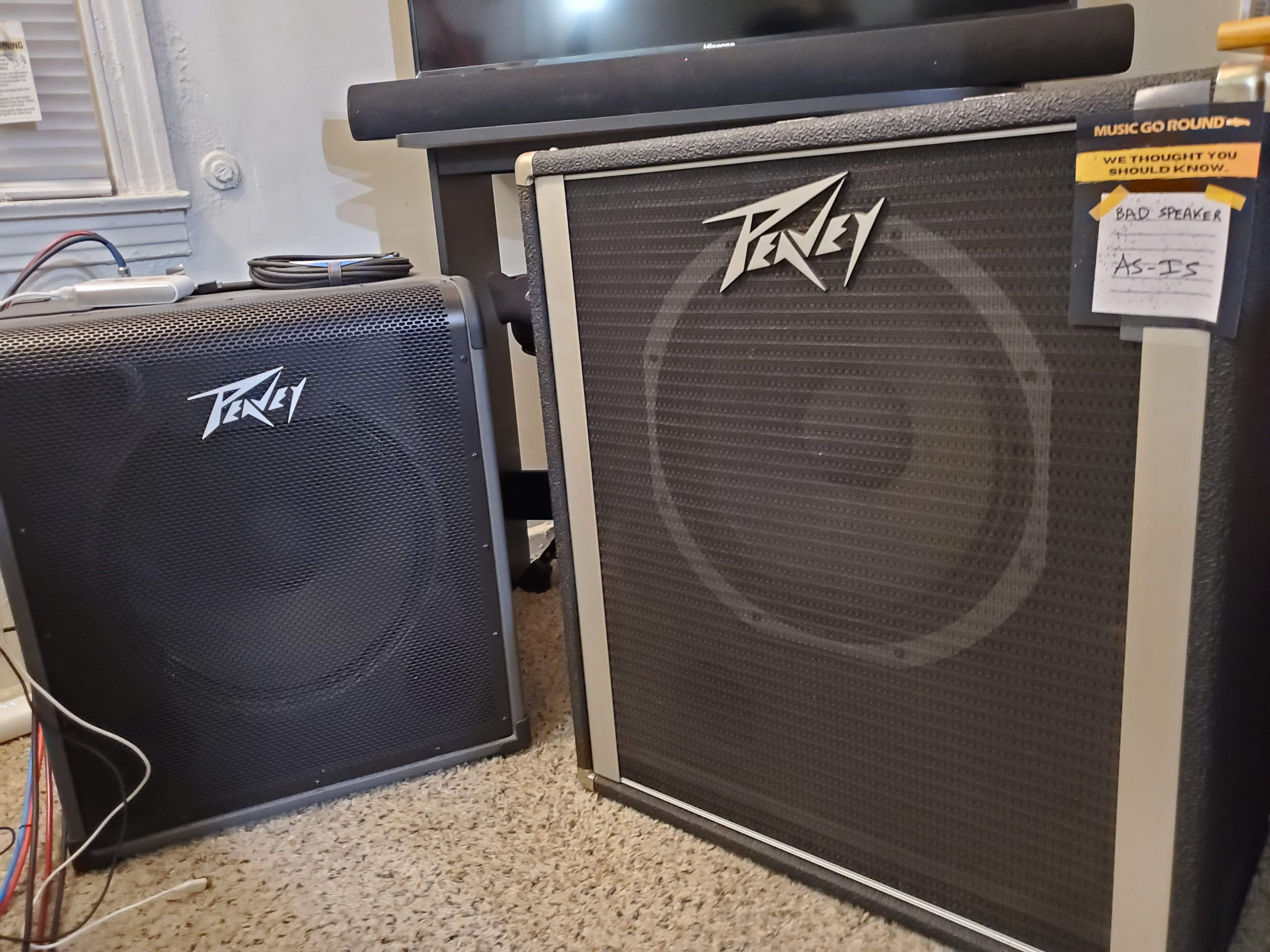

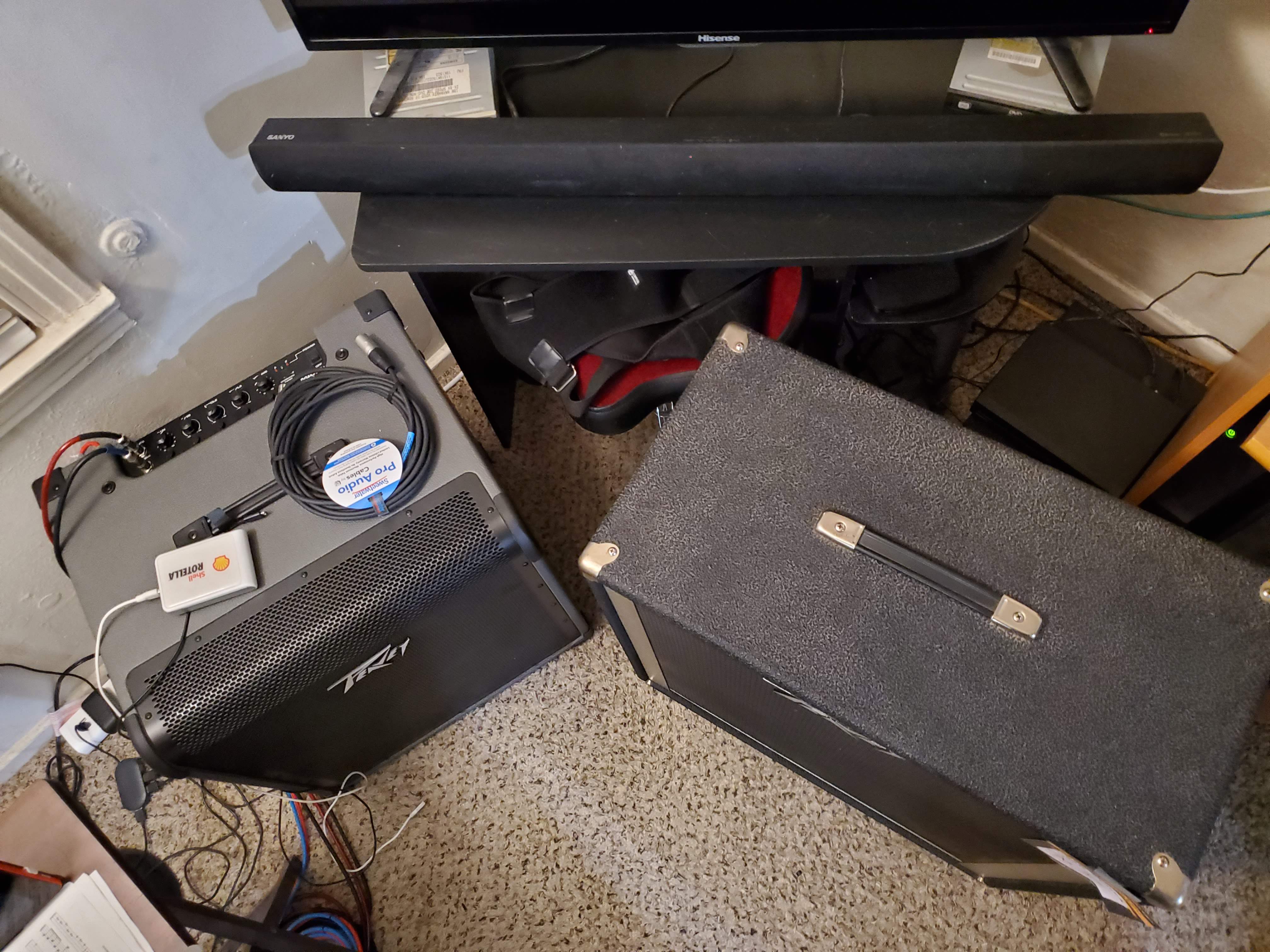

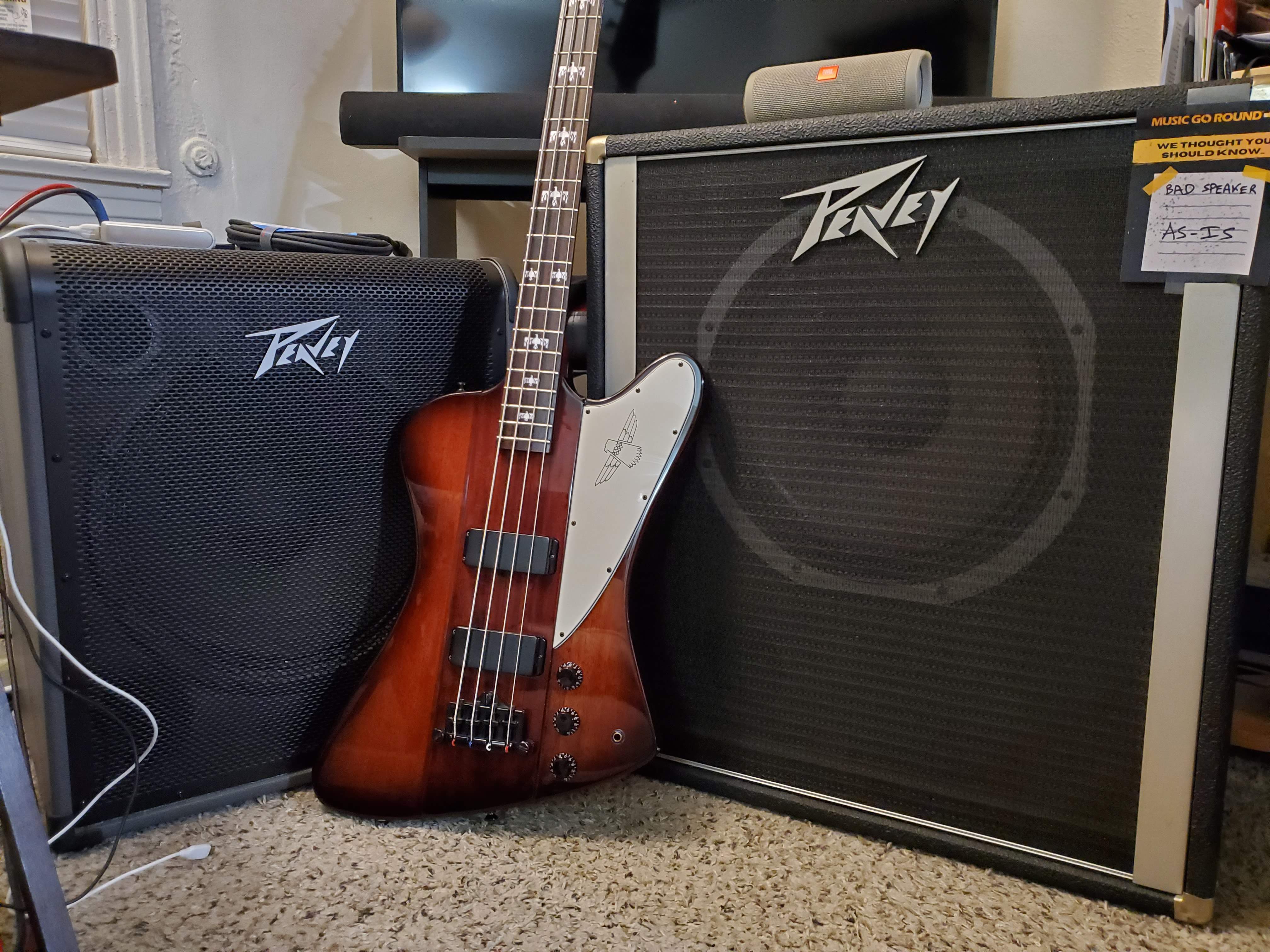

Decided to do a "known quantity for size reference" pic, in case anybody had interest in such a thing.
Unfortunately, I've no cans of Mtn. Dew or similar, so I picked something else familiar
Unfortunately, I've no cans of Mtn. Dew or similar, so I picked something else familiar
Last edited:

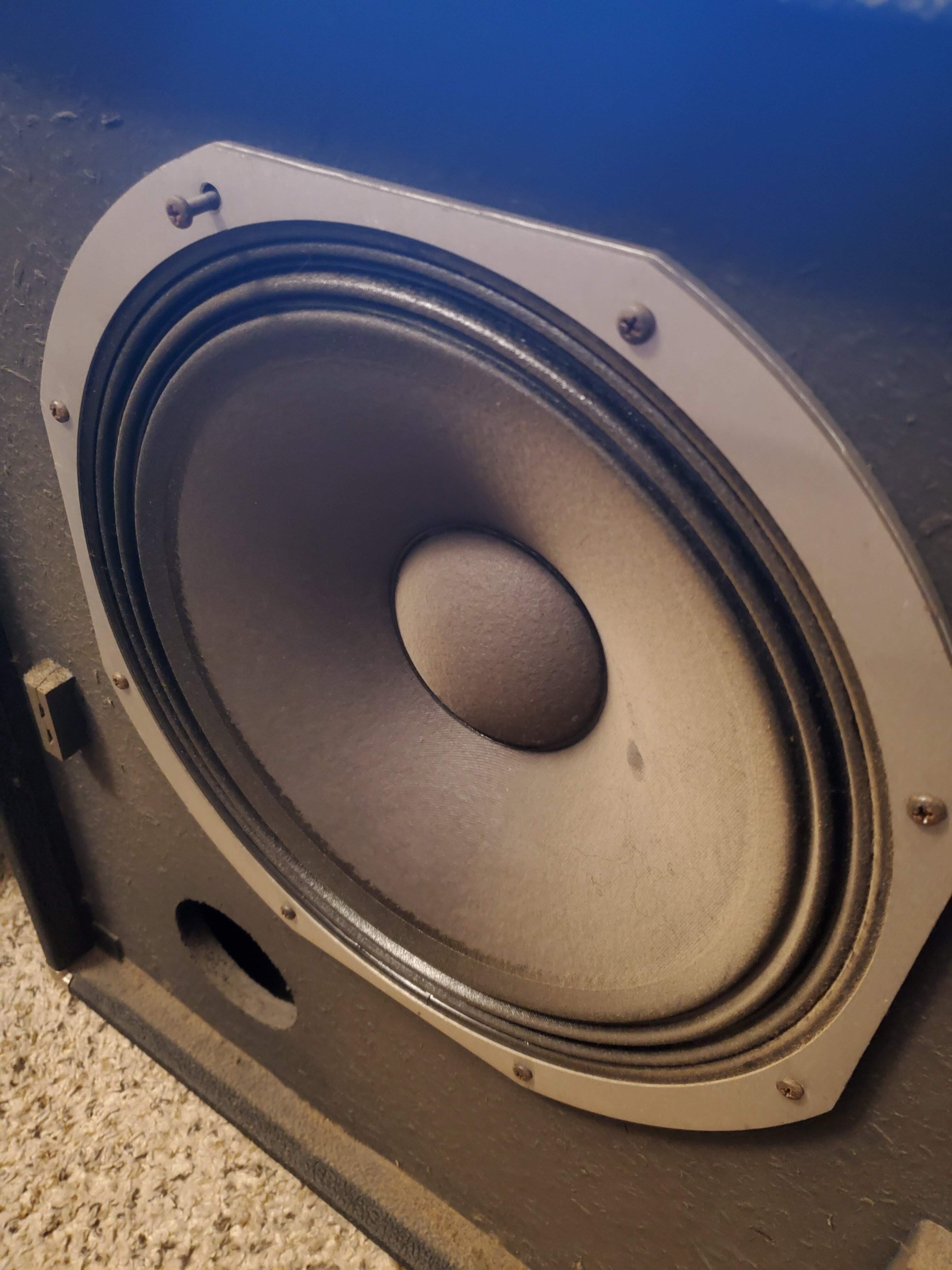

Apparently, this speaker & I have something in common!
....a screw loose

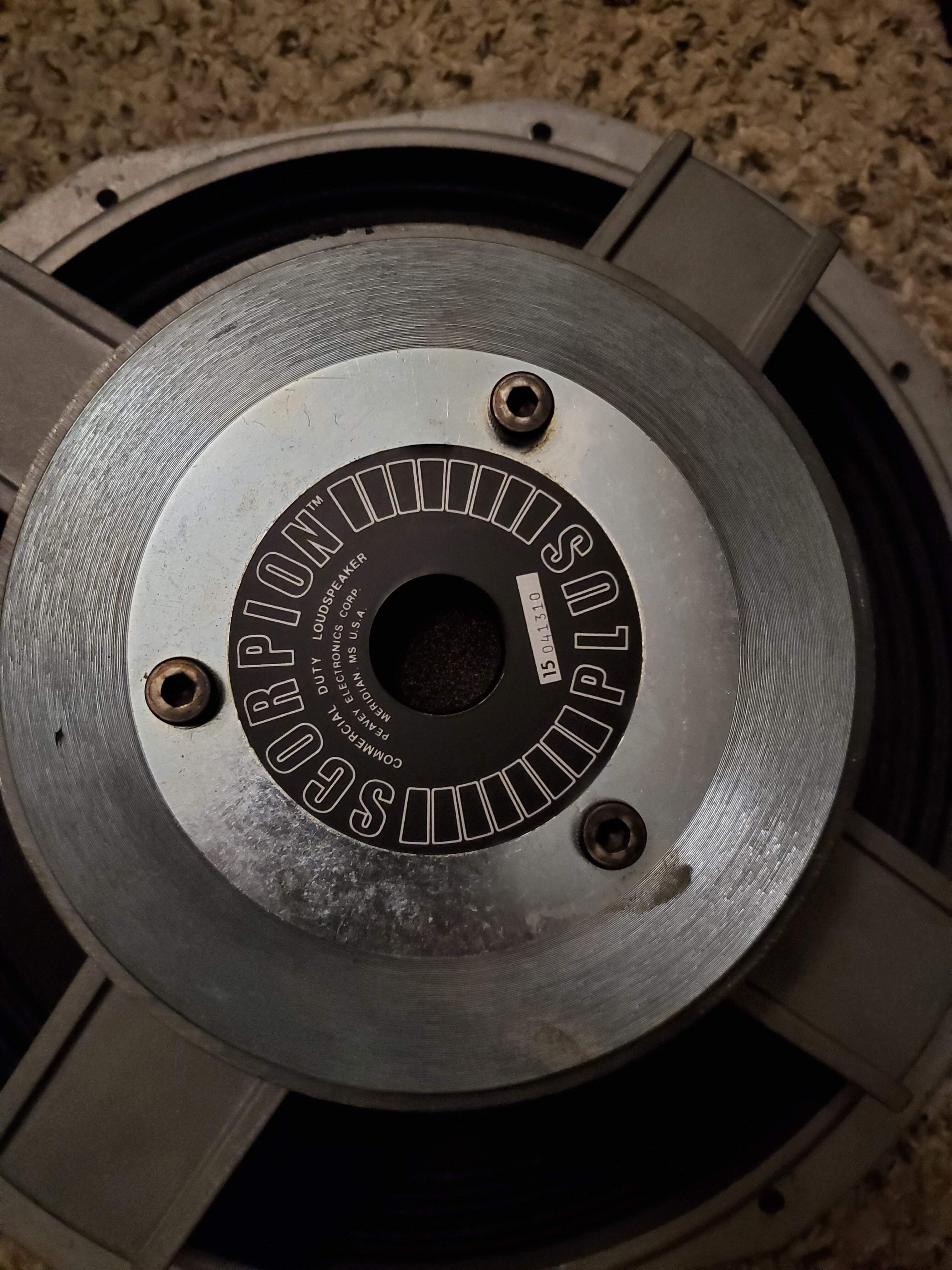

NOT a Black Widow....

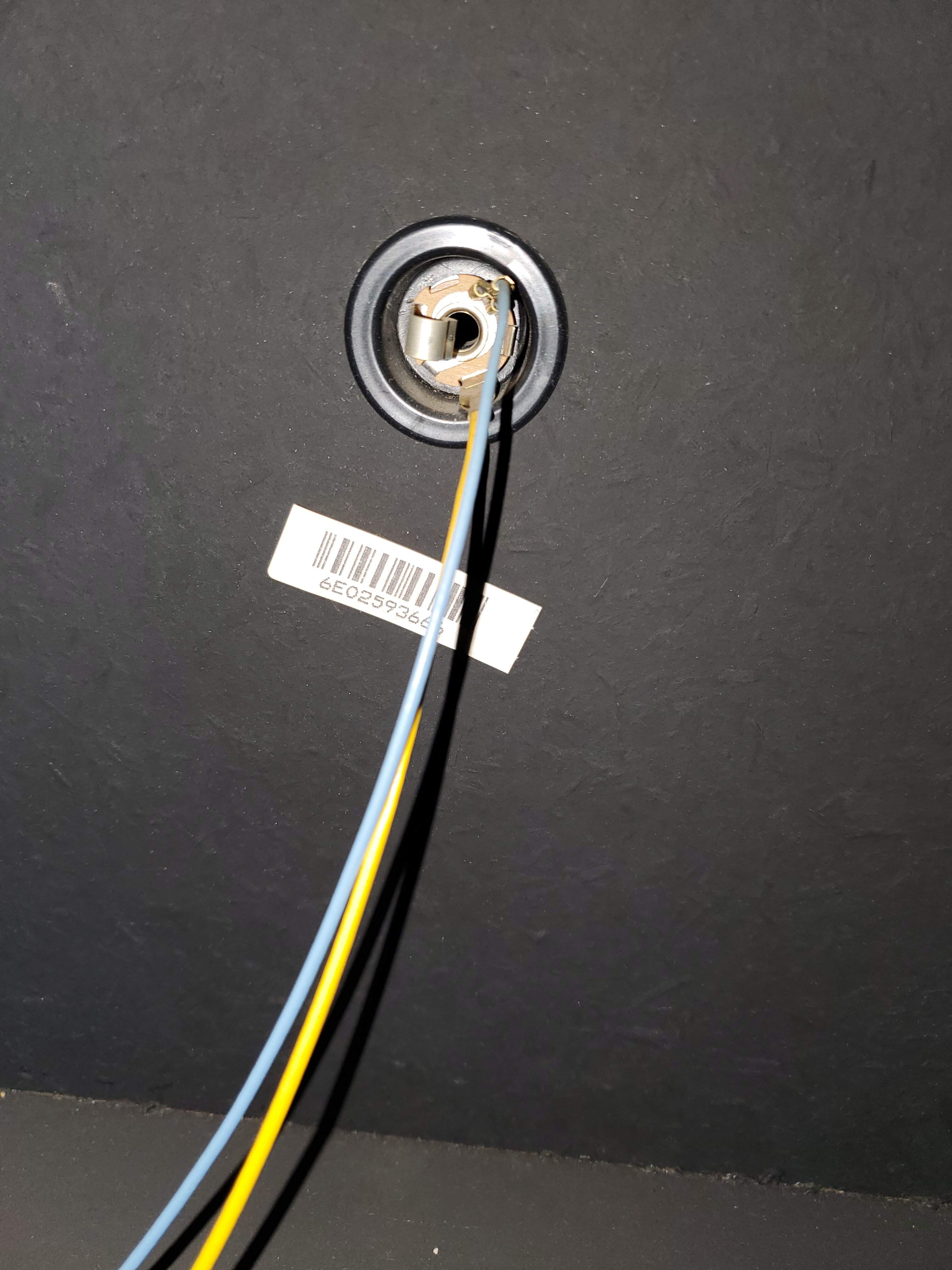

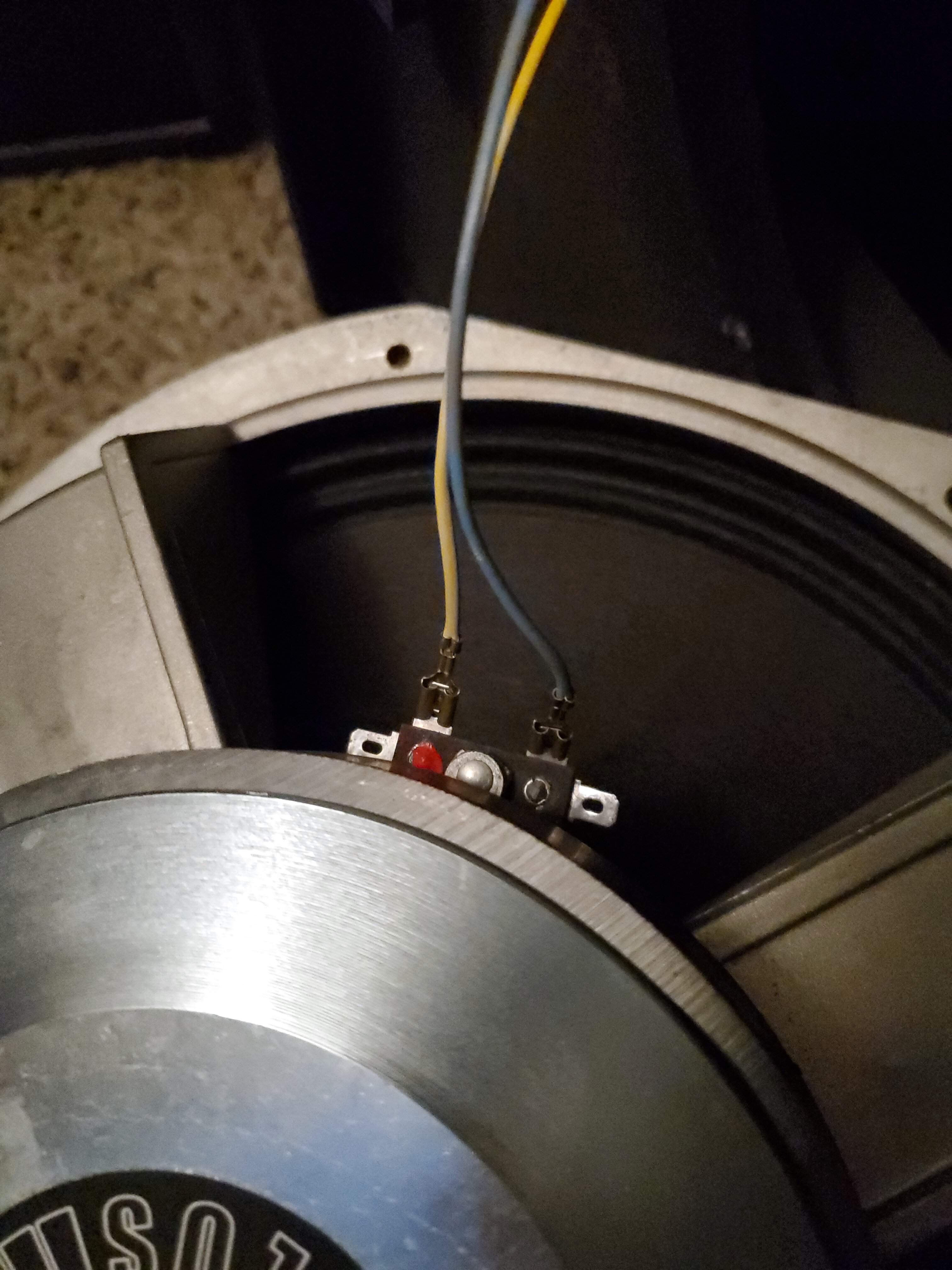

Checked the super complicated wiring setup, seems to look like it's probably okay?

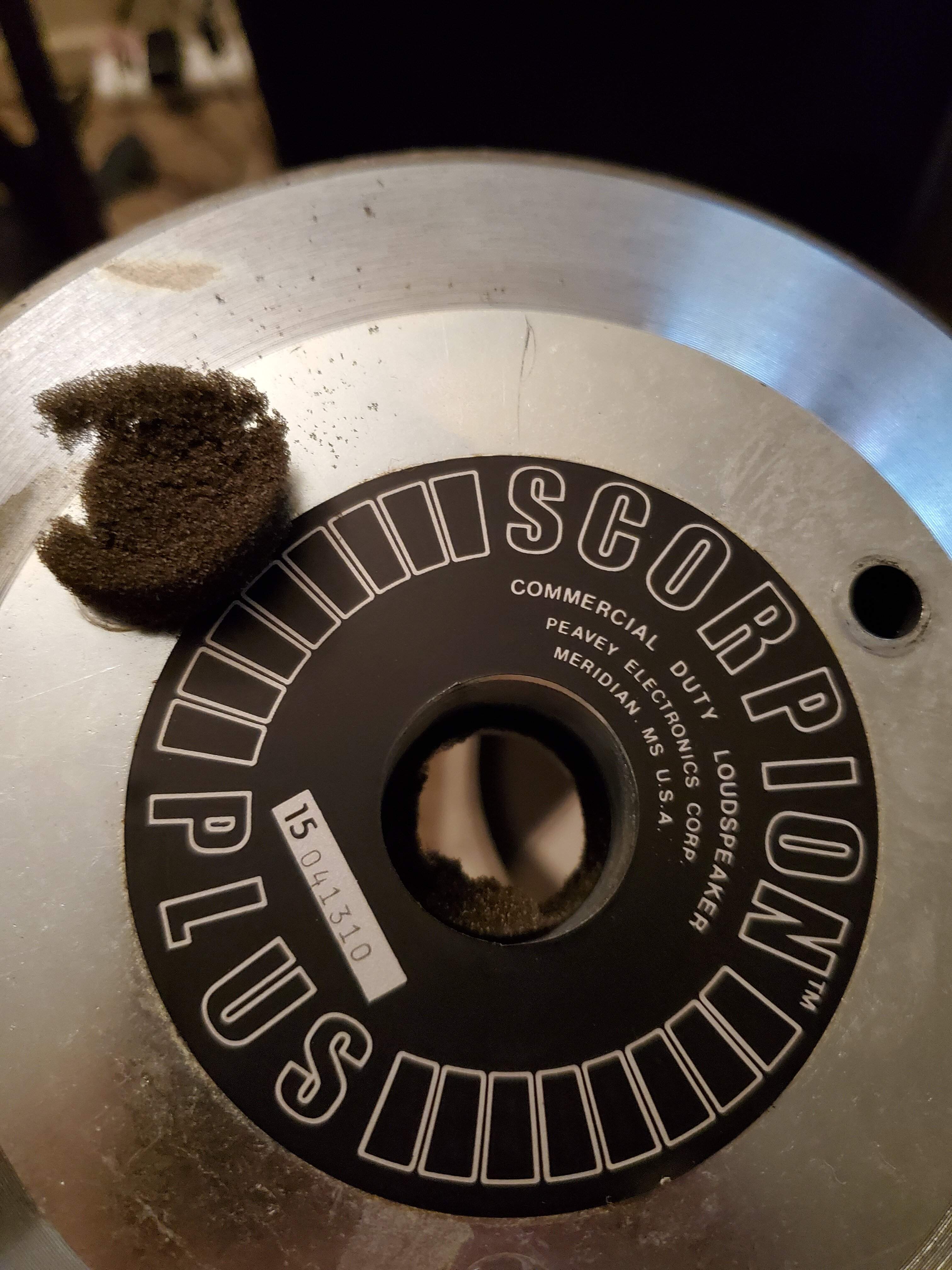

But, bad foam is, apparently, bad
Is there any way to replace that?
The level of interest my cats have in speaker cabinet dismantling:
....a screw loose
NOT a Black Widow....
Checked the super complicated wiring setup, seems to look like it's probably okay?
But, bad foam is, apparently, bad
Is there any way to replace that?
The level of interest my cats have in speaker cabinet dismantling:
did you measure the coil R?Apparently, this speaker & I have something in common!
View attachment 4463325
....a screw loose
NOT a Black Widow....
View attachment 4463326
Checked the super complicated wiring setup, seems to look like it's probably okay?
View attachment 4463327
View attachment 4463328
But, bad foam is, apparently, bad
View attachment 4463329
Is there any way to replace that?
The level of interest my cats have in speaker cabinet dismantling:
View attachment 4463330

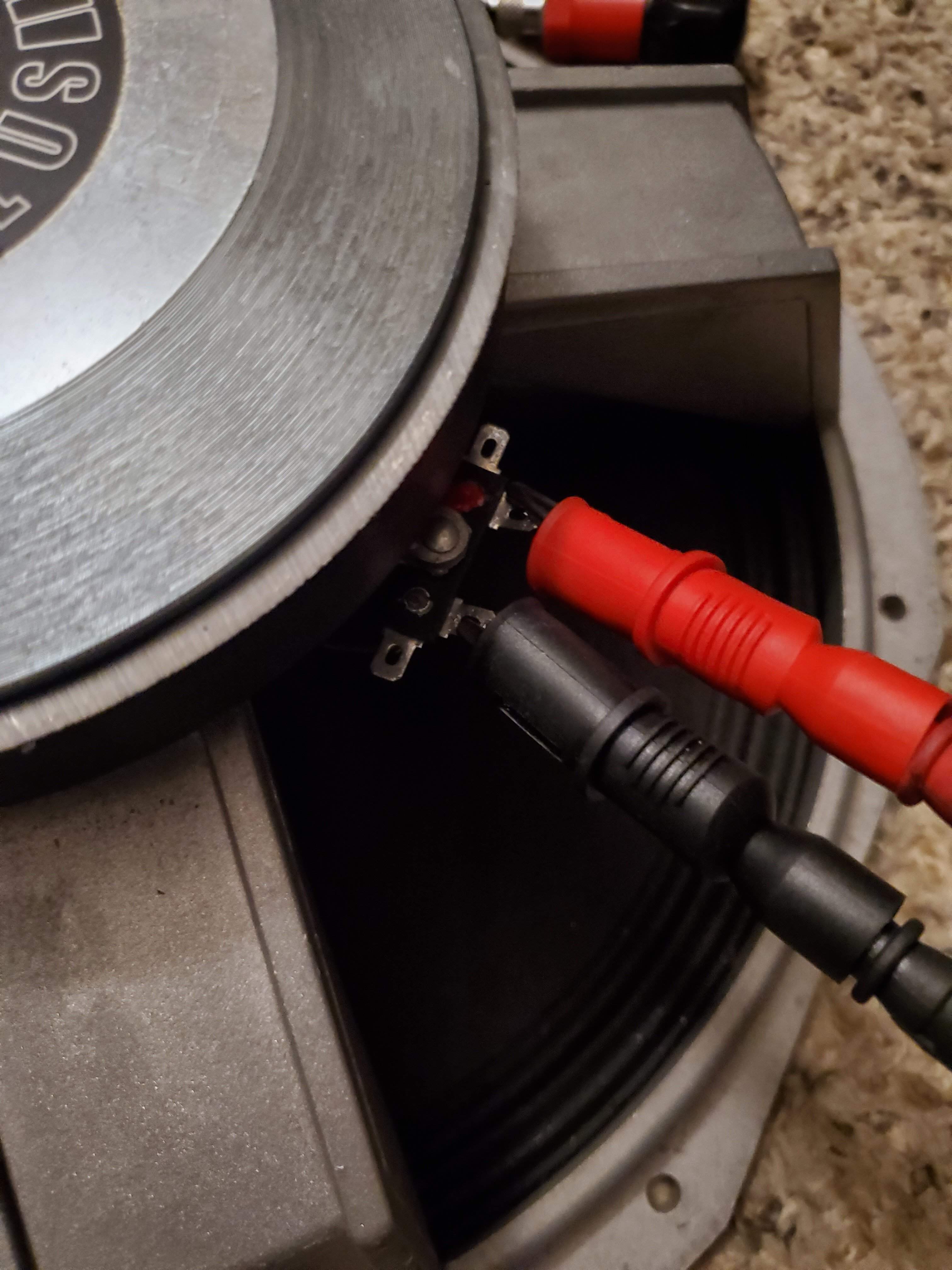

just use an ohmmeter in a lower setting (200 Ohm or less)….if good should read slightly under the published value..No....but if you can tell me how, I'll see if I can
I asked Google too, and realized it was pretty straightforward

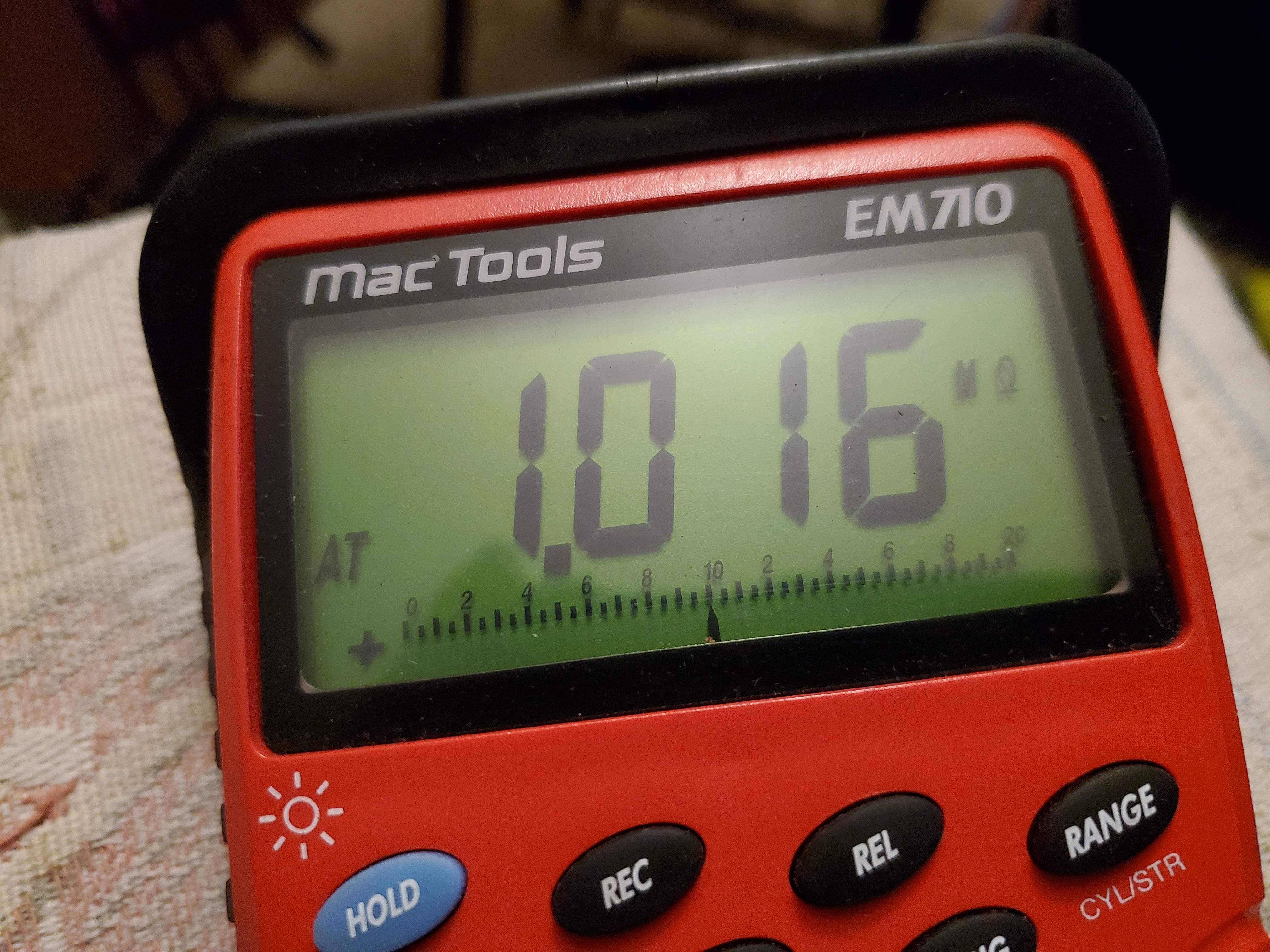

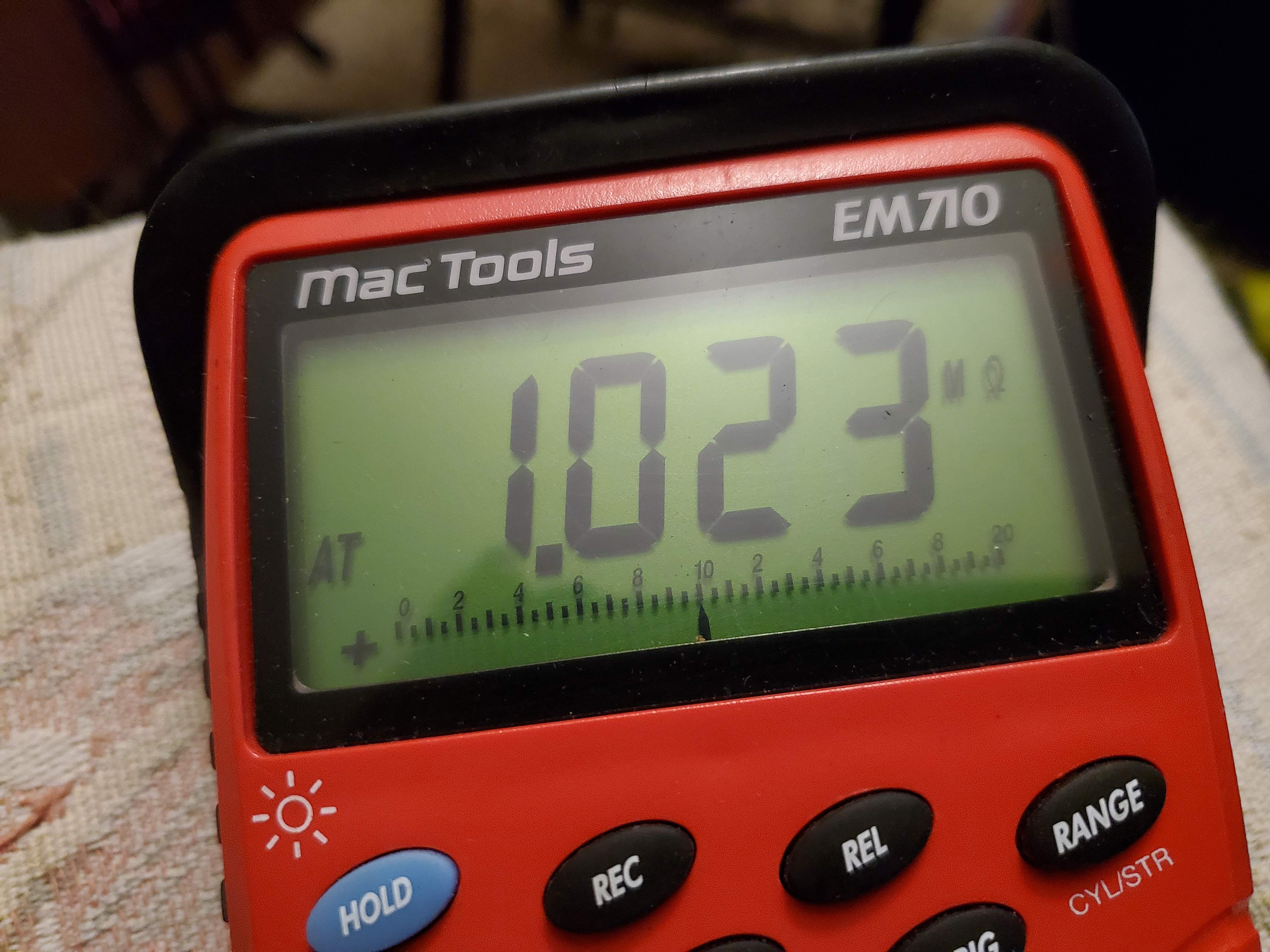

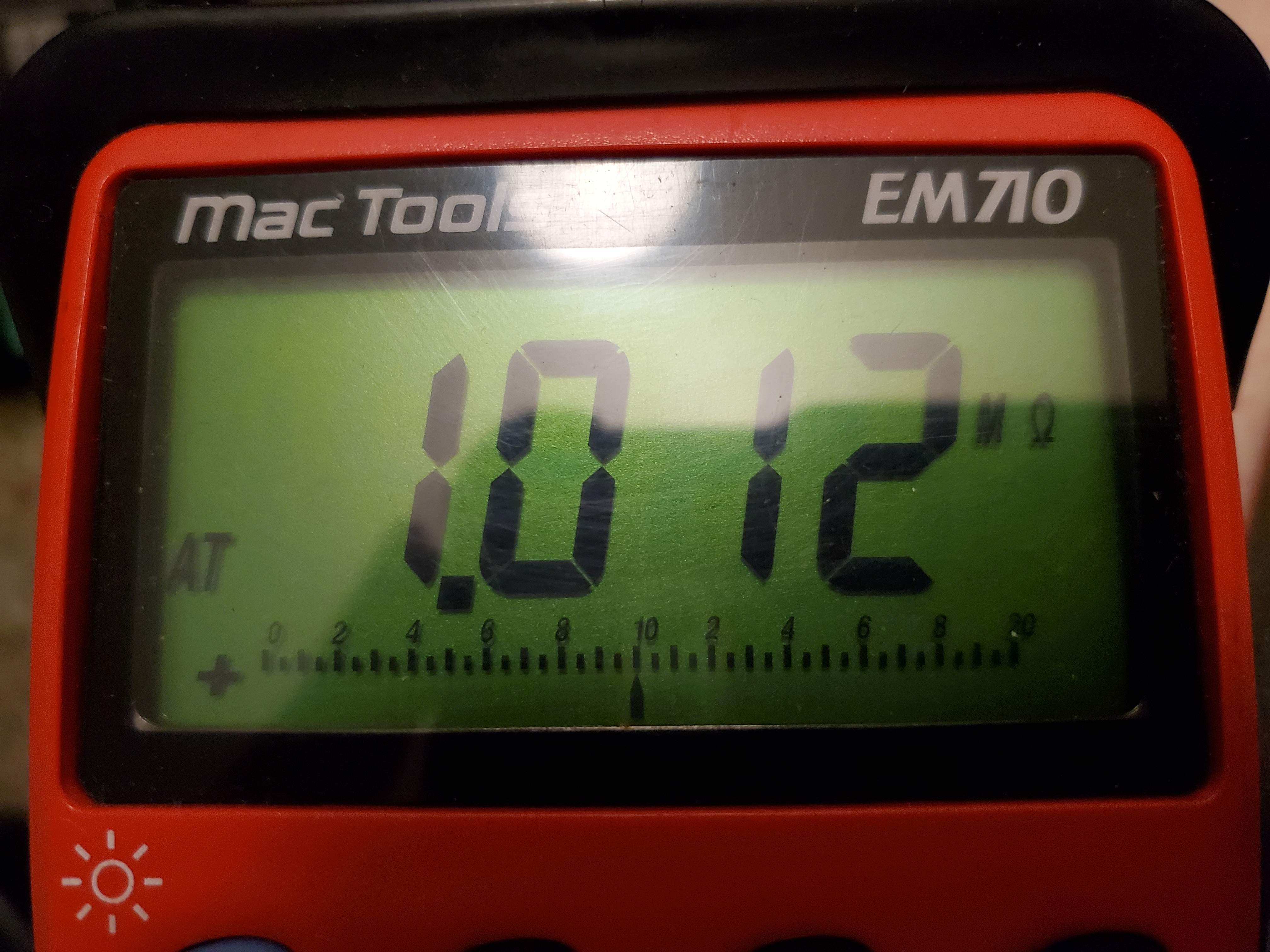

This is what it reads (which doesn't seem to be as it should.....)
This is what it reads (which doesn't seem to be as it should.....)
1 meg? would seem to indicate an open coil…….something ain’t right…..exactly 1 Meg? hmmm….highly unlikely..I asked Google too, and realized it was pretty straightforward
This is what it reads (which doesn't seem to be as it should.....)
View attachment 4463331
It was fluctuating a bit under & over

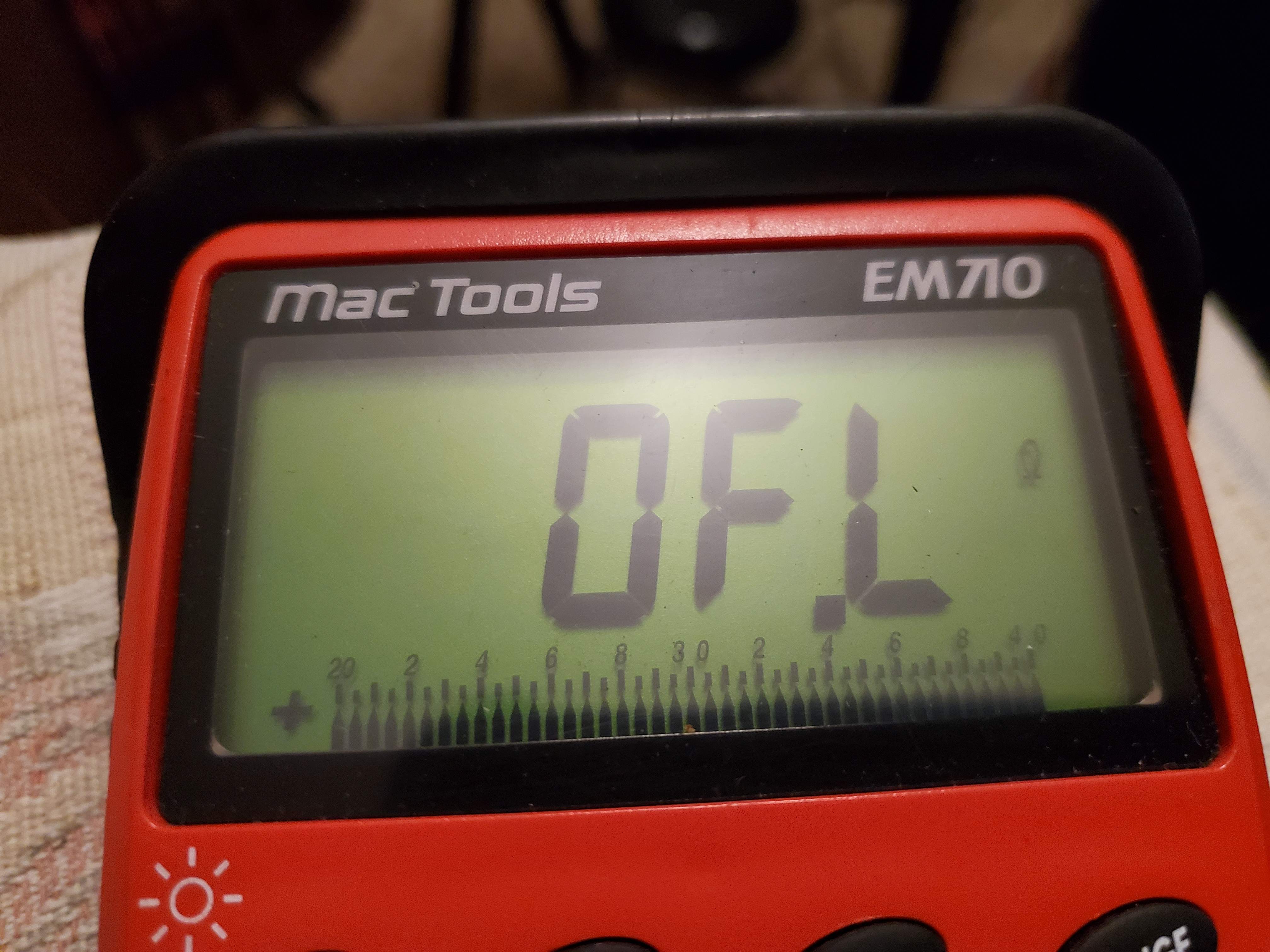

If I manually set it to anything other than M ohms (or auto), I get this:
yeah, that other setting confirms it…you got an open…..if it’s 4 Ohms and working it would read anywhere between 3 and 3.8 Ohms…sorry..
Well, it was advertised as a bad speaker
I guess the next thing to decide is: replace with the same, or different? Putting in an 8 ohm speaker would make it much more useful.....
i was gonna suggest….pretty sure you can get that one repaired, pretty sure the kits are still available…..sometimes you can see the break within the frame before it disappears into the coil…Well, it was advertised as a bad speaker
I guess the next thing to decide is: replace with the same, or different? Putting in an 8 ohm speaker would make it much more useful.....
It looks like recone kits & replacement baskets are both available. Looks like $100 or so total for recone kits (that I've found so far), counting the not included stuff needed, taxes, etc. $100+ for the basket.
Or a bit more for something new.
so many awesome, reasonably priced 8Ohm 15” drivers available these days…..just sayin’…It looks like recone kits & replacement baskets are both available. Looks like $100 or so total for recone kits (that I've found so far), counting the not included stuff needed, taxes, etc. $100+ for the basket.
Or a bit more for something new.
Yeah, that's what I was thinking. Not sure what the specs are for the Scorpion, to find a close-ish replacement - I guess I could check with Peavey.
This (pricey) neo Celestion that's less than 6lbs. would be pretty tempting if I could sell off some things.....
Celestion BN15-400X Green Label 15 inch 400-watt Replacement Neodymium Bass Speaker - 8 Ohm
this place never gets old….on my way to Pigalle where the music stores are….hopefully we can find an interesting Bird…
