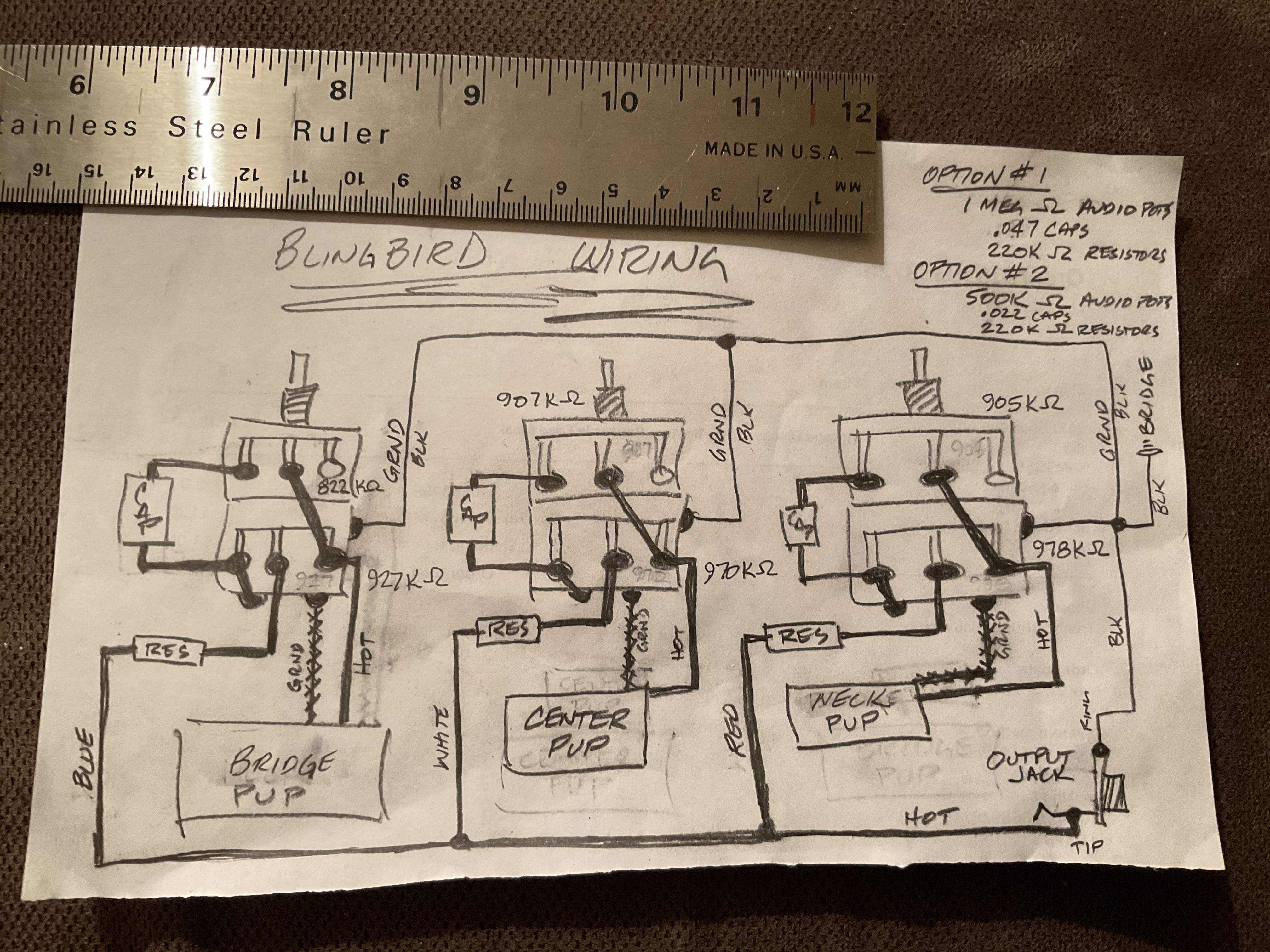

Here’s the BlingBird schematic I designed. Sorry about the rough sketch, it was just kinda scribbled down on paper as I thought through how to maximize tone options and minimize the number of knobs…
View attachment 4552917

After some research I arrived at the conclusion that Fender solved that issue in the early 1960’s. Basically one stacked volume/tone stack per pup, repeat as necessary for each pup. The problem with Fenders design is it was for single coil Jazz basses so it utilized a 250k tone pot, not a great solution for humbuckers.

I decided to try a 1Meg stacked pot at the neck position (Mudbucker location on this bass) to pass a nearly full signal and hopefully counteract the inherent muddyness of that pup location. The Fender stacked pot design also dictates a 250ohm resistor on the hot output of each stack to keep the different tone stacks from cross bleeding. So that knocks a bit of the top end off (which on a 1meg pot isn’t a problem, but might be on a 500 or 250k pot). Finally I decided to use a .047 cap as a starting point, I may keep that as is or switch to .022 for a bit brighter tone or .068 for a darker tone.

It’s still early but so far the only thing I’m not completely satisfied with is the brand of stacked pot selected. I went with Alpha pots because I couldn’t find a CTS or Bourn pot with the right combination of resistance/taper/thread length. Alpha pots have never been my first choice as I find them a bit flimsy compared to CTS and other pots and they are a very open body design that invites dirt and dust. If you find a non alpha stacked pot that is 1meg ohm, audio taper on the vol half and linear taper on the tone half, and has enough thread length to work in a through body (vs control plate) design I’d be very very interested.
