U.S. Peavey Club

If your plan is to re-install Super Ferrites in this bass, don't do it. Especially if it's been routed. Either buy it because it has Bartolinis, or don't buy it all all. $325 is a good price, but trying to restore it makes the enterprise not worthwhile.

I have a TL-5 fretless with Bartolini Jazz pickups installed. In my opinion, it sounds a lot better than stock. The best sounding fretless I've ever played, as a matter of fact. But as Bassiklee said, even though it sounds spectacular, the value is lower than it would be if it had the stock SF pickups.

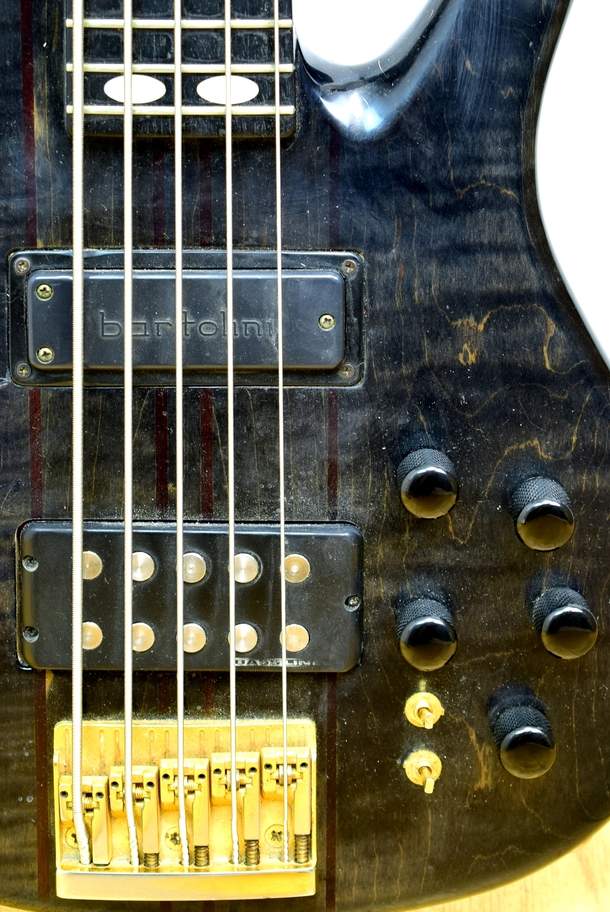

View attachment 3375494
To me your bass has to be a $350 to $500 bass.....it has to approach or rival some serious boutiques and a bass i would be hard pressed to pass up (yes i like fretless).

  • Like
Reactions: sharkwagon

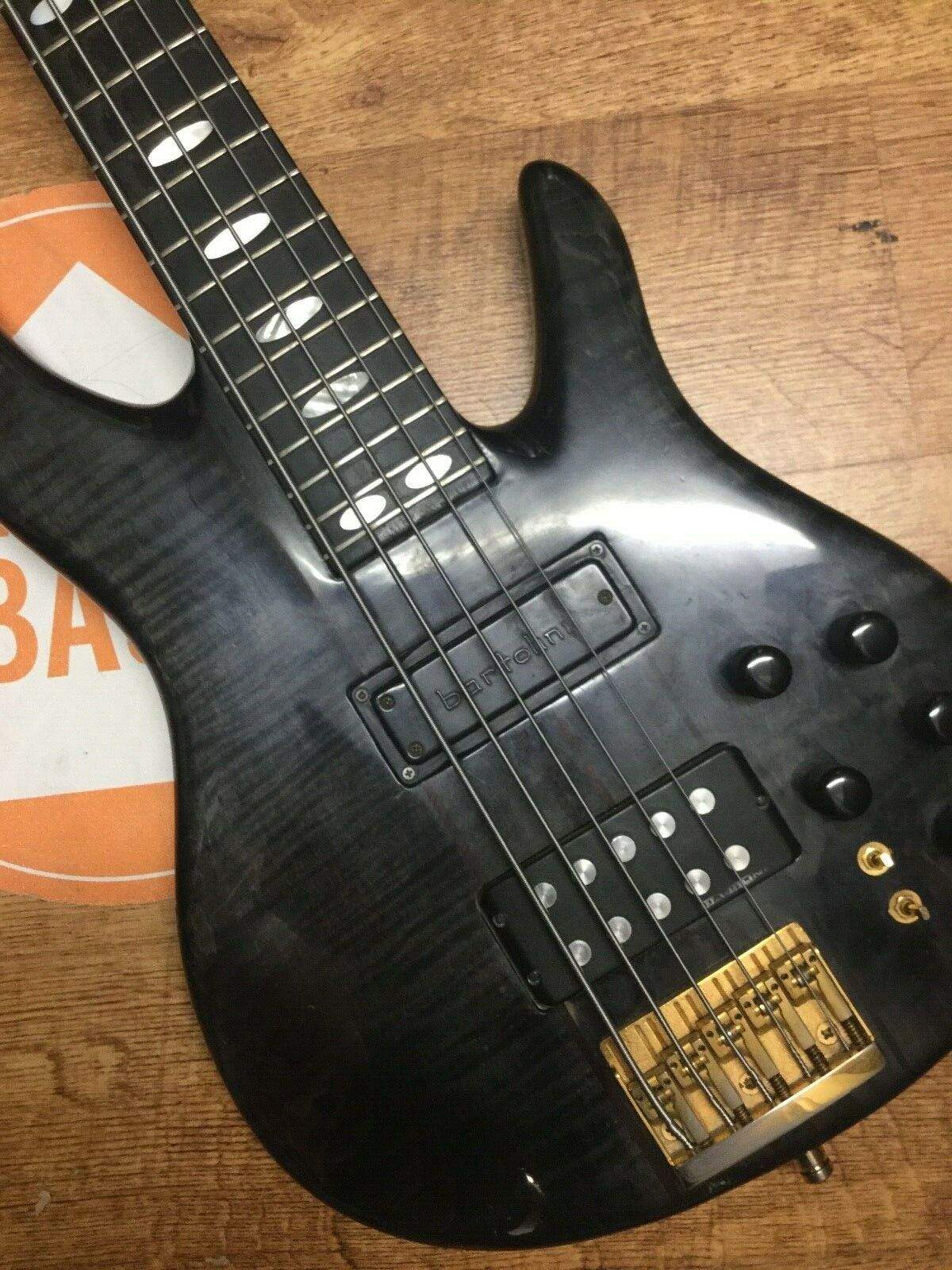

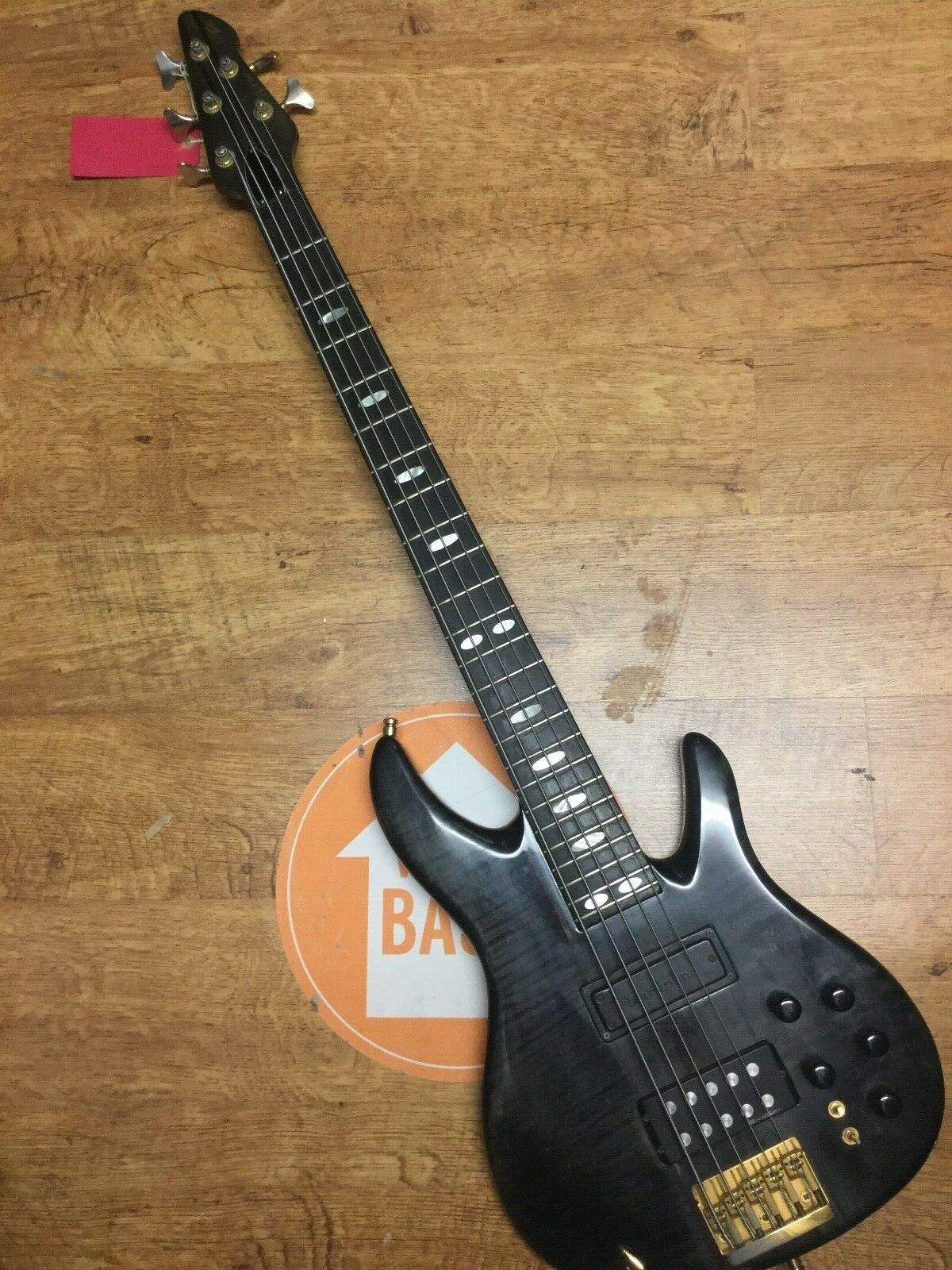

Seems like sticking Barts in TL-5's was quite common. Got word today on this,just up for sale in London.

s-l1600 (1).jpg

Couple of things I don't get. What happened to the neck pickup ring under B ? If you're going to stick a big MM humbucker in there wouldn't you pare a bit out so the poles lie under the strings ?
6711_medium.jpg s-l1600.jpg

$600 !! No thanks

  • Like
Reactions: DavidEdenAria
Seems like sticking Barts in TL-5's was quite common. Got word today on this,just up for sale in London.

View attachment 3380462

Couple of things I don't get. What happened to the neck pickup ring under B ? If you're going to stick a big MM humbucker in there wouldn't you pare a bit out so the poles lie under the strings ?
View attachment 3380464 View attachment 3380465

$600 !! No thanks
$600 no.....Sitting in a pawn unsold for months (not likely in my area these are rare even though im in Peavey country) i would love to give it a whirl and make an offer if it were a truly great bass overall..$300 tops which would be a steal if it does play and sound very good.

I would probably route the bridge PU slot a slight bit to get the alignment better....ive used black foam to fill in on humbucker routes on P-90 guitars (if they are clean routes) and used a slightly bigger import P-90 cover which could be done here as well....but yeah that PU alignment bugs the crap out of me!

That alignment is pretty bad, it would bug me, too.
It looks bad but in this case I think it'll play bad too.
I had a similar experience last year with a 51 style P-bass,playing on E pulled the string out of the magnet's range.
It was great for pick down strokes :D

Simple solution here is ditch the Duncan for a blade humbucker. Extra cost on an already over-priced bass :(

Well well well... I’ve been wrestling with what to do with the TL-5. I heard a little noise when I tried it out before buying, that the seller says was the battery dying. I’m not sure that’s the cause. I’m fresh out of 9 volts, and I could barely get any sound out of the bass earlier. Did the tongue test and the battery feels to have around half it’s strength still.

I started pondering... what preamps do I have laying around? Then I remembered having an EMG BTC, volume pots, blend pot, passive tone, and a few extra EMG parts, all solderless. I dug out my 4 string EMG Jazz set that I had in a bass that I sold a while back. Turns out that the EMG J pickup shape (the protrusions for the screws) match up with the routes that are already in the TL-5. And the magnet length works for the TL-5’s narrower string spacing.

I’m going to install these EMG pups n parts, and orient the pickups as far apart as I can, like my red Lakland Scheff. I don’t want a J bass sound. I’d rather have one pickup very close to the bridge, and the other as close to the neck as possible. It’s all solderless. So, it will be a no cost, quick and easy experiment. I still have a set of SFs, if I don’t like the results.

Well well well... I’ve been wrestling with what to do with the TL-5. I heard a little noise when I tried it out before buying, that the seller says was the battery dying. I’m not sure that’s the cause. I’m fresh out of 9 volts, and I could barely get any sound out of the bass earlier. Did the tongue test and the battery feels to have around half it’s strength still.

I started pondering... what preamps do I have laying around? Then I remembered having an EMG BTC, volume pots, blend pot, passive tone, and a few extra EMG parts, all solderless. I dug out my 4 string EMG Jazz set that I had in a bass that I sold a while back. Turns out that the EMG J pickup shape (the protrusions for the screws) match up with the routes that are already in the TL-5. And the magnet length works for the TL-5’s narrower string spacing.

I’m going to install these EMG pups n parts, and orient the pickups as far apart as I can, like my red Lakland Scheff. I don’t want a J bass sound. I’d rather have one pickup very close to the bridge, and the other as close to the neck as possible. It’s all solderless. So, it will be a no cost, quick and easy experiment. I still have a set of SFs, if I don’t like the results.
I would try a new battery first just to make sure.

  • Like
Reactions: Chuck M
I would try a new battery first just to make sure.
I did... no luck. No worries, I stayed up after work and installed the EMG J pickups, the BTC (Volume, p’up pan, & stacked bass/treble boost/cut) plus the tone control the the seller sent with. Thanks Nino Valenti! Everything seems to be working, although I tested without re-installing the strings. I still have several things to do before I’m done. I’ll post pics when I’m finished.

After some measuring, I realized that the bridge p’up needed to be as far forward as possible to ensure that the 3.1” magnet would sense the B and G properly (per EMG’s instructions). I also would need a 3/8” (threaded section) input jack to be able to use the extra hole on the front of the body. I prefer my jacks on the front, if possible. So, I’ll be soldering to the stock jack, and will have a hole to contend with... I’ll figure a way to cover it aesthetically.

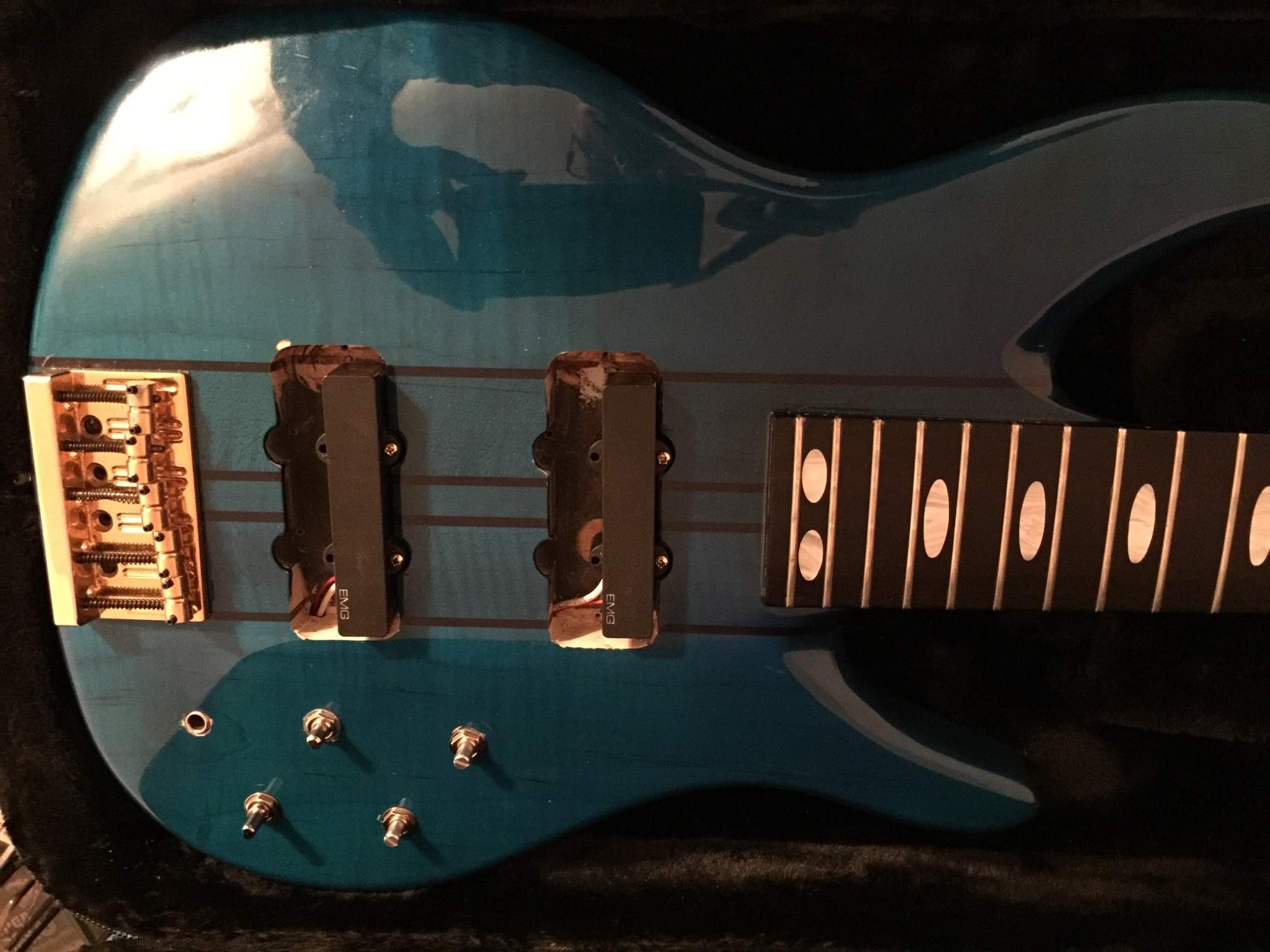

So, this is where the 4 string J bass set will be mounted. I’ve already started tracing out some wood pieces to cover the two “canyons” left behind by the dummy that routed for the MK-1s. I’ll paint them black. Should look good enough. I’m trying hard to resist buying a set of EMG soapbars that would fill the routes up nicely. I’d have almost as much in the pickups as I paid for the bass! I guess I’ll just have to wait and see how these J pups and EMG BTC sound.

  • Like
Reactions: MCF and BamaBird
View attachment 3383478 After some measuring, I realized that the bridge p’up needed to be as far forward as possible to ensure that the 3.1” magnet would sense the B and G properly (per EMG’s instructions). I also would need a 3/8” (threaded section) input jack to be able to use the extra hole on the front of the body. I prefer my jacks on the front, if possible. So, I’ll be soldering to the stock jack, and will have a hole to contend with... I’ll figure a way to cover it aesthetically.

So, this is where the 4 string J bass set will be mounted. I’ve already started tracing out some wood pieces to cover the two “canyons” left behind by the dummy that routed for the MK-1s. I’ll paint them black. Should look good enough. I’m trying hard to resist buying a set of EMG soapbars that would fill the routes up nicely. I’d have almost as much in the pickups as I paid for the bass! I guess I’ll just have to wait and see how these J pups and EMG BTC sound.
Looks like a fun project. I turned my 81 L2Ke into a test platform. I wasn't too concerned with the asthetics. You can imagine what a set of EMG VJs looked like mounted in those gigantic MFD wells. I tried all manners of preamps, EMGs, Barts.. settling on a U-Retro. I added a side jack to it.

  • Like
Reactions: JEDI BASS
