Winter Build off 2022 Wally Maple Nut

[Level5wizard]

Seeing how it's checking across the grain, it's nearly impossible to make it disappear visually (unless you paint).
I agree with getting some thin CA in there to form a bond. The sooner you get a finish on there and seal it up to stop moisture moving in and out (mostly out), the better.

Yes I had CA glue. I just did a light line on each, added a little walnut dust. Let it dry. And did that again.
It isn't to bad. You guys are awesome. Thank you!



[Level5wizard]

Now comes going around the basses end grain again and sanding to the grain curves. That won't take long....



[Level5wizard]

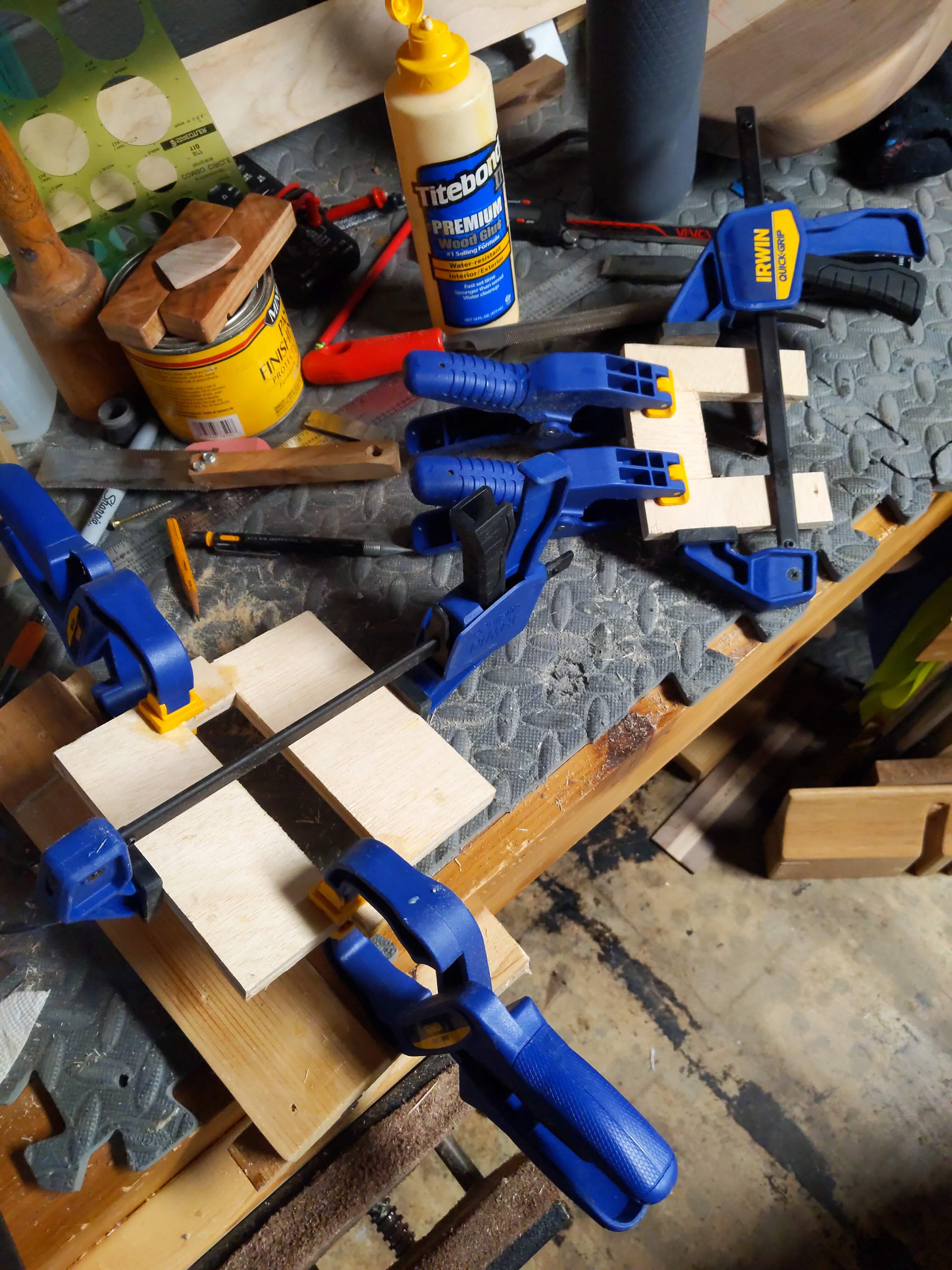

Made some Ted Woodford router jigs.



[Level5wizard]

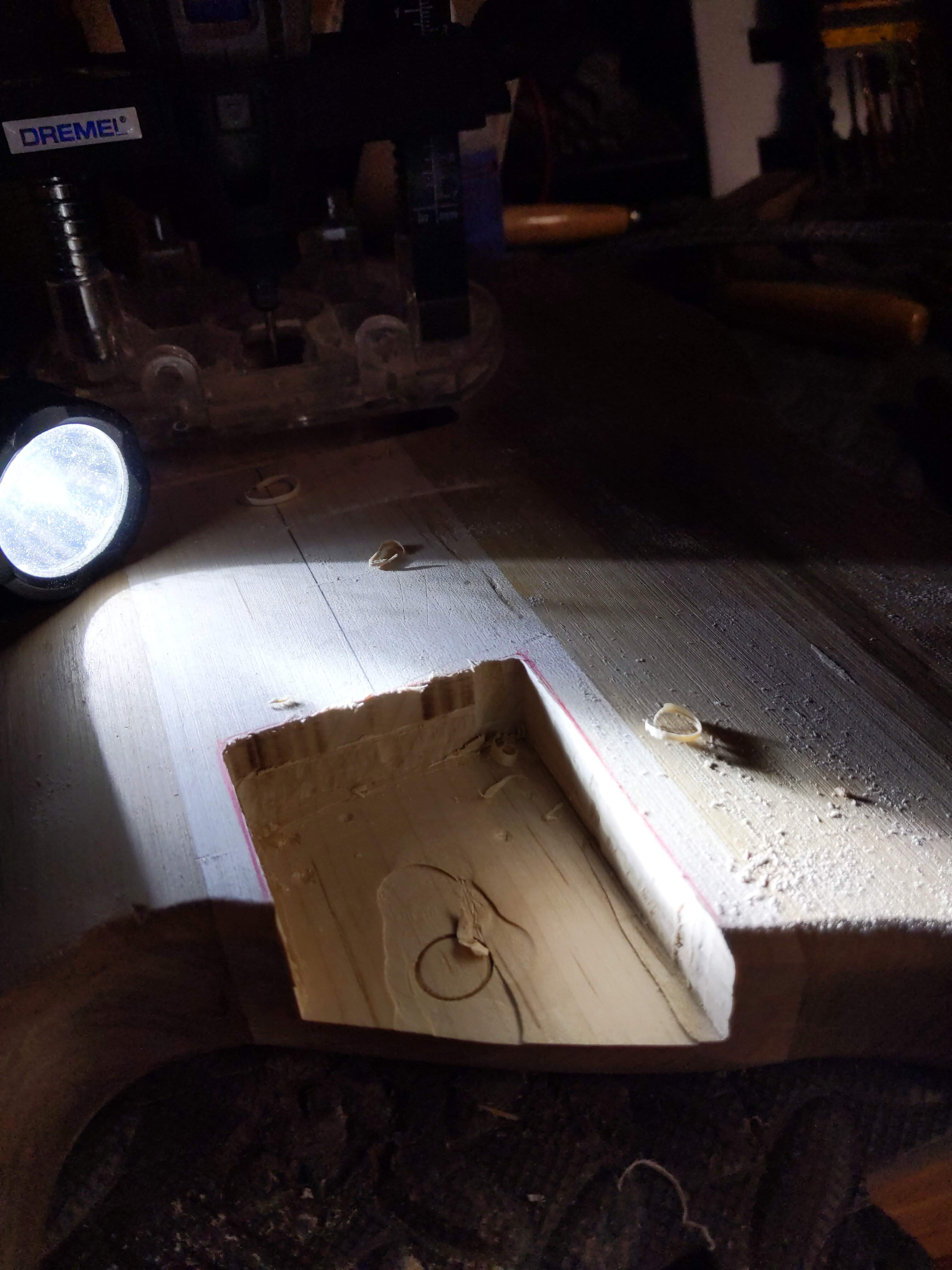

Started routing out cavities. This is nerve testing.



[Level5wizard]

Neck pocket is 98% needs a little love. Now on to the control cavity.
That wasn't fun.



[Flamingo21]

That wasn't fun.

Cheering you on, to make it more fun:



[Level5wizard]

Card scrapping.... Forever....



[Reedt2000]

Just remember, if it was easy, everyone would do it

It's looking good

Stay the course

Finish strong!



[Level5wizard]

I also did the hand rasp work for on the arm "ramp" and the belly curve.



[T_Bone_TL]

This is presumably close to the end of the harvested/air-dried original board? Certainly looks like standard end checking during drying, and if you don't have enough board length to cut that off you just have to deal with it (which you've already done.) Can be reduced (but usually not eliminated) by painting/waxing/(some folks dip in white glue, I guess?) the ends of the green boards before sticker and stacking, but if you don't act very fast tiny ones start before you get to that step.



[Level5wizard]

This is presumably close to the end of the harvested/air-dried original board? Certainly looks like standard end checking during drying, and if you don't have enough board length to cut that off you just have to deal with it (which you've already done.) Can be reduced (but usually not eliminated) by painting/waxing/(some folks dip in white glue, I guess?) the ends of the green boards before sticker and stacking, but if you don't act very fast tiny ones start before you get to that step.

I figured most of that. This also is one of the trees I took down and milled. I put some CA glue on them and moving forward.



[Level5wizard]

Final sanding almost done.
Getting ready for wipe on polyurethane.
I also finished the control cavity.



[Level5wizard]

8 light coats of wipe on polyurethane.
I'm going to let it sit before hand buffing with paste wax ( it is what I have)



[Level5wizard]

Here is a update. Sorry for the lack of posts. I had a freelance 3d job that took up some time away from the bass.

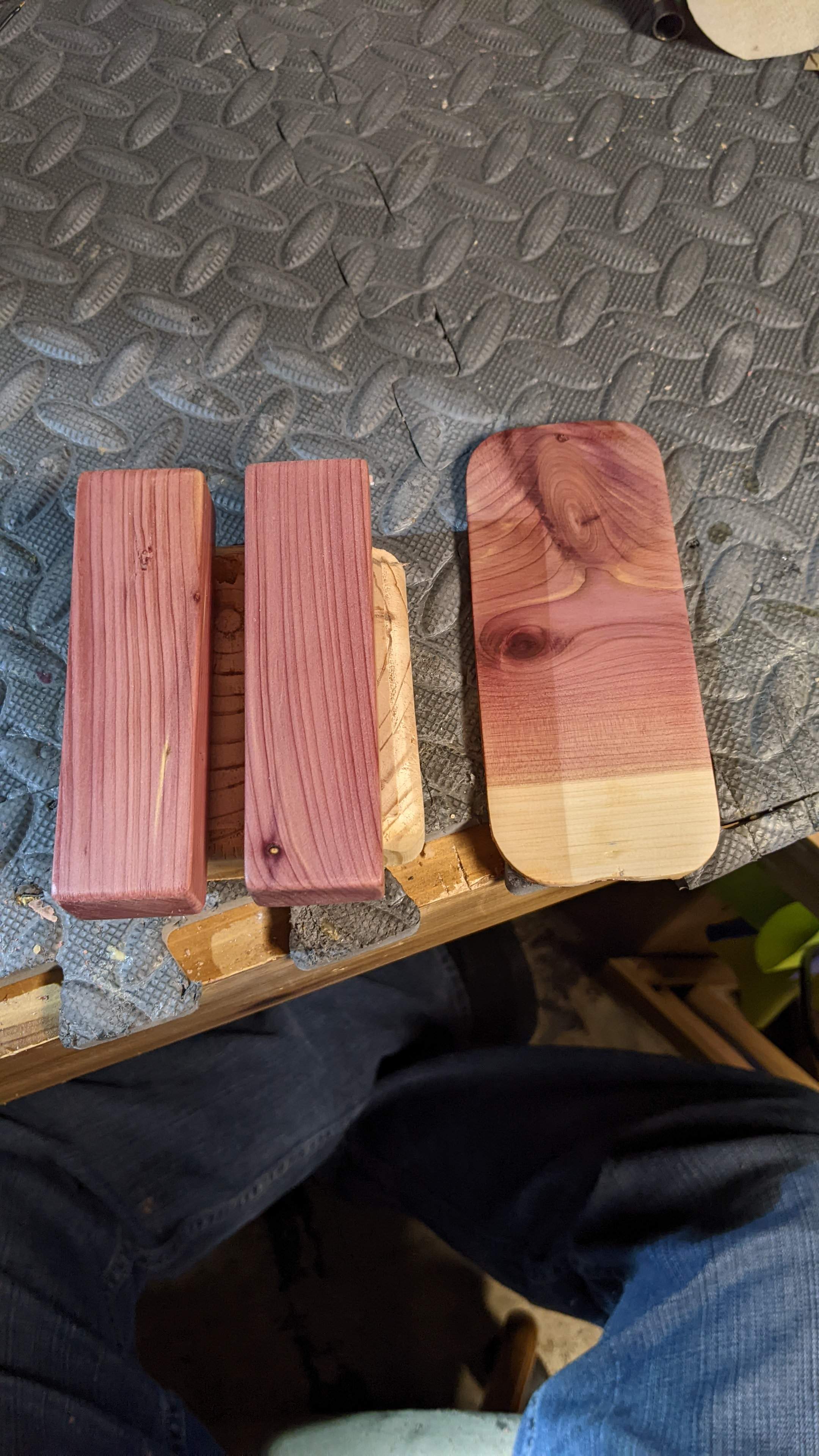

I did get a Jazz set of MEC stacked pickups out of a Warwick Thumb bass. So I made some new pickup cover out of this purple cedar I have more than enough of .



[Reedt2000]

Those pickup covers look awesome



[Level5wizard]

Control and pickup covers hand buffed. 3 light coats of Varathane



[Level5wizard]

Did some stuff.
Made some control nobs.
Working on the string nut.



[Level5wizard]

I got some work in on it today. The neck as been under tension for about a week held straight.
Today was the fiddly work on the Nut. I made my own out of curly maple. There's a shim under it at the moment. I'll be clean that up all tonight.



[Level5wizard]

Finished the nut and the truss rod cover.
Started the wiring.



[Level5wizard]

Ok I'm stumped.
I wired it up correctly. Nothing no sound. Active MEC jazz set. Do I need a preamp?
Frustration....
