Winter Buildoff 2022: Still A Diva
- Thread starter TerribleTim68
- Start date
They are one of the very few Delano dealers in the US.
Yes, I have purchased at least 2 Delano pickups from them.
You like em? I've never played a Delano, so this will be new for me.
Yes, they are very clean and accurate. I had the oval looking ones.
Still Wingin' It -
Well, in the spirit of keeping things moving, I gave my list a long stare and decided "Hey, you know what? Let's just glue these body wings on. What's the worst that could happen?" (insert shrug emoji here....seriously, why do we STILL not have a shrug emoji? )

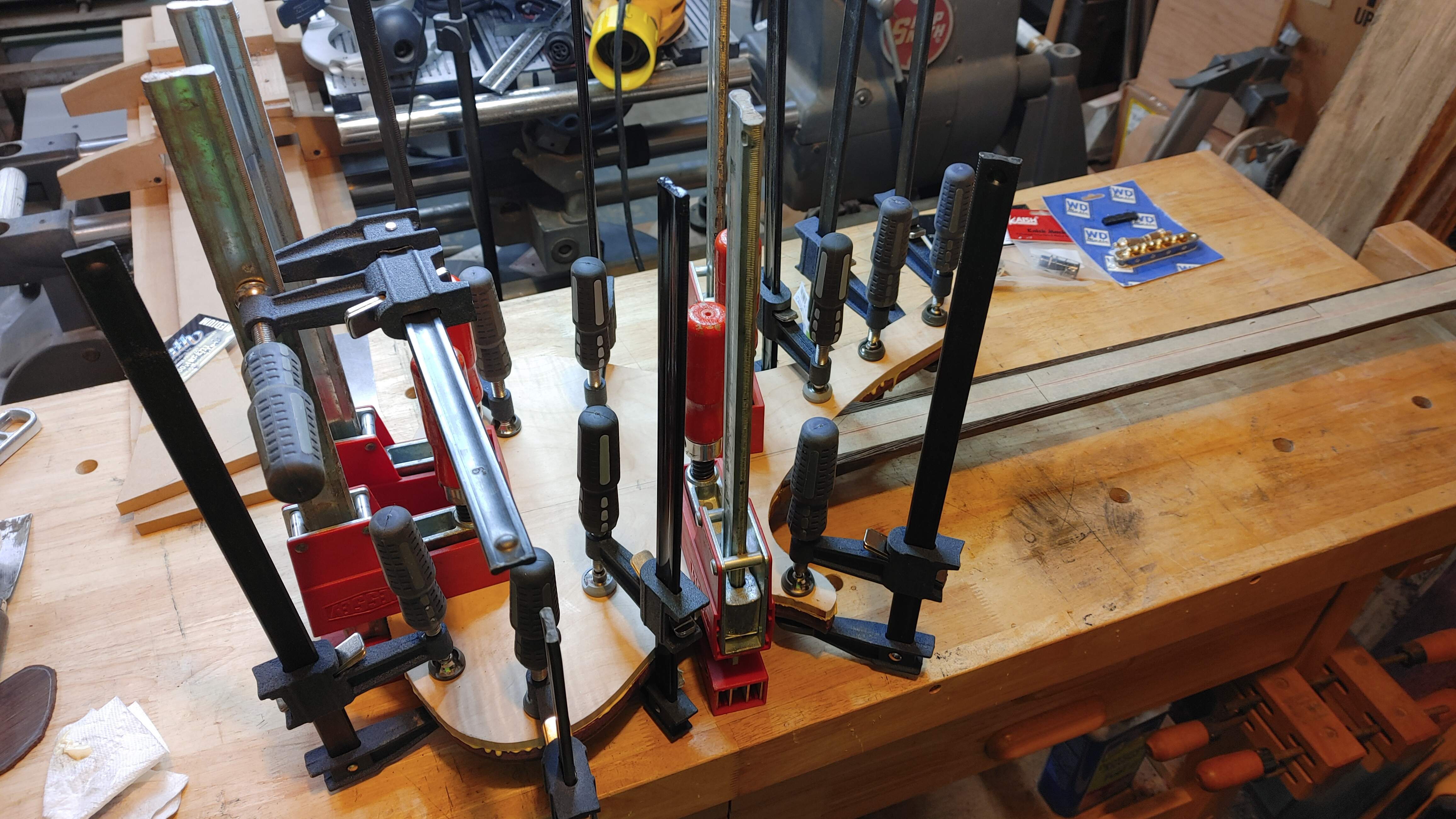

So yeah, body wings have been glued on. Clamp shot for posterity, I just stuck a bunch of clamps in random places all willy-nilly -
#ClampChamp
Yeah, so, the nice Bessey clamps aren't long enough. Honestly, neither were these, but they are the longest clamps I own. So using clamping cauls (namely the body blank offcuts) wasn't gonna happen because little Timmy doesn't own cool clamps. So we make due with what we have around here, and this is what you get. Hopefully it works, it looked to be sealed up good and had squeeze out all the way around the joints. Cross your fingers people, cross your fingers!
Cover Me -

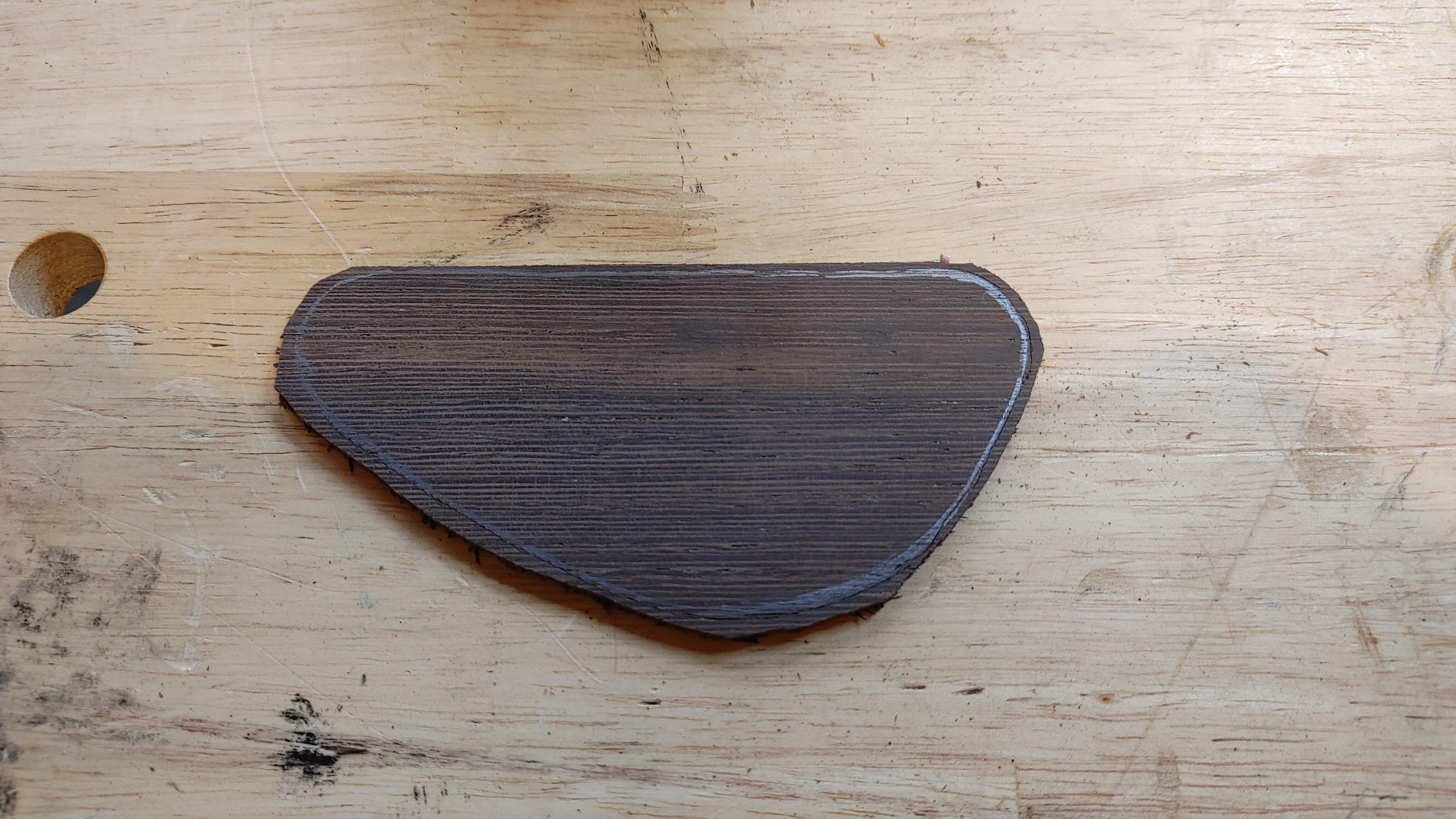

While I was at it, I went ahead and rough cut a control cavity cover -
I'll bring it down to final shape once the body is out of the clamps and I can actually fit it to the cavity. right now there's a giant clamp end in said cavity.
I may glue the top on tomorrow or something. We'll see. I probably have some flattening to do of that surface first.
But we're getting things done. We're taking baby steps. We're making headway. We're eating that elephant.
Oh, and I leave you with a random shot of the hardware, because we now have a jack and a pot -
If only I had them tuners.
Well, in the spirit of keeping things moving, I gave my list a long stare and decided "Hey, you know what? Let's just glue these body wings on. What's the worst that could happen?" (insert shrug emoji here....seriously, why do we STILL not have a shrug emoji? )
So yeah, body wings have been glued on. Clamp shot for posterity, I just stuck a bunch of clamps in random places all willy-nilly -
#ClampChamp
Yeah, so, the nice Bessey clamps aren't long enough. Honestly, neither were these, but they are the longest clamps I own. So using clamping cauls (namely the body blank offcuts) wasn't gonna happen because little Timmy doesn't own cool clamps. So we make due with what we have around here, and this is what you get. Hopefully it works, it looked to be sealed up good and had squeeze out all the way around the joints. Cross your fingers people, cross your fingers!
Cover Me -
While I was at it, I went ahead and rough cut a control cavity cover -
I'll bring it down to final shape once the body is out of the clamps and I can actually fit it to the cavity. right now there's a giant clamp end in said cavity.
I may glue the top on tomorrow or something. We'll see. I probably have some flattening to do of that surface first.
But we're getting things done. We're taking baby steps. We're making headway. We're eating that elephant.
Oh, and I leave you with a random shot of the hardware, because we now have a jack and a pot -
If only I had them tuners.
I should probably start a Glacial Progress Club for all us Weekenders. I obsess all week and then try to cram it all into the few free hours I have.
¯\_(ツ)_/¯Still Wingin' It -
Well, in the spirit of keeping things moving, I gave my list a long stare and decided "Hey, you know what? Let's just glue these body wings on. What's the worst that could happen?" (insert shrug emoji here....seriously, why do we STILL not have a shrug emoji? )
So yeah, body wings have been glued on. Clamp shot for posterity, I just stuck a bunch of clamps in random places all willy-nilly -
View attachment 4547424
#ClampChamp
Yeah, so, the nice Bessey clamps aren't long enough. Honestly, neither were these, but they are the longest clamps I own. So using clamping cauls (namely the body blank offcuts) wasn't gonna happen because little Timmy doesn't own cool clamps. So we make due with what we have around here, and this is what you get. Hopefully it works, it looked to be sealed up good and had squeeze out all the way around the joints. Cross your fingers people, cross your fingers!
Cover Me -
While I was at it, I went ahead and rough cut a control cavity cover -
View attachment 4547422
I'll bring it down to final shape once the body is out of the clamps and I can actually fit it to the cavity. right now there's a giant clamp end in said cavity.
I may glue the top on tomorrow or something. We'll see. I probably have some flattening to do of that surface first.
But we're getting things done. We're taking baby steps. We're making headway. We're eating that elephant.
Oh, and I leave you with a random shot of the hardware, because we now have a jack and a pot -
View attachment 4547423
If only I had them tuners.
Top This -

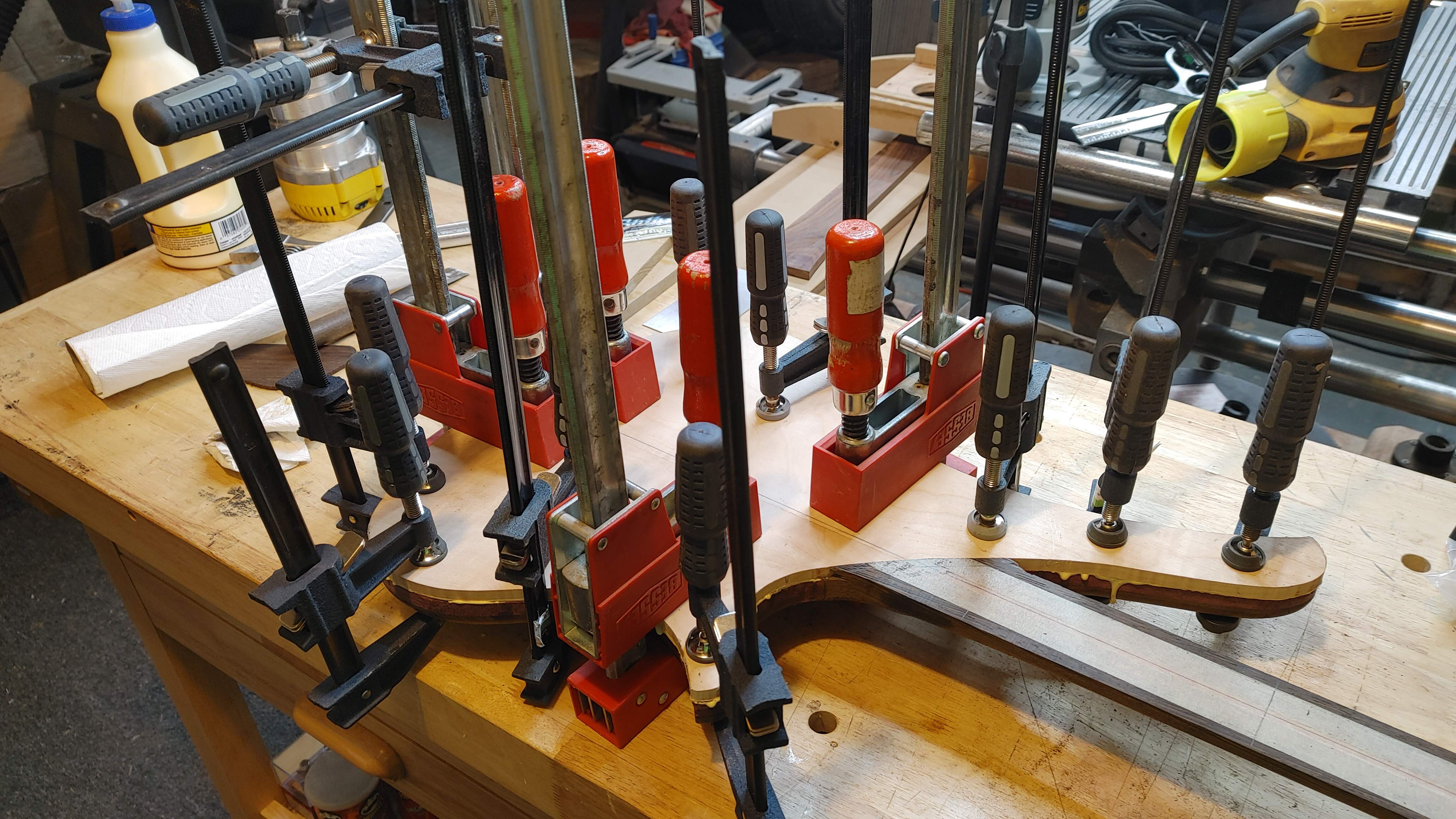

Now that the wings are glued on and out of the clamps, we can go ahead and glue the top on. I just grabbed every clamp I own and went to town (except the blue squeeze clamps, kind of ran out of room) -
We will let this dry while I'm at work today and see to it upon my return this evening.
Then I can start mapping out the fretboard sections, pickup location, bridge location, drill that jack hole and pot hole. So many things we can move on to!
Now that the wings are glued on and out of the clamps, we can go ahead and glue the top on. I just grabbed every clamp I own and went to town (except the blue squeeze clamps, kind of ran out of room) -
We will let this dry while I'm at work today and see to it upon my return this evening.
Then I can start mapping out the fretboard sections, pickup location, bridge location, drill that jack hole and pot hole. So many things we can move on to!
Last edited:
Looking good, Tim! Love the clamping technique.
Is that a clamp holding onto a clamp?!Top This -
Now that the wings are glued on and out of the clamps, we can go ahead and glue the top on. I just grabbed every clamp I own and went to town (except the blue squeeze clamps, kind of ran out of room) -
View attachment 4547729
View attachment 4547730
We will let this dry while I'm at work today and see to it upon my return this evening.
Then I can start mapping out the fretboard sections, pickup location, bridge location, drill that jack hole and pot hole. So many things we can move on to!
Again, thinking out loud here. I do this while I'm sitting at work with nothing else to do and my mind is running rampant on this topic, in the hopes that when I get home, I can then look at this and go "Oh yeah..."
Now that I have the big glue up stuff done, next steps should be -
Now that I have the big glue up stuff done, next steps should be -
- Body -
- Flush trim body top to wings.
- I may use the Spindle Sander for this, it's less prone to ripping chunks of wood out.
- Roundover on top?
- I haven't really settled on what I'm doing with this. I know I want something, but it may be subtle.
- Clean up roundover on back.
- Finish belly carve.
- Clean up neck heel carve.
- Forearm carve?
- I'm still pretty undecided on this too. I need to look at it after putting some sort of roundover on the front.
- Drill Jack Hole
- I want the roundovers done first, learned from the last build.
- Drill volume pot hole.
- Finish control cavity cover.
- Route pickup cavity (after fretboard goes on)
- Flush trim body top to wings.
- Fretboard -
- Radius
- Side Dots
- Glue it on the thing!
- Finish nut slot (prefer to be after it is glued on)
- Route bridge recess (needs to be glued on first)
- String ball end retainers (also after it is glued on()
- Neck -
- Final Shaping/Carving/Sanding.
- Headstock (all of this is on hold until tuners arrive) -
- Drill Tuner Holes (I need them here first)
- Open Up Truss Rod Access
- Dye Top (this will be late in the overall process)
- Final -
- Final Sanding Of Everything
- Finish (still not sure what this will be, most likely Tru-Oil again, because I have it and it's easy to do this time of year)
- Wiring / Assembly
Also, in other news, got an email from Best Bass Gear with my tracking number. My pickup and template have shipped. Order was "free shipping, 5-7 business days" so I should have it all next week, Wednesday at the latest. Tracking number provides nothing yet because it hasn't been picked up, just a label created. But, on the good side, I know it is on the way and I really don't need it just yet anyways. I probably have two weeks of stuff to do before it gets critical.
And yes, I ordered a routing template too. At $11 for an acrylic template, why not?
And yes, I ordered a routing template too. At $11 for an acrylic template, why not?
Yeah, no point in stressing about it, there's lots of time. I won't be posting a scary "only two months left" notice until Thursday.I probably have two weeks of stuff to do before it gets critical.
Yeah, no point in stressing about it, there's lots of time. I won't be posting a scary "only two months left" notice until Thursday.

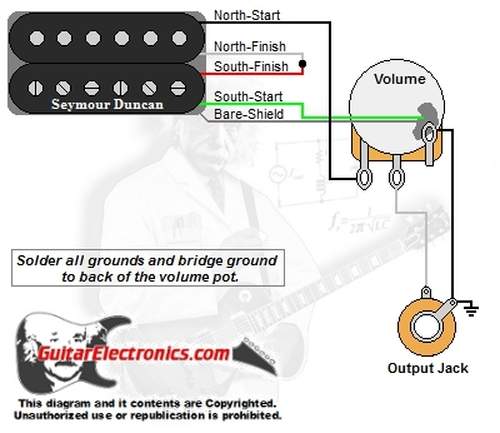

Unless I'm mistaken, this should be my wiring diagram. Super simple on this one, just a single pickup, a single volume and an output jack -
The Delano info on their website isn't super clear and is broken up in ways I don't fully understand (I'm no wiring / schematic expert) but I'm pretty sure the Xtender is a humbucker, so it should come with 4 leads just like any other humbucker. For a fully passive, single volume layout, that seems legit to me. You know, aside from running a ground to the bridge.
Unless you smart guys say otherwise.
The Delano info on their website isn't super clear and is broken up in ways I don't fully understand (I'm no wiring / schematic expert) but I'm pretty sure the Xtender is a humbucker, so it should come with 4 leads just like any other humbucker. For a fully passive, single volume layout, that seems legit to me. You know, aside from running a ground to the bridge.
Unless you smart guys say otherwise.
One of our number (I'm not recalling and not making the effort to search for it) had a lovely clamp shot of a fingerboard. Said clamp was no longer holding air for bicycle tires, IIRC. There might or might not have been more than one innertube involved, actually. But it was all rubber, no fancy metal clamps at all. Worked just fine.
Wow. I can still edit this days later? Here we go #8 #10 @Basvarken
Last edited:
The diagram will be correct if the pickup has four wires, but the colors are all wrong.
Delano has a bare shield ground same as any other 4 conductor pickup.
The colors other than that are yellow for ground (in place of green in your diagram). Brown/white as the middle (in place of red/white in your diagram). And green as hot (in place of black in your photo).

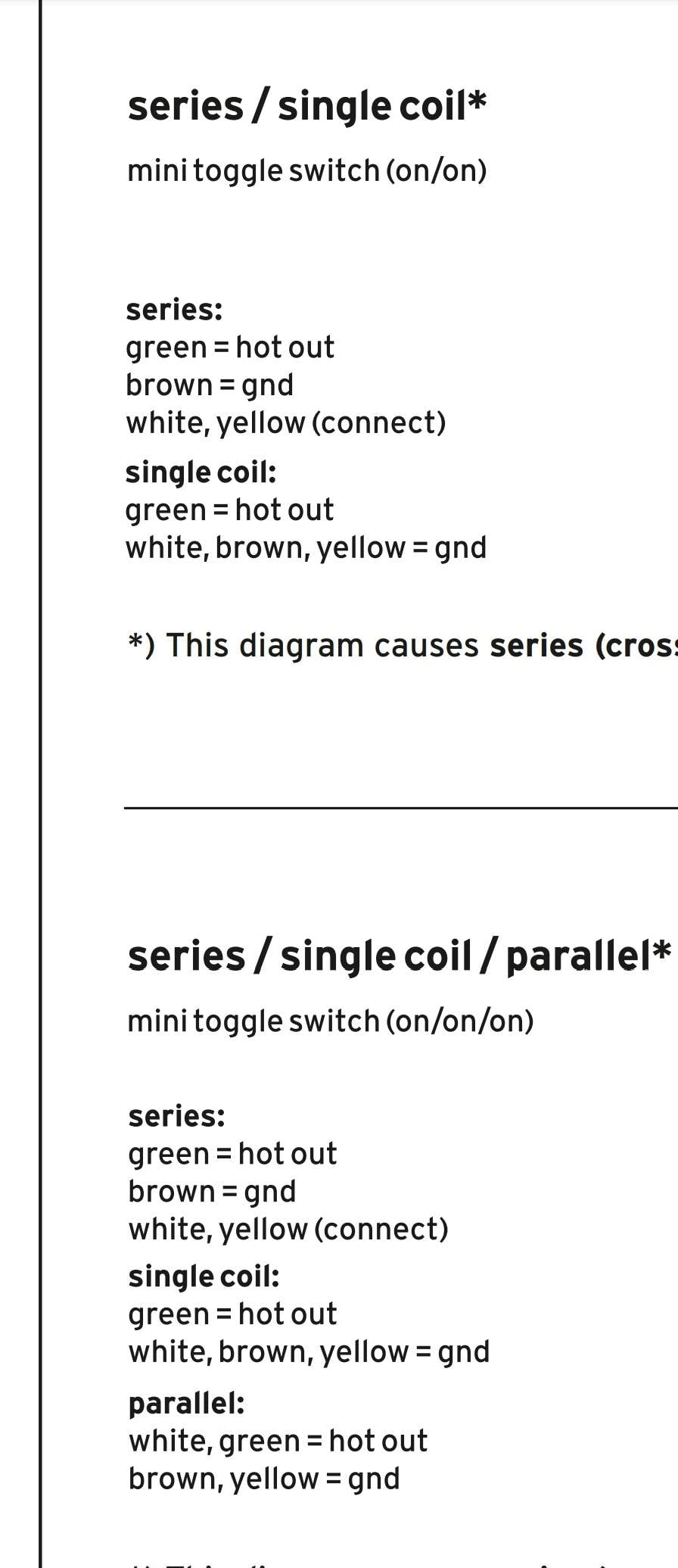

Yeah, looks like unless you got the hybrid pickup, wires are standard either 2 or 4 conductor depending. As @dwizum pointed out your diagram is right but the color coding is different:
