Amp Guts Photos - Official Thread - Lets see those pics

[duff2]

@duff2
Cool, that was my amp... This picture was taken by me: Invalid Link Removed

Wow! Great eye disssa!

I just picked up one of these myself. Fantastic preamp for that classic rock tone. I was going to take my own picture of the inside, but one of my screws is stuck. In the end I decided to upload your photo.

In retrospect, I should have given you credit for the photo. Hope you don't mind.

Cheers,
Duff2



[Im a sock]

What an awesome thread! Sorry for the poor picture quality, but here's my pre-Fender SWR SM-500. Very similar to the SM-400s and SM-900 earlier in the thread. Enjoy



[Chef]

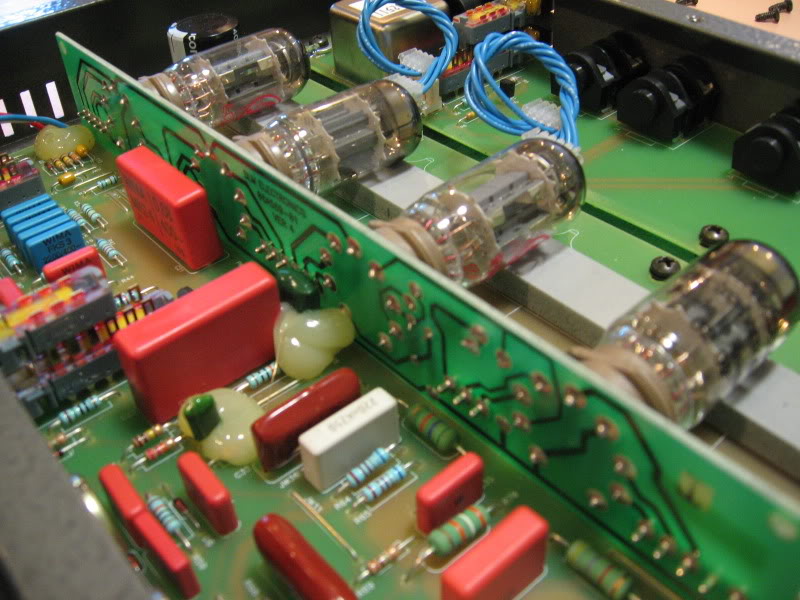

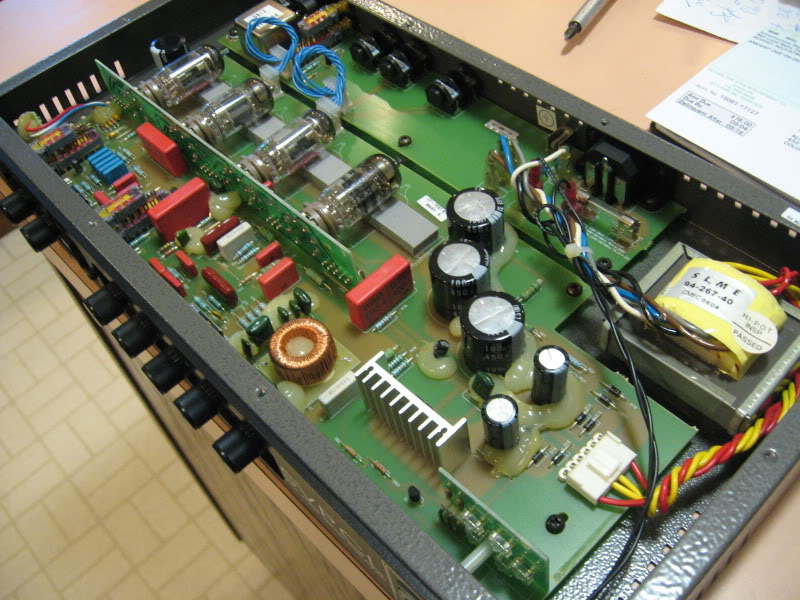

SVP-CL preamp:



[RobbieHassett]

Hey..i have an SVT VR...i noticed you don't have the silly spring holders mounted onto your tubes. I took mine off because when my amp sits on top of the cabinet, they rattle soooo much. Do you ever notice not using the covers being a problem? do they ever fall out or anything??

robbie



[johnk_10]

mine don't make any noise, but you can slip some silicone fuel line tubing that's used on RC planes (sold at hobby shops) over the springs to keep them from rattling. i did this on a Traynor YBA-200-2 abd it worked great.



[Anarchyok]

Anyone got the internals of any Ashdown ABMs??



[disssa]

Hughes & Kettner Fortress (Tube PreAmp)

[Invalid or Expired Link Removed]

Traynor YBA200-II

[Invalid or Expired Link Removed]

Traynor YBA200-II "by night":

[Invalid or Expired Link Removed]



[disssa]

Trace Elliot V6

[Invalid or Expired Link Removed]

[Invalid or Expired Link Removed]



[svtb15]

Nice ^^



[deekay911]

Shuttle Max 12.0

Room for another power module in here!



[deekay911]

Shuttle 9.0



[iguigd]

Here's some pics of my Mesa/Boogie Bass 400+:

Link Removed

Link Removed

My tubes will be swapped for JJ's next week. I ordered them yesterday

My GOD I thought Ampeg SVT's had a lot of tubes. I guess every time you need to retube you must need to take a mortgage out...lol



[Chef]

It's not that bad...~$200.
Take care of that amp, and even used hard the power section should be good for several years.

Love the Mesa 400's: not my thing, but great work.



[Rickett Customs]

SVT VR:



[RoboChrist]

Shuttle Max 12.0

Room for another power module in here!

Shuttlemax 18.0?



[Limeman]

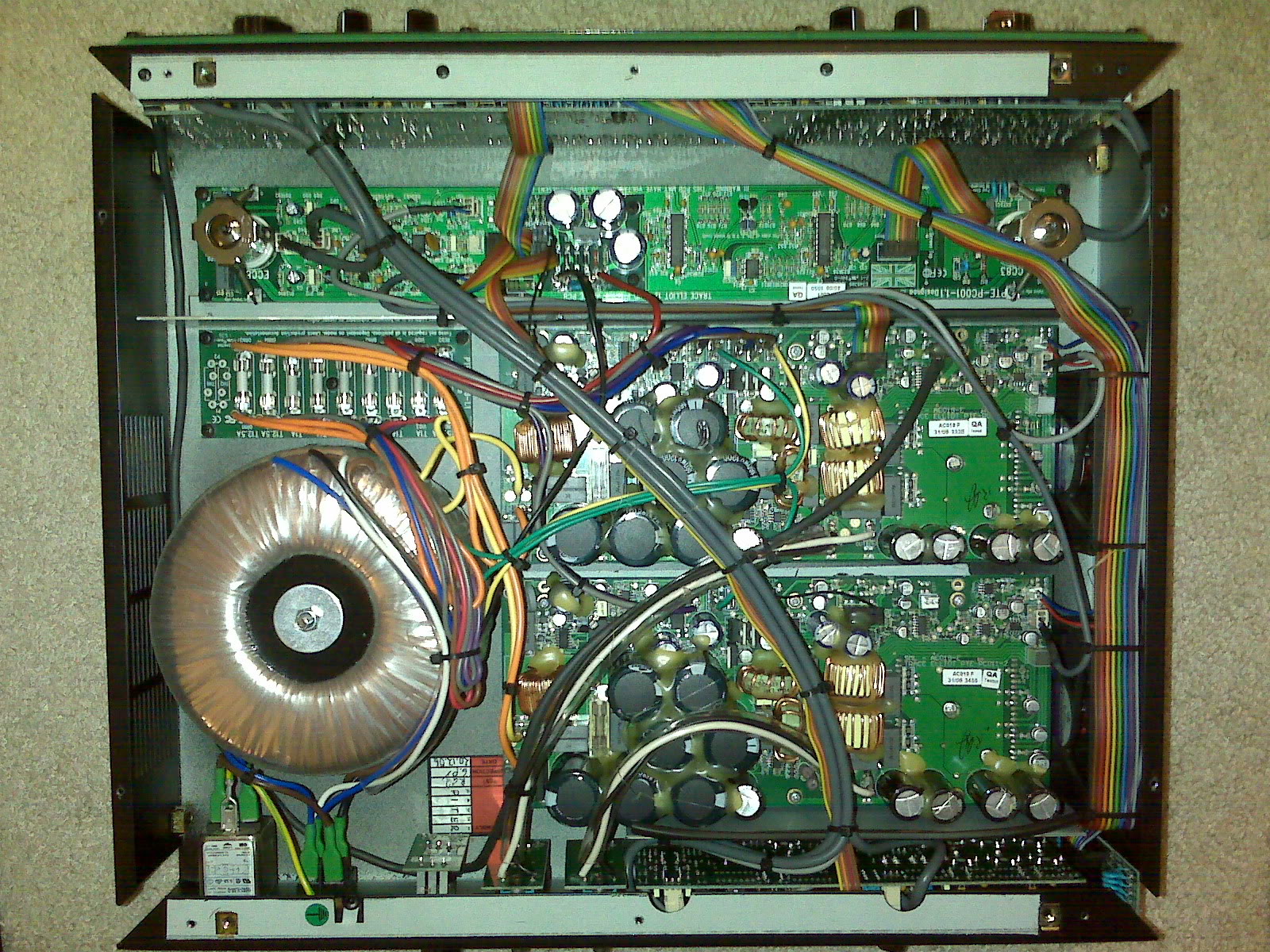

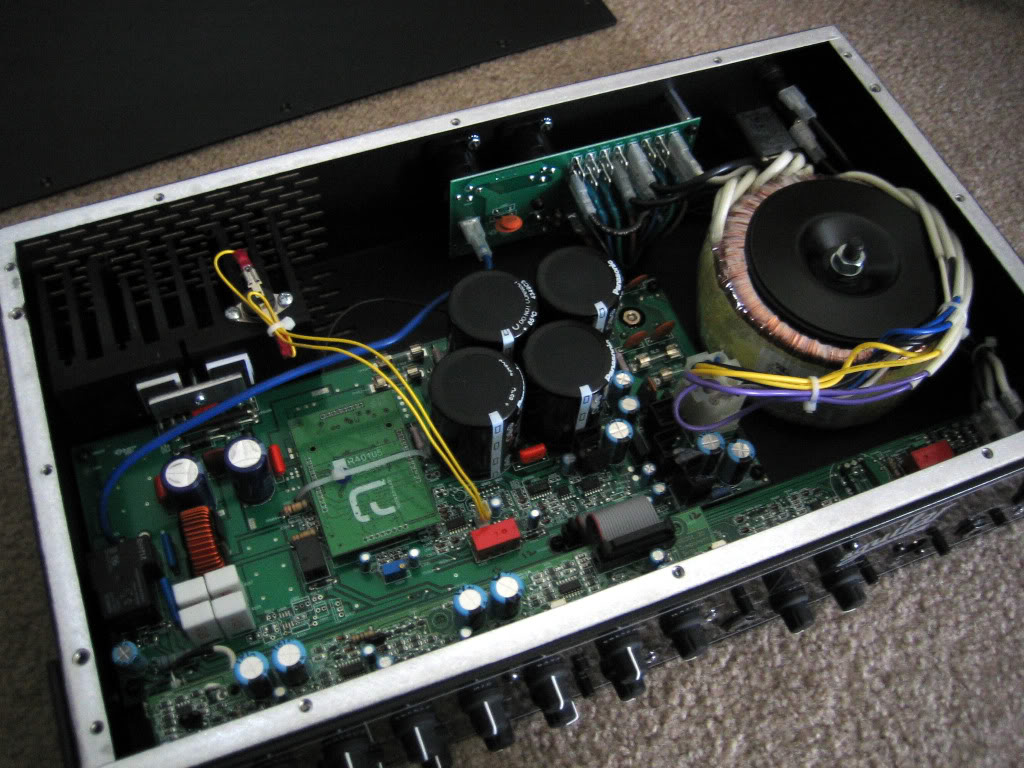

My former Aguilar AG500... very clean design and build.



[Mr. Foxen]

Ashdown Peacemaker (early handbuilt in the UK one)

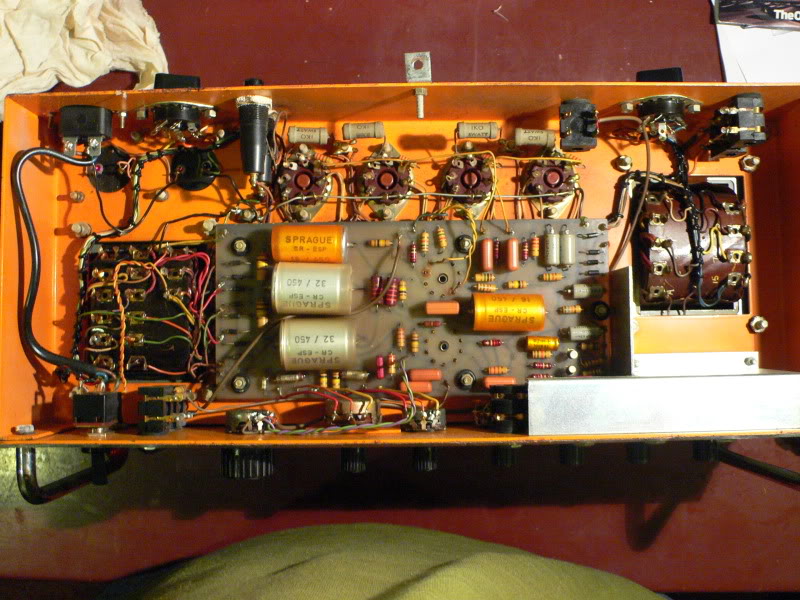

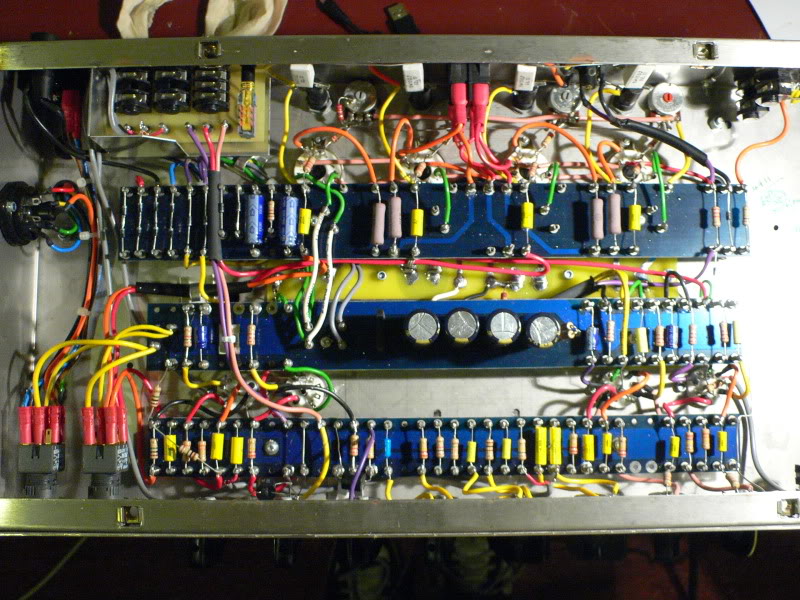

Early 70s Orange PA120

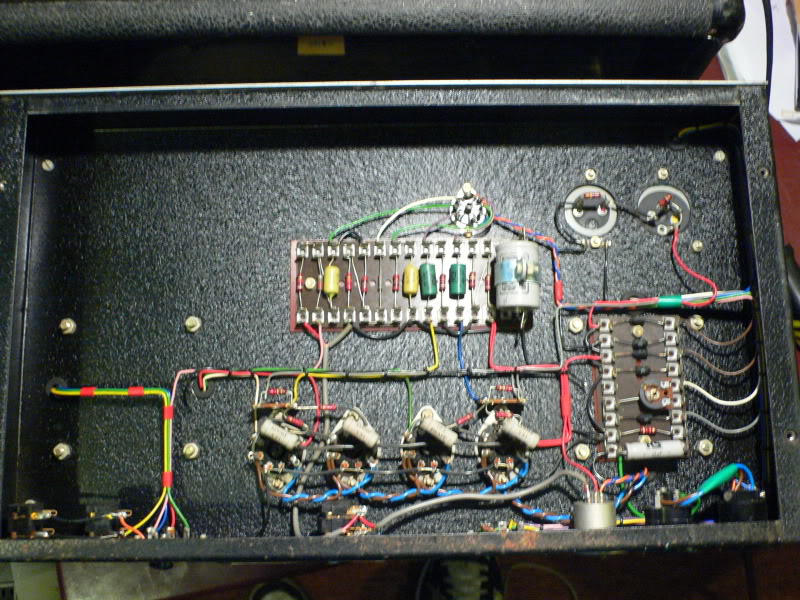

Burman Power Pak slave amp, with ridiculously neat wiring:

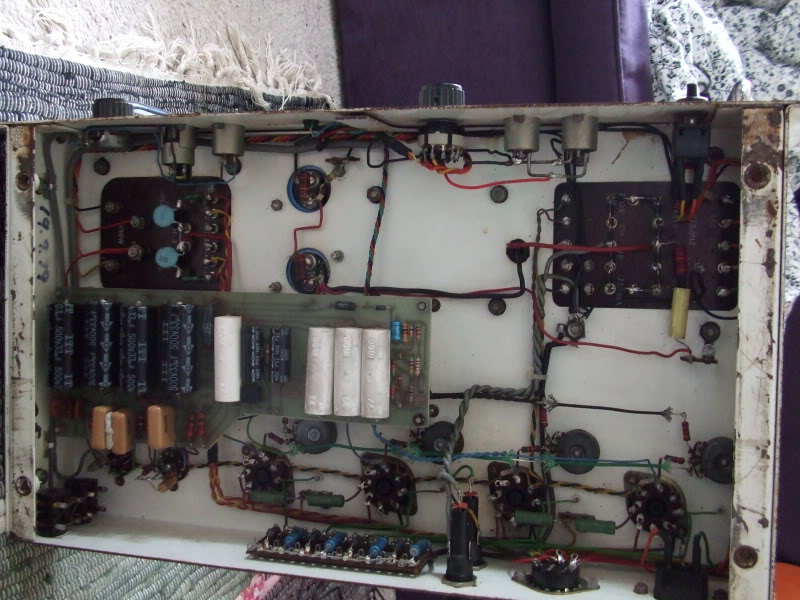

Matamp Slave:



[KramerBassFan]

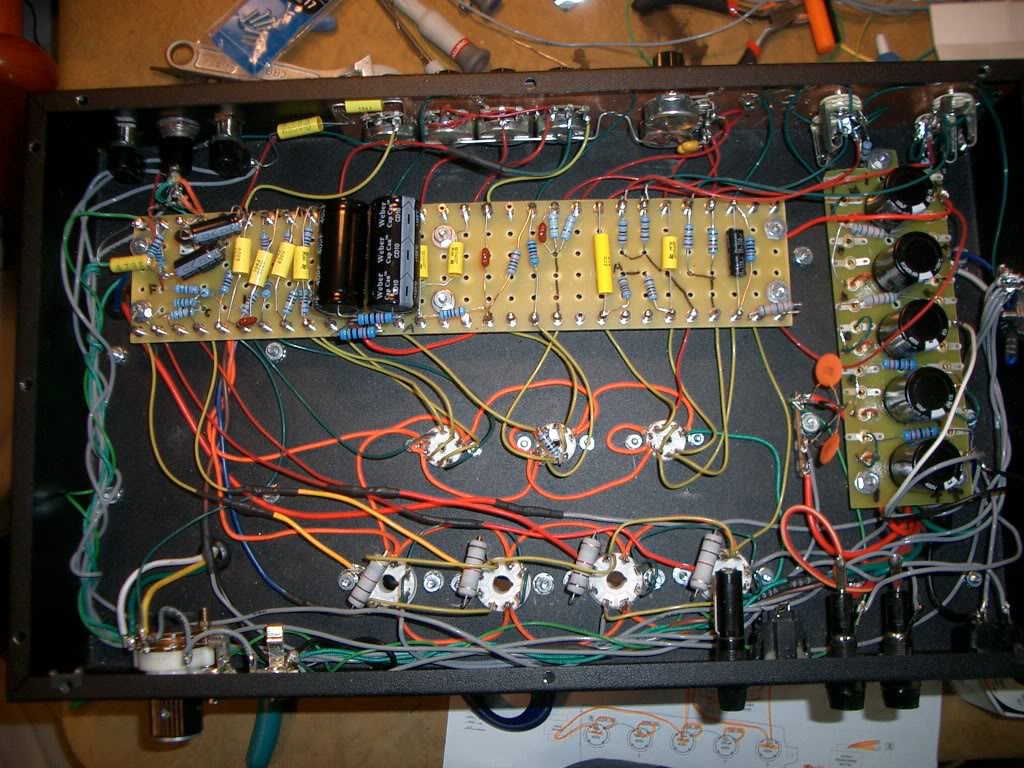

Home Built Superbass.

It sure as heck works...



[fretno]



[Krügmeister]

2008 Trace Elliot AH1000-12
