Amp Guts Photos - Official Thread - Lets see those pics

[Chef]

if there is somewhere you've quantified that, I'd sure be interested in reading it...

thx-alan



[tombowlus]

if there is somewhere you've quantified that, I'd sure be interested in reading it...

thx-alan

Well, you read it once before (and posted in the thread), but here is one place to look.



[Destructobot]

Mullard....nice



[MAMMOTHvolume]

Sound City L120 Mk4 (late 70s), facelift:

no partridge?
preamp been modded? ;o



[Chef]

Expecting me to remember stuff from 3 years ago may be setting the bar high
Thanks for the link!

Well, you read it once before (and posted in the thread), but here is one place to look.



[gbarchus]

Lane,

I enjoyed re-reading that old Eden forum thread. What a sense of humor.

Gale



[gbarchus]

Tom,

"I have also posted that particular VT-300A photo in the past (though I got it from somewhere else)." Yeah, from me!

I was using a stereo Marshall power amp with an Alembic preamp for awhile and really learned to appreciate EL34s for bass. I definitely want to keep my Sadowsky that way, too.

I thought the KT88s might fatten up the sound of the Eden. I'm not a big fan of 6550s. Not that there's anything wrong with them. They seem to stay clean up to a higher level but then distort quickly. I just prefer 6L6 or, now, EL34 tubes because they break up sooner with a smoother curve which I feel I have more control over with my fingers.

I haven't used KT88s since I had a Sound City 150 Bass amp which was when it was new. I got it to replace a Fender Showman but it didn't really have much more volume so I traded it for an SVT. One of those that got away. Now I feel like I didn't really give it a shot. I'm still thinking about a Reeves or Hiwatt though.

I also remember reading your comparison of the two amps when I already owned the VT300 and found a new SA200, trying to justify spending $2500 on an amp I already "almost" had in the VT300. After reading your review, I decided to buy the Sadowsky and eventually sell one of them. Well, I've kept them both. They are different.

Gale



[tombowlus]

Tom,

"I have also posted that particular VT-300A photo in the past (though I got it from somewhere else)." Yeah, from me!

Sweet! I guess we make a good tag team, then.



[fdeck]

Mods, this should be a Sticky. It might even come in handy as a reference when people have repair questions.



[fretno]

Mullard....nice

Yes , really fantastic tubes . Excellent for bass amps and pre's .



[MAMMOTHvolume]

Yes , really fantastic tubes . Excellent for everything

correction



[abarson]

My current pride and joy!
Made back in the day when copper traces were drawn out by hand.



[Matt Dean]

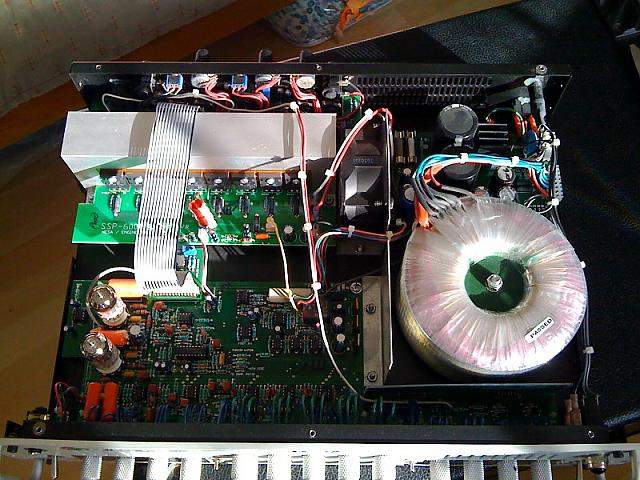

Check out the guts of my M-Pulse 600 and STVB15's (Kirk Powers) M-pulse... hint: last year Mesa replaced the mosfets in my amp.



[svtb15]

HI . glad to see she is still around.....
I dig that amp.... the M pulse are creamy sounding..Looks like it now has the M6 Carbine power module.. cool.. does it sound different???
Looks like you got a new transformer too... wow!!

I forgot where i shipped that amp...were you always in CA?

Check out the guts of my M-Pulse 600 and STVB15's (Kirk Powers) M-pulse... hint: last year Mesa replaced the mosfets in my amp.



[Matt Dean]

I'm sorry to report that this is not your old amp (although I gues it could be as I bought it used). I was just noticing that after getting it back from being repaired at Mesa... some of the comppnants looked quite different than what I was used to (this being my second mp600). I knew there was a pic of your m-pulse on amp guts and I just used it for comparison purposes.

Btw, I love this topic.



[pasta4lnch]

Late 70's SVT chassis

wow! amazing . . .



[svtb15]

Oh OK.. i thought you meant it was my old amp... That would have been cool to see it go sort of full circle. Thank you

I'm sorry to report that this is not your old amp (although I gues it could be as I bought it used). I was just noticing that after getting it back from being repaired at Mesa... some of the comppnants looked quite different than what I was used to (this being my second mp600). I knew there was a pic of your m-pulse on amp guts and I just used it for comparison purposes.

Btw, I love this topic.



[LuvMusic]



[Basshappi]

I love this thread!



[jastacey]

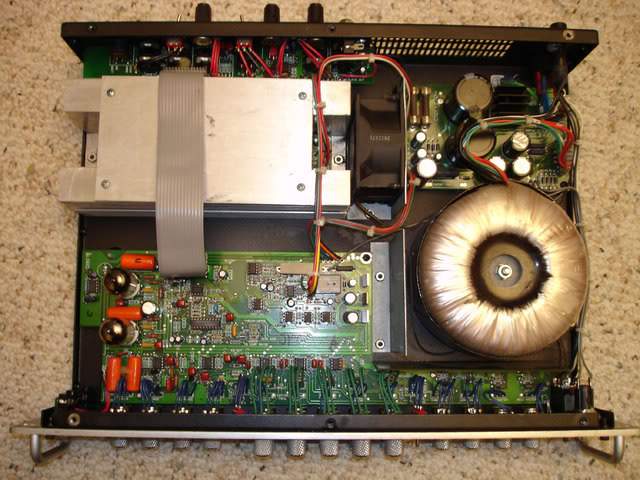

Here's a view of a Crate BT-350
