Amp Guts Photos - Official Thread - Lets see those pics
- Thread starter svtb15
- Start date
- Feb 13, 2008
- 1,250
- 1,921
- Disclosures
- Owner, Vintage Blue (repro cabinets)

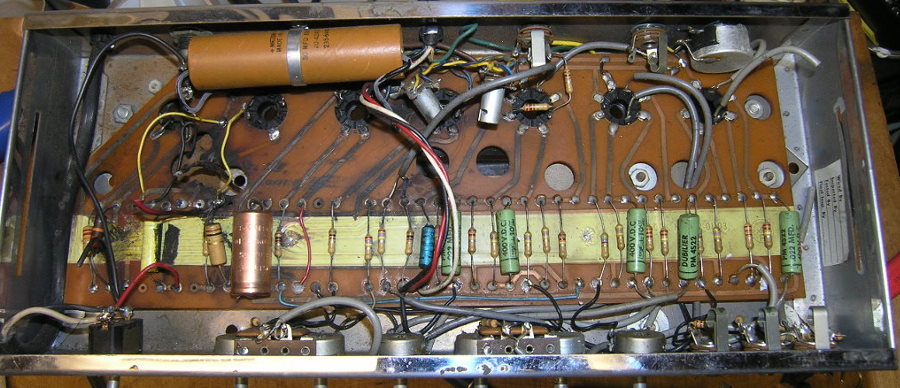

Here's a photo of a burned-up B15NF that I bought really cheap last summer. Notice the hole burned in the printed circuit board. I bought it as a project piece to try to learn something about tube amps, particularly the old B15N's.

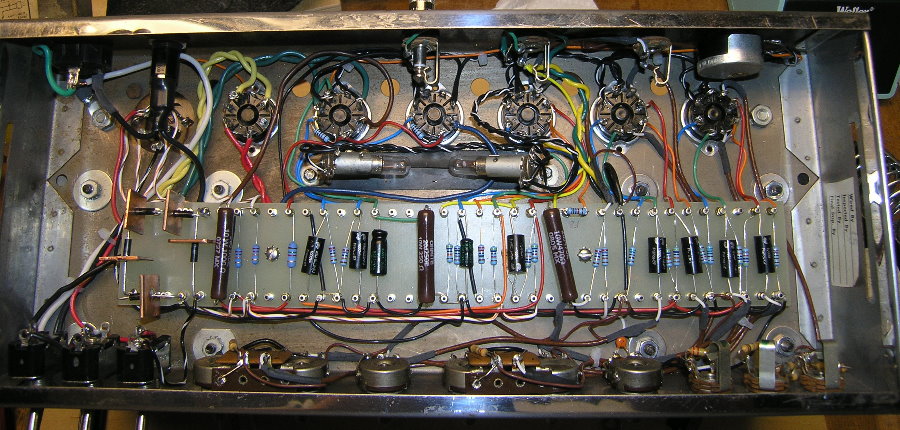

I rebuilt it as a slightly modified B15NC:
I rebuilt it as a slightly modified B15NC:
that sure is purdy!!!! How does it sound ?!?!?!?!?!?!?!?

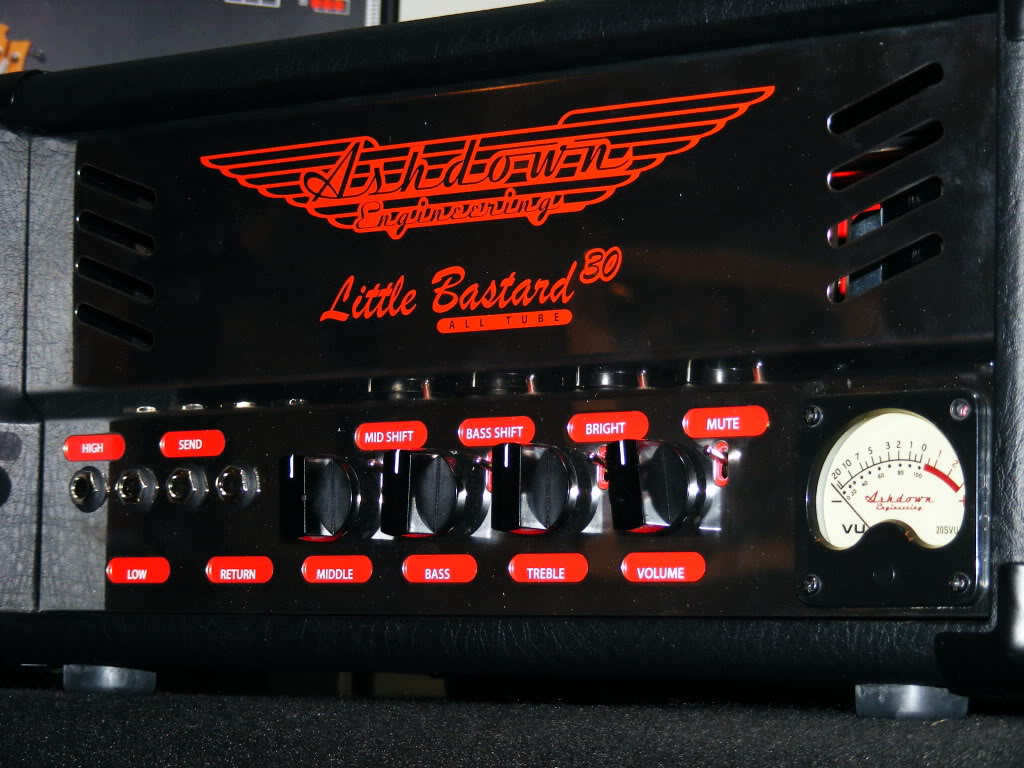

IMO, the Little Bastard sounds great! This is my first all tube head and one of the things I've noticed is the "sound of air," I think some call this "openness." I'm comparing this to my MB102P combo. I love the sound of my MB but the Little Bastard just amplifies differently.
Great warm, vintage clean sound. Nice harmonic breakup when pushed. Keep in mind this is 30w so no way is it keeping up with my MB in the loudness arena and I didn't expect it to.

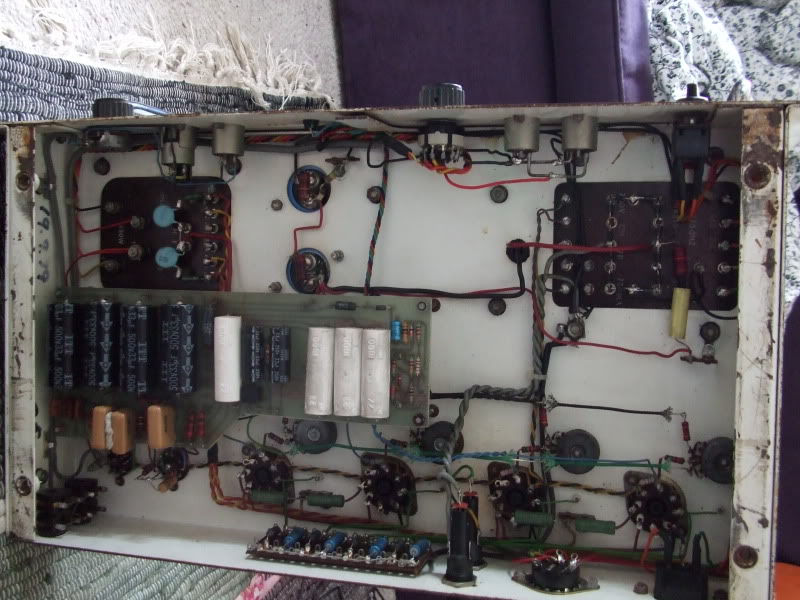

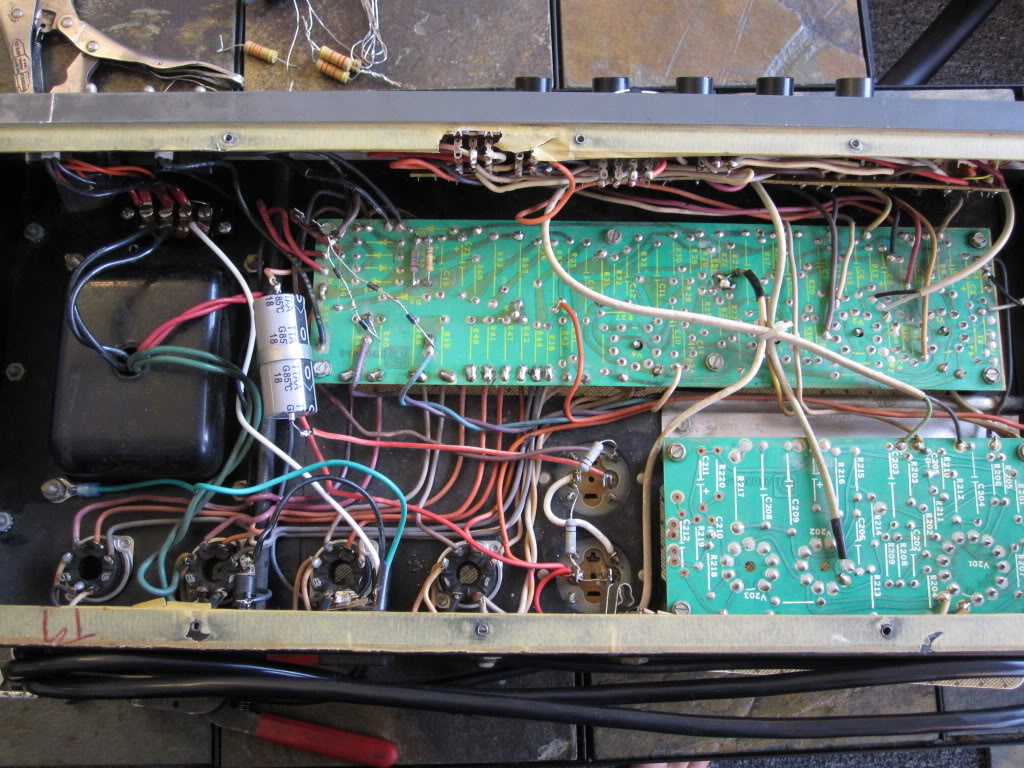

Ampeg V4B before a complete electronics restoration. I'm waiting for a new faceplate from Fliptops then it will be completed. I will then post after pics.
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses
not a bass amp per se, but i use it as a preamp for my bass rig.

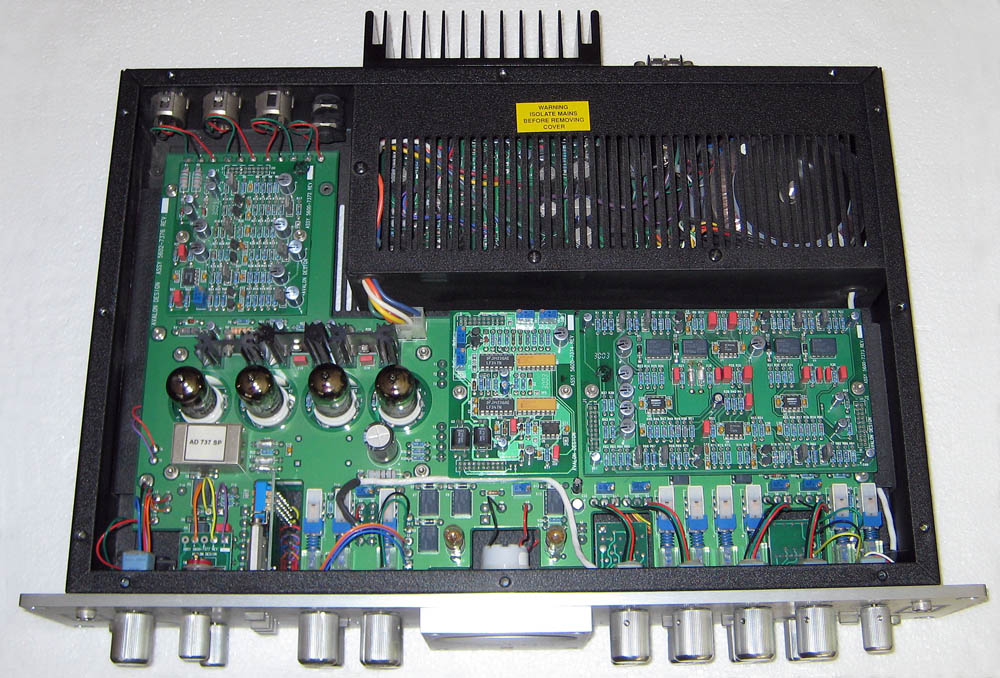

Avalon VT737SP:
and another one that i use as a bass preamp.

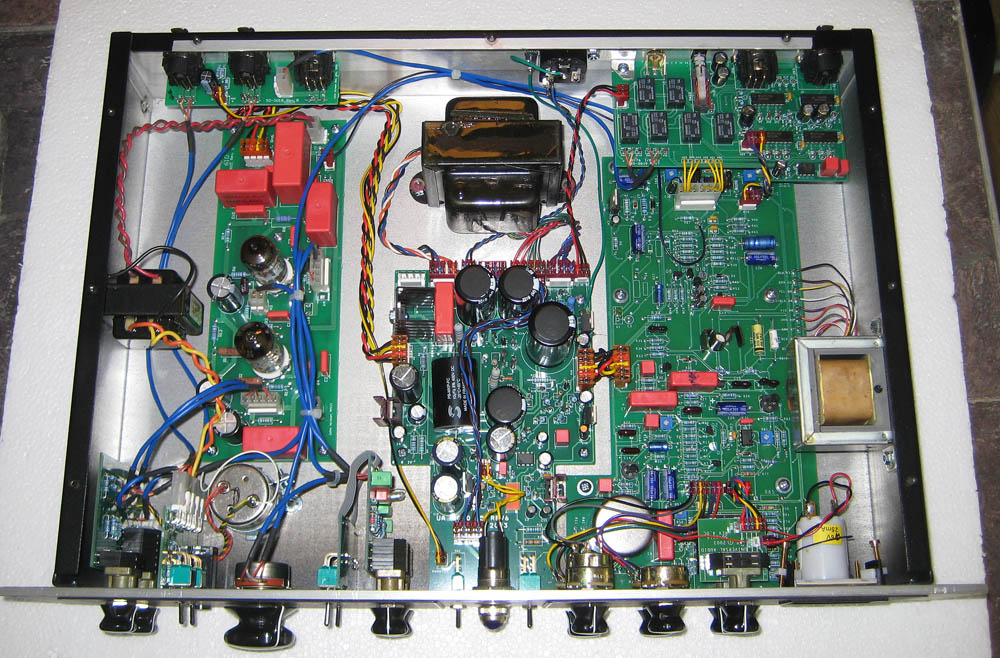

UA 6176:
Avalon VT737SP:
and another one that i use as a bass preamp.
UA 6176:
Mr. Foxen
Commercial User
okcrum
in your chest

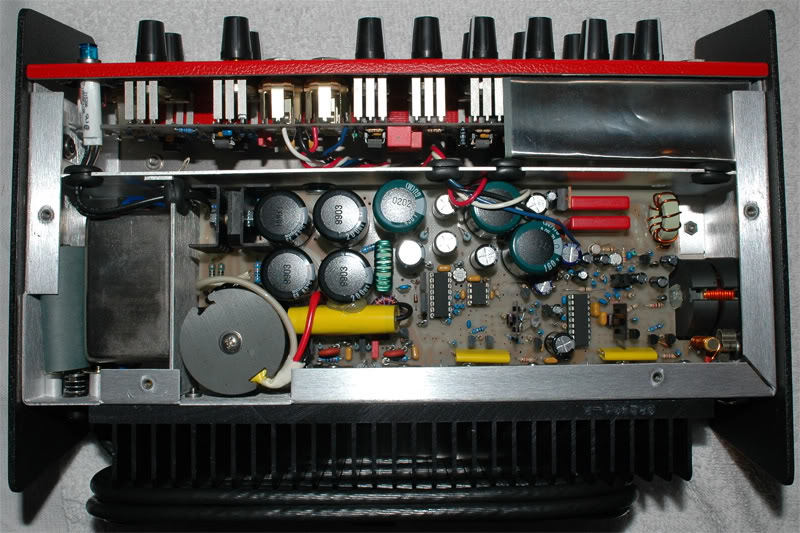

The onliest picture I have is of my 2003 Walter Woods Ultra.
Hey Munji, are those batteries over on the lower left of the chassis where the spring is?
okcrum
in your chest
k tnx, so what IS that in the lower left corner of the pic, with the spring and what looks like fish paper?
okcrum
in your chest
Ah tnx. I'm used to seeing them potted in the metal mountings. I should have guessed, seeing that it's in the compartment with the power transformer.

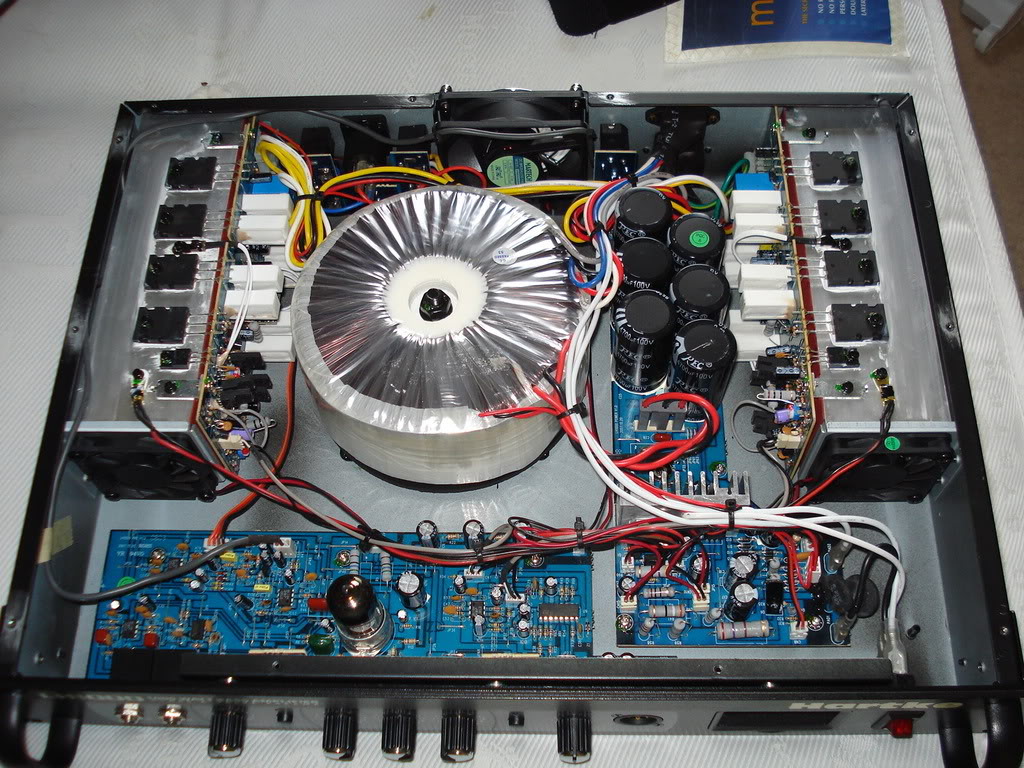

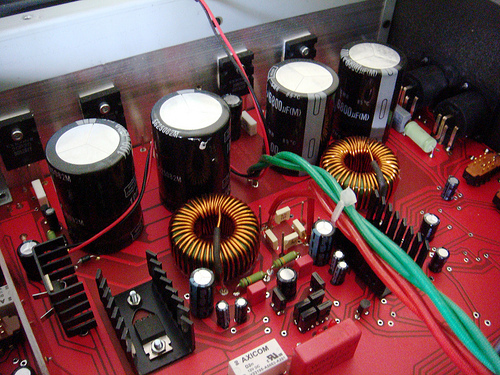

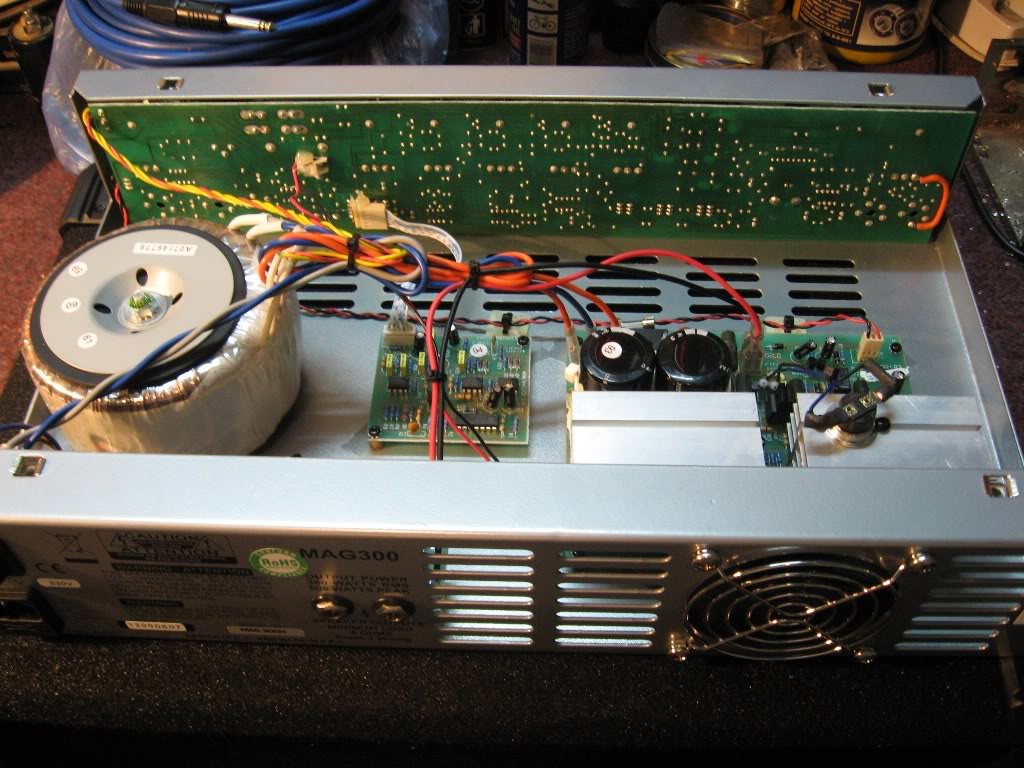

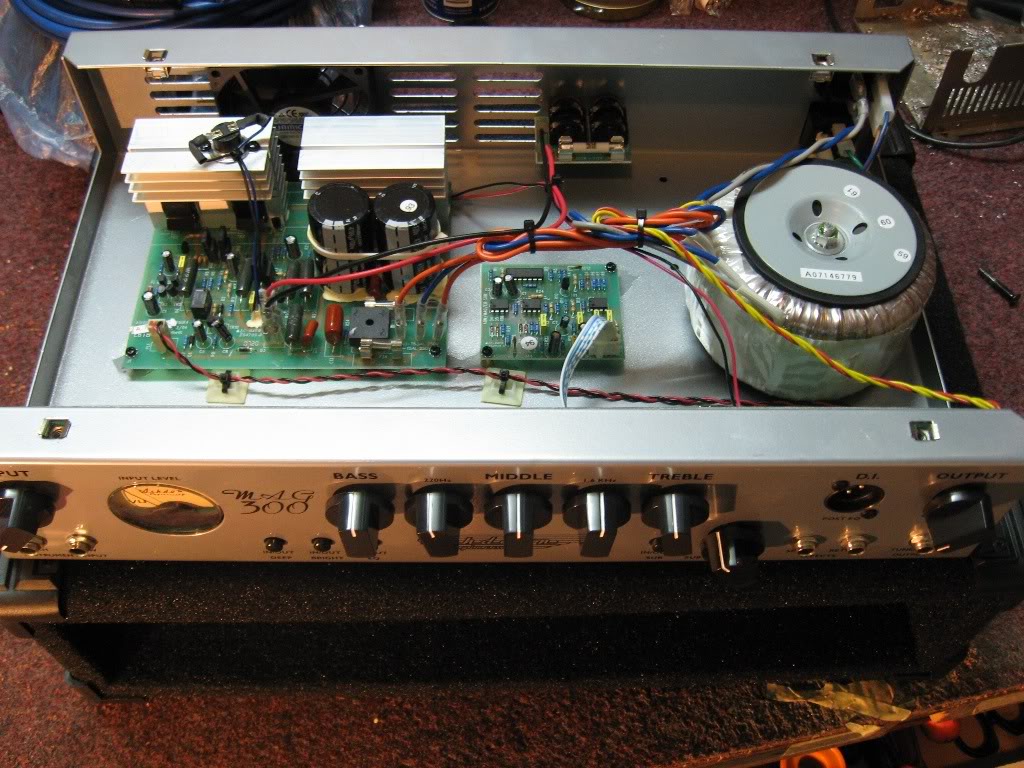

That's pretty cool how they put the big filter capacitors right by the output transistors, giving a direct path for current to the amp's output. Add the large transformer, and it isn't too surprising that you've got a punchy amplifier.

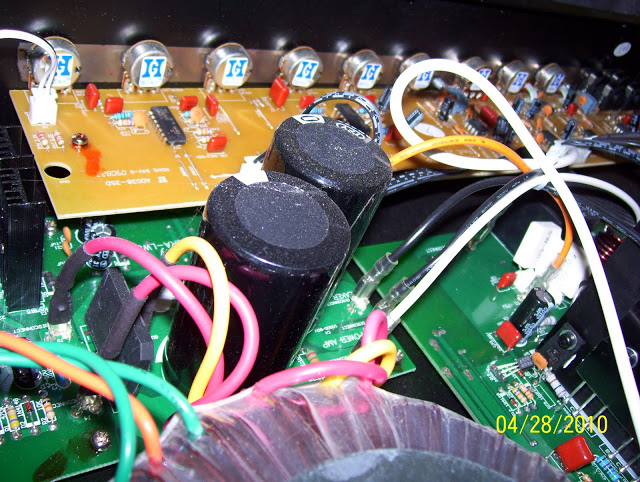

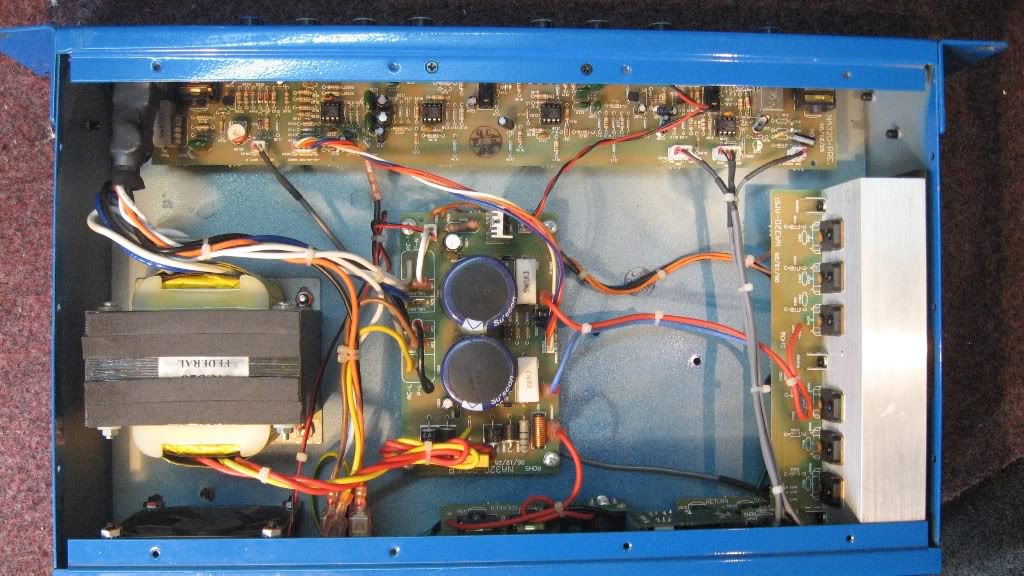

My Eden WT-500 is somewhat disappointing in this regard, as the central power supply board has longish connections to each power amp board. Will post some pics soon!

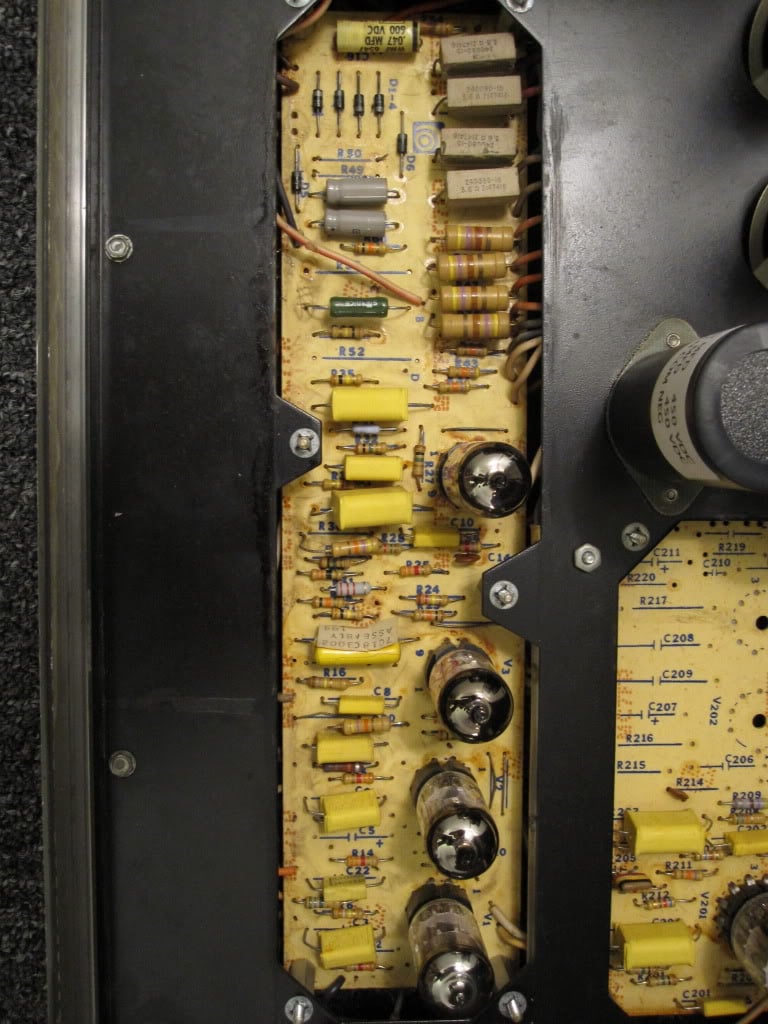

I had the pre-amp of my SVT out the other day. I'm sure there are better pics in here, but I've only looked at two pages, so I haven't seen them
.
