Here's a top view of my 1997 Ampeg SVT II Pro


  • Like
Reactions: GreaserMatt
#382
Chef said:
that's very common practice, and generally a good thing. anti-vibration damping.
Takes the vibrational stress of solder joints, keeps vibrational noise down, and keeps parts from coming loose and breaking.
Click to expand...

Exactly. :)

pinz said:
Thought I would blow the dust out of my sunn/fender 1200s and remembered seeing a thread here along these lines.
Note the the "mods" done at last service as recommended by fender...yuk ! big blobs of rubbery sealant and plastic sticks stuck and screwed to various parts...Nice job :rolleyes: I guess if it looked like it had the potential to vibrate it got Glued !

[Invalid or Expired Link Removed]

closer look,

[Invalid or Expired Link Removed]

yet more,

[Invalid or Expired Link Removed]

Even these things got the treatment,

[Invalid or Expired Link Removed]

Uploaded with ImageShack.us

Still cranks which is all that matters :bassist:
Click to expand...

Its not a bad thing at all, do not think that. Its actually quite a good thing. :)

#384
pinz said:
Note the the "mods" done at last service as recommended by fender...yuk ! big blobs of rubbery sealant and plastic sticks stuck and screwed to various parts...Nice job :rolleyes: I guess if it looked like it had the potential to vibrate it got Glued !
Click to expand...

Those transistors shouldn't be vibrating. It is very common to
apply a thermal grease (often a greasy silicone compound)
between power components and a heat sink. This increases the
thermal conductivity to facilitate heat removal.

Based upon your description and the pictures, it seems like they
applied a silicone sealant -- something I've never seen in this
type of application. I'm a little suspicious.

Are you sure the material is rubbery and not greasy? Have you
actually touched it or are you just going by the appearance?

#385
seeing these pictures is almost like looking at a fine woman,,now I know I'm not the only one looking at these pictures of amp guts and not getting some strong feelings (like bender in futurama when he sees a circuit board). These pictures reveal

#389
johnk_10 said:

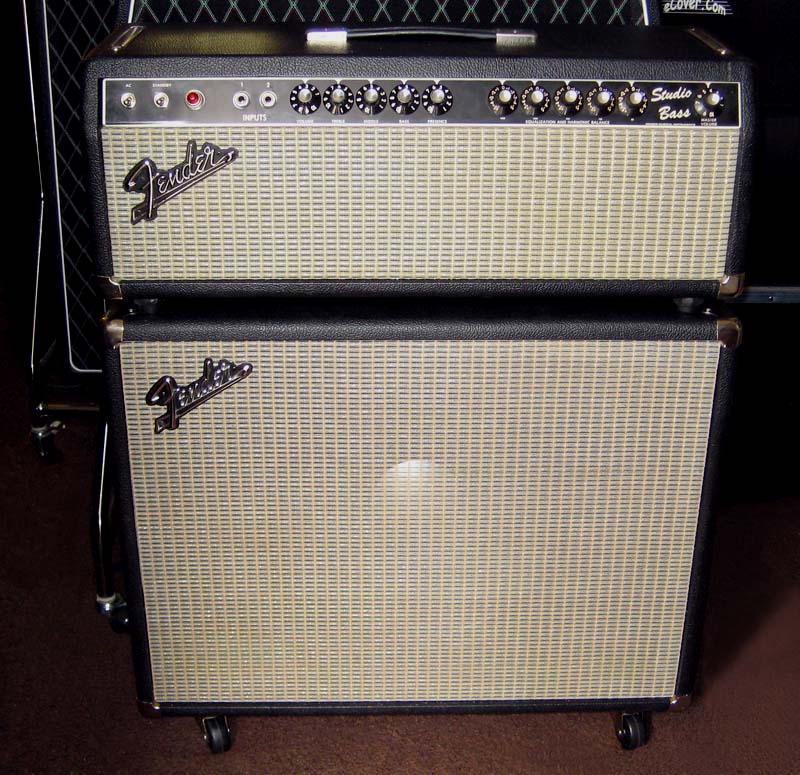

yeah, i've had four Studio bass amps over the years. i converted this one to a head/cab configuration to make it a bit easier to transport. i used a JBL E140 in the cabinet.

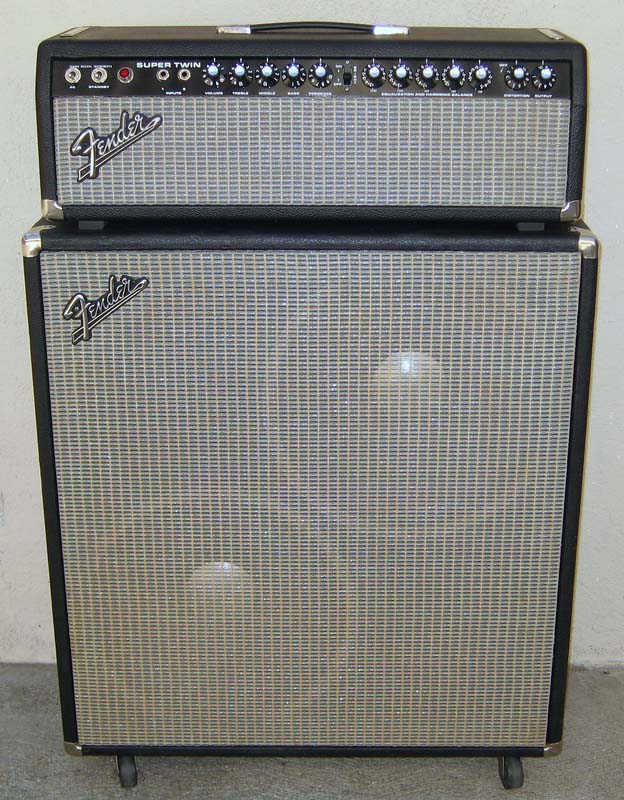

I also built up another one using a Super Twin for the head (its basically the exact same amp as a studio bass), but on this one i used a bassman 100 cab loaded with two JBL K140's. this one really puts out alot of sound (power!)

Click to expand...


Great!!! You gave me an idea to do exactly the same with mine. You made a great job on this.

  • Like
Reactions: GreaserMatt
#392
Bassist30 said:
You said Guts right? Here is what happened to my wt 800 (updated from a wt 500) when it flew out the back of my truck and someone drove over it. I guess it was hit a few times because when I got home I went to bring it in the house and thats when I saw it was gone. Drove over 30 miles and found it. It was in a rack. Rack in pieces. Ouch. The guts all over the place. Here is the pick for my good friend who started this thread.
Click to expand...
Jeez !!

#397
I have used google/yahoo and some othe search engines and also found the page you were referring to. Unfortunately they are pics of the older Pro. I was looking for the new SVT 2 - Pro.
I found some pictures of the AC Termination board and some bad quality ones / low res, but no good quality ones.
The picture on page 2 is the SVT II Pro Premier Edition.
