Amp Guts Photos - Official Thread - Lets see those pics

[svtb15]

WOW.. Cool



[svtb15]

DIY work of art!

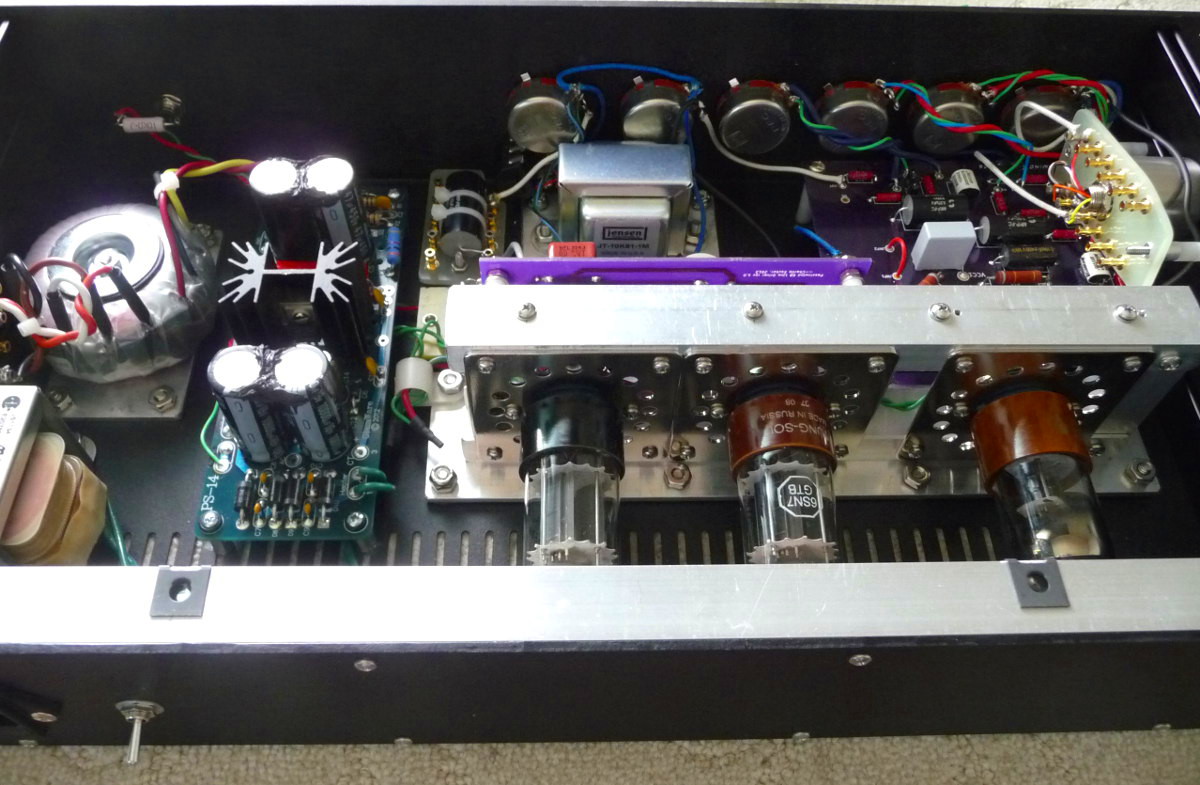

Newly retrofitted DIY bass preamp, optimized for my EUB:



[Marial]

Link Removed

My old Ashdown ABM500 EVO II.



[Primakurtz]

SO similar to a Trace Elliott! Very cool.



[bassfreakah]

any innards id a carvin BX500?



[BillyB_from_LZ]

any innards id a carvin BX500?

Link found after using the search function in Thread Tools



[Mr. Foxen]



[Marial]

SO similar to a Trace Elliott! Very cool.

How so? I've been curious about TEs for a long time.



[Passinwind]

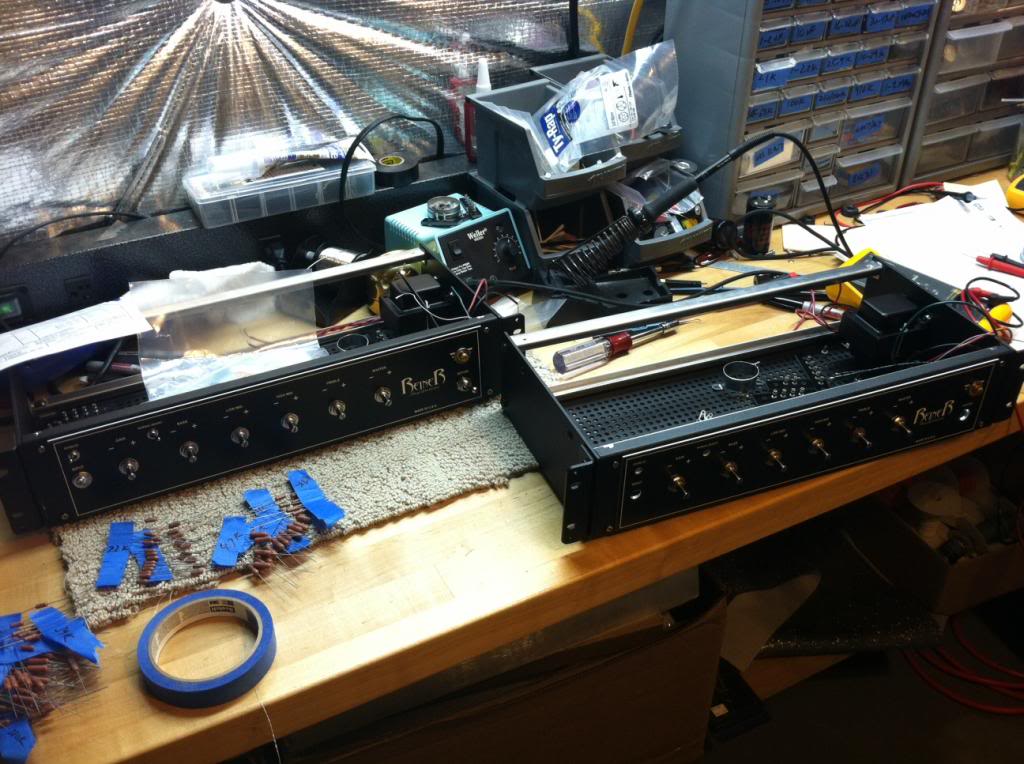

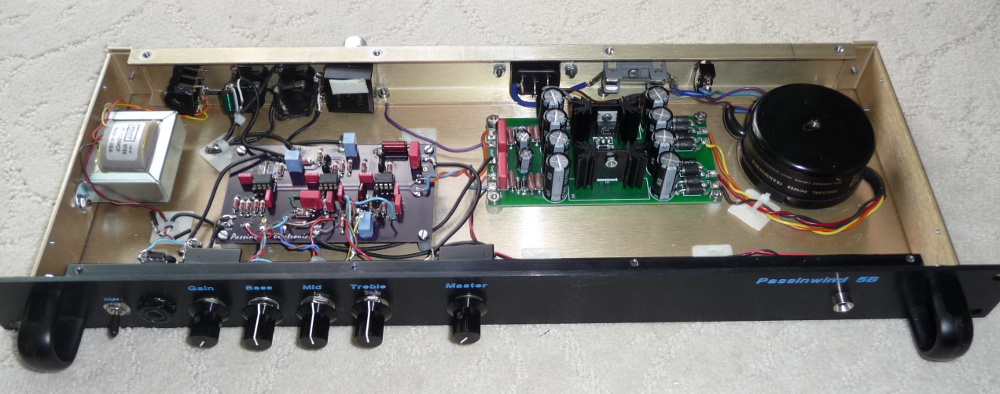

Yet another self indulgent Passinwind DIY bass preamp pic:



[Chef]

Dude: sweet!
Is there a thread that goes with that?



[Passinwind]

Dude: sweet!
Is there a thread that goes with that?

For now I just I tacked on a few posts at the end of this one. I've been weighing up going commercial for some time, but this was pretty much a no-profit build for a friend who's basically subsidizing my DIY whims.



[Foz]

Yet another self indulgent Passinwind DIY bass preamp pic:

Purple!



[OldogNewTrick]

Yet another self indulgent Passinwind DIY bass preamp pic:

Wow, just Wow
Any recordings of this one from you or your friend ?
Fantastic built, Charlie.



[JGR]

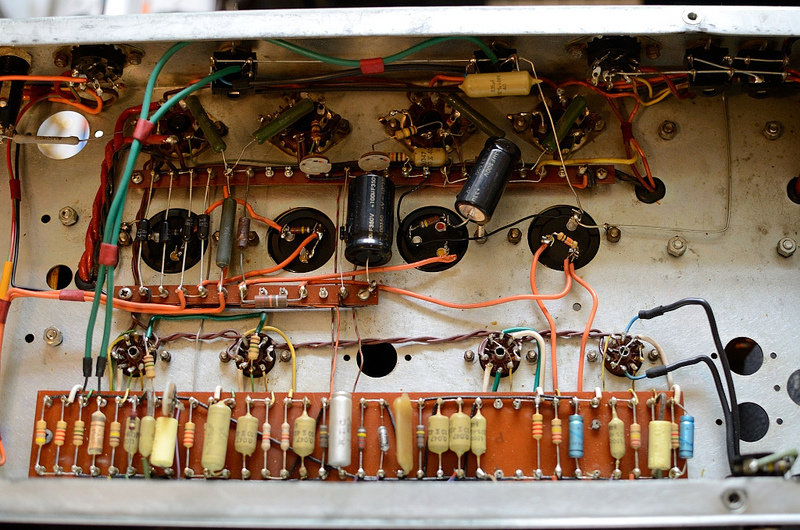

Keeping with the spirit of DIY...


These don't really qualify as guts at this point, more like carcasses..... this past weekend I finally started the new 12ax7 design and another 6SL7 for MYSELF - no more beat up prototypes.



[tombowlus]

Keeping with the spirit of DIY...


These don't really qualify as guts at this point, more like carcasses..... this past weekend I finally started the new 12ax7 design and another 6SL7 for MYSELF - no more beat up prototypes.

Nice!



[Passinwind]

Keeping with the spirit of DIY...


These don't really qualify as guts at this point, more like carcasses..... this past weekend I finally started the new 12ax7 design and another 6SL7 for MYSELF - no more beat up prototypes.

Silver Sharpie lettering reWls, dude.



[Energy]

Sound City B100 Mk3 (1969, cap job 2006):



[wcriley]

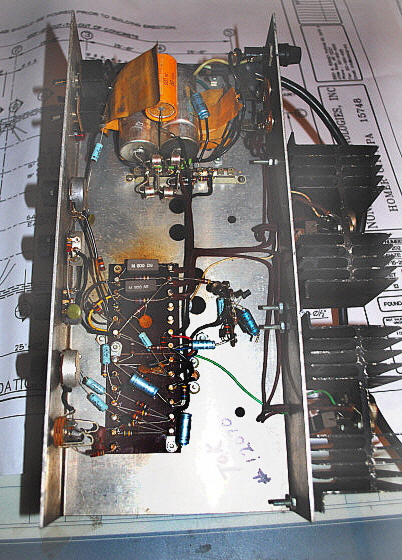

Bought in semi-working condition for $20. Currently undergoing restoration.

1970 Carvin Bass Master.
130 watts, gemaniun output transistors, transformer for phase splitting, hybrid point-to-point/turret construction.



[svtb15]

anyone have walkabout guts



[svtb15]

that is art!

Yet another self indulgent Passinwind DIY bass preamp pic:
