Any DIY pedal builders on TB? Strut your stuff!
- Thread starter SubHuman
- Start date
Very, very cool!!!
What's in the blend, if you don't mind me asking, as in Q1: J201 / 2N5457 / ???
There are 2 - 2N5457, 3 - film caps, 1 - EL cap, 3 resistors a protection diode and a B100k pot.

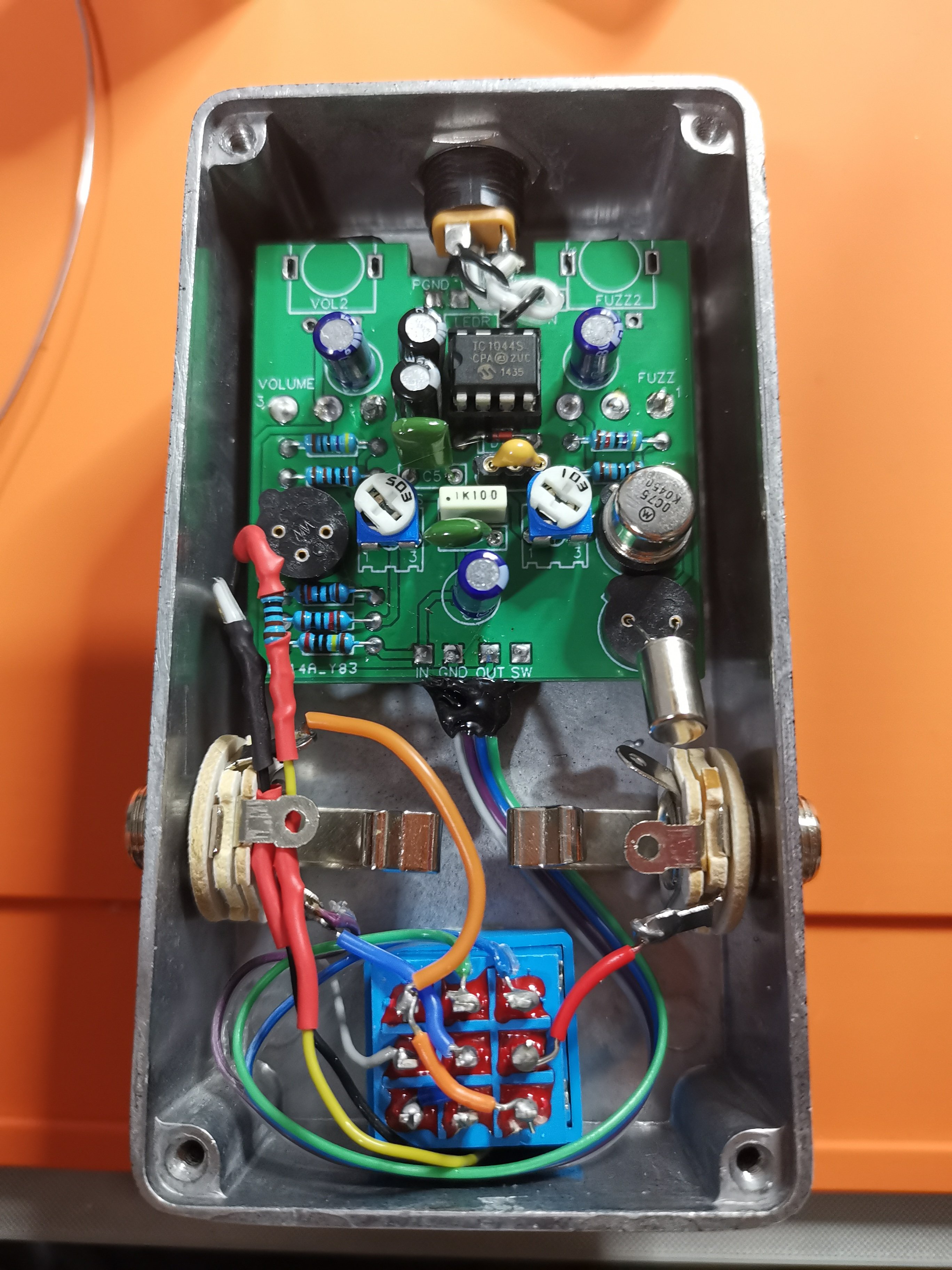

I had separate pcbs made for the blend so that I can add it to other circuits easily. If I choose to I can mount the circuit on the pot itself if I use right angle pcb mount pots. Its not much bigger than the pot itself. I may try to make a SMD version at some point just for saving even more space. This sport is sooooo addicting, lol.
New one!

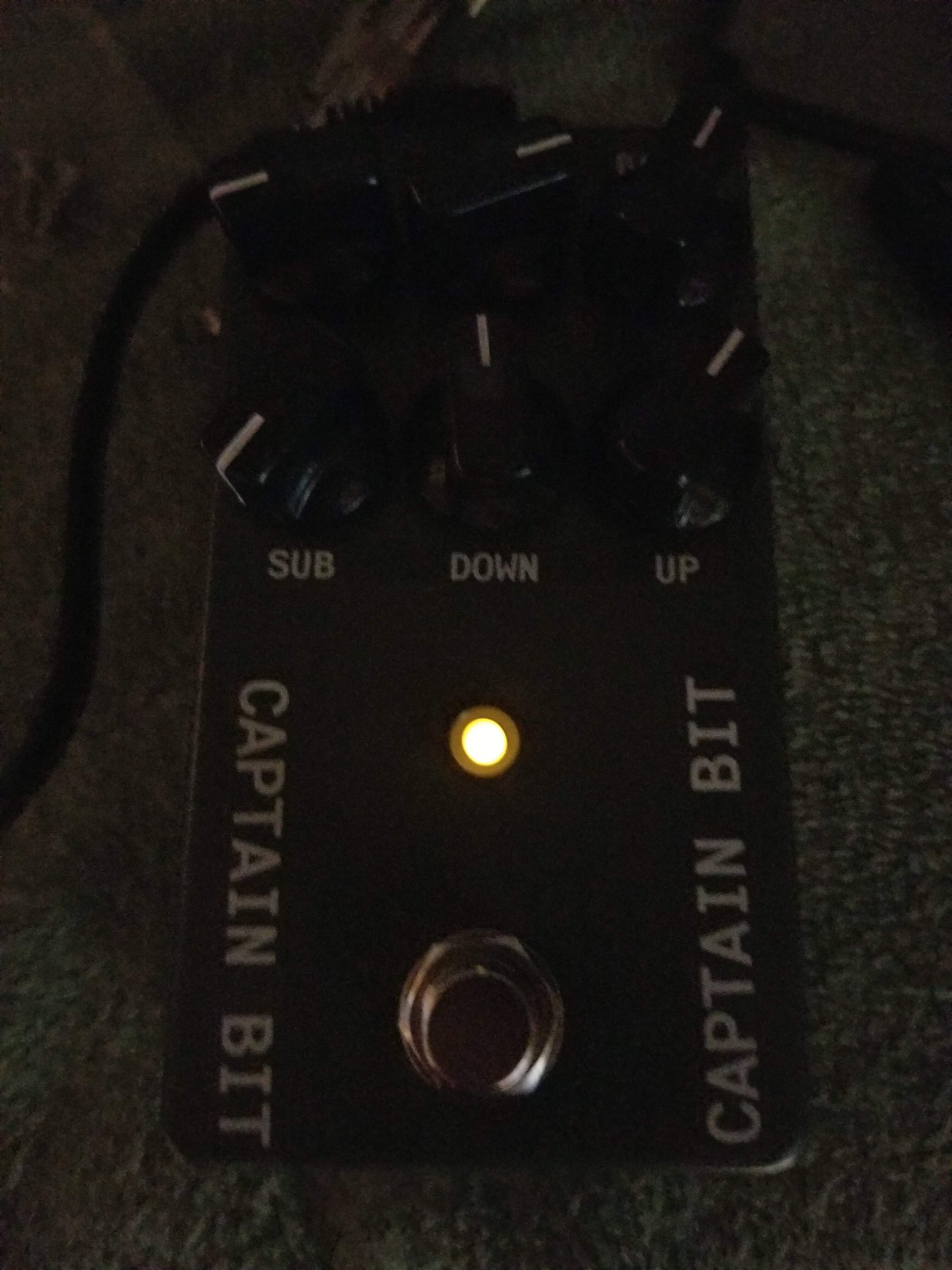

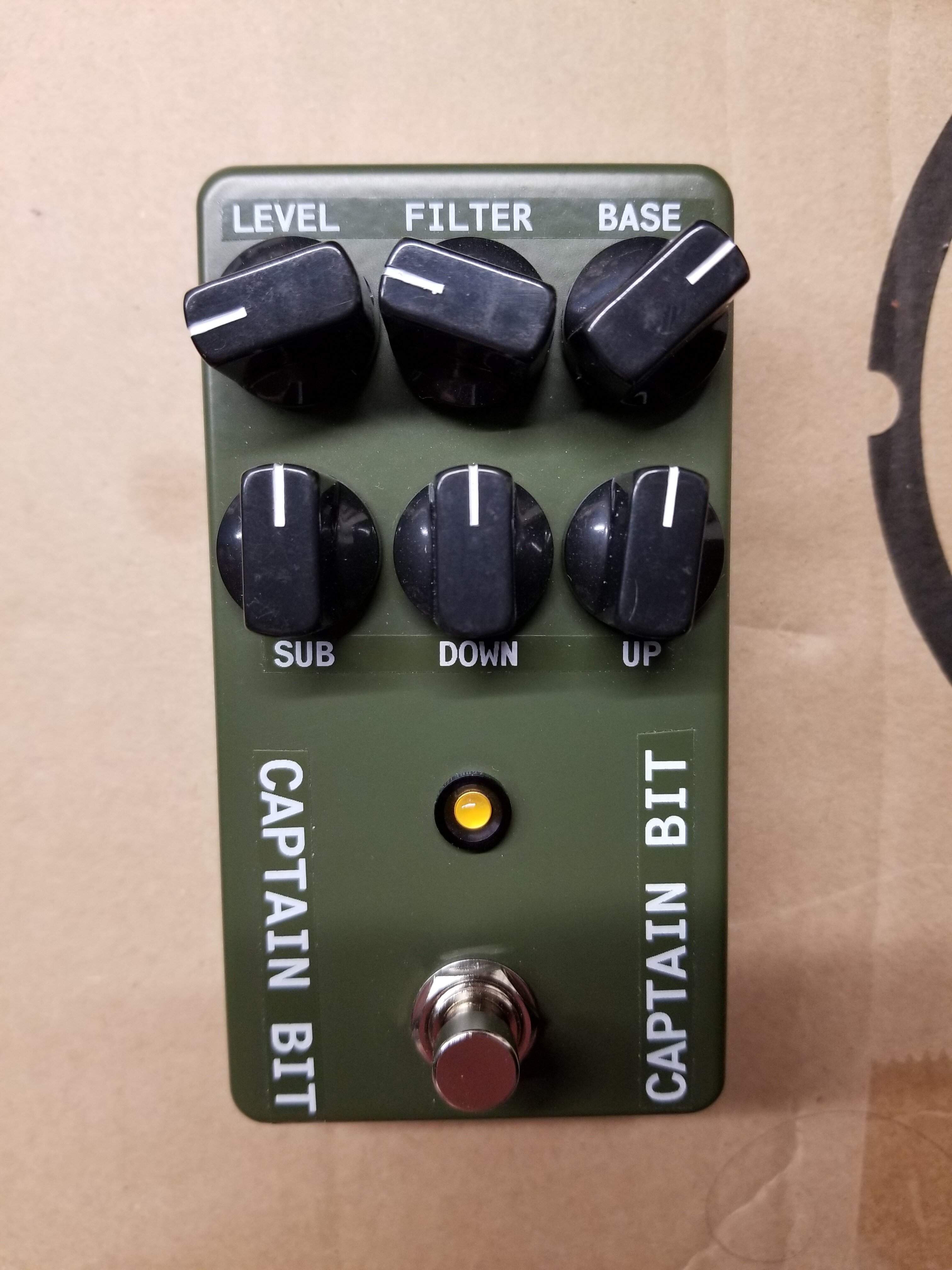

PedalPCB's Captian Bit. The build was pretty straightforward, except I used a different style DC connector and wired up the wrong lug (so what's shown in the picture is wrong) I made the logos like the double stripe insignia for a Army Captain. The case is the OD powdercoat from Tayda

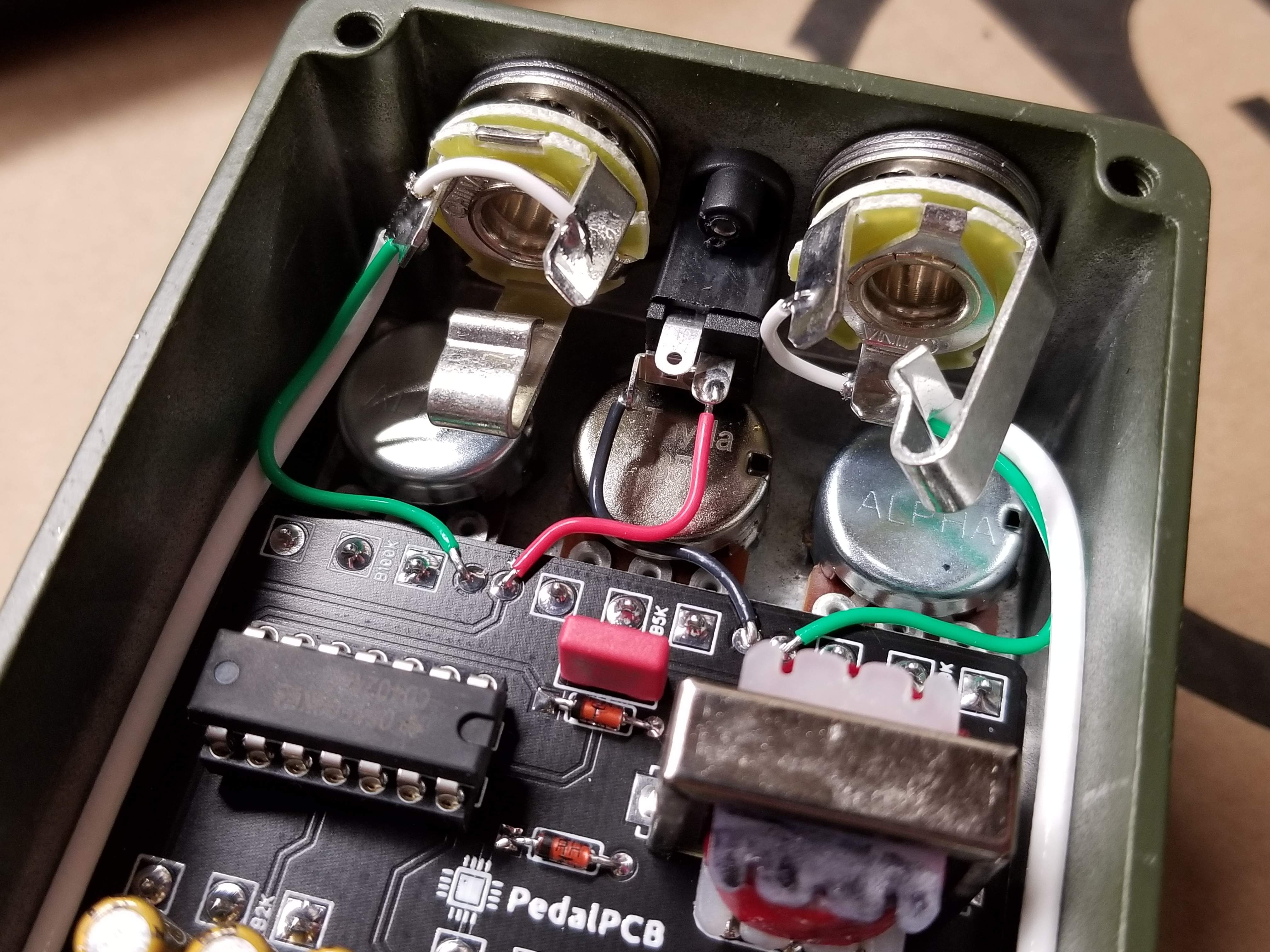

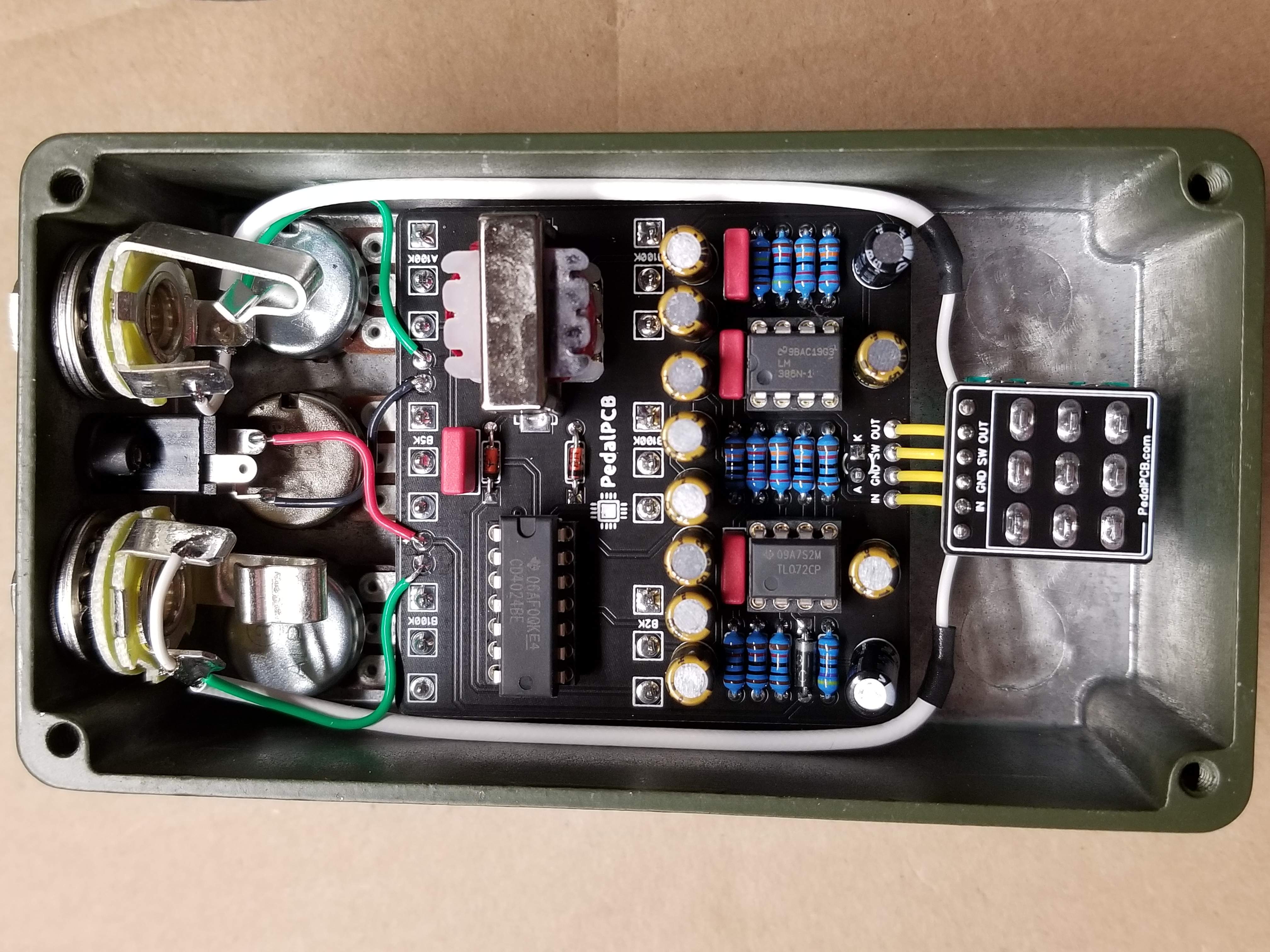

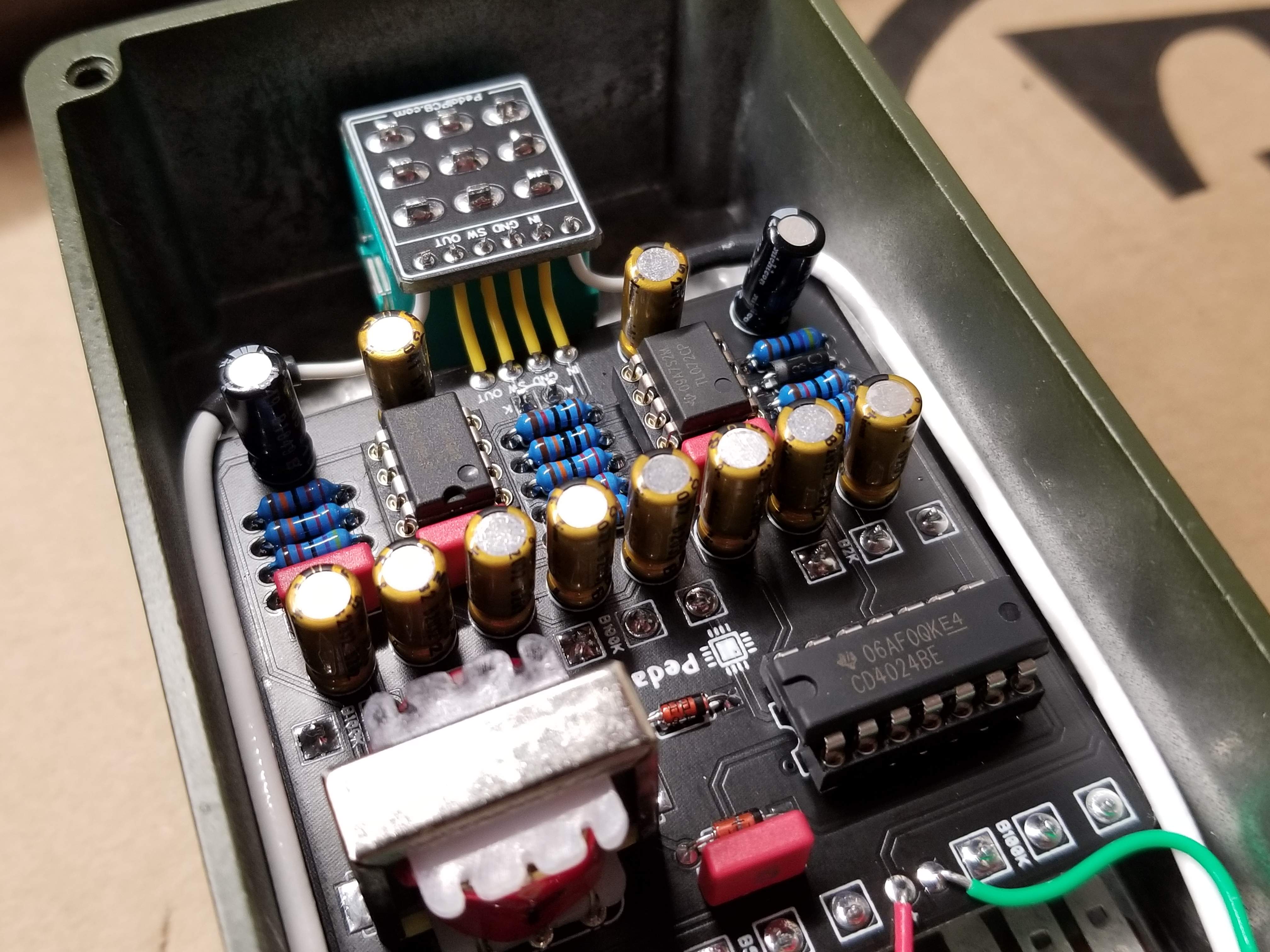

Gut shots!

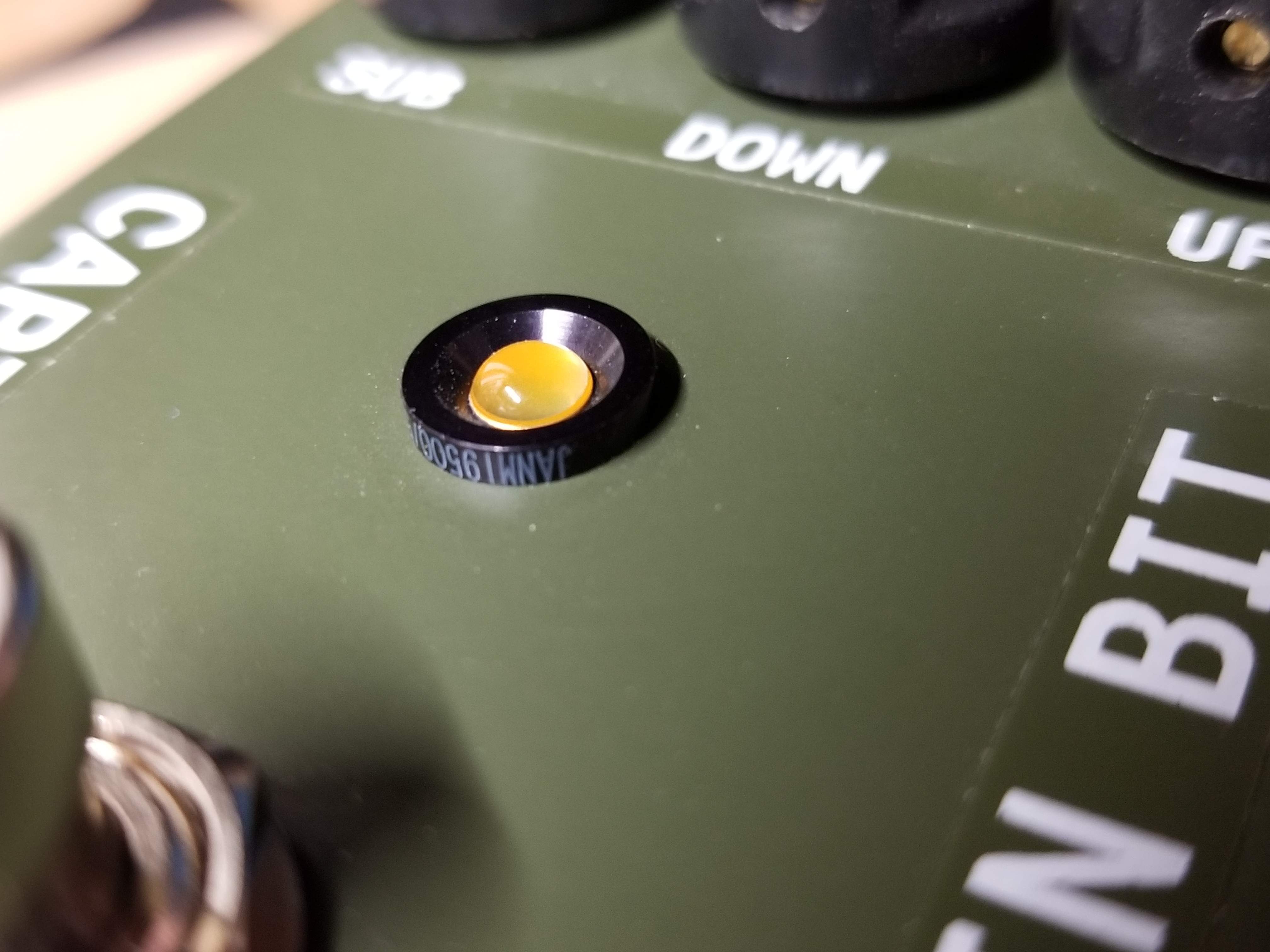

The LED is a NOS mil-spec JAN. The housing is anodized aluminum, so that's pretty cool. It's a little too dim on 9V though.
How does it sound? Pretty cool, but it doesnt track very well on the lower strings. The Filter control changes the sound quite a bit, there are several useful settings. It would probably work really well on guitar.
PedalPCB's Captian Bit. The build was pretty straightforward, except I used a different style DC connector and wired up the wrong lug (so what's shown in the picture is wrong) I made the logos like the double stripe insignia for a Army Captain. The case is the OD powdercoat from Tayda
Gut shots!
The LED is a NOS mil-spec JAN. The housing is anodized aluminum, so that's pretty cool. It's a little too dim on 9V though.
How does it sound? Pretty cool, but it doesnt track very well on the lower strings. The Filter control changes the sound quite a bit, there are several useful settings. It would probably work really well on guitar.

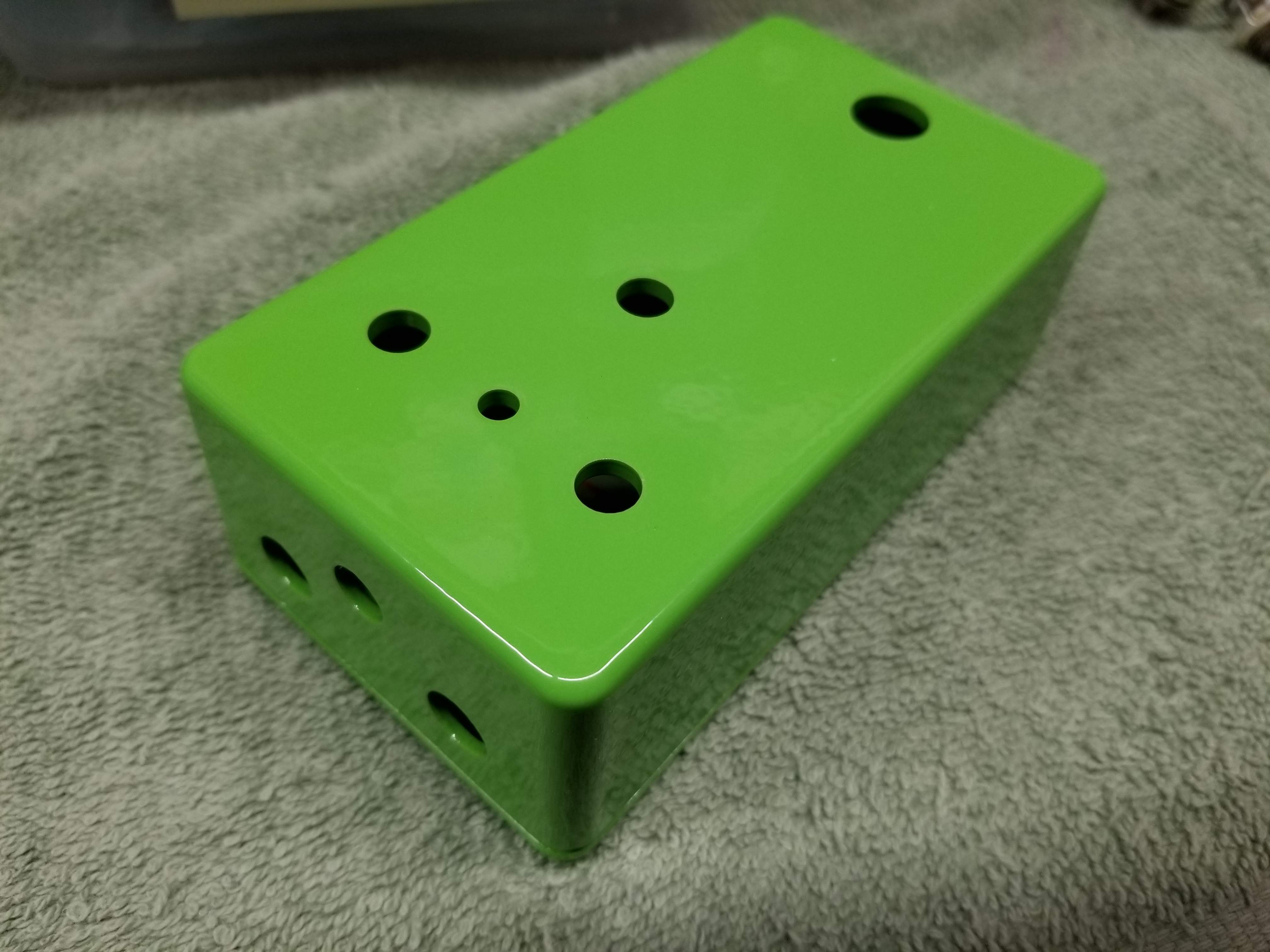

Tayda started offering their 125B enclosures pre-drilled for PedalPCB boards. I ordered this one pre-drilled and powdercoated for $7. Can't beat that! (I'm not affiliated in any way with PedalPCB)
Merry Christmas to all my Lowend / DIY brothers. I hope ou all have a Blessed day.

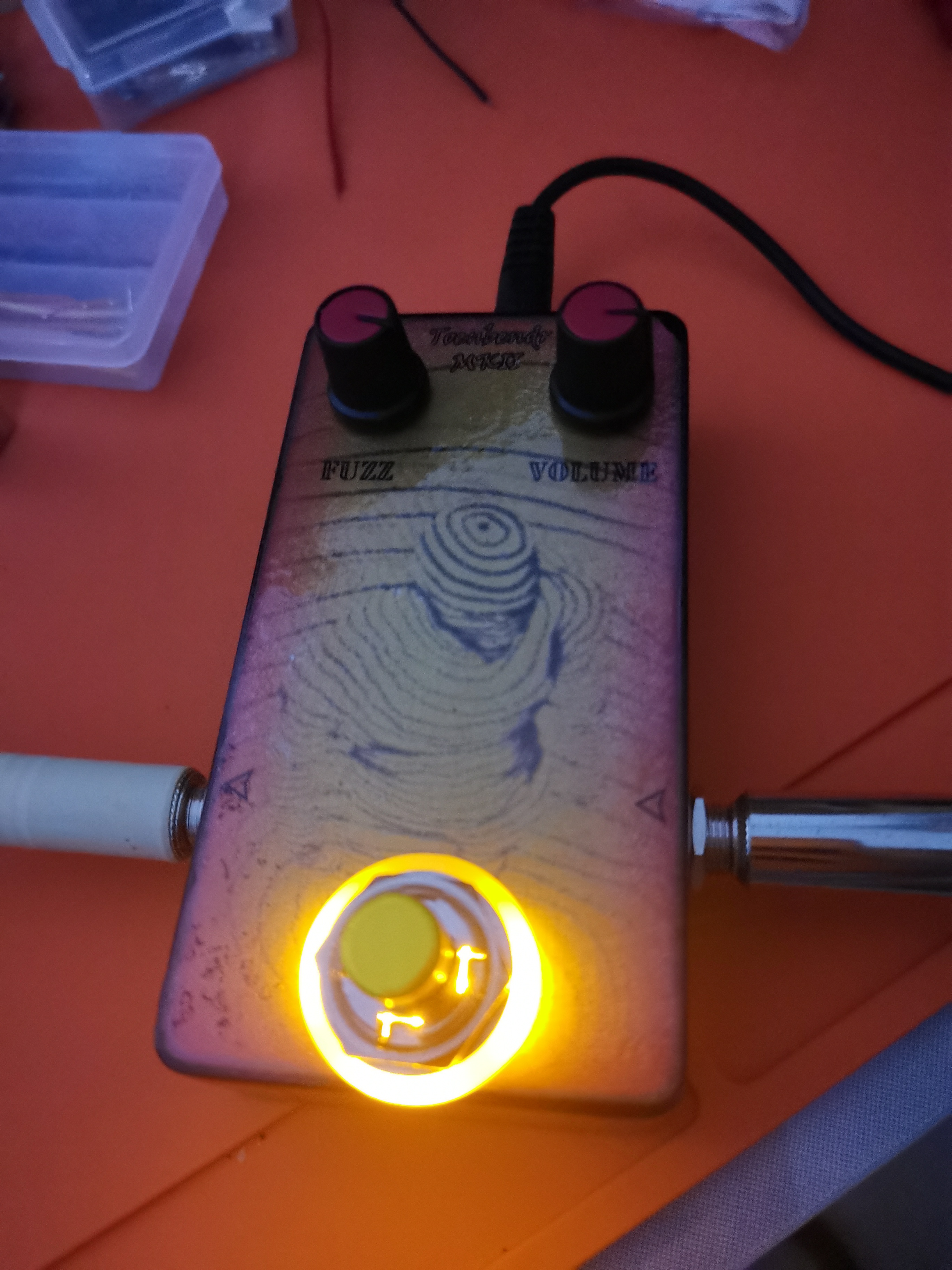

i'm pretty much done with germanium transistor builds, managed to barely scrounge up 3 suitable ones from a bunch of 20 AC128s and OC75s.
Tonebender MKII, PCB based off aiondeimos pcb.
Took this gut shot before realising Q1 had fallen out of its socket ._.
Tonebender MKII, PCB based off aiondeimos pcb.
Took this gut shot before realising Q1 had fallen out of its socket ._.
Effects Layouts December sessions

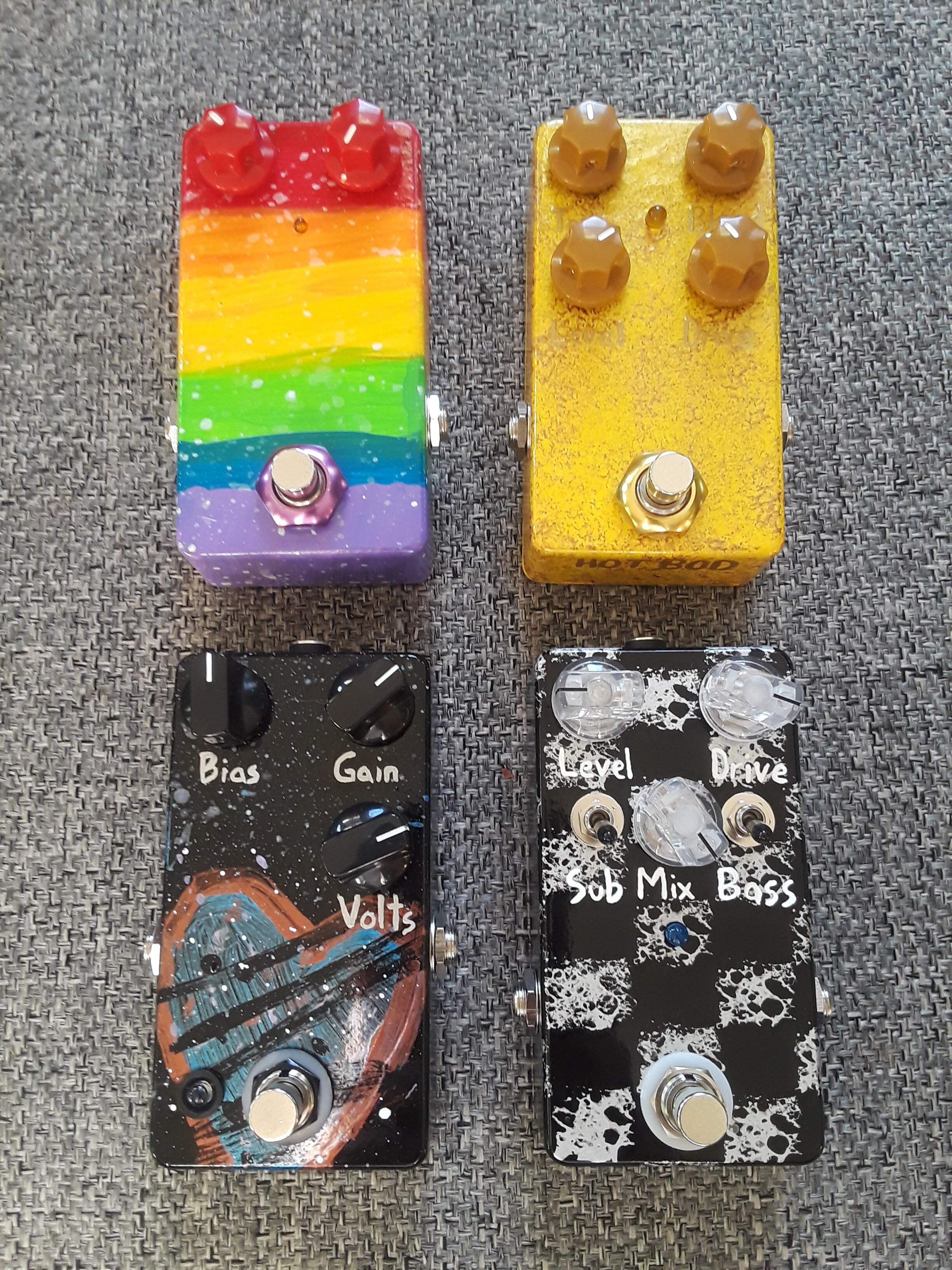

Top left: JetPack (similiar to Maxon 880 and DOD 250). I've modded this three times already and it might go back under the iron again for more modding. Mods; C12 is 100uF,C4 socket with 470nF, C5 & C6 100nF, C8 10uF. Kid painted rainbow and clouds.
Top right: Hot BOD (similar to DOD fx91 BOD). Very grindy and fizzy overdrive with a blend to balance it for bass guitar. Painted gloss yellow base coat with bronze and gold.
Bottom left: Elemental OD ( similiar to EHX Germanium OD). Used a silicon 2N4403 in Q1. This was a surprise! Very nice mild overdrive with unusual controls. Kid painted "space heart".
Bottom right: SpottedDick (similiar to Prunes & Custard). I've built this on stripboard and liked it enough to build another on a quality pcb. Crazy octave fuzz filter, laser beams and light saber sounds. Painted gloss black with silver squares.
Top left: JetPack (similiar to Maxon 880 and DOD 250). I've modded this three times already and it might go back under the iron again for more modding. Mods; C12 is 100uF,C4 socket with 470nF, C5 & C6 100nF, C8 10uF. Kid painted rainbow and clouds.
Top right: Hot BOD (similar to DOD fx91 BOD). Very grindy and fizzy overdrive with a blend to balance it for bass guitar. Painted gloss yellow base coat with bronze and gold.
Bottom left: Elemental OD ( similiar to EHX Germanium OD). Used a silicon 2N4403 in Q1. This was a surprise! Very nice mild overdrive with unusual controls. Kid painted "space heart".
Bottom right: SpottedDick (similiar to Prunes & Custard). I've built this on stripboard and liked it enough to build another on a quality pcb. Crazy octave fuzz filter, laser beams and light saber sounds. Painted gloss black with silver squares.
Looks awesome. Why is there insulation around that resistor on the bottom left of the board. It looks like it is floating and cutting across the in/out jack.
Regarding that pedal with the lettering issue, I ended up coating it with some clear nail polish. Time will tell if the nail polish flakes off with the letters but seems pretty bonded as of now and looks great (to me).
The initial resistor i used made the LEDs too bright for my liking, spliced another one in-line to bring the brightness down.
Tidy wiring! Out of curiousity, what are you using for shielded wire on you input/output and how in the heck do you keep from melting the insulation when soldering the shield onto the ground lug on the jacks?

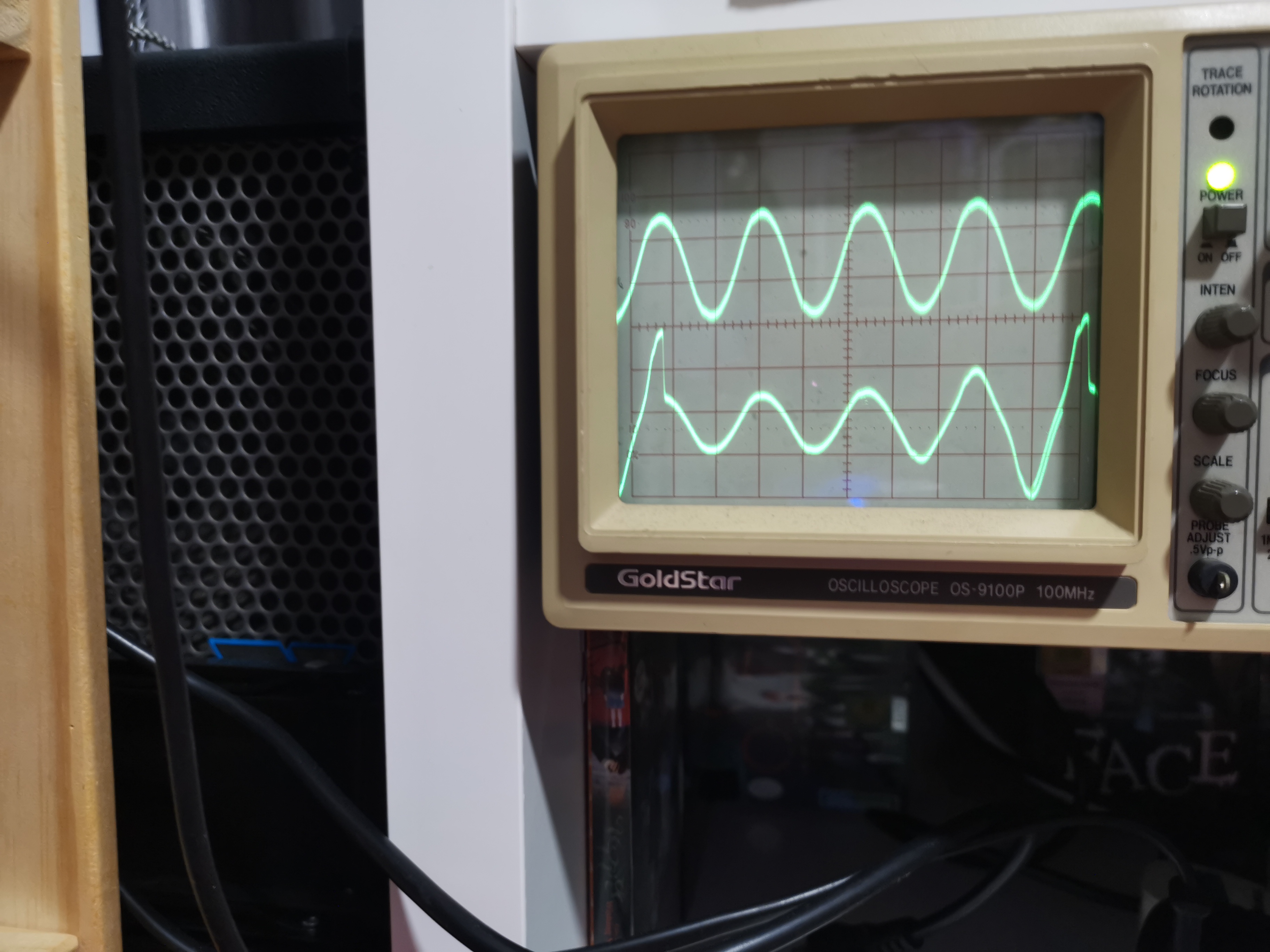

I've been pondering the "fix" i made for the Love Squeezer compressor to fit the bass, and I realised that what I did was incomplete. I've documented all my findings here:
https://www.annabellekhoo.com/2021/12/28/rothwell-love-squeeze-ne-1-pedal-build/
Long story short, there are 2 more high passes in the circuit that work at 72Hz and need to be brought down lest they do weird stuff to your signal between low E and D.
It truly does sound good enough as is. So i'm conflicted about taking it apart just to tweak it some more. We'll see.
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

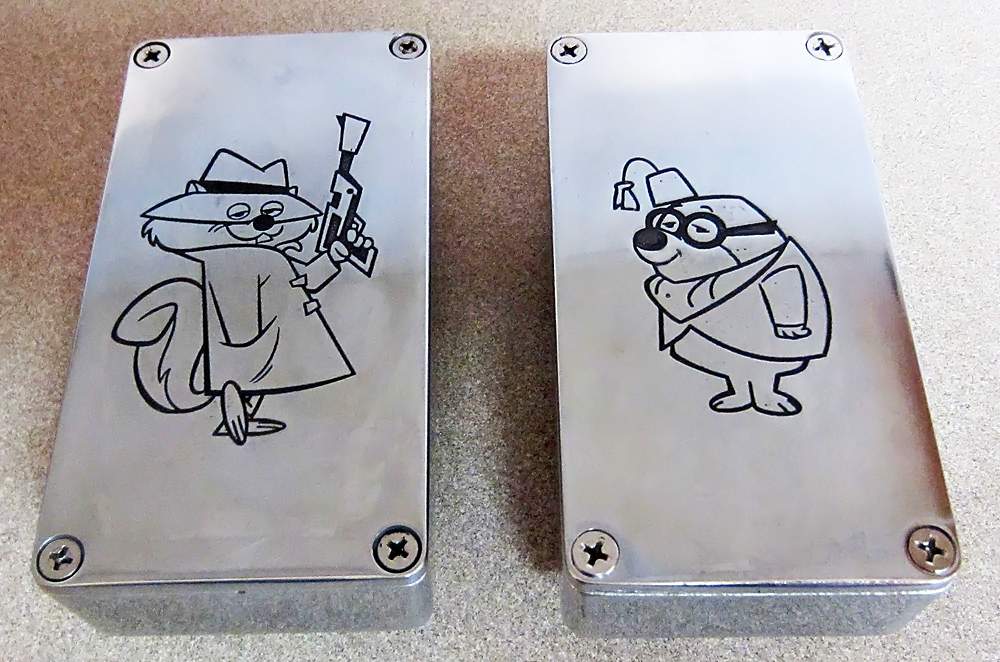

i just finished building these for a TB member (brown dog & agent 00funk clones in 1590Bs with relayed true bypasses) he wanted cartoon-ish graphics on them:
Last edited:

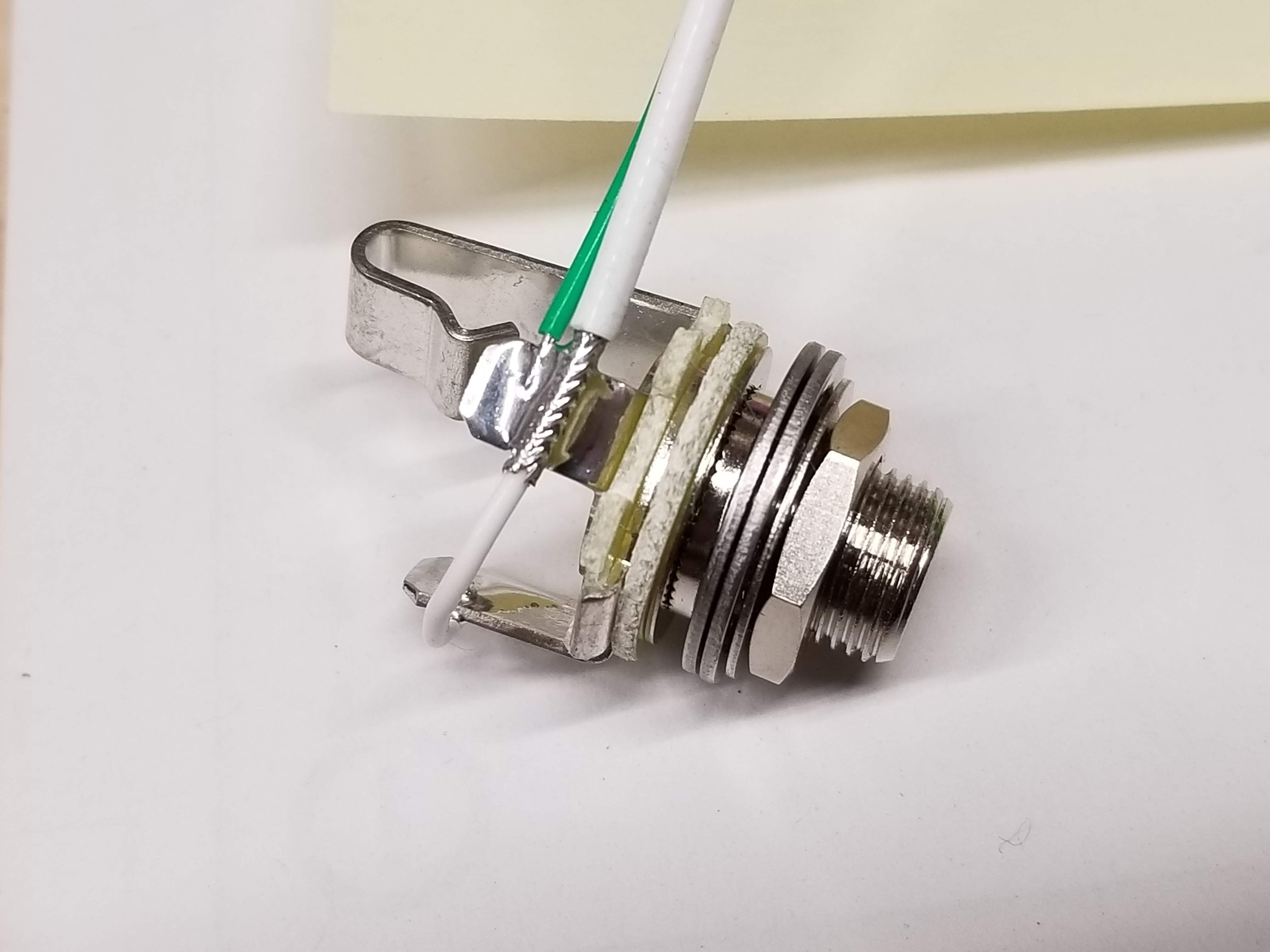

The wire is M16878/4 22AWG single conductor shielded, specs are here
