Any DIY pedal builders on TB? Strut your stuff!

[johnk_10]

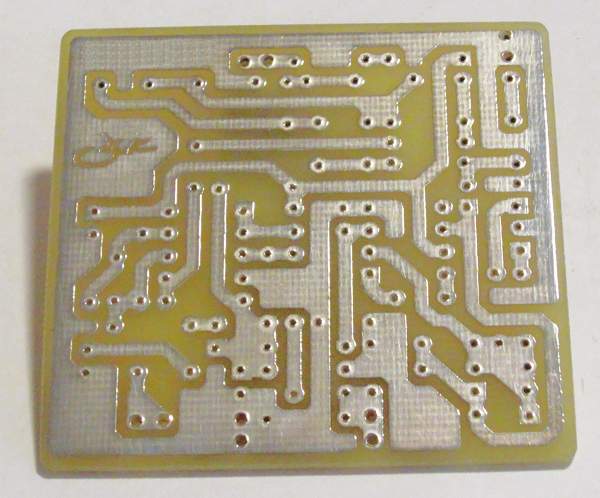

just finished designing, etching, populating and testing this pcb.

i LOVE the way that it sounds! pics of the completed pedal coming soon.



[Luke the Fluke]

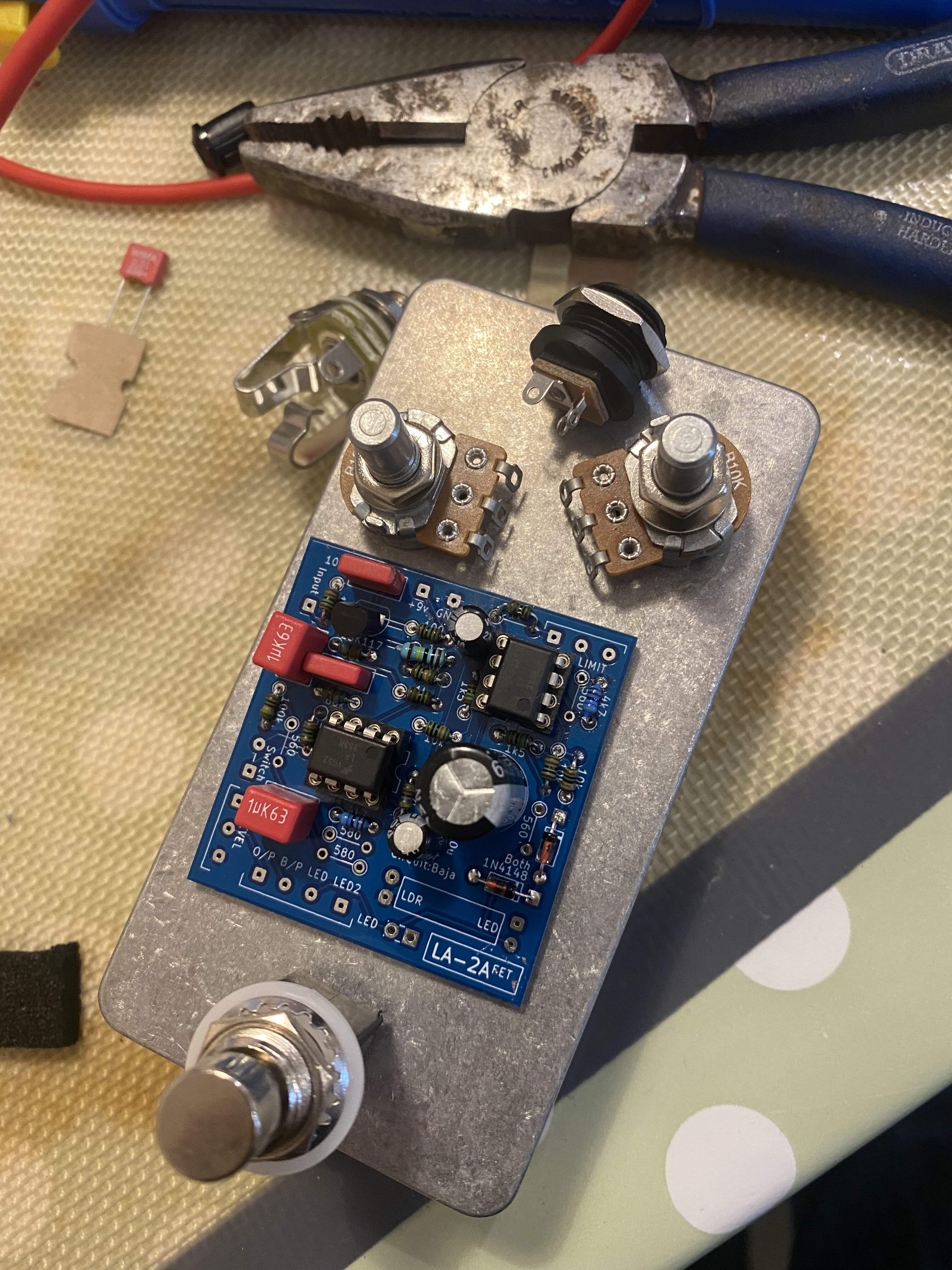

My version of a bajaman optical limiter…
Started exploring etching PCBs … cheaper to have 6 made and posted from China

won’t know if I made any mistakes till the last few things turn up!!



[Luke the Fluke]

I realise a 10p piece isn’t a great sizing tool for talkbass! I think 10p is about the size of a quarter dollar in the us



[G.Bisson]

Schalltechnik_04 announced they are closing shop. Musikding wont be restocking. Pumperknickles are all gone. Missed a chance to build the best DIY compressor .



[Silver Blues]

Man, it's one after the other with these pedal builders closing shop. Really depressing. Hope for a trace/reverse engineer in the future?



[mdalamond]

just finished designing, etching, populating and testing this pcb.

View attachment 4819093

i LOVE the way that it sounds! pics of the completed pedal coming soon.

Is it an original design?



[johnk_10]

DONE:



[mdalamond]

Very nice John. Will you be sharing a demo of this?



[johnk_10]

Very nice John. Will you be sharing a demo of this?

yep.



[Silver Blues]

Very slick!



[Luke the Fluke]

Schalltechnik_04 announced they are closing shop. Musikding wont be restocking. Pumperknickles are all gone. Missed a chance to build the best DIY compressor .

I think it was the IC being unavailable that killed the pumpernickel that was on my list to build for years.
I’ve been looking at the Guma antique as a occasion drive pedal but not sure that’s what I want!!



[disssa]

I think it was the IC being unavailable that killed the pumpernickel that was on my list to build for years.

Pumpernickel used a THAT4301. This IC is discontinued. But musikding use a alternative: Klick



[HueyFreeman]

Anybody here have any thoughts on Aion's Oceanid optical compressor?



[swagbotbilly]

Schalltechnik_04 announced they are closing shop. Musikding wont be restocking. Pumperknickles are all gone. Missed a chance to build the best DIY compressor .

Wow. I'm glad I did not wait on that one. Devastating to hear. I was thinking about de-soldering my THAT chip so that I could fix the sockets but now I'm afraid to bone it up.

I think it was the IC being unavailable that killed the pumpernickel that was on my list to build for years.
I’ve been looking at the Guma antique as a occasion drive pedal but not sure that’s what I want!!

I missed out on the GUMA drive. Totally sad now.



[johnk_10]

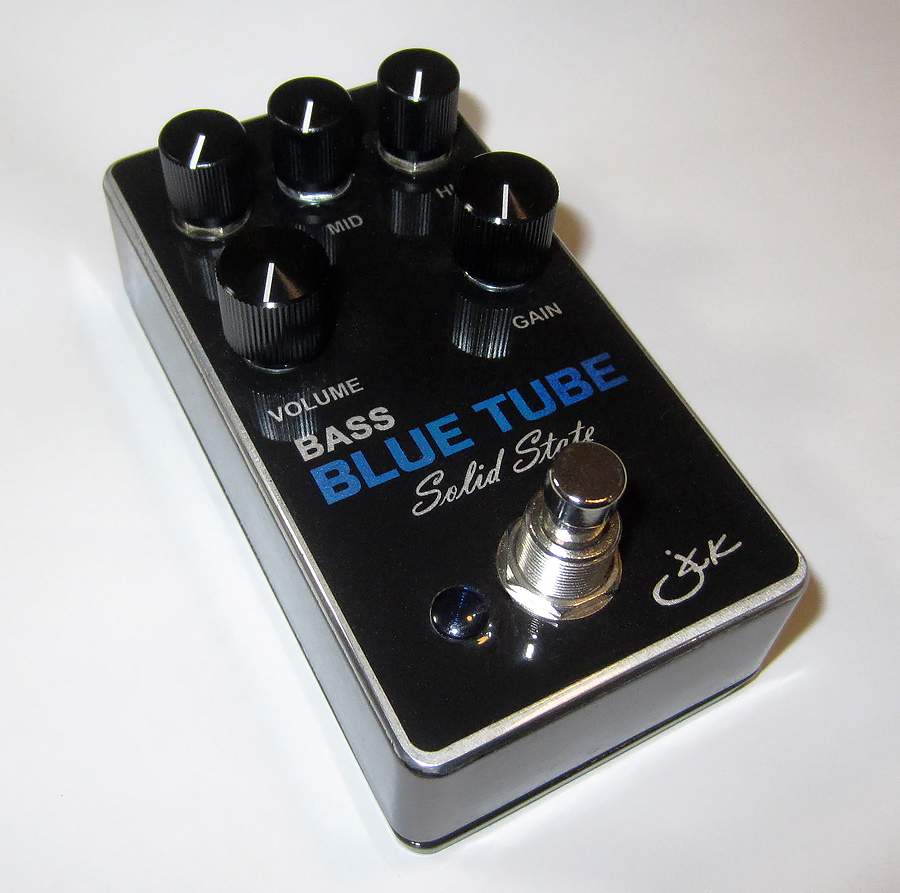

solid state bass bluetube pedal with a pick quick demo (various settings):



[SemiDriven]

solid state bass bluetube pedal with a pick quick demo (various sttings):

Nice work -- sounds great!



[Passinwind]

Anybody here have any thoughts on Aion's Oceanid optical compressor?

I have the PCB but haven’t gotten around to buying all the parts for the build yet. I’m not real good about building to spec though. And that’s quite an understatement actually.



[mdalamond]

solid state bass bluetube pedal with a pick quick demo (various settings):

Very nice. That sounds great. Lots of different voice. Very versatile.



[Passinwind]

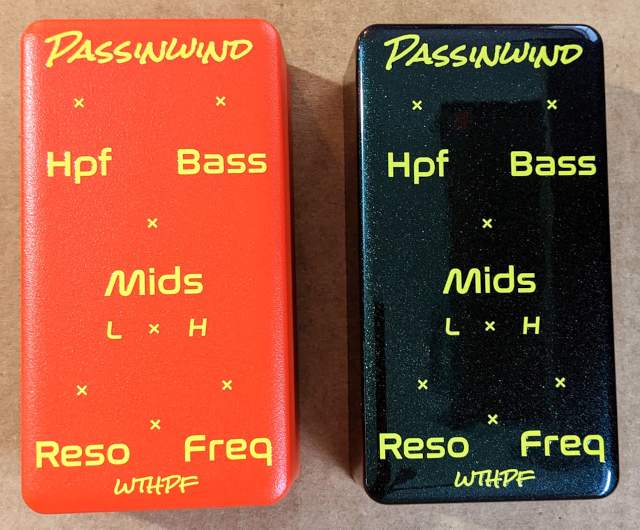

Shipping today from Portland, testers for the new open source WTHPF design:

The one on the right is the color shifting "chameleon" finish. Hope I can fit in everything that needs to be in there.



[swagbotbilly]

Shipping today from Portland, testers for the new open source WTHPF design:

View attachment 4822082


The one on the right is the color shifting "chameleon" finish. Hope I can fit in everything that needs to be in there.

I was thinking of picking up one of those chameleon enclosures
