Any DIY pedal builders on TB? Strut your stuff!

[deepestend]

Usually the boss pedals like that have a plastic barrier between the back and the board.
I will bet that this is a grounding issue. ESP if it worked for a second when you held it the right way.
I’d start by just reflowing all of the solder and then putting tape on the inside of the plate to protect the board.



[RJ]

Usually the boss pedals like that have a plastic barrier between the back and the board.
I will bet that this is a grounding issue. ESP if it worked for a second when you held it the right way.
I’d start by just reflowing all of the solder and then putting tape on the inside of the plate to protect the bird.

Unfortunately I won't be reflowing anything as I don't have the tools or the know-how.



[johnk_10]

here's the schematic for it.

it might be something as simple as the momentary bypass switch.



[deepestend]

Then maybe try isolating the board from the back with tape or a thin piece of foam and see how that works.



[AudioTaper]

Then maybe try isolating the bird from the back with tape or a thin piece of foam and see how that works.

A thin piece of cardboard (like a cereal box) might be easier to find and cut.



[deepestend]

A thin piece of cardboard (like a cereal box) might be easier to find and cut.

totally. Pretty much anything non metal you have lying around.



[RJ]

Then maybe try isolating the bird from the back with tape or a thin piece of foam and see how that works.

That did it! A couple layers of painters tape separating the board from the back plate fixed it, and thankfully so as that about maxes out my technical abilities when it comes to fixing electronics.

Thank you! Pretty stoked on this little orange box now.



[deepestend]

That did it! A couple layers of painters tape separating the board from the back plate fixed it, and thankfully so as that about maxes out my technical abilities when it comes to fixing electronics.

Thank you! Pretty stoked on this little orange box now.

I had a DOD 250 that wasn't working and I could not figure out what was wrong. Really made my head spin because it was as simple circuit and I couldn't find the issue. Turns out that one of the jacks had rotated and was making contact with the case. That was the whole issue... just a tiny grounding issue. After that, I always look for grounding issues first.



[Fuzzonaut]

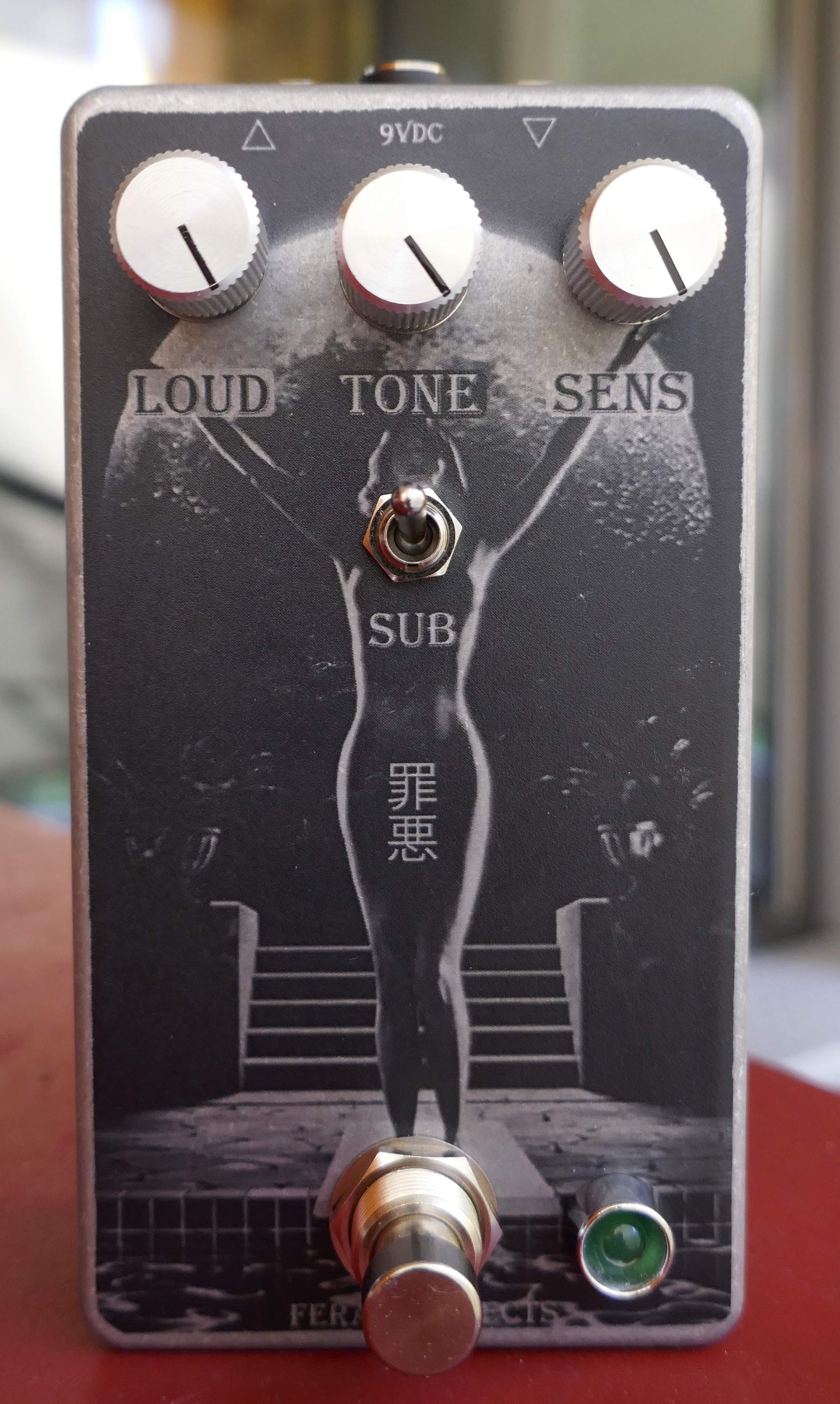

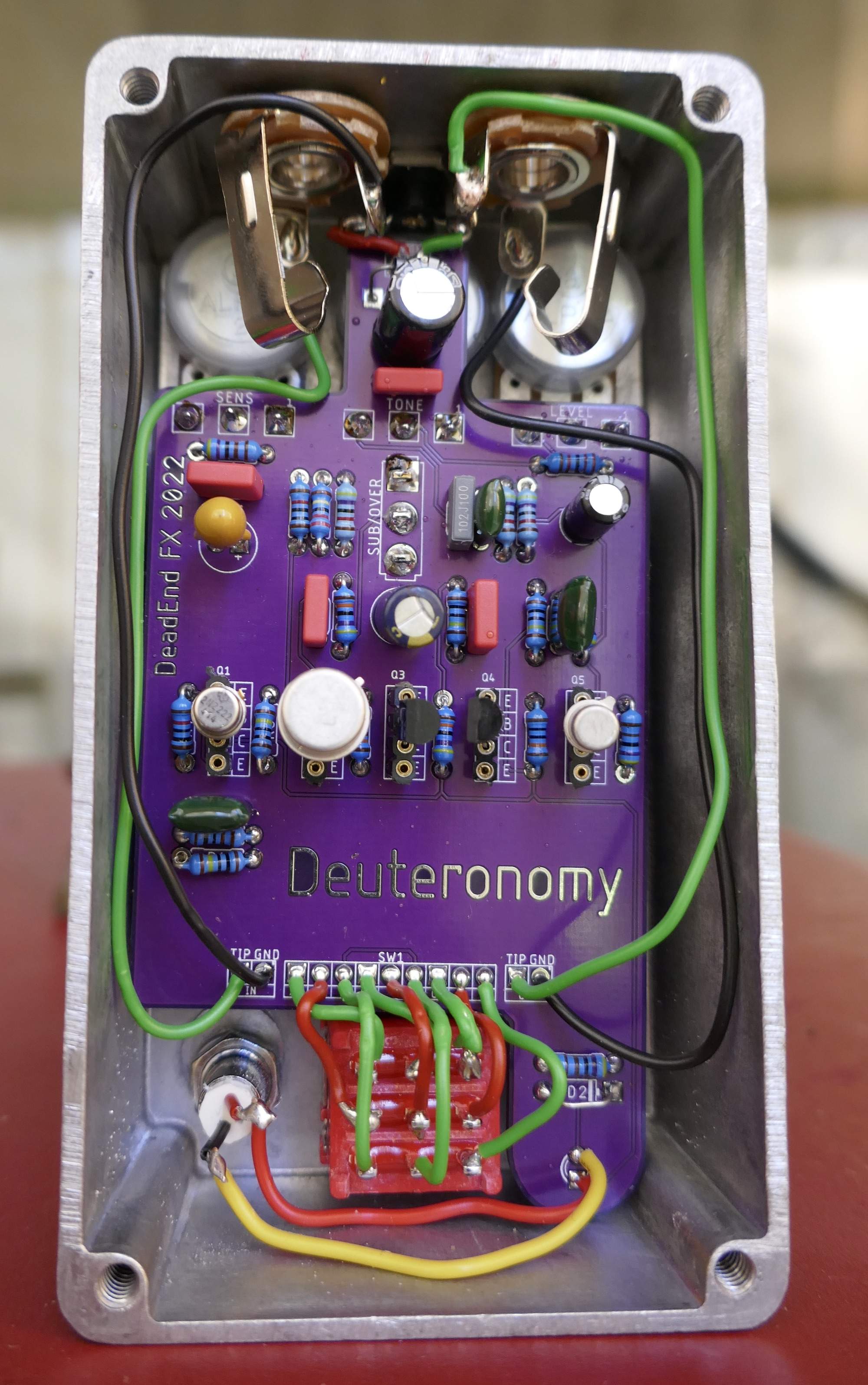

This is a clone of the Last Gasp Arts Gomorrah, PCB from Deadend FX, a "subharmonic fuzz" as they say.

Sounds very cool on its own and absolutely amazing pushing bass heavy fuzzes like the Frantone Peach for example.

As for the graphics: it wasn't too far from Gomorrah to Sin City .....

A few seconds on skinny strings first on its own, then pushing a fat fuzz.



[Luke the Fluke]

As for the graphics: it wasn't too far from Gomorrah to Sin City .....

View attachment 4811926

is that etched?



[mdalamond]

This is a clone of the Last Gasp Arts Gomorrah, PCB from Deadend FX, a "subharmonic fuzz" as they say.

Sounds very cool on its own and absolutely amazing pushing bass heavy fuzzes like the Frantone Peach for example.

As for the graphics: it wasn't too far from Gomorrah to Sin City .....

View attachment 4811926
View attachment 4811927

A few seconds on skinny strings first on its own, then pushing a fat fuzz.

Sounds great, even on my crappy phone. Need to try it with headphones.



[Fuzzonaut]

is that etched?

Nope, printed on transparent, adhesive foil.



[RJ]

This is a clone of the Last Gasp Arts Gomorrah, PCB from Deadend FX, a "subharmonic fuzz" as they say.

Sounds very cool on its own and absolutely amazing pushing bass heavy fuzzes like the Frantone Peach for example.

As for the graphics: it wasn't too far from Gomorrah to Sin City .....

View attachment 4811926
View attachment 4811927

A few seconds on skinny strings first on its own, then pushing a fat fuzz.

Wow, yeah that sounds great!



[Luke the Fluke]

What does a pedal look like if I sand thr enclosure smooth and don’t clear coat?



[johnk_10]

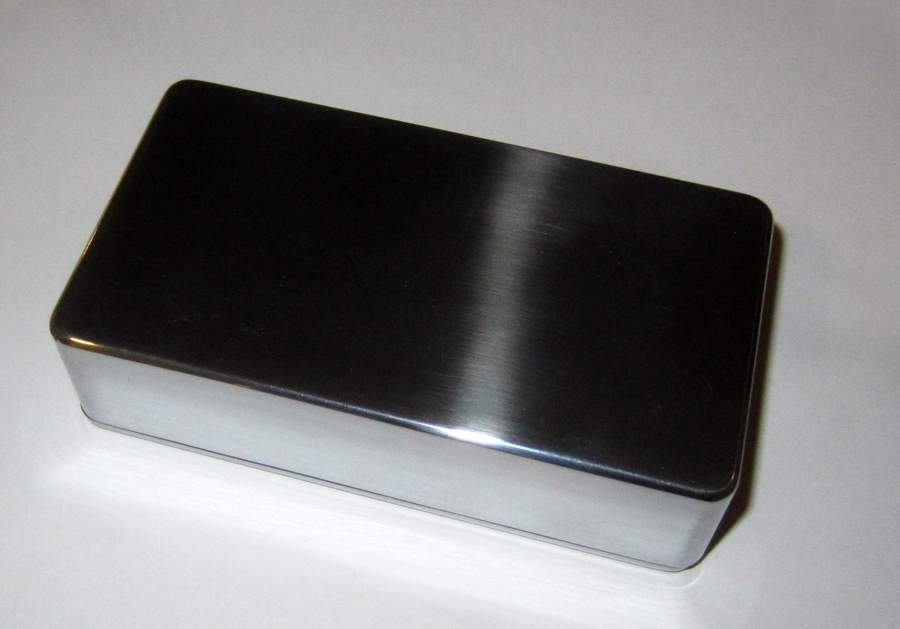

a sanded and polished 1590B looks like this:



[RJ]

It’ll oxidize over time. The result will be cloudy over time, depending on materials.



[mdalamond]

It’ll oxidize over time. The result will be cloudy over time, depending on materials.

I have some enclosures that I polished over a year ago and they still pretty much have their shine. They will oxidize a little . I know for my final polish stage I use white diamond. It polishes and leaves a protective coating . If they start looking ugly over time I just clean em up with the same stuff and they look new again. I would not clear coat polished aluminum. There is nothing for the clear coat to bite into and it will chip and Flake off over time. That has been my experience. Your results May differ.
Matt



[mdalamond]

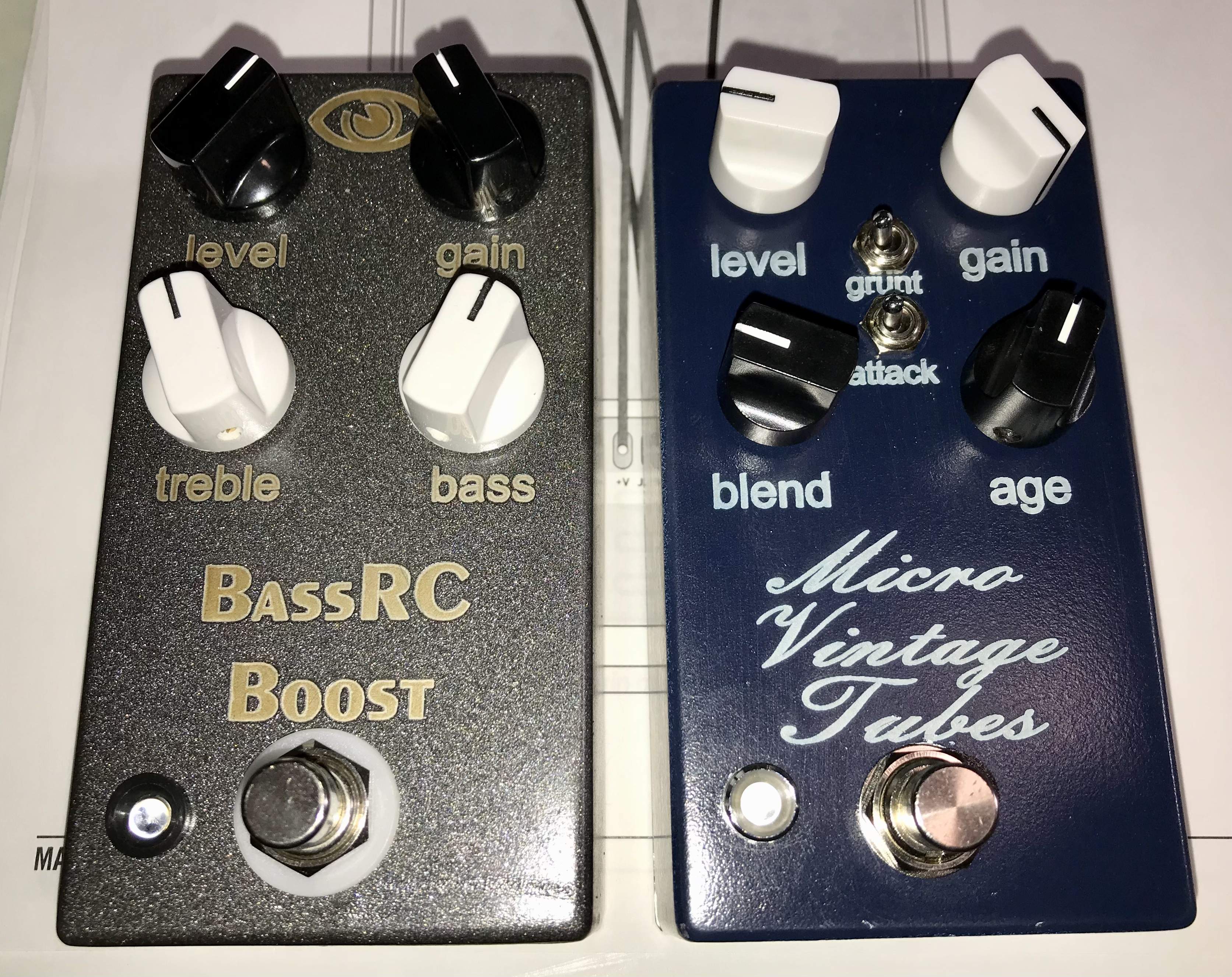

Finished one today (the VMT clone) and re-painted, then etched my RC Booster clone.

This laser engraver is definitely helping my pedals look less janky

Question on your laser engraver. How are you doing the 2 tone effect. Are you painting in the letters after etching?



[groovaholic]

Question on your laser engraver. How are you doing the 2 tone effect. Are you painting in the letters after etching?

I tried using the laser to create a stencil, but the results were messy.

I had better luck painting the enclosures, then engraving that paint.

On the VMT clone, I primed the top/face of the enclosure then painted it blue. The laser etched away the blue, but didn’t do much to the primer.

The Bass RC booster was originally painted orange, then I spray painted it with a metallic graphite color. The laser burned through most of the graphite color, and let some of the orange come through.



[johnk_10]

Spaceman Titan II clone in a 1590B with a relayed bypass and all top jacks:
