Any DIY pedal builders on TB? Strut your stuff!

[Feral Feline]

Hoppy New Beer, people.

Wishing you all successful builds, and minimal trouble-shooting.


New Year Goal:
I'll be trying in 2023 to get active in this thread again.

First two months will be a write-off though, as I'll be travelling...



[bellebasaur]

Is there a simple way to make drilling templates?

I second inkscape, any free vector image editor will work well.
For me I have a 3d printed template for 1590B and 1590BB with holes in a grid pattern, including on the sides.
If you make a wooden one, it shouldnt be too hard as well
Was thinking to add drill bushings, but so far i've been drilling straight enough not to destroy the guide holes

Half the time i just wing it anyway. Then i scan the enclosure and design my decal off the messy hole layout



[bellebasaur]

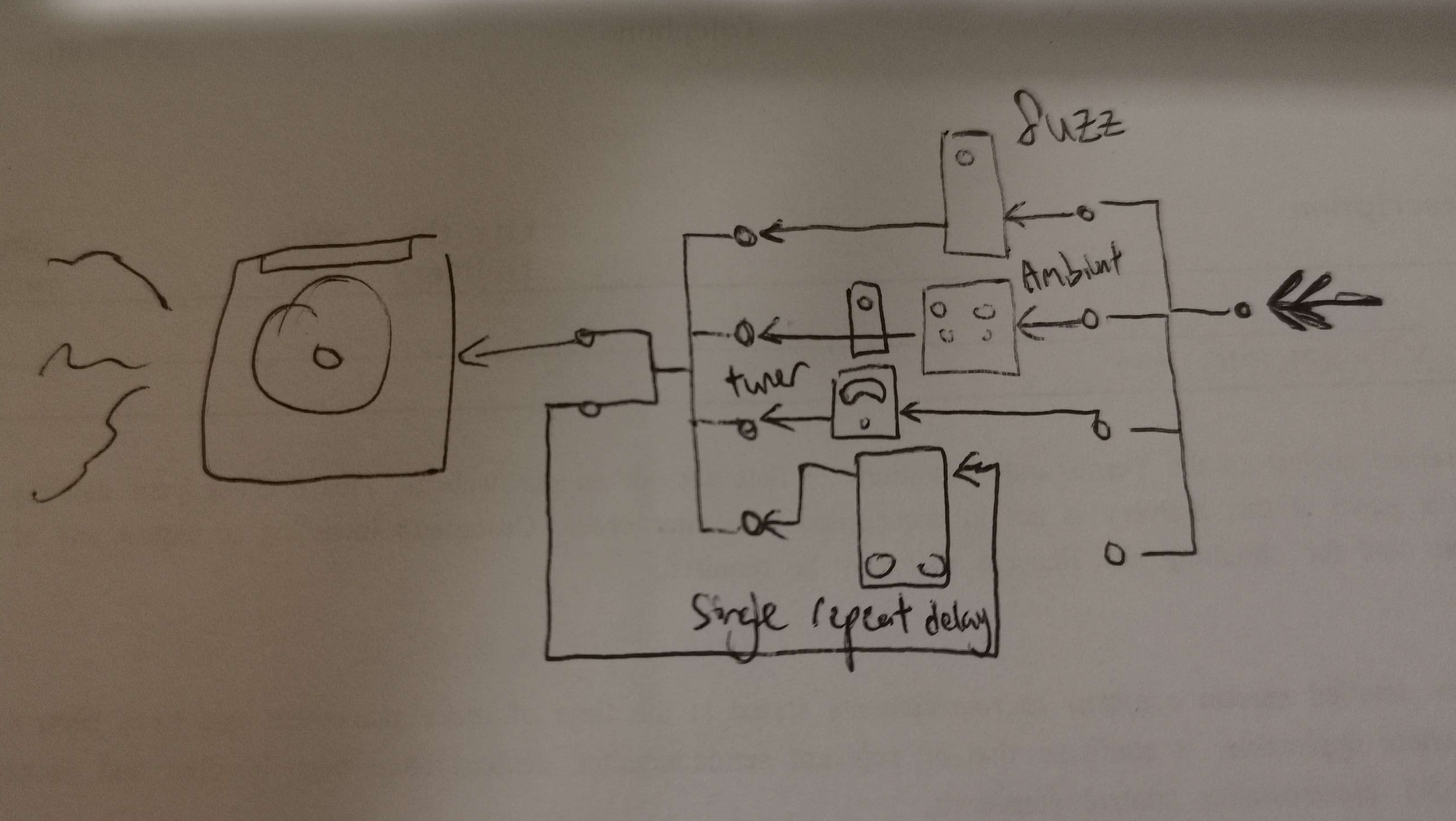

would a pedal with 4 way active splitter and mixer all in one be a good idea?
maybe with a 2 way output for feedback/more option
thinking of playing with parallel effects.



[ceetee]

I second inkscape, any free vector image editor will work well.
For me I have a 3d printed template for 1590B and 1590BB with holes in a grid pattern, including on the sides.
If you make a wooden one, it shouldnt be too hard as well
Was thinking to add drill bushings, but so far i've been drilling straight enough not to destroy the guide holes

Half the time i just wing it anyway. Then i scan the enclosure and design my decal off the messy hole layout

Thx! Going to check out inkscape tonight. I'll do my template with paper and glue, punch and pass it on to someone with a drillpress. Or maybe to @monsterbonsai. Love his enclosuredesign!



[ceetee]

would a pedal with 4 way active splitter and mixer all in one be a good idea?
maybe with a 2 way output for feedback/more option
thinking of playing with parallel effects.
View attachment 4922479

Maybe a phase-switch or three?
If you are using fuzzes, that don't like buffers you may want to take care of input-impedance (pickup-simulator).

edit: Guitar Pickups Simulation



[ceetee]

Thanks again to @disssa and @bellebasaur for the hint towards inkscape!

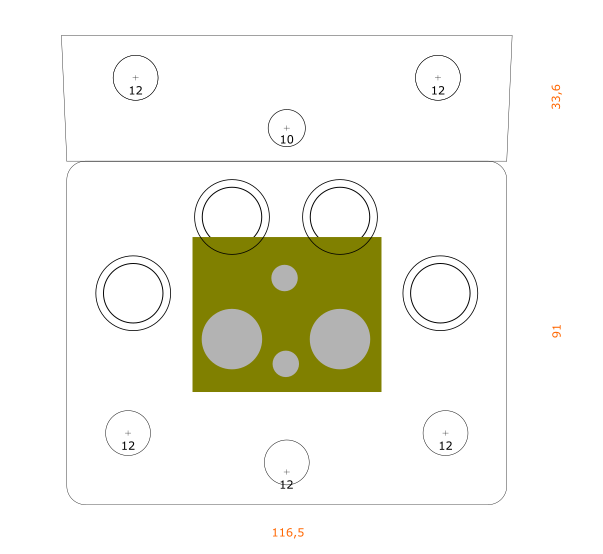

how much of a pita would this footswitch-placement be? I've seen pedals like this with 3 switches but never stepped on one...

edit: I've got about 1cm clearance left and right of that pedal. Guess that will help a little.

edit2: Don't look at the center-mark of the middle fs...



[swagbotbilly]

Has anyone recently used a MC33179? I didn't realize that they have been seemingly discontinued, and the only "reliable" source appears to be eBay on the slow boat from China...



[johnk_10]

yep. china seems to be the only option these days



[mdalamond]

Has anyone recently used a MC33179? I didn't realize that they have been seemingly discontinued, and the only "reliable" source appears to be eBay on the slow boat from China...

They have them at mouser if you need the smd type. If you don’t mind my asking, what are you building.?



[swagbotbilly]

They have them at mouser if you need the smd type. If you don’t mind my asking, what are you building.?

Ah Digi-Key was out so I didn't even check Mouser.

I'm building this adapter for the MC33179 in a Vintage Microtubes clone. I used a machine-pin socket so that I can just use some diode legs rather than wreck the leaf socket.



[mdalamond]

I thought it may have something to do with DG. I built a through hole vero version of the DG tone capsule and instead of the MC33179 it used a TLE2074 although a regular TL074 worked just as well. I may have to order a few from mouser for spares.



[swagbotbilly]

I thought it may have something to do with DG. I built a through hole vero version of the DG tone capsule and instead of the MC33179 it used a TLE2074 although a regular TL074 worked just as well. I may have to order a few from mouser for spares.

I ordered a couple of Link Removed Looks like they should fit the bill, thanks!



[swagbotbilly]

I thought it may have something to do with DG. I built a through hole vero version of the DG tone capsule and instead of the MC33179 it used a TLE2074 although a regular TL074 worked just as well. I may have to order a few from mouser for spares.

The kit came with a TL074 but I always like the idea of tweaking stuff.



[mdalamond]

I like a challenge and mods myself. I was gifted a hot air rework station for Christmas and some solder paste. I have been getting into more smd work lately. I managed to ruin my first IC ever . I got heavy handed with the solder paste and had a nice big solder bridge under the IC. I ended up scrapping the IC but saved the board. I told my wife it didn’t bother me to much because that was the first component I ruined since I started about 3 - 4 years ago. Lesson learned. I ordered some even lower temp solder paste and learned patients and a little goes a long way. She did get me a smd practice kit to learn on too but I kinda like to jump in both feet first, lol.



[bellebasaur]

how much of a pita would this footswitch-placement be? I've seen pedals like this with 3 switches but never stepped on one...
View attachment 4922657

It's doable, velcroed to a pedalboard is best.
I find stepping on the side switches flips the box otherwise.

I've put switches on the front before, which is a very bad idea. kick the whole board away before u even toggle it.



[ceetee]

It's doable, velcroed to a pedalboard is best.
I find stepping on the side switches flips the box otherwise.

I've put switches on the front before, which is a very bad idea. kick the whole board away before u even toggle it.

I guess I'll find a way to get away with only two footswitches. Maybe even one if I decide to put expression jacks before both pots instead of switching the pots in the pot-swap-setup. One controlling DRIVE, one the GATE on the fuzz.

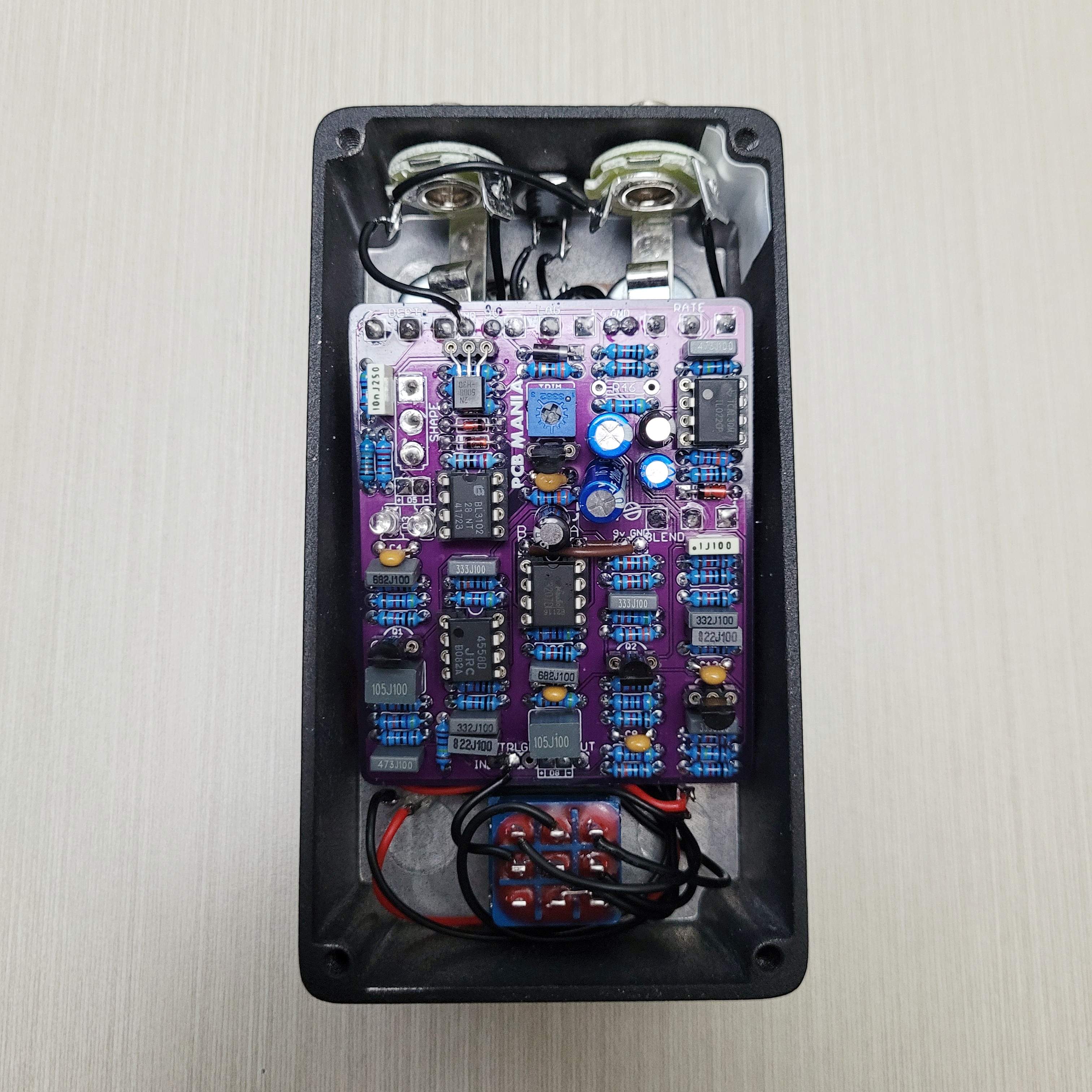

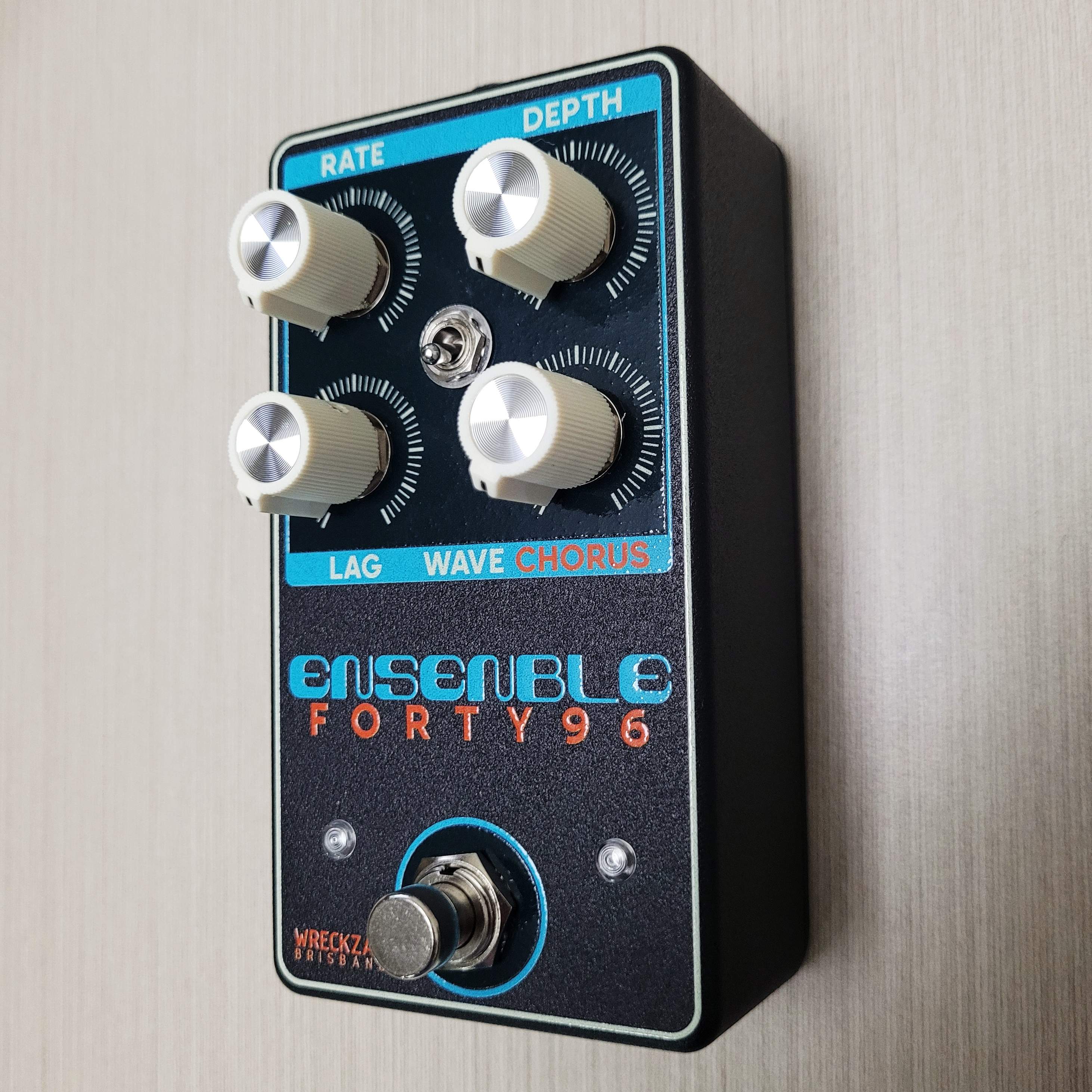

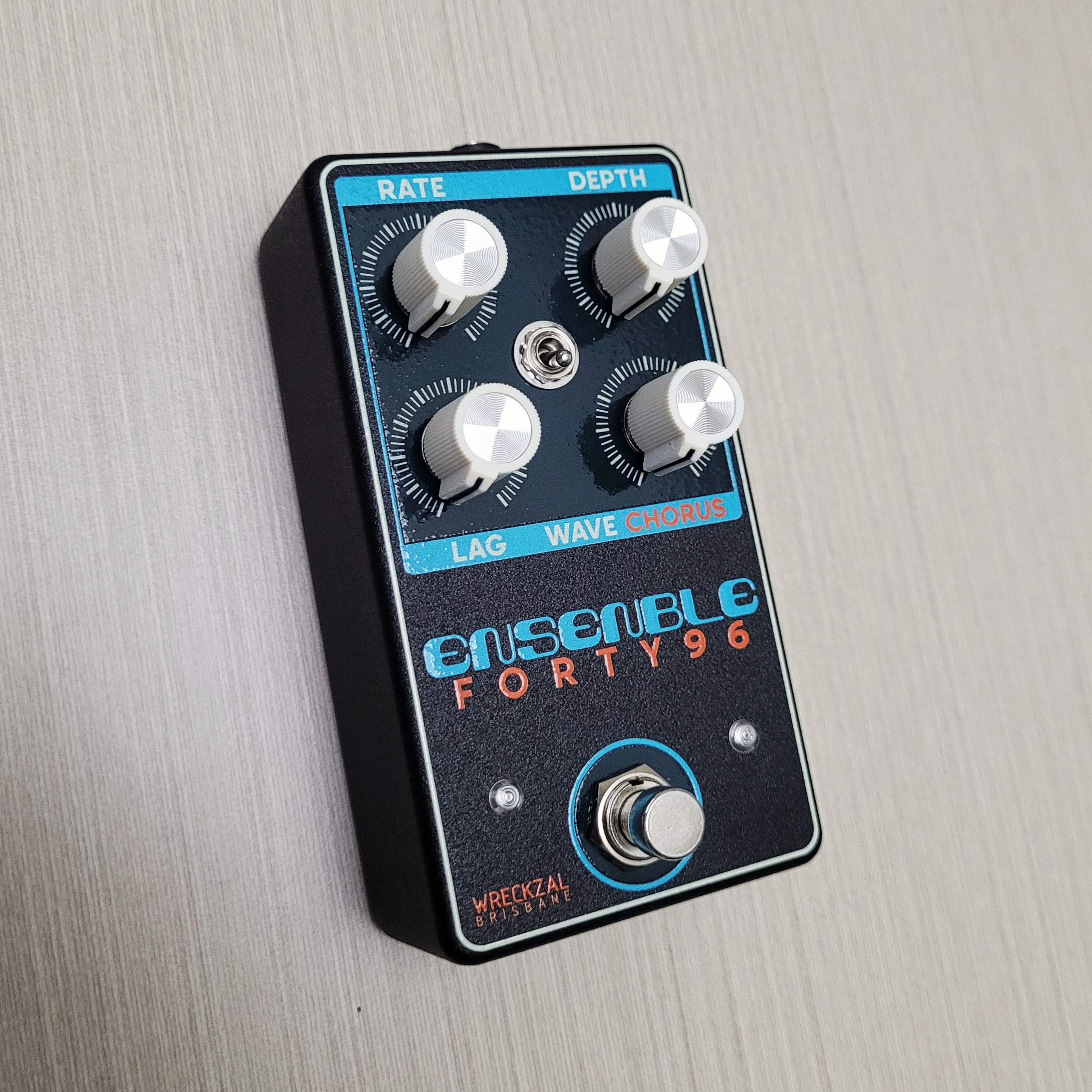

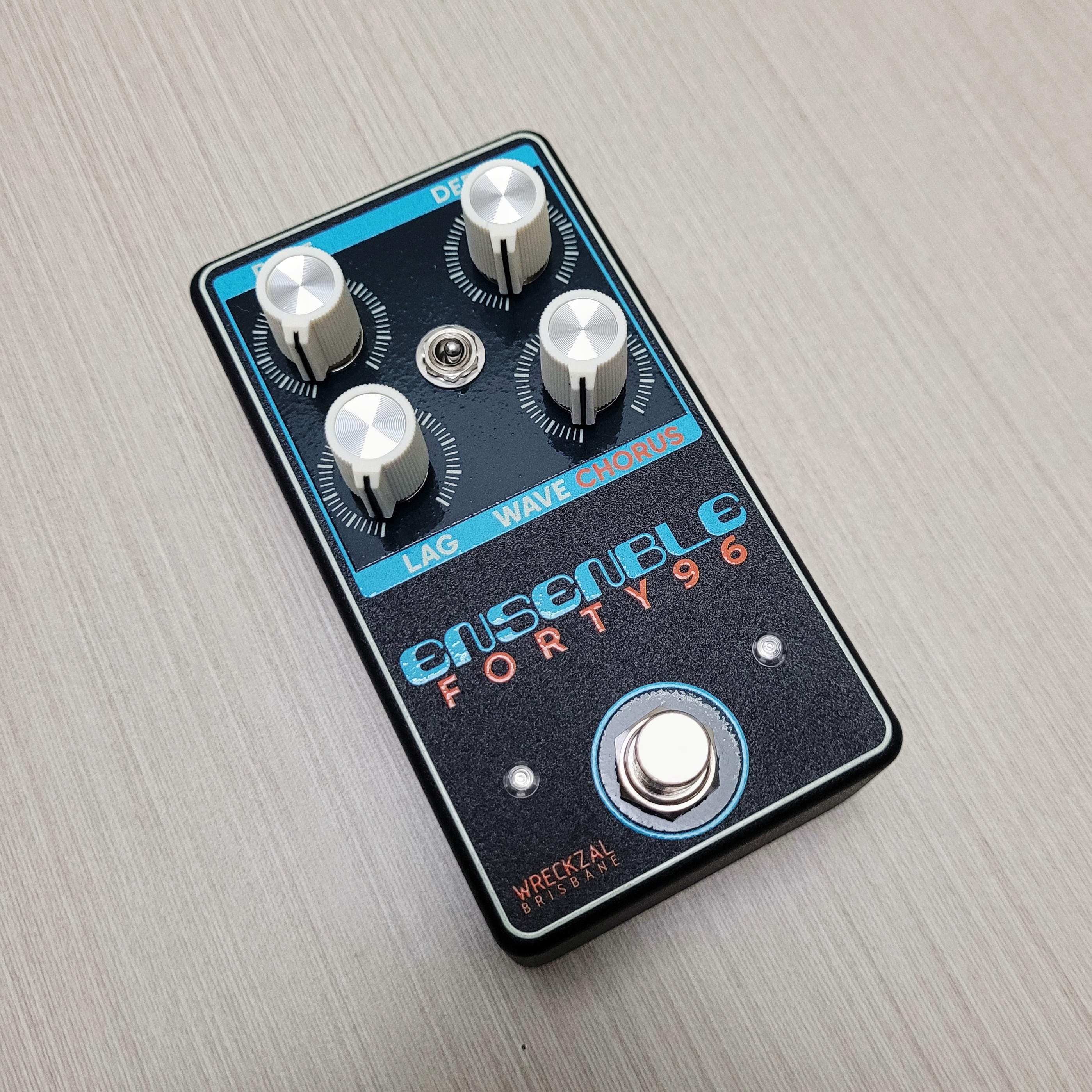

[jmwreck]

I didn't realized that I've got the spelling wrong



[mdalamond]

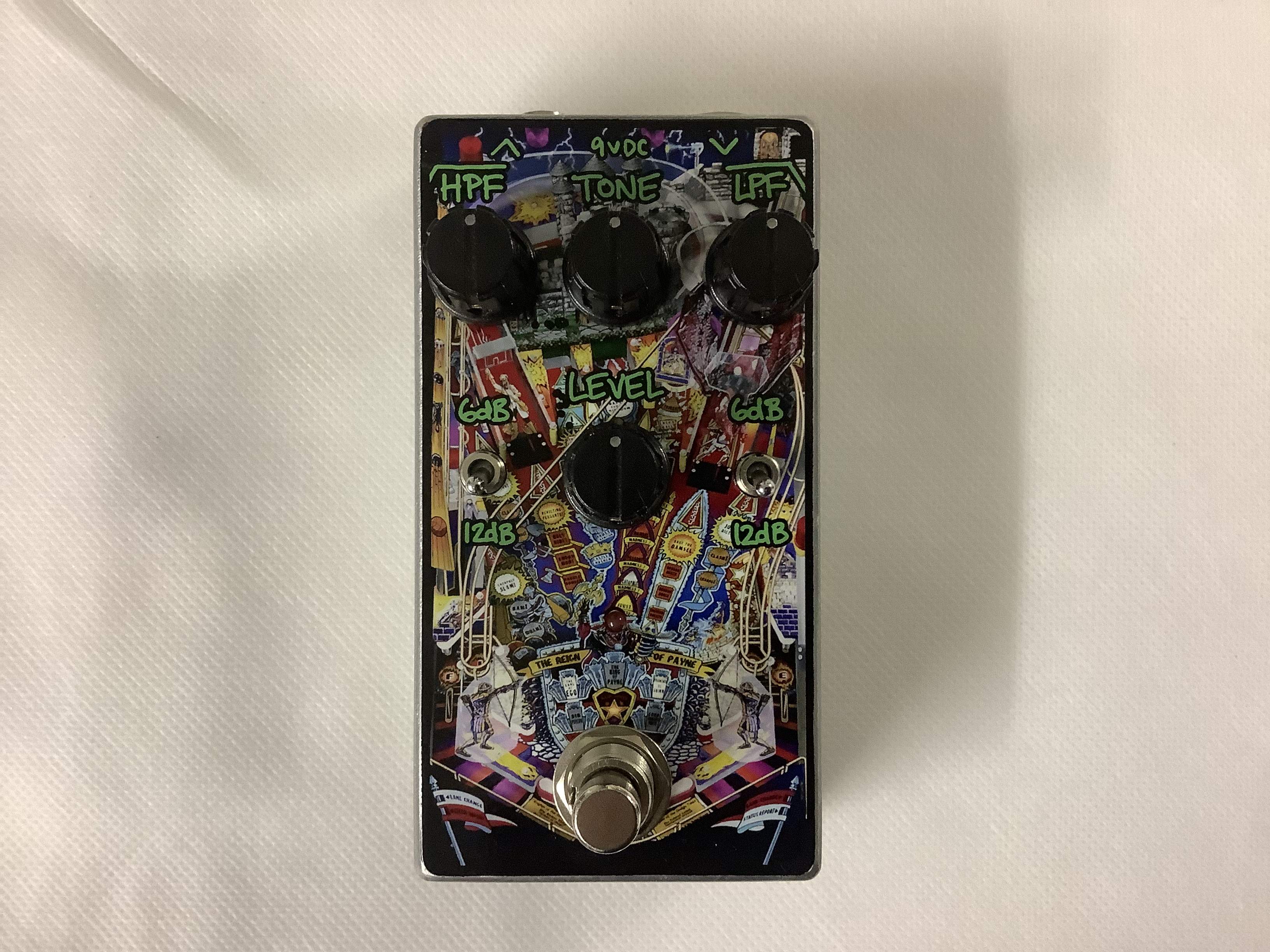

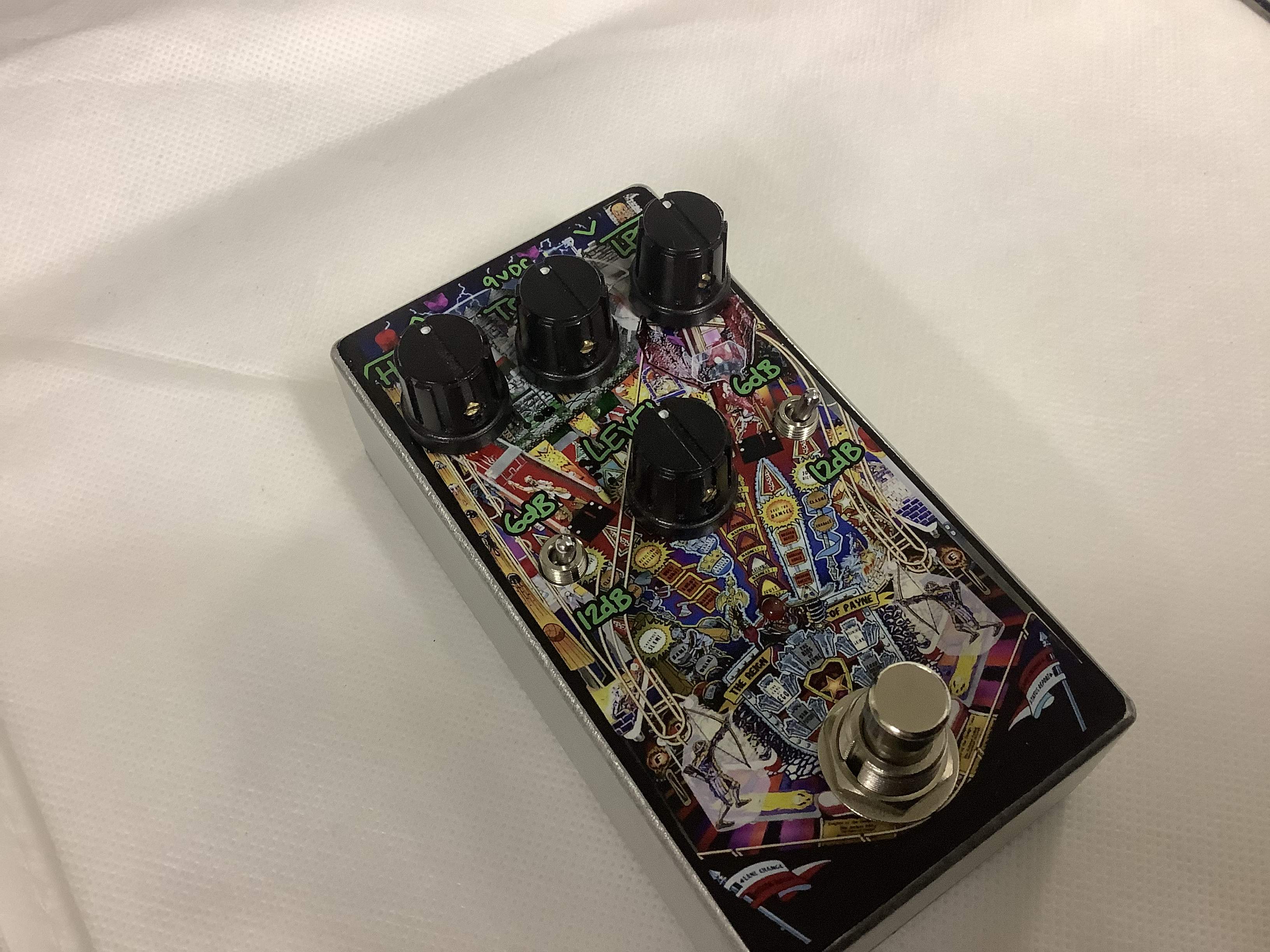

Built another Pinball. This time in a 1590b instead of a125b. I don’t think I’ll do it again. It was a very tight fit and I had to modify the lid. May look into some 1590N. I believe that’s what VFE originally used. Still sounds great though.
Matt



[monsterbonsai]

ooo how are those graphics applied?

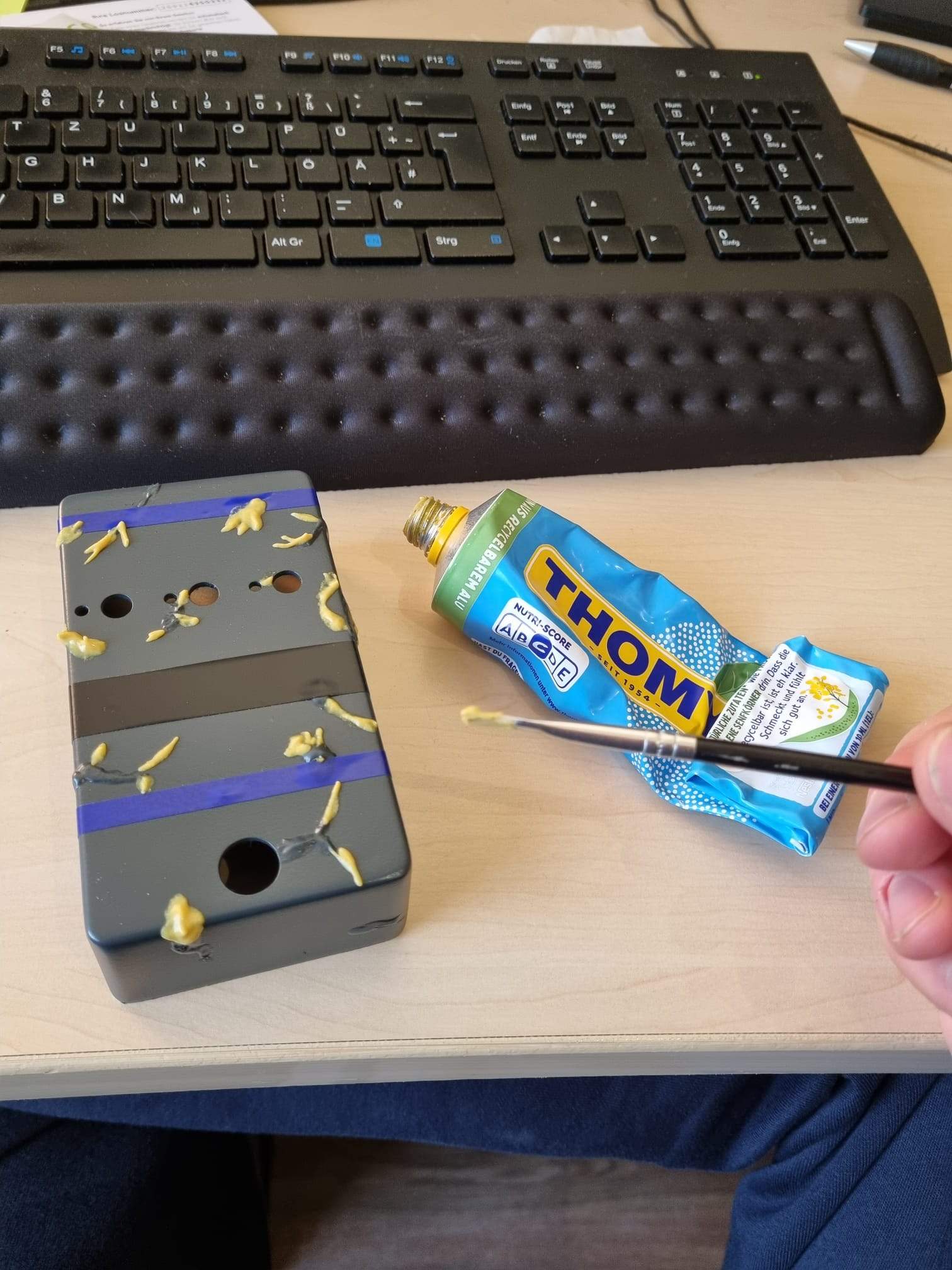

1. Mustard
2. Primer
3. Background color
4. Tape

5. More mustard
6. Primary color
7. Sanding paper
8. Satin clear coat
9. Decals
10. Satin clear coat

I think next time I´ll go for a glossy clear coat and lightly sand part of it

Thx! Going to check out inkscape tonight. I'll do my template with paper and glue, punch and pass it on to someone with a drillpress. Or maybe to @monsterbonsai. Love his enclosuredesign!

Thanks, I´ll call it 'mustart' haha. And drilling is what I hate most.. it never comes out straight.. drillpress is on the list for next xmas ..



[ceetee]

1. Mustard
2. Primer
3. Background color
4. Tape

5. More mustard
6. Primary color
7. Sanding paper
8. Satin clear coat
9. Decals
10. Satin clear coat

I think next time I´ll go for a glossy clear coat and lightly sand part of it

View attachment 4924885


Thanks, I´ll call it 'mustart' haha. And drilling is what I hate most.. it never comes out straight.. drillpress is on the list for next xmas ..

I was thinking about shipping some enclosures and 3-5 six-packs to you.
