Any DIY pedal builders on TB? Strut your stuff!

#1,961
monsterbonsai said:
  1. Mustard
  2. Primer
  3. Background color
  4. Tape
  5. More mustard
  6. Primary color
  7. Sanding paper
  8. Satin clear coat
  9. Decals
  10. Satin clear coat
I think next time I´ll go for a glossy clear coat and lightly sand part of it

View attachment 4924885


Thanks, I´ll call it 'mustart' haha. And drilling is what I hate most.. it never comes out straight.. drillpress is on the list for next xmas .. :(
Click to expand...
I don't use a drill press. I only use that for drilling self etched Pcbs.
I use and have had a lot of success with a Unibit. I have a metric one that goes from 3mm to 13mm and a standard that goes from 1/8" to 3/8".
I start with marking my holes with a sharp center punch to keep the bit from skating . After its punched I drill a hole with an 1/8" regular drill bit.
Once I have everything drilled with the 1/8" bit I proceed with the Unibit and drill whatever sizes I need.
Typical is 3mm for led, 7mm for pots, 10mm for jacks, 1/4" for toggles, 8mm to 11mm for power jacks depending on Jack and 12mm for footswitch.
The centet punch for me is the key to success. Hope this helps someone.
Matt

  • Like
Reactions: Silver Blues, johnk_10, mrperkolator and 1 other person
#1,962
ceetee said:
I was thinking about shipping some enclosures and 3-5 six-packs to you.
Click to expand...

First I was like hell no, I got enough on my plate but I guess why not, I could actually do a batch with not too much added effort- but absolutely no drilling :p

I live in Germany, though, so shipping costs might be a bit higher. Best you tell me what enclosures and colors you want, I source them locally and ship to you once done. Since I have to spay outside, it´ll have to wait for spring though, it´s too cold currently.

PS for most single foot switch pedals you can buy drilled enclosures from Banzai Music or Muskding or others, I presume. Cheaper then destroying them :p

#1,963
mdalamond said:
I don't use a drill press. I only use that for drilling self etched Pcbs.
I use and have had a lot of success with a Unibit. I have a metric one that goes from 3mm to 13mm and a standard that goes from 1/8" to 3/8".
I start with marking my holes with a sharp center punch to keep the bit from skating . After its punched I drill a hole with an 1/8" regular drill bit.
Once I have everything drilled with the 1/8" bit I proceed with the Unibit and drill whatever sizes I need.
Typical is 3mm for led, 7mm for pots, 10mm for jacks, 1/4" for toggles, 8mm to 11mm for power jacks depending on Jack and 12mm for footswitch.
The centet punch for me is the key to success. Hope this helps someone.
Matt
Click to expand...

I applied the very same approach, but I substituted talent with beer... and I got a ******** pedal:


  • Like
Reactions: cosmicevan, Silver Blues and davelowell2
#1,972
Luke the Fluke said:
see I have one of his mini XO pedals on my board - and I’m making diy pedals I need to sit next to it - which makes designing the outsides really hard!
Click to expand...

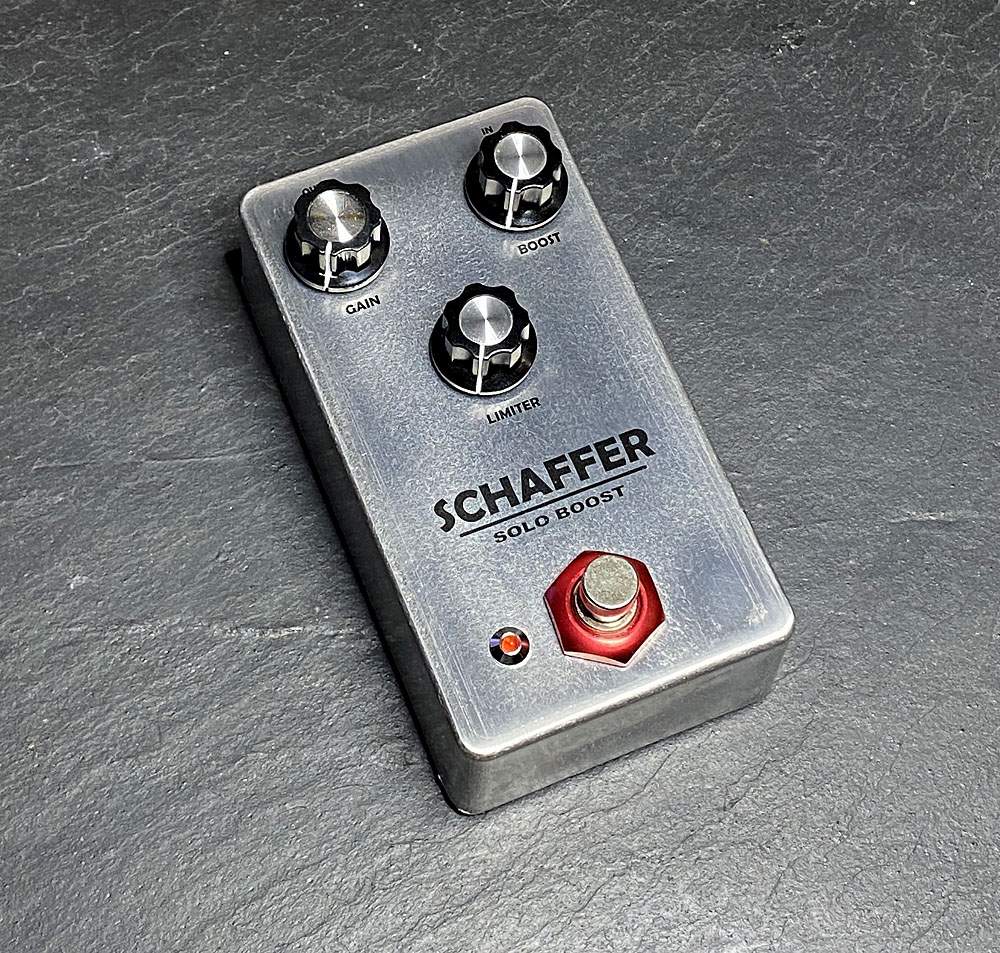

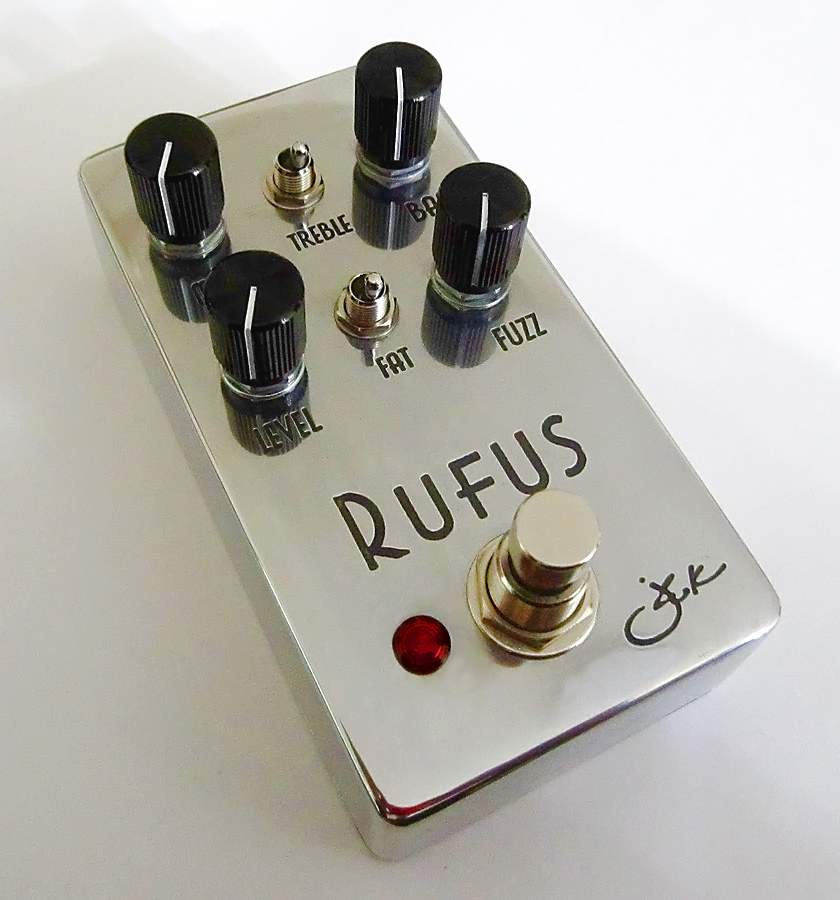

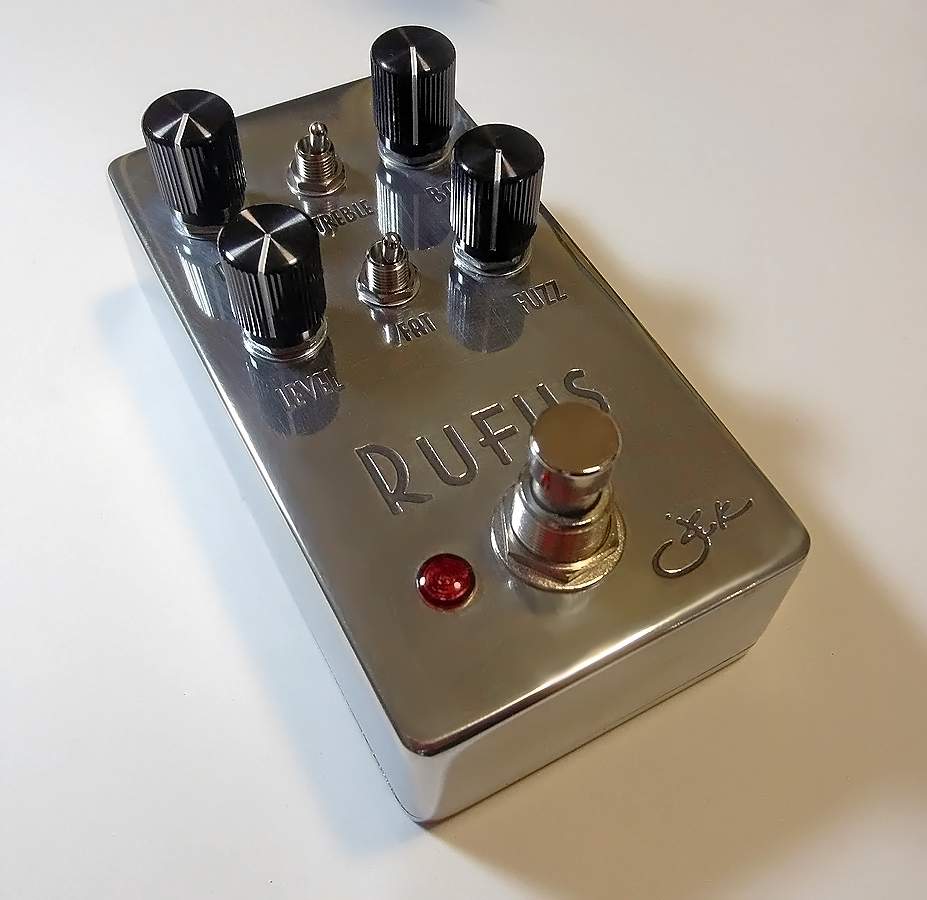

well, if you have the dimensions, pot & switches layout, i could polish & etch an enclosure for it for you.

  • Like
Reactions: mdalamond and mrperkolator
#1,973
monsterbonsai said:
  1. Mustard
  2. Primer
  3. Background color
  4. Tape
  5. More mustard
  6. Primary color
  7. Sanding paper
  8. Satin clear coat
  9. Decals
  10. Satin clear coat
I think next time I´ll go for a glossy clear coat and lightly sand part of it

View attachment 4924885
Are the decals waterslide?

Thanks, I´ll call it 'mustart' haha. And drilling is what I hate most.. it never comes out straight.. drillpress is on the list for next xmas .. :(
Click to expand...

#1,974
johnk_10 said:
well, if you have the dimensions, pot & switches layout, i could polish & etch an enclosure for it for you.
Click to expand...
Thanks for the offer, the different continent thing kinda gets in the way though (plus I’ve already got and drilled them!)
I’m a graphic designer by trade so in theory I should be able to do something nice, I’m not going to try and compete with the way you do it though and thinking subliminated print on brushed aluminium top plate - kinda similar what origin effects do (though there’s are probably screenprinted)

  • Like
Reactions: johnk_10
#1,980

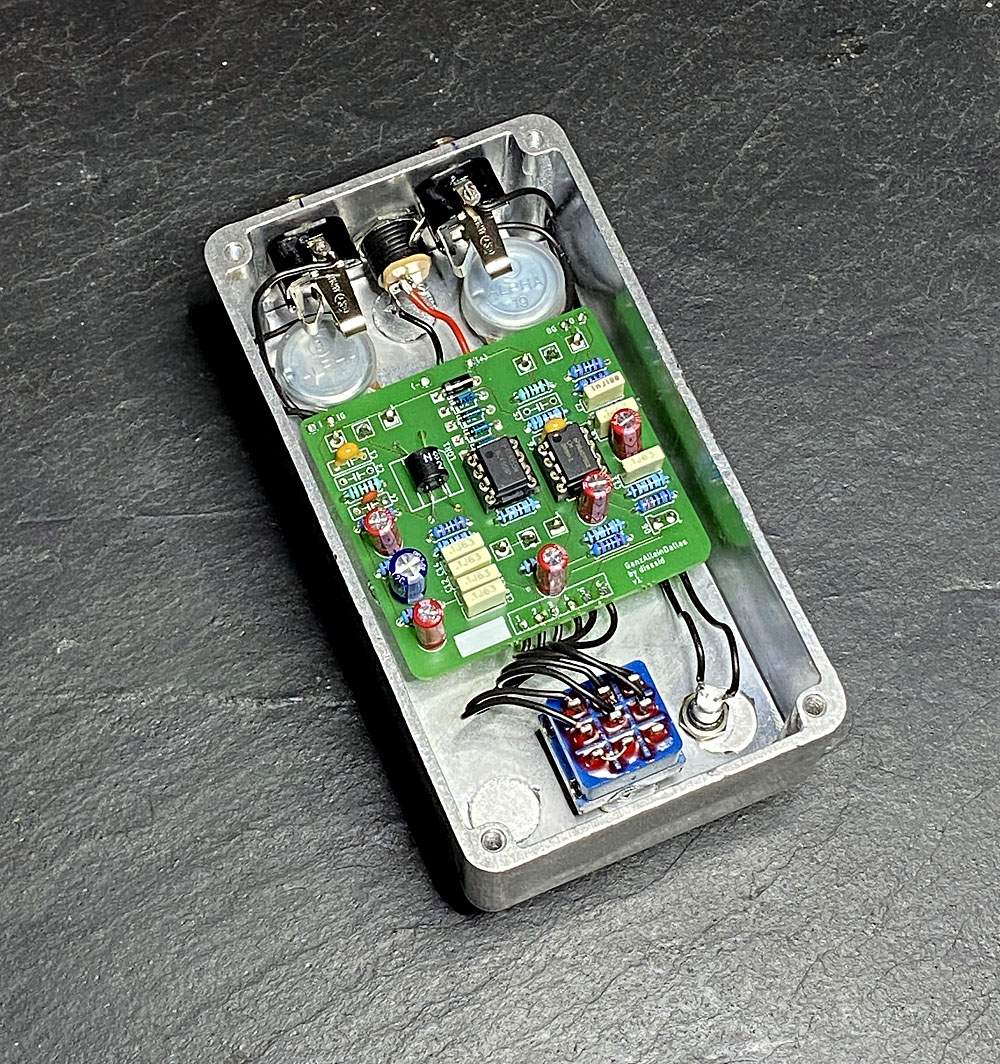

has anyone integrated 2 preamps into same pedal with an A/B switch, effects loop, and DI? (it would have to be a bigger enclosure). It's been done before. Great example is the Trickfish Trilobite.

basically adding A/B switching to something like Invalid Link Removed (from @disssa )would be awesome. Just not sure where I'd need to do signal routing.

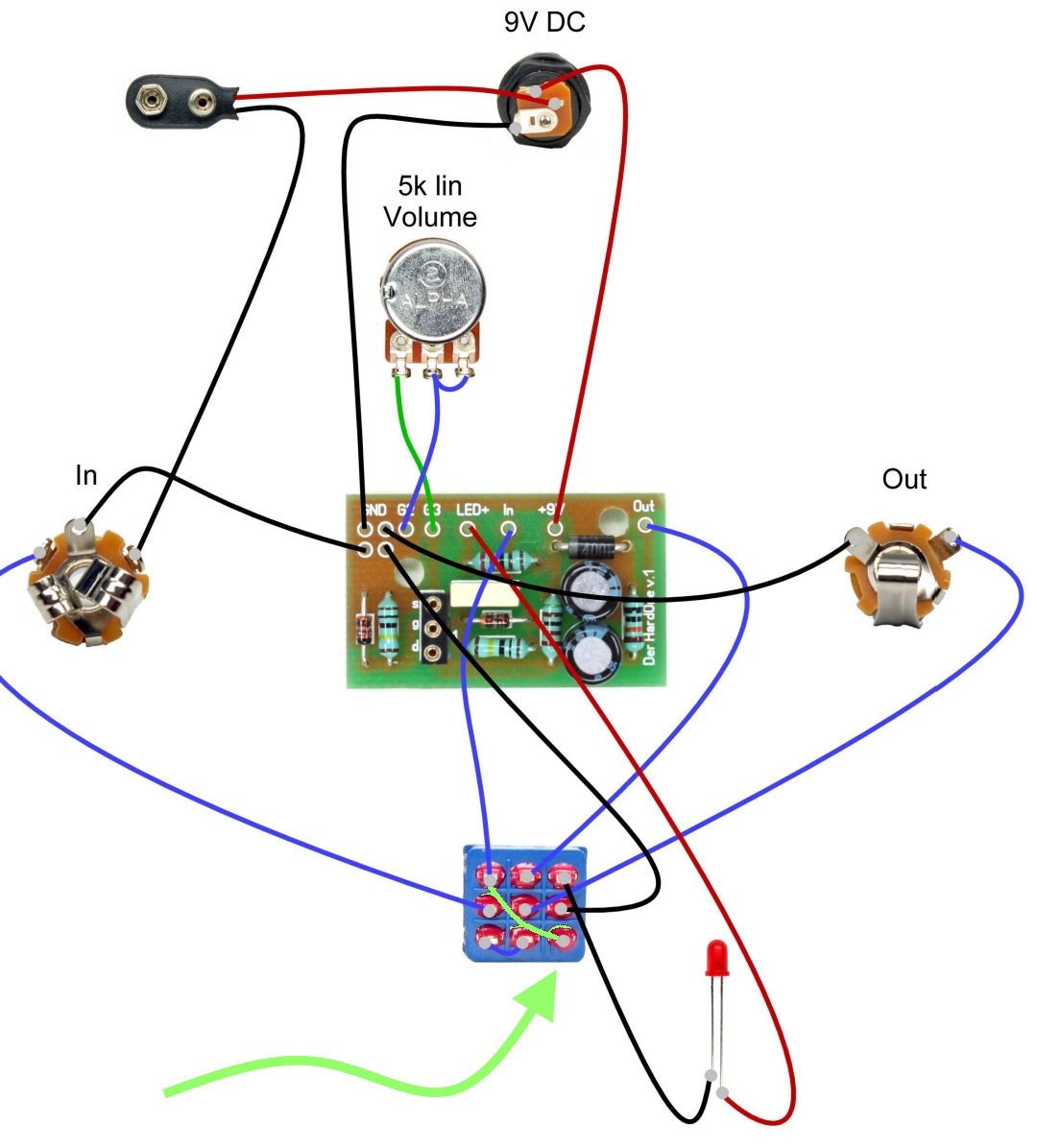

separate question: I know that with pots and guitar wiring, a pen soldering iron is preferred. What is the preferred setup for circuit boards? (I have both pen and gun style soldering irons)
