Aria Pro II Black and Gold Restoration Thread

[Five String]

Yes, I can attest that the Rautia pickups sound as close to the vintage ones as you can get. I would go that route if you really want to bring it back to original (or close as possible) specs!

How the blazes did you find a pickup winder who made the exact pickups for this bass? I would've thought it would be near impossible, but I'm not a Aria guy.



[garmenteros]

How the blazes did you find a pickup winder who made the exact pickups for this bass? I would've thought it would be near impossible, but I'm not a Aria guy.

I bought bartolinis. And talkbass was nice enough to help me out. Bartolinis were sold and thus the long wait for these pickups but i believe well worth thr wait.



[garmenteros]

Link Removed



[Jazz Ad]

Are they splittable so you can use the switches ?



[garmenteros]

Are they splittable so you can use the switches ?

Yes. Have lots of options.


The pickups have four conductor shielded wire.
Coil1: Red hot, blue to ground
Coil2: Yellow hot, green to ground.
Coils connected in series: Red hot, blue and yellow soldered together, green and shield to ground.
Coils in parallel: red & yellow hot, blue, green and shield to ground.

Going for parallel.



[postalflunkie]

Wiring them in parallel with the coil tap switches probably won't give you much tonal variation. Maybe consider series/parallel switching instead, they'll always be humbucking then and will give lots of good sound.



[garmenteros]

Going with series parallel for the wiring. Makes more sense for the swtiches.



[garmenteros]

Tested the bass today. Its everything I hoped for. The pickups are amazing. Just need to polish and clean up and have that gloss finish.



[BTL]

Nice work, and a great bass!



[garmenteros]

What file format can I upload a video here? I tried the .mov from my iphone and wouldnt work.



[Matt Liebenau]

Can you put it on YouTube and link the video here?



[garmenteros]



[garmenteros]

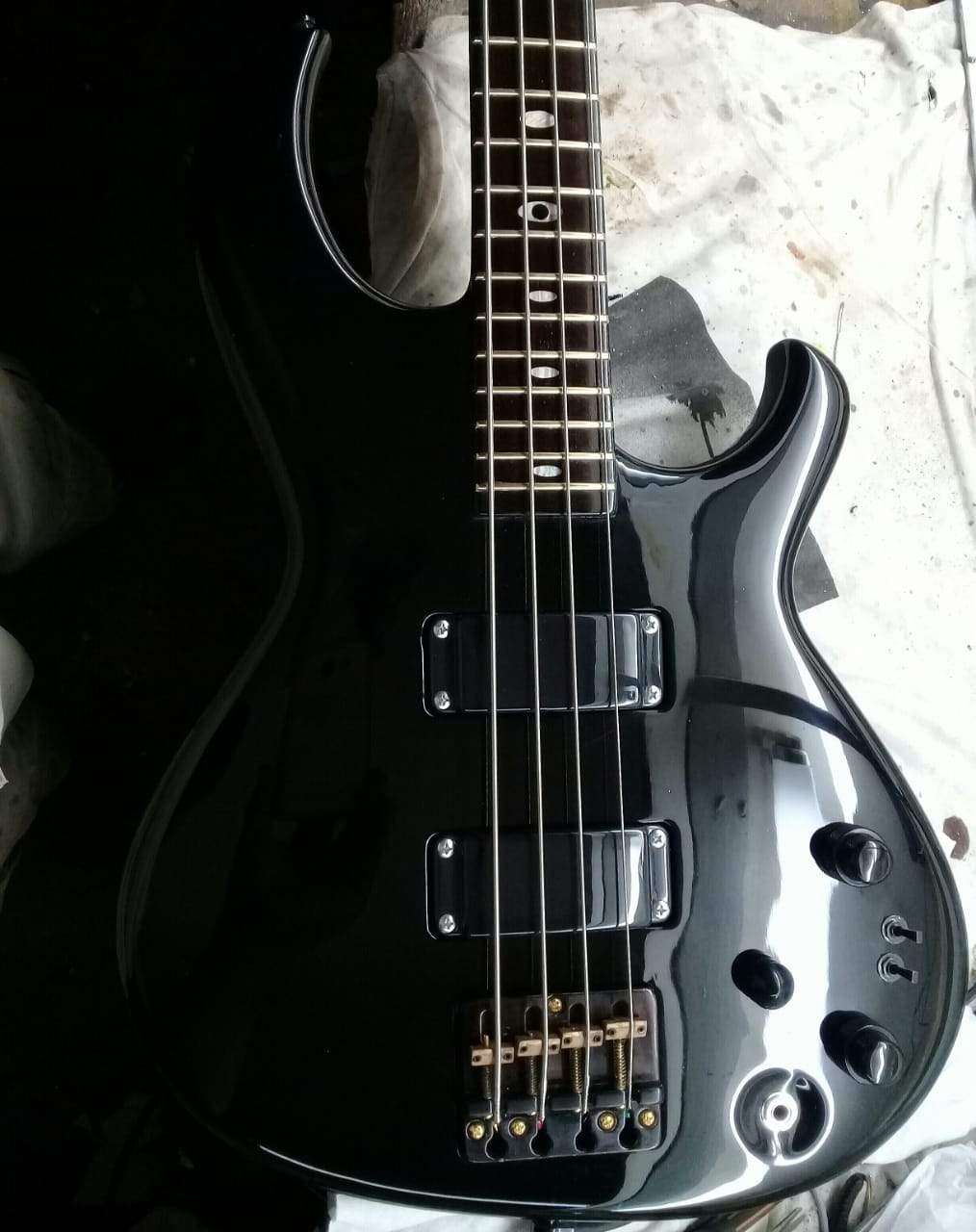

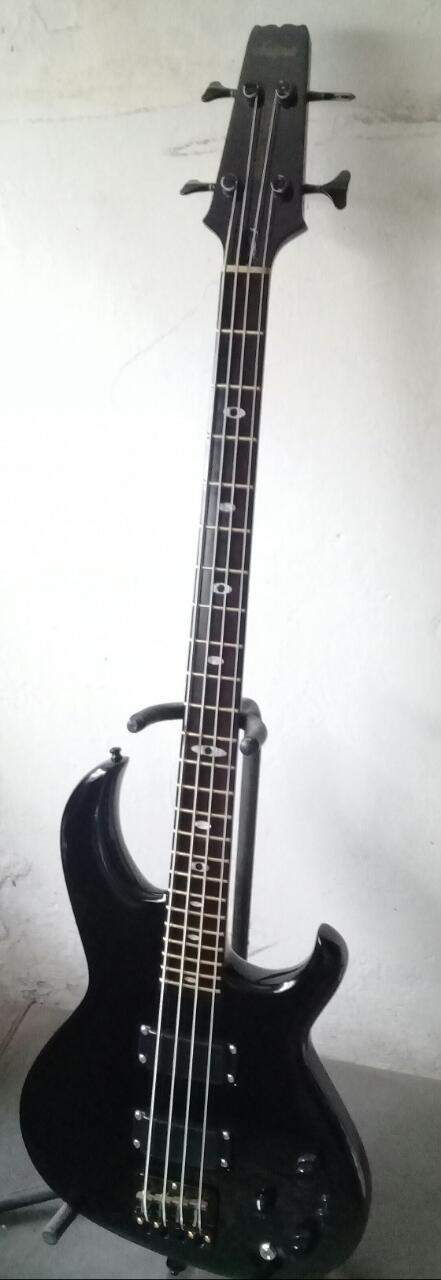

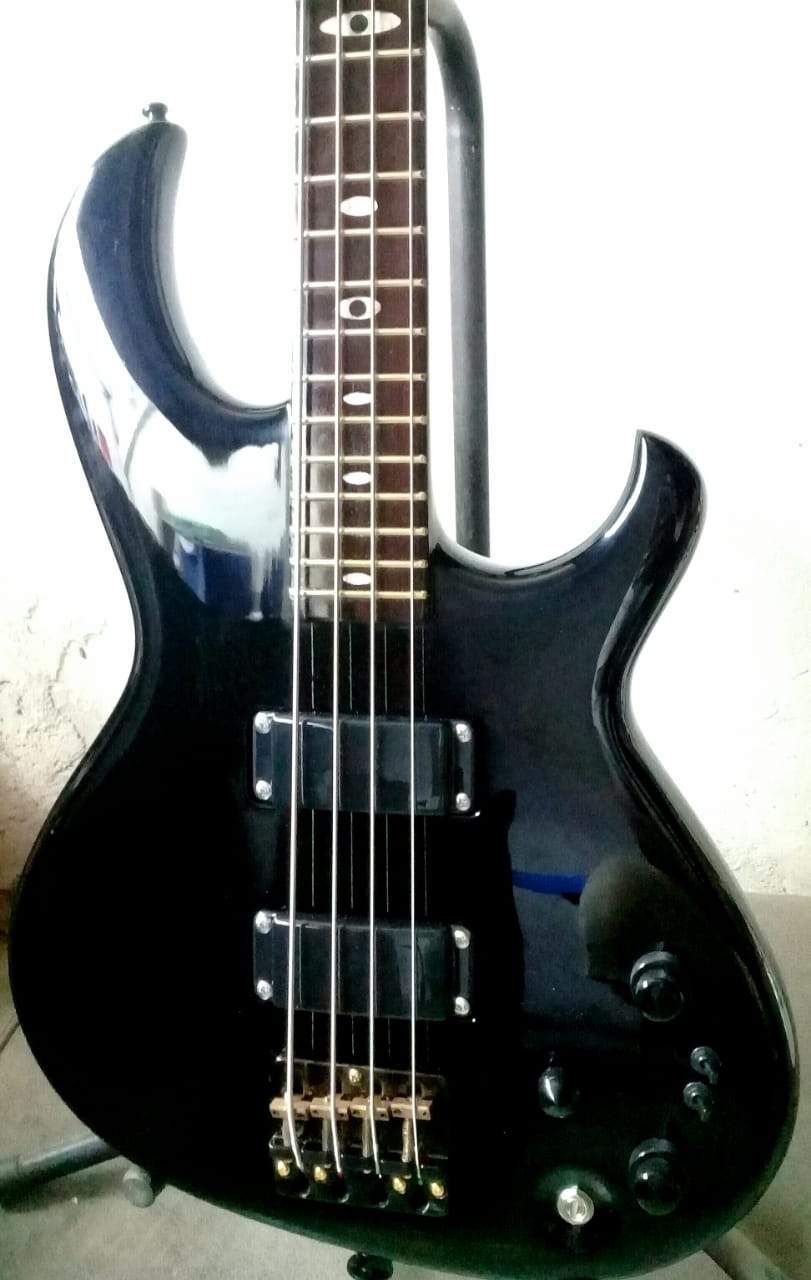

Done, paint came out flawless.



[garmenteros]

Ill get better pictures and do detailed soundclips and video later.



[postalflunkie]

Beautiful work there



[Gilmourisgod]

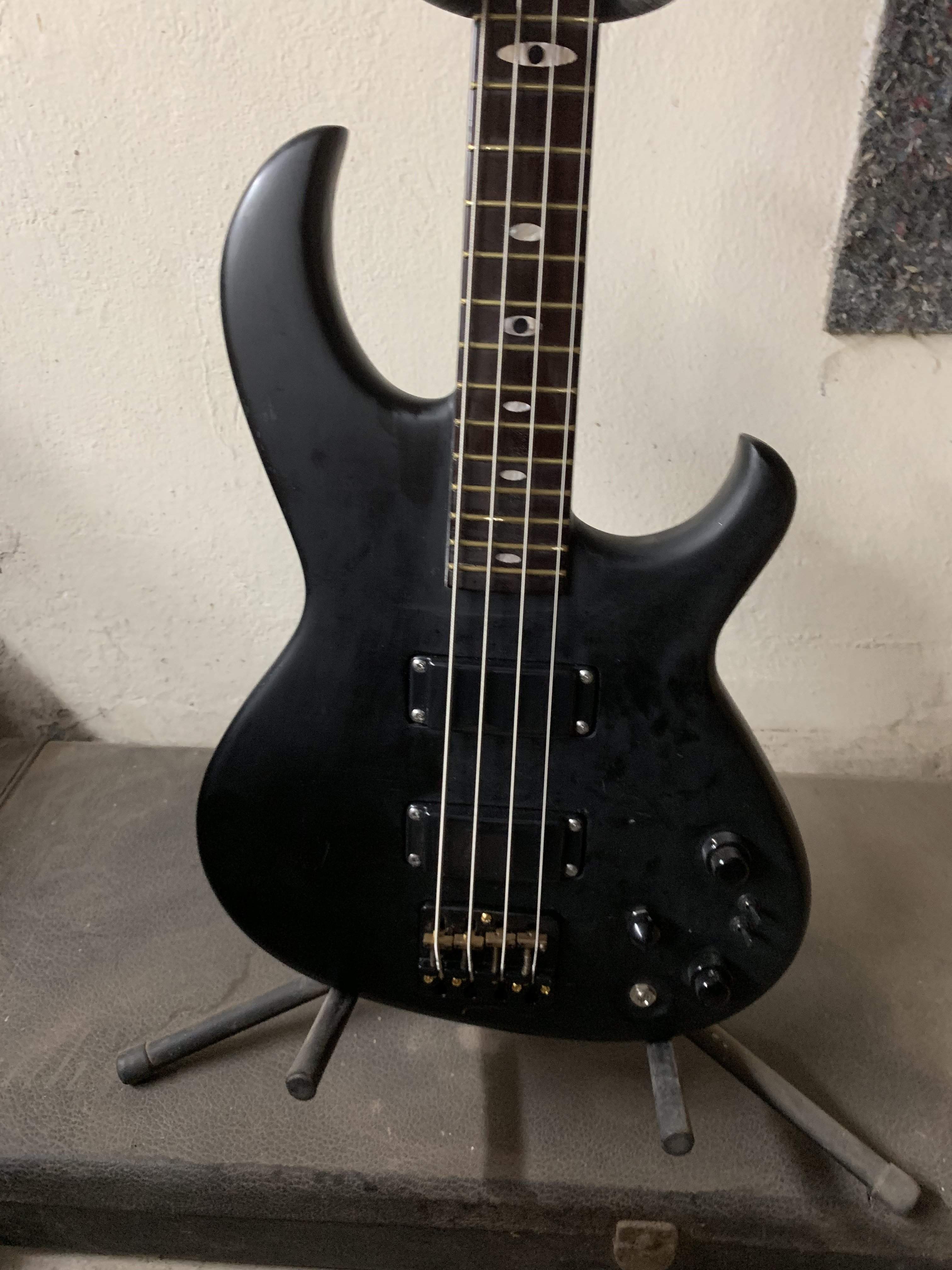

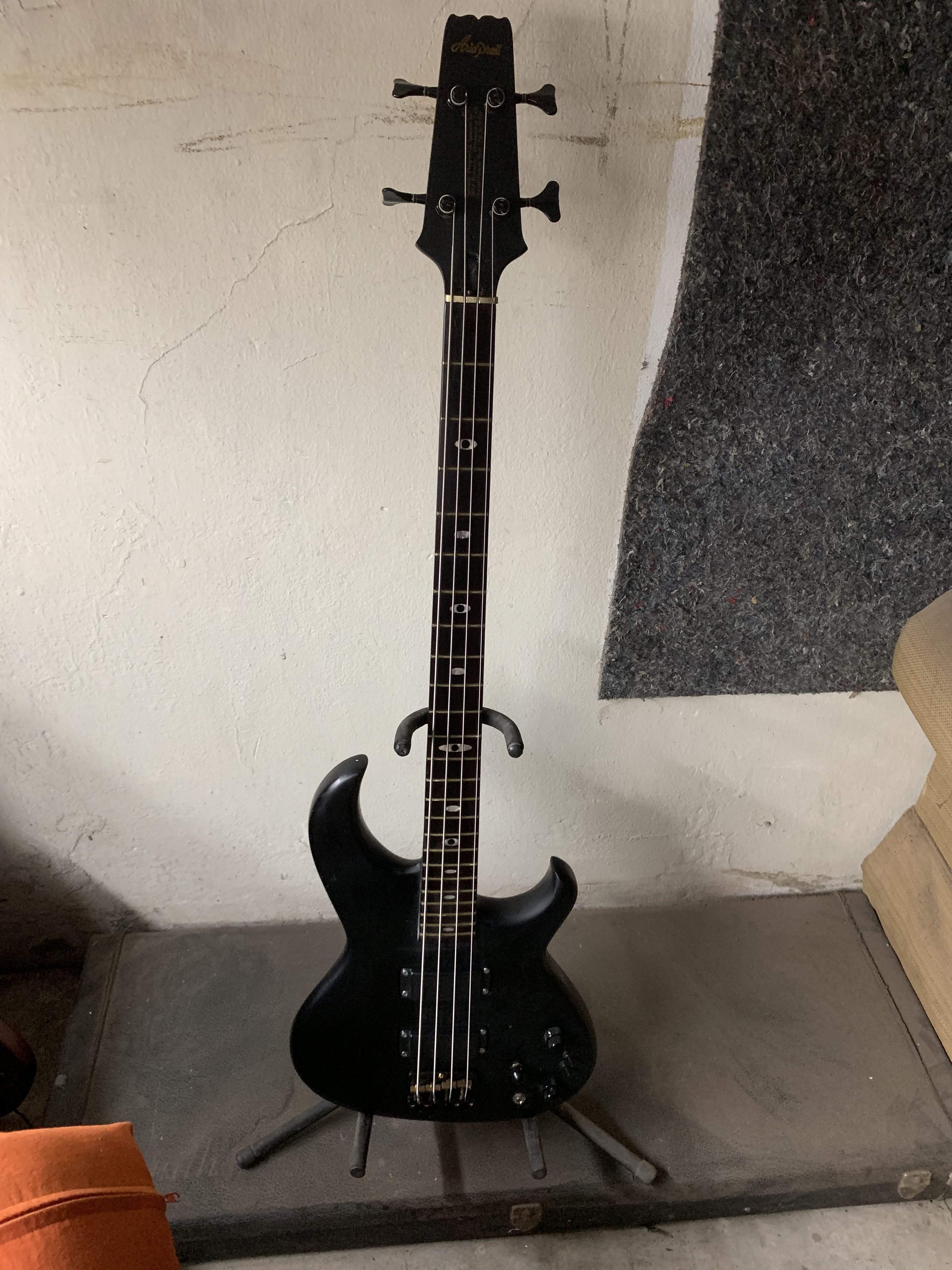

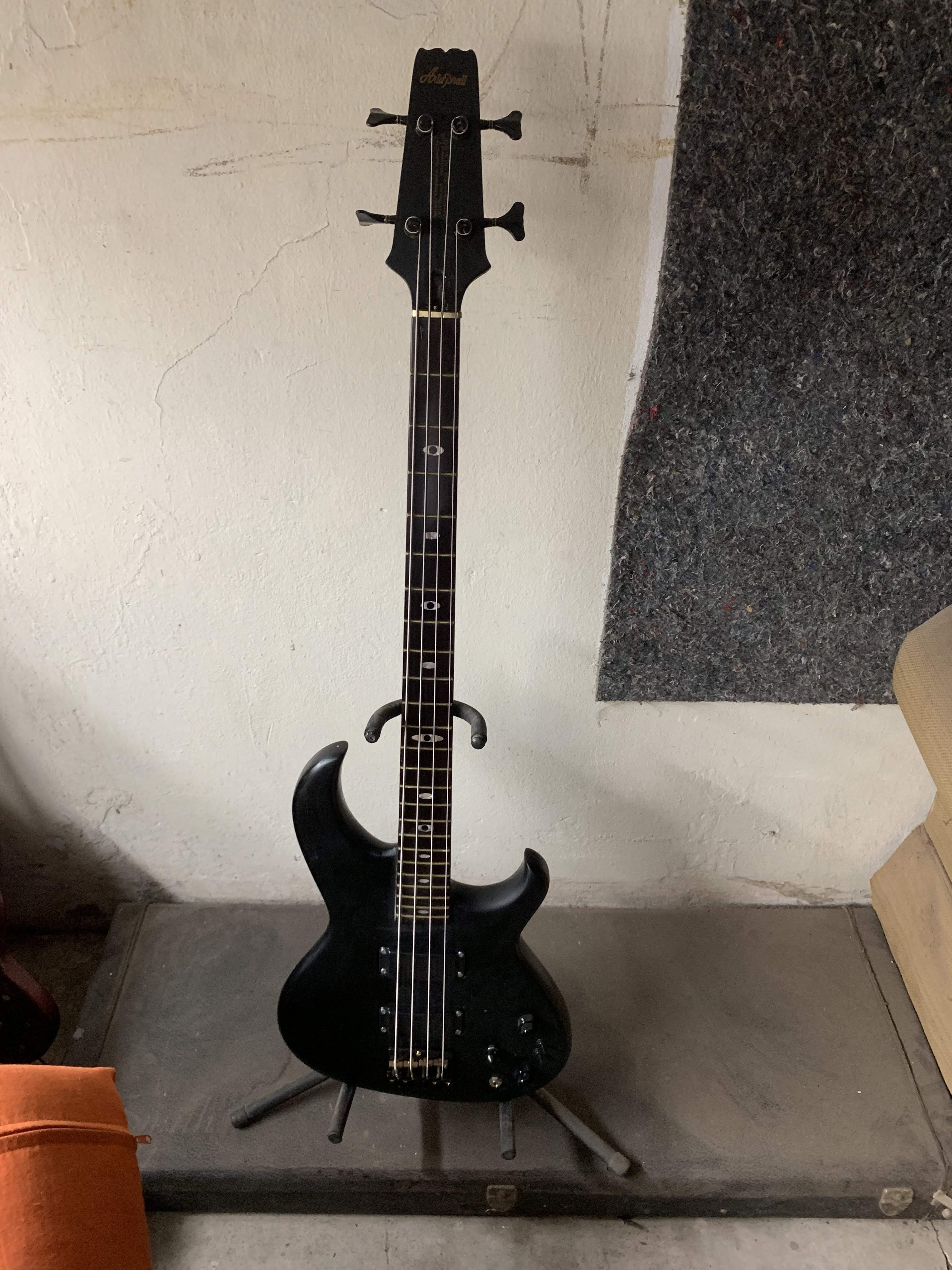

Wow! Beautiful work! The before and after is amazing. Nice to see it brought back to life.



[Five String]

Looks brand new.



[Keger Jupit]

I just now stumbled on this thread & binge-read the whole thing. Awesome work, WOW! Looks fantastic!

Hopefully you have that "new bass" smell now



[garmenteros]

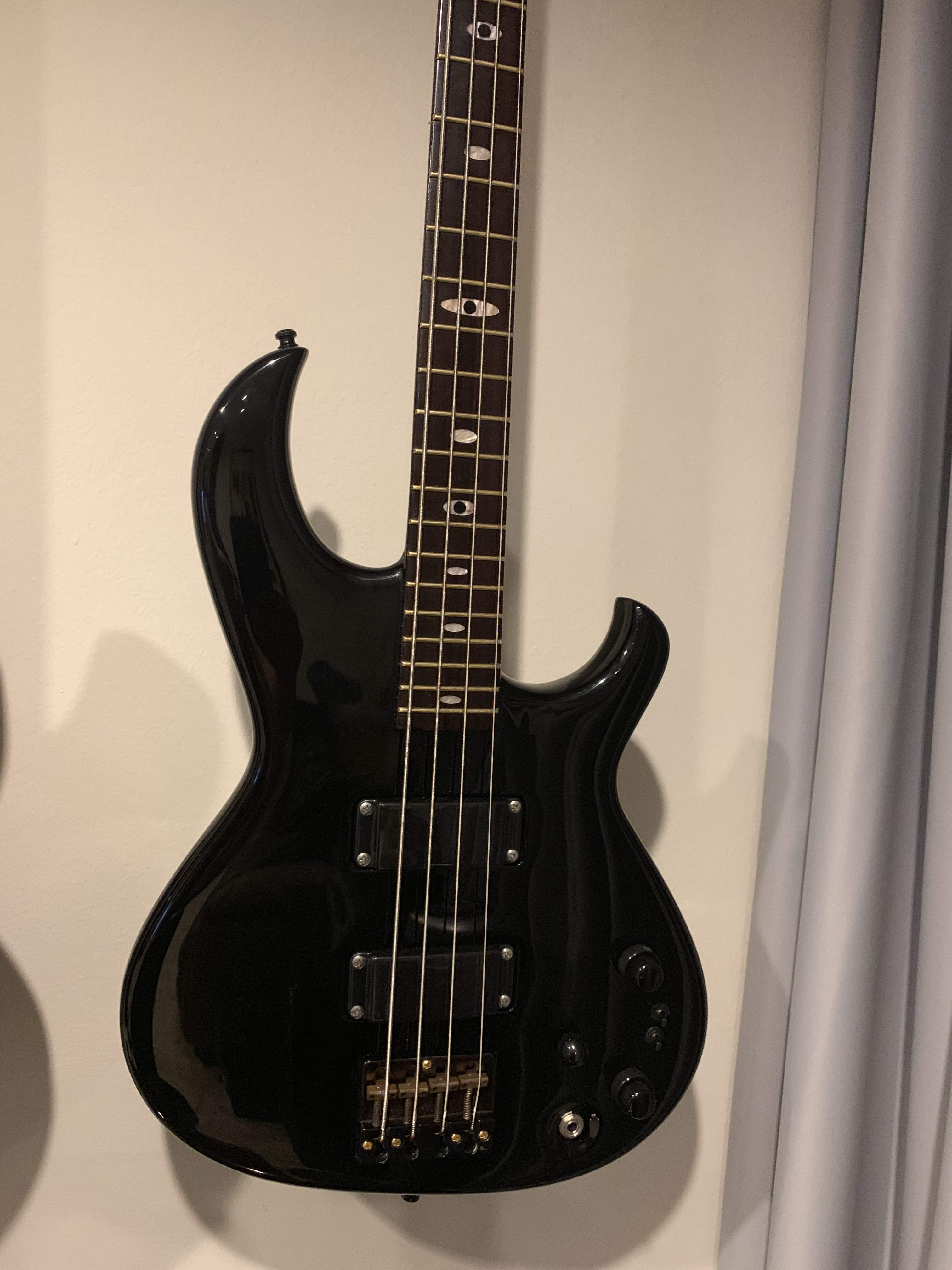

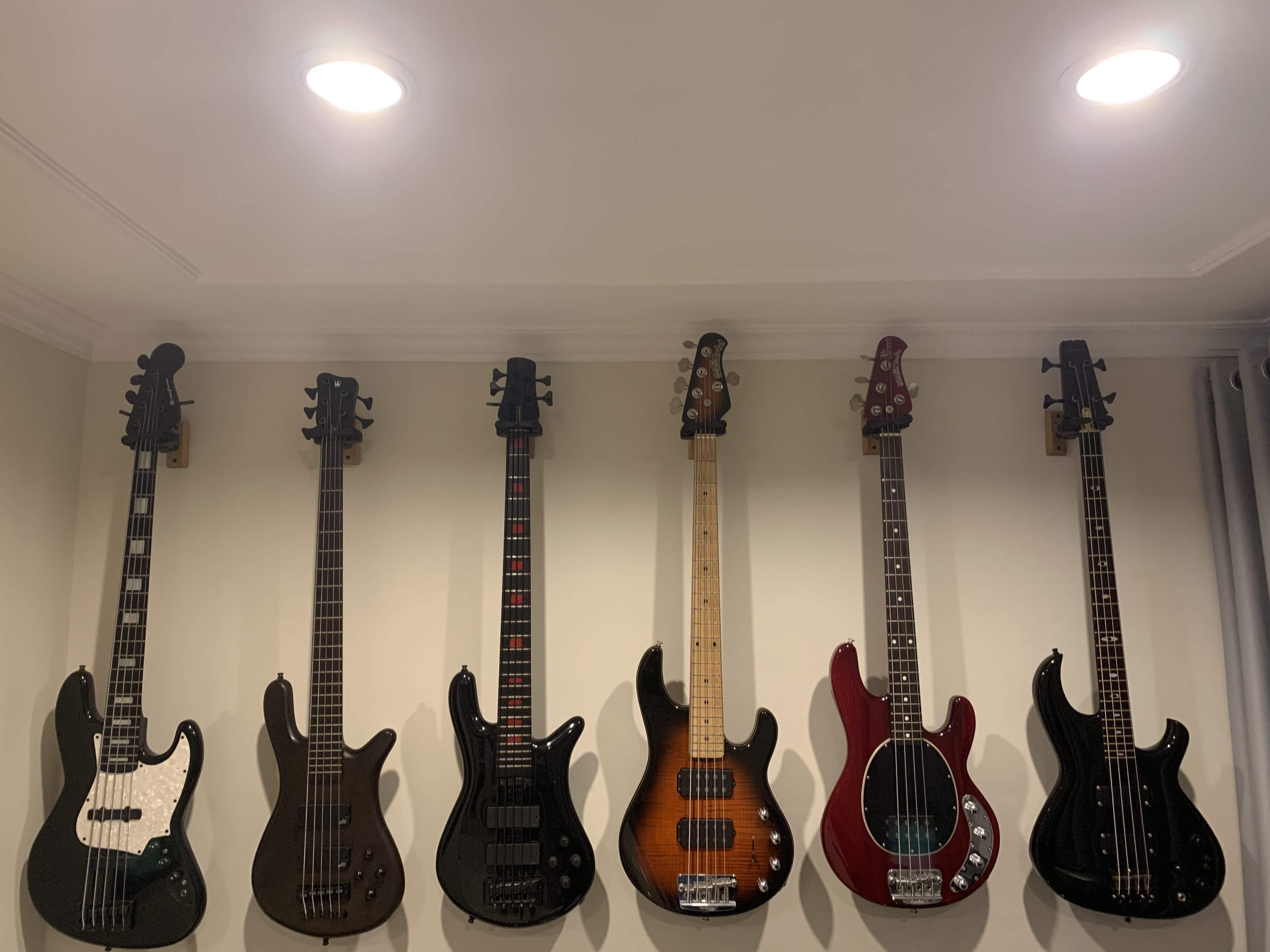

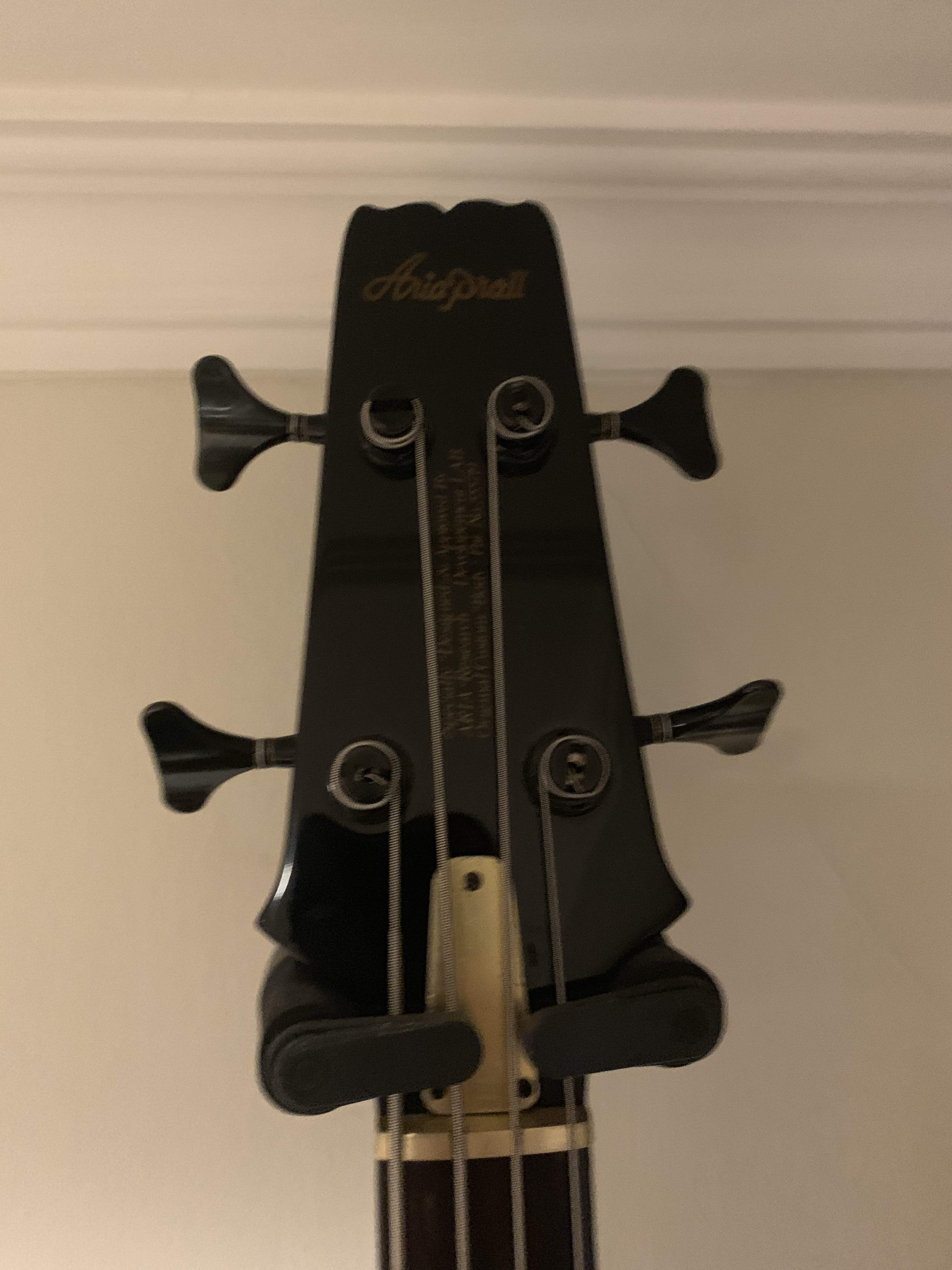

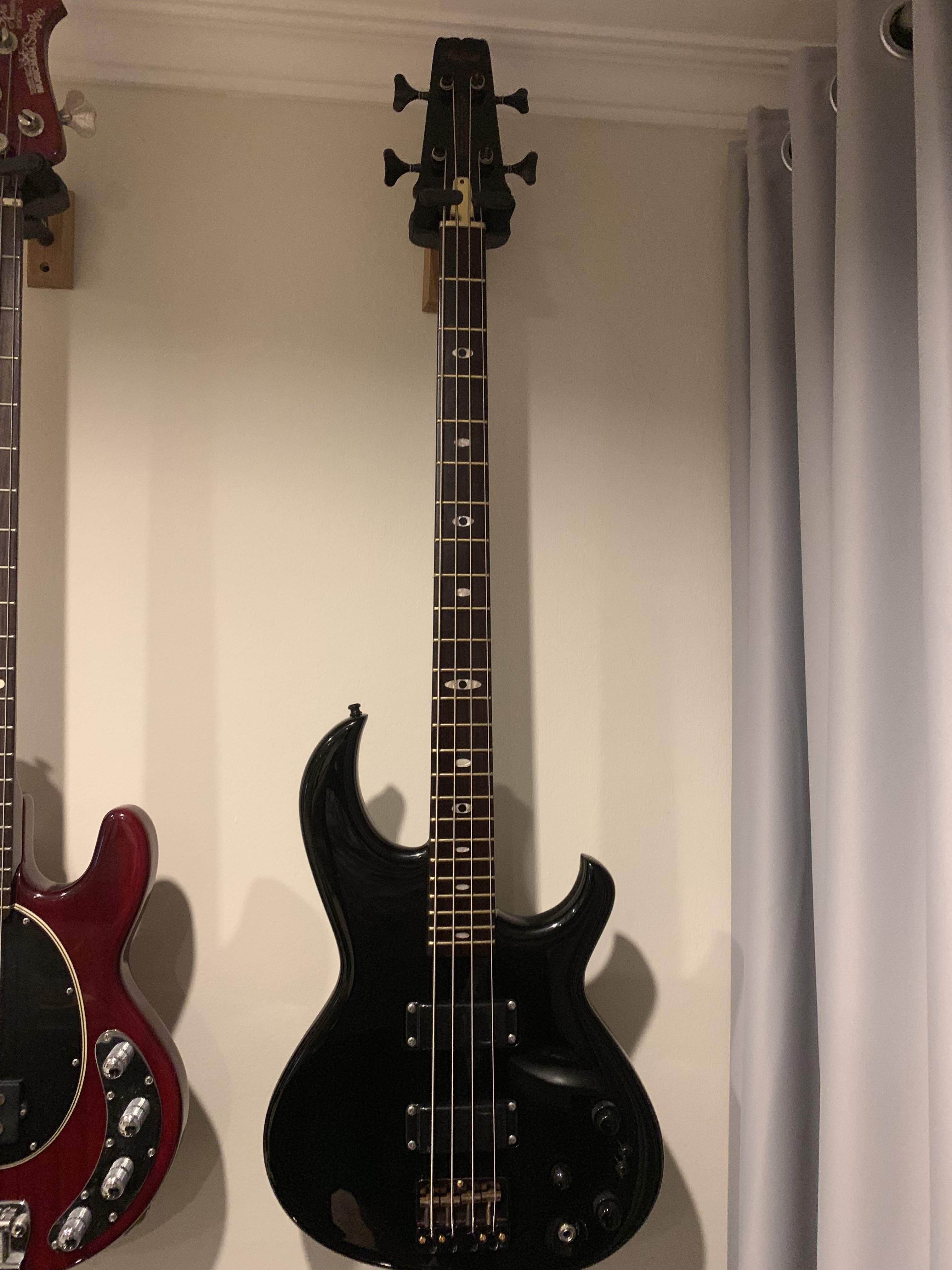

Used it in band practice today. Incredibly articulate, good presence and definition. Very comfortable as well. Better pictures from my music room.



[wraub]

Well done!
A real looker, and a tiger, too.
