Behringer XR18 X-Air

#401
Thanks for the responses guys. I went through last night and this morning. Reading this thread from the beginning, it is very helpful.

I don't recall reading anything about the X touch. Not owning a laptop or external router I'm curious if the x touch could be sufficient to use as the hard wired option?

#402

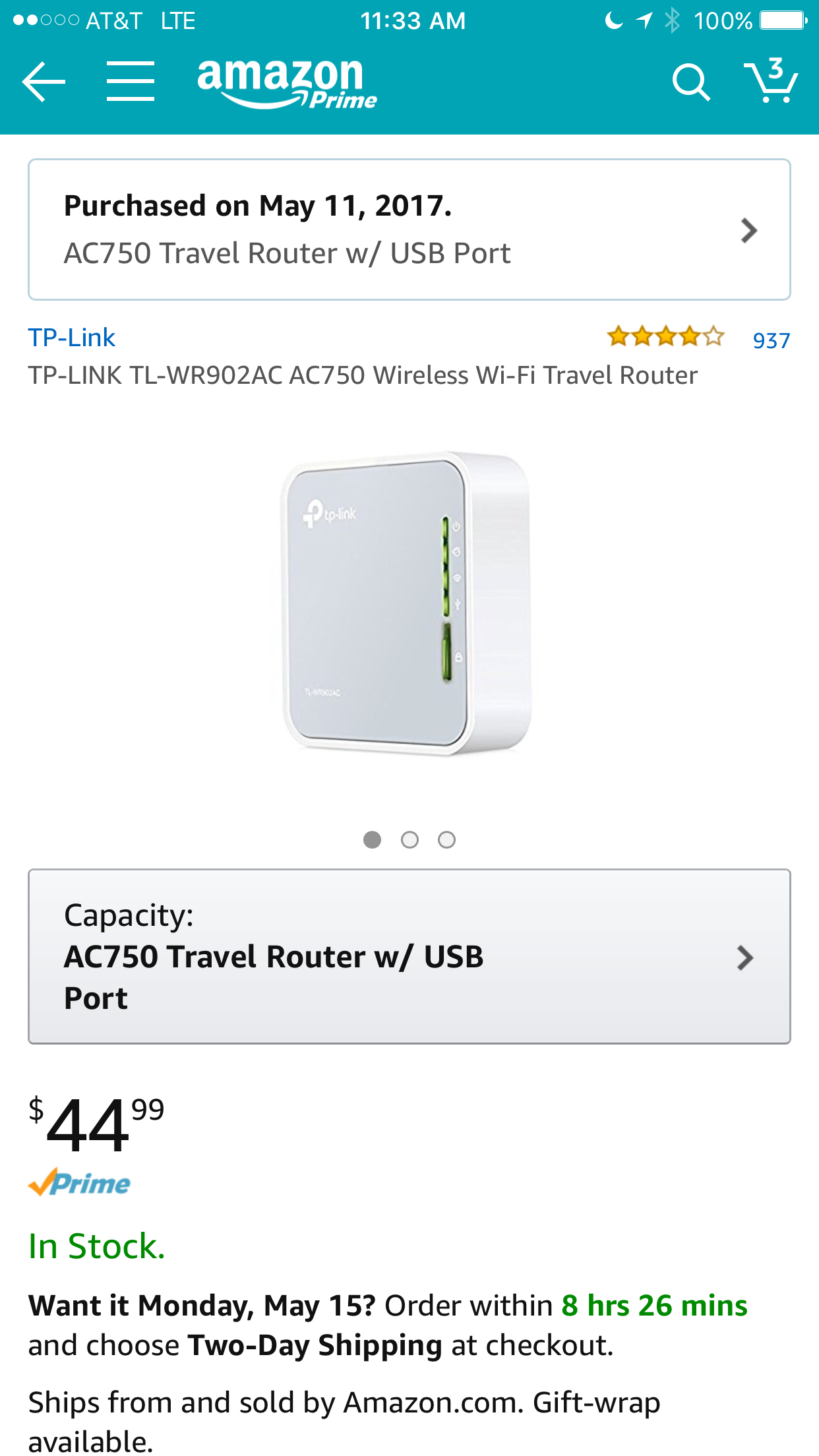

I read about this router on the X-Air forum. It's currently out for delivery. We're using my rig this weekend, so if I can get the router set up today, I'll report on how it does. My XR18 dropped the Wi-Fi once last night. Both tablets flying it lost connectivity until I power cycled the mixer.

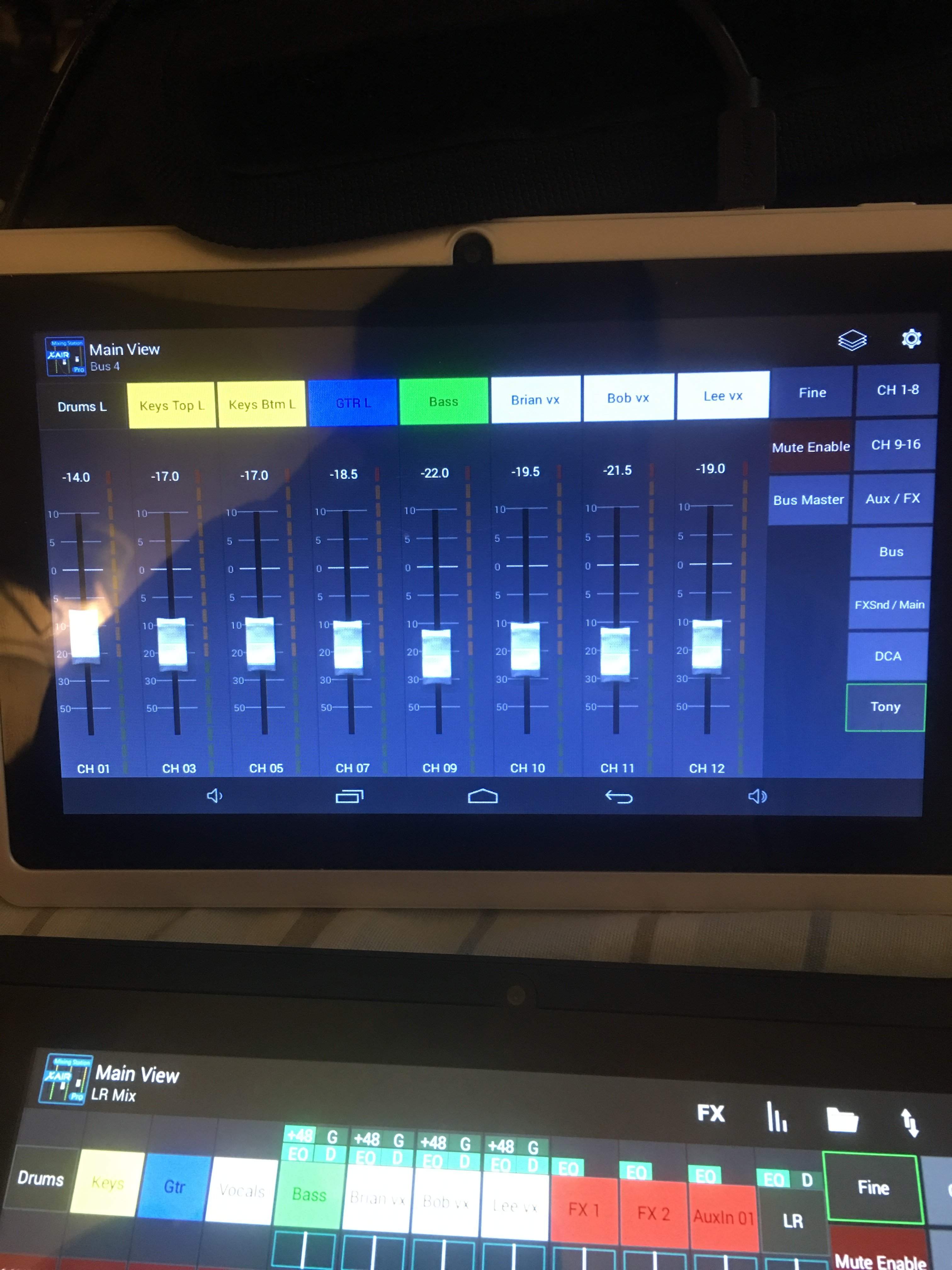

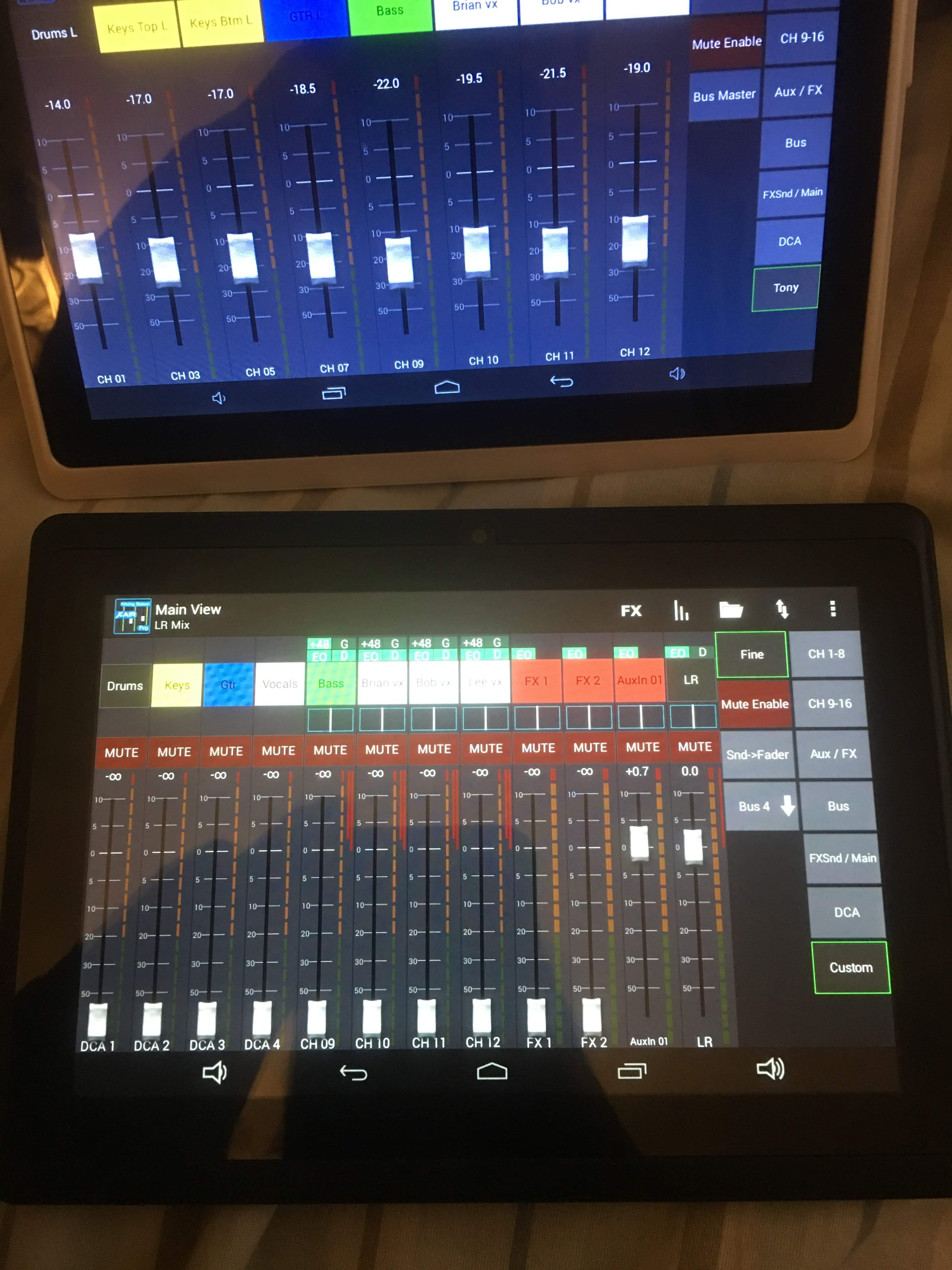

These are the two custom layers I built, one for easy FOH, one for the drummer's ears. He's only got access to aux 4.


Attachments

  • IMG_2963.PNG
    308.6 KB · Views: 37
  • IMG_2958.JPG
    529.9 KB · Views: 46
  • IMG_2957.JPG
    624.3 KB · Views: 40
#403
peterpalmieri said:
That's likely similar to what these guys will look like out of the gate. I have another band that is comfortable with IEMs, for this group it's a new concept.
Click to expand...
Folks who practice at home using headphones will have the easiest transition.. guitarists will likely be your biggest challenge.. "need to feel the amp-in-the-room!" ..

#404
BassikLee said:
I read about this router on the X-Air forum. It's currently out for delivery. We're using my rig this weekend, so if I can get the router set up today, I'll report on how it does.
Click to expand...
Now.. get this FREE app for your tablet - [Invalid or Expired Link Removed].. It will scan for used channels in both 2.4 and 5 Ghz bands.. USE IT AT THE VENUE!
Set the router to use the LEAST BUSY 2.4Ghz channel and pick an open 5 gig channel.
Set up an SSID's for the 5Gh band.. Make band members use that band exclusively, and only go 2.4 if their device doesn't support 5 Ghz.
Also.. do the following:
  • Change your default IP to something else.. Change the 3rd node.. Eg: change it from 192.168.1.* to 192.168.31.* This will keep it from being scanned to see if it is an open network.. they look for 192.168.1.*
  • Change your DHCP range from the default (1 to 255) to start at something like 180. You are NOT going to need 255 devices requesting IP's on your router, so starting at 180 gives you 74. I have mine set to 200. Even that is plenty.
  • Set the IP address on the XR to a FIXED IP, like 192.168.31.170 outside the DHCP range, so it can't be found by a scan, won't be changed by the router, and your devices will always connect to the same IP.
The above will prevent accidental access to the router, keep all your devices connected without dropping and the keep the XR from outside parties..
There are other things you can do.. but those basics so keep you up and running without interference.

PS. I forgot .. Secure wireless access to the router using WPA2.. make it easy to remember as ALL band members will need to remember it to get their devices connected to the network.

Last edited:
  • Like
Reactions: tkonbass and jimfist
#406
The app that I'm using, called "mixing station pro". Apparently it was written by the guy who did the Android App for Behringer. It's only a few bucks. I prefer it over the behringer app. I'll see if there is anything similar for apple stuff. Something tells me that will be a no.

  • Like
Reactions: tkonbass
#407
BassikLee said:
I read about this router on the X-Air forum. It's currently out for delivery. We're using my rig this weekend, so if I can get the router set up today, I'll report on how it does. My XR18 dropped the Wi-Fi once last night. Both tablets flying it lost connectivity until I power cycled the mixer.

These are the two custom layers I built, one for easy FOH, one for the drummer's ears. He's only got access to aux 4.
Click to expand...

Looks like a nice little router. Since all this is new to me any suggestions on a fairly low cost wired laptop/tablet option?

I'm an apple guy iPhone, iPad and iMac. I don't need another device except to run a hardwired connection to the xair.

That router looks like a good option.

#408
peterpalmieri said:
Looks like a nice little router. Since all this is new to me any suggestions on a fairly low cost wired laptop/tablet option?

I'm an apple guy iPhone, iPad and iMac. I don't need another device except to run a hardwired connection to the xair.

That router looks like a good option.
Click to expand...
I got an aiport device used on sleazy-bay for $50; does 5G, so very helpful for things like this.

  • Like
Reactions: peterpalmieri
#410
BassikLee said:
The app that I'm using, called "mixing station pro". Apparently it was written by the guy who did the Android App for Behringer. It's only a few bucks. I prefer it over the behringer app. I'll see if there is anything similar for apple stuff. Something tells me that will be a no.
Click to expand...
You'd be correct.. However, I do run the Midas apps (for our X32) on both andy and iOS, as well as "paid" app.. Not sure if there's a Midas ver out there for the XR series..

#411
BassikLee said:
The app that I'm using, called "mixing station pro". Apparently it was written by the guy who did the Android App for Behringer. It's only a few bucks. I prefer it over the behringer app. I'll see if there is anything similar for apple stuff. Something tells me that will be a no.
Click to expand...

Mixing Station Pro is my go to app also. I run the Behringer X-Air Edit app on a wired Win10 laptop and MSP on four Android tablets. One for FOH duties and three monitor mix stations. For my group, MSP was the ticket.

  • Like
Reactions: BassikLee
#412
peterpalmieri said:
Looks like a nice little router. Since all this is new to me any suggestions on a fairly low cost wired laptop/tablet option?

I'm an apple guy iPhone, iPad and iMac. I don't need another device except to run a hardwired connection to the xair.

That router looks like a good option.
Click to expand...

Can you define "fairly low cost"? A used/old Windows laptop running X-Air Edit would be my suggestion as its pretty rock solid and should be had pretty cheaply off CL.


If that is out of the question my backup to my backup consists of my Lenovo TAB2 10" Android tablet Amazon.com: Lenovo TAB2 A10 ZA000001US 10.1-Inch 16GB Wi-Fi Tablet (Midnight Blue): Computers & Accessories

and this little guy Amazon.com: Plugable USB 2.0 OTG Micro-B to 10/100 Fast Ethernet Adapter for Windows Tablets & Raspberry Pi Zero (ASIX AX88772A chipset): Computers & Accessories.

Works very well but beware that the adapter does not work with every Android tablet. For example, it will not work with Amazon Fire tablets which is what we use for monitors.

As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
#413
peterpalmieri said:
Looks like a nice little router. Since all this is new to me any suggestions on a fairly low cost wired laptop/tablet option?
Click to expand...
I'm using an old laptop (like it has a modem and floppy drive old) running Linux for my hard wired solution, X Air Edit runs fantastic on it. It's a very lightweight application and needs very little horsepower to run. If you want something newer (and smaller and lighter) you can pick up brand new inexpensive Windows 10 laptops for under $300 that will do the job well enough.

EDIT: Forgot to mention Invalid Link Removed's too. I have one and it also works really well, very small footprint and power requirements. The downside is you still need a monitor so the total solution isn't really all that smaller than an old laptop. Of course, you could also VNC into the Pi from a phone or tablet....

Last edited:
#416
BassikLee said:
Yeah, my Android tablets were all of about $40ea on the 'bay.
Click to expand...
Which tablets do you have? I've thought about grabbing a few Amazon Fire 7s (they're about $40) since they're a big name brand and then sideloading the Google Play Store on it so I can load up the XAir app. A few steps to hop through but not a big deal. Still, if there's an easier $40 tablet that's just as reliable I'd like to look into it. Thanks.

#417
FuturePrimitive said:
I'm using an old laptop (like it has a modem and floppy drive old) running Linux for my hard wired solution, X Air Edit runs fantastic on it. It's a very lightweight application and needs very little horsepower to run. If you want something newer (and smaller and lighter) you can pick up brand new inexpensive Windows 10 laptops for under $300 that will do the job well enough.

EDIT: Forgot to mention Invalid Link Removed's too. I have one and it also works really well, very small footprint and power requirements. The downside is you still need a monitor so the total solution isn't really all that smaller than an old laptop. Of course, you could also VNC into the Pi from a phone or tablet....
Click to expand...

FuturePrimitive said:
Which tablets do you have? I've thought about grabbing a few Amazon Fire 7s (they're about $40) since they're a big name brand and then sideloading the Google Play Store on it so I can load up the XAir app. A few steps to hop through but not a big deal. Still, if there's an easier $40 tablet that's just as reliable I'd like to look into it. Thanks.
Click to expand...



I have two of the Fire 7's and a Fire HD8. Did exactly as you described by sideloading the Google play store and installed Mixing Station Pro. The 7's were $40 and the 8 was close to $70 at the time.

I initially bought two of these Amazon.com : NPOLE Tablet 16G 1G IPS 7 Inch Android Quad Core CPU Dual Camera HD Video 3D Game Supported Red : Computers & Accessories but returned them because the displays were so poor. The Fire feels like a more expensive tablet. You just have to get used to the Amazon overlay. There is also a quirk with the Fires I haven't figured out yet where the tablet will sometimes disconnect from my wireless router but it leaves a prompt on the screen to reconnect and does so in about two seconds. So it hasn't been a deal breaker for me.

As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
#420
tkonbass said:
Can you define "fairly low cost"? A used/old Windows laptop running X-Air Edit would be my suggestion as its pretty rock solid and should be had pretty cheaply off CL.


If that is out of the question my backup to my backup consists of my Lenovo TAB2 10" Android tablet Amazon.com: Lenovo TAB2 A10 ZA000001US 10.1-Inch 16GB Wi-Fi Tablet (Midnight Blue): Computers & Accessories

and this little guy Amazon.com: Plugable USB 2.0 OTG Micro-B to 10/100 Fast Ethernet Adapter for Windows Tablets & Raspberry Pi Zero (ASIX AX88772A chipset): Computers & Accessories.

Works very well but beware that the adapter does not work with every Android tablet. For example, it will not work with Amazon Fire tablets which is what we use for monitors.
Click to expand...

Looking for a hardwired option under$300 would be ideal.

As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
