Darkglass Anagram Multi FX Announced

[gtirard]

So, would I be better served by the Anagram, or the H9 + HX One/Stomp?

It really depends on if you want to reduce the number of pedals to the minimum, or if you prefer to keep separate pedals.

• If you want be as compact as possible, Marco said in Ian Allison's video that the phaser should be added soon to the Anagram.
• If you don't mind keeping separate pedals, try the H9 when you recevice it - it seems to offer an incredible collection of modulation, pitch-shifting and delay effects, you may even not need to add a HX Stomp/One.



[gtirard]

It really depends on if you want to reduce the number of pedals to the minimum, or if you don't mind keeping a larger pedal board.

• If you want be as compact as possible, Marco said in Ian Allison's video that the phaser should be added soon to the Anagram.
• If you don't mind keeping separate pedals, try the H9 when you recevice it - it seems to offer an incredible collection of modulation, pitch-shifting and delay effects, you may even not need to add a HX Stomp/One.



[Viikate]

I'm interested to hear from any QC users who have, or may, move to the Anagram. How do they compare across the board: sound quality, FX options, ease of setup, ease of use for live gigging etc.

Right off the bat the Anagram appears to be smaller than the Quad Cortex as well as a bit less expensive.

I ask because I have been strongly considering the Quad Cortex (thanks @IvanBassist! ) for a while now. Now that the Anagram has arrived, it could be a better choice.

I had QC but sold it after i bought Anagram.

Soundwise there is no big difference, you can get high quality sounds from both. Anagram has more bass distortions (whole Darkglass range) and bass cabs than QC. QC is better for dialing complex signal chains because of the bigger display. Anagram's user interface is also very good and intuitive, sound tweaking is easy and fast. It is nice to have pedal images visible. If you use only a simple signal chains, no paraller routing etc, there is no difference in my opinion. Anagram's tuner tracks bass better than QC.

Anagram has only three footswitches against QC:s ten, that might be issue for someone.

The biggest plus to Anagram is that the whole device is designed for bass. QC is a guitar rig with some bass devices, in Anagram there is no "useless" guitar stuff If you play also guitar then QC might be better option. But for bass only I would choose Anagram.

I have made one gig with Anagram, everything went without problems. Sound engineer praised the bass sound, and to be honest the sound in my IEM was better than ever.

As a closure, as a former QC user the Anagram is much more suitable for my needs. Biggest con at the moment is the lack of bluetooth and audio interface support, but they are coming.



[Dennis Layman]

Here's a QuickStart guide from Sweetwater that should answer your questions

https://www.sweetwater.com/sweetcare/articles/darkglass-anagram-bass-modeler-quickstart-guide/

I want to know about synth bass sounds too. Line Source Audio bass synth.



[Barticus]

I want to know about synth bass sounds too. Line Source Audio bass synth.

Did you not get what you expected to see/hear from Ian's Instagram video?



[oo.viper.oo]

I created a very simple preset to show what you are looking for.

The split block goes to low freq loop (compressor) and high freq loop (distortion, fuzz etc)

The merge block merges these two loops together

The first output goes to XLR1 (headphones inactive)

The return enables the aux signal (your IEM mix) to be blended in

The second output block enables headphones and disables XLR1

Hopefully this helps to understand the possibilities

Fantastic! Thank you so much! I did not envision how the output blocks sort of tap into signal chain. Makes sense.



[oo.viper.oo]

When it comes to power supplies, is there anything that can handle the full 2a of the anagram WITHOUT resorting to using 4+ outputs?

Last Cioks generation (DC7, SOL) can do 9V 2A with combined 3 outputs.



[BrianVengeance]

Can use a Crux off the DC7 for a single plug as well.



[Synh]



[Murph_Orpheus]

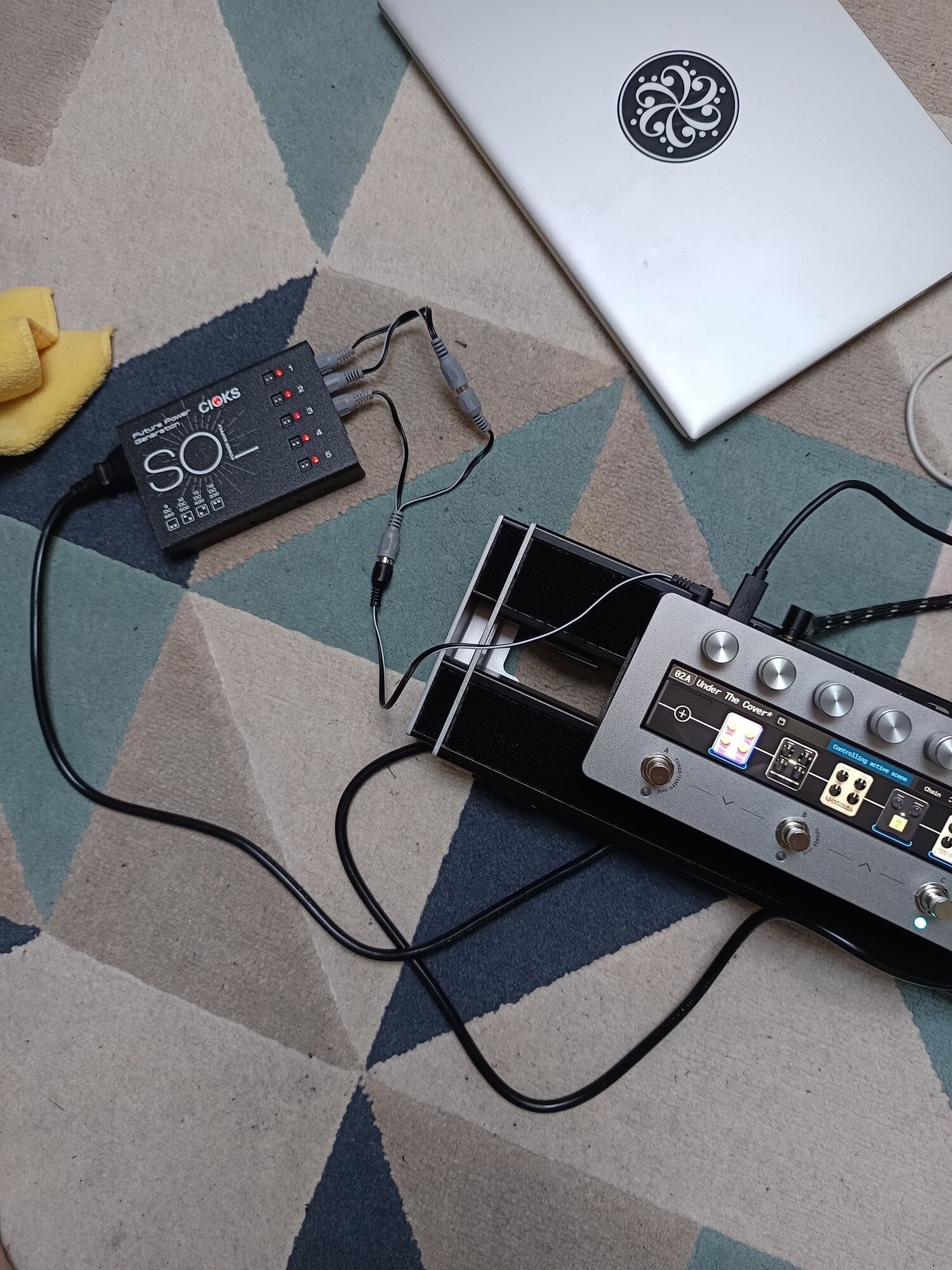

View attachment 7216861

Are those the Cioks cables? This would give a total of 1980ma off the 3 outputs right? I have a Cioks Sol as well so I'm interested in this route rather than getting a Crux.



[Synh]

Are those the Cioks cables? This would give a total of 1980ma off the 3 outputs right? I have a Cioks Sol as well so I'm interested in this route rather than getting a Crux.

These are the CIOKS 8800 parallel that I used with my HX STOMP. So I tell myself that the anagram must work on the same principle as the HX STOMP, a peak of consumption at the ignition then lower values and in the 3 output configuration, it's more than enough, zero worries. And an output of the cioks sol can deliver more than what is written on the manual, more than the 660.



[jpaulo]

Just got my Ana this week, going thru the learning curve.
I’m also playing with a DCX/Sushibox Venus (actual pedals) and the tone is very nice.
With the current Ana models, what would be the closest approach to that?
Gentle/Kuliniken? Trying it but not yet there…
Tks!



[DenisLM]

Oh? That's fantastic news! I gave my Peterson strobostomp to my guitarist a while back, and have been finding built in tuners on other devices lacking.

When it comes to power supplies, is there anything that can handle the full 2a of the anagram WITHOUT resorting to using 4+ outputs?

Canvas HP can do 3A:

Canvas Power HP

The Canvas Power HP allows you power the thirstiest of modelers and pedals with a massive 3A (three Amp, or 3,000mA) output. The HP also has 3 isolated power outputs delivering up to 500mA of clean power at 9v. The 3A output can also switch between 9V and 12v for powering high-voltage pedals...

www.walrusaudio.com



[oo.viper.oo]

Are those the Cioks cables? This would give a total of 1980ma off the 3 outputs right? I have a Cioks Sol as well so I'm interested in this route rather than getting a Crux.

No, it won’t. 660 is just rounded. It does 500mA@12V, which is 6W, which is 666.66666(and so on)mA@9V. In other words 6W times 3 is 18W divided by 9V is 2A.



[Agosix]

Is there anyway I can get a pure dry signal of my bass, sort of like a bypass mode? I have tried turning of all of the effects but the sound is blah and not the natural sound of my bass. I might be missing something . Any tips out there would be appreciated.



[silky smoove]

Is there anyway I can get a pure dry signal of my bass, sort of like a bypass mode? I have tried turning of all of the effects but the sound is blah and not the natural sound of my bass. I might be missing something . Any tips out there would be appreciated.

What signal chain are you comparing it to? I can’t imagine it’s actually doing anything audible in an effectively bypassed state.



[ShaunNecro]

Canvas HP can do 3A:

Canvas Power HP

The Canvas Power HP allows you power the thirstiest of modelers and pedals with a massive 3A (three Amp, or 3,000mA) output. The HP also has 3 isolated power outputs delivering up to 500mA of clean power at 9v. The 3A output can also switch between 9V and 12v for powering high-voltage pedals...

www.walrusaudio.com

Hmmmm, that definitely would do the thing, but then again... walrus audio though...



[DenisLM]

Hmmmm, that definitely would do the thing, but then again... walrus audio though...

what about it ?



[Agosix]

What signal chain are you comparing it to? I can’t imagine it’s actually doing anything audible in an effectively bypassed state.

My goal is that I do not want a signal chain. I want to build from ground 0 being my original bass tone and not a blunt non dynamic tone when I go and turn off all the effects that anagram offers in their signal chain.



[BrianVengeance]

what about it ?

Right? That looks pretty ideal for a small board actually...
