With the additional info you provided in your PM your Dean EAB is a 2014 model.

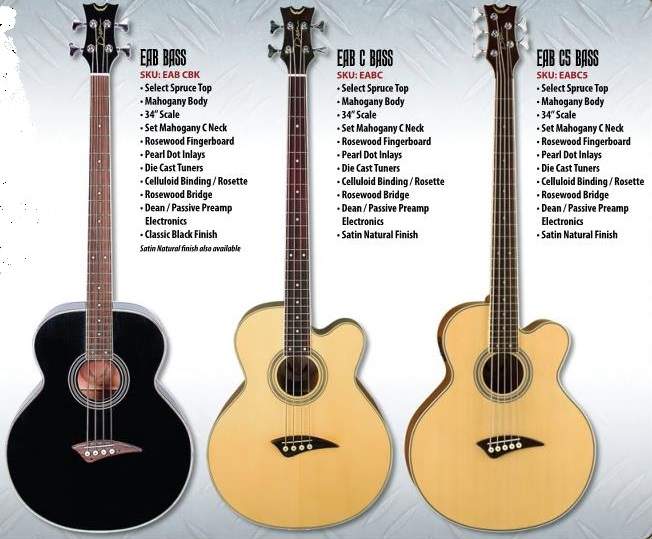

Here is a page from a catalog

View attachment 4778388

Thanks for looking that up for me!



[Will_White]

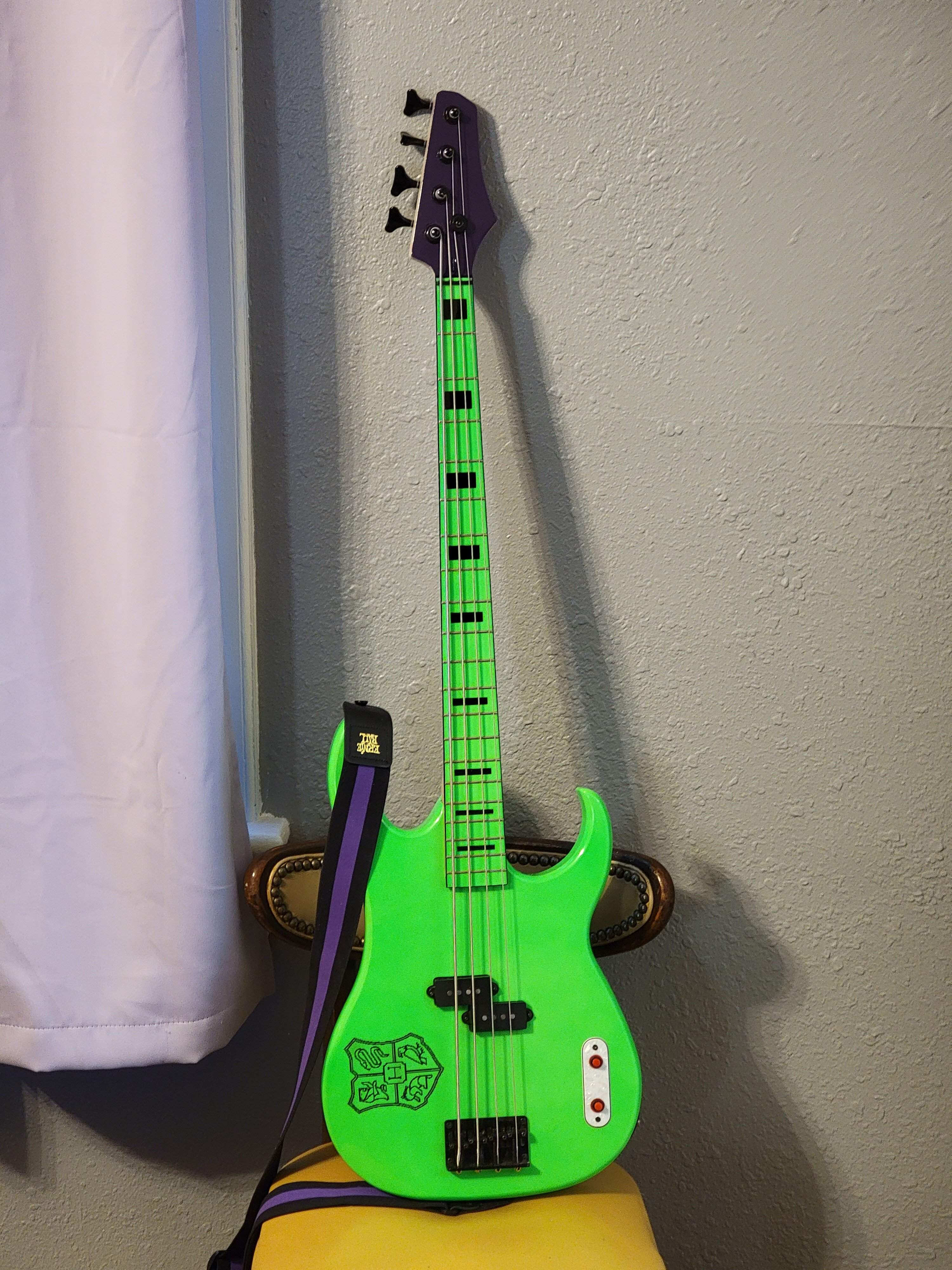

My Custom Custom Zone got a little more Custom after it got in an accident that broke off the tip of the headstock and damaged the veneer.



[CodyP]

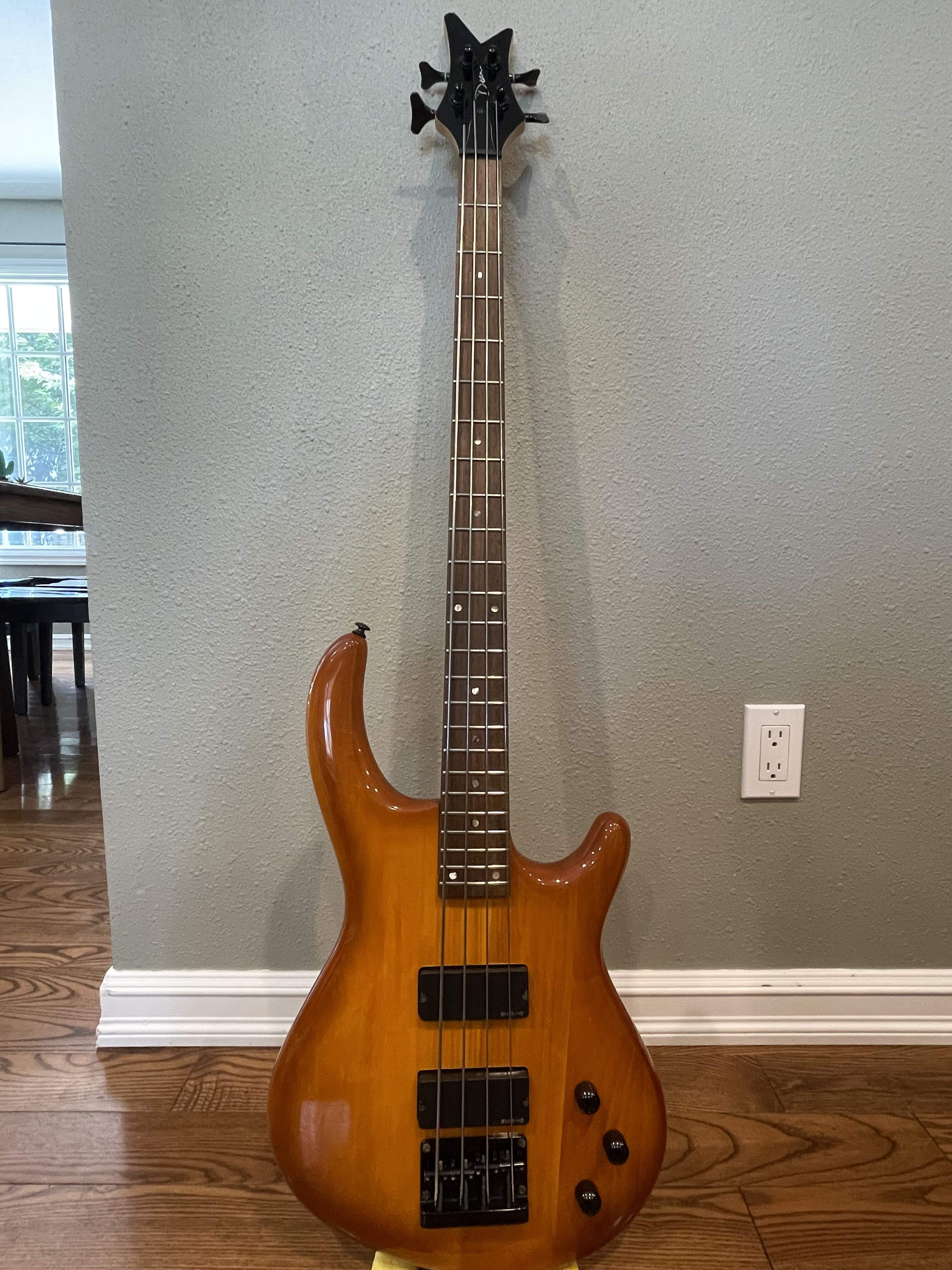

Got some flatwounds (first time using them so not sure what I think yet) and adjusted the crap outta this thing. @B-Mac can you tell me what the knobs control? Obviously the top is volume and then is there a pickup panner or tone control? The button knob makes the bass buzz like crazy though so there may be more work to be done.



[CodyP]

actually I feel like the top and middle knobs cut out a bit and I can't actually figure out which is volume control. Can I just replace all 3?



[B-Mac]

Got some flatwounds (first time using them so not sure what I think yet) and adjusted the crap outta this thing. @B-Mac can you tell me what the knobs control? Obviously the top is volume and then is there a pickup panner or tone control? The button knob makes the bass buzz like crazy though so there may be more work to be done.
View attachment 4779196

Usually I would say Volume/Volume/Tone, but the catalog states this is an active bass.

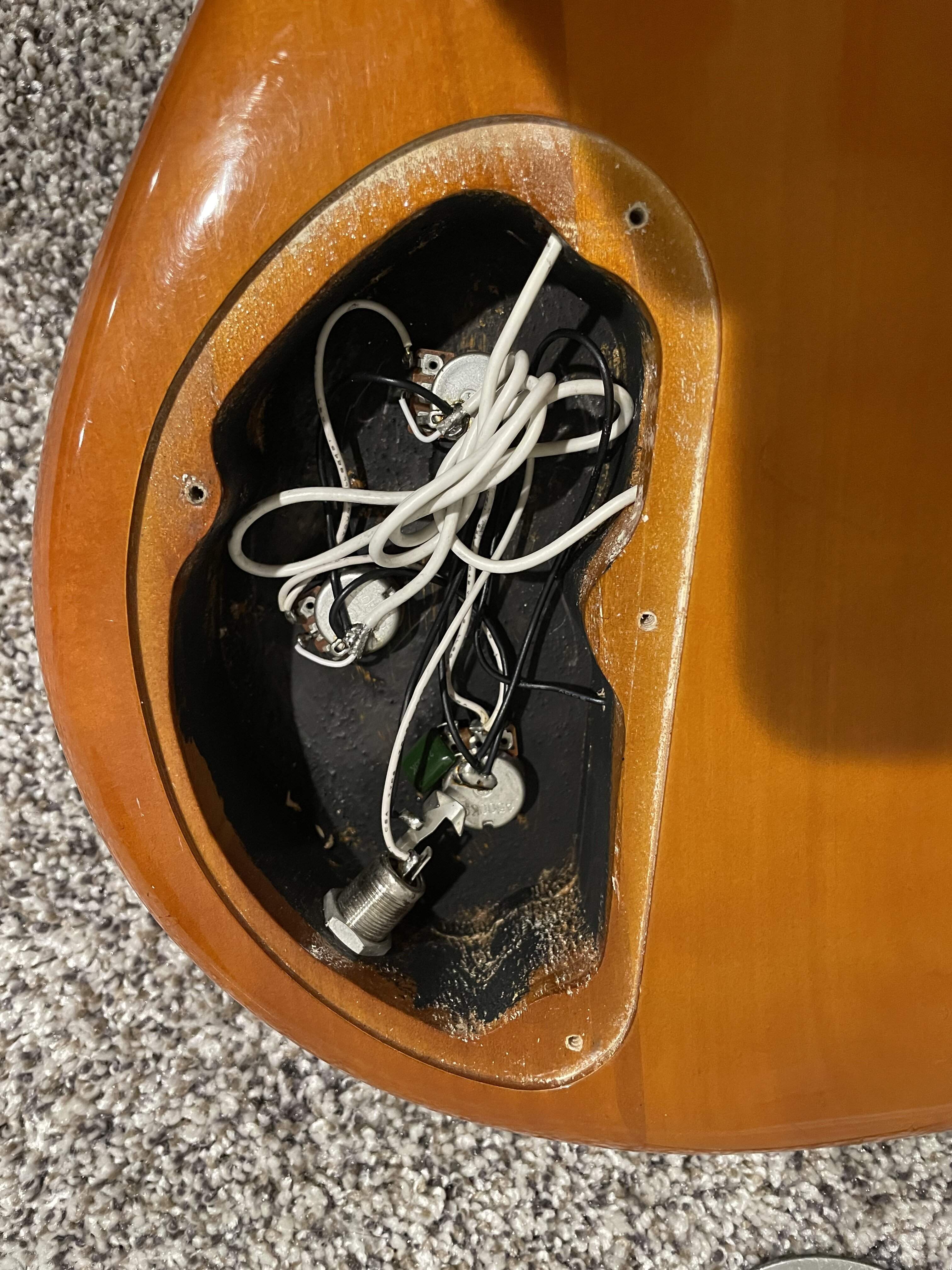

So, I would take the control plate off of the back and post a picture to see just what this bass has as there is no battery compartment on the back of the bass. The battery could be stored under the control plate with the control pots.

The noise is probably from a lose connection that needs re-soldering.



[B-Mac]

actually I feel like the top and middle knobs cut out a bit and I can't actually figure out which is volume control. Can I just replace all 3?

I honestly would not replace anything until you know what you have.



[B-Mac]

View attachment 4779145
My Custom Custom Zone got a little more Custom after it got in an accident that broke off the tip of the headstock and damaged the veneer.

One of a kind custom custom!



[CodyP]

Usually I would say Volume/Volume/Tone, but the catalog states this is an active bass.
So, I would take the control plate off of the back and post a picture to see just what this bass has as there is no battery compartment on the back of the bass. The battery could be stored under the control plate with the control pots.

The noise is probably from a lose connection that needs re-soldering.

I’ve looked at all the connections and they seem ok but I could be mistaken. No battery there though.



[B-Mac]

I’ve looked at all the connections and they seem ok but I could be mistaken. No battery there though.
View attachment 4779431

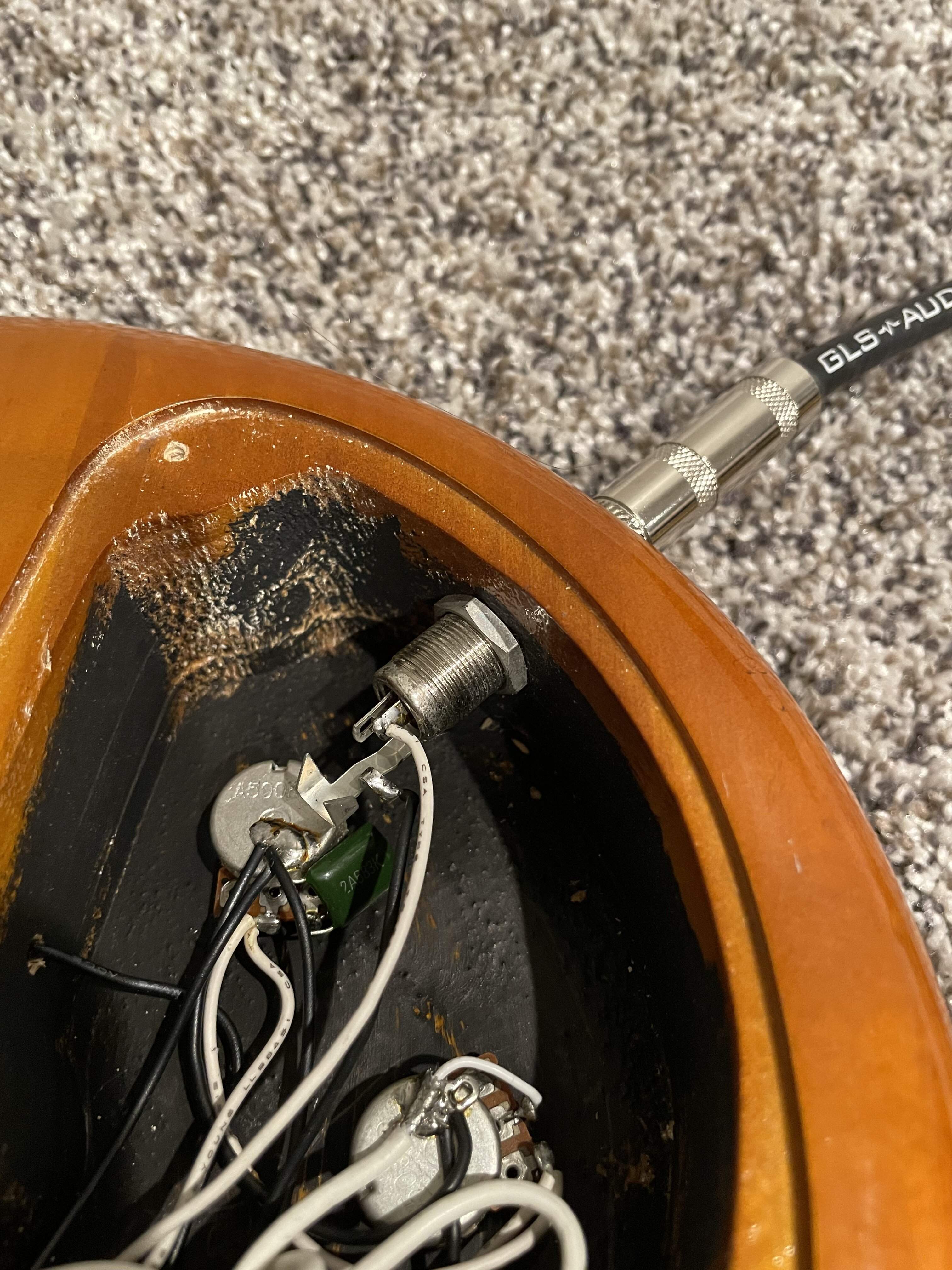

What's going on between the jack and the bottom pot?



[2many]

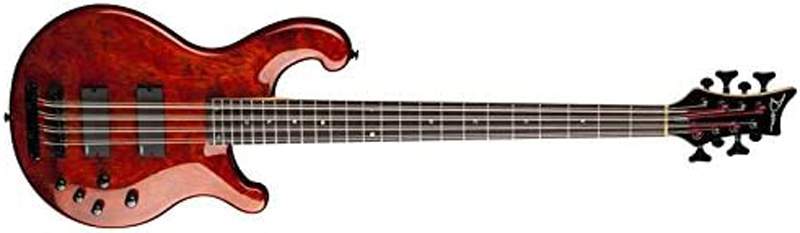

The black Q4 with the lined fretless neck on it. And from left to right, the amber Q4, the bubinga 8 string, black trans 12 string and the red Q5. Man, that's rhapsody city there!

Dean RH8 BUBINGA Rhapsody 8 Bass Guitar, Gloss Natural
$930.42

Brand Dean Guitars
Color Gloss Natural
Top Material Type Maple, Rose Wood, Mahogany
Body Material Mahogany
Back Material Type Mahogany, Bubinga
Neck Material Type Maple
Fretboard Material Type Rosewood
Guitar Pickup Configuration H
Hand Orientation Right
Guitar Bridge System Tune-O-Matic

See more
About this item

• Bubinga Top
• Bolt-On Neck
• Rosewood Fingerboard
• Black Hardware
• Mahogany Body

The listing is on amazon but it says it's temporarily out of stock. I doubt it will ever get back in stock.
I like the gloss finish over the dull look of my 8 string.



[CodyP]

What's going on between the jack and the bottom pot?

Nothing. Just a bad angle but they aren’t touching or anything.



[B-Mac]

Nothing. Just a bad angle but they aren’t touching or anything.

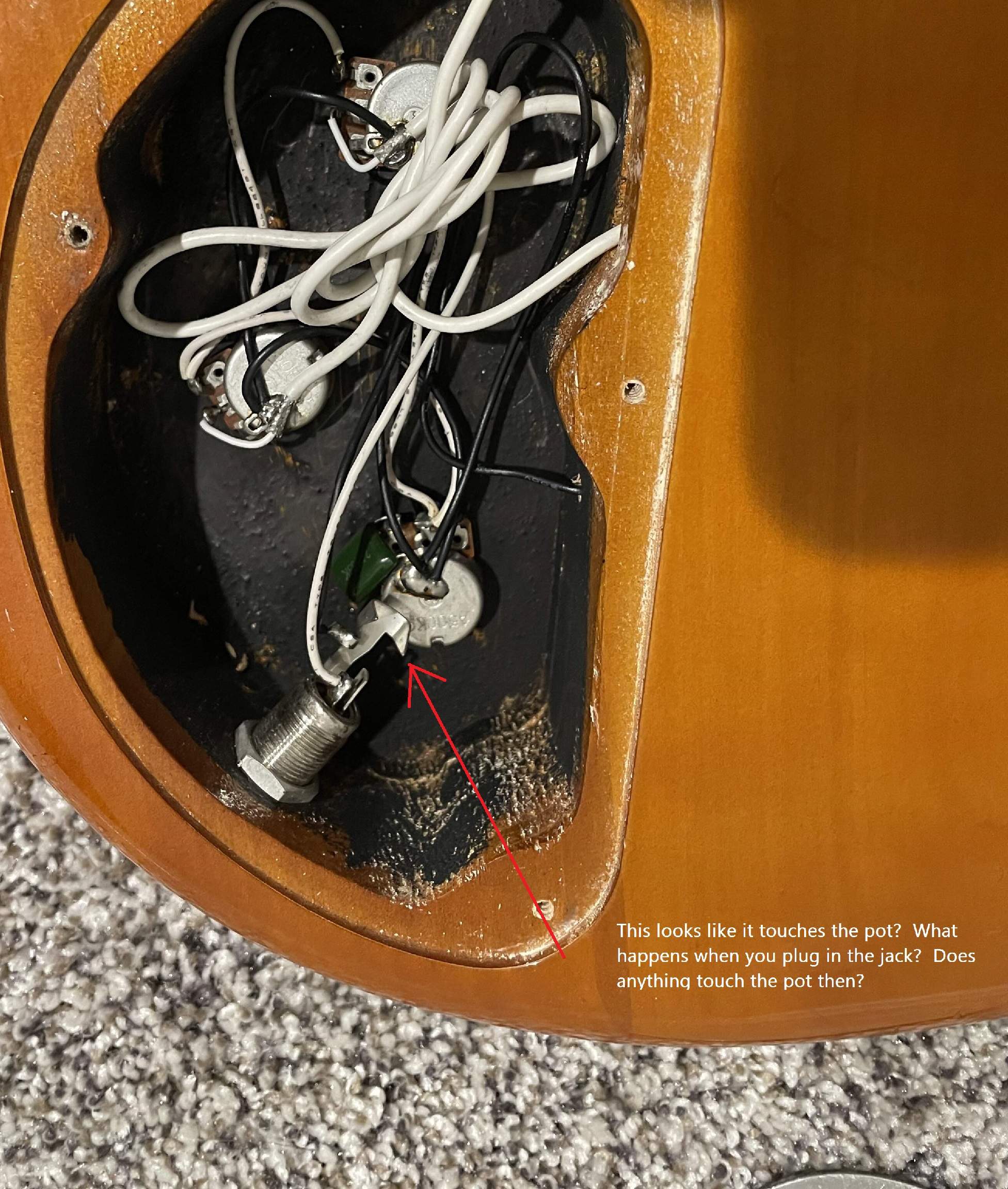

As you said, could be just the angle, but see my markup below.
I do not have this particular bass, but I do have a few Jeff Berlin signature models that have a similar passive 2 pup three control setup that I will look over and compare. Something looks off where the thicker white wire has been soldered.



[B-Mac]

I’ve looked at all the connections and they seem ok but I could be mistaken. No battery there though.
View attachment 4779431

The following members own/owned an Edge 1, more than likely a later model, but the wiring should be the same and perhaps one or some or all of them can help you out too.

@davy4575 #44
Edge 1
@jzhobo77 #48
Edge 1
@bassmasta76
Edge 1 lefty
@Crystalman85 #59
Edge 1 5
@Rizzorapz #115
Edge 1 lefty
@Rocknrollover #142
Edge 1 5
@MrKeef #155
Edge 1
@Dana R Gregory #168
Edge 1 MM 5
@Jason Garrett #185
Edge 1
@One_Dude #190
Edge 1 5
@fauxtoe
Edge 1 FL 6 (early model)
@SiliconElle #206
Edge 1
@DeanBassistTx #214
Edge 1 5
@Alek
Edge 1
@McSpunckle
Edge 1
@Sonic
Edge 1



[CodyP]

As you said, could be just the angle, but see my markup below.
I do not have this particular bass, but I do have a few Jeff Berlin signature models that have a similar passive 2 pup three control setup that I will look over and compare. Something looks off where the thicker white wire has been soldered.
View attachment 4779785

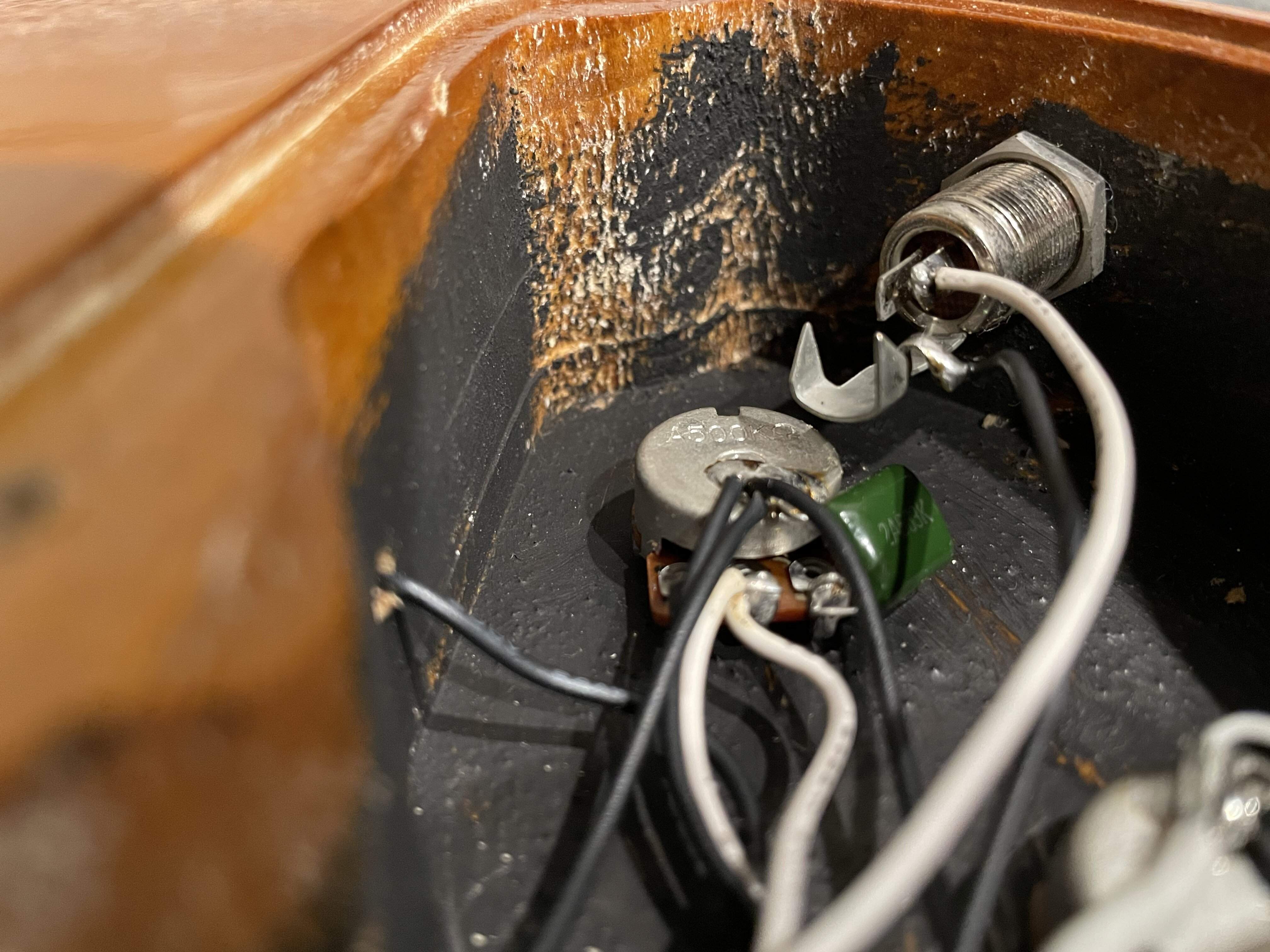

Nope. No touchy. Here is a better angle.



[BassikBrad]

Should both of those vol pot terminals be grounded & two white wires attached to the first terminal ?



[B-Mac]

Nope. No touchy. Here is a better angle.
View attachment 4779921
View attachment 4779922

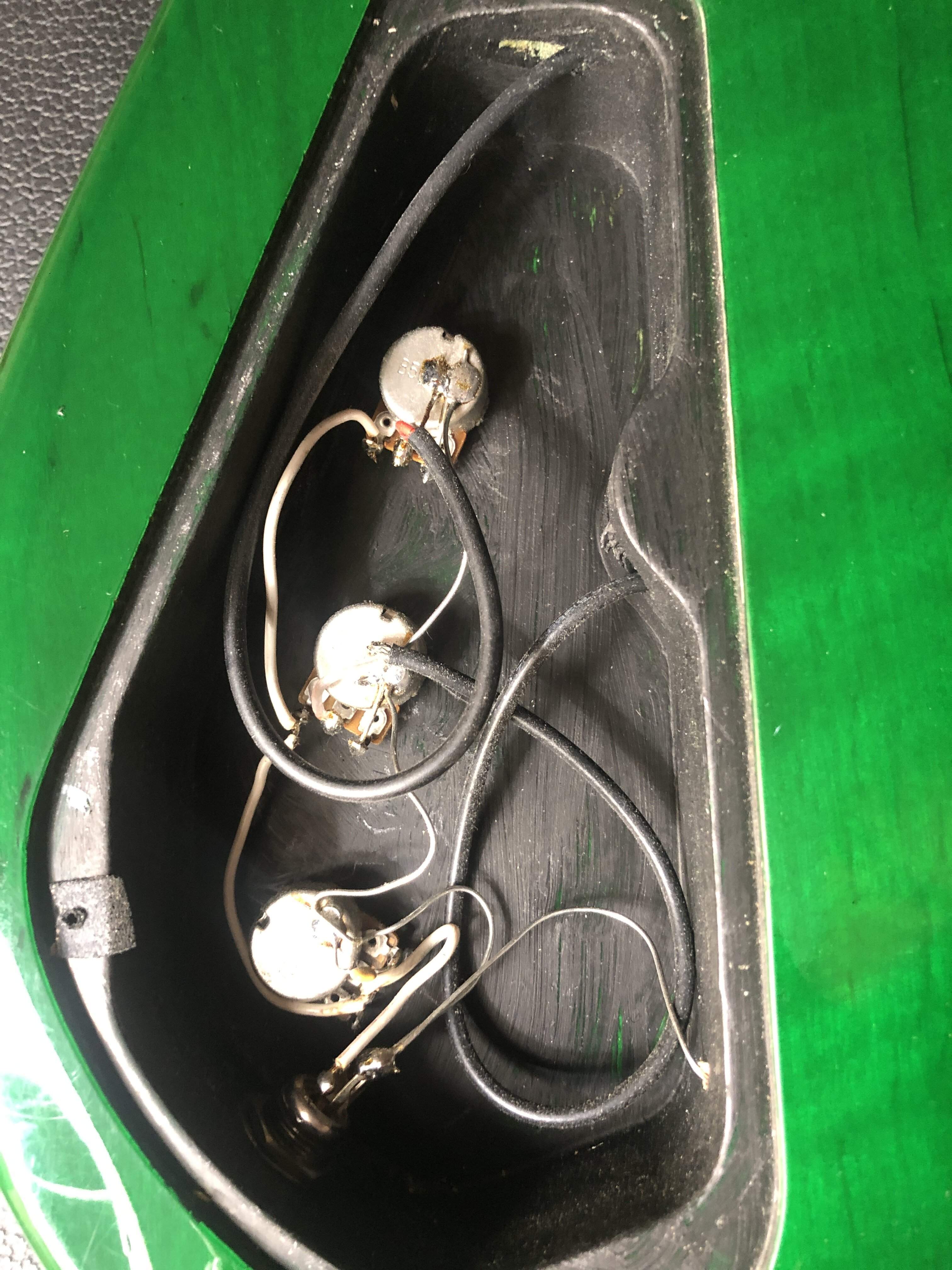

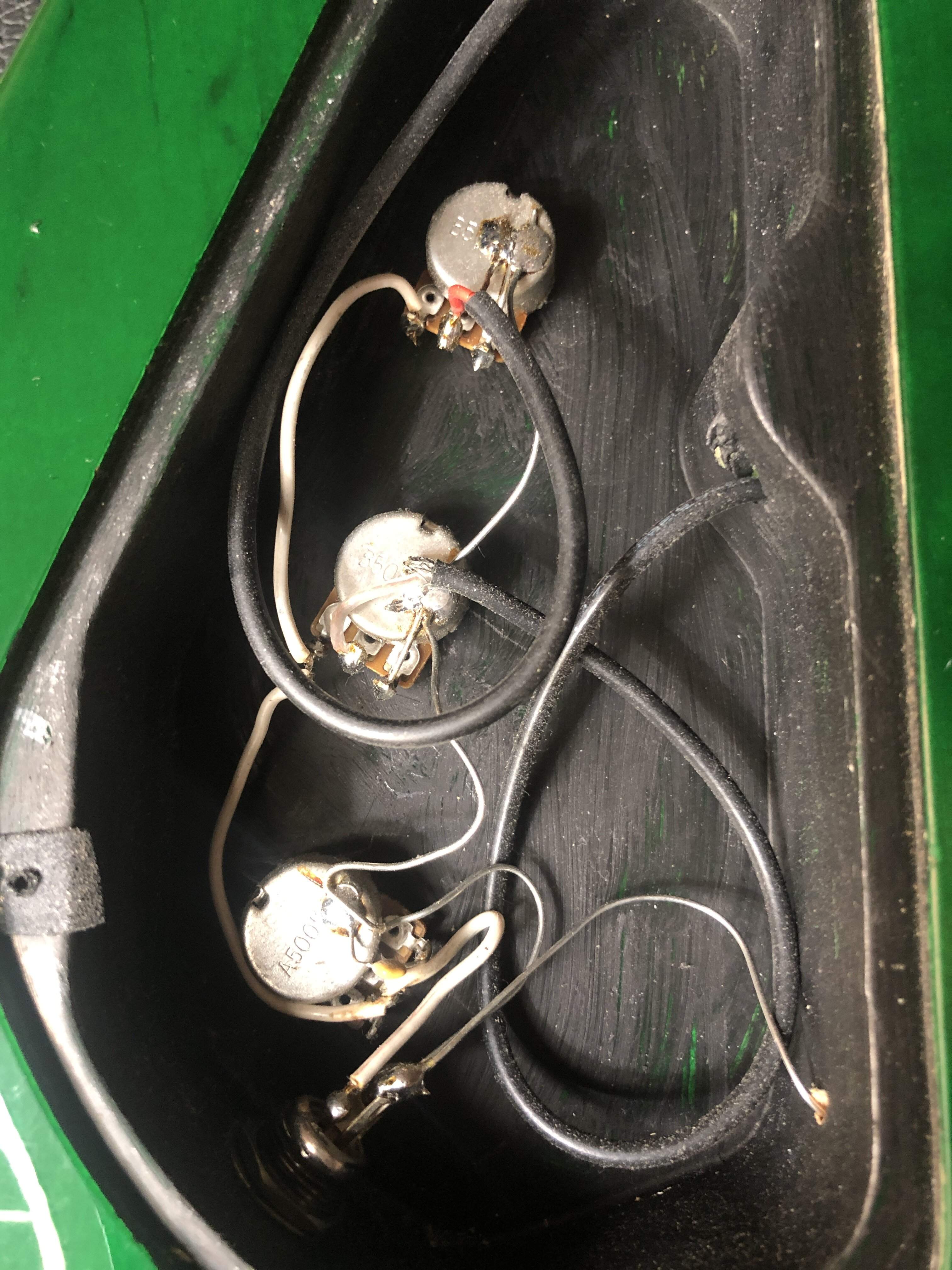

The thicker white wire and solder work doesn't look original. Although I do not have this bass in particular I do have a Dean bass with 2 pups, V/V/T and is passive (Czech Jeff Berlin Signature) and the connections look like this.

It should be clean and simple like this.



[CodyP]

The thicker white wire and solder work doesn't look original. Although I do not have this bass in particular I do have a Dean bass with 2 pups, V/V/T and is passive (Czech Jeff Berlin Signature) and the connections look like this.

It should be clean and simple like this.
View attachment 4780326 View attachment 4780327

Well I could always remove and re solder it all. Or take it somewhere and have a pro check it out haha.



[Nenor]

I just put a dedicated thread to my Dean Jeff Berlin evolution process, since I got it to where it is today. You're welcome to take a look. Cheers.

Dean Jeff Berlin - modified (long read)



[CodyP]

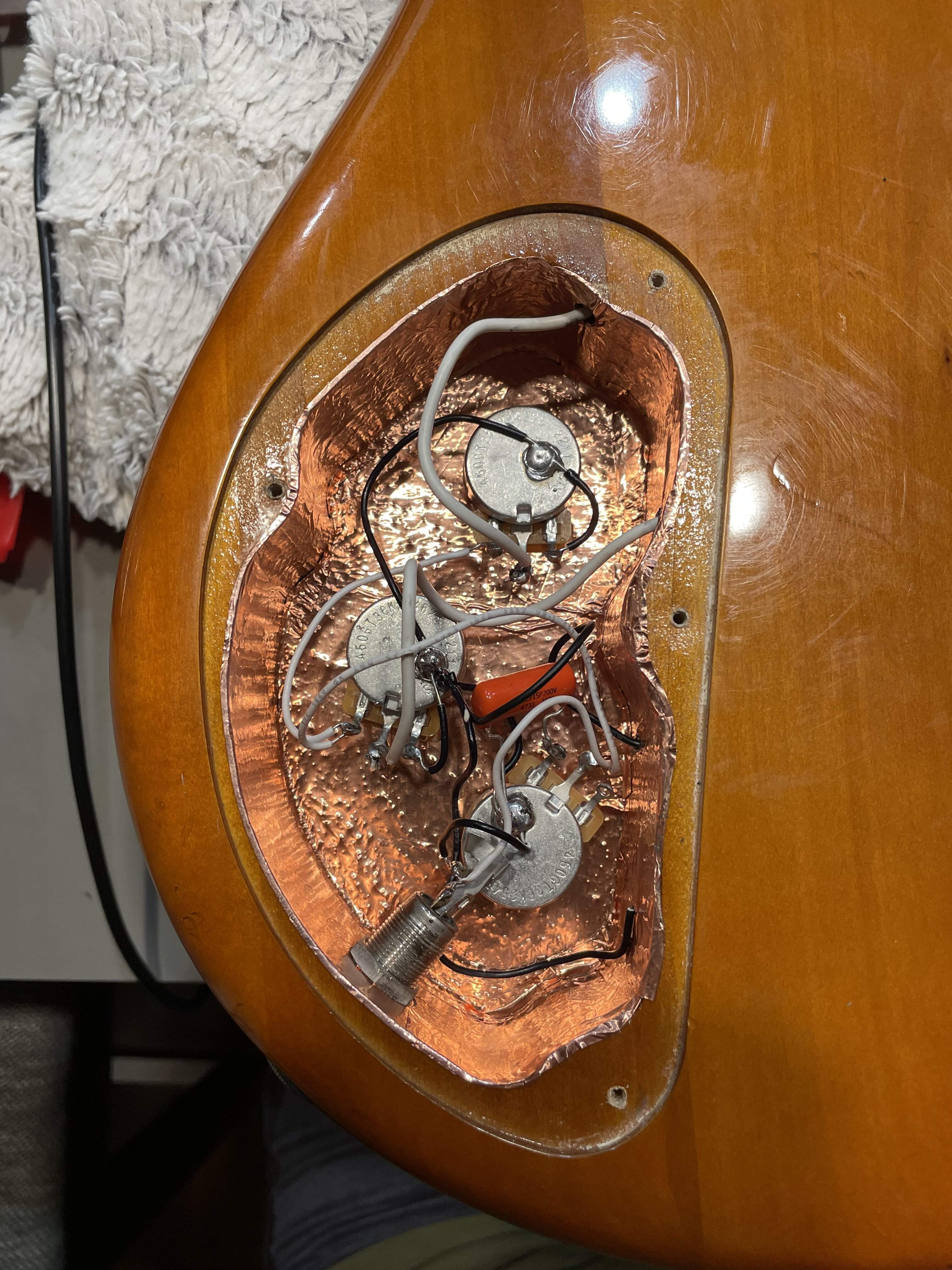

Well I ended up installing CTS 250k pots but since the switchcraft jack was too short i reused the old jack. I have no sound so I’m not sure where I screwed up. Used guitar electronics wiring diagram but am too tired to look at it tonight.

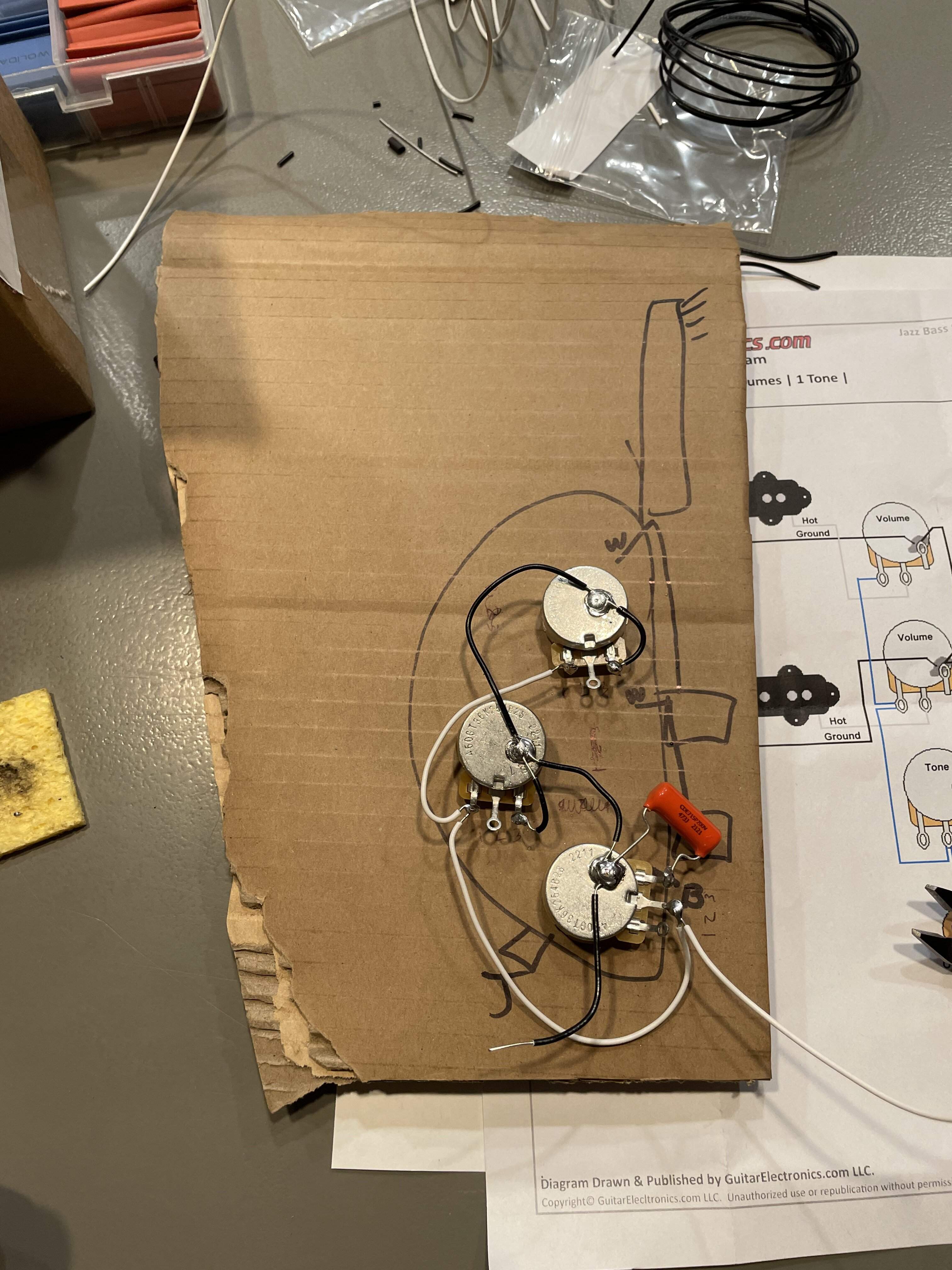

Also added some copper shielding though not sure it helps. I ended up setting the pots in cardboard to get most of the wiring done first and then installed them.

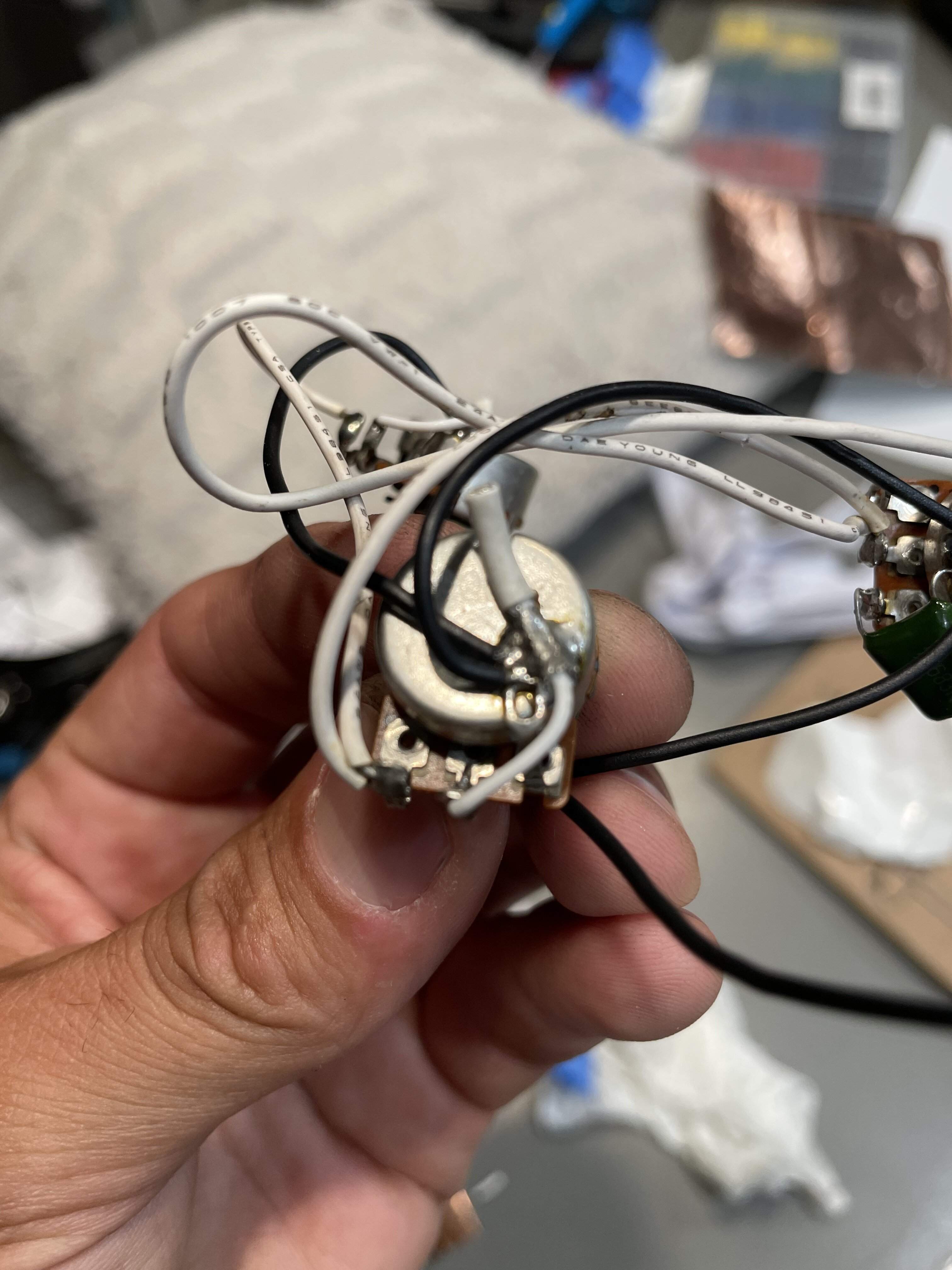

What gets me is that the old hot wires from the pickups go to ground on their respective pot casings and then to the middle lug as seen in the last two pictures. I didn’t do that but wonder if I need to.



[Nenor]

What gets me is that the old hot wires from the pickups go to ground on their respective pot casings and then to the middle lug as seen in the last two pictures. I didn’t do that but wonder if I need to.

That is strange. The hot wire from the pickup should go to the middle leg, not to ground. The other wire from the pickup should go to ground - which I can't see from your photo.

The shielding looks good. It must connect to the ground as well or it won't do it's job. You should also run a wire from beneath (touching) the bridge to the cavity to ground.
