Dingwall Owners Club

#24,243
I have another question for the knowledge base...

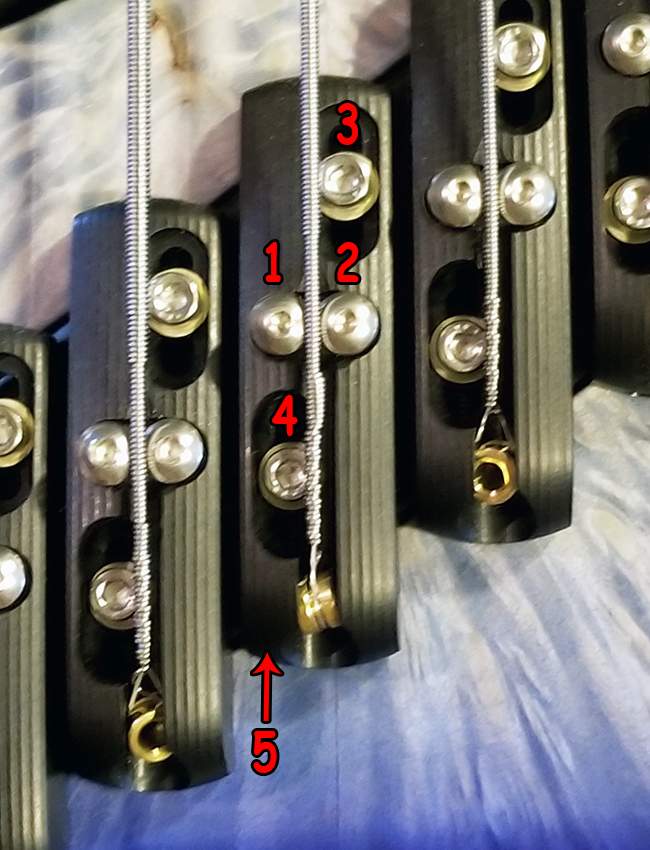

In the picture below, it's obvious what adjusting 1,2, & 5 do, but do I have to loosen 3 & 4 before adjusting 1, 2, & 5?


I just want to make sure here and not just assume I know what I'm doing.
Thank you!

  • Like
Reactions: AB Nate
#24,244
johnsonabq said:
I have another question for the knowledge base...
In the picture below, it's obvious what adjusting 1,2, & 5 do, but do I have to loosen 3 & 4 before adjusting 1, 2, & 5?
View attachment 3187690

I just want to make sure here and not just assume I know what I'm doing.
Thank you!
Click to expand...
Just make sure you have the truss rod set exactly the way you want it before you mess with the saddles. Also, I suggest keeping close track of how many turns you moved the saddle screws so that you can move them back in case you want to restore them to factory position. Also, make sure you move both saddle screws the exact same number of turns for a given string to keep them even.

Last edited:
  • Like
Reactions: johnsonabq
#24,245
xnewyorka said:
Just make sure you have the truss rod set exactly the way you want it before you mess with the saddles. Also, I suggest keeping close track of how many turns you moved the saddle screws so that you can move them back in case you want to restore them to factory position. Also, make sure you move both saddle screws the exact same number of turns for a given saddle to keep it horizontal.
Click to expand...
Thanks John. I adjusted the truss rod yesterday. I only needed a little more relief. But my questions was, do I have to loosen 3 & 4 before I do anything with 1, 2, & 5? :)

#24,246
johnsonabq said:
Thanks John. I adjusted the truss rod yesterday. I only needed a little more relief. But my questions was, do I have to loosen 3 & 4 before I do anything with 1, 2, & 5? :)
Click to expand...
My GUESS is that 1 and 2 are independent, and that 3 and 4 must be loosened in order to adjust 5. But that is only a guess, and I would wait for an answer from someone who has done this before. I have never touched any of those screws on any of the Z3s I've had.
Perhaps an enhancement suggestion for Dingwall would be to include the instructions for truss rod and saddles in the documentation along with the electronics diagram. Now that I say that, perhaps they are available somewhere on the website.

#24,247
xnewyorka said:
My GUESS is that 1 and 2 are independent, and that 3 and 4 must be loosened in order to adjust 5. But that is only a guess, and I would wait for an answer from someone who has done this before. I have never touched any of those screws on any of the Z3s I've had.
Perhaps an enhancement suggestion for Dingwall would be to include the instructions for truss rod and saddles in the documentation along with the electronics diagram. Now that I say that, perhaps they are available somewhere on the website.
Click to expand...
I am hoping for an answer from someone here with full knowledge of how the bridge on the Z model works. I also sent an email to [email protected] asking if Sheldon had a video out on the workings of the Z model bridge.

#24,249
I’d just go for it and see what happens. It’s not like parts are going to fly off. Not knowing what I’m doing doesn’t really slow me down:thumbsup:

If I was to hazard a guess, the two bolts in question are loosened to adjust intonation, and tightened to lock the position. That screw adjusting the intonation is cool. The other bridges I’ve seen on my Dingwalls, I slide the saddle back and forth to intonate, lock it, and tune up again. It’s kind of hit or miss, but normally only takes two or three tries.... A screw agdustment would be cool.

Truss rod first, then the bridge adjustments.

#24,250
johnsonabq said:
I have another question for the knowledge base...
In the picture below, it's obvious what adjusting 1,2, & 5 do, but do I have to loosen 3 & 4 before adjusting 1, 2, & 5?
View attachment 3187690

I just want to make sure here and not just assume I know what I'm doing.
Thank you!
Click to expand...

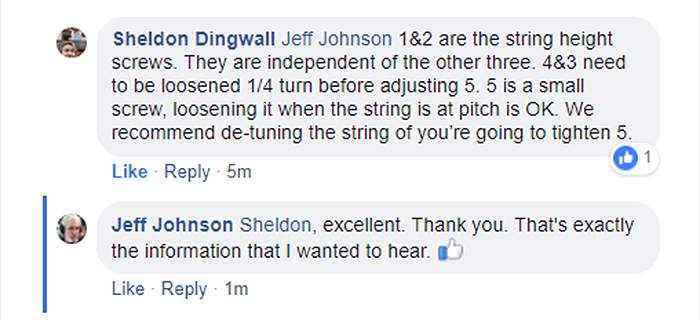

I got an answer from Sheldon on Facebook. Thank you @Sheldon D.


  • Like
Reactions: LaszNL, TolerancEJ, Andyman001 and 1 other person
#24,252
xnewyorka said:
Finish cracking around the holes could be from a sharp blow, but could also be from a sudden and extreme change in temperature or humidity or both, especially when the bass has been sitting outside in a cold vehicle and itself reached a cold temperature then is brought inside and suddenly opened up without waiting several hours for it to gradually come up to room temperature.
Click to expand...

Totally. The one I speak of was beaten with the ugly stick. Looked like it landed right on the pots perhaps after bouncing off a few other places.

#24,253
johnsonabq said:

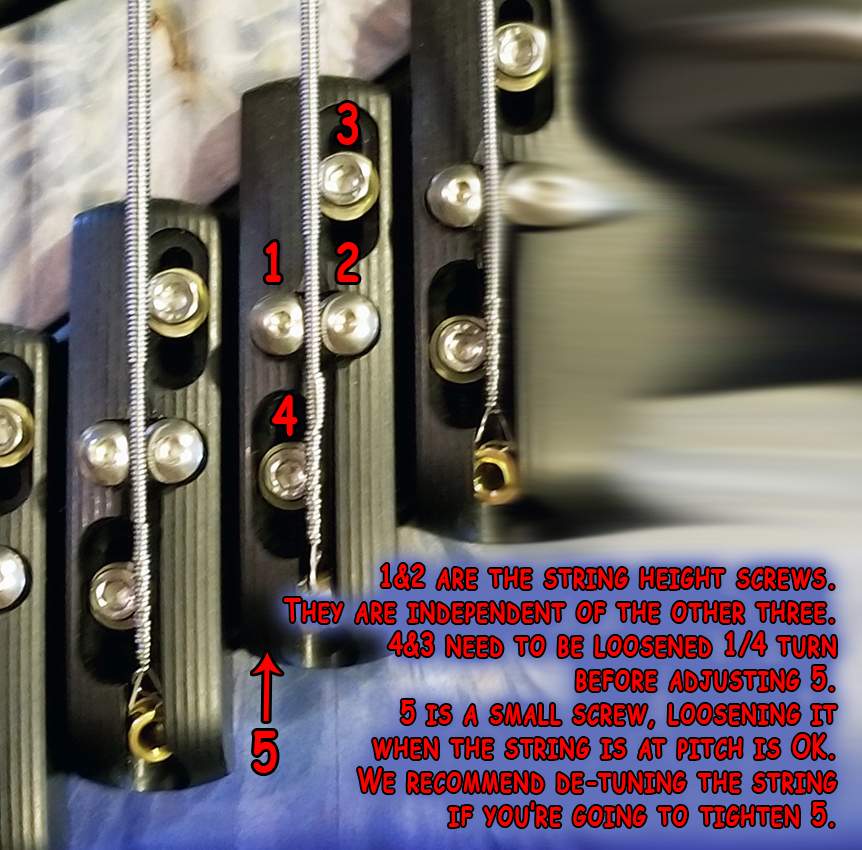

I got an answer from Sheldon on Facebook. Thank you @Sheldon D.

View attachment 3187889
Click to expand...

JJ, I was going to chime in but I see you got the answer from the master himself. Another note as well on the independent string height screws (1 and 2)...as I'm sure you know, loosening the strings before adjusting those especially when raising them. Not as bad lowering but I loosen the string as well to for that to ensure not to strip out the Allen head. Just eyeball those two screws and keep them level.

#24,255
husky123 said:
JJ, I was going to chime in but I see you got the answer from the master himself. Another note as well on the independent string height screws (1 and 2)...as I'm sure you know, loosening the strings before adjusting those especially when raising them. Not as bad lowering but I loosen the string as well to for that to ensure not to strip out the Allen head. Just eyeball those two screws and keep them level.
Click to expand...
Copy that Lee. thx

#24,257
BassAgent said:
View attachment 3187385
So turned out there was some considerable finish damage at the knobs when I got this bass a few weeks ago and although I wasn't really bothered by it I still let Dingwall know (just so they knew things happen) and they offered me a new body! It's on its way to Amsterdam now, expected on Wednesday. Still have to find a luthier to set it up though.
Click to expand...
Hah, I am experiencing some serious bureaucratic BS here: the new body for my bass is at a FedEx location about 15 minutes from my house. It has been cleared by customs and everything and is just waiting for next Wednesday, when it's supposed to be delivered. However, I am not at home then. So I thought: let's call FedEx, see if I can pick it up myself, it's very close, saves them a detour past my house and everybody's happy, right? Well, no. I'm not allowed to pick the body up before Wednesday "because delivery or pickup before the date of delivery would make it a Priority package, and it's an Economy package and that's cheaper so you'll have to wait, so sorry". So I was like: me saving you guys money, picking up that thing myself would make the shipment móre expensive? Whut? Weird. So I postponed the delivery to Thursday. Stinks.

  • Like
Reactions: BassikBrad and LaszNL
#24,258
BassAgent said:
Hah, I am experiencing some serious bureaucratic BS here: the new body for my bass is at a FedEx location about 15 minutes from my house. It has been cleared by customs and everything and is just waiting for next Wednesday, when it's supposed to be delivered. However, I am not at home then. So I thought: let's call FedEx, see if I can pick it up myself, it's very close, saves them a detour past my house and everybody's happy, right? Well, no. I'm not allowed to pick the body up before Wednesday "because delivery or pickup before the date of delivery would make it a Priority package, and it's an Economy package and that's cheaper so you'll have to wait, so sorry". So I was like: me saving you guys money, picking up that thing myself would make the shipment móre expensive? Whut? Weird. So I postponed the delivery to Thursday. Stinks.
Click to expand...
Yep, dumb. - That's the world we live in.
What are you gonna do with the damaged body?

#24,260
A passel of Dingwall NG2 and NG3's have landed here in CNY (upstate, to you city & Westchester folk). Anyone looking for a new NG Ish Guitars in Syracuse has 'em. Not pictured are black NG2, a blue NG3 and a green NG2.



I spent a little time with these three on Friday and can say that they all feel and play exactly as you'd expect and hope. They'll be hung along with the Ritters & Foderas... ;) I know he's got some pending orders in the next few months including at least a few Afterburners.

  • Like
Reactions: nismaniac, Akami, EMoneySC2 and 4 others
