Essex Bass Competition!

#81
I have an SX jazz and put a new p/g on(see I believe the 3rd post, the red 62QMD with black pickguard). I had a few small problems getting it on, nothing a file or a dremel couldn't fix though. I had to open up the neck pocket a bit, shave back where the control plate is, and had to shape around where the neck pickup is(specifically where the screws that hold the pickup are). The work didn't take too long, only about a half hour(bad file :hmm: ).

By the way, I got the pickguard off of evilbay for about $15 from, I believe, blue flame music, who are cool.

#83

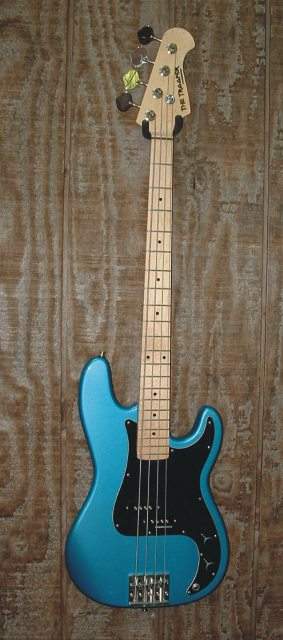

Here's a replica Steve Harris sig model that I built for a TB'er. The only thing stock is the wood and blue paint. Exceptional blue paint I might add! This thing was built for a metal player. Here's the rundown...

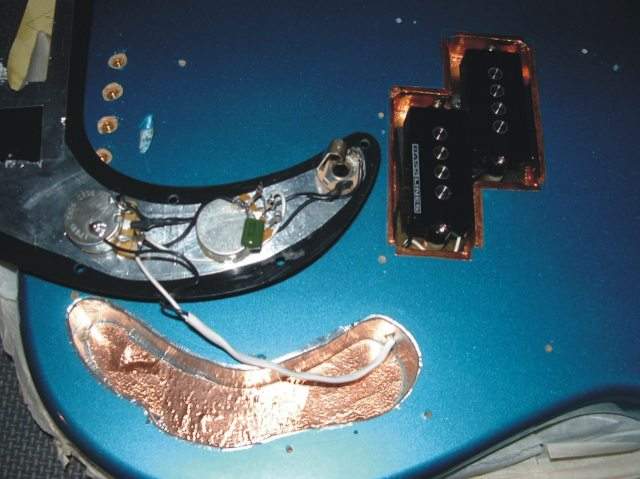

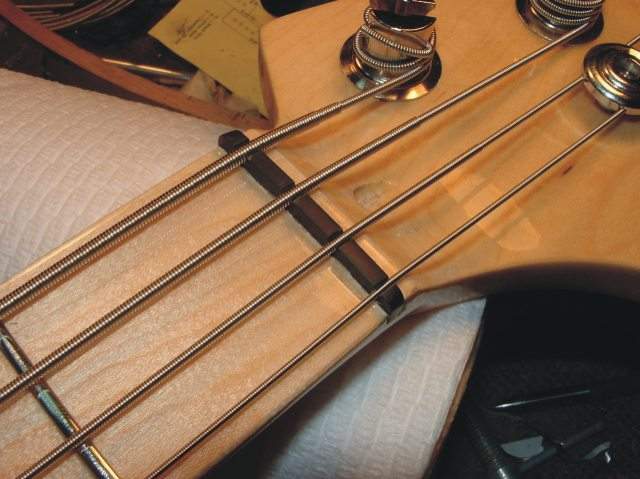

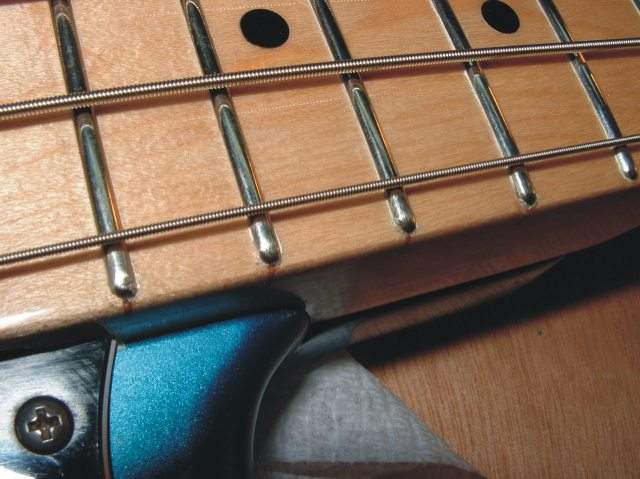

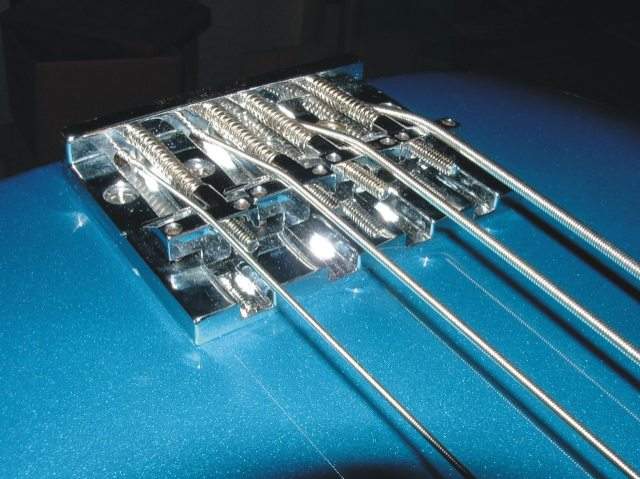

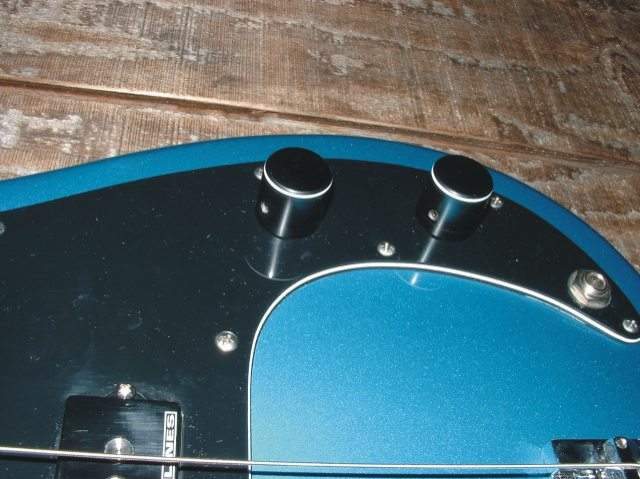

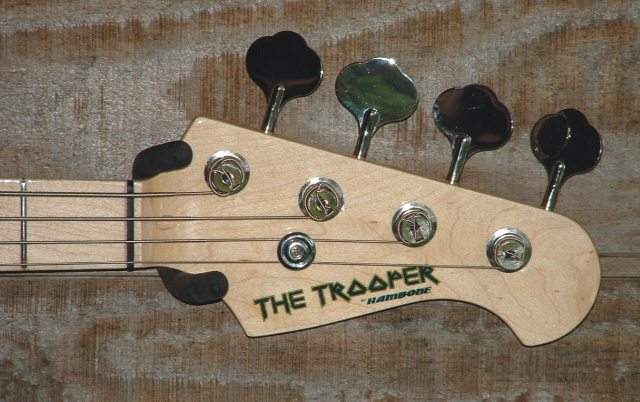

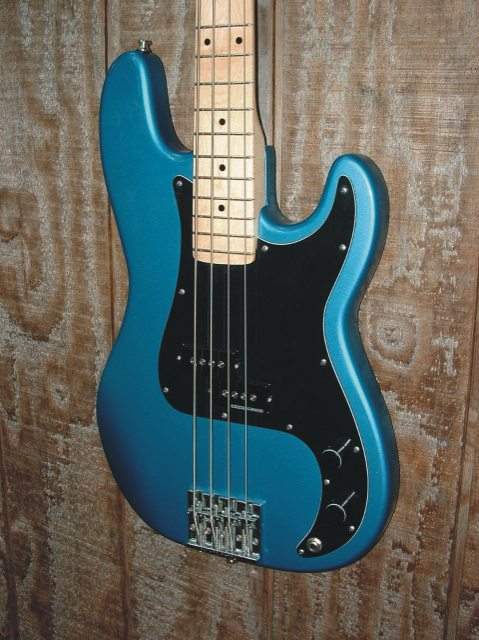

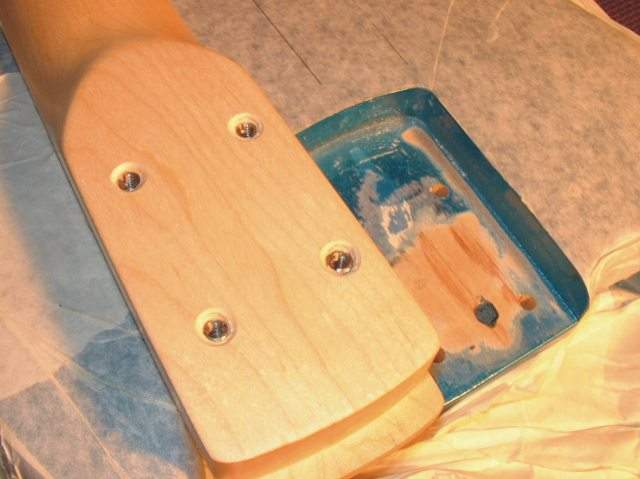

The bass began as a PB62 in blue with a rosewood neck. We swapped out the old neck for a maple but the maple neck had some fret issues. I did a complete fret job and gave the ends a hemispherical shape. The name came from the client but I designed the decal. We downloaded the font from abstractfonts.com. The nut is black phenolic. I did not go for real Schaller tuners as I believe them to be an inferior product so I used Gotoh's of the same configuration. All stainless steel screws. I used steel inserts and 10-20 stainless steel screws to bolt the neck on. The neck has been refinished with a high solids acrylic polyurethane. Seymour Duncan Quarter Pounder pup with new black neoprene foam pads. Full shielding. CTS pots with handmade custom knobs to match the black Fender pickguard. The budget and availability precluded a purple pg like the original. I mounted the BAII with threaded inserts into the body for the first time and it's proven to be viable. The Schaller strapbuttons were installed using the same method of an insert and stainless steel screws. I had to modify the screws because, as you all know, they have a small diameter top to fit the button. Here are some pics - hope you like:


Attachments

  • Hot Rod Harris 1.jpg
    Hot Rod Harris 1.jpg
    26.7 KB · Views: 387
  • Hot Rod Harris 2.jpg
    Hot Rod Harris 2.jpg
    43.8 KB · Views: 257
#87
Hambone said:
Here's a replica Steve Harris sig model that I built for a TB'er. The only thing stock is the wood and blue paint. Exceptional blue paint I might add! This thing was built for a metal player. Here's the rundown...

The bass began as a PB62 in blue with a rosewood neck. We swapped out the old neck for a maple but the maple neck had some fret issues. I did a complete fret job and gave the ends a hemispherical shape. The name came from the client but I designed the decal. We downloaded the font from abstractfonts.com. The nut is black phenolic. I did not go for real Schaller tuners as I believe them to be an inferior product so I used Gotoh's of the same configuration. All stainless steel screws. I used steel inserts and 10-20 stainless steel screws to bolt the neck on. The neck has been refinished with a high solids acrylic polyurethane. Seymour Duncan Quarter Pounder pup with new black neoprene foam pads. Full shielding. CTS pots with handmade custom knobs to match the black Fender pickguard. The budget and availability precluded a purple pg like the original. I mounted the BAII with threaded inserts into the body for the first time and it's proven to be viable. The Schaller strapbuttons were installed using the same method of an insert and stainless steel screws. I had to modify the screws because, as you all know, they have a small diameter top to fit the button. Here are some pics - hope you like:
Click to expand...

That is some beautiful craftsmanship, every bit a high end bass without spending 2k, if rondo ever decides to build lefty Ps in the blue I want you to build me one of these. my bass is on here as well as others and this is hands down the winner.:bassist:

#90
hey iamthebassman

the rickfaker is home made but the pickups are genuine!:D

I recommend the badass II when modding sx jbasses. gives them more volume & harmonics.

those 'geddy' maple necks offered by rondo are great. I found, in general the standard of sx basses & parts from USA to be of higher quality than those i've seen in Australia? Any thoughts from aussie sx bass owners that have imported sx basses.
love my white sx strat too :D

#97
Here's my in-progress Essex project. I've changed the bridge and tuners to black hardware and I'm still waiting for my black control plate to come in. I might end up switching the pickups but as of right now they get the job done.


Attachments

  • HPIM0878.jpg
    31.1 KB · Views: 98
  • HPIM08772.jpg
    57 KB · Views: 175
#100
Just got my SX today and the shielding paint is now drying. :D

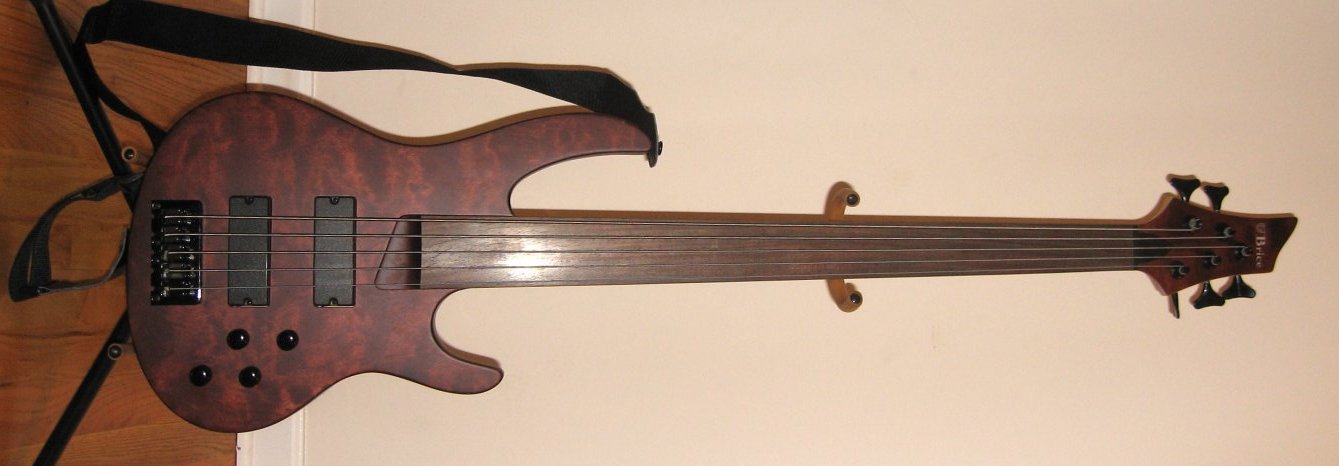

Assuming Brices count(?), here's my Douglas fretless:

[Invalid or Expired Link Removed]

Mods:
- Hipshot tuners & string tree
- all black hardware, including control plate, bridge, tuners, string tree, knobs and neck plate
- Bartolini pickups
- Dunlop straplocks
- shielded cavity and pickguard
