He appears to be here only to troll this thread...
This is simply not true, fact. I post interesting 'facts' about the Fender Rumble amps and everyone gets upset . .
Everything I send is factual, I can't do much about that.

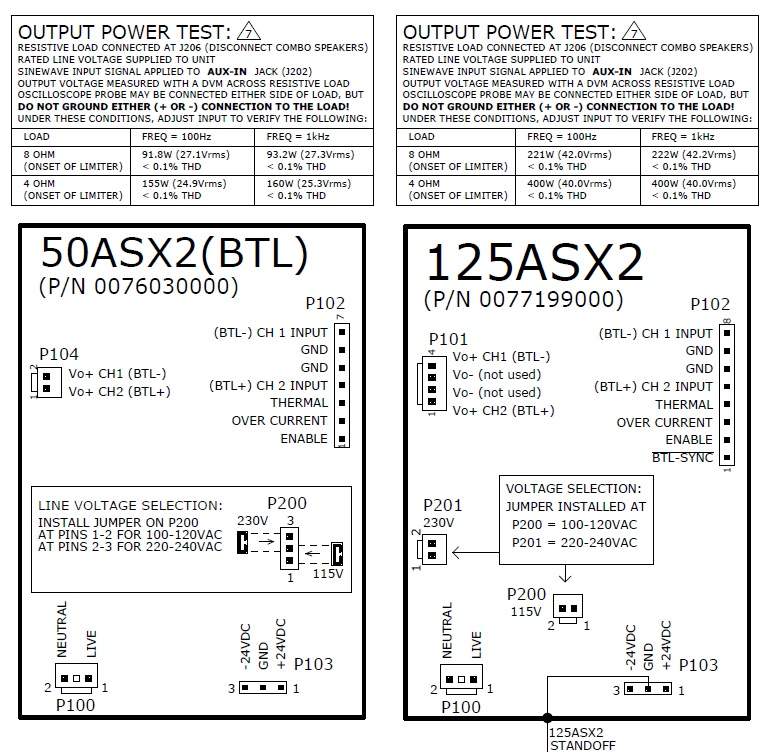

Hello . . The 'service' manual clearly quotes power output with 8 and 4 ohm loads. Above I was quoting from Fenders own service manual and test specification. I can send you a copy if you wish.
I am, but I'd also like to know how you measured the wattage.
Yeah, I get it, into a resistive load, but how was it measured?
Can you post a link to the service manual?
Last edited:
Unfortunately Fender have stopped freely publishing their service manuals on-line for some reason, I got lucky before they stopped. As for power output, this is measured across a resistive load, be it 4 or 8 or even 16 ohms, a BIG resistor bank that has to take the power. You measure the AC voltage (RMS) across the load with an appropriate meter that's good for audio frequencies or measure on a scope (on a scope you have to divide the Pk-Pk voltage by 2 (peak) and multiply by 0.7071 to get RMS value) then simple use ohms law . . V2/R (V squared/resistance).
So if you were measuring 40V RMS - 40x40=1600/4(ohms)=400W . . Easy really..
Is this clearer Killed_by_Death?

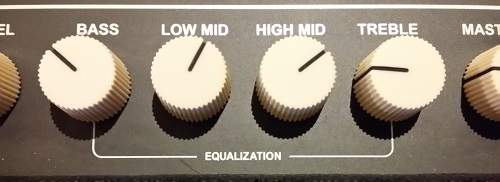

HA....thats almost exactly what I set mine to, except the Treble is about 10 or 11:00

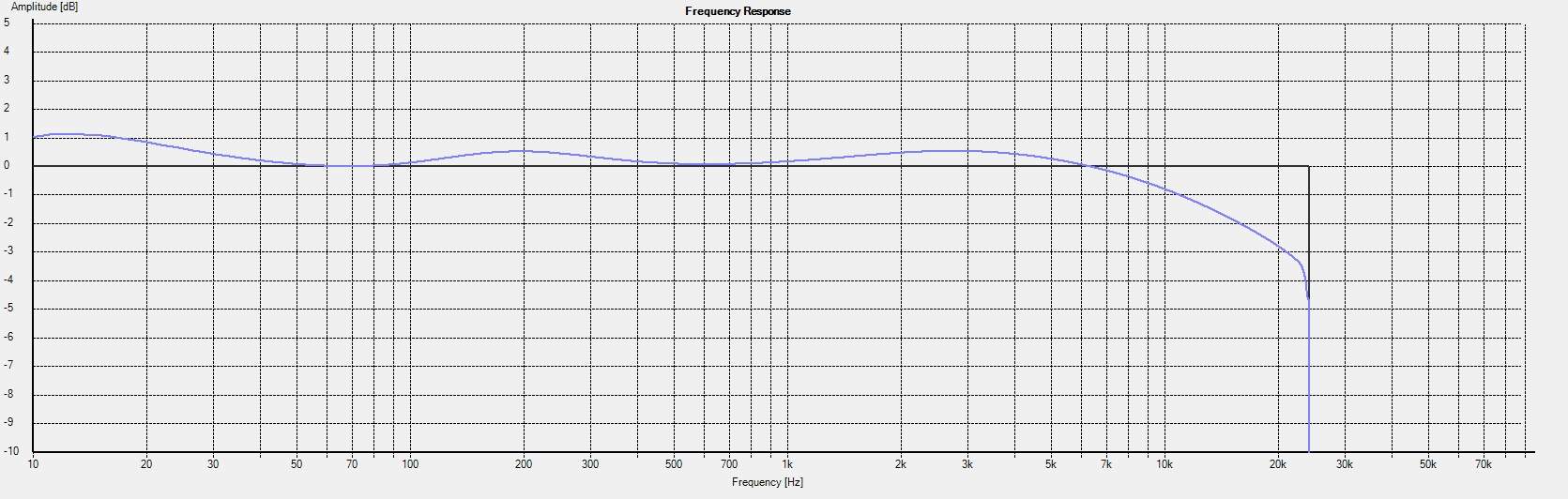

Now that is interesting FirewalZ. I don't know if you have the horn on or off on your rig? Seems your tone settings correlate well with the measurements. I appreciate your comments.
Next thing to do is do some 'real' measurements with a microphone to see how my '500' fairs through the speakers.
Fender Bass Amp Manuals - The 200 output spec is 140 into 8Ohm and 200 into 4ohm
Fender® Bass Amplifier and Speaker Enclosure Owner's Manuals
Fender® Bass Amplifier and Speaker Enclosure Owner's Manuals
A link to my claim? I don't claim anything. I either quote from information I have (right or wrong) or make my own measurements to see what's going on.
This is a lie. Fender never published service manuals online. Only Fender authorized service centers have access to such manuals.
Again this is simply another lie.
You made a dubious claim, then offered nothing to back it - it really does look like you're trolling, especially since nearly all your posts have been in this thread since your very recent join date... Why should anyone here believe you with nothing to back your claims?
That's the owners manual. He has the service manual. They are hard to come by. There were a few online on ebay when I looked last week.
The 50ASX2 is the Rumble 200. 125ASX2 is Rumble 500
^^^Agreed^^^ Anyone can state a claim and draw and post a graph. It was not so long ago that claims & graphs were rampant that Fender amps could not go below 100Hz. The truth eventually blew the lies out into space.
.. The truth is out there . .
