G&L Club Part 7

#14,041
Kriegs said:
Ah, the video link is set to 4:20 into the video so you never see it unless you rewind to the beginning... I just thought it was a poorly edited start to the video :roflmao:

The link reads : time_continue=260&v=CJpjxZ1ubtg
Click to expand...
Might have missed a spot to correct there. I’m in the middle of a tour and kind of underslept :D

  • Like
Reactions: Kriegs
#14,043
BrentSimons said:
Sounds great Tony! Doesn't hurt to have Steve break it in for you! ;) I've always enjoyed his demos.
What was your inspiration behind this bass?
Best wishes,
Brent
Click to expand...
Hey Brent...
Well strange enough ;)...It appears that one of the guitarists that I work with (Joe Feloni) is the latest G&L artist.
The day before NAMM Joe’s band will be playing and doing a NAMM video for Leo Fender at “Live at Leo’s” right there at G&L.
Long story made short, I have to play a G&L for that. Out of repspect to Mike Lull it has to be something different then what He offers.
I was going to go Kilaton, but I’m a rear pickup kind of guy so they are sending me a L2500 to get used to and making me a L2500 (Ash/Ebony) and quite possibly with the K-mod for the performance.

  • Like
Reactions: armybass, pjbassist and BrentSimons
#14,044
TonyP- said:
Hey Brent...
Well strange enough ;)...It appears that one of the guitarists that I work with (Joe Feloni) is the latest G&L artist.
The day before NAMM Joe’s band will be playing and doing a NAMM video for Leo Fender at “Live at Leo’s” right there at G&L.
Long story made short, I have to play a G&L for that. Out of repspect to Mike Lull it has to be something different then what He offers.
I was going to go Kilaton, but I’m a rear pickup kind of guy so they are sending me a L2500 to get used to and making me a L2500 (Ash/Ebony) and quite possibly with the K-mod for the performance.
Click to expand...
What is the “K-mod”?

  • Like
Reactions: TonyP- and BrentSimons
#14,045
he two-position series / parallel switch gets replaced with a three-position switch that gives you parallel / single coil / series. I think the normal way is to give you the outer coils (that's how mine is), but I thought I've seen people on TB saying theirs gives them the inner coils.

The "K" in the term "K-mod" refers to a Japanese name. IIRC, this capability was originally on G&L basses in Japan, and the "K" stood for a person's name (I don't remember what the name is). But once people started hearing about it and asked about it, it became a factory option.

My bass didn't have it originally, but the previous owner had a neck issue and sent the bass back to G&L to have it replaced. While it was there, he also had them make the K-mod too it. I never really used it until recently, but have been playing with it once in a while and am finding ways to use it now. It's a nice tonal option to have.

  • Like
Reactions: Remoman and BrentSimons
#14,046
TonyP- said:
Hey Brent...
Well strange enough ;)...It appears that one of the guitarists that I work with (Joe Feloni) is the latest G&L artist.
The day before NAMM Joe’s band will be playing and doing a NAMM video for Leo Fender at “Live at Leo’s” right there at G&L.
Long story made short, I have to play a G&L for that. Out of repspect to Mike Lull it has to be something different then what He offers.
I was going to go Kilaton, but I’m a rear pickup kind of guy so they are sending me a L2500 to get used to and making me a L2500 (Ash/Ebony) and quite possibly with the K-mod for the performance.
Click to expand...
Very cool! I have an L2000 custom that came from the factory with the K-mod. It's probably one of the nicest basses I've ever played. I ordered it in 2008. It's a dark clear red with maple fingerboard. Sort of an ode to Geddy's red jazz. :) It came from the factory PLEKd to perfection! I don't play it often enough.
Best wishes,
Brent

  • Like
Reactions: TonyP- and Youngspanion
#14,051
I just modded my beloved SB-2, but instead of the tone option I put a series mode activated by a push-push potentiometer. In series the bass sounds dark and huge, and a bit more modern. I made a clip with the raw recording so you can hear the volume difference between the 3 modes (Both PU - Neck only - Series).

"[Invalid or Expired Link Removed]



  • Like
Reactions: dannnnn, TonyP-, Iv@N and 9 others
#14,053

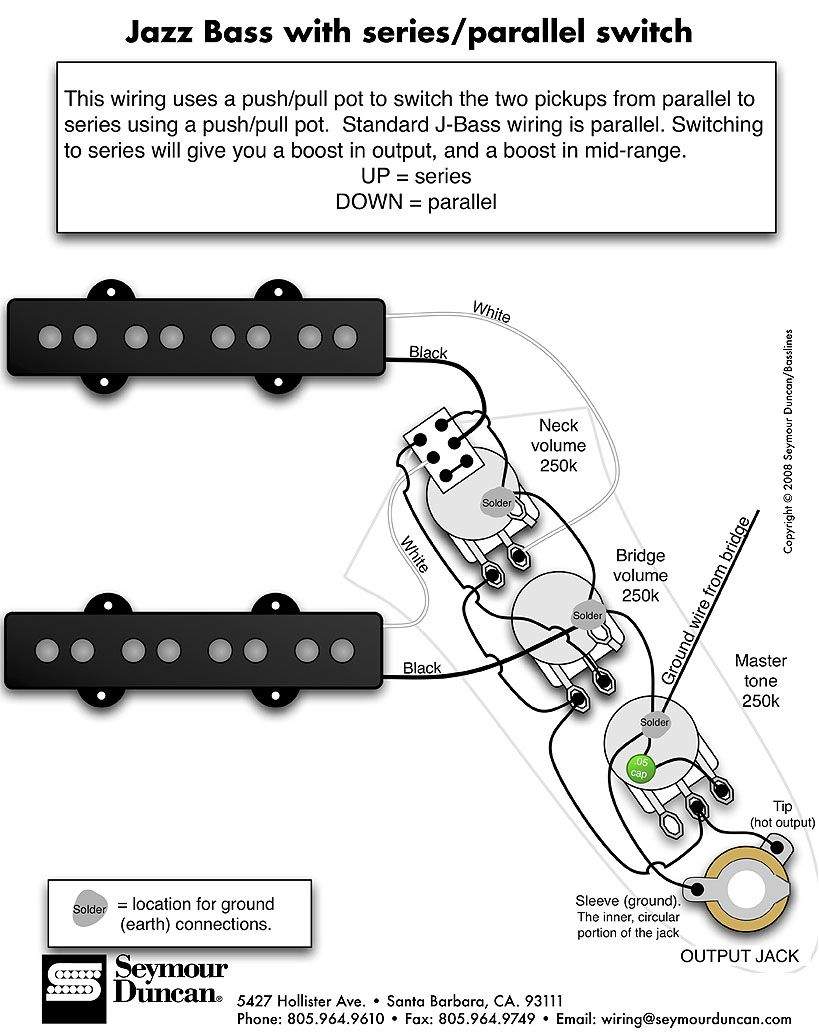

I didn't know what to expect since this mod is almost always performed on jazz bass configs. The result is a very pleasant surprise to say the least, and makes this instrument even more polyvalent. Btw this is the schematic I used (just ignore the tone pot) :


  • Like
Reactions: Kriegs
#14,054
Boitameuh said:
I just modded my beloved SB-2, but instead of the tone option I put a series mode activated by a push-push potentiometer. In series the bass sounds dark and huge, and a bit more modern. I made a clip with the raw recording so you can hear the volume difference between the 3 modes (Both PU - Neck only - Series).

"[Invalid or Expired Link Removed]
Click to expand...
Well, I guess I've found my next mod! :drool: Thanks for posting the clips!!!

  • Like
Reactions: Boitameuh
#14,055
In order to put-off cleaning the kitchen, I'm submitting an update after my earlier JB5 fretboard radius question.

To my surprise, GC had a used lefty JB5, so I gave it a shot.

I didn't notice anything significant about the different radius, and I liked the tighter string spacing. But this confirmed that I'm still fine without a 5-string. I played a Streamer LX 5 from 1998-2010 and made good use of the low-B. But, things change; trends, personal preference, technique, arthritis, etc.
Plus, this JB5 was in rough shape, especially for an instrument that couldn't be more than three years old.

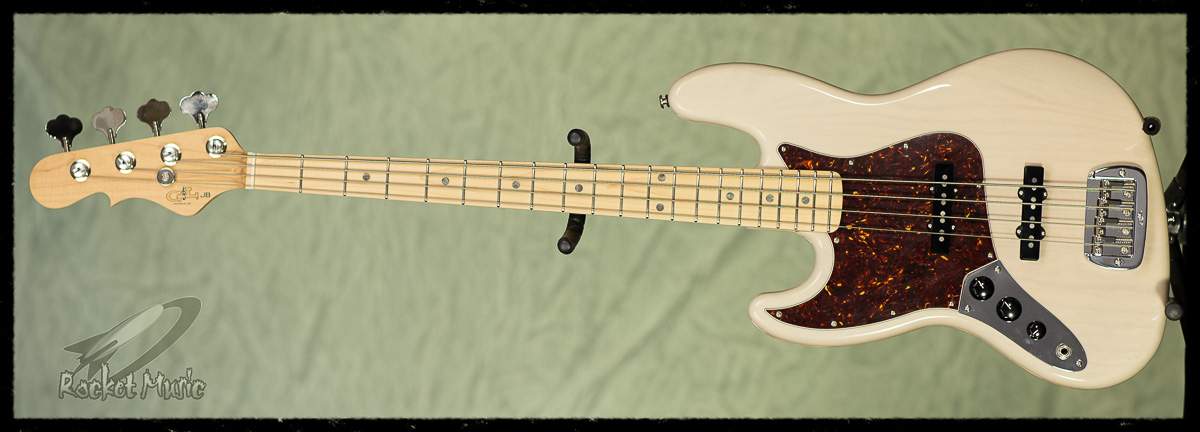

So, since I have been eyeing it for quite a while, this is headed SW from Blacksburg, VA. I have a feeling we'll get along just fine.


Last edited:
  • Like
Reactions: armybass, audreycashin, Joshua and 8 others
#14,057
Boitameuh said:
I just modded my beloved SB-2, but instead of the tone option I put a series mode activated by a push-push potentiometer. In series the bass sounds dark and huge, and a bit more modern. I made a clip with the raw recording so you can hear the volume difference between the 3 modes (Both PU - Neck only - Series).

"[Invalid or Expired Link Removed]


Click to expand...
Love the tone!!

  • Like
Reactions: Boitameuh
#14,058
jmlee said:
Or inner coils only (like mine), depending on how it’s wired.
Click to expand...
jmlee said:
Or inner coils only (like mine), depending on how it’s wired.
Click to expand...
so I talked to them about that and yes there are some different configurations you can go...I’m going to go outer for mine...I would imagine the inner might get closer to a Stingray-ish type of tone.

#14,059
gidbass said:
Hey folks, I need some help with some wiring I am trying to do with my L2K. I am wiring it all passive VVT and putting in DPDT on/on/on switches for series/north coil/parallel.

I thought it was going to be straight forward (famous last words)...

Wire codes tested with a multi meter. All wires are silver color, except one black wire which is copper color which I am assuming is ground...but not 100% sure...

North start (+) - green
North finish (-) - yellow
South start (+) - black
South finish (-) - white
Ground - black/copper

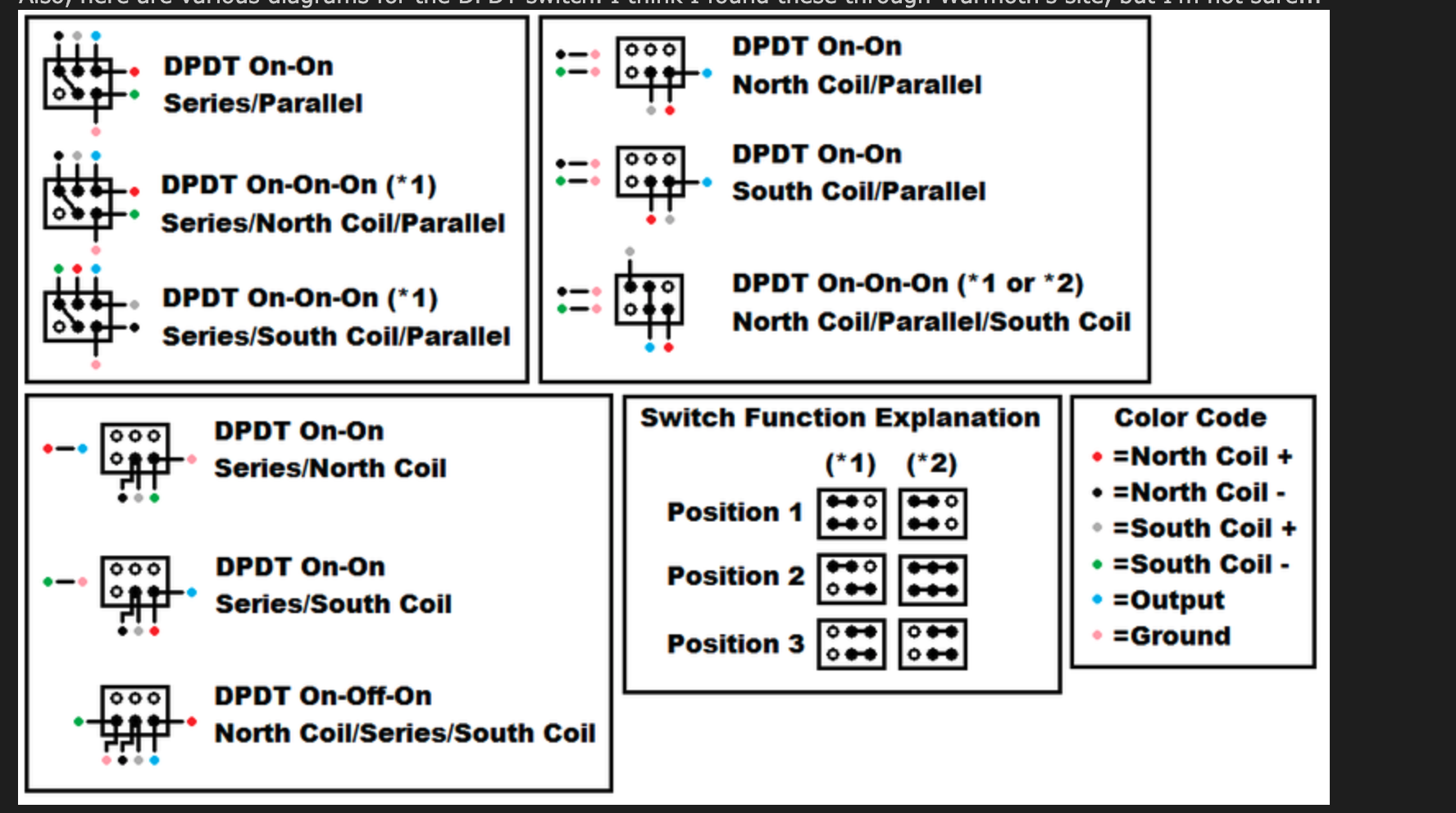

Ok, using this diagram I found

View attachment 3519222

I wired it up and it was out of phase (thin/nasally) so i reversed the north wires and it sounded fantastic. Series worked, north coil worked, parallel, not so much. In parallel mode, the south coil was shorted out and basically was the same as the middle north coil position. I treated the black/copper as the bare ground.

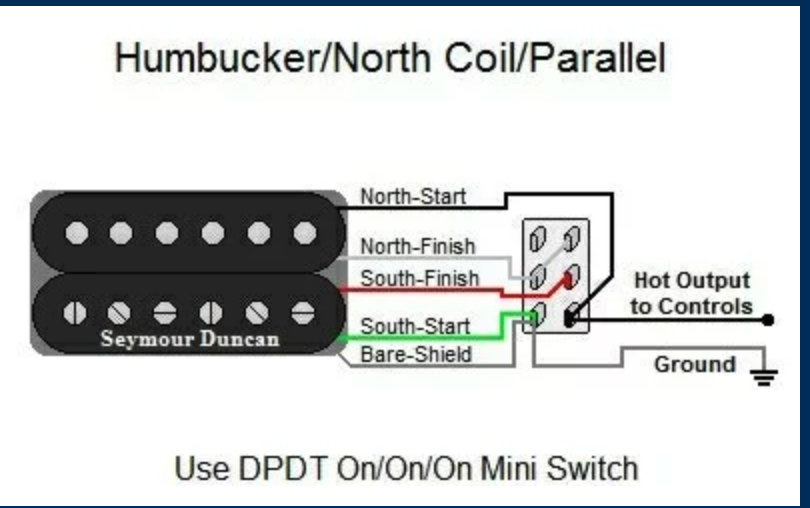

Then I used my google-fu and found this diagram

View attachment 3519289

So I used the series/north coil/parallel one, and all three settings appeared to work as all coils seemed to be working based on what i switched, and the tones did vary enough to suggest they were working, however the output was 1/2 what the above setting was. It wasn't out of phase as it still had a lot of bass, but the output/volume was way low, crazy low and I know these MFD's are hot pickups so I knew something had to be wrong.

Anyways, thats where I'm at and would appreciate any suggestions.

Thanks in advance!
Click to expand...

Just wanted to circle around back on this...

I finally got it working...I got sidetracked with a thunderbird for a bit...;)

If all my readings were correct, which is doubtful, the ground is attached/related to the North Coil, so I wired it all up according to that. The switches are Parallel/North/Series with the last switch being a kill/mute switch. It's also wired VVT and has a treble bleed mod on both volumes.

I really, really like the tones from this bass! Especially the neck in single coil soloed and the bridge single soloed with some bass added.

Parallel is my 2nd favorite with series being last, but they are all useful and sound good.

Someone said here that these pickups do not need any help from a preamp and I am inclined to agree at this point. The VVT plus the splitting really opens up the amount of useful tones available on this bass. Those MFD pickups are fantastic...

Good Luck!
