Lakland 01 Club

Status
Not open for further replies.
#566
seanm said:
Hmmmm.... I don't get passive mode if I pull up on the volume control. It just bypasses the EQ :( I tested it by pulling the battery.
Click to expand...

I could be wrong, but.. I think it's a function of the fairly cheap mK1 preamp. Even in "passive mode" The battery has to be there to complete the circut. IIRC you can stick a completely dead battery and it will run if you are in passive.

I'm pretty sure of this because I've had times where you could tell the battery was dying, but when you pull the pot it sounds fine. Passive, but fine.

For folks who are switching out the pickups, if it sounds good passive, why not just keep it passive and wire up some pots with a couple of Orange caps. It's only 25 bucks or so in material?

#567
Eilif said:
I could be wrong, but.. I think it's a function of the fairly cheap mK1 preamp. Even in "passive mode" The battery has to be there to complete the circut. IIRC you can stick a completely dead battery and it will run if you are in passive.

I'm pretty sure of this because I've had times where you could tell the battery was dying, but when you pull the pot it sounds fine. Passive, but fine.

For folks who are switching out the pickups, if it sounds good passive, why not just keep it passive and wire up some pots with a couple of Orange caps. It's only 25 bucks or so in material?
Click to expand...

I knew I didn't like this preamp!!

#568
run in passive?
yeah, it will
but, with no tone controls.

Juniorkimbrough said:
Duh, I just realized last night that you can run it in passive mode. Might just swap out the pickups and leave the stock preamp and run it in passive mode.

Thanks for the heads up Supertanker!! I thought it was a bit odd to have to wait 8 weeks for some pickups.
Click to expand...

#569
Chef said:
run in passive?
yeah, it will
but, with no tone controls.
Click to expand...

If you want to go straight passive you'd want to do up a wiring harness of some sort. You'd also want to figure out what to do with the extra holes. That's why a Nordy DC with individual series/single coil/parallel switches setup works:

V/V/T take up three holes and the S/SC/P switches take the other two.


#570
Eilif said:
I could be wrong, but.. I think it's a function of the fairly cheap mK1 preamp. Even in "passive mode" The battery has to be there to complete the circut. IIRC you can stick a completely dead battery and it will run if you are in passive.

I'm pretty sure of this because I've had times where you could tell the battery was dying, but when you pull the pot it sounds fine. Passive, but fine.

For folks who are switching out the pickups, if it sounds good passive, why not just keep it passive and wire up some pots with a couple of Orange caps. It's only 25 bucks or so in material?
Click to expand...

Hey, I can find some dead batteries to try ;)

And I *am* thinking of going straight passive. That's why I wondered if the blend was passive.... I would be tempted to only connect the neck pickup if not.

I may also connect a cut only treble control. But that is only if I decide I need it.

As to what to do with the holes? Leave the pots in place. Makes it easier to wire it back up to the preamp.

#572
fourstringbliss said:
That's why a Nordy DC with individual series/single coil/parallel switches setup works:

V/V/T take up three holes and the S/SC/P switches take the other two.

Click to expand...

Oh man that is HOT!

If I went passive and kept the mk1 pups, I would probably go with a v/v/t/t and a series-parallel switch.

By the way, I'm pretty happy with my stock 55-01, but I think that the preamp is a much weaker link than the pups. I played a 44-01 at the lakland factory that had the MK1 pups and a LH-3 preamp and it sounded really frekin good! I didn't have nearly enough time to explore all the tonal options that that thing had to offer. That was going to be my plan for my 55-01, but after playing the Chi-Soncs, I decided to wait availability of 5 string Chi Sonics to mod my 55-01 with a passive Chi setup.

#573
Eilif said:
Oh man that is HOT!

If I went passive and kept the mk1 pups, I would probably go with a v/v/t/t and a series-parallel switch.

By the way, I'm pretty happy with my stock 55-01, but I think that the preamp is a much weaker link than the pups. I played a 44-01 at the lakland factory that had the MK1 pups and a LH-3 preamp and it sounded really frekin good! I didn't have nearly enough time to explore all the tonal options that that thing had to offer. That was going to be my plan for my 55-01, but after playing the Chi-Soncs, I decided to wait availability of 5 string Chi Sonics to mod my 55-01 with a passive Chi setup.
Click to expand...

I'm probably going to go with an Audere preamp of some sort with the MK1 pickups before I decide on new pickups. I'm with you on the Chi Sonics - amazing sounding pickups!

#576
I'm looking at the big singles, so the switches wouldn't work for me.

I'm just not too knowledgable about wiring stuff up.......if someone could post a wiring diagram of a simple V/V/T setup that would be awesome!

Does anyone have a link to that website that sells all the different knobs? I know I ordered some Sadowsky style knobs a few years ago from a site that had all kind of cool knobs

#578
Eilif said:
If I went passive and kept the mk1 pups, I would probably go with a v/v/t/t and a series-parallel switch...
Click to expand...

By the way you can't do t/t passive without a buffer or filter.

Both tone controls will control both both pickups unless you have a
buffer between them because the circuit will form a loop between the tone controls...

#579
dave_bass5 said:
Here's my 55-01. Nothing special to look at, not even the deluxe model but it has been modded with a NTMB preamp and i have a selector switch on the outside to select different mid freq's. I find i use it quite a bit for quick tone changes.



Click to expand...

Total GAS. I think you've convinced me (as soon as I'm ready to buy) to get a Black with Rosewood 55-02. That, or a 55-01 with Fat Stacks and the LH3.

#580

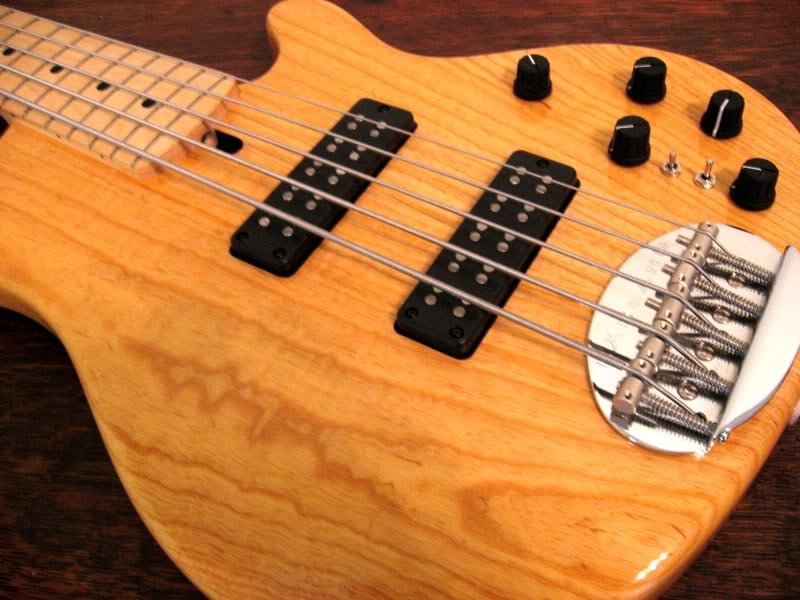

Y'all are probably sick of me posting this pic.
Oh well;)
Out of 12 or so G&L's, 12 or so Fenders, 5 Laklands, and 5 Reverends, this'un here has become my clear go to bass. Never really had one that stood apart so clearly.

Coil tap'd Nord DC5's (single coil, dual parallel, dual series), LH3 preamp.
Bought 01 used for $500, DC's unused here for $180...Lakland did the install, and the LH3 for $200.

I think you could spend $4k on you favorite Sad/Lull/etc and maybe not have as nice, or at best equal to...



Listening to the bass solo'd, the single coil setting isn't "as pure" as a passive single coil J, and the parallel isn't quite "Precision" in the neck position...in a live mix it does those...and lots more...really well. And for me, the Lakland 5 string neck is the best.
