Found this today, thought some here might appreciate having the info.
Below is copy of spec sheet for the OEM (Mesa) version of the 12”, 4 ohm speaker from the Scout cab. Somebody ordered a backup from Mesa when they were still available and the spec sheet was included.

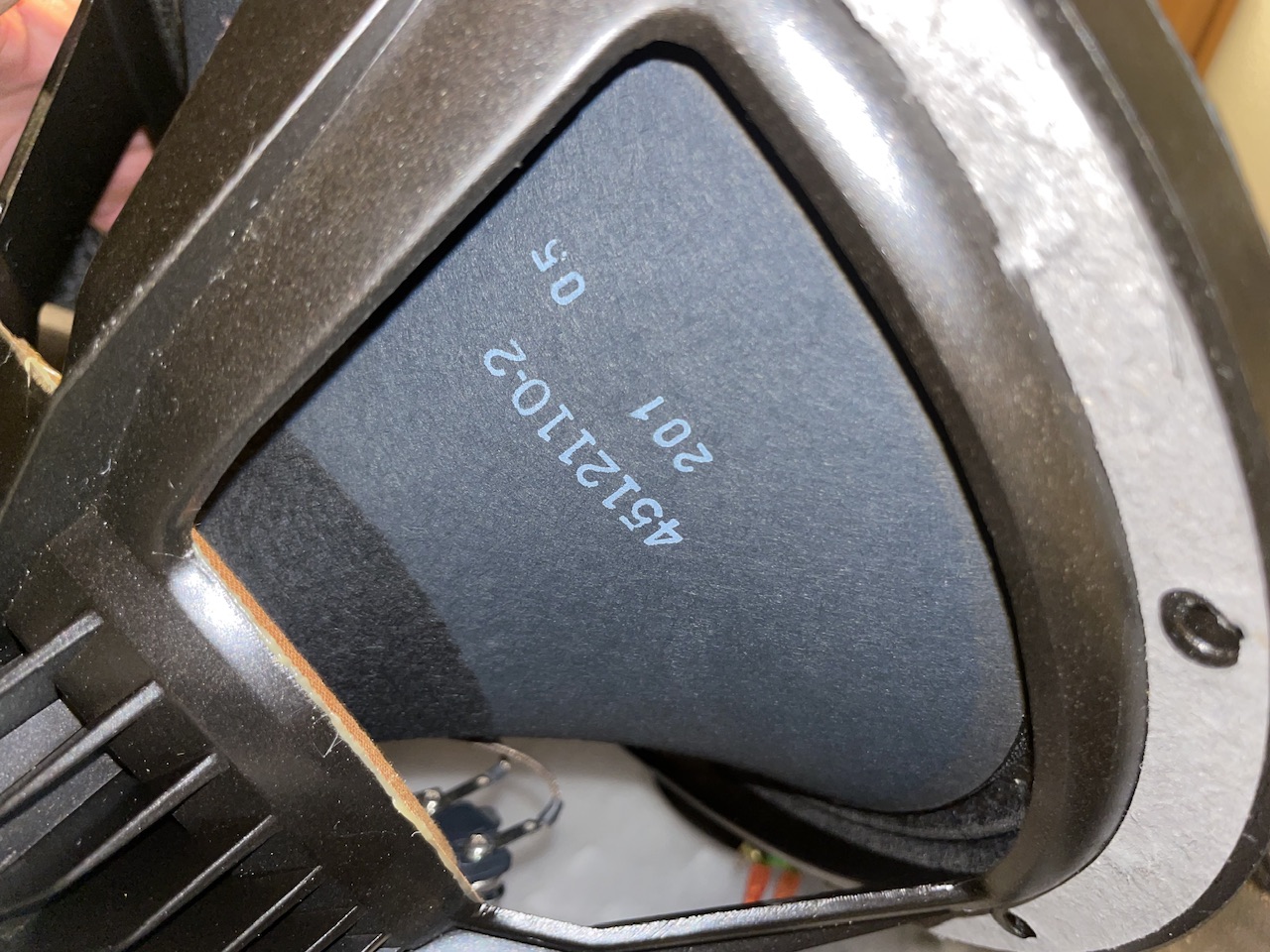

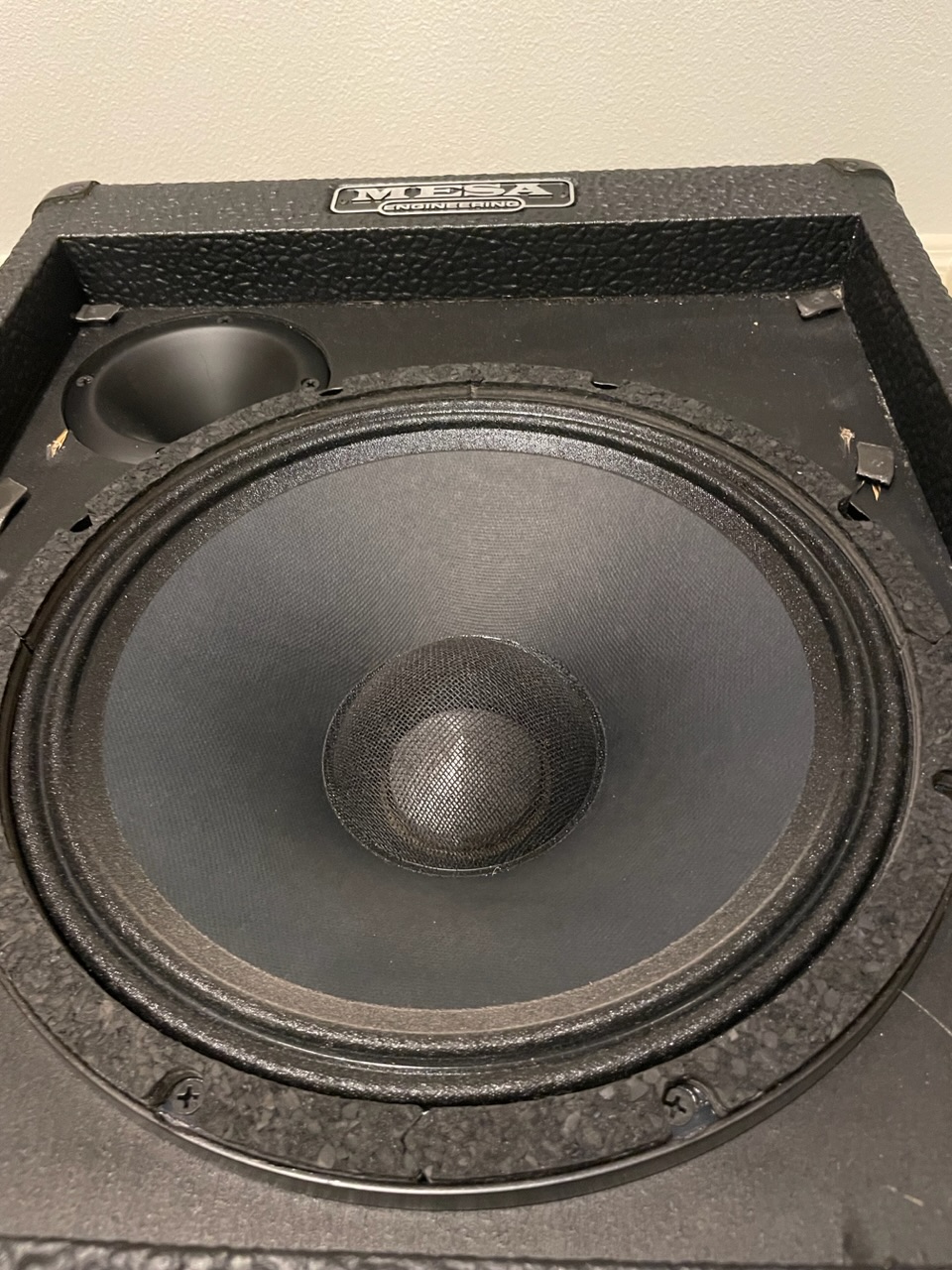

Photos are from my cab.
View attachment 5277350 View attachment 5277351 View attachment 5277352
Before getting too excited about this, what he received is not a production speaker. It was a hybrid between a series 1 and a series 2, with a series 2 motor and basket but a series 1 pole piece complete with aluminum trim piece and series 1 screen dust cap. With that dust cap, the motor should not be vented which is why we went to the full series 2 design using the paper dust cap. Those specs are not correct, not even very close.
