More Twins

[Scoops]

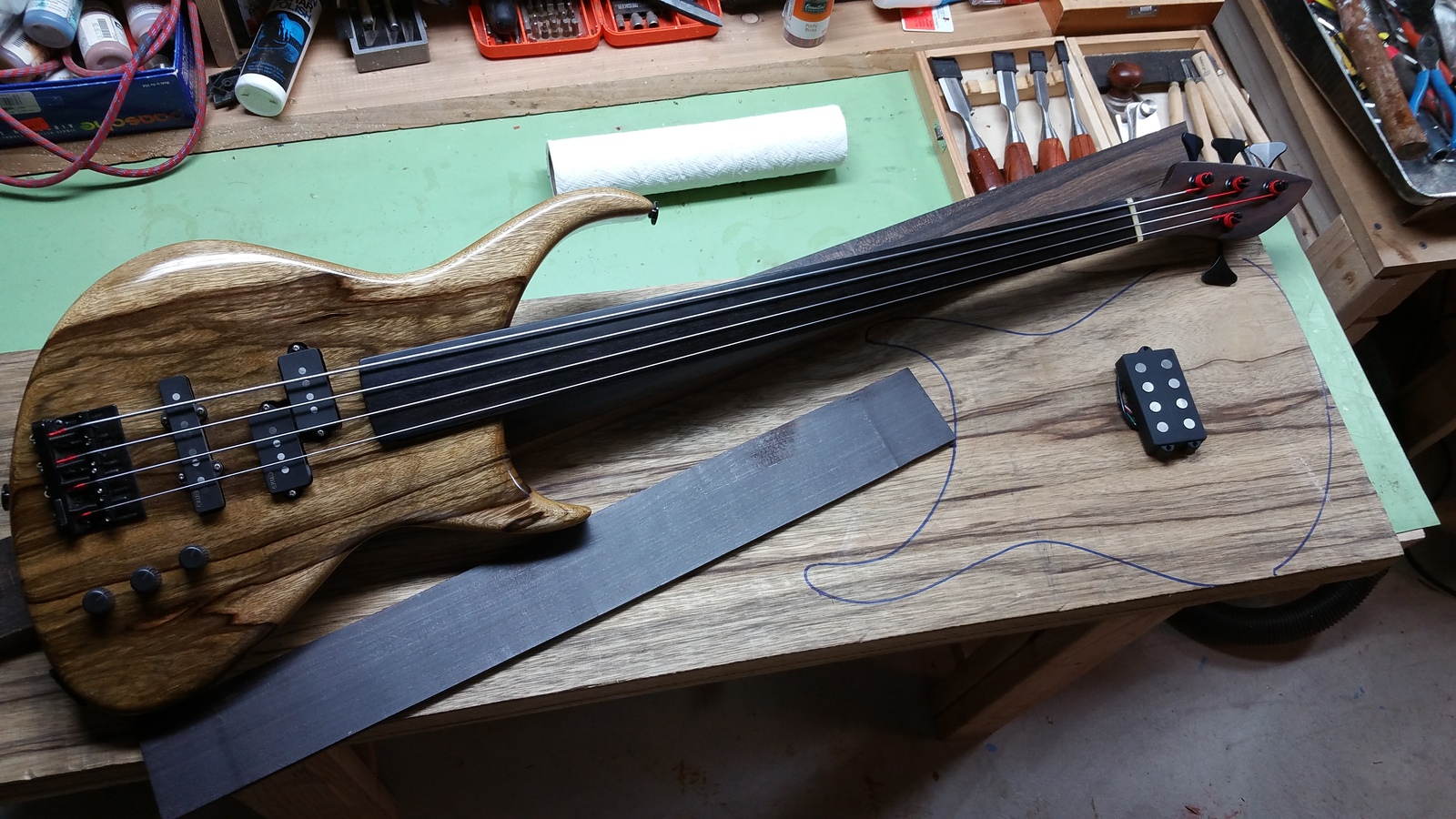

Last year I built a bass that I have come to use it exclusively.
This year I am going to build a twin to it.

What they will both have in common
1 piece Black Limba Body.
1 piece Ziricote neck
African Blackwood Finger board
Gotoh 201 Bridge
Hip Shot Ultra lites
Bone Nut

Difference
Old build has EMG Geezers in it

New built will have a Nordy MM4.4, Might go to a MM4.3 instead
New build will have preamp that I got from fellow TBer Domdec314

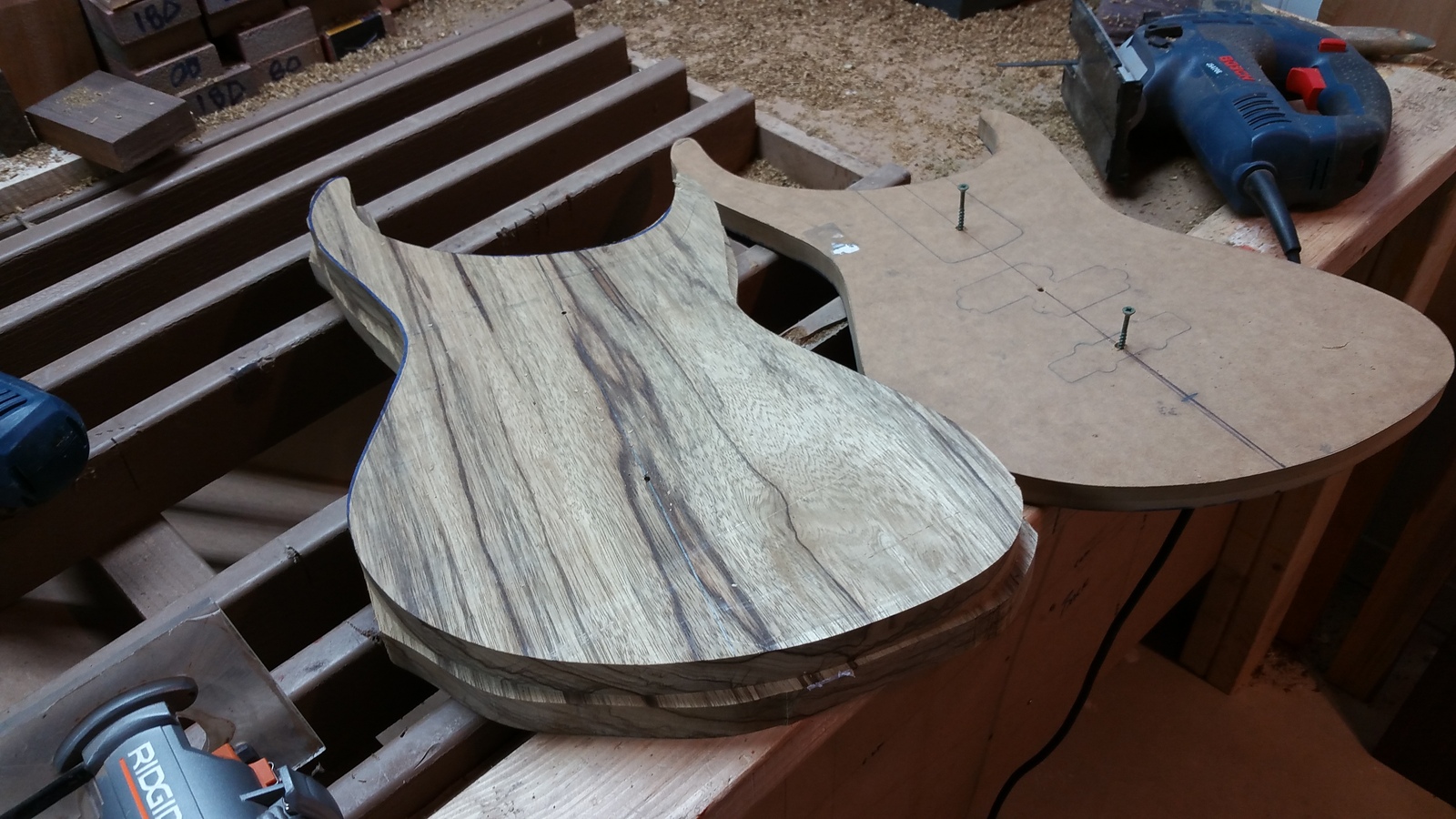

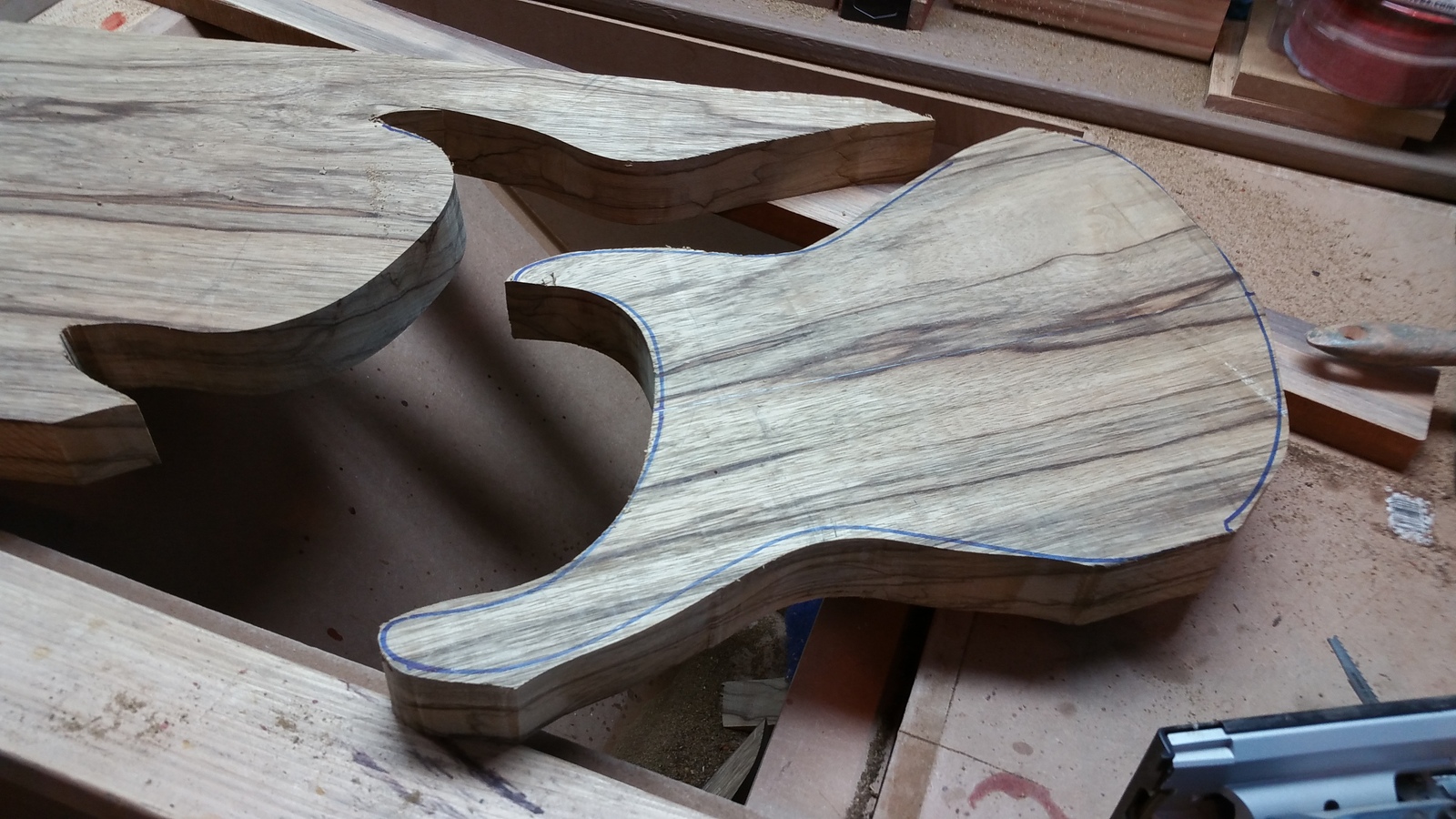

So here's the rough cut out

Here it is mid-way thru routing off the edges

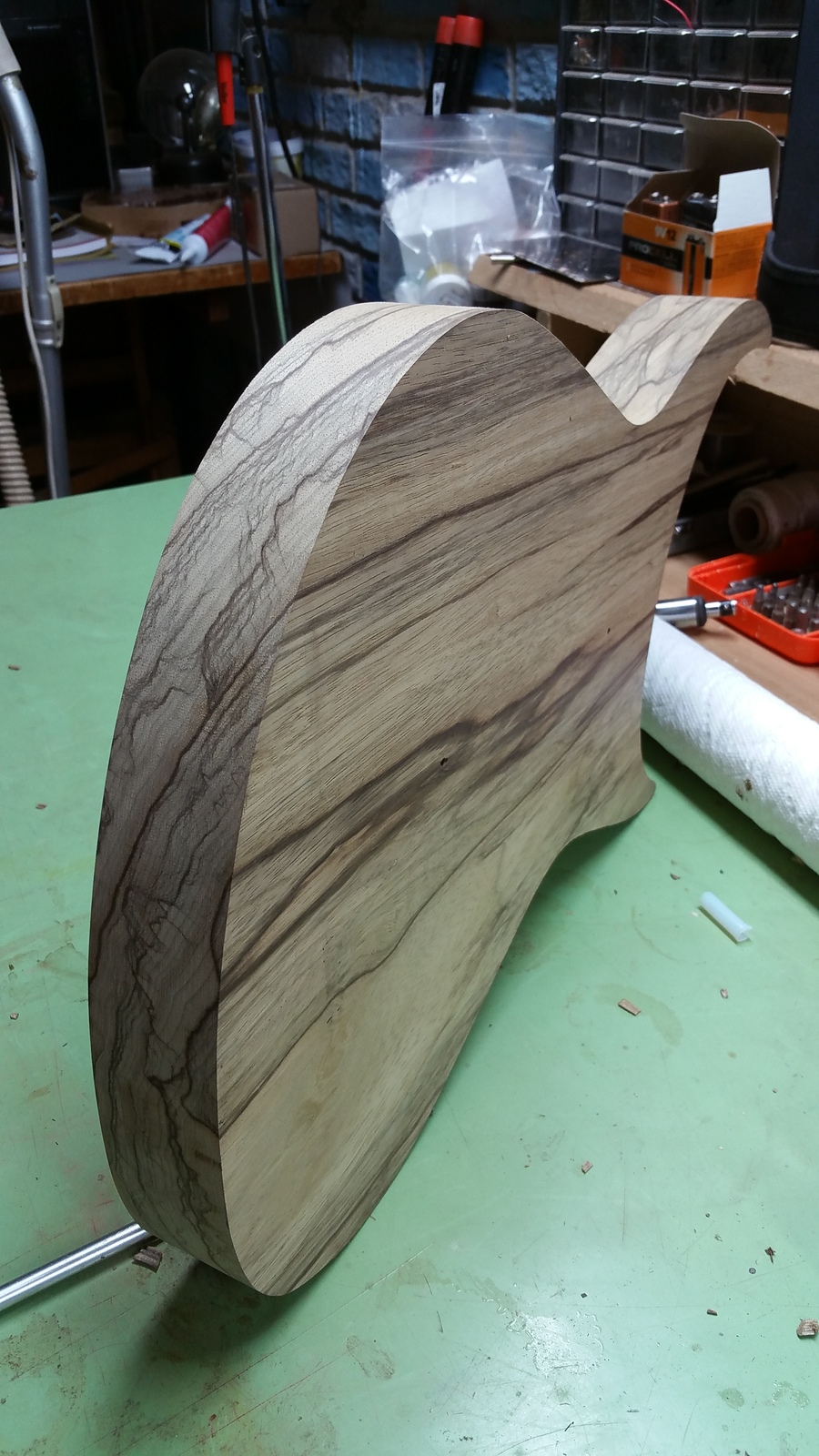

Here it is routed, planed, and rough sanded

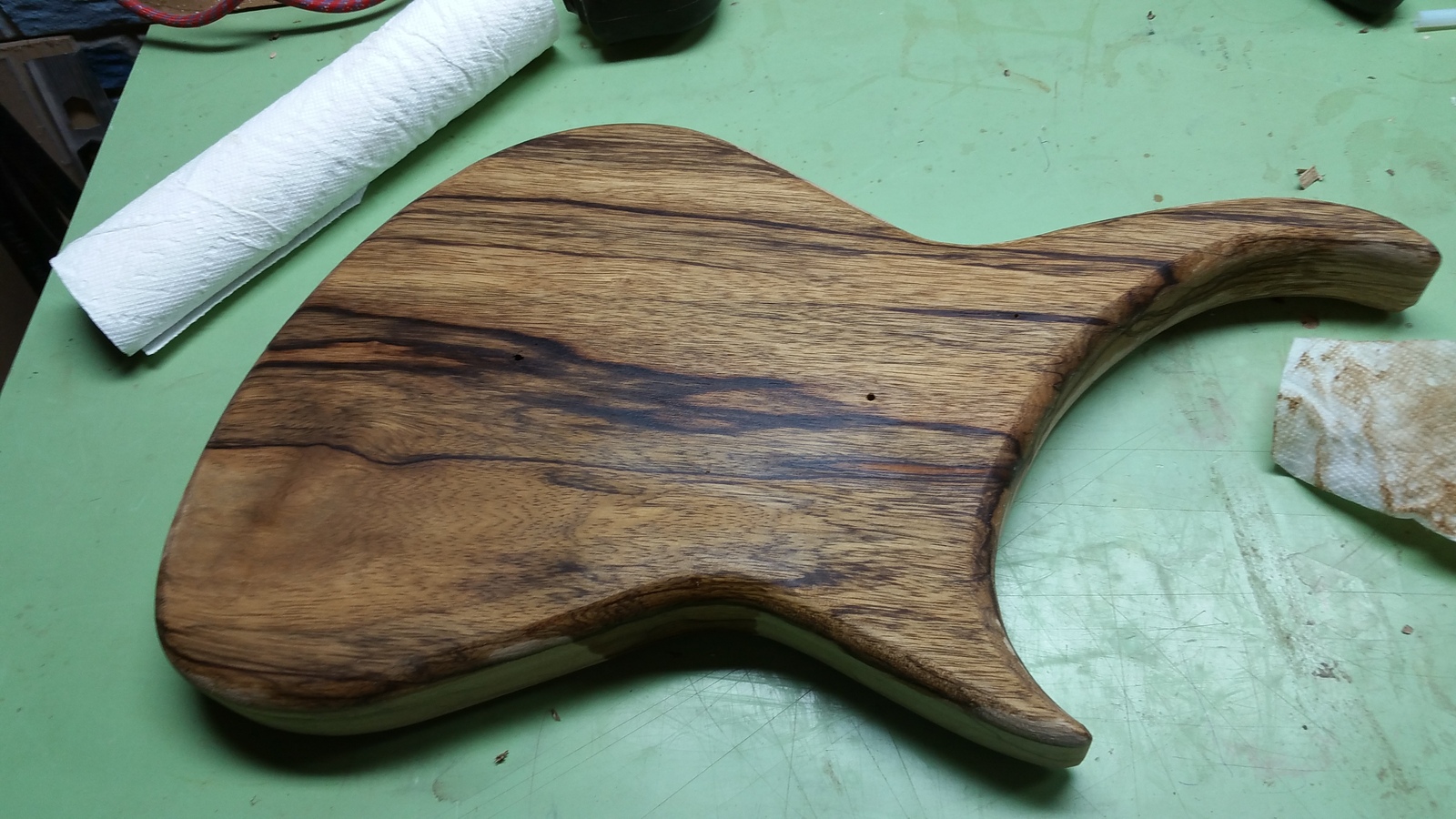

As with the rounded edges, and wet for effect

I'm off to make the neck



[lbridenstine]

Woah, nice! Where do you get your limba?



[Scoops]

Woah, nice! Where do you get your limba?

Link Removed



[Scoops]

More progress today

Cut out neck

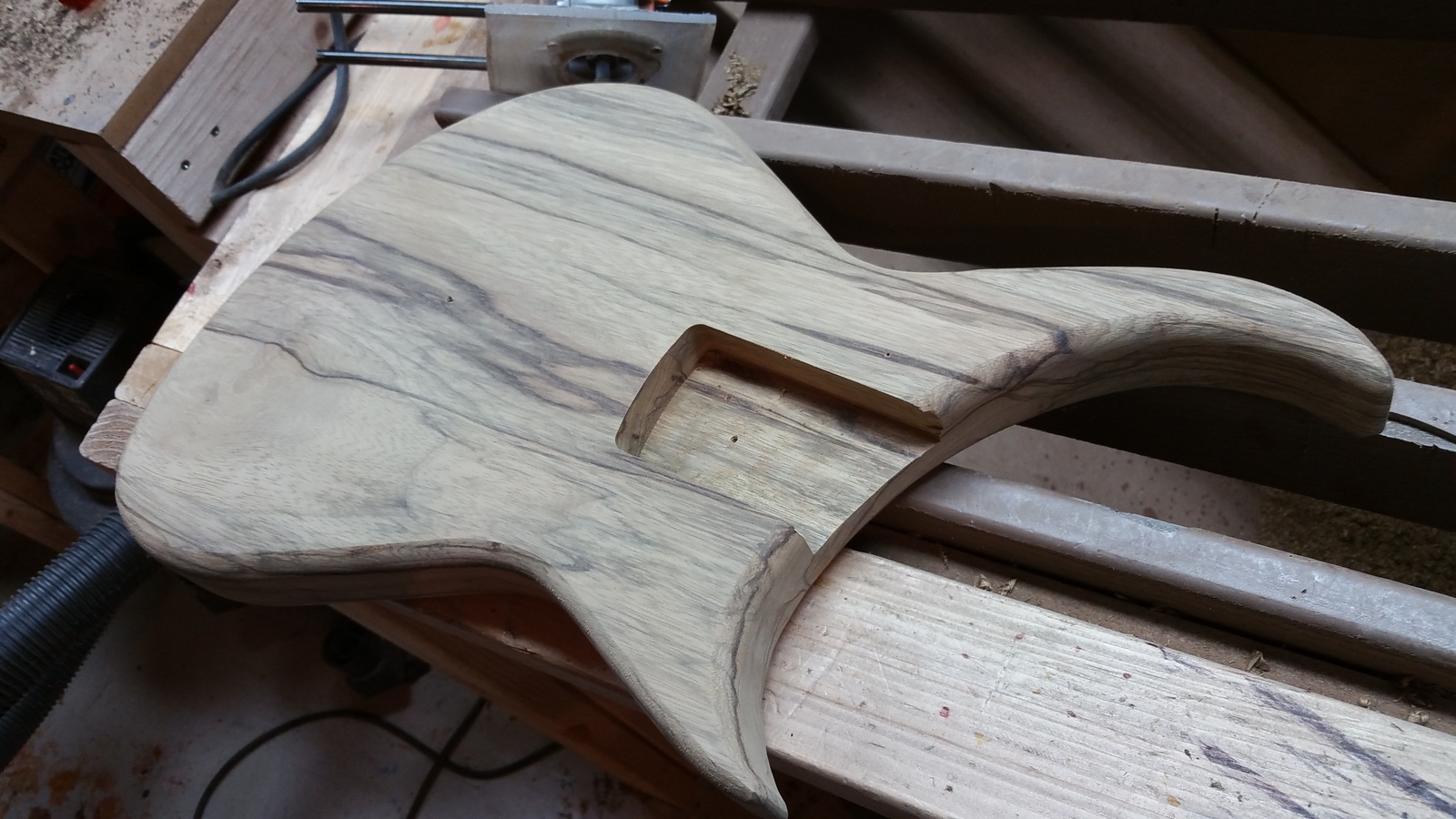

Put in neck pocket

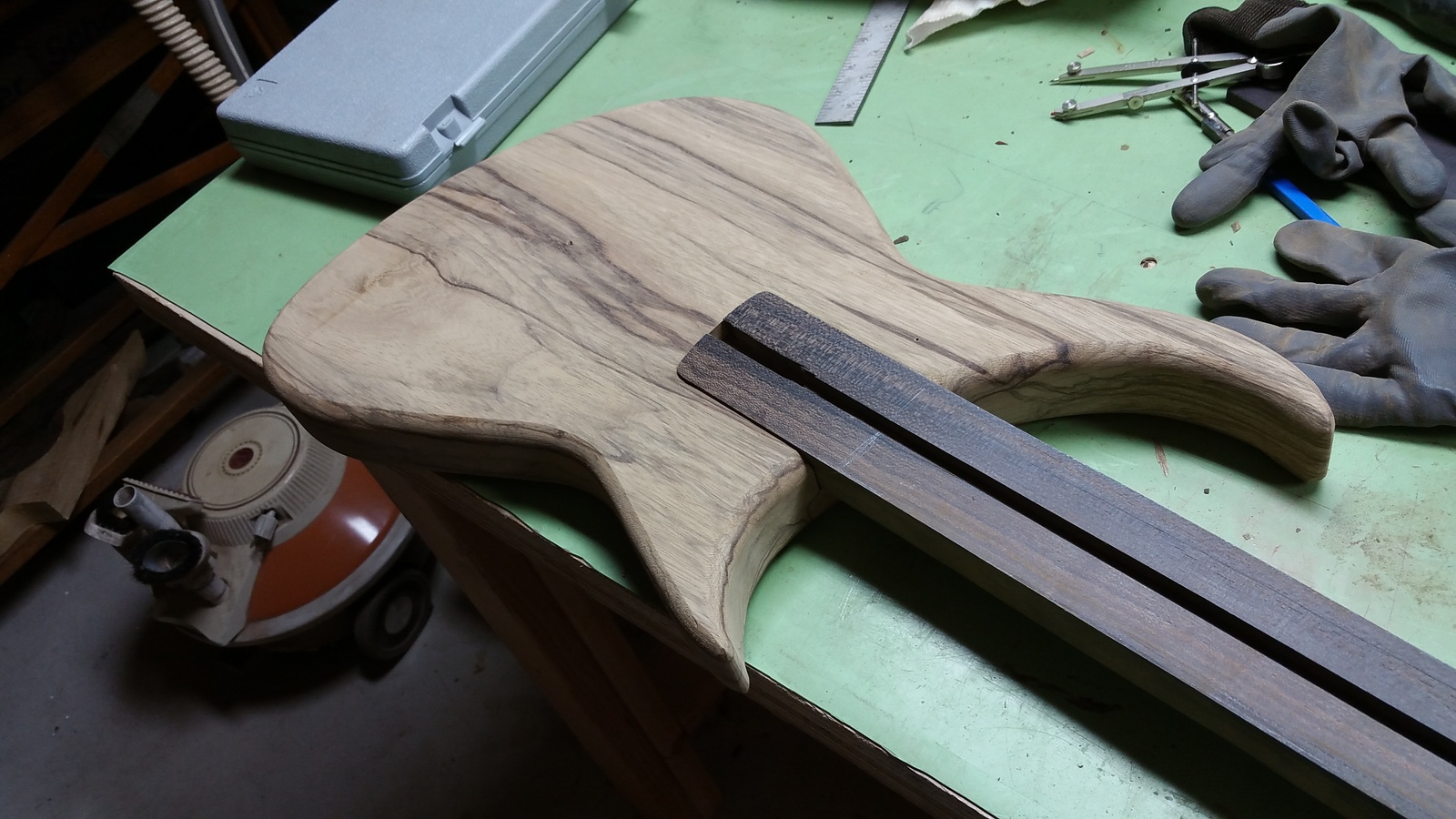

and fit neck in pocket

Hope to glue fingerboard on before I go to bed tonight



[Hopkins]

For some reason your photos aren't working on this pile of junk work internet.



[Scoops]

I often wonder if I need to downsize the pics that I post. The camera in my new mobile device takes great pics, but at the price of higher download times.

Some one let me know if they are too large



[wraub]

Not too large from here. Looks good so far, that limba is very nice.



[Scoops]

Got a little more done today

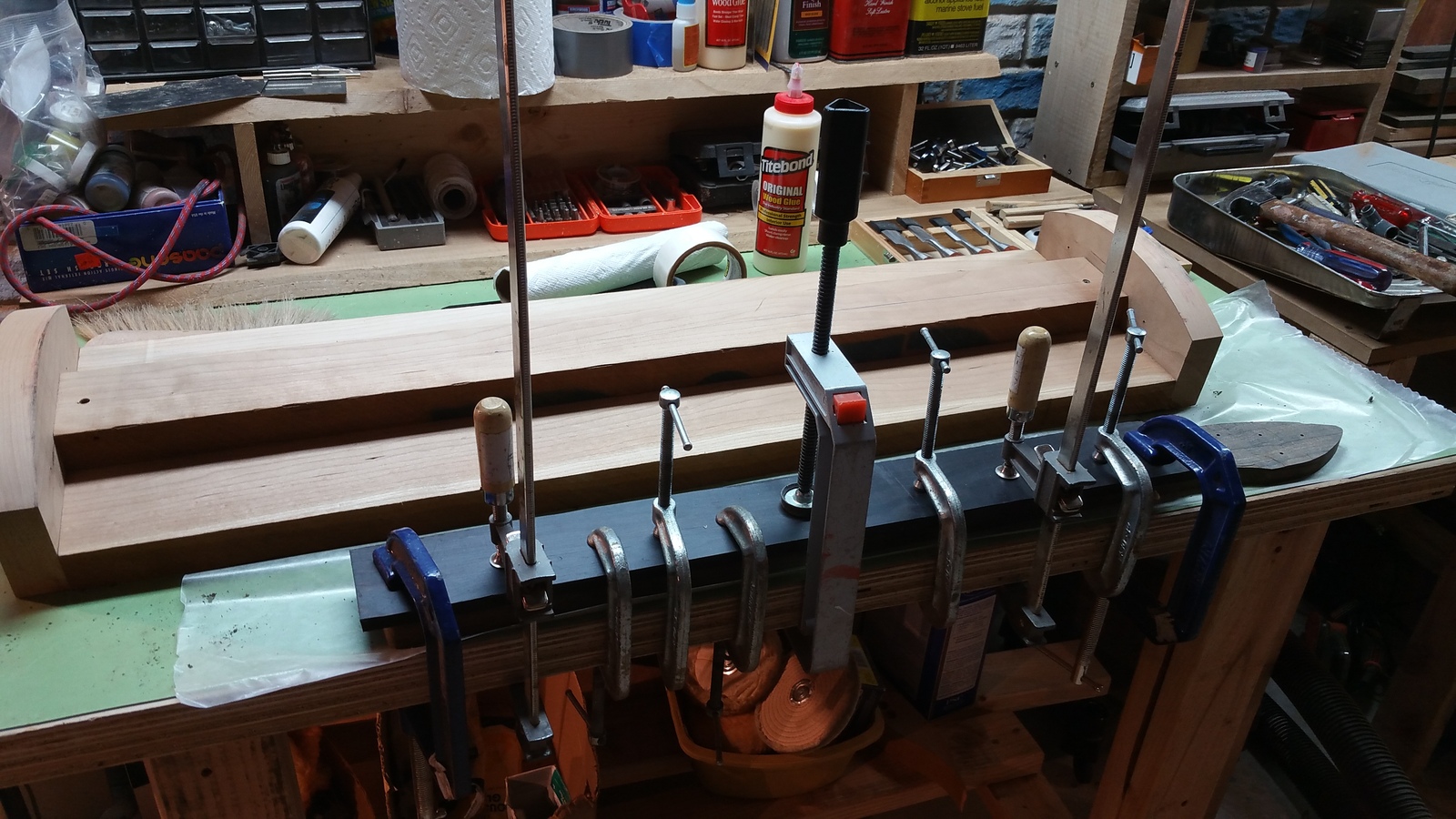

Built up the base to my fingerboard radius jig

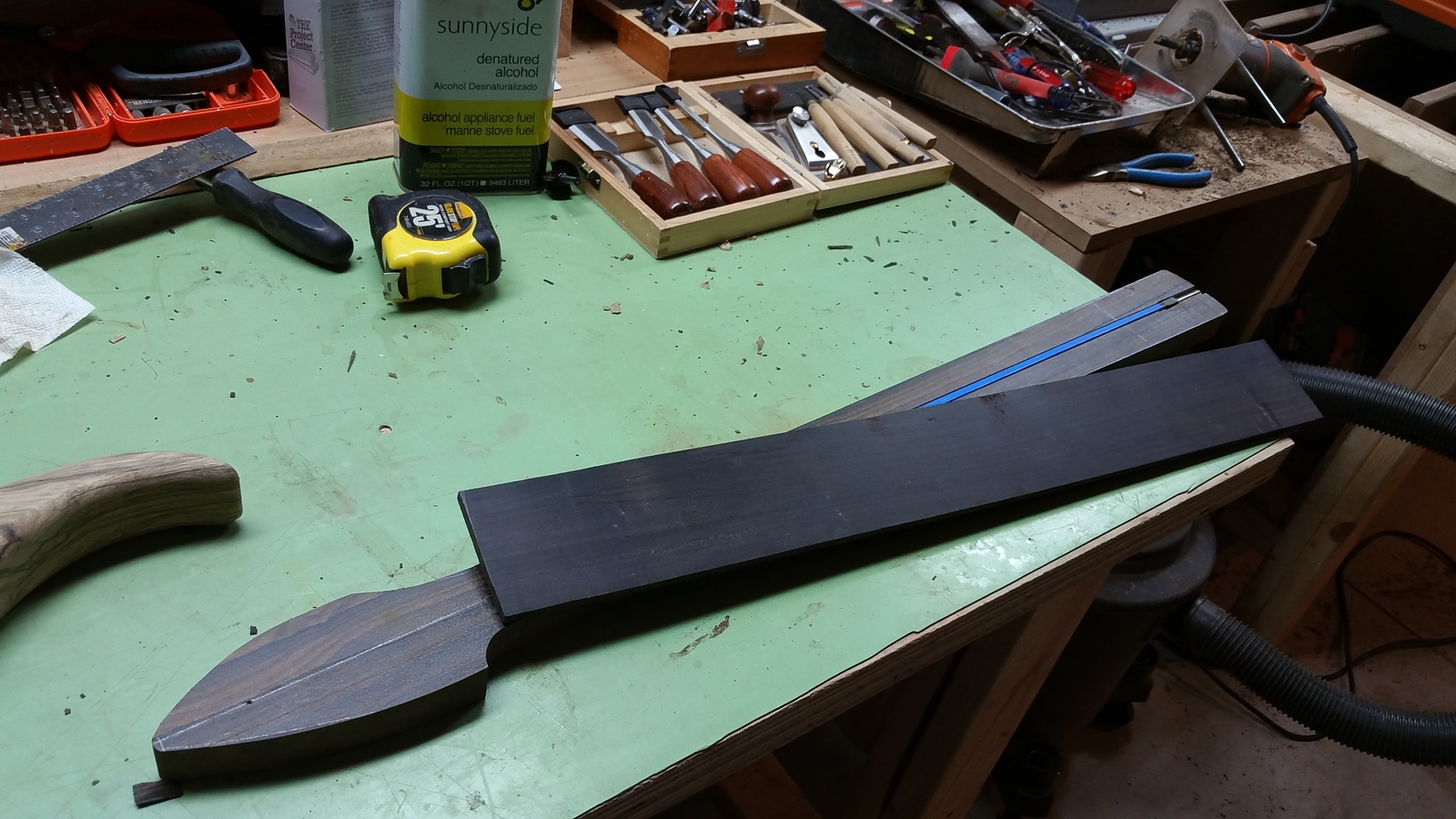

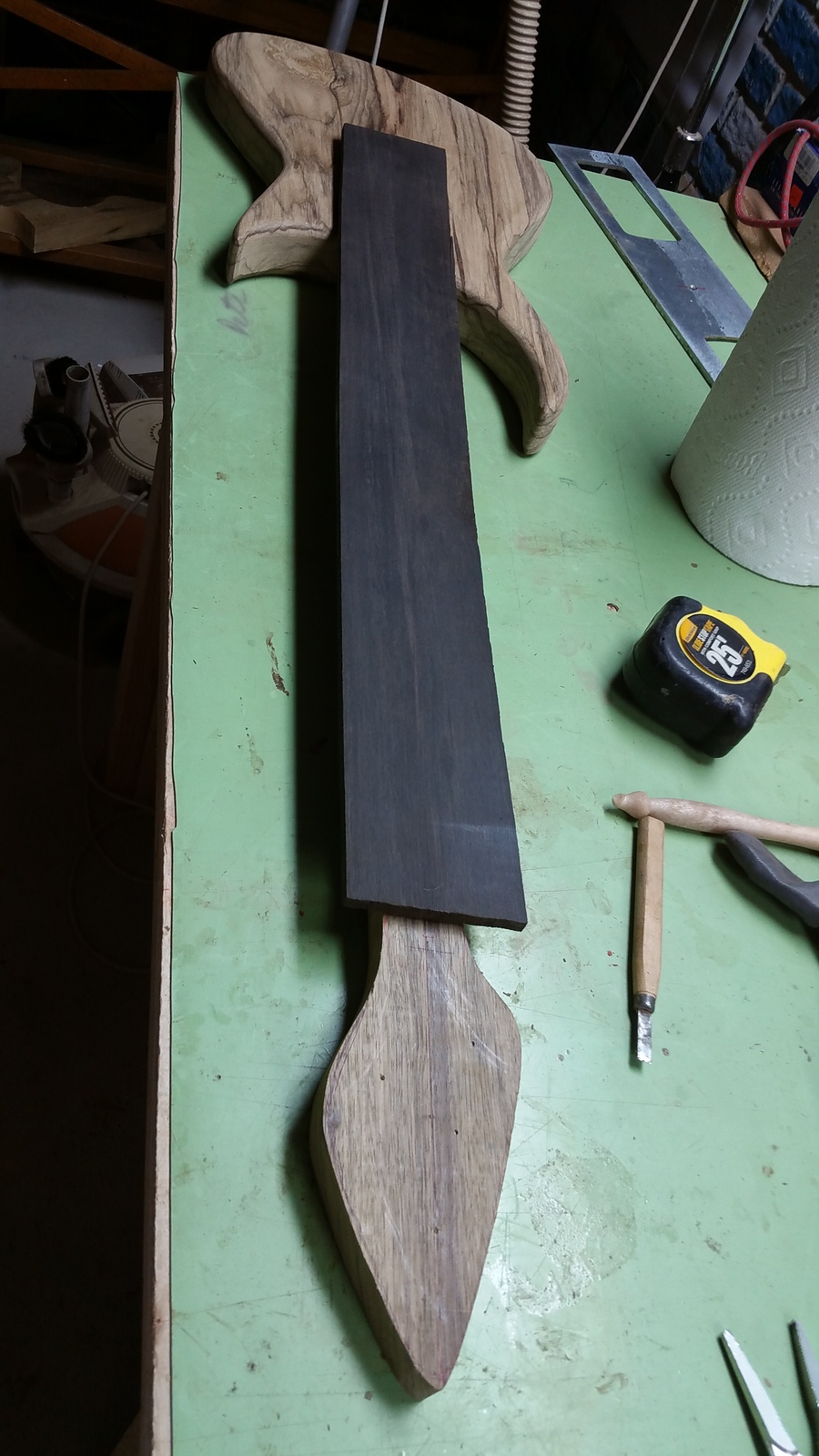

Also, finally got around to gluing down the FB.

Prolly wont get much done on this till next weekend

Cheers



[ctmullins]

Man, that black limba is gorgeous!



[Scoops]

Thanks for the comps on the wood. Nice thing is there is more where that came from.

Unfortunately when I took the clamps off the neck today, there was a gap between the fingerboard and the neck. It's about 2 inches long from the nut towards the heal. It's like this equally on both sides. I don't quite understand how this happened. When I clamped it down I made sure the glue oozed out. I used denatured alcohol to wipe the oils off.

I sure it can be fixed, but buggers, I'm not in the mood to do this right now.

I do have other options....... make a whole new neck out of
1) Flame maple?
2) Wenge?
3) Black Limba?

Decisions decisions.



[wraub]

If the new neck would also get a blackwood board, imo limba might look damn cool.
Might be heavy, though...



[Scoops]

If the new neck would also get a blackwood board, imo limba might look damn cool.
Might be heavy, though...

I looked up all the woods mentioned in wood database. Ziricote is by far the heaviest. Black Limba is the lightest.

I do have another Blackwood finger board. I'll probably go with the Black limba.



[Scoops]

OK

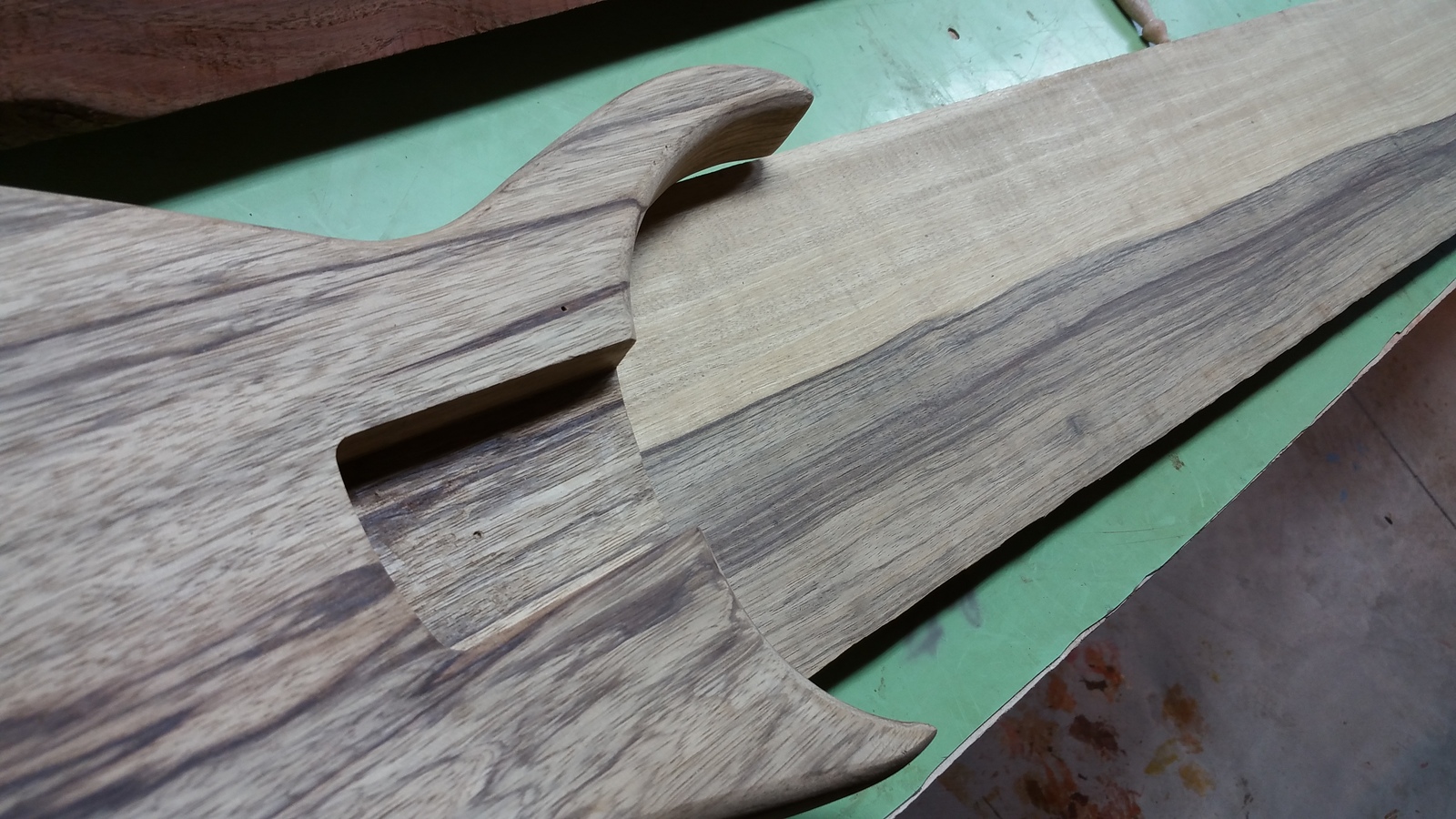

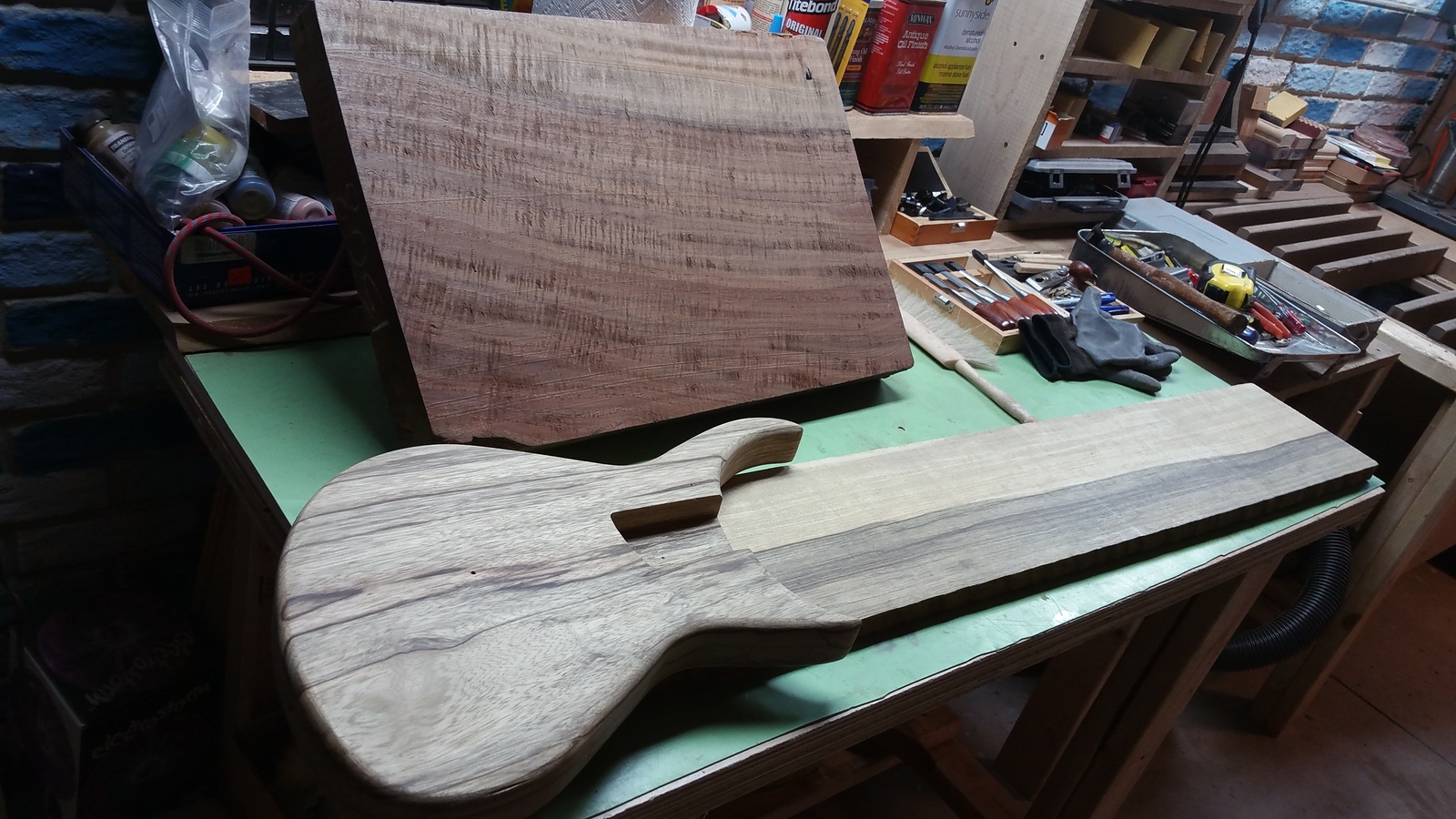

I got over the Fau-Paux I made with the Ziricote neck by purchasing a piece of Walnut
I say we make a new rule: For every mess up you make you automatically get to get a new piece of wood

I'm trying to figure out what side I'll use.



[lbridenstine]

Can't wait to see that neck!



[scottyd]

I say we make a new rule: For every mess up you make you automatically get to get a new piece of wood

I support this! I'm back owed many lumbers!


Looks great!



[Scoops]

Won't get much done with this over the weekend. But I did get the neck cut out



[Scoops]

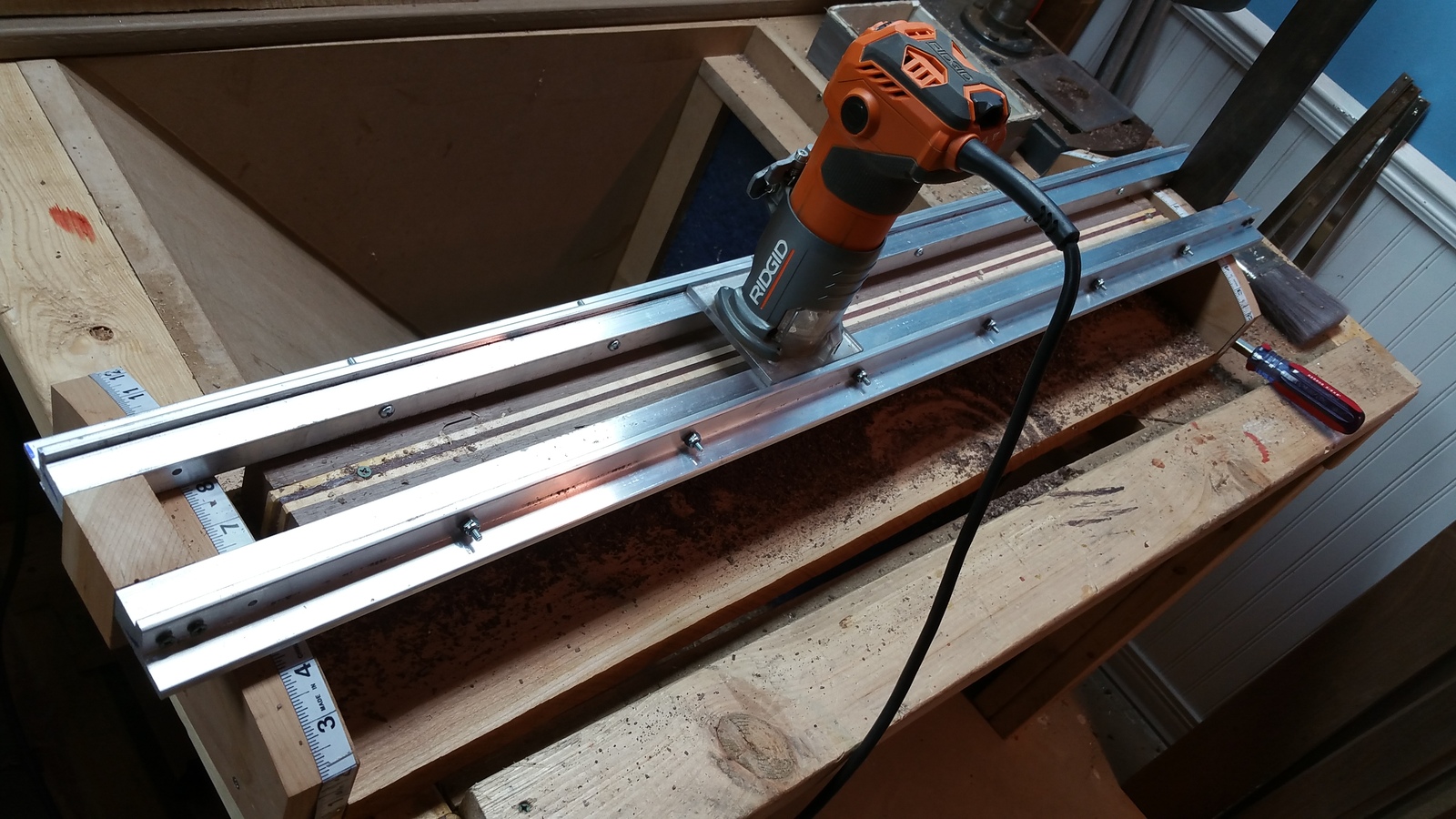

Made some progress, but not directly on my bass. I made myself a router rail.
I built it out of the cheapest aluminum stock I could find. I have a 1" L bracket gorilla glued and screwed to a .75" square piece of stock.
About 50 bux in raw materials and shipping.
The black piece of wood sticking out the far end of the rail is a wedge that I use to lock the rail in place

I have a couple other ideas I'll be using the rail on. More of that in the future

Currently it's sitting on top of neck jig that I built out of 6/4 cherry I had laying around.

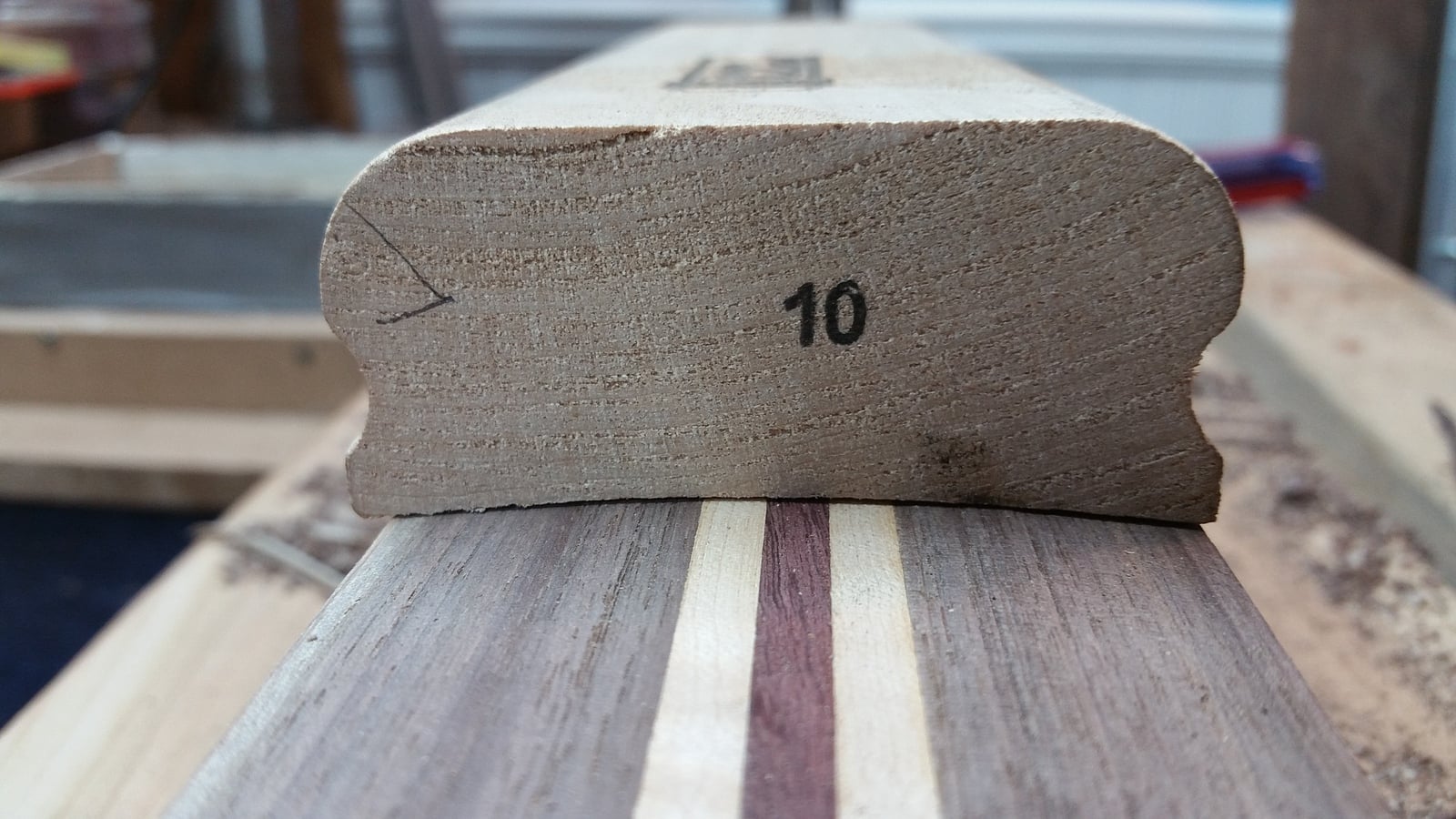

I have it set to do 10" radius
My first test took me about 15 minutes to get it to a "full fingerboard" radiused, using a 1/2" bit. I think I may try a 1/4" bit to get it a little finer, but the time will go up.
For my first test, I'm pretty happy cuz I just eliminated ALOT fingerboard sanding. Now all I have to do is some light to moderate sanding



[J. Wes]

Love it...from one twin owner to another!



[Scoops]

It rained all day yesterday and I had to go to my workshop and build stuff. This is what I was able to focus on.

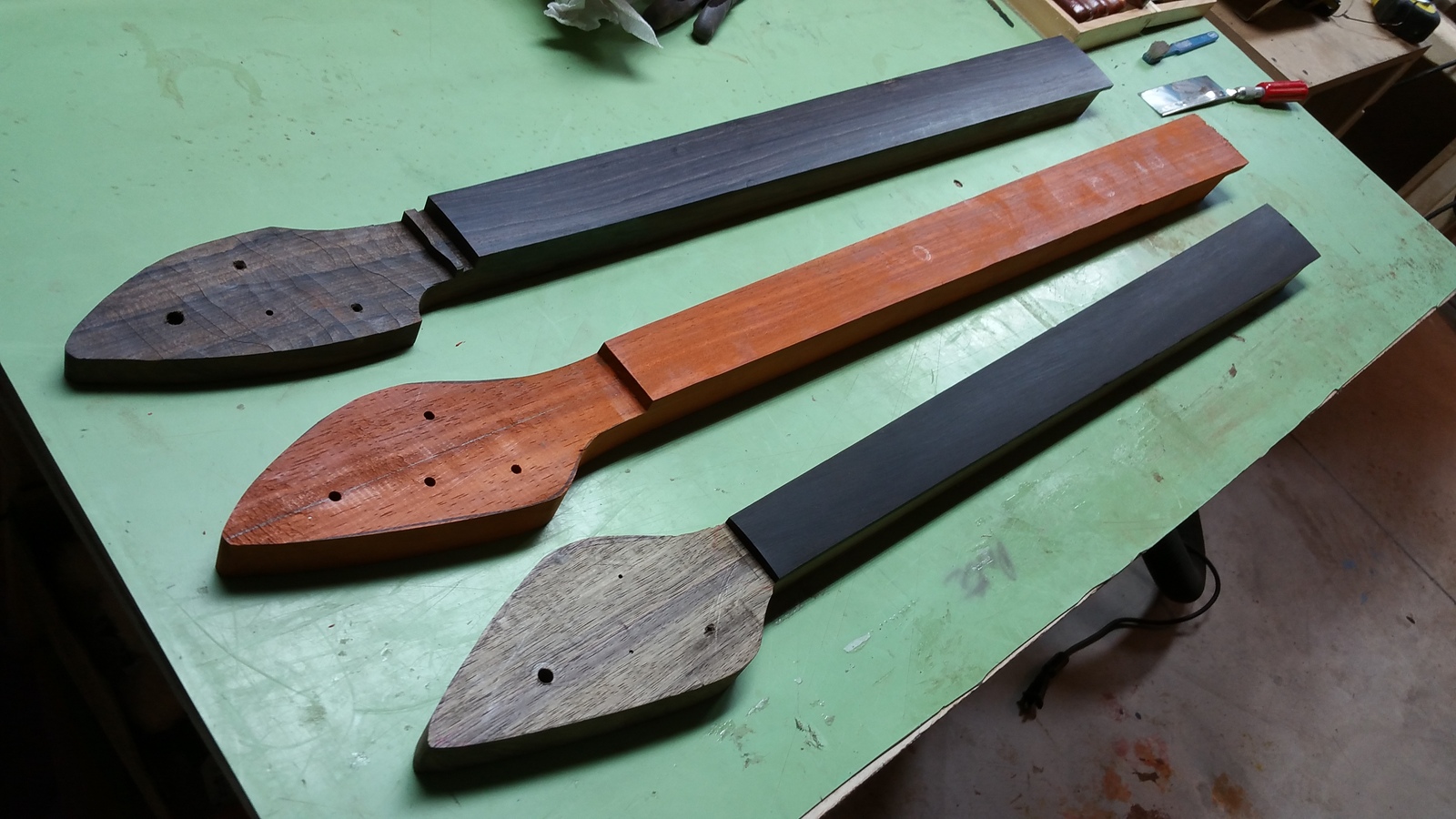

1) Fixed the Ziricote neck.
2) Dialed in Radius Jig
3) Put a radius on the Blackwood Fingerboard (Ziricote neck)
4) Put a radius on the Ebony fingerboard Fingerboard (Black Limba neck)
5) Assembled the Bloodwood neck

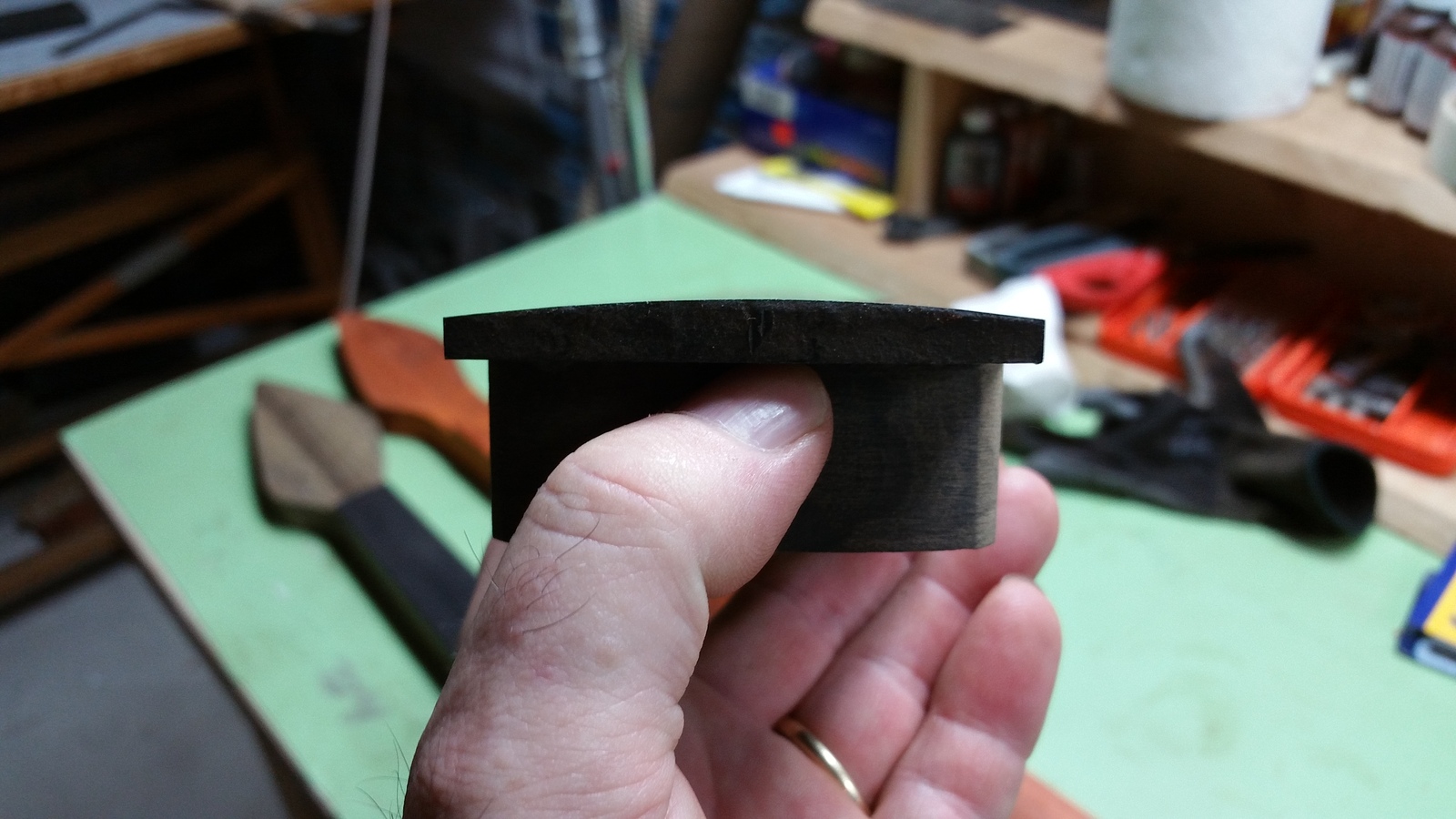

As a whole, I'm pretty happy with the way the radius jig works. It's still got a little glitch in that I get about a 0.010 to 015 rise from the nut for about 4 inches towards the heal in the fingerboard. The rest is very straight and uniform. For the Ebony fingerboard neck it took me about 15 minutes to sand it down.

The bloodwood neck is an experiment that I'm doing on a whim. Never seen anything like this before. Hoping it will be stable enough. It is quartersawn. The wood itself has a very brilliant color to it. I currently don't have a body for it yet, but I have some Ash laying around that I think this would look good with


Thanks for looking!!!



[Scoops]

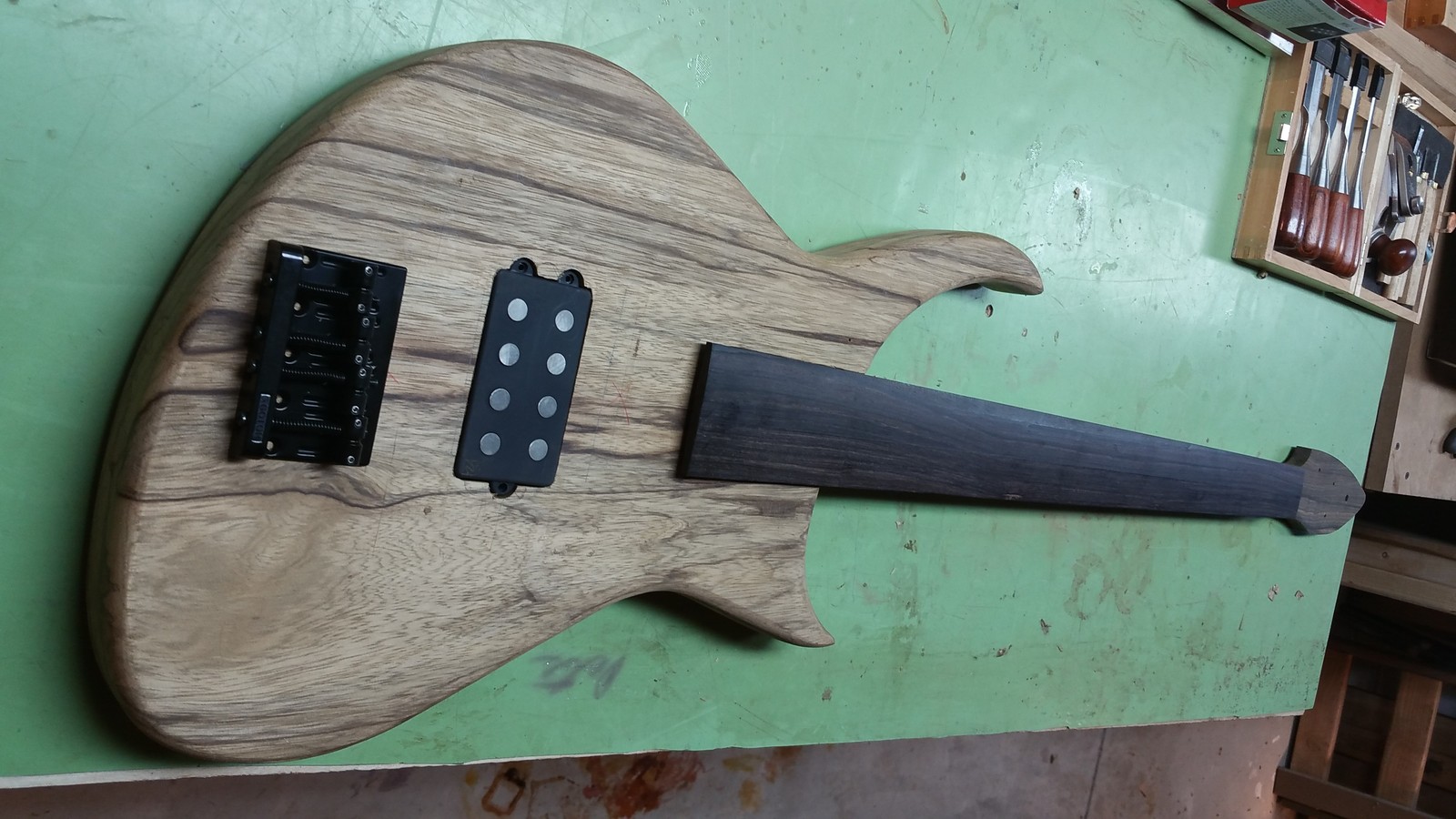

Got the pup routed.

It's starting to shape up
