I'm aware. I'm just saying that if it is a good of a dirt as many of the tube drives out there, I'm okay with it just needing extra current draw instead of a dedicated AC power supply
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
overdrive/fuzz quest part 2
- Thread starter johnk_10
- Start date
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses

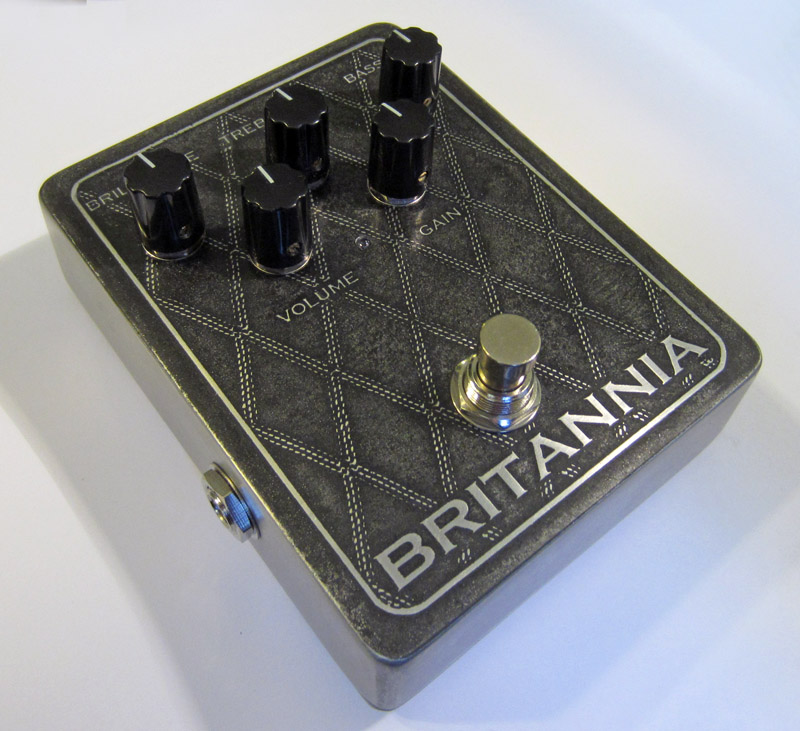

just finished building Runoffgroove's Britannia (Vox AC30 emulator) it does lose some low end with a bass, but that was to be expected being that it sounds like playing a bass thru a Vox AC30. regardless, it's a great, dynamic pedal. I etched a pcb and the enclosure for this one.

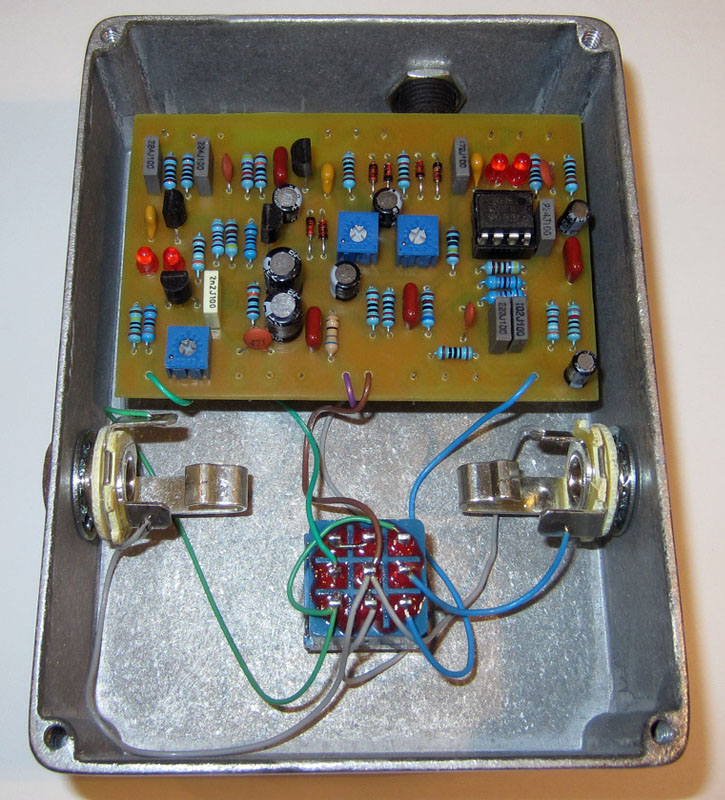

gut shot:
gut shot:
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
ever since I got a laser printer, yes.
Just be careful! I started out with chemicals and ended with laser because of how much junk you breath in. Plus sometimes it takes so damn long.
Nice etch.
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
i found the schematic for it so i just finished building another (and pretty unusual one), the Chunk Systems Brown Dog gated bass fuzz. IMO, it's a cool sounding pedal.
The Brown Dog was a mainstay on my funk pedalboard for years. With an octave pedal and an envelope filter (ideally a LPF) you get some really synthy tones.
There are better pedals for aggressive or smooth fuzz but the Brown Dog was my favorite for synthy fuzz sounds.
From what little I could tell the BD has a silicon chip but also appeared to use LEDs for some of the clipping. So what's really going on under the hood?
Really nice work John.
There are better pedals for aggressive or smooth fuzz but the Brown Dog was my favorite for synthy fuzz sounds.
From what little I could tell the BD has a silicon chip but also appeared to use LEDs for some of the clipping. So what's really going on under the hood?
Really nice work John.
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
it uses a quad opamp (TL074) and two yellow LED's as part of the clipping circuit.
Last edited:
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses

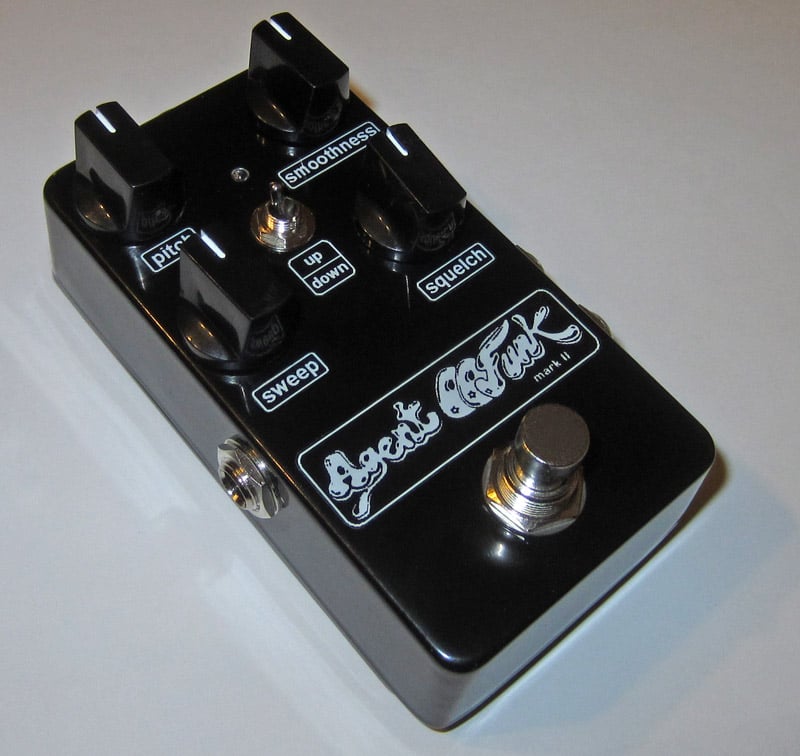

I also just built a Chunk Systems Agent 00Funk to go with it. the two pedals were made for each other and the Brown Dog has specialized output to connect to the 00Funk's specialized input.
IMO, it's an awesome fuzz/filter combo. I think that it's a shame that they're both discontinued. (and BTW, I used the factory schematics to make both pedals).
IMO, it's an awesome fuzz/filter combo. I think that it's a shame that they're both discontinued. (and BTW, I used the factory schematics to make both pedals).
just finished building Runoffgroove's Britannia (Vox AC30 emulator) it does lose some low end with a bass, but that was to be expected being that it sounds like playing a bass thru a Vox AC30. regardless, it's a great, dynamic pedal. I etched a pcb and the enclosure for this one.
Lovin' the etched look John....it looks like the pedal is made from solid pewter.
John any chance we can get some sound clips of the brown dog and chunk. individually and together..
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
i'll try to make some later today.

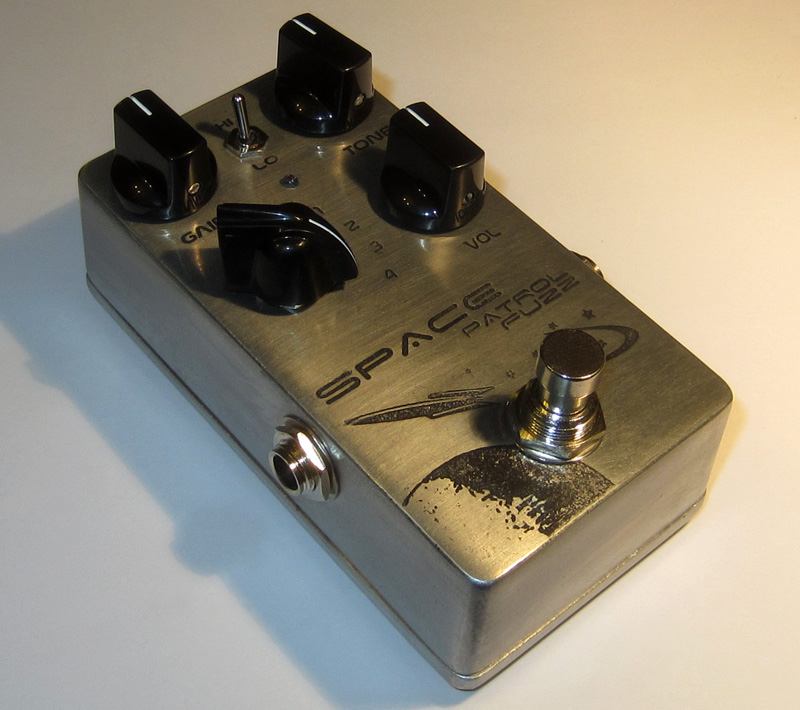

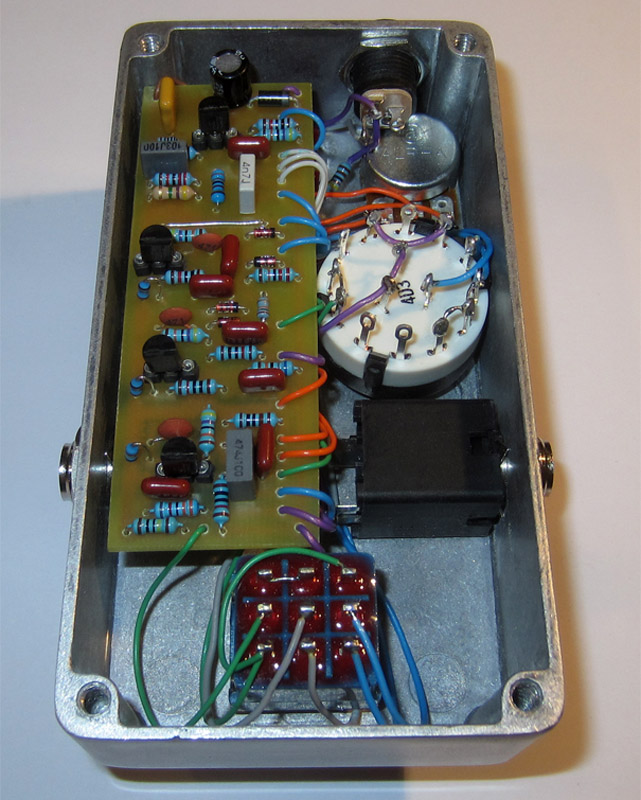

and here's a pretty cool big muff variant, the Dead Astronaut Space Patrol Fuzz. it has a hi/lo ('fat switch') as well as a 4 way rotary for 3 more (2 synthy/octave up, and 1 duck& swell) tones.
