overdrive/fuzz quest part 2

[dukeorock]

it's a single capacitor mod to bring the top end back since I found the PL to be a bit muddy.

Interesting, and something I'd love to do to my PL



[nshuman]

Interesting, and something I'd love to do to my PL

It is very easy to do.



[D_Bag]

Wait...what's the JohnK mod to the Pork Loin?!

http://www.talkbass.com/threads/pork-loin-mod.1088576/



[johnk_10]

It is very easy to do.

yep, and for me, it actually made the difference between keeping it or selling it.



[D_Bag]

After listening to your modded PL again I think I am going to give that a whirl.



[12bass]

since i've always liked the tone in the many videos that i've seen & heard, I just got my second B3k today. the newest version's attack switch has a hi-cut filter (along with a hi-boost and 'hi- flat' setting)
with the hi-cut, I do like it better than the first one that I had (a USA version) but I guess that this pedal's overall 'voicing' just doesn't work for me.
I was trying to figure out what bugged me about it and once I ran an real time analyzer test on its drive side I found out why.

[Invalid or Expired Link Removed]

.......so it'll either be going back for a refund or possibly be in the TB classifieds tomorrow.

Hey John,

When I click on the above link it comes up as "page not found". I'm curious to know what you found in the response plot. Care to try again? Thanks!



[johnk_10]

I updated (resized) it. here's the new link:

http://johnkvintageguitars.homestead.com/Effects/Fuzz-ODs/Darkglass/B3Kfreqtest.jpg



[Silver Blues]

John do you think you could try a trace or at least some good gutshots before you send it back? I'd actually be interested in it. Even if the sound isn't quite as good as it could be right now it can surely be modded.



[johnk_10]

John do you think you could try a trace or at least some good gutshots before you send it back? I'd actually be interested in it. Even if the sound isn't quite as good as it could be right now it can surely be modded.

unfortunately i sold it yesterday and it has already been shipped.



[jbybj]

Hey John,
Could you please share the frequency of the mid notch in your B3K plot?

For the record, the B3K works well for me, playing classic rock and blues.

Thanks for the info



[johnk_10]

Hey John,
Could you please share the frequency of the mid notch in your B3K plot?

For the record, the B3K works well for me, playing classic rock and blues.

Thanks for the info

it looks like the deep peaky one is at 325Hz and the other one is at 700Hz.



[jbybj]

it looks like the deep peaky one is at 325Hz and the other one is at 700Hz.

Ahh, thank you. I just looked at your plot on my computer, and the frequencies are plainly visible along the bottom. On my phone they were just little "-" dashes.



[JimmyM]

Wow, glad I never tried the B3K!!! Holy cow, that dip is so massive it hurts to look at it!



[johnk_10]

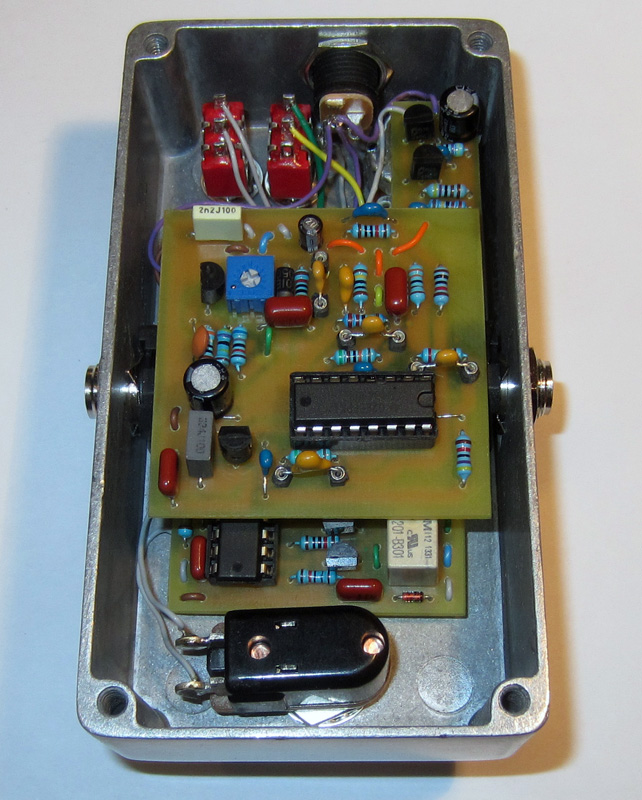

after having two Darkglass B3K's and a VMT (after hearing great sounding clips and supporting his endeavors), neither one did it for me (i.e they changed my original bass tone too much for my taste), here's one that I've been working on for a while. Doug posted the schematic for a guitar OD/distortion pedal on the DIY forums a few years ago and back then, it was called a B2K.

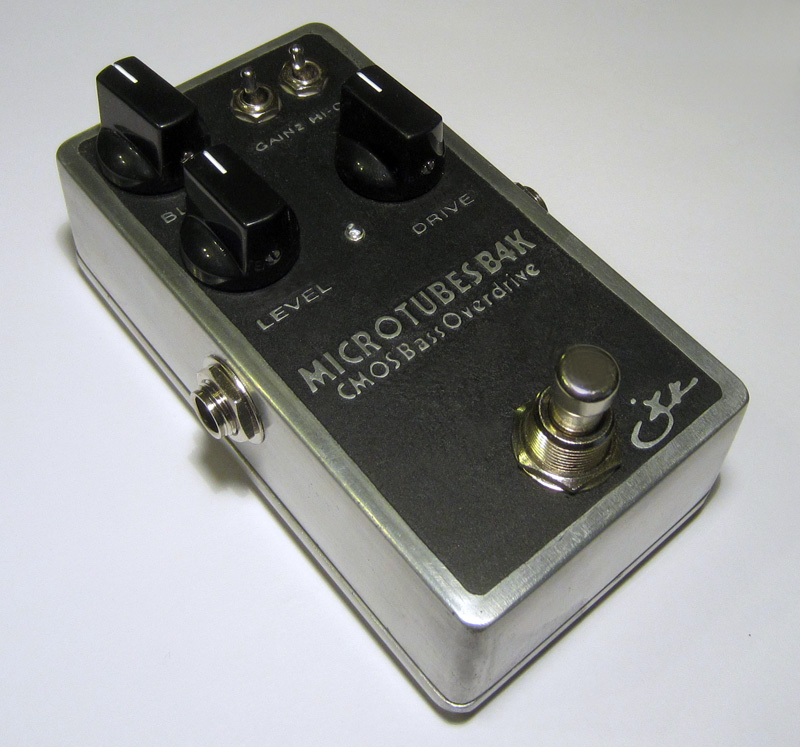

i built it, but made a few changes to make it more suitable for bass, re-voicing its frequency response, changing the gain structure & adding a blend and relay true bypass like a B3K. I call my version the B4K .
note: these are not going to be for sale. I just wanted to have at least one of his designs for myself.



[DirtyDuke]

Awesome work as always



[Silver Blues]

Haha, I just made a layout for what I think is the same circuit you're referring to. Pray tell, what mods did you make?



[Feral Feline]

I know the Fat Sandwich isn't favoured, but are there any mods for it? They're going dirt cheap right now.



[johnk_10]

I modded the heck out of mine but it still is light in the low end department. I wouldn't recommend one for bass at all, even if it's super cheap.



[Feral Feline]

Thanks, JohnK.

I'll resist my Scottish ancestry and refrain from £ foolery to save a few cents that makes no sense.



[rizzo9247]

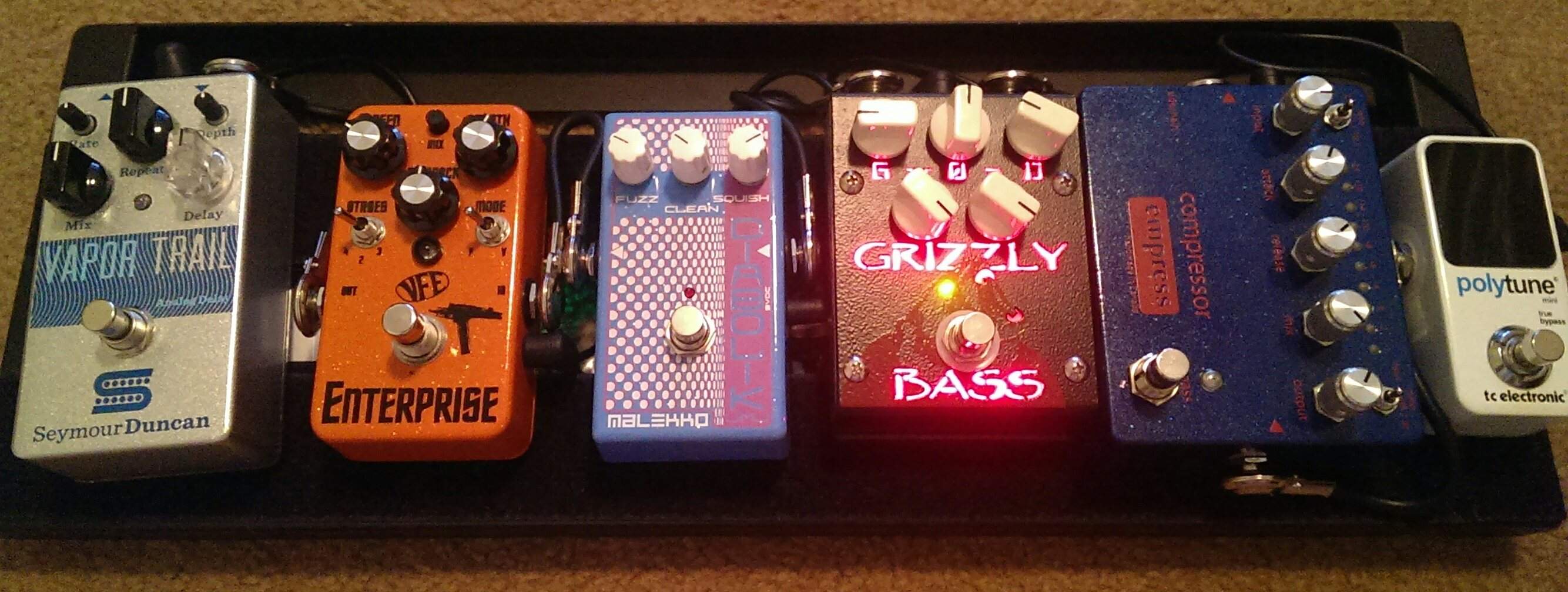

John I know you really liked the Holy Fire, have you tried out the Grizzly? It seems we have similar tastes in overdrives and I've been really impressed with this one.
