Pork Loin mod
- Thread starter johnk_10
- Start date
Def adds headroom and clarity. Breaks up at higher gain settings too. That's how it was for me anyway.
I powered mine for a while and at long periods of time on 18v. Never had a problem. If JohnK says it's ok, I trust that.
I've been running mine at 18v since I got it - almost always on. No issues. Definite improvement in headroom
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
I've been running mine at 18V too for probably 3+ years without issues. It changed everything: The PL went from being borderline useless to me (farty ugly fuzz on lower strings no matter what internal trimpots settings were) to being absolutely everything I want from an overdrive pedal. It killed my GAS for other dirt pedals - this one sounds great, and it just works in a band context (not always a given for OD/dist/fuzz pedals), so I'm sticking to it.
Couldn't agree more
I also put mine up against the Pork and Pickle and while the differences were subtle I preferred the Porkloin.
Plus at 18v with internal pots down, Clean and Curve maxed and Overdrive at 3 o'clock I get the best most useable fuzz tone I've ever had.
- Feb 16, 2008
- 21,240
- 23,633
- Disclosures
- John K Custom Basses
personally, i wouldn't recommend running a Pork Loin at 18 volts. i can probably handle it in the short term, but the first filter cap in the power supply (100uf) is rated at 16 volts. a 16 volt cap might be able to operate at 18 volts, but i don't think that it'll last as long as running it at 9 or 12 volts. another option is to just replace the cap with one rated at 25 or 35 volts. then you can safely run it at 18 volts forever.

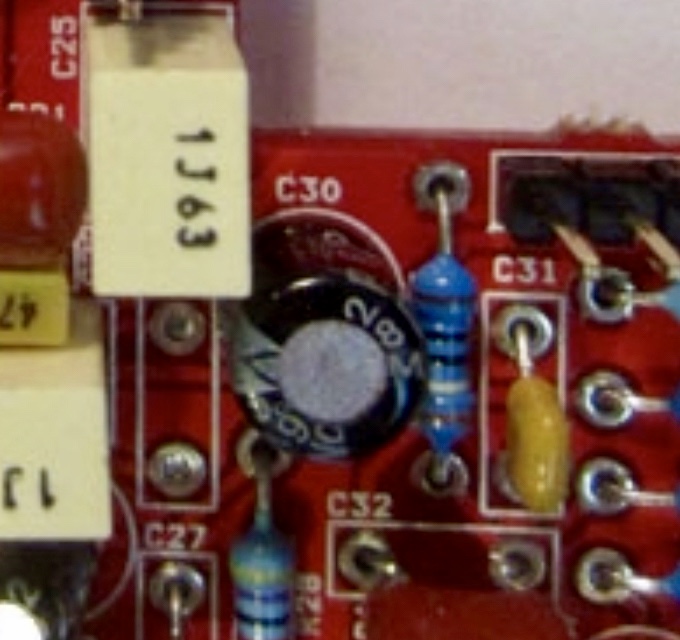

Might I also request a pic of the caps in question? I did the original mod, but am nowhere near good enough to know how to figure out which cap is the first and which one to replace it with. Thanks!
The schematic is at the top of the page 2 (post #21). According to that, it's C29 which is a 47uF cap.
Is there another filter cap on the 'I/O board'? 'Cos C29 isn't 100uF on the schematic.
