SBMM Stingray Short scale

#2,401
WestyBassBob said:
Not copying. But source?
Click to expand...

Yep, should have posted that originally. It's from Invalid Link Removed. If the link doesn't give you the paint swirl one, go to the "Select Material" popup. It's way near the bottom, #GP01.

It's for an EBMM short scale, so the opening for the neck isn't quite big enough. I filed/sanded it down so it fit.

  • Like
Reactions: revroy
#2,402

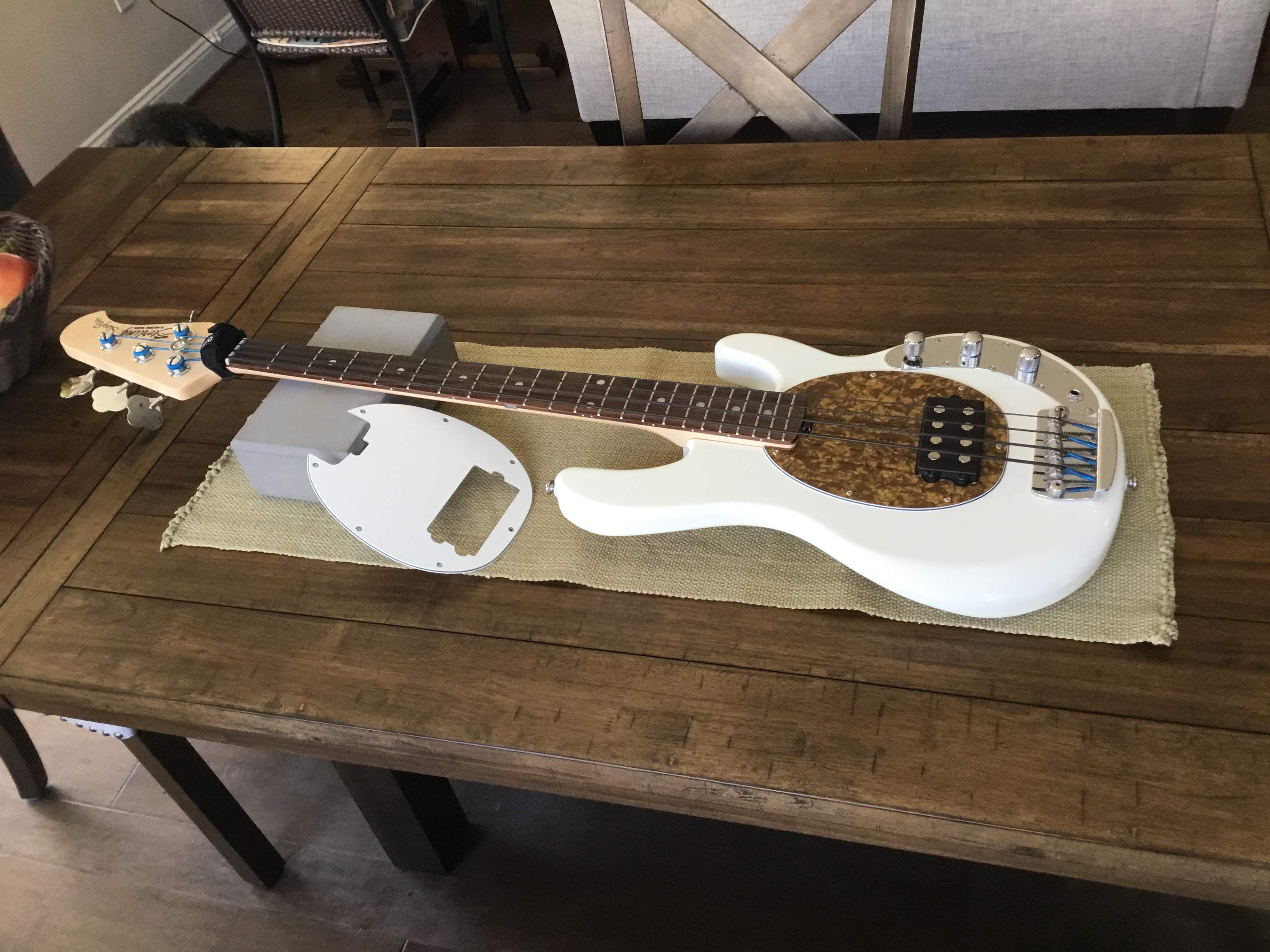

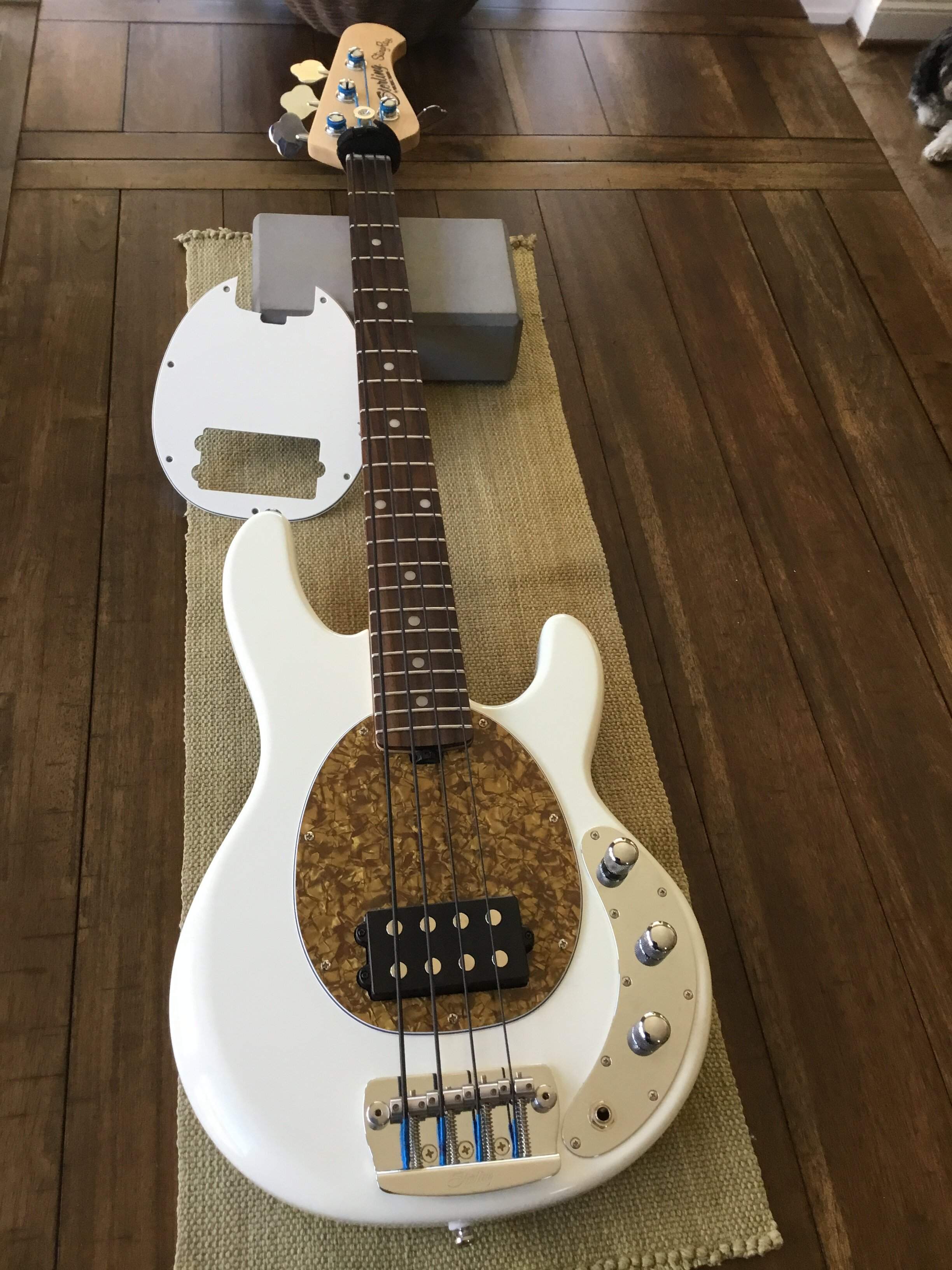

Here’s mine again… I got mine from Precision Guitar via Reverb. It is specifically for the SBMM and there are tons of choices of patterns at a lower price point than WD I think.

sbmm stingray.jpg

  • Like
Reactions: jmattbassplaya, Crix, 534N and 1 other person
#2,408
So, I just got my SBMM Short Scale from AMS (light blue w/maple neck, you've seen them) and out of the box it needed help.

Immediately, I had to shim the neck with an old credit card, the saddles were all the way down to the base of the bridge and the action was still too high. I had my tech lower the nut string slots which made a huge improvement on the overall feel of the bass.

Then, I had to buff the finish on the neck and fret board with a green 3M Scotch Brite pad and that did the trick, it really smoothed it out and it makes it feel great. I finished it off with a coat of carnauba wax. I'll say that the fret work is excellent, the neck is straight and the truss rod works fine.

Next, I switched out the tone cap with a .022 which just rolls off the top end a little and doesn't make the bass sound like its got a sock in its mouth like the stock .100 does.

Eventually, I will replace the output jack with a Pure Tone. The stock jack is plastic and looks pretty delicate.
I added some shielding tape to the edge of the cavity so the control plate could make contact with the shielding paint within the cavity and that actually helped a lot with single coil hum.

But, I can't believe the crappy tuners they put on this instrument, they go out of tune just looking at them! I've ordered a set of Hipshot HB1's with non tapered posts so I can get the strings as close as I can to the face of the headstock to get better downward pressure behind the nut.

I've restrung the bass with DR High Beams and the good part is that the bass sounds great!
No dead spots at all and excellent sustain across the neck.
The pickup is excellent and it really nails the Stingray sound, I really don't miss it being active, like I thought I would.

Overall the bones of this bass and construction are very good. I'm pleased with the way it has turned out with needed finishing and mods that I did but those fifty cent tuners have got to go. Even if they went up to the next level of that cheap tuner with the adjustable tension, it would be an improvement.

This completes my short scale collection along with my Hofner Club and modified Bronco.

Last edited:
  • Like
Reactions: TheBass, Kubicki Fan, RodRy and 1 other person
#2,409
Interesting. My new SBMM shorty was damn perfect right out of the box. Still, I had my luthier do a full-Monty setup/checkup on it, and he said it didn’t need much but a truss rod and a couple of saddle tweaks to be right on. I picked it up from him today and I gotta agree.

I found the bass very comfortable to play before the setup, but now it’s totally dialed in. Lastly, my tuning machines are solid and keep tune fine. I guess it’s just the luck of the draw.

  • Like
Reactions: BassPilot, Doctor Morbius, Kubicki Fan and 2 others
#2,410
Mine was near perfect (had to file the nut slots a little). Tuners are solid (surprise, surprise)
The bass has developed a bit of a fret sprout, but so did my EBMM shortie, and other high end basses I have..
I really enjoy this bass. Feels different from my perfect little Bronco but just as good.

  • Like
Reactions: Crix
#2,411
I also have the baby blue/maple SBMM version. But I bought it used, so the previous owner did all the potential finishing work before. I only modified the wobbly push-pull volume pot and replaced it with a pull pot. Also because I didn't like the look of the knob sticking out further when boost was not activated. And it's by far the lightest Stingray I ever played and owned.

  • Like
Reactions: Crix
#2,412
Crix said:
Interesting. My new SBMM shorty was damn perfect right out of the box. Still, I had my luthier do a full-Monty setup/checkup on it, and he said it didn’t need much but a truss rod and a couple of saddle tweaks to be right on. I picked it up from him today and I gotta agree.

I found the bass very comfortable to play before the setup, but now it’s totally dialed in. Lastly, my tuning machines are solid and keep tune fine. I guess it’s just the luck of the draw.
Click to expand...

The more I play mine, the more I like it. I set the intonation with my Peterson strobe and that really dialed it in. the bass plays so well in tune and when playing double stops and intervals it's right on the money.

  • Like
Reactions: revroy, Kubicki Fan and Crix
#2,413
Kubicki Fan said:
Mine was near perfect (had to file the nut slots a little). Tuners are solid (surprise, surprise)
The bass has developed a bit of a fret sprout, but so did my EBMM shortie, and other high end basses I have..
I really enjoy this bass. Feels different from my perfect little Bronco but just as good.
Click to expand...

I found a used Bronco with a Duncan Hot Rails pickup installed in it for $125.00.
I cleaned, lubricated and tightened the tuners, added a Zero Glide nut and I found a 4 saddle bridge for it that fit perfectly. I strung it with Labella Flexible flats and the bass sounds absolutely amazing.
It's rock solid and plays in tune and with a pick, it just nails it and weighs about 5 lbs.

  • Like
Reactions: Kubicki Fan and Crix
#2,414
Djadja said:
Here’s mine again… I got mine from Precision Guitar via Reverb. It is specifically for the SBMM and there are tons of choices of patterns at a lower price point than WD I think.

View attachment 4595879
Click to expand...

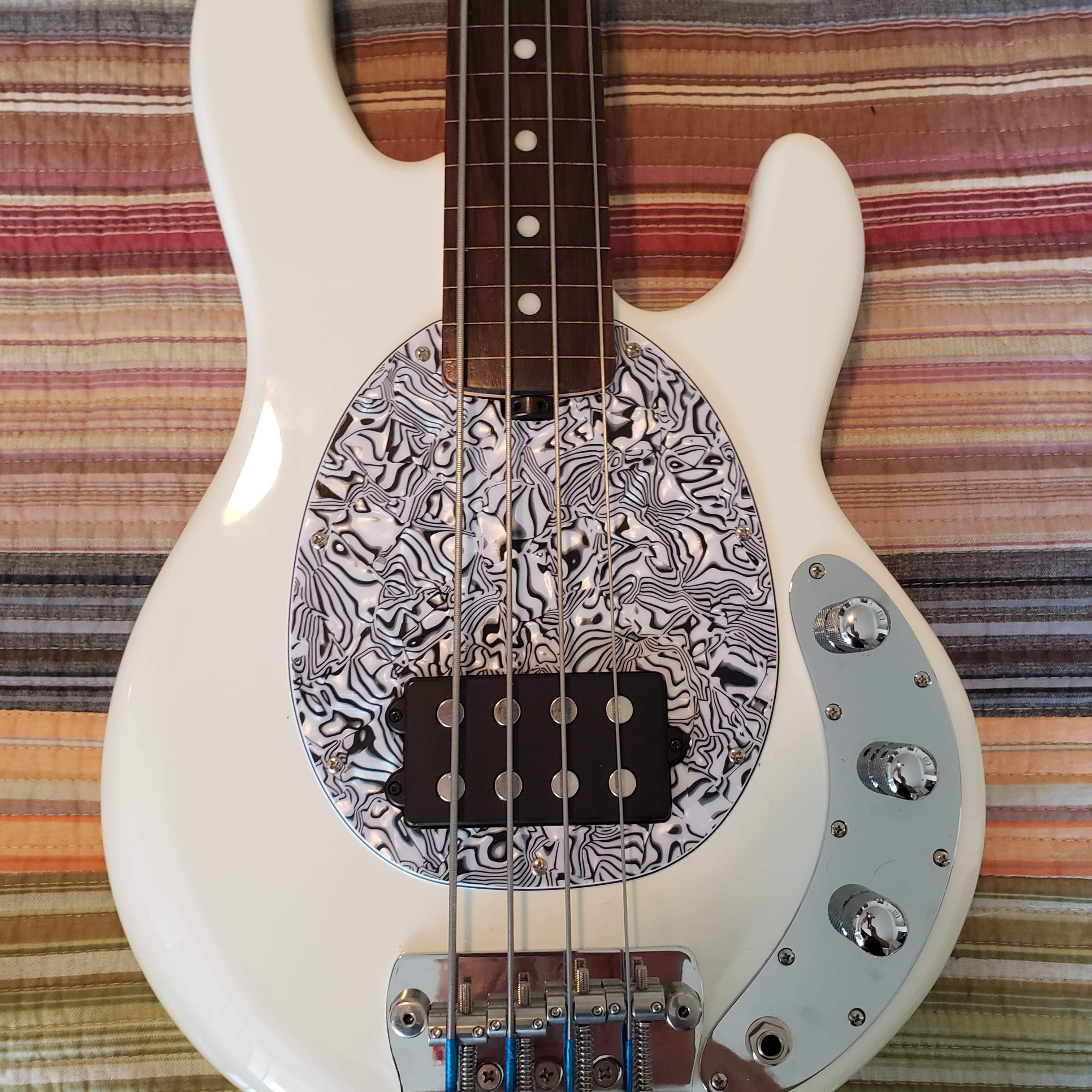

I've got an Olympic White SBMM, too. I dig the classic beauty of the original parchment guard on mine: simple, clean and elegant. That said, your new one really looks sweet.

  • Like
Reactions: revroy and Kubicki Fan
