Show me your compact pedalboard setup

[MYLOWFREQ]

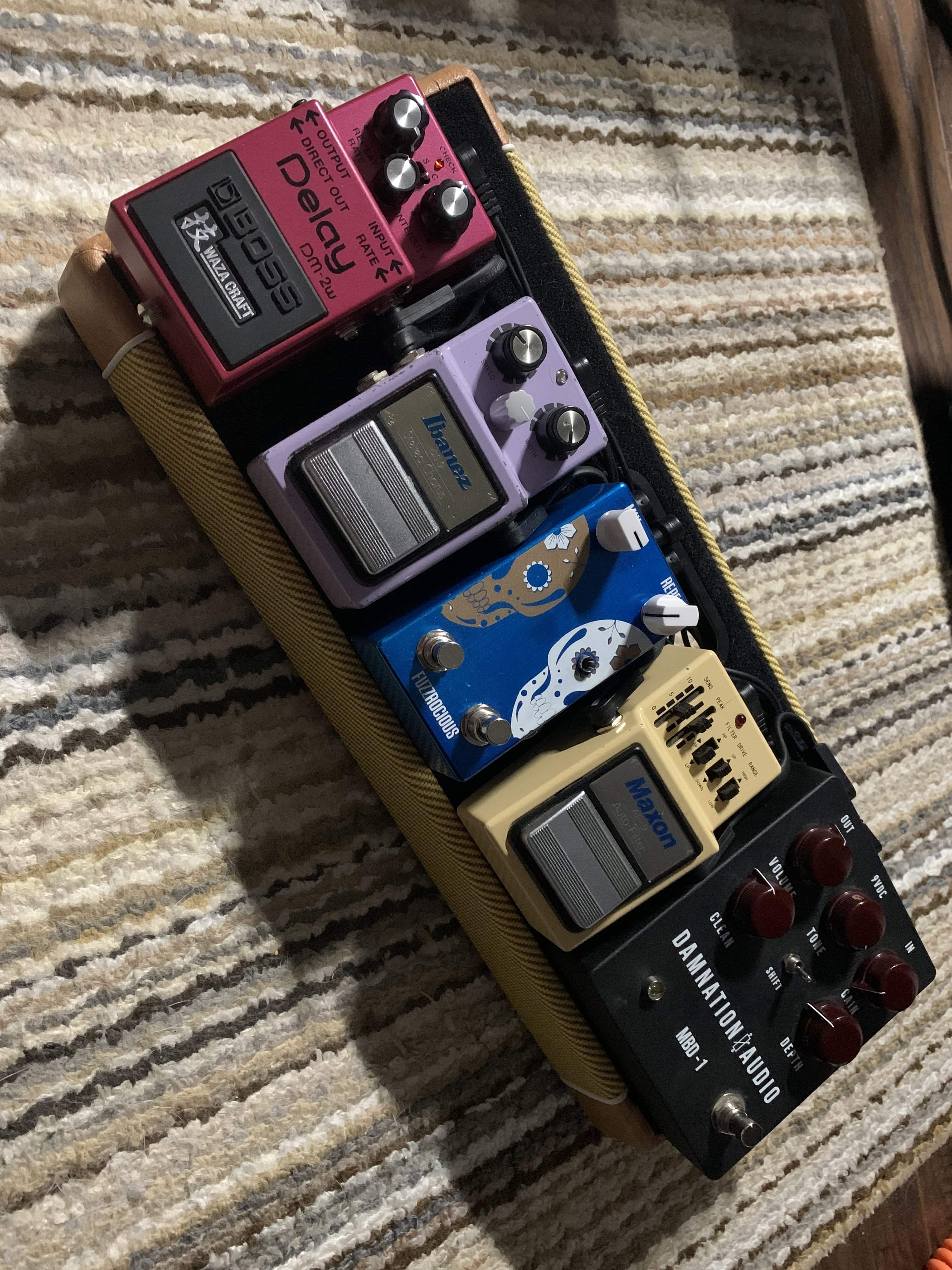

Slight change
View attachment 4194184

That Maxon is a great filter, Nice board!



[redstrand]

That Maxon is a great filter, Nice board!

Thank you and yes it is



[murmur70]

Really nice!

What are the dimensions of that MIDI controller? Looks to be about 2.5 x 7? Do you have any issues with the controller getting in the way of the 3 switches on the Stomp?

Thanks! It is 2.5 x 6.625. Have not had any problems it getting in the way but I have not tried it in a real world situation yet.



[MascisMan]

Thanks! It is 2.5 x 6.625. Have not had any problems it getting in the way but I have not tried it in a real world situation yet.

If its not too much trouble. What is the height as well? Thanks so much for the assist.



[murmur70]

If its not too much trouble. What is the height as well? Thanks so much for the assist.

No problem. The height of the case is about 1.25 and to the top of the switch is about 2.0(not counting the Barefoot Buttons).



[MascisMan]

No problem. The height of the case is about 1.25 and to the top of the switch is about 2.0(not counting the Barefoot Buttons).

Awesome, thank you so much!



[Feral Feline]

Here is my compact HX Stomp based board. The board is a Temple Solo 18 with the integrated CIOKS Hi5 power supply. The midi controller is custom built by KG MIDI Controllers.
View attachment 4214562
View attachment 4214563

Best use of under-board lighting I've yet seen!
The Temple really lends itself well to that, and the translucent stomper-toppers on the HX-Stomp are the icing on the cake.


Just reignited my GAS for a Temple board.



[murmur70]

Best use of under-board lighting I've yet seen!
The Temple really lends itself well to that, and the translucent stomper-toppers on the HX-Stomp are the icing on the cake.


Just reignited my GAS for a Temple board.

Thanks! Temple is not cheap for sure but it just makes everything so easy.



[LaklandLaksNADA]

All on my metro16. I think I'm done for a bit lol



[MTN.bass72]

All on my metro16. I think I'm done for a bit lol View attachment 4215181

Impressive! What's your signal path?



[sears]

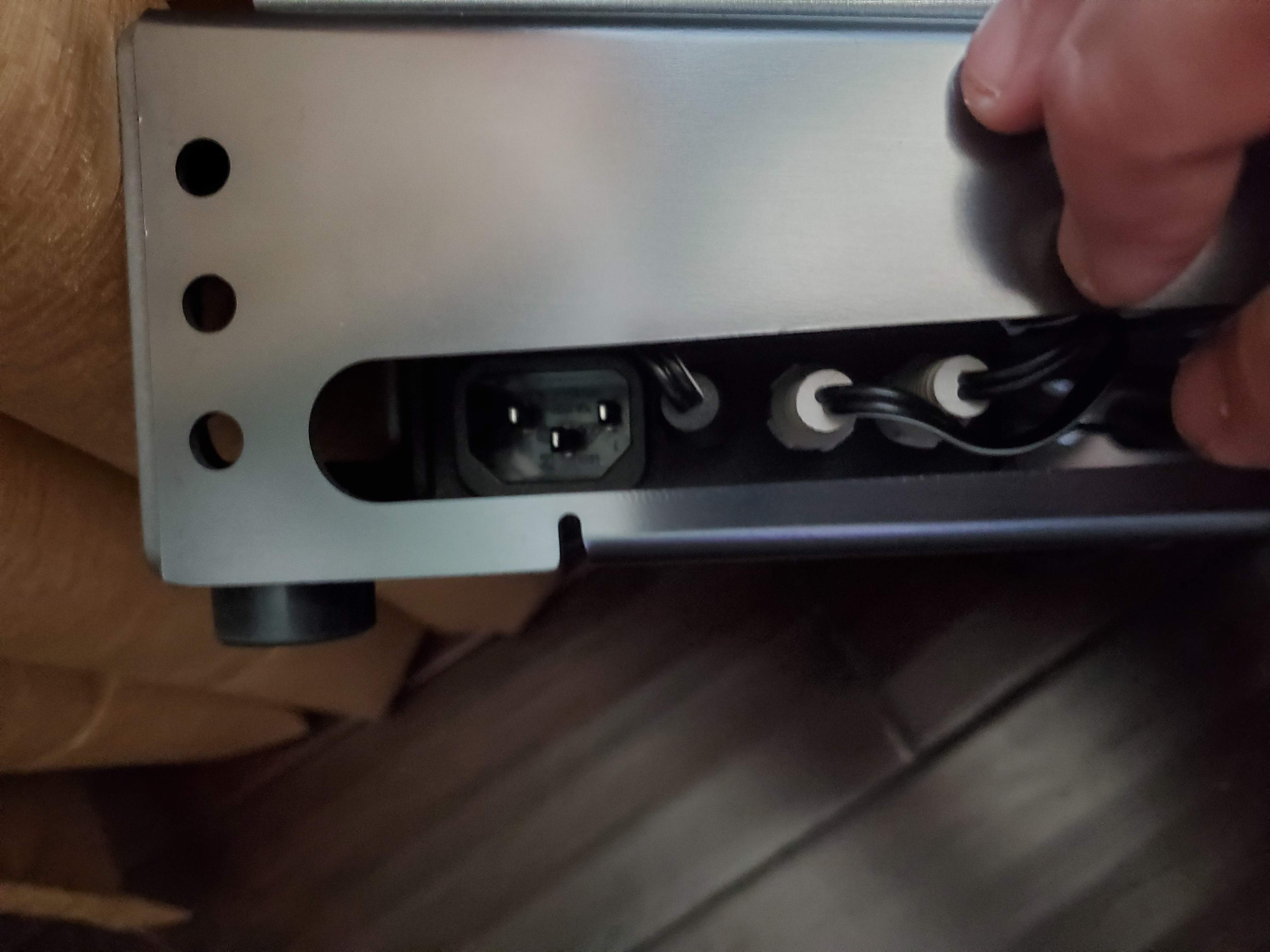

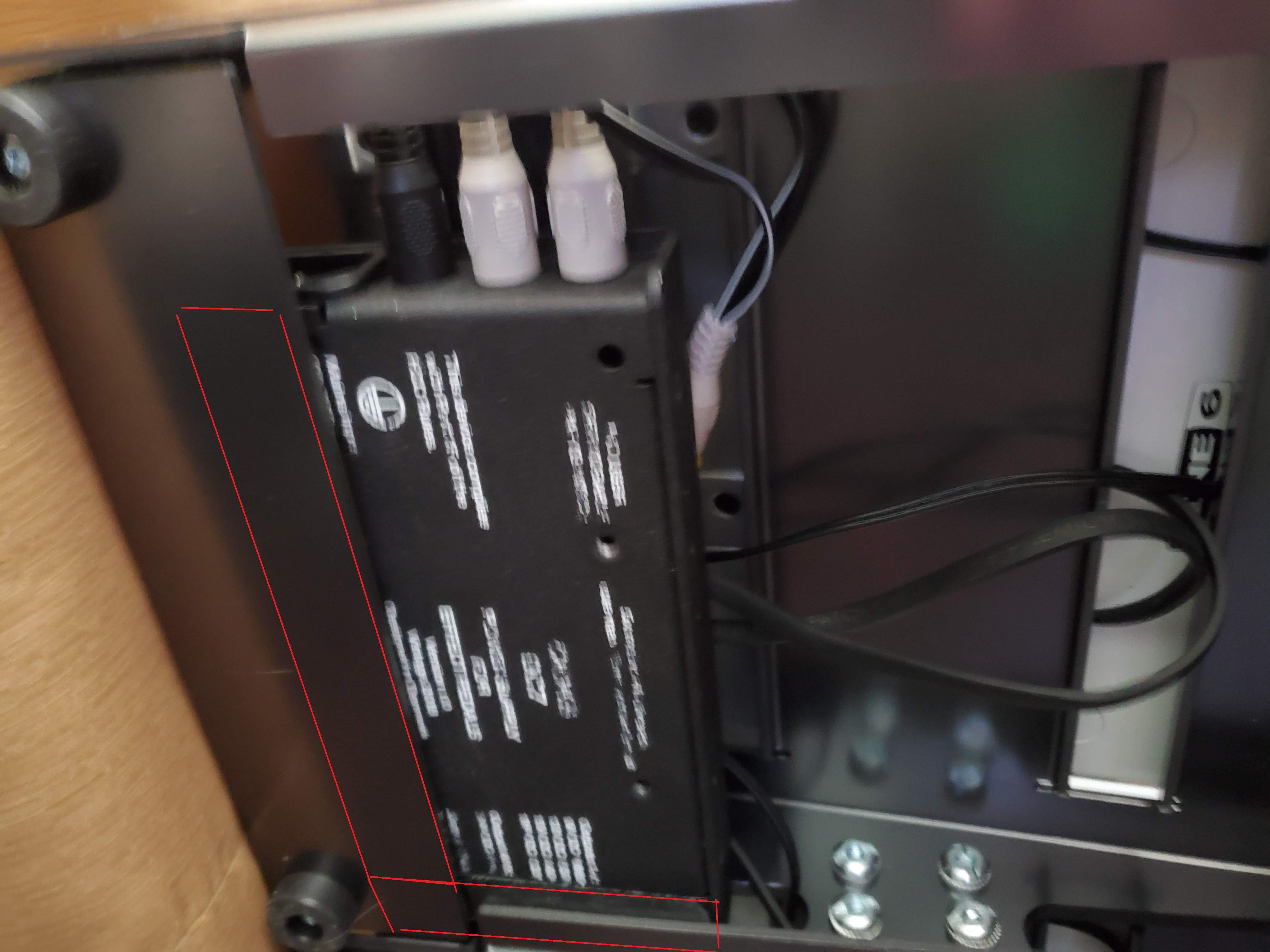

Yeah there is a little mini-shelf on the under/back of the 8+" pieces. I pushed mine in a corner to create two points of contact with the Dual Lock (see the red markings). Its on there firm, doesn't go anywhere when I shake the board.

View attachment 4195671View attachment 4195672

I Amazing Gooped a piece of acrylic the right shape and thickness underneath, in between those edges, and the Dual Lock gets stuck to that.

I also made some aluminum panels on the top to mount some pedals in the perfect spot.



[bitzie]

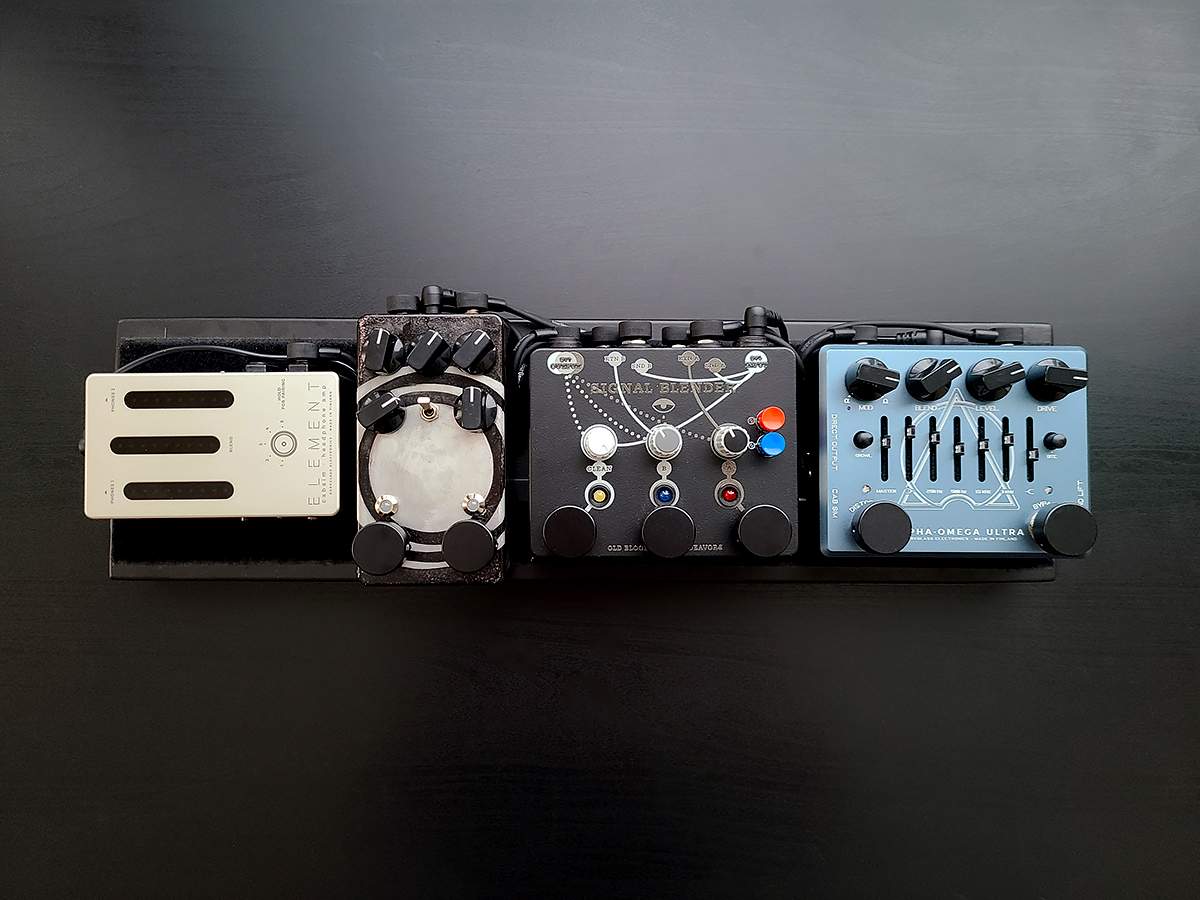

Compactified a bit more today. I just finished the Parentheses Fuzz Mini (Life Pedal clone) so it was time to redo the board. Off came the Green Russian Big Muff Pi and modded Metal Zone which gave me some room to actually have the Element on the board and in a position to make it easy to output to my amp when need be. (I love Darkglass, but having the outputs on the right side just seems to screw everything up.)

Signal chain: OBNE Signal Blender - Loop 1 Alpha Omega Ultra / Loop 2 Parentheses - Element

Not sure I can compact this down any more without getting a smaller board and flipping everything vertical. Hmmm... Might just have to be a Nano in my future in that case as this is the Nano+.



[LaklandLaksNADA]

Impressive! What's your signal path?

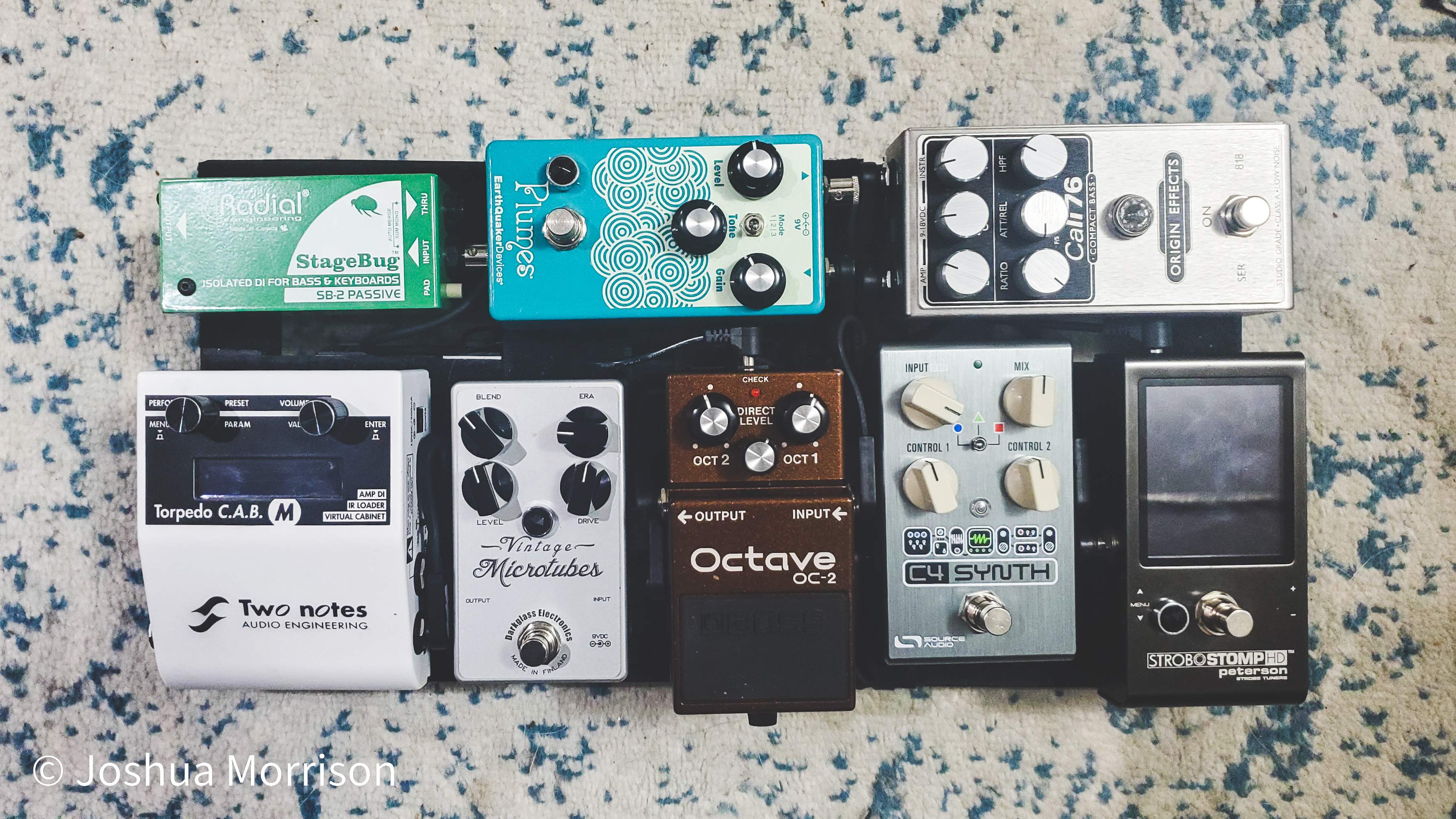

LAKLAND DJ5 > Strobostomp HD > cali76 comp > Source Audio C4 > (SPLIT HERE) >
(Path A) oc-2 > Darkglass Microtoobies > Two Notes CabM > Clean output

(Path B) plumes > radial > Dirty output

Running c4 also split to run additional dirts to Path B.

I'm playing with running a clean and dirty signals for our church recordings. The dirty path is going to be always on pretty heavy and let the sound tech dial in what they need on a separate channel.

Going this route because I've never had a church sound tech tell me "take what you think is an appropriate level or dirt....then make it like 20% dirtier" until we got to this new church hahaha



[Vunz]

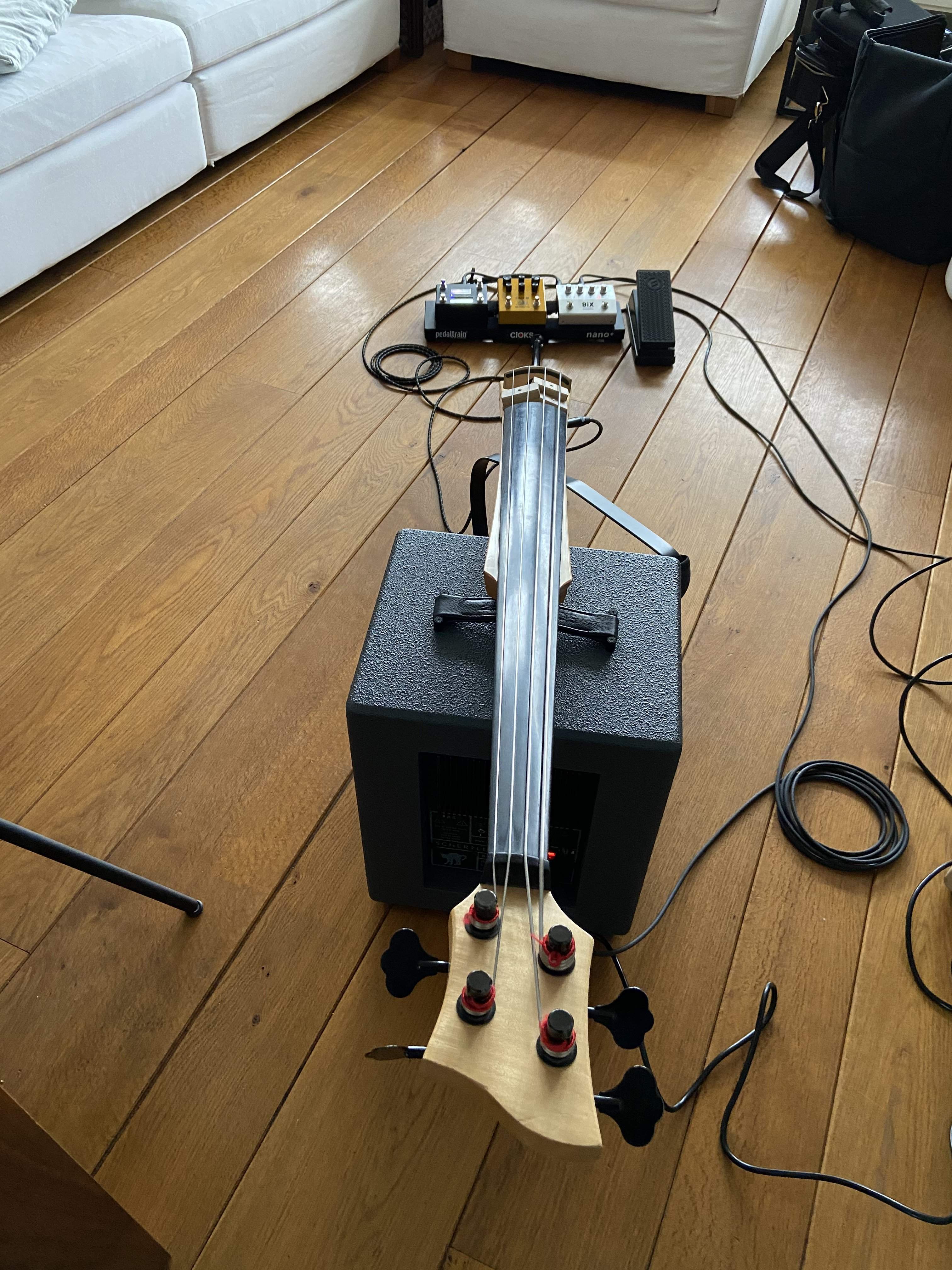

Some more pictures, together with my bass:



[Diegombass]

All on my metro16. I think I'm done for a bit lol View attachment 4215181

What about the octaver on C4, doesn't sound like the OC2?



[redstrand]

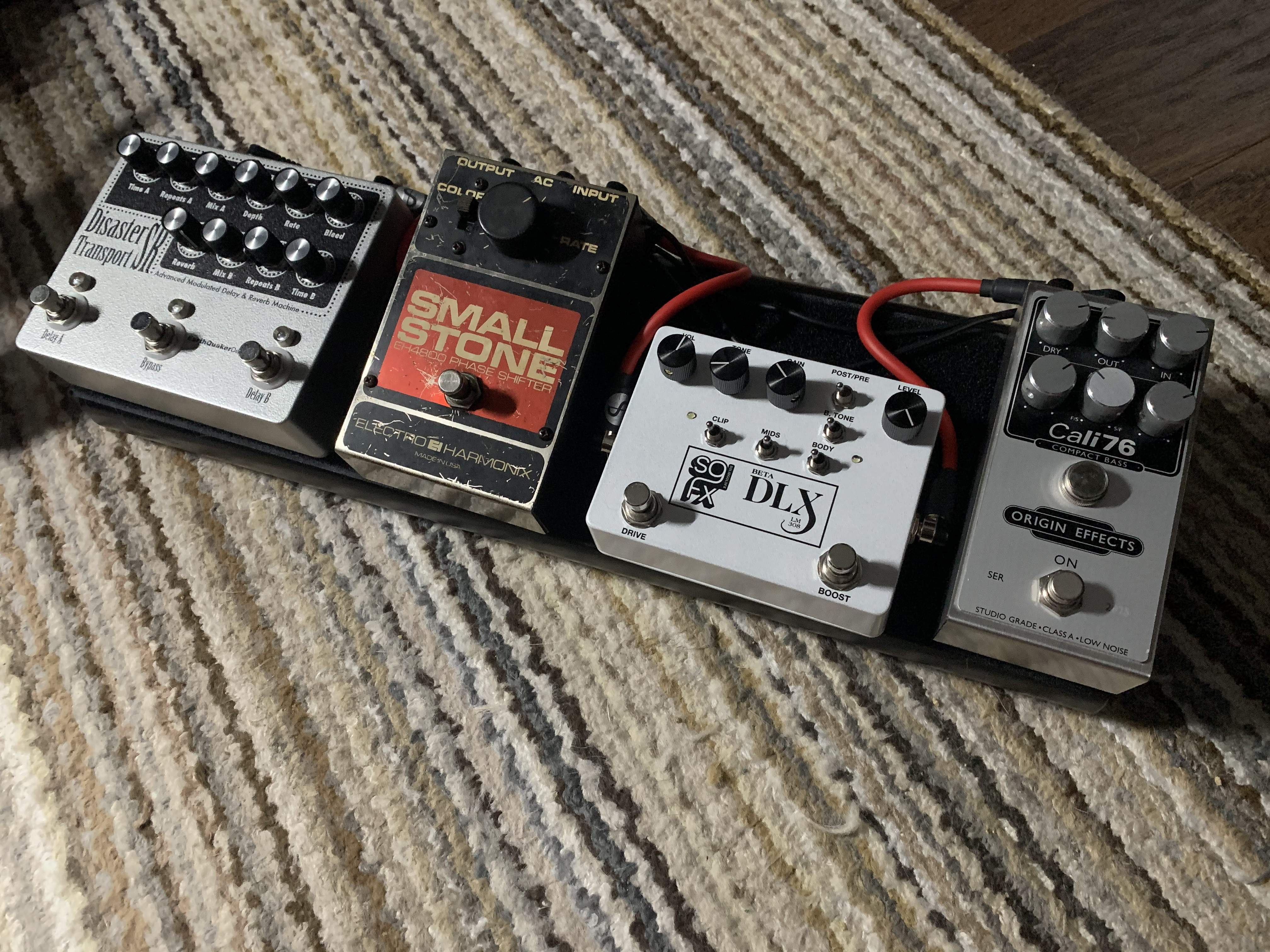

Came to my senses and put the MBD back on main small board and moved the DLX over to 1A



[LaklandLaksNADA]

What about the octaver on C4, doesn't sound like the OC2?

Nothing can quite Match the real thing



[bassbrad]

Nothing can quite Match the real thing

Opinions vary and a whole bunch of us do disagree.



[LaklandLaksNADA]

Opinions vary and a whole bunch of us do disagree.

That's fine. Don't run one on your board. =)



[RattleSnack]

Some more pictures, together with my bass:

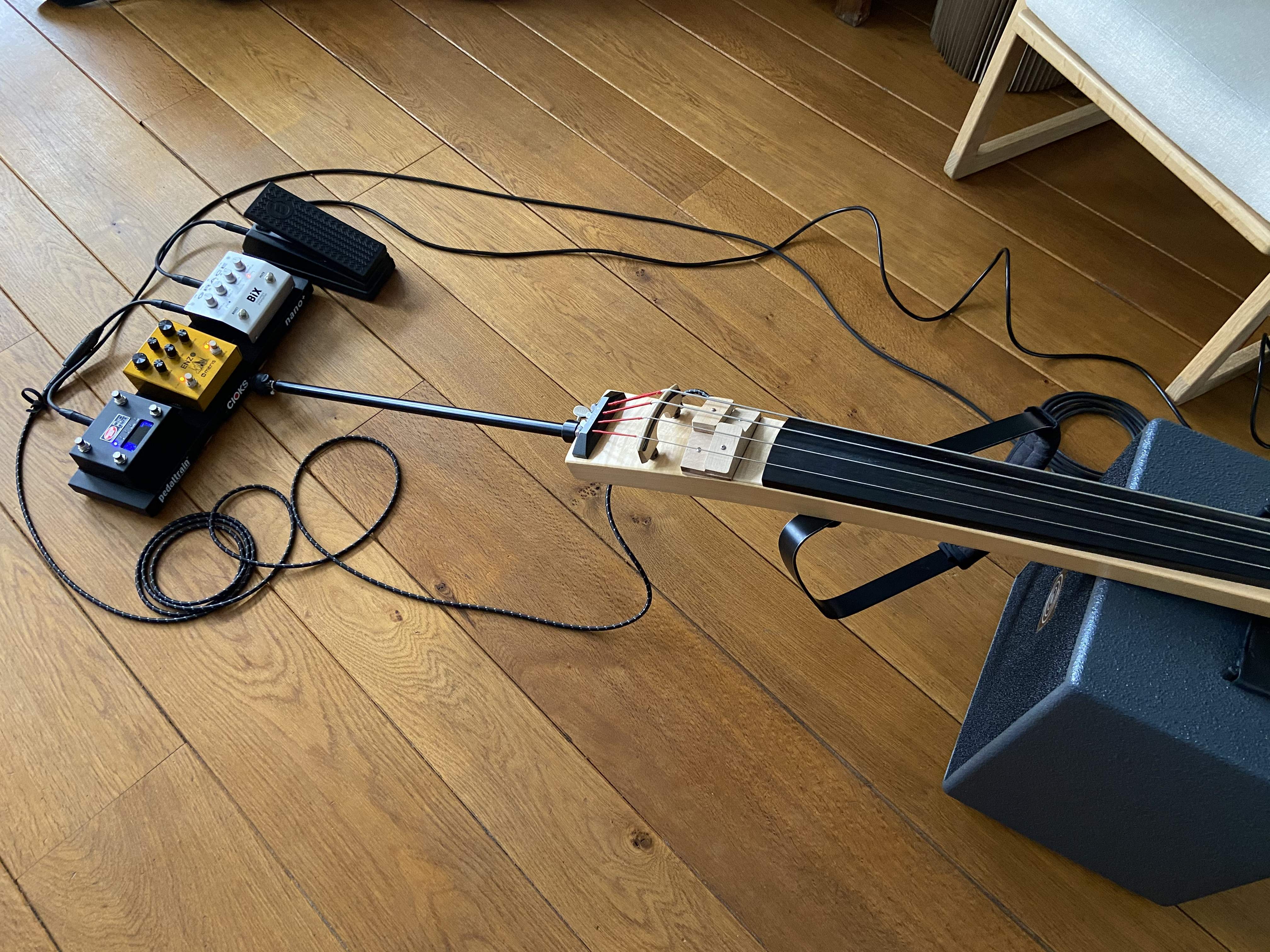

View attachment 4215519 View attachment 4215520

This EDB is very interesting, please add some info!
