Show me your compact pedalboard setup

#1,141

Gator G-Tour Pedalboard-SM

Voodoo Labs Pedal Power ISO-5

Signal Chain
• Shure GLXD6 Wireless/Tuner
• BOSS LS-2 Line Selector
Loop A
->• MXR M288 Bass Octave Deluxe
->• Source Audio Manta Bass Filter Soundblox 2
Loop B
-> • Electro-Harmonix Nano Bass Big Muff Pi
• MXR M83 Bass Chorus Deluxe
• MarkBass Compressore
• Tech 21 SansAmp VT Bass DI
-> DI to Board
-> Line Out to MXR M108 10 Band EQ to ART Pro MPA II to Crown XLS1000

  • Like
Reactions: Kijuer, glassmoon, HolmeBass and 7 others
#1,144
srcTW said:

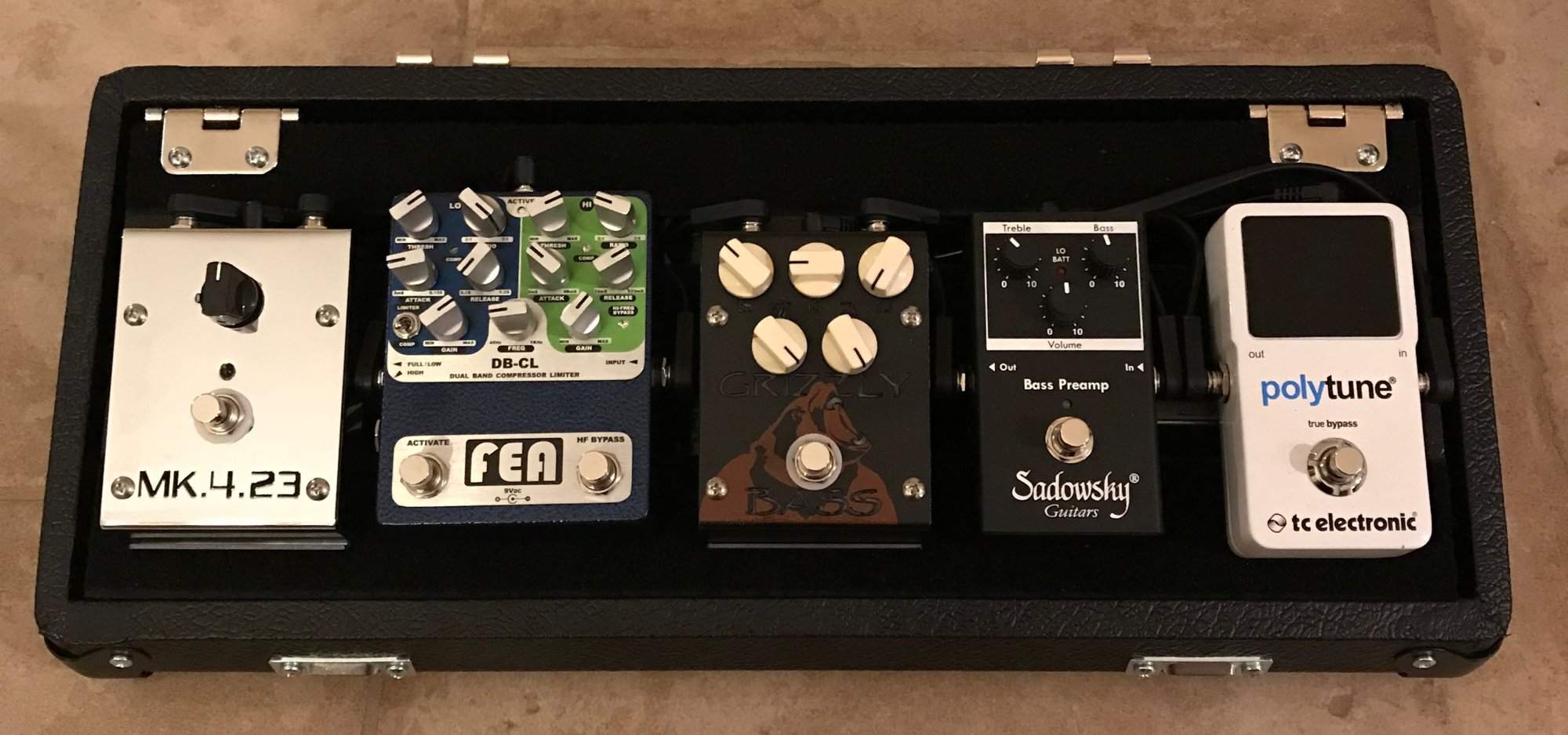

My latest incarnation. Based on a Pedal Pad. It's a keeper. The power and the input and output route through the sides of the case. The Sadowsky is there for my passive 4. The boost is sometimes swapped out for a volume pedal.
Click to expand...

Hey There!

Is your board the AXS III Mini? If so, I'm super curious about them. Here are my questions:
  • How much usable space do you find you have on the top? I have thet dimensions from the company website, but I'd like to see what some users think!
  • Similarly, how spacious is the bottom compartment? Would there be enough space for a power supply and a couple of smaller pedals?
  • Do the Input and Output jacks occupy a lot of space? I know that they use "double female" connectors.
Thanks!
~Nick "Klaus" G.

#1,149
srcTW said:

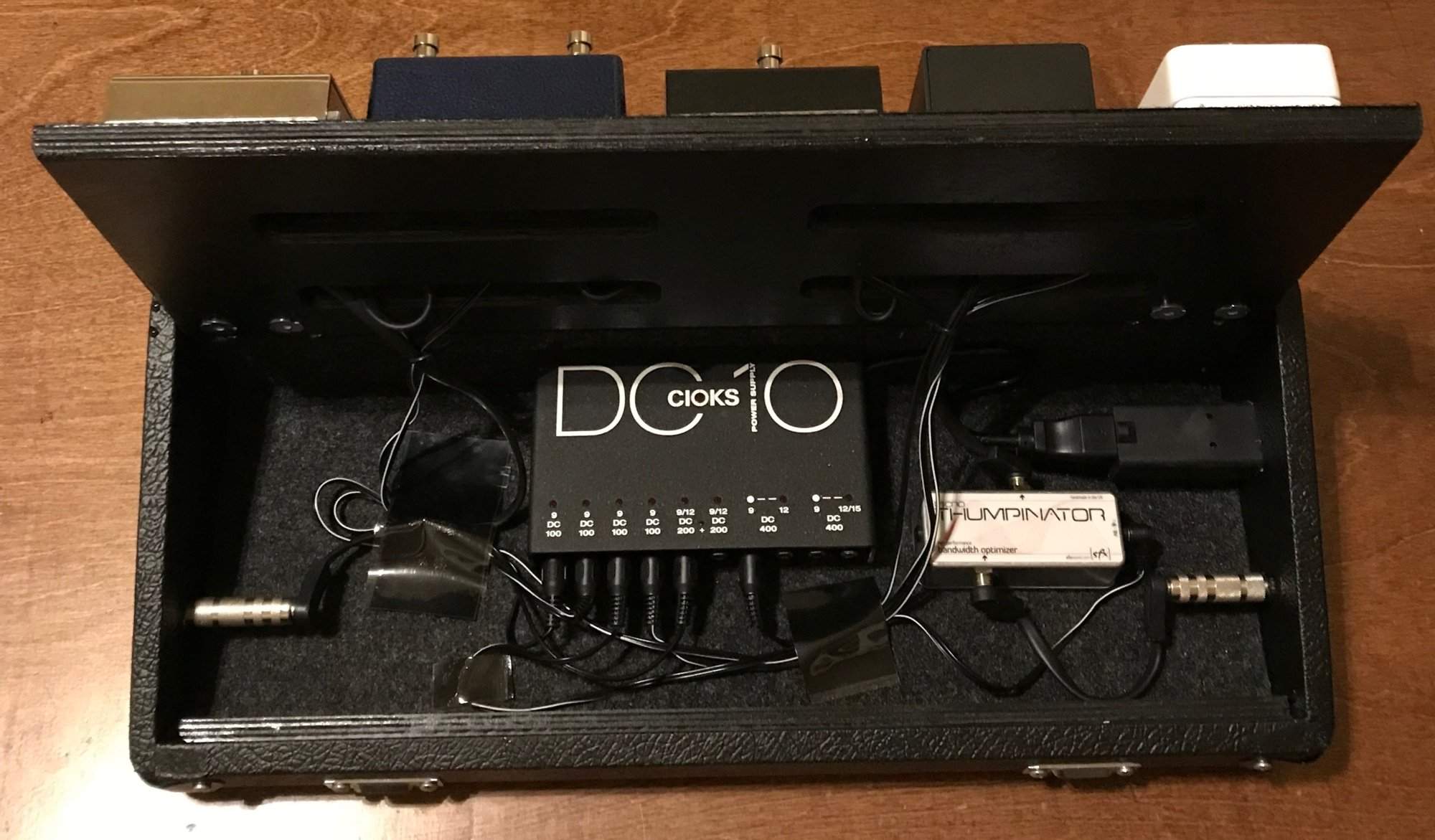

@k.graz here is the inside of the pedalboard. I have a power supply and a mini pedal (you could probably fit two. The 1/4" are single on either side (and are the double female) but they are situated in a location that does not interfere with the power supply. I'm very happy with this.
Click to expand...

Thank you so much! This is especially useful because I use the same power supply (CIOKS power supplies are incredible). It looks like I could probably fit my always-on compressor and something else down below (probably something I could activate with a blender of some sort).

I'm totally sold.

Rock on!
~Nick "Klaus" G.

  • Like
Reactions: srcTW
#1,151
Drucifer said:
Beautiful board! Did you make it or is there someone out there doing this so I can get one? What's the black box below the tuner?
Click to expand...

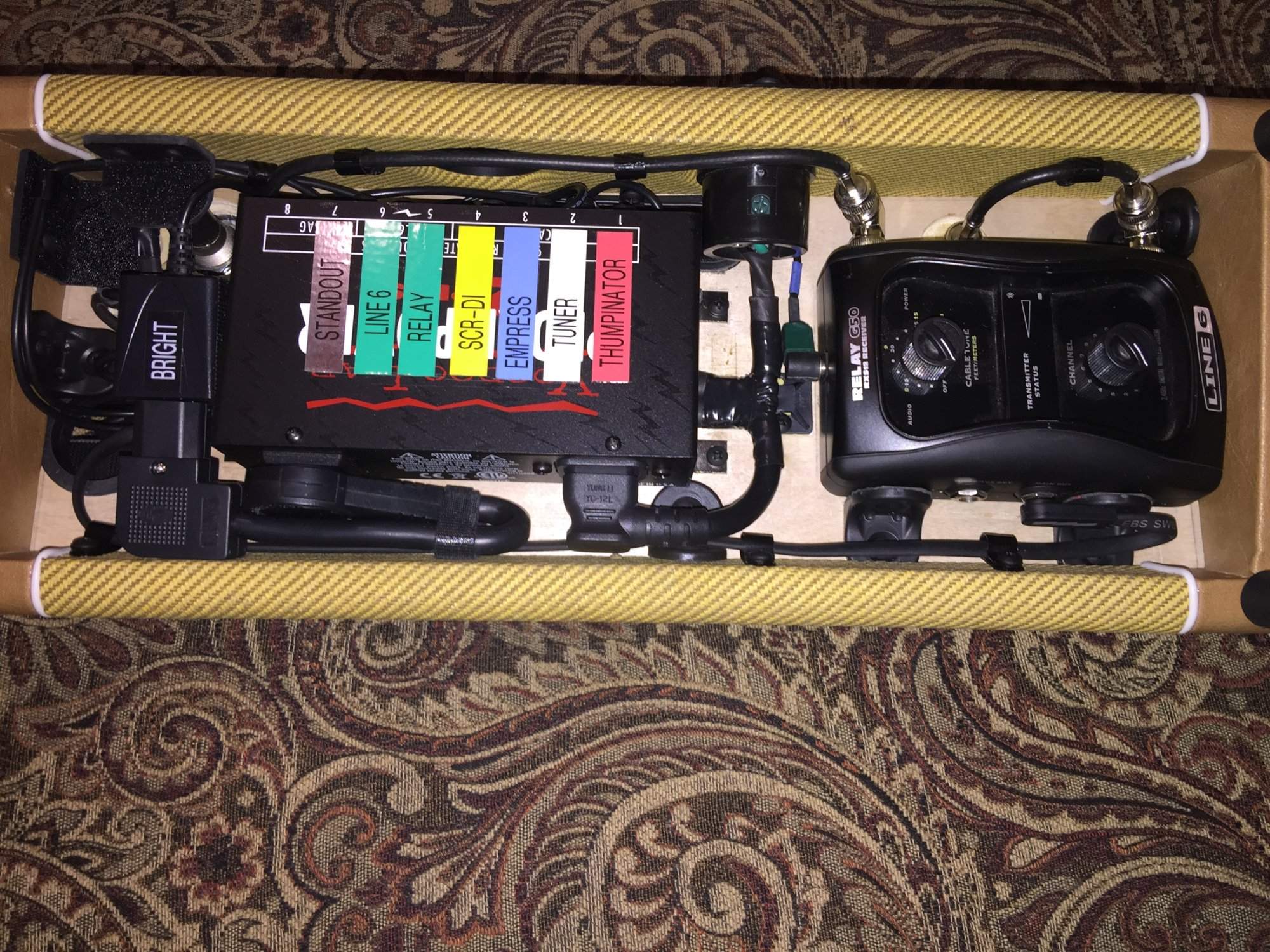

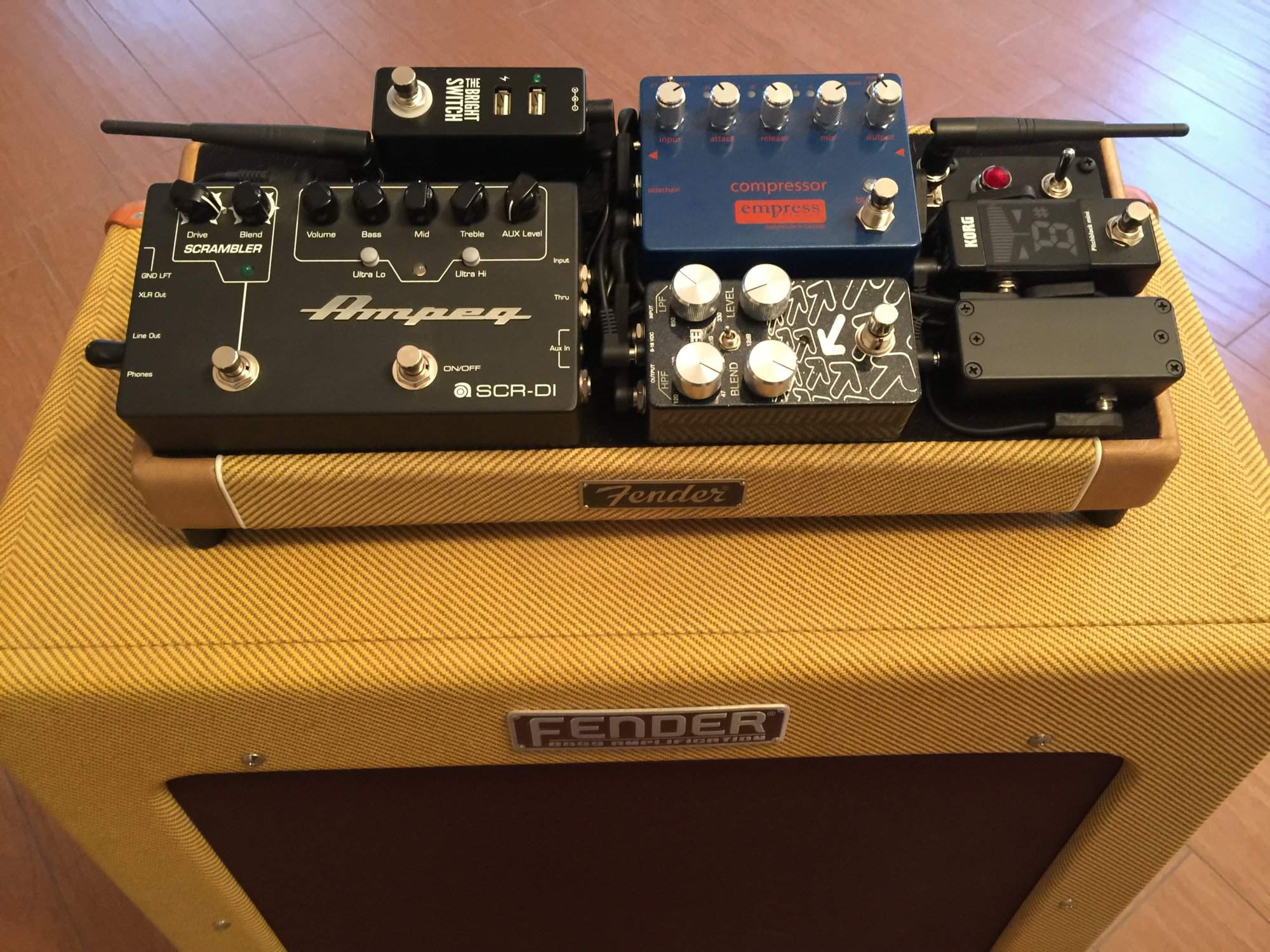

Thank you. Blackbird Pedalboards. Lacquered tweed Leo Featherboard. I added the switch and light from parts from West Coast Pedalboards and modified the power cord to wire them in. I had to put slightly taller feet on the pedalboard so the power supply would fit. I have the Thumpinator in the Empress Compressor sidechain. I flipped the Thumpinator over to get the input jack lower to the board since it’s close to the front edge. I painted it satin black to blend in a little better.

  • Like
Reactions: DrewinHouston
#1,154
BrentSimons said:
Nice! :) Very Pino if I can say that? ;)

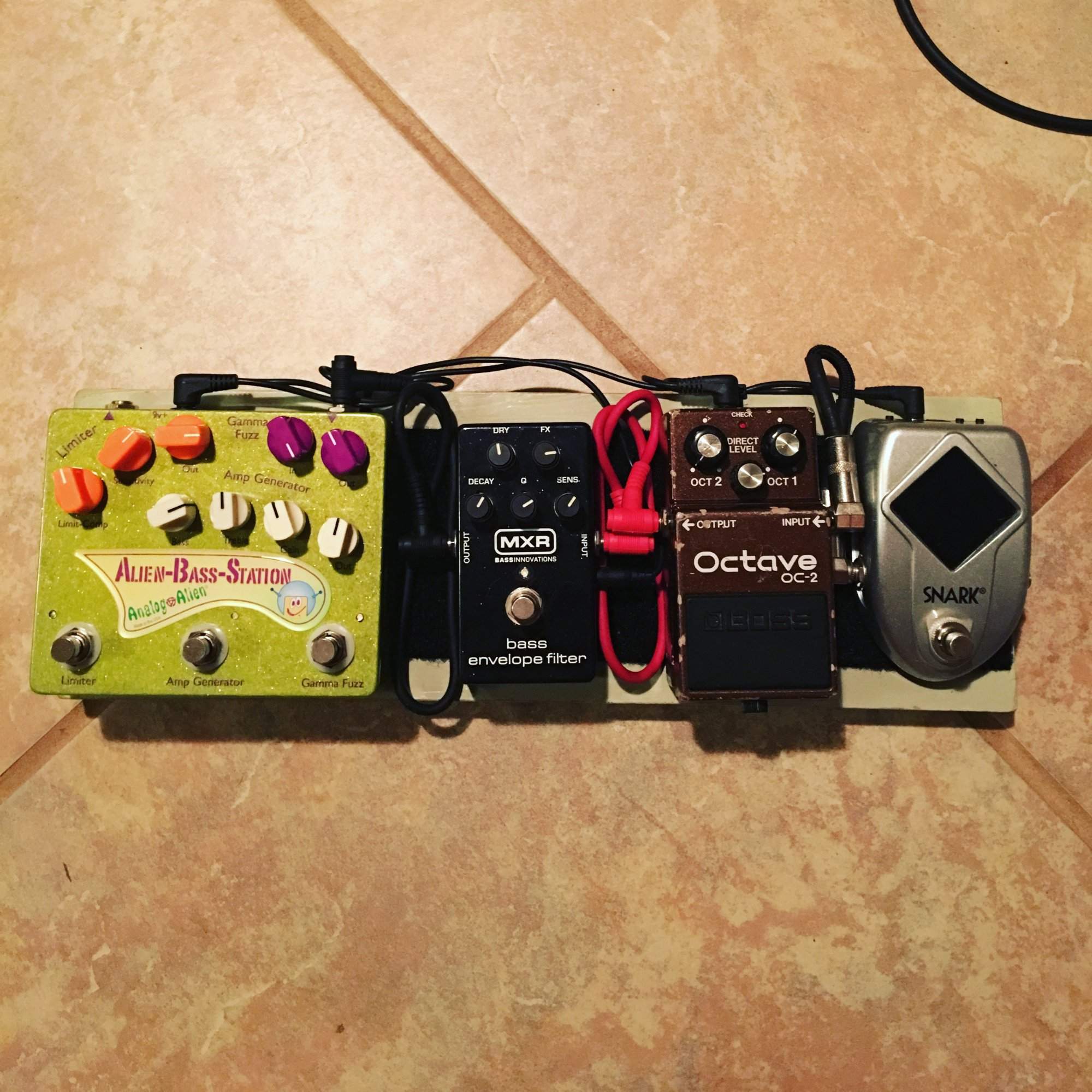

How are you enjoying the Alien Bass Station? it seems like such a cool pedal.
Best wishes,
Brent
Click to expand...
Definitely a Pino fan! And Tim Lefebvre, who is a fan of Pino. Tim also uses the alien bass station. I love it very much it can get anywhere from the light B15 tube breakup all the way to some crazy fuzz. It’s amazing. I highly recommend it.

  • Like
Reactions: StrangerBasses, 9mmMike and BrentSimons
#1,158
Hajimo said:
Which powered pedal board is that? Looks perfect for my practice amp!
Click to expand...
That's from voodoo labs. It is a "dingbat" small size. I like the board and especially the Power 2 plus. With the accessory outlet, I can run my head from the board too. A very tidy setup. I carry a couple different length IEC cables so I can reach the board from wherever the power may be hidden on stage.
My only complaint is that the bag for the board (which is nice) does not have any pockets.
