Show me your compact pedalboard setup

#1,101
BrentSimons said:
Might be an EQ thing? high presence settings can definitely add hiss.
Brent
Click to expand...

I have been meaning to look into the settings on the Zoom to see if I might be able to make some adjustments without affecting the overall tone/sound of each patch. I will have to see what I can figure out. While the Decimators take care of the hiss between notes and during rests I do still have some hiss while playing. I think you are right in that I need to look into making some EQ adjustments - thanks for the observations!

  • Like
Reactions: BrentSimons
#1,102
This is about as Compact as I can get really. I'd still like a well featured delay pedal, a expression/volume pedal and an Octave pedal on it though. After that it will be complete.


  • Like
Reactions: mrwood4, Philly Watts, Hajimo and 1 other person
#1,103
Somnambulance said:
This is about as Compact as I can get really. I'd still like a well featured delay pedal, a expression/volume pedal and an Octave pedal on it though. After that it will be complete.

View attachment 2753154
Click to expand...
I've been reading a lot of Ictineo threads and you seem to be in a few but I do not see one on this board. Did you ditch it?

  • Like
Reactions: Somnambulance
#1,105
Das Jugghead said:
I have been meaning to look into the settings on the Zoom to see if I might be able to make some adjustments without affecting the overall tone/sound of each patch. I will have to see what I can figure out. While the Decimators take care of the hiss between notes and during rests I do still have some hiss while playing. I think you are right in that I need to look into making some EQ adjustments - thanks for the observations!
Click to expand...
Oh glad to help! Great looking pedalboard man! Clean and efficient.
Brent

  • Like
Reactions: Das Jugghead
#1,108
Salud!

My new compact board, very straighforward: Tuner -> Compressor -> Delay (I really use it as basic looper and for a very few slow, spacey passages) -> Preamp/distortion. Power is provided by a mobile power pack to minimize electric noises from lights (I've had problems in some venues). The base is a Temple Audio Design Solo 18, great concept.

Edit: no strange, obscure and mysterious boxes here, sorry.


Attachments

  • IMG_0122.JPG
    170.8 KB · Views: 45
  • Like
Reactions: mlove
#1,109
Aidil said:

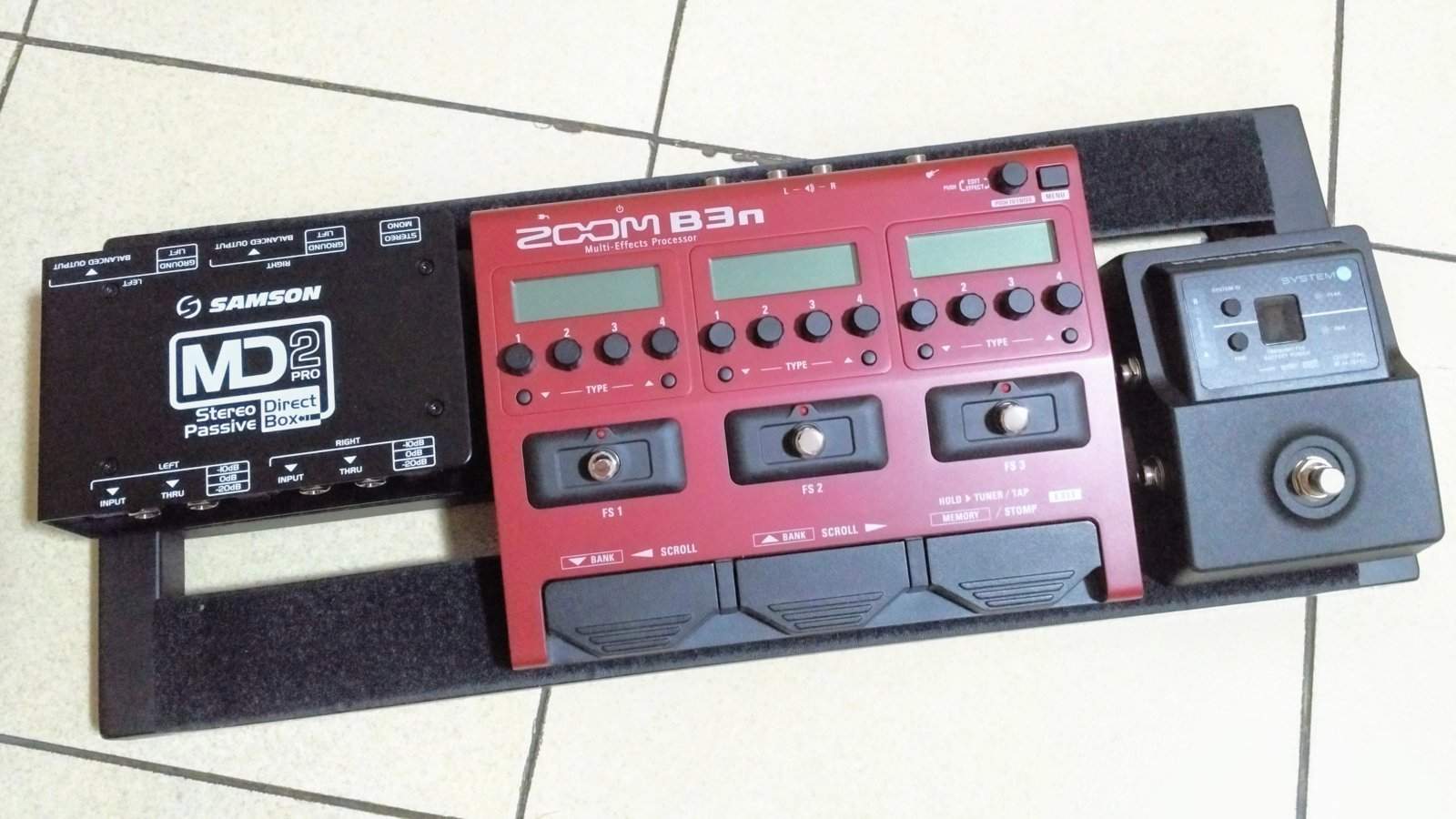

Does this fall into category of compact pedalboard setup?

View attachment 2752711

The routing cables are on preparation and I'm still waiting for the pedaltrain Spark to hit the market for powering the wireless and the Zoom from underneath the pedaltrain. So meanwhile, the two are still powered by their own wall warts.
Click to expand...
Nice!
Did you know: The second output of the AT System 10 is a balanced DI output as well (you can send a dry signal and blend it with your tone). Love it!

  • Like
Reactions: Aidil
#1,112
Philly Watts said:
Nice!
Did you know: The second output of the AT System 10 is a balanced DI output as well (you can send a dry signal and blend it with your tone). Love it!
Click to expand...
Yes, I'm aware the two outputs on AT System 10 Stompbox can be used simultaneously for two different path of sounds. But, thank you for reminding me that the two outputs are balanced TRS outputs. Now I remember why I had wanted to get a TRS to XLR cable some time ago. AAMOF, I also have the System 10 amp top version and I've used the balanced XLR output on it (though this one only has a single balanced output).


Philly Watts said:

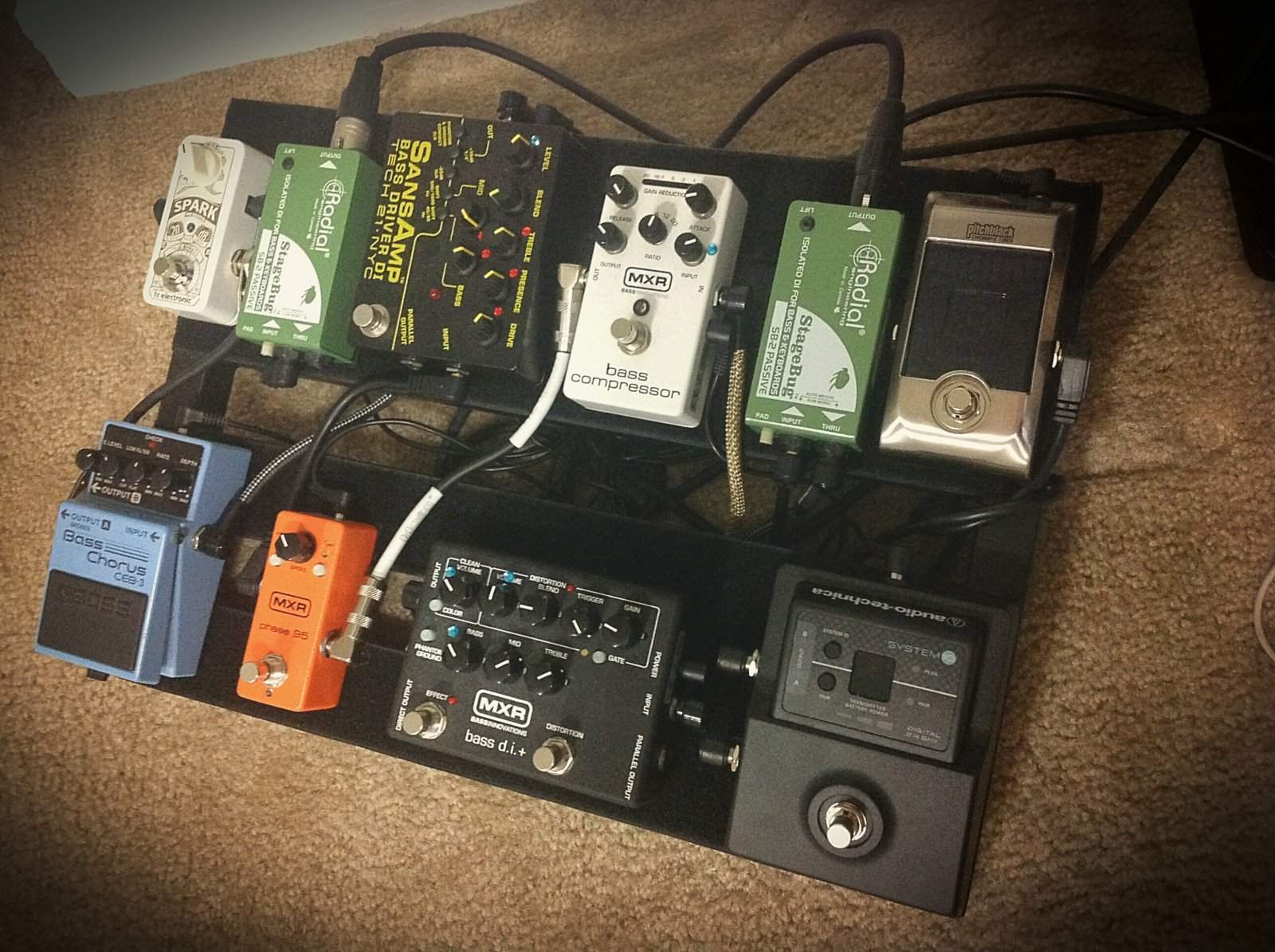

View attachment 2753604Bam!
Dry DI section on the right,
Processed clean or dirty DI on the left.
Click to expand...
Wow, I count at least 6 balanced outputs on that board. Why do you still need the 2 Radials when you've had 4 already?

How are the two mentioned routings configured?

  • Like
Reactions: NKBassman
#1,113
Aidil said:
Yes, I'm aware the two outputs on AT System 10 Stompbox can be used simultaneously for two different path of sounds. But, thank you for reminding me that the two outputs are balanced TRS outputs. Now I remember why I had wanted to get a TRS to XLR cable some time ago. AAMOF, I also have the System 10 amp top version and I've used the balanced XLR output on it (though this one only has a single balanced output).



Wow, I count at least 6 balanced outputs on that board. Why do you still need the 2 Radials when you've had 4 already?

How are the two mentioned routings configured?
Click to expand...

The left side Radial has all my effects and the right has a dry DI and the thru output runs into my tuner.

Signal Chain 1: Wireless Output A -> MXR M80 -> MXR M87 -> MXR Phase 95 -> Sansamp BDDI V2 ->Boss CEB-3 -> TC Spark Mini -> Radial SB-2 (Left side)

Signal Chain 2: Wireless Output B -> Radial SB-2 (Right side)

Here is a sample of the tone I'm able to get:
[Invalid or Expired Link Removed]

Last edited:
  • Like
Reactions: Zbysek, smogg, HalfManHalfBass and 2 others
#1,116
Philly Watts said:
The left side Radial has all my effects and the right has a dry DI and the thru output runs into my tuner.

Signal Chain 1: Wireless Output A -> MXR M80 -> MXR M87 -> MXR Phase 95 -> Sansamp BDDI V2 ->Boss CEB-3 -> TC Spark Mini -> Radial SB-2 (Left side)

Signal Chain 2: Wireless Output B -> Radial SB-2 (Right side)

Here is a sample of the tone I'm able to get:
[Invalid or Expired Link Removed]
Click to expand...
That's a great tone you got going on there!

  • Like
Reactions: Philly Watts
#1,119
Philly Watts said:
The left side Radial has all my effects and the right has a dry DI and the thru output runs into my tuner.

Signal Chain 1: Wireless Output A -> MXR M80 -> MXR M87 -> MXR Phase 95 -> Sansamp BDDI V2 ->Boss CEB-3 -> TC Spark Mini -> Radial SB-2 (Left side)

Signal Chain 2: Wireless Output B -> Radial SB-2 (Right side)

Here is a sample of the tone I'm able to get:
[Invalid or Expired Link Removed]
Click to expand...
Have you ever tried the balanced output from the AT System 10 Stompbox directly to mixing console/recording interface?
