They varied slightly due to winding techniques used at that time. The reading is ball park. The coils are wired in parallel which will give a reading of around 2K. I've seen them range from 1.8K up to 2K.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Stingray aftermarket 2 band pre
- Thread starter blmeier7
- Start date
They varied slightly due to winding techniques used at that time. The reading is ball park. The coils are wired in parallel which will give a reading of around 2K. I've seen them range from 1.8K up to 2K.
so now that these arent popping up on ebay anymore, anyone here willing to build one to sell me? ive got a passive sub 5 that id love to make active. all this talk of resistors and op-amps is way being my scope of electronics handyness
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses

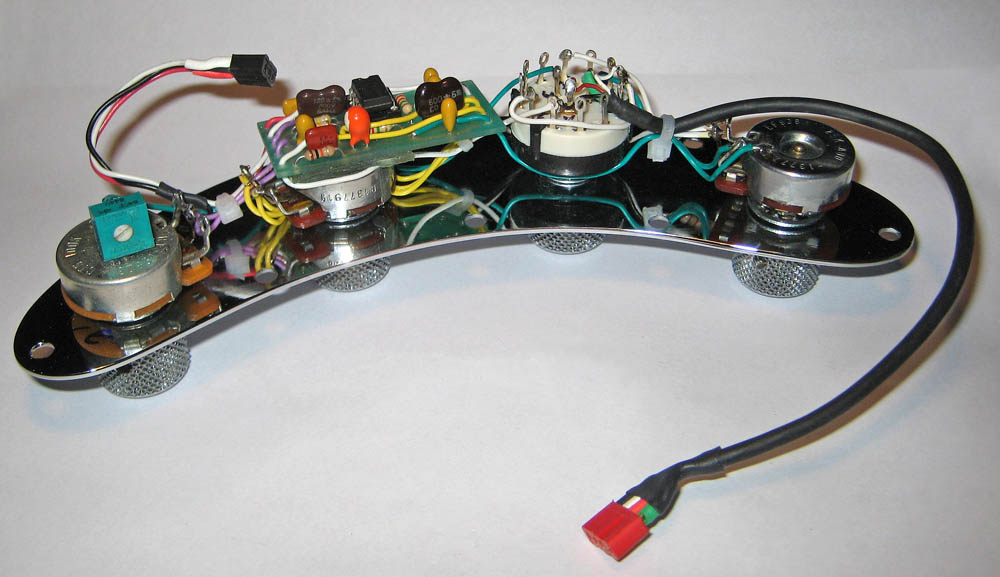

i've made a few of unclefluffy's 2 band pre's and they are great. made this one for my lightweight stingray using NOS CTS pots, and with solderless connectors which also has a 3 way split/parallel/series switch. the small trim pot mounted on the bass control is to balance the output when in the series mode, since it's alot hotter when it's in series.
and i made this one for an OLP bass on a new OLP control plate:
and i made this one for an OLP bass on a new OLP control plate:
John - Thanks for the pics, seeing the boards come to life and make people happy is even better than beer.
(though I have to say - they're not really "my" preamps - there's a lot of other people's work in there)
(though I have to say - they're not really "my" preamps - there's a lot of other people's work in there)
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses
well, you did a truly remarkable and professional job on the pcb's Derek, and i can't thank you enough for them.
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses
i'm waiting for someone to make some reasonably priced CNC'd, or cast lightweight chromed stingray dome knobs (or p bass barrel knobs) instead of the brass ones that everyone makes today. there is one guy that makes aluminum ones that look pretty nice, but they aren't chrome plated and he wants $34 a pair.
the vintage fender p bass knobs from the 60's-70's were lightweight and very nice. unfortunately they sell for over $100(pr) nowadays.
the vintage fender p bass knobs from the 60's-70's were lightweight and very nice. unfortunately they sell for over $100(pr) nowadays.
Talk to me about that in about 3 months. There's a lathe on the way for Xmas and it'll take me some time to put together a CNC controller for it.
Alternatively, try emachineshop.com. I've had a few things made through them and they're pretty good. Not sure about current pricing. One warning - make sure you specify cleanup processes, else you'll get a lot of machining marks on the piece.
Quick heads up - it looks like the last two boards from that batch have been claimed.
I can do another run if there's enough interest, but the minimum size would be 50 boards so that would have to be a fair amount of interest
(NB This would probably end up in the bazaar section next time round out of respect for TB rules - this was never meant to grow into something this size. Pricing would be the same: "a beer a board").
I can do another run if there's enough interest, but the minimum size would be 50 boards so that would have to be a fair amount of interest
(NB This would probably end up in the bazaar section next time round out of respect for TB rules - this was never meant to grow into something this size. Pricing would be the same: "a beer a board").
I just finished building one of these from Fluffy's board. Worked first time I fired it up! I built it with mostly stuff I had laying around. I mocked it up on a OLP. Now I have the correct pots on order, and then a little wood work and it will be done. Thanks to Fluffy for this one!
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses
here's another one of fluffy's boards that i built up using NOS USA pots, mounted on a new MM stingray control plate. on this one, i used the can type electrolytics instead of tantalums, ceramics instead of silver micas, and a mylar .047uf instead of a ceramic since that's what EB uses in their new 'classic' rays.
OK, there's been a couple of PMs, so I *will* be doing a second run. I'll probably send it off just before I leave for the Xmas holiday so there will be another pile available starting mid-January.
Will update when they arrive.
Will update when they arrive.
- Feb 16, 2008
- 21,240
- 23,638
- Disclosures
- John K Custom Basses
)
Thanks
To make planning a little easier, could I ask anyone who might be interested in more than 1-2 boards this time around to drop me a PM with a note saying how many they're looking for. This isn't a firm commitment or anything, just something to help me figure out how many to order.

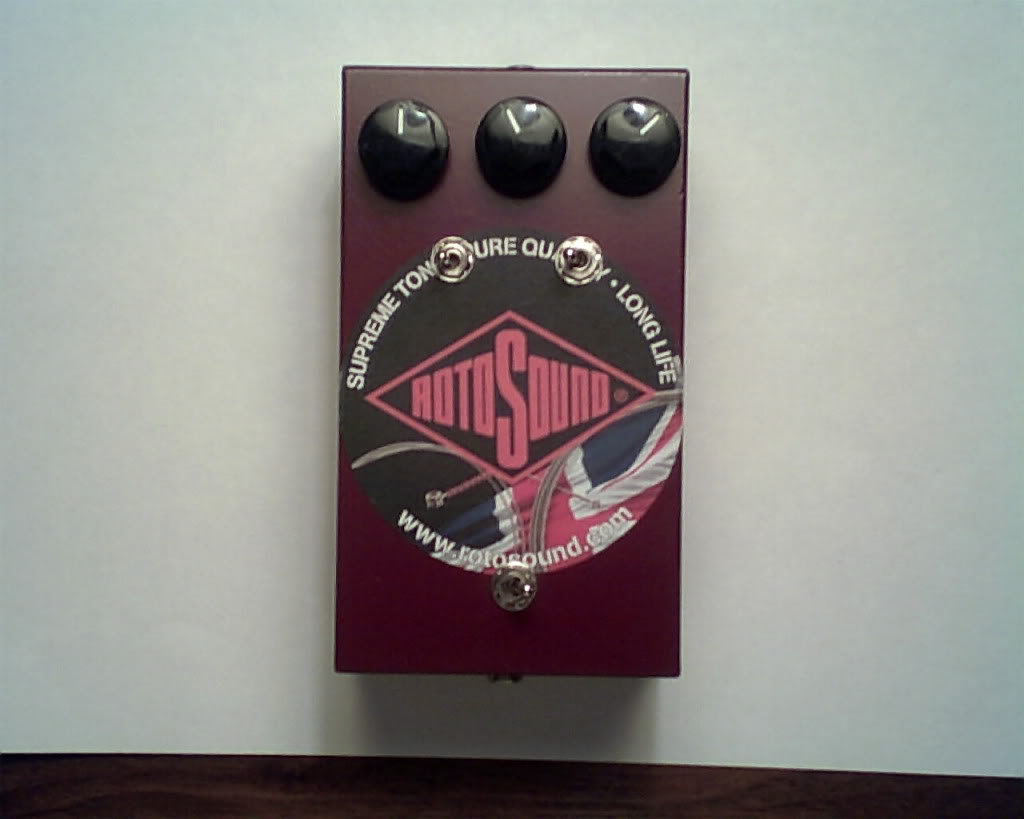

This is one of the preamps I put in a box. added a switch to select a 100K or 220K input resistor. added a bright switch for piccolo bass and guitar that selects a 1nF, 2.2nF, or 4.7nF cap which is in parallel with the input resistor.
Using an LT opamp and bumped the voltage up to 18V. sounds great!
Using an LT opamp and bumped the voltage up to 18V. sounds great!
