tell me about Super Ferrite pickups...need info...

[Green Knight]

And thank you to everybody who made sound demos ... ordering these EMG45 exposed-blade super ferrites from MK for my Birdsong Hy5 6-string was an easy decision to make thanks to all the awesome posters in this thread. Can't wait to get these darkling soaps out and these bright customers in!



[PeaveyPlayer]

Wanting to place an order
Do you have the Jazz 5 as an option on your site ?



[PeaveyPlayer]

Also question
How does form factor affect the tone?
Soap bar vs j shape



[PeaveyPlayer]

Have you ever thought about radiuses blades?



[Matt Kustom]

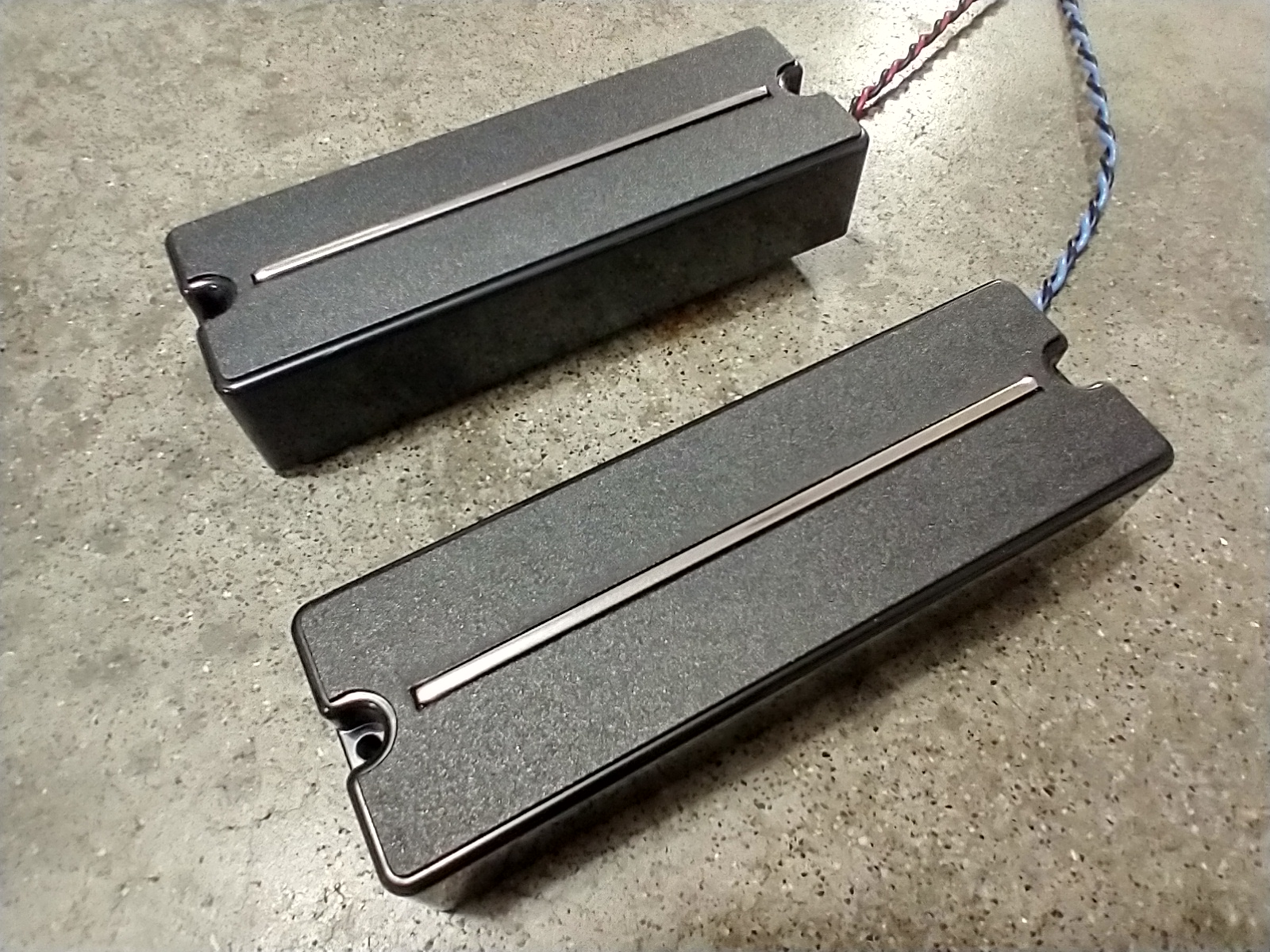

EMG45 - 6 string Super Ferrite with Exposed Blades build going to Canada. These will work with up to 17.5mm string space bass bridges. Will not work with 19mm at allView attachment 5308646

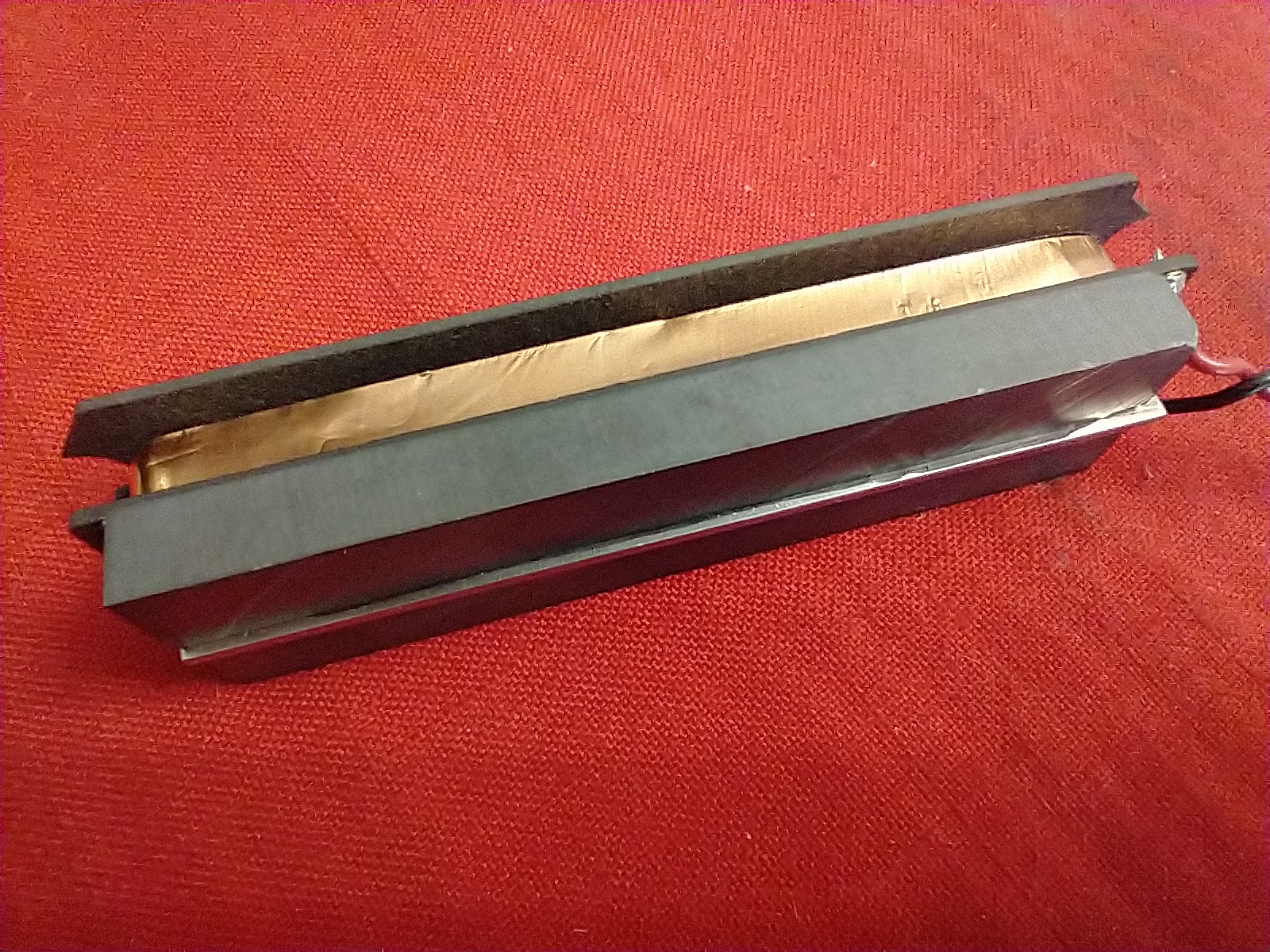

Shots of the finished 6 string coils. You can see that 91mm is maximum in this cover. After magnet wire. Tape to protect coil and copper tape shield the coil is maxed out. Magnets are a perfect fit for this size.



[Matt Kustom]

Wanting to place an order
Do you have the Jazz 5 as an option on your site ?

If you want to place a order DM with details of your order and a email to send money request via PayPal



[Matt Kustom]

Shots of the finished 6 string coils. You can see that 91mm is maximum in this cover. After magnet wire. Tape to protect coil and copper tape shield the coil is maxed out. Magnets are a perfect fit for this size.View attachment 5309492

Final numbers for this set 5.31k neck 5.32k bridge with full shield



[Matt Kustom]

Shipping out tomorrow.



[ctmullins]

Such clean work. Just gorgeous!



[Green Knight]

Shipping out tomorrow.View attachment 5309765

This is going to be fun. Thank you MK! For those thinking of pulling the trigger, let me say I ordered these on what -- Friday? -- and they were shipped by Monday; he made them over the weekend, posting pictures at every stage. I paid a tiny bit extra for the exposed blades, but $250 flat for two handmade pickups you can't get anywhere else, and with that kind of communication and quality, is pretty amazing. Can't wait to try them out.



[Matt Kustom]

SF Jazz 5 string finished for @PeaveyPlayer
These came out to 5.26k.
78.5mm Blade in both neck and bridge



[5StringPocket]

I have a 5-string bass with P2 size pickups and 18 mm string spacing at the bridge. The bass has a naturally bright timbre with a high mid emphasis. What magnet type and wind configuration would be best for a high output pickup with a good low mid presence to add a little more meat and growl to the tone?



[Matt Kustom]

I have a 5-string bass with P2 size pickups and 18 mm string spacing at the bridge. The bass has a naturally bright timbre with a high mid emphasis. What magnet type and wind configuration would be best for a high output pickup with a good low mid presence to add a little more meat and growl to the tone?

High output / low / mid = Neodymium

Single coil will have more punch
Humbucker will have a bit meat

Ibanez BTB 5 String – Nine One Six Pickups



[5StringPocket]

High output / low / mid = Neodymium

Single coil will have more punch
Humbucker will have a bit meat

Ibanez BTB 5 String – Nine One Six Pickups

Thanks. From this link would the P Neo be the humbucker and the J Neo be the single coil?
Do these have an internal blade or pole pieces?

Super Peavey Shootout Audio Samples
Super Peavey Shootout Audio Samples – Nine One Six Pickups



[Matt Kustom]

Thanks. From this link would the P Neo be the humbucker and the J Neo be the single coil?
Do these have an internal blade or pole pieces?

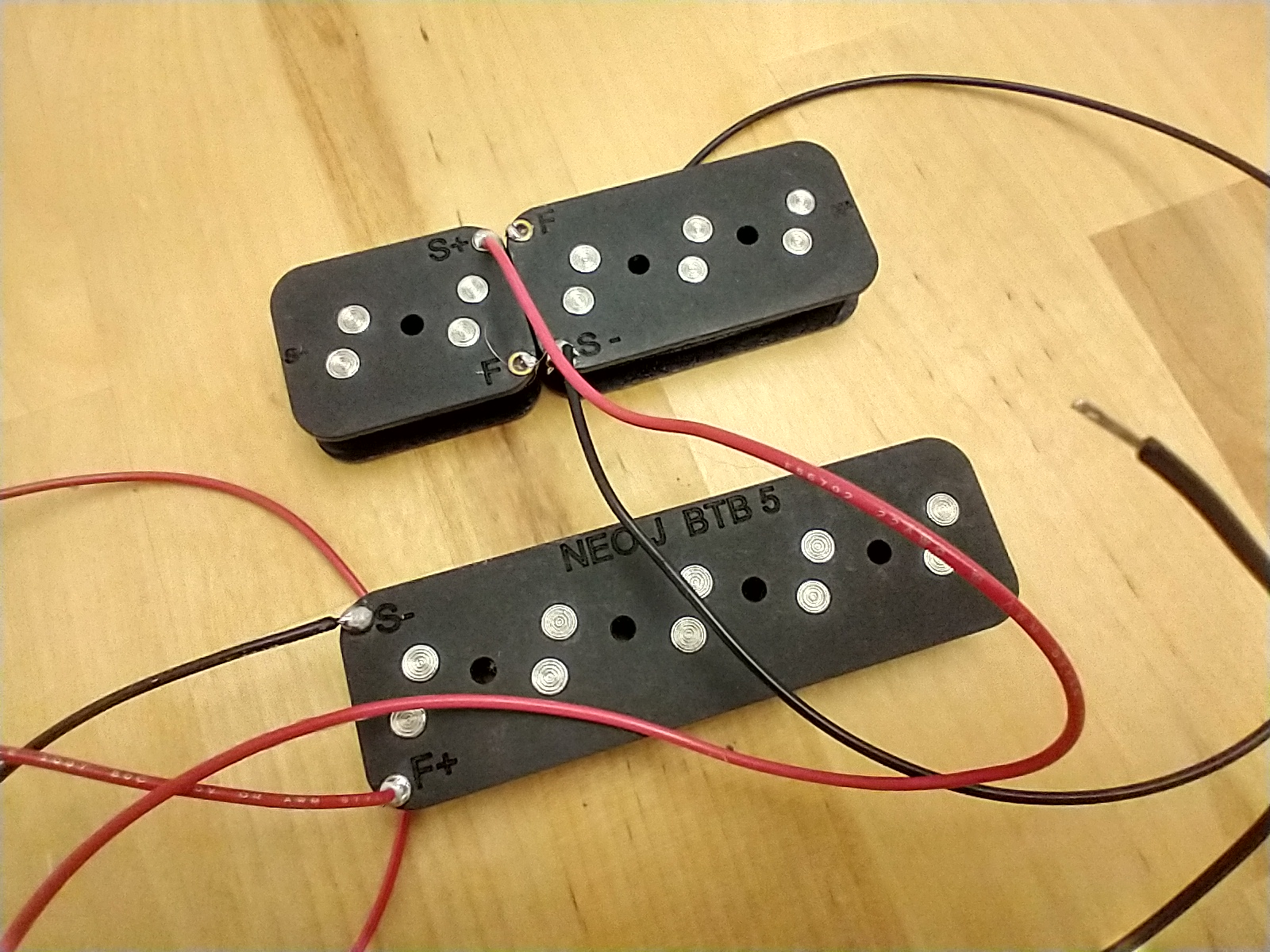

Here is a set ready to go of Neodymium P/J for P2/Ibanez BTB.

These were designed for a friend of mine Dean currently playing with Nita Strauss and also Prong. He was tired of the Bart sound and wanted something that was powerful and no battery



[5StringPocket]

Here is a set ready to go of Neodymium P/J for P2/Ibanez BTB.

These were designed for a friend of mine Dean currently playing with Nita Strauss and also Prong. He was tired of the Bart sound and wanted something that was powerful and no battery View attachment 5319713

I like the looks of that. Just checked the Ibanez website and it looks like the BTB has 19mm spacing.
I imagine getting a set made for 18mm spacing wouldn't be a problem?



[Matt Kustom]

1/4th of a millimeter per string should not be a problem.
The two left and two right slugs can be moved in when holes are cut for 18mm



[Matt Kustom]

Does anyone have a t bird route or T bird bass that would be interested in testing this A5/Neo T bird prototype? Looking for quick installation along with review. Audio or even better video would be appreciated. The Neo EBO on the 916 pickups YouTube is just a down and dirty video that has been very helpful. No crazy production value necessary.

Two of these were built, one is already on its way to @58kites and this one is ready to ship out in trade for test/review. Just looking for honesty. If you test and don't like something constructive criticism is helpful. Trying to see if A5/Neo is beneficial to tone / output / overall sound. The Neos attached are relatively small. If not much is noticable larger Neos could be used. Just wanted to add to the original without totally changing the basic sound



[XsoGol]

Does anyone have a t bird route or T bird bass that would be interested in testing this A5/Neo T bird prototype? Looking for quick installation along with review. Audio or even better video would be appreciated. The Neo EBO on the 916 pickups YouTube is just a down and dirty video that has been very helpful. No crazy production value necessary.

Two of these were built, one is already on its way to @58kites and this one is ready to ship out in trade for test/review. Just looking for honesty. If you test and don't like something constructive criticism is helpful. Trying to see if A5/Neo is beneficial to tone / output / overall sound. The Neos attached are relatively small. If not much is noticable larger Neos could be used. Just wanted to add to the original without totally changing the basic sound

I’m asking my luthier Nick right now…



[XsoGol]

I’m asking my luthier Nick right now…

I have several with the route but none that are ready for testing right away unfortunately but he might. 60s Era TBird pickups are one of my top three faves. I can’t wait to hear these sir!
