That would be an SPDT switch that switches the output of one pup either to the ring or the tip of the stereo jack while the other pup is directly connected to the tip.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.

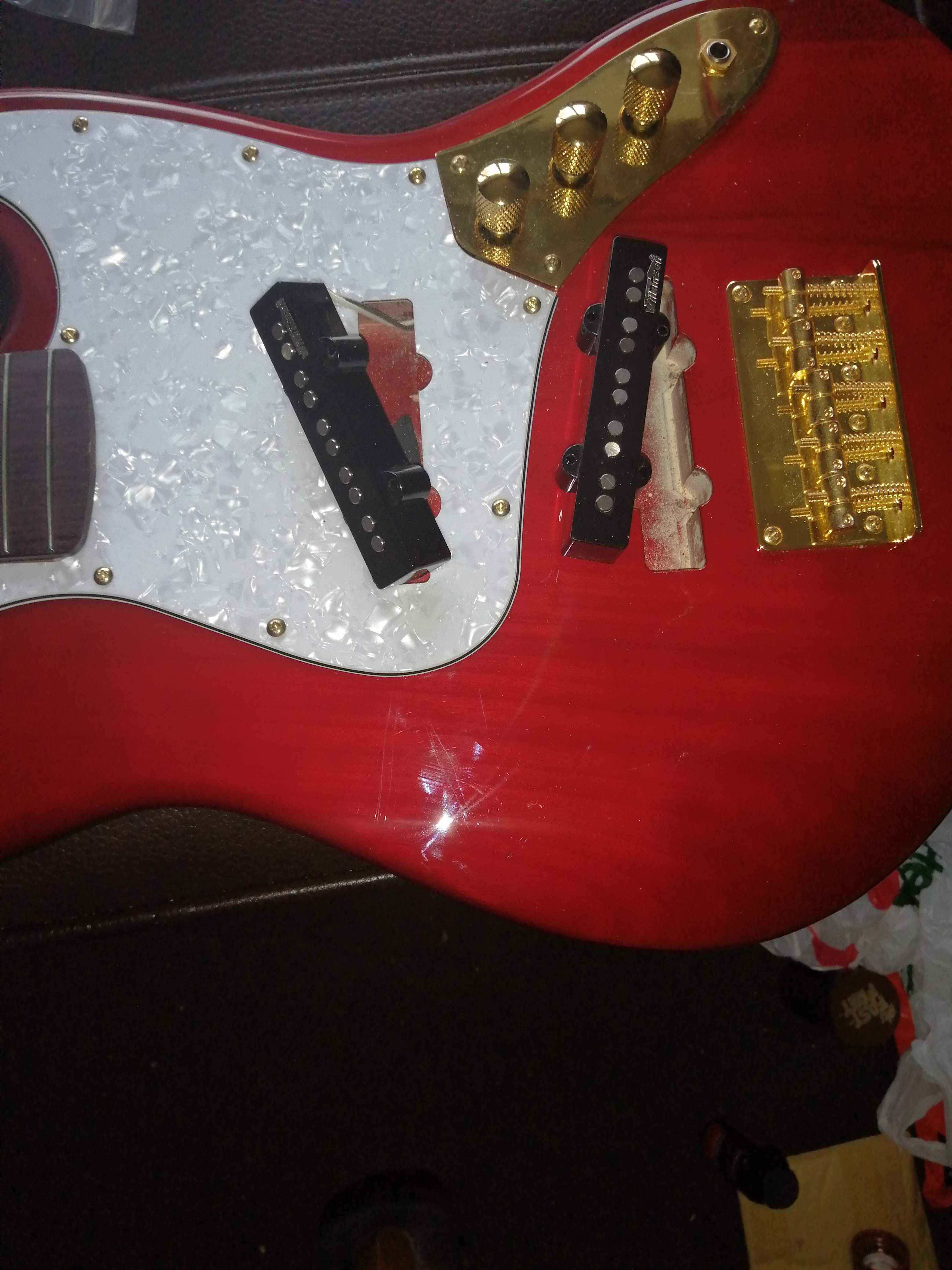

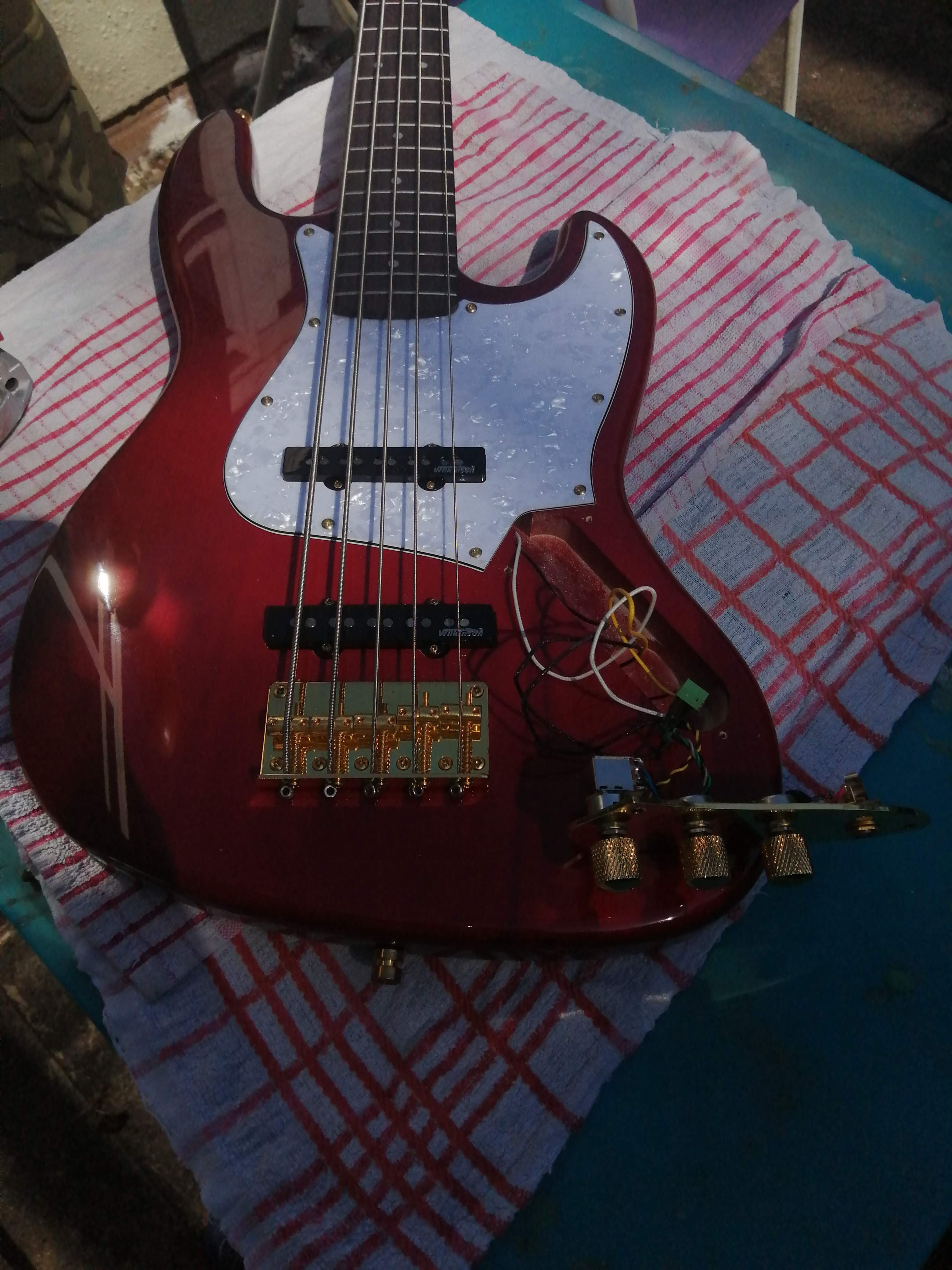

The Mediocre Builders Club
- Thread starter MirandM
- Start date
I think I used a ON/OFF switch between the tip and sleeve connectors on the jack, making it mono output on the tip connector. Works fine.
Unlikely as the ring of a stereo jack gets connected to the sleeve when a mono jack gets inserted. This is very commonly used in basses with an active eq to disconnect the battery when the jack is removed. So in your case that would mean both pups would be connected to ground leading to zero output.

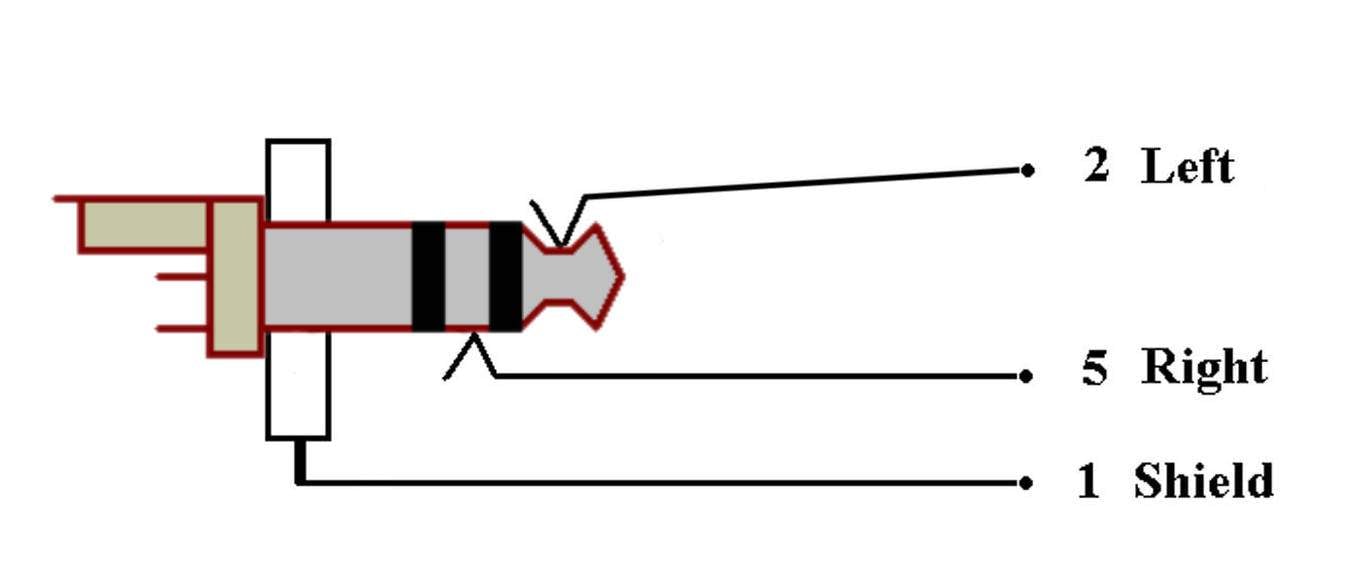

Here's a stereo jack with stereo plug inserted:

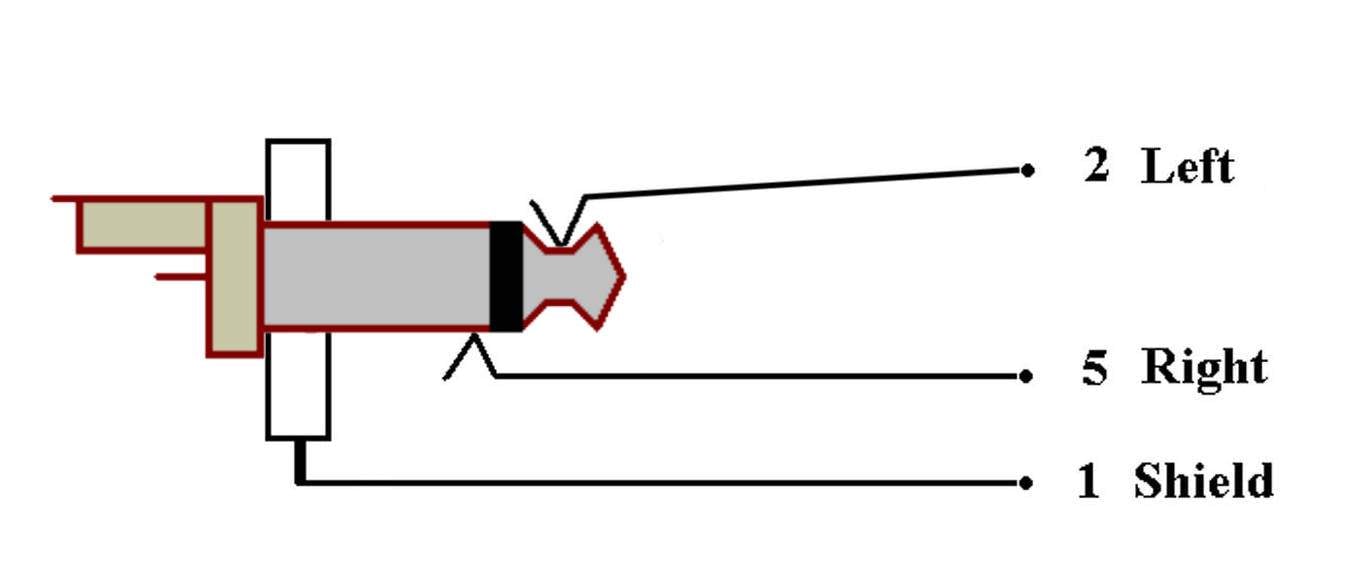

Now here's the same jack with a mono plug inserted:
You can clearly see connection 5-Right being shorted to 1-Shield.
If you were to have an on-off switch between 5 and 2, putting the switch in on position would connect both 2 and 5 to 1 since 5 is already connected to 1.
With an active eq what's done is that 5 is connected to the negative battery pole. With the jack removed it would not have a negative connection to the eq, thus as if there's no battery. Inserting the mono jack would connect the negative pole to the eq meaning activated eq.

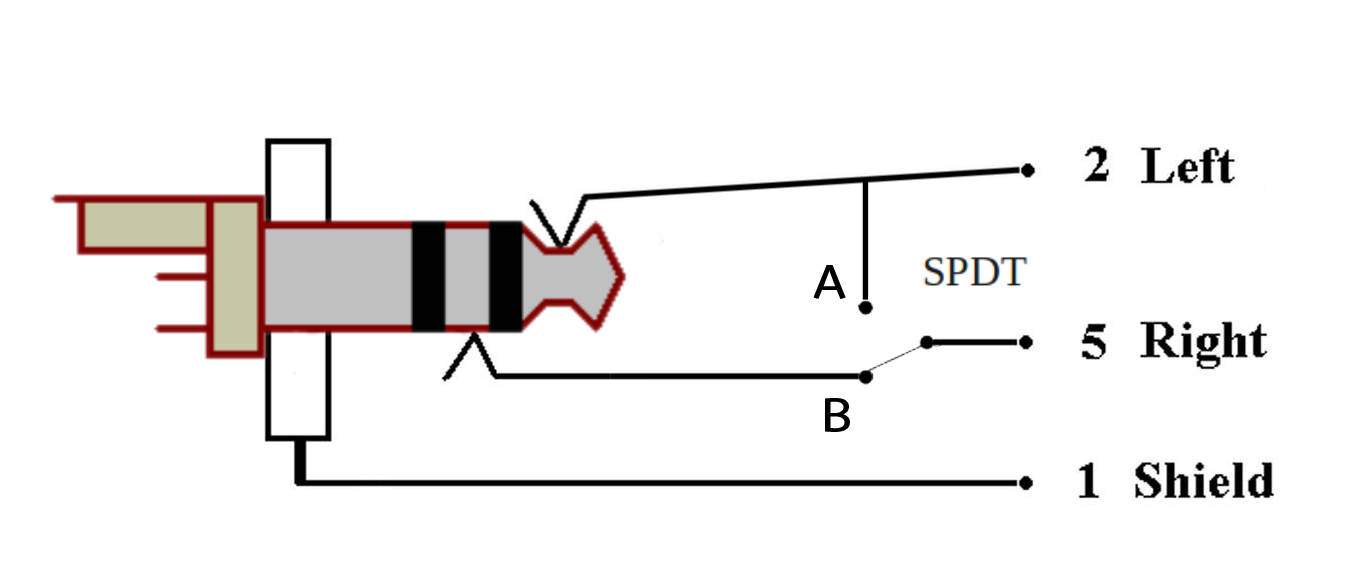

With an SPDT switch it would be like this:
with the stereo jack inserted it would have to be in the B position to have stereo output.
with a mono jack inserted it would have to be in the A position to have both pups connected to mono output.
