The Sushi Box FX Secret Society

#7,061
Sushi Box FX said:
Currently the digital chip is sandwiched between a pair of $0.50 op-amps, the new one is going to have it sandwiched between a pair of tubes. Nothing is really wrong with the way it works right now, but the circuit itself is more or less the example circuit from the datasheet, I want something that feels more like "me." And obviously I expect it to sound better with the tube input/output stages, if it didn't sound better there would be no reason for me to do it.
Click to expand...

Do you think there will be tap tempo?

  • Like
Reactions: eeyorebass
#7,062
Sushi Box FX said:
Fun fact: my top 3 most complicated circuits, by number of components on the board:

1) SBVT - 101 components
2) Deep Dish - 97 components
3) Echosaurus Valve - 87 components

It's looking like Echosaurus Valve might end up being another expensive one. I'm trying to get it into the same size as SBVT and Deep Dish, and that board is going to be packed tight.

EDIT: out of curiosity I wanted to look up which pedals had the least number of components, and the winners are Vampire Slayer with 32 components and Space Heater with 37 components.
Click to expand...
I was going to ask why the SBVT was so much more money, I'm sure there's a post back somewhere but I'm laz y . .. .

#7,063
WilbursaurusRex said:
Do you think there will be tap tempo?
Click to expand...
Nope, the FV-1 doesn't have a straightforward way to interface with tap tempo. Most people that do tap tempo with FV-1 do so by replacing one of the existing controls, which I don't want to do. It's still theoretically possible by adding more complicated circuitry (microcontroller, digital potentiometer), but I haven't spent the time to develop a solution for it.

#7,064
Number 9, number 9, number 9


  • Like
Reactions: Real Soon, gh0st42, benjobass and 3 others
#7,065
labeledbass said:
I was going to ask why the SBVT was so much more money, I'm sure there's a post back somewhere but I'm laz y . .. .
Click to expand...
Yup, that's the bulk of it. Complicated design, complicated to build, lots of parts, including weird inductors for the mids control.

  • Like
Reactions: macmanlou
#7,072
Sushi Box FX said:
Almost.

But also no.

Someone remind me in like 2 hours so it will show up as a reminder when I get home from work.
Click to expand...

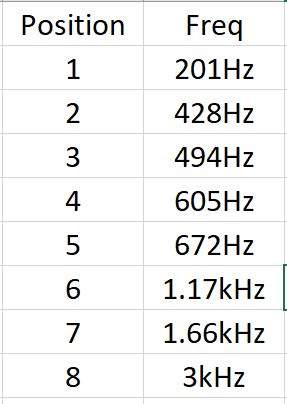

I lied. I just did the math. It wasn't even hard, I just keep forgetting when I have free time and remembering when I'm busy. Somehow (@Sonicblaze should remind me) these need to make their way onto the website. Based on my math, these are the positions:


  • Like
Reactions: cusar5, MT Hope, moon-bass and 5 others
#7,075
Sushi Box FX said:
I lied. I just did the math. It wasn't even hard, I just keep forgetting when I have free time and remembering when I'm busy. Somehow (@Sonicblaze should remind me) these need to make their way onto the website. Based on my math, these are the positions:

View attachment 4375374
Click to expand...
How hard is it to change these? might as well have been 5 positions, it would be cool to add one around 800. I wondered why it sounded so good running a resonant filter with a mid boost around 800, now I know why

  • Like
Reactions: Sushi Box FX, NKBassman and kranahan
#7,077
labeledbass said:
How hard is it to change these? might as well have been 5 positions, it would be cool to add one around 800. I wondered why it sounded so good running a resonant filter with a mid boost around 800, now I know why
Click to expand...
It's pretty easy to change, every pair of positions shares an inductor and has its own capacitor, so they form a simple LC filter. You could leave the inductors alone and just swap caps to adjust values. Maybe I'll take a look at my list and change some values for more useful frequencies.

  • Like
Reactions: macmanlou, kranahan and labeledbass
#7,078
Sushi Box FX said:
It's pretty easy to change, every pair of positions shares an inductor and has its own capacitor, so they form a simple LC filter. You could leave the inductors alone and just swap caps to adjust values. Maybe I'll take a look at my list and change some values for more useful frequencies.
Click to expand...

I think hitting the actual 5 frequency points on the SVT-CL would be a good thing for a "sound-alike" pedal, and then you've got room to sneak in some in-betweens as well.
A frequency point in the 700-800 territory is pretty essential for me personally.

  • Like
Reactions: moon-bass, johnk_10, MT Hope and 2 others
#7,079
NKBassman said:
I think hitting the actual 5 frequency points on the SVT-CL would be a good thing for a "sound-alike" pedal, and then you've got room to sneak in some in-betweens as well.
A frequency point in the 700-800 territory is pretty essential for me personally.
Click to expand...
+1

  • Like
Reactions: gh0st42, labeledbass and macmanlou
#7,080
Sushi Box FX said:
It's pretty easy to change, every pair of positions shares an inductor and has its own capacitor, so they form a simple LC filter. You could leave the inductors alone and just swap caps to adjust values. Maybe I'll take a look at my list and change some values for more useful frequencies.
Click to expand...
Please do if you have the time, I noticed by jacking up the 800 range via other pedal by about 8db with the sushibox mid @ 0 it sounded very much, what I know of a SVT (which is limited), to sound like. Also I don't know if yours is like this but are your cuts and boost not linear like ampegs? ie treble +15/-20, mid +10/-20, bass +12/-12

Last edited:
  • Like
Reactions: macmanlou, kranahan and Sushi Box FX
