The Sushi Box FX Secret Society

Short question about the Underground Accellerator...

Are the Low and High EQ controls shelving type, centered around 80hz/5khz, in the style of HPF/LPF , or something else? Curious whether I'll want to keep an HPF/LPF in line with it.

Last edited:
  • Like
Reactions: SemiDriven
Short question about the Underground Accellerator...

Are the Low and High EQ controls shelving type, centered around 80hz/5khz, in the style of HPF/LPF , or something else? Curious whether I'll may want to keep an HPF/LPF in line with it.
Not exactly, while they are shelving controls they don't have an exact center as the controls are interactive. A true HPF/LPF those frequencies are fixed or variable and have very steep cuts

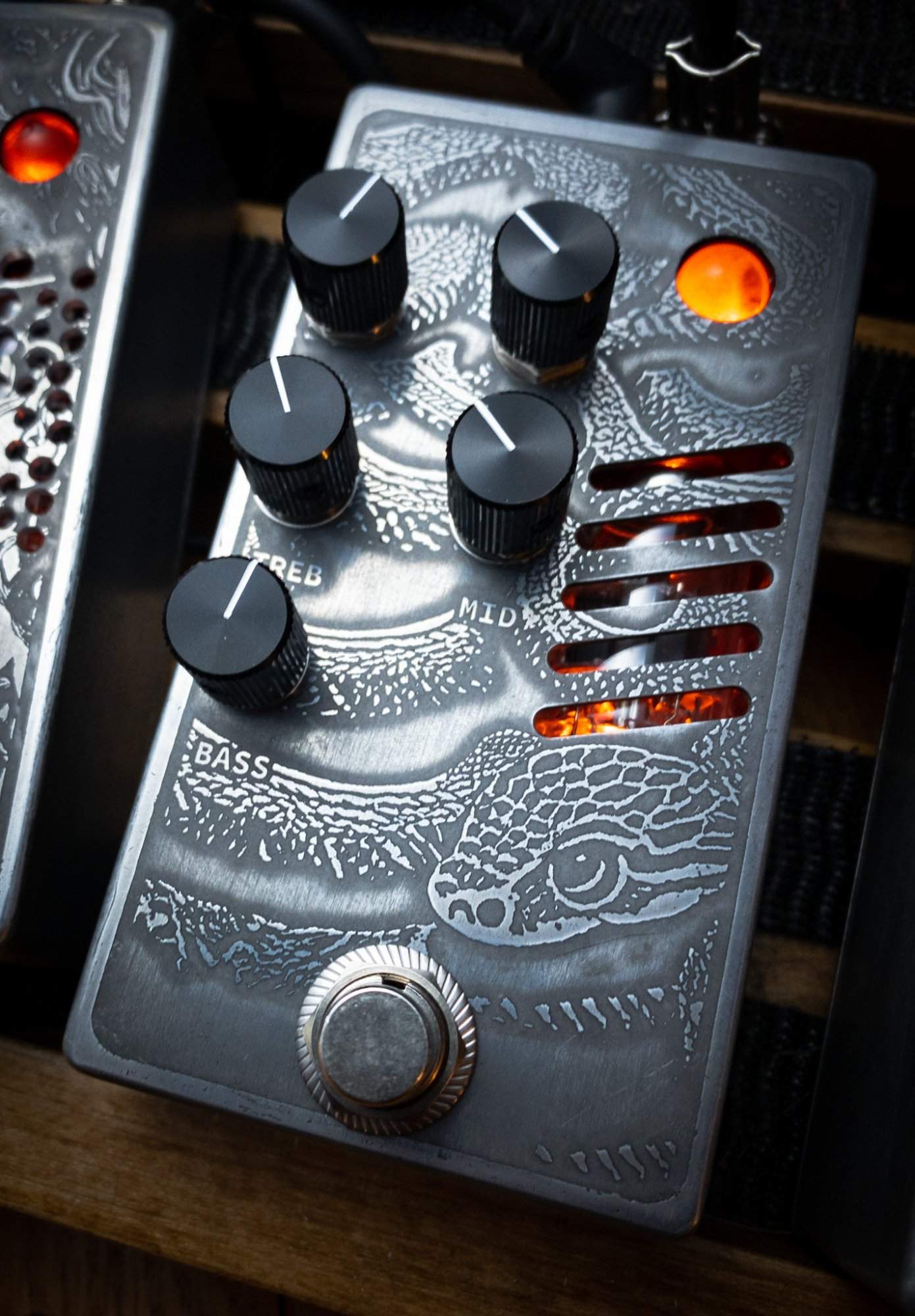

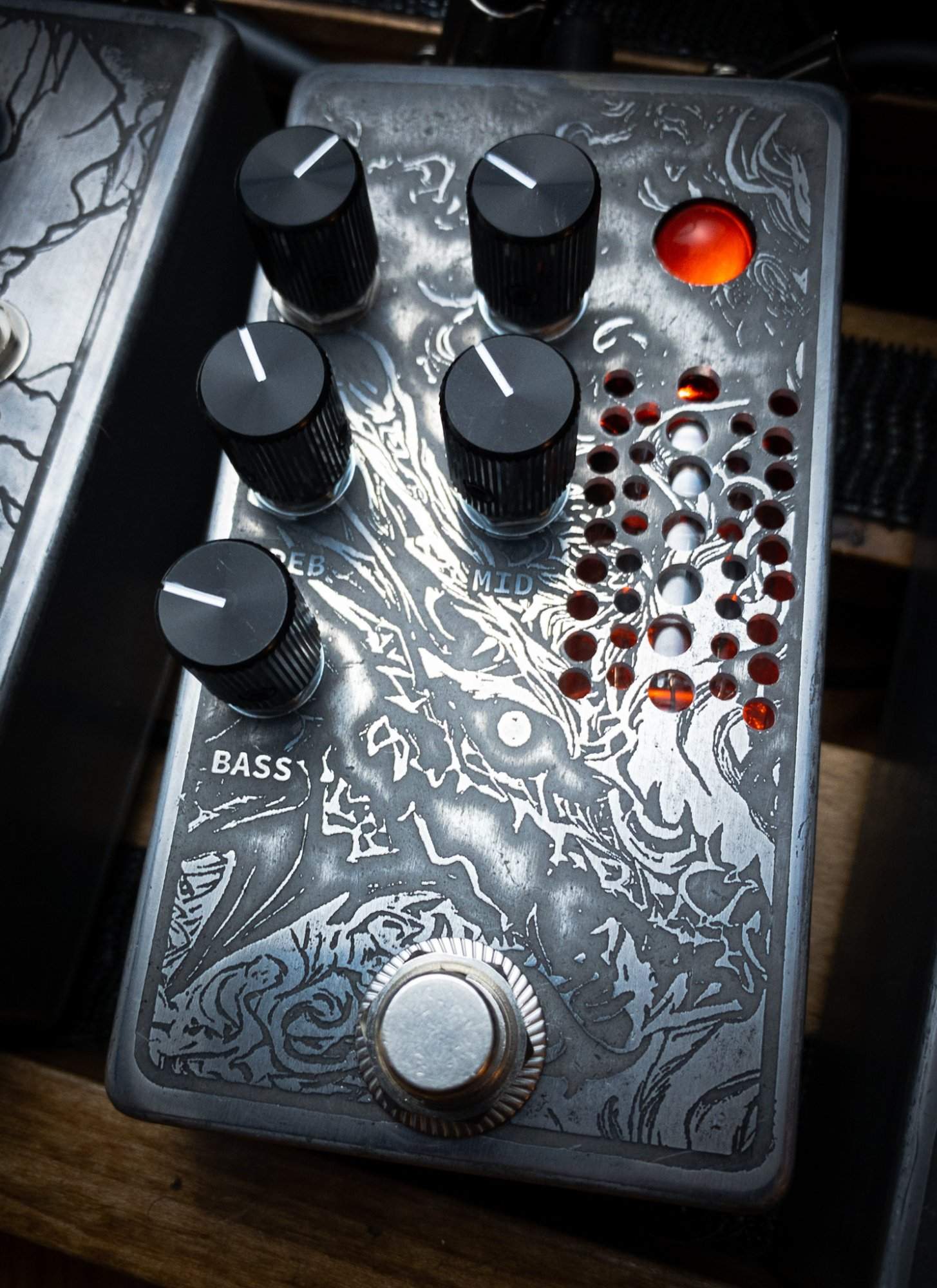

I wanted to share a couple builds someone made from the DIY Particle Accelerator boards I have available. One uses a pre-milled enclosure I provided (the one with slots for ventilation) and the other has hand-drilled holes. This guy lives 20 minutes from me and I typically deliver boards in person when he orders them from me. Super cool guy, does very cool work.


Short question about the Underground Accellerator...

Are the Low and High EQ controls shelving type, centered around 80hz/5khz, in the style of HPF/LPF , or something else? Curious whether I'll may want to keep an HPF/LPF in line with it.

I have had nice results with a UA and other boxes, driving a re/Q at the end of the chain.

Short question about the Underground Accellerator...

Are the Low and High EQ controls shelving type, centered around 80hz/5khz, in the style of HPF/LPF , or something else? Curious whether I'll may want to keep an HPF/LPF in line with it.
The UA's eq uses a FMV (Fender, Marshall, Vox) tone stack eq, not a shelving eq. Bass and treble are boost and mid is cut. This means bass and treble are flat when they are at 0 and are boosted when you turn up the dials. Mid is flat when it's at 10 and cuts when turned down. Bass and treble can't be cut, so you'll probably want to keep your H/LPF handy.

Short question about the Underground Accellerator...

Are the Low and High EQ controls shelving type, centered around 80hz/5khz, in the style of HPF/LPF , or something else? Curious whether I'll want to keep an HPF/LPF in line with it.

I find an HPF makes an enormous positive difference in line with the passive Fender tone stack on the UA and Dreamcatcher. Go to the guitar science web site and mess with the Fender 3 band simulator. You will see that flat is 0-10-0 (lo-mid-hi). You cannot boost mids and when you boost both lows and highs it results in an unavoidable mid scoop BUT with an HPF you can goose the lows enough to get a very effective low mid boost while using the hpf to eliminate the boom that would otherwise go along with it. This is a saviour when running the pedals directly into a power amp, but obviously much less critical if running them into a head with its' own active mid boost. For me, a scooped eq is almost never where I want to be. YMMV.

Sounds good @halech54! Nice, warm, and thumpy. A really nice contrast in sounds to what I posted, so should give any prospective purchasers a good sense of what this pedal can do!

That is, if Nathan ever updated his website! Lol. The man is super busy, so it may be a hot minute before you and I see our names up in lights ;)

Sounds good @halech54! Nice, warm, and thumpy. A really nice contrast in sounds to what I posted, so should give any prospective purchasers a good sense of what this pedal can do!

That is, if Nathan ever updated his website! Lol. The man is super busy, so it may be a hot minute before you and I see our names up in lights ;)

Can you all see more than just the one track? I'm having issues getting the playlist to show up in my browser

Can you all see more than just the one track? I'm having issues getting the playlist to show up in my browser

Ah, so when I clicked on the link to take me to SoundCloud, I can see them all. But on TB, it's just the "blues direct" demo you did up. Which, I now see, isn't even with the UA on! D'oh!

EDIT: Damn dude, there's lots to go through here. Very cool, indeed. Great work, and great playing!

Last edited:
  • Like
Reactions: chiphaleonbass
