U.S. Peavey Club

#18,261
raal said:
I actually went ahead and run some measurement. Tilt retracted, bridge off, VFL's screwed in deep to clear the way for the ruler. Ruler against the frets (no rocking) -> ruler height from deck is ~10 mm on A and ~8 mm on B. tells me A style non piezo should work. Waiting to hear from Hipshot how much the Graphtech sensor will add to that.

Min string height spec of the Kickass match A style per Hipshot pdf's @ 10 mm.
Click to expand...
I have a Hipshot A-Style with the Ghost saddles right here, what measurement do you need?
I might have a non-piezo Hipshot A-Style tomorrow to compare, depends if USPS delivered it or not...

  • Like
Reactions: mb94952 and raal
#18,262
deck mounting surface bridge to string resting surface at lowest action setting when sensor deep in pocket. Alternately bottom of saddle shoe to string resting surface when sensor deep in pocket. Either one are an indication of string height per Hipshot terminology (won't let me paste PDF showing depiction).

The Graphtech sensor rests on a flat surface in the saddle pocket/the sensor to saddle interface is a flat surface, correct?

Thanks!

Last edited:
#18,266
raal said:
deck mounting surface bridge to string resting surface at lowest action setting when sensor deep in pocket. Alternately bottom of saddle shoe to string resting surface when sensor deep in pocket. Either one are an indication of string height per Hipshot terminology (won't let me paste PDF showing depiction).

The Graphtech sensor rests on a flat surface in the saddle pocket/the sensor to saddle interface is a flat surface, correct?

Thanks!
Click to expand...

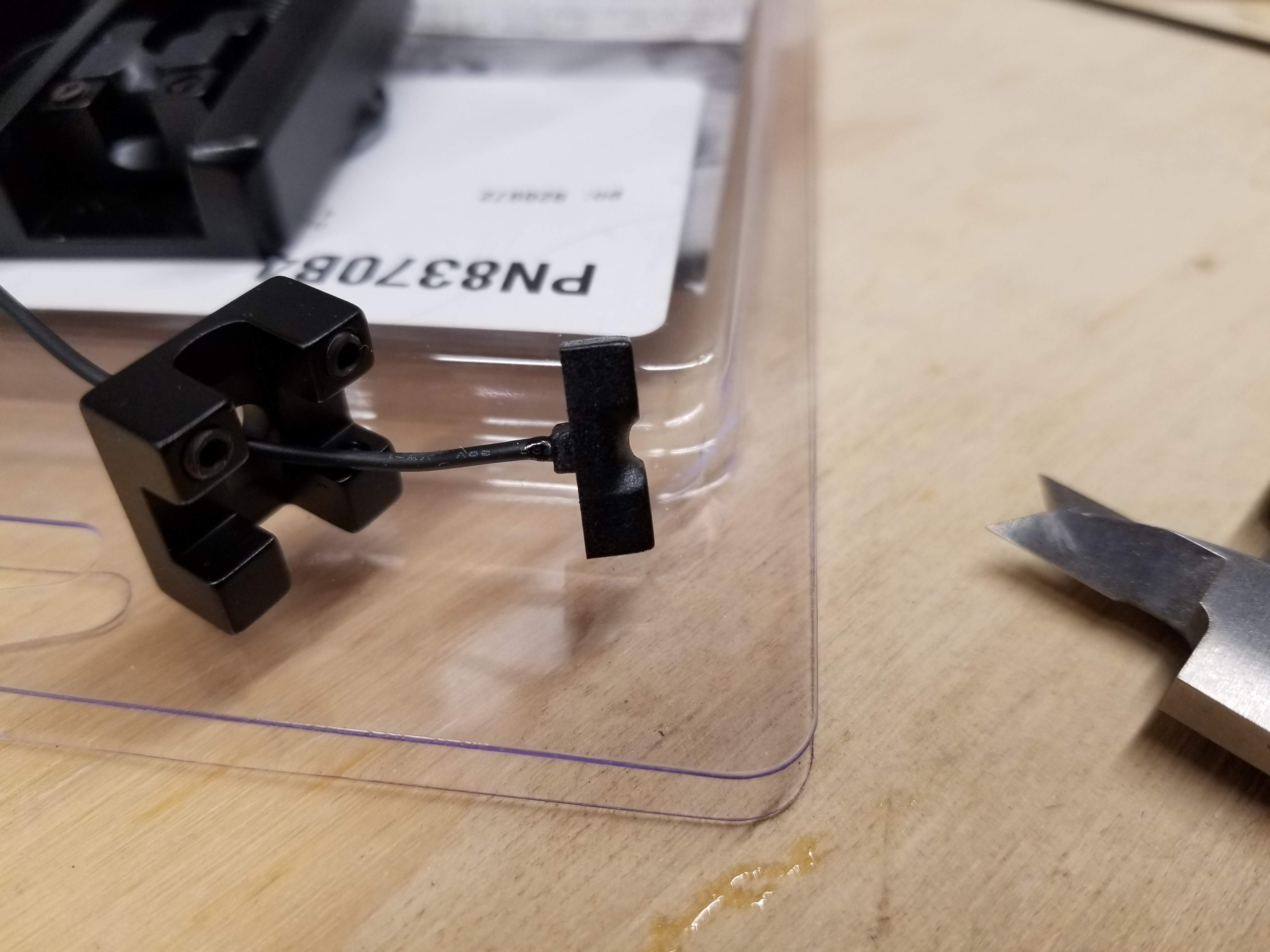

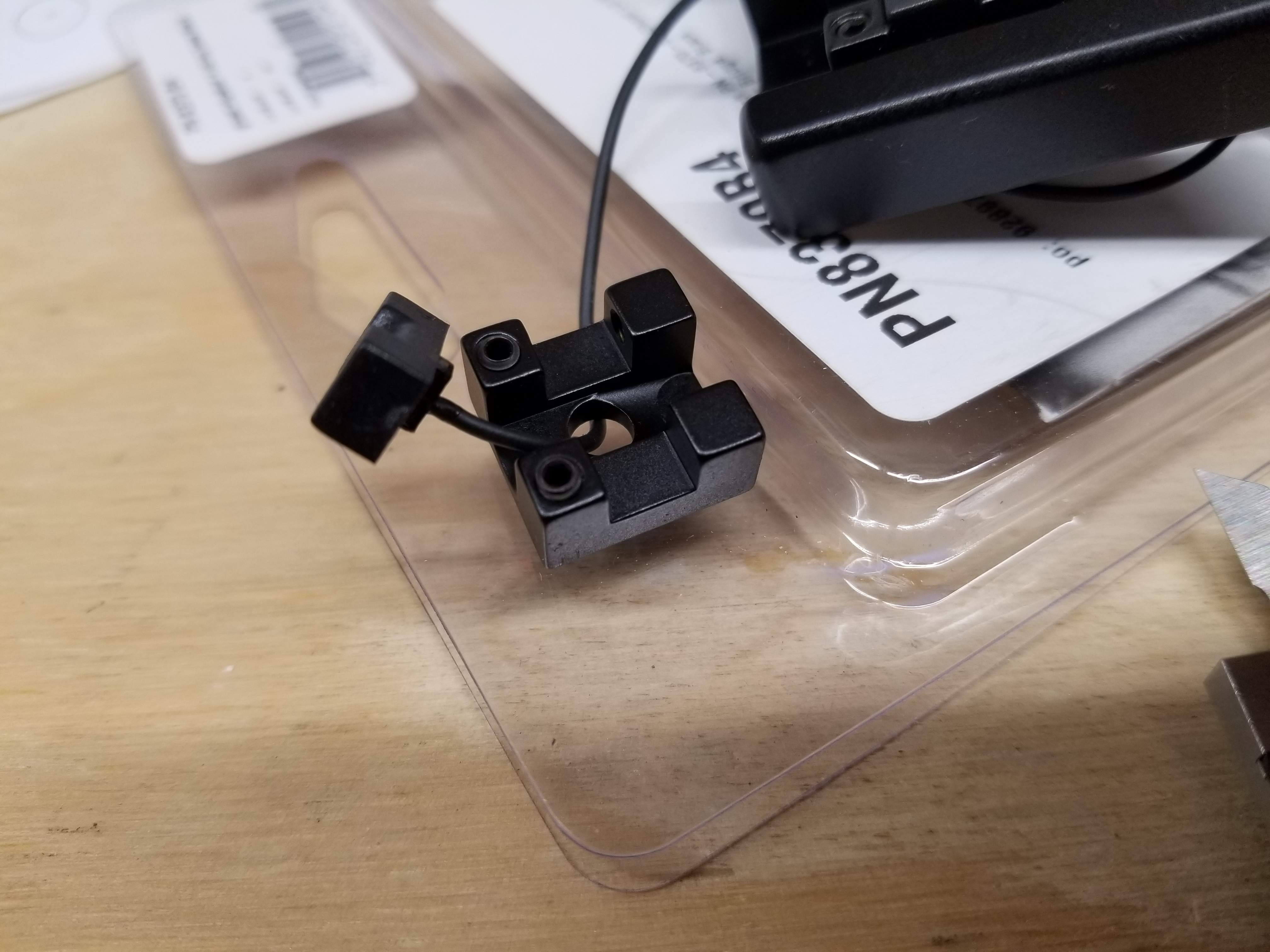

The sensor sits in the shoe and only has side to side adjustments (for string spacing)


The shoe height is 0.311" (7.89mm) if you need that.
Bottom of shoe to bottom of string sensor is 0.2875" (7.30mm)

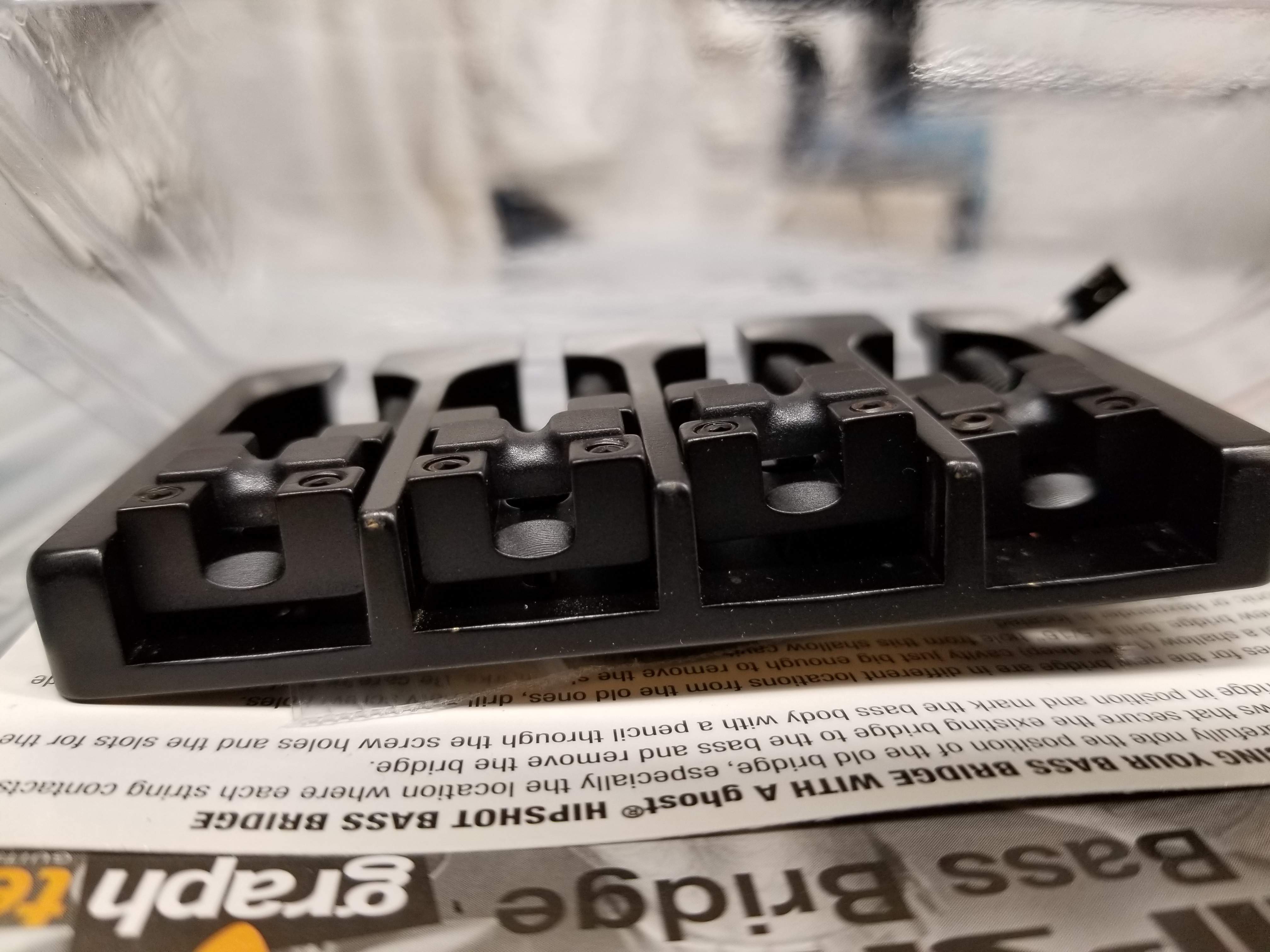

The bridge baseplate has staggered heights for the fretboard radius
E/D 0.099" (2.51mm)
A/G 0.1215" (3.08mm)

Did I miss anything?

  • Like
Reactions: raal
#18,270
AudioTaper said:
The sensor sits in the shoe and only has side to side adjustments (for string spacing)
The shoe height is 0.311" (7.89mm) if you need that.
Bottom of shoe to bottom of string sensor is 0.2875" (7.30mm)
The bridge baseplate has staggered heights for the fretboard radius
E/D 0.099" (2.51mm)
A/G 0.1215" (3.08mm)

Did I miss anything?
Click to expand...

Thanks for the breakdown. I like that design better than ABM with action adjustment screws in the sensor. Was not aware the baseplate was staggered to mimic fretboard radius.

#18,271
raal said:
Thanks for the breakdown. I like that design better than ABM with action adjustment screws in the sensor. Was not aware the baseplate was staggered to mimic fretboard radius.
Click to expand...

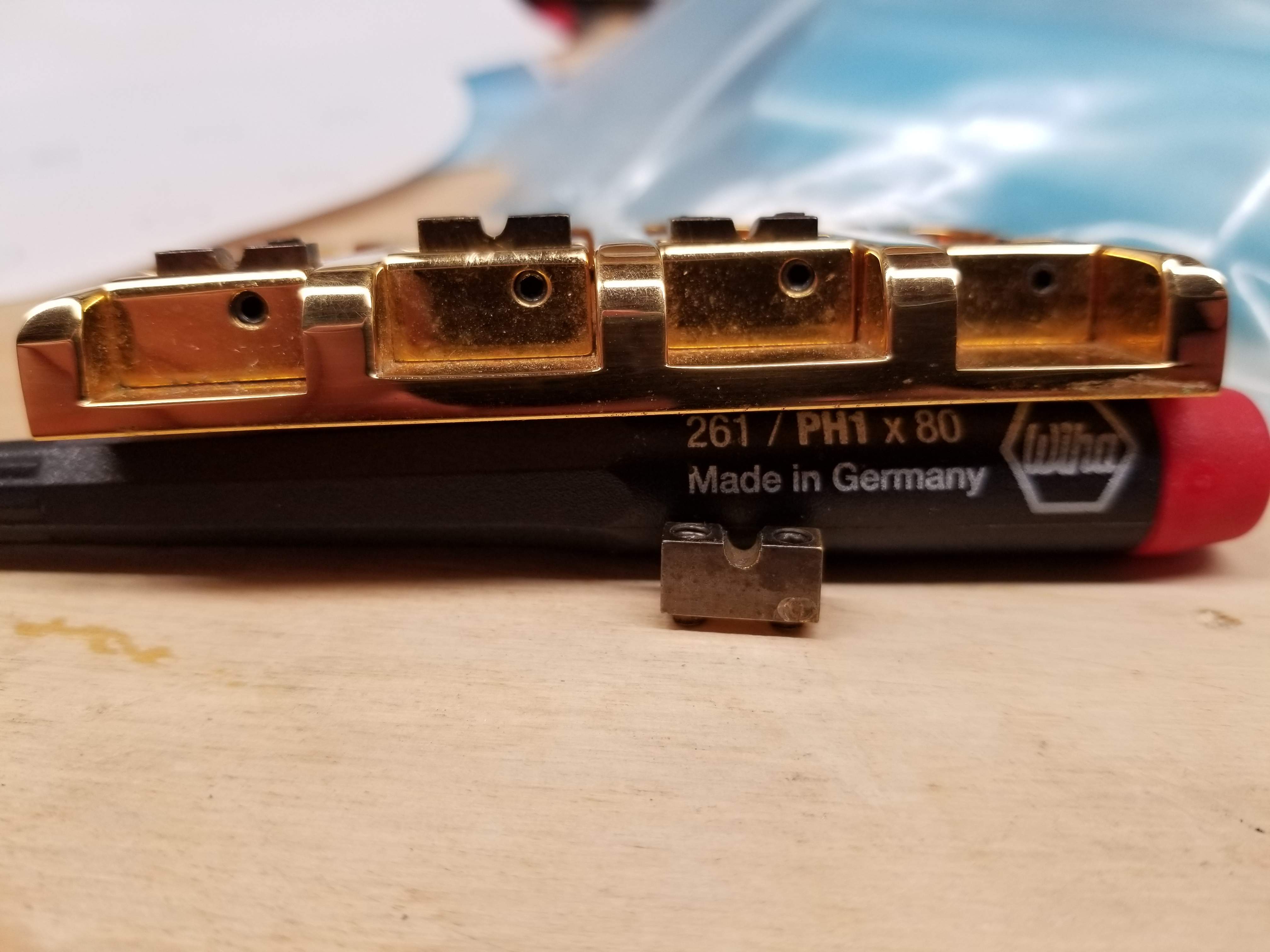

The ABM Lockdown baseplate is staggered for the radius also. The Ghost inserts replace the brass inserts (I removed one for dramatic effect) and you have to mill out the shoe and the base.

It's worth the extra $100 to get a new A-Style in my opinion. I dont like that the height adjustments are done on the Ghost sensor on the ABM.

And yes, the Made in Germany Wiha screwdriver was 100% on purpose to hold up the Made in Germany ABM bridge.

  • Like
Reactions: raal
#18,276
  • Like
Reactions: B-Mac, TinIndian, kodiakblair and 1 other person
#18,278

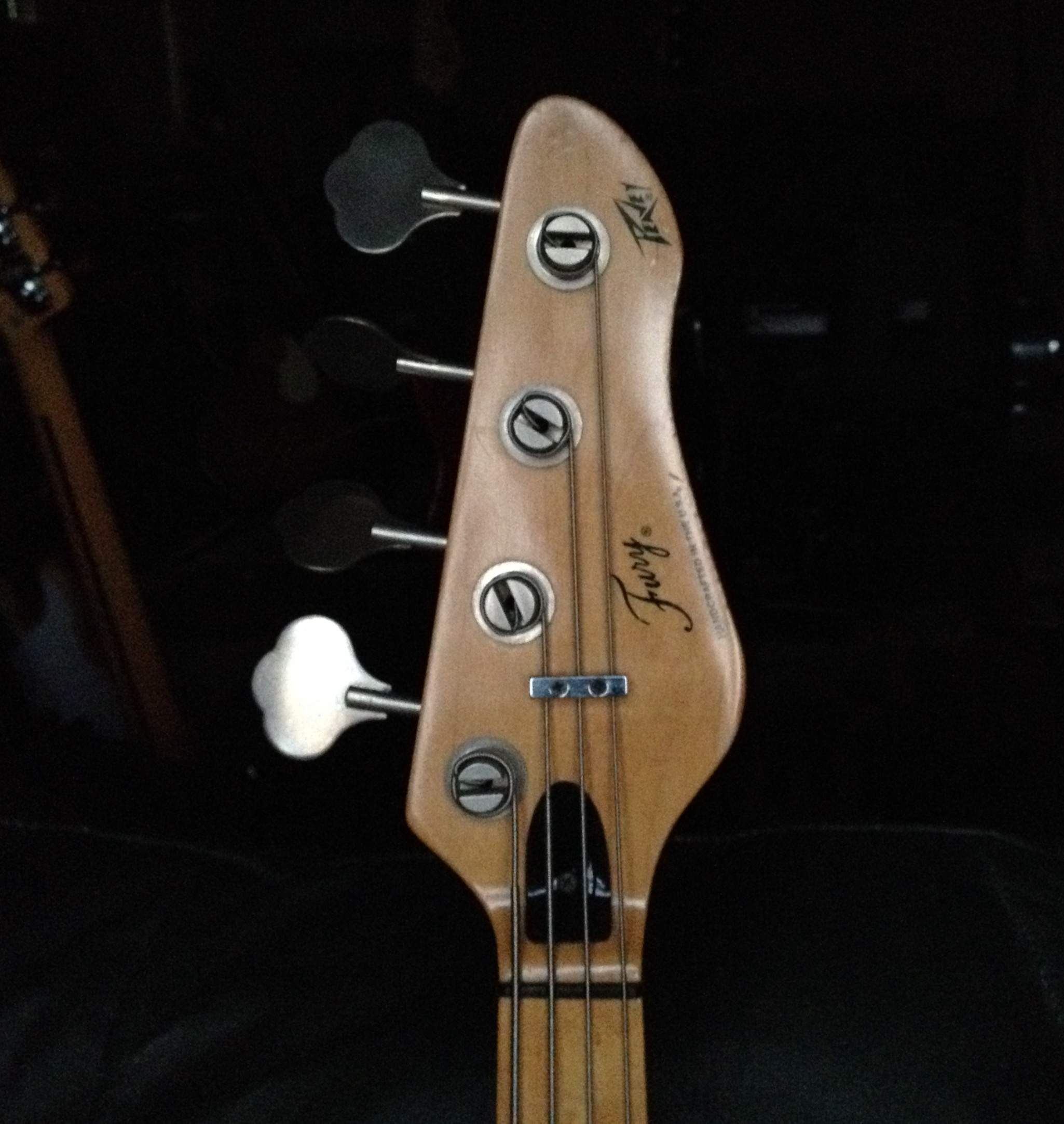

First Gen Fury has the slanted Super Ferrite pickup.
Second Gen Fury has the split P pickup and the pickguard is straight across below the pickup.
Third Gen Fury has the split P pickup but the pickguard is curvy below the pickup.
As far as logos go, Peavey changed them over and over again and it's hard to keep up exactly when they did what.

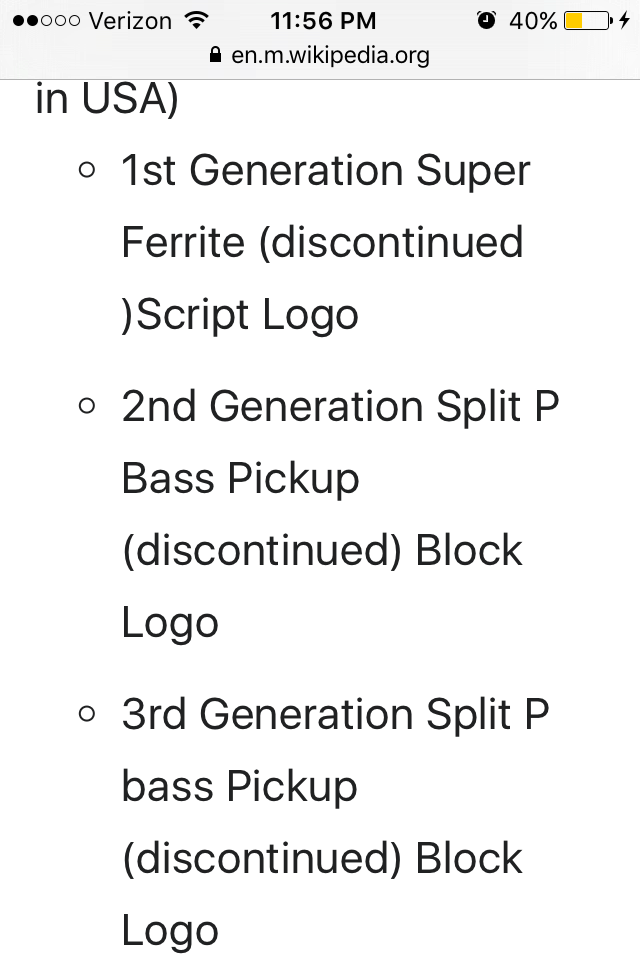

Here is the link to the serial numbers:
List of Peavey guitars - Wikipedia

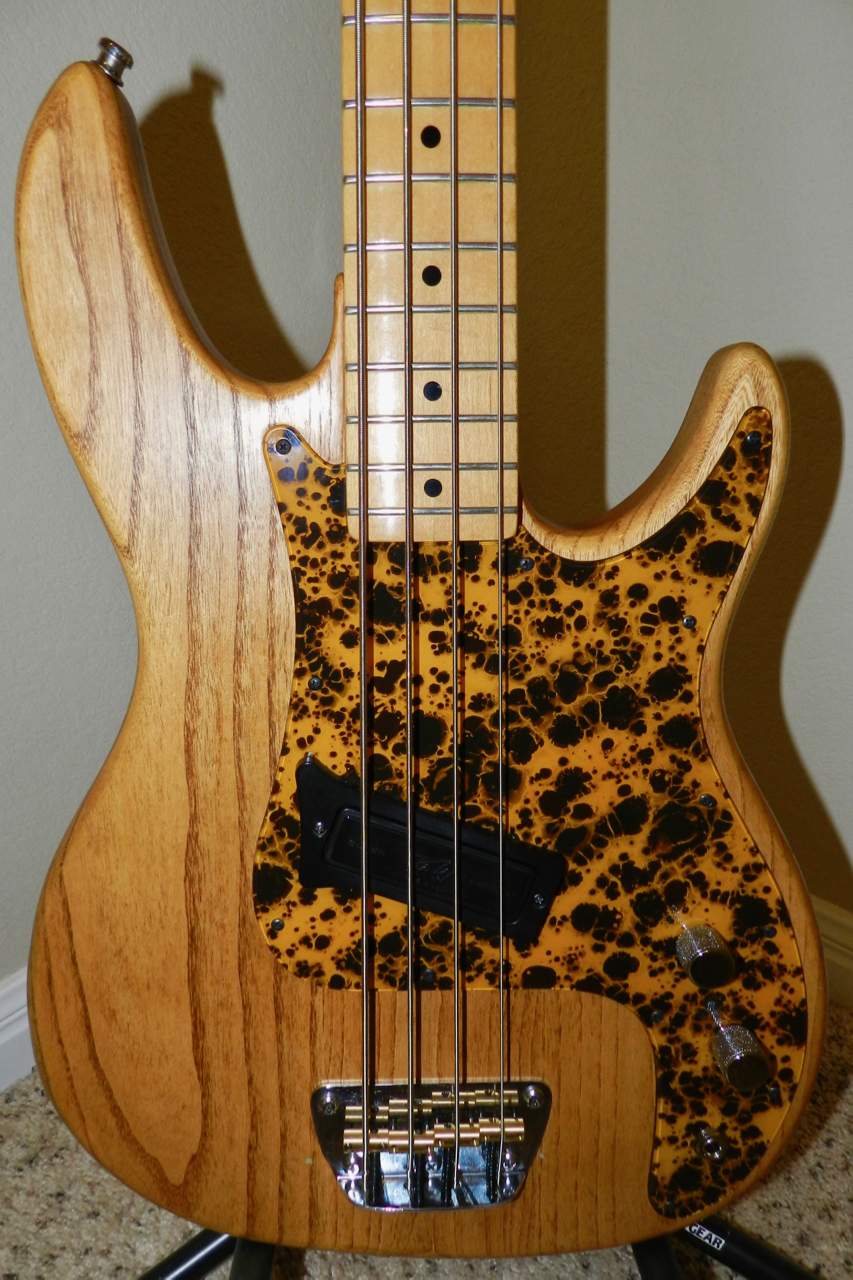

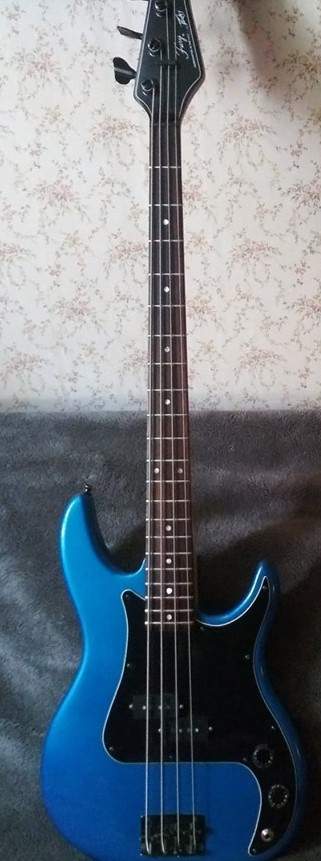

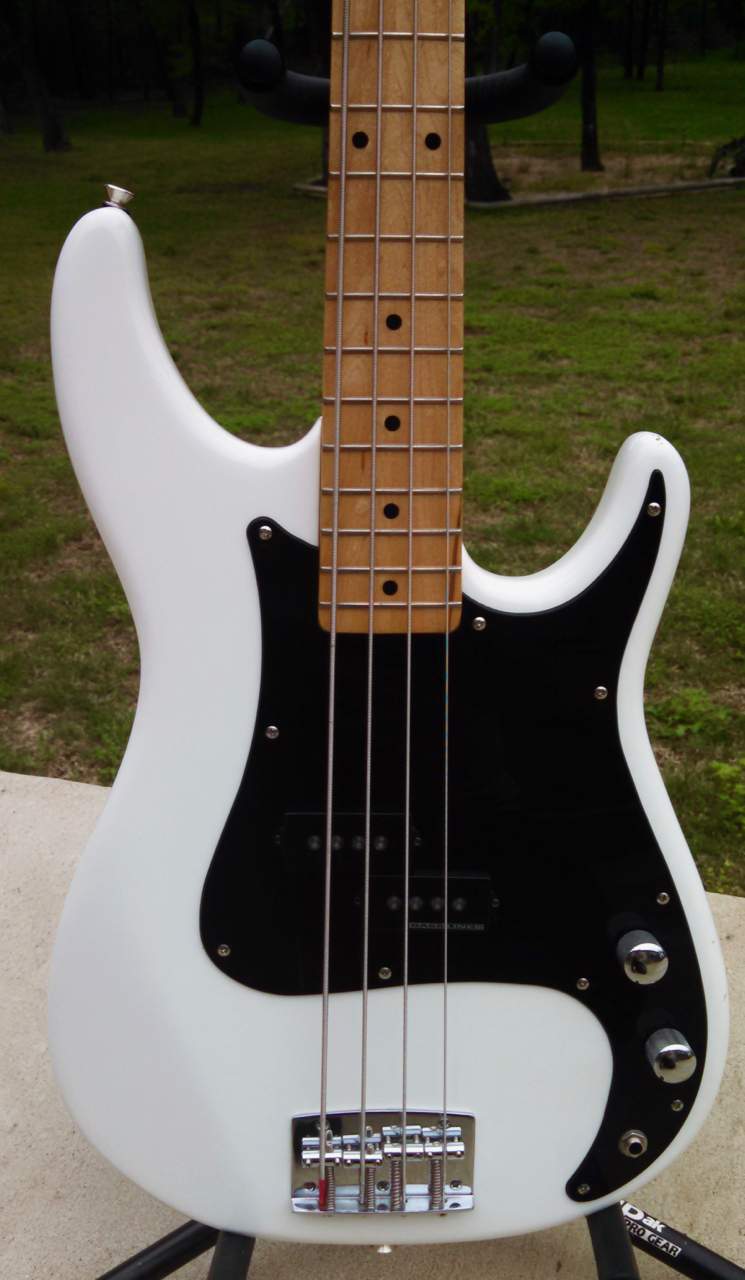

Here are pics of Gen 1, Gen 2 and Gen 3 Furys.

Last edited:
  • Like
Reactions: B-Mac and Bleecker
#18,279
C Stone said:
Hey all, my Peavey Fury I believe it to be 1991-92 (Made in USA) 1st Generation Super Ferrite
Script Logo purchased new...View attachment 3980643View attachment 3980644 View attachment 3980646
Click to expand...
58kites said:
First Gen Fury has the slanted Super Ferrite pickup.
Second Gen Fury has the split P pickup and the pickguard is straight across below the pickup.
Third Gen Fury has the split P pickup but the pickguard is curvy below the pickup.
As far as logos go, Peavey changed them over and over again and it's hard to keep up exactly when they did what.
Here is the link to the serial numbers:
List of Peavey guitars - Wikipedia
Here are pics of Gen 1, Gen 2 and Gen 3 Furys.
View attachment 3980671 View attachment 3980672 View attachment 3980673
Click to expand...
Got it! Thanks for takin the time, that clears it up nicely! Very, very nice basses...

  • Like
Reactions: B-Mac and 58kites
