You could get cabinet plans from EV back in the '80's that used the EV 30W woofer. Completed, they weighed something like 500 lbs. I think they were intended more for permanent installation, such as theaters. Or champion weight lifter roadies lol!!
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
What's the LARGEST possible speaker? I'm talking about what's possible.
- Thread starter T-boneParish
- Start date
Oh wow, that's something I should have figured out. Thanks.
I saw one in an electronics store in the mid 60s when I bought my first microphone.
It had a sign that said "Custom rear speaker for VW".
Based on what I've read, a black hole is the largest speaker: Strange but True: Black Holes Sing
- Feb 12, 2006
- 61,062
- 5
- 221,106
- Disclosures
- Development Engineer-Mesa Boogie, Development Engineer-Genzler (pedals), Product Support-Genz Benz
Part of it was mechanical/structural, and part of it was the need for a large motor to move the larger mass. As voice coils get larger in diameter and the gap height gets taller (and wider), the flux is spread out over a larger area thus the motor's total flux must grow. With Neo motors, this is much less of an issue because the (stronger per unit volume) magnetic material can be used both inside and outside the coil. Large coils and ceramic motors can be very limiting in this regard, which is why most ceramic voice coils are limited to around 4" in diameter... the point of diminishing returns.
Out of curiosity, what does MI mean in this context? I assume it's not "Military Intelligence", but I don't know enough to know otherwise, either
Musical Instrument (market)
Very few ended up in the cinema market, they simply did not have the necessary output (sensitivity x power bandwidth). The sensitivity is fairly high at ~103dB/1W/1M (they used the old EIA standard of 1 mW at 30' so a conversion is needed to get to the current 1W/1M), but the RMS power handling is only 60 watts. That translates to about 118dB. Since theatres of the day typically used roughly 600 watts (total) into speakers that were (coupled) 106dB/1W/1M, that would require an equivalent of 20 of these drivers and 1200 watts installed. Both the speaker and the amplifier power was very expensive, and currently in cinemas there is an additional gain differential of at least 6dB out of the subs.
The father of one of my high school buddies was a designer (I believe he was a mechanical engineer) at Bozak, he was also one of the designers of the optical lens system for the Cinerama process. Bozak was a well established company that simply disappeared as the market evolved.
Sorry, I should have been more clear.
D
Deleted member 165050
Guest
I saw one in an electronics store in the mid 60s when I bought my first microphone.
It had a sign that said "Custom rear speaker for VW".
Was that to go with the 50,000 watt power amp that runs off 12v?
That's an excellent analogy for the Universe. The question is whether it's a closed system, in which case energy is finite and we're in a sealed cabinet, or whether the notion of a quantum mechanical multiverse holds true, where it's hypothetically possible to pull energy from one universe to another, in which case it's ported.
Turbosound has sold 24 and 21 inch subwoofers over the years.
I can't remember the size of drivers used inside Servodrive subs, but many weren't standard voice coil speakers, but belt driven plates.
I can't remember the size of drivers used inside Servodrive subs, but many weren't standard voice coil speakers, but belt driven plates.
That was a very informative video. I own some of PJ's gear, and I think it's excellent. The science he goes through in this video should be a good read for anyone trying to do their own speaker/cab builds. Not that everyone might agree with him on all things. Thanks for that post.
I know you guys are tired of hearing me say it.
But has anyone ever executed a production-run Bass Amp/Cab unit ( and in this case, powered CAB - who had those back then? ) than the Acoustic 360/361.
IMHO, you would clone that build very carefully, and really, do you need > 18"?
But has anyone ever executed a production-run Bass Amp/Cab unit ( and in this case, powered CAB - who had those back then? ) than the Acoustic 360/361.
IMHO, you would clone that build very carefully, and really, do you need > 18"?
ElectoVoice used to make a 30” back in the 70’s. Back then I played through a Sunn Colosseum amp with 2 cabs with front loaded 18’s. Loud as hell, but great, clean tone through the solid state head. Great sound on stage, but blew the audience in the back out the door.
We have 2 Fulcrum cabinets for our subs at our church. Each cab has 2-21" speakers. Quite effective for a mid-size church. Blown a few wigs off.

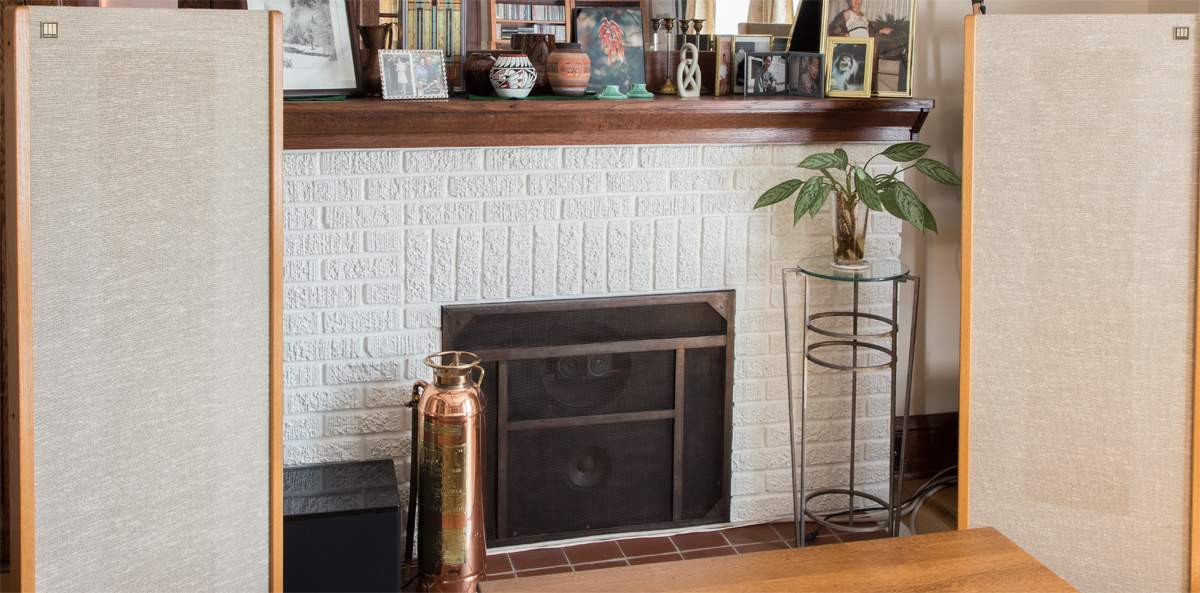

This is a great tale. Makes me want to go on a vision quest to find the same setup! could be a long journey but, dang, this sounds special!Back in the 80’s I worked in a high end audio store that sold a line of speakers called Apogee. The flagship model was the Scintilla. The non electrostatic flat panel full range drivers were about 20” wide by about 6’ tall . They were a one ohm speaker. They needed very specific amplifiers. Fortunately we sold Krell amps. We drove them with KSA 100 100 Watt monoblocks. To this day it’s the closest I’ve ever heard to live music.
Mid 60s, most VWs were still running on 6v!
- Feb 12, 2006
- 61,062
- 5
- 221,106
- Disclosures
- Development Engineer-Mesa Boogie, Development Engineer-Genzler (pedals), Product Support-Genz Benz
Pipe organs don’t use speakers.
