Winter 2017 Build Off -- The Dan-0-Backer

[Beej]

That roundover looks great



[Jon Clegg]

Thanks



[Jon Clegg]

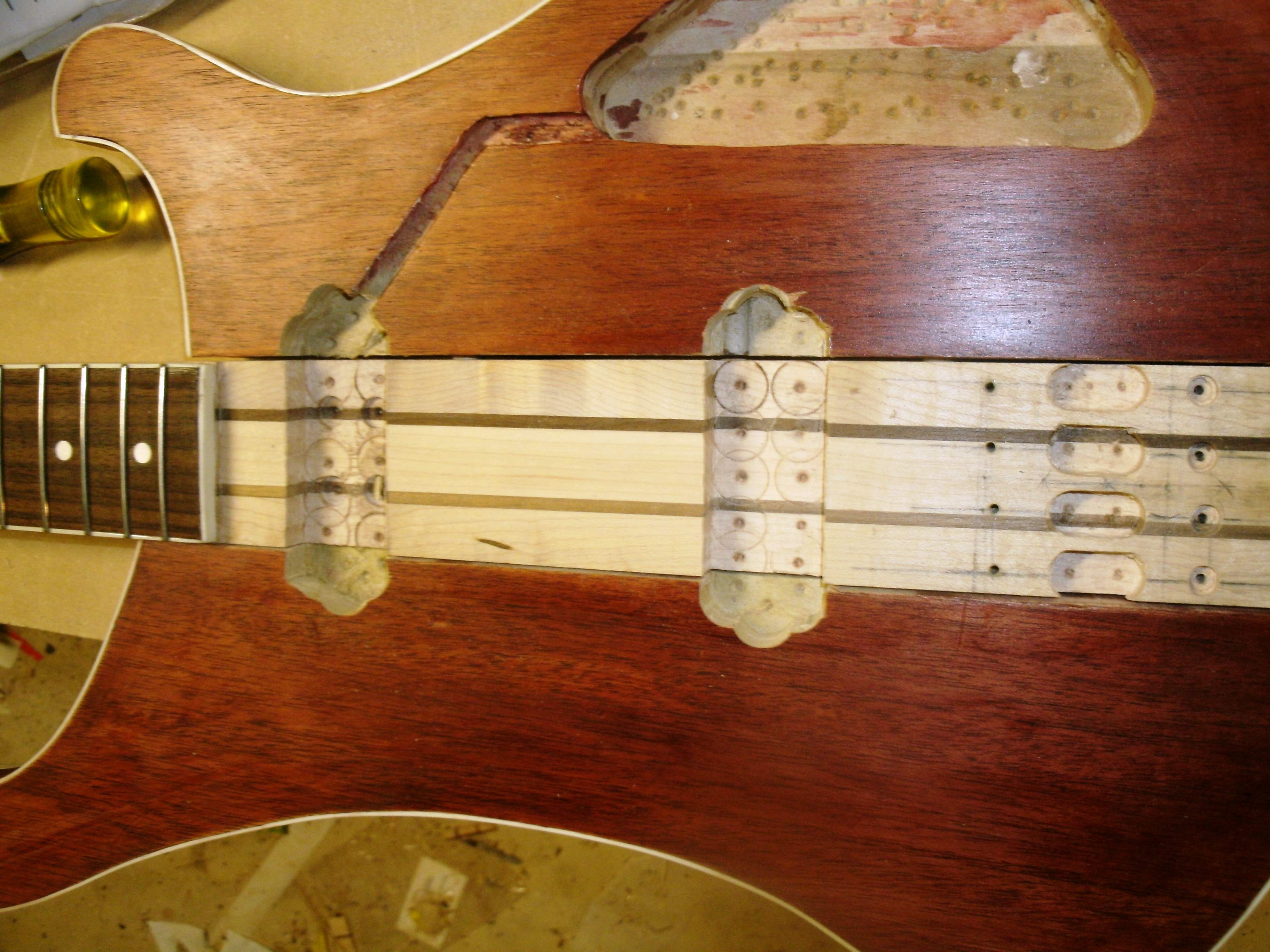

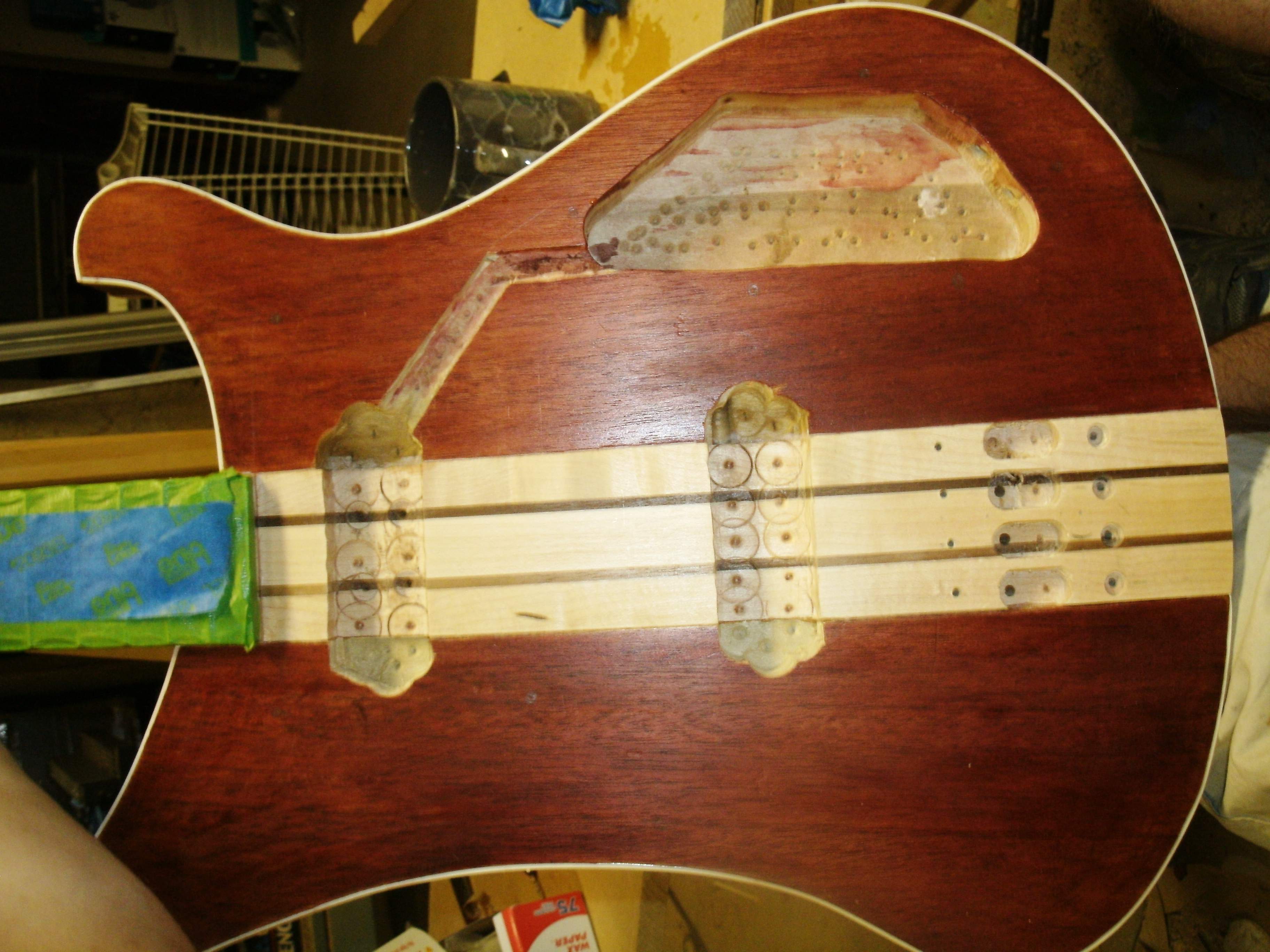

Busy day, yesterday; opened up the pickup routs

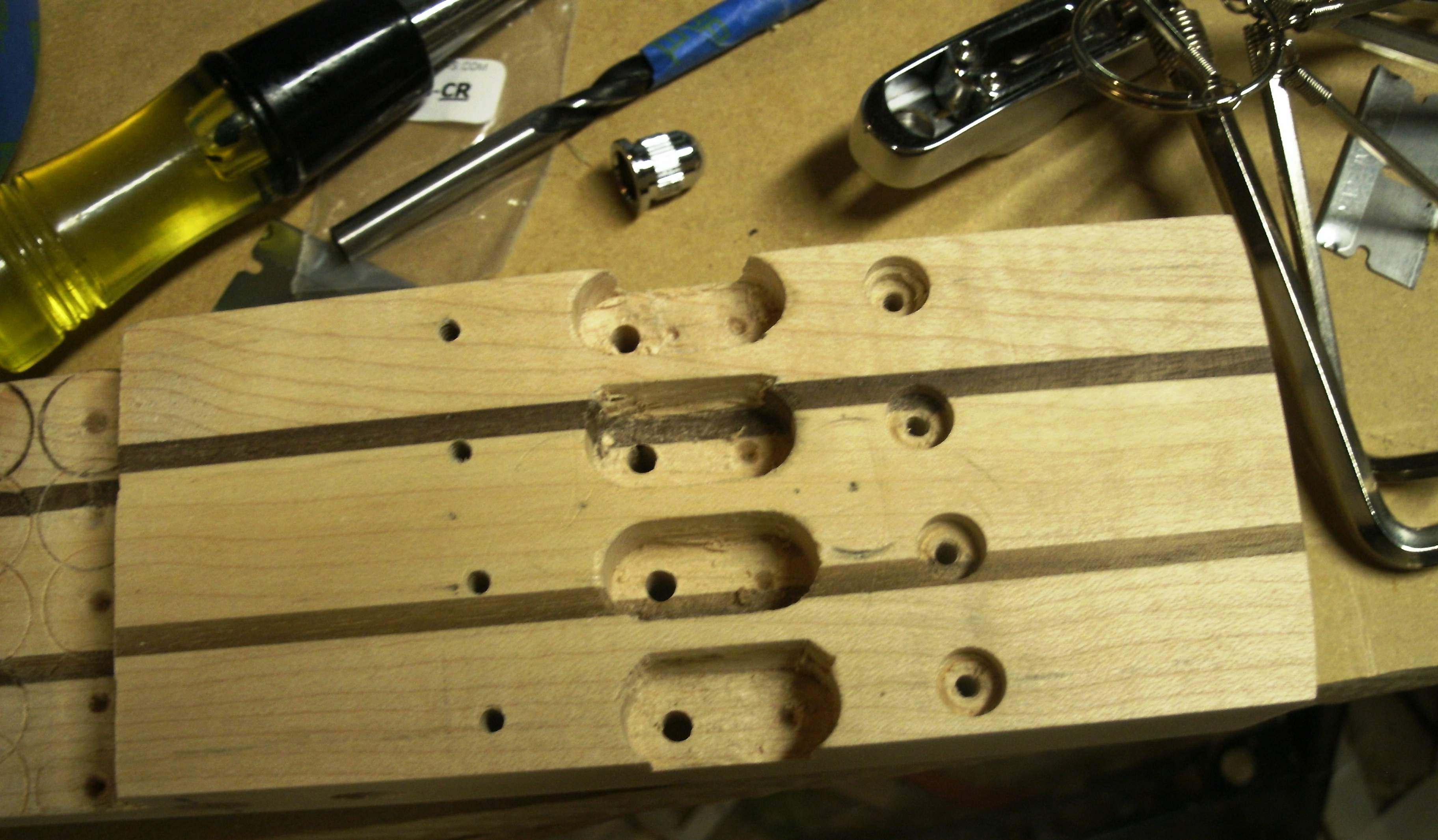

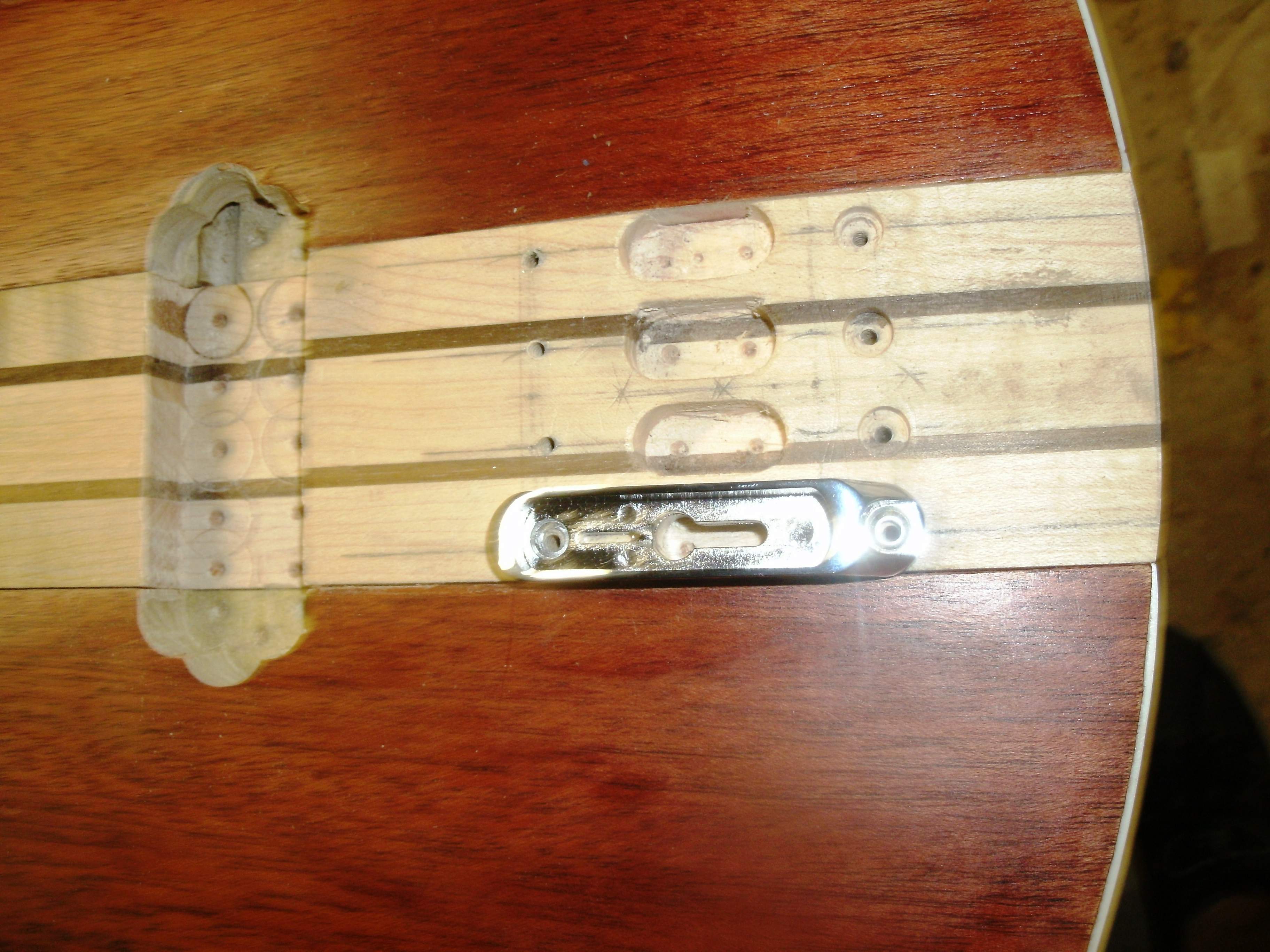

And drilled the holes for doing string-thru; Started by screwing an empty bridge piece into a slot, using and using a brad-point drill bit to mark the center of the string space, then drilled a 1/16" pilot hole through

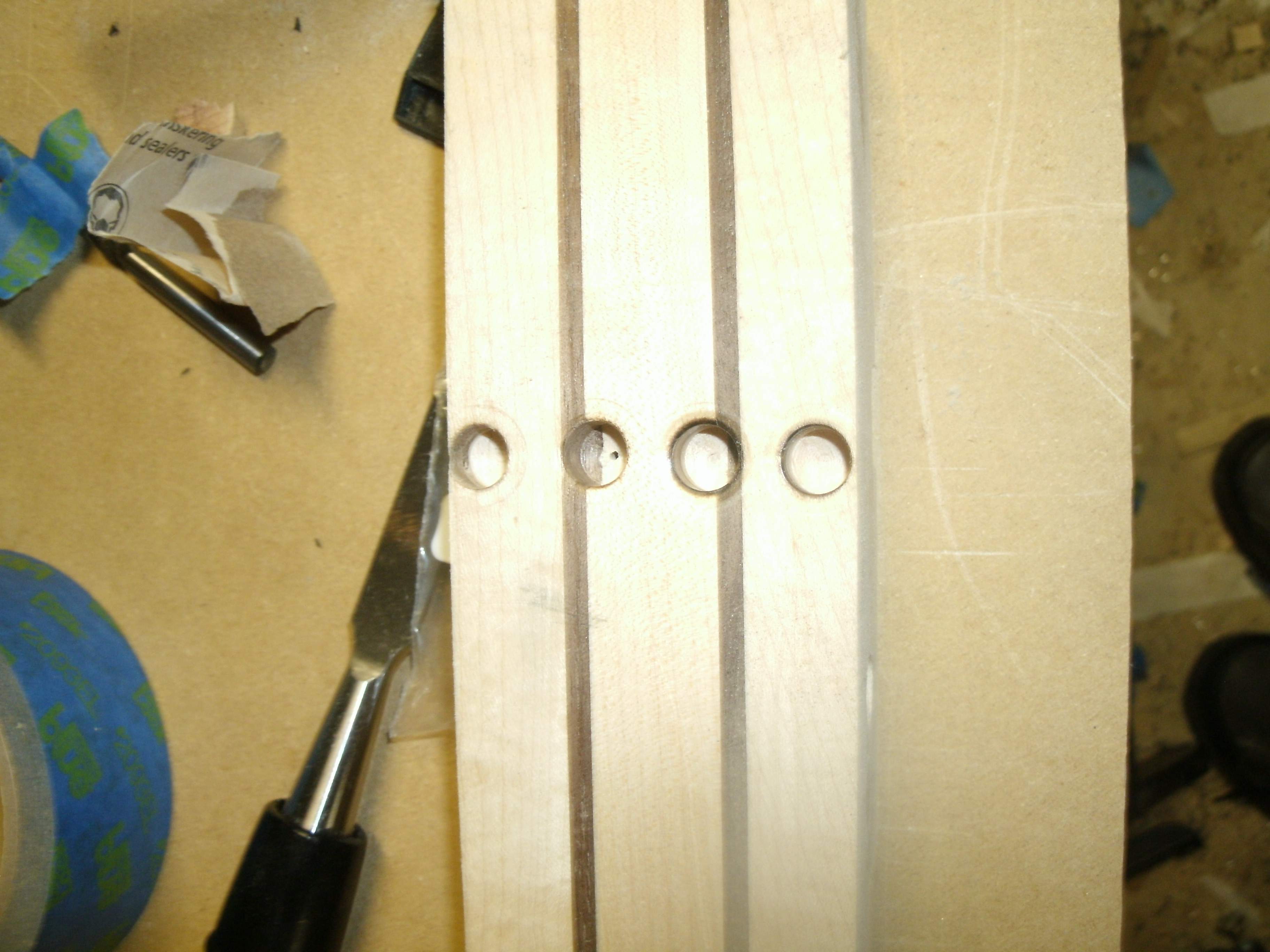

Used those pilot holes as the centers for the 3/8" holes for the ferrules:

Then drilled the 11/64" hole for the string.

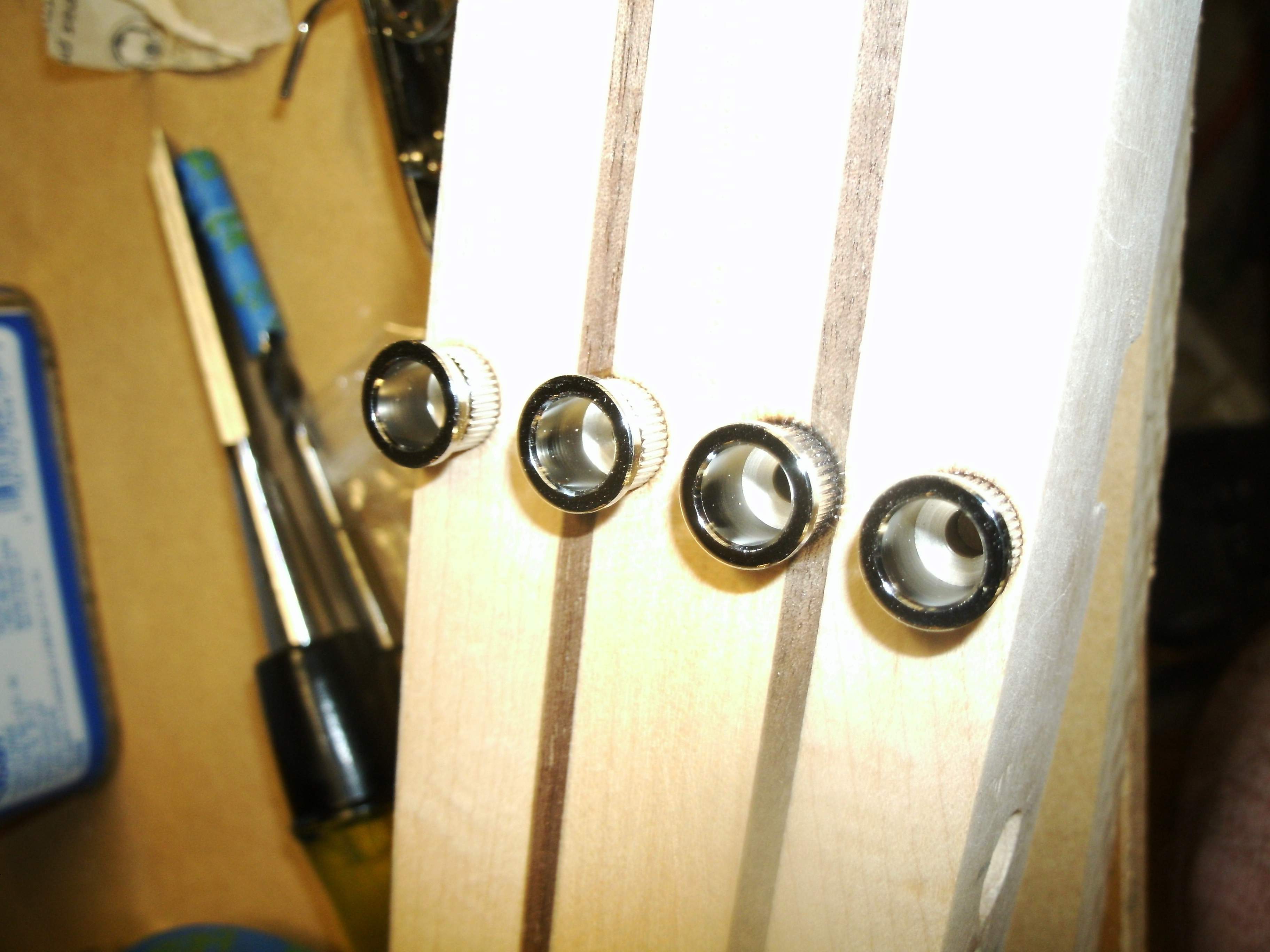

Ready to mount the ferrules after finishing:

I'm now ready to glue the wings onto the neck beam. Should be doing that today.



[Jon Clegg]

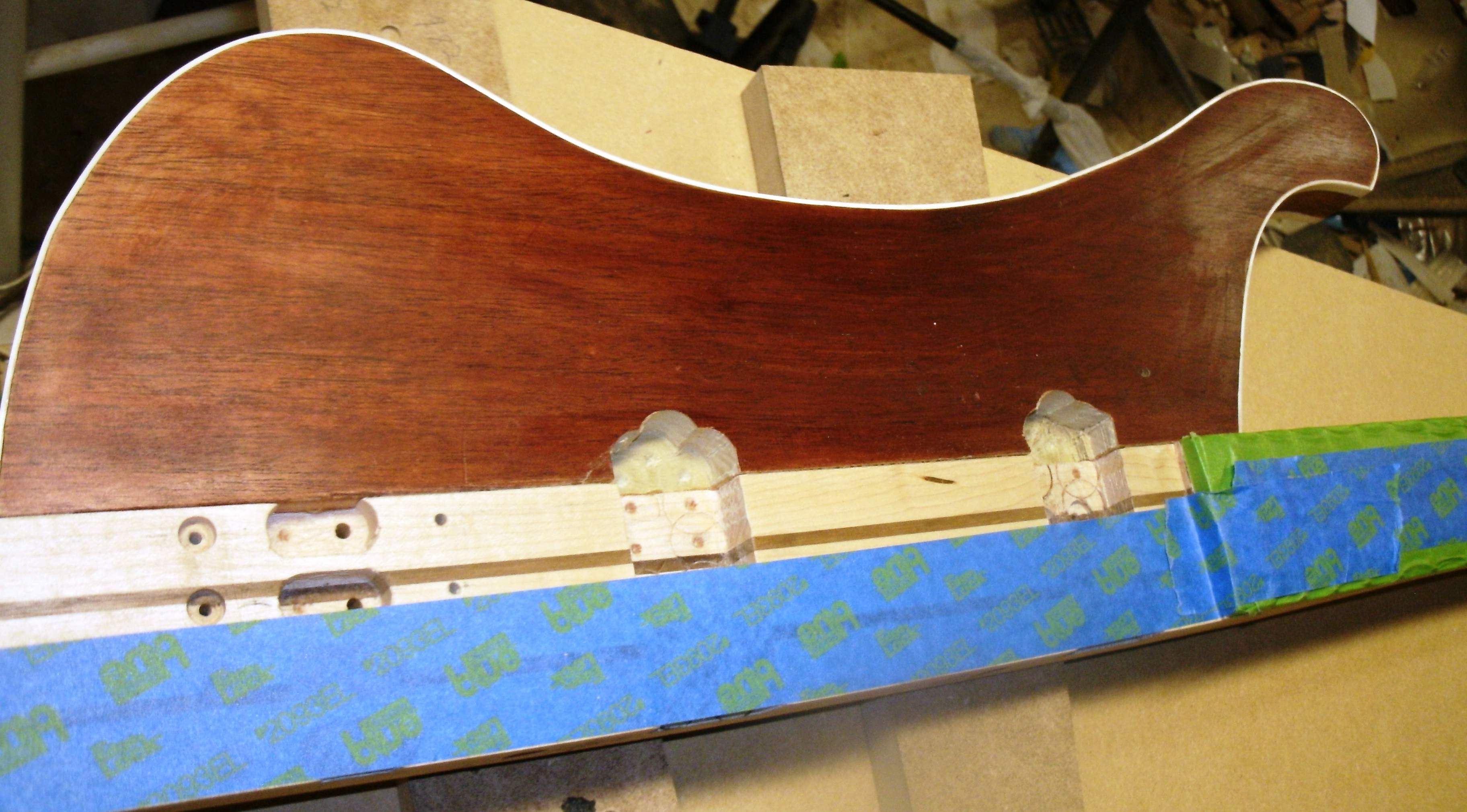

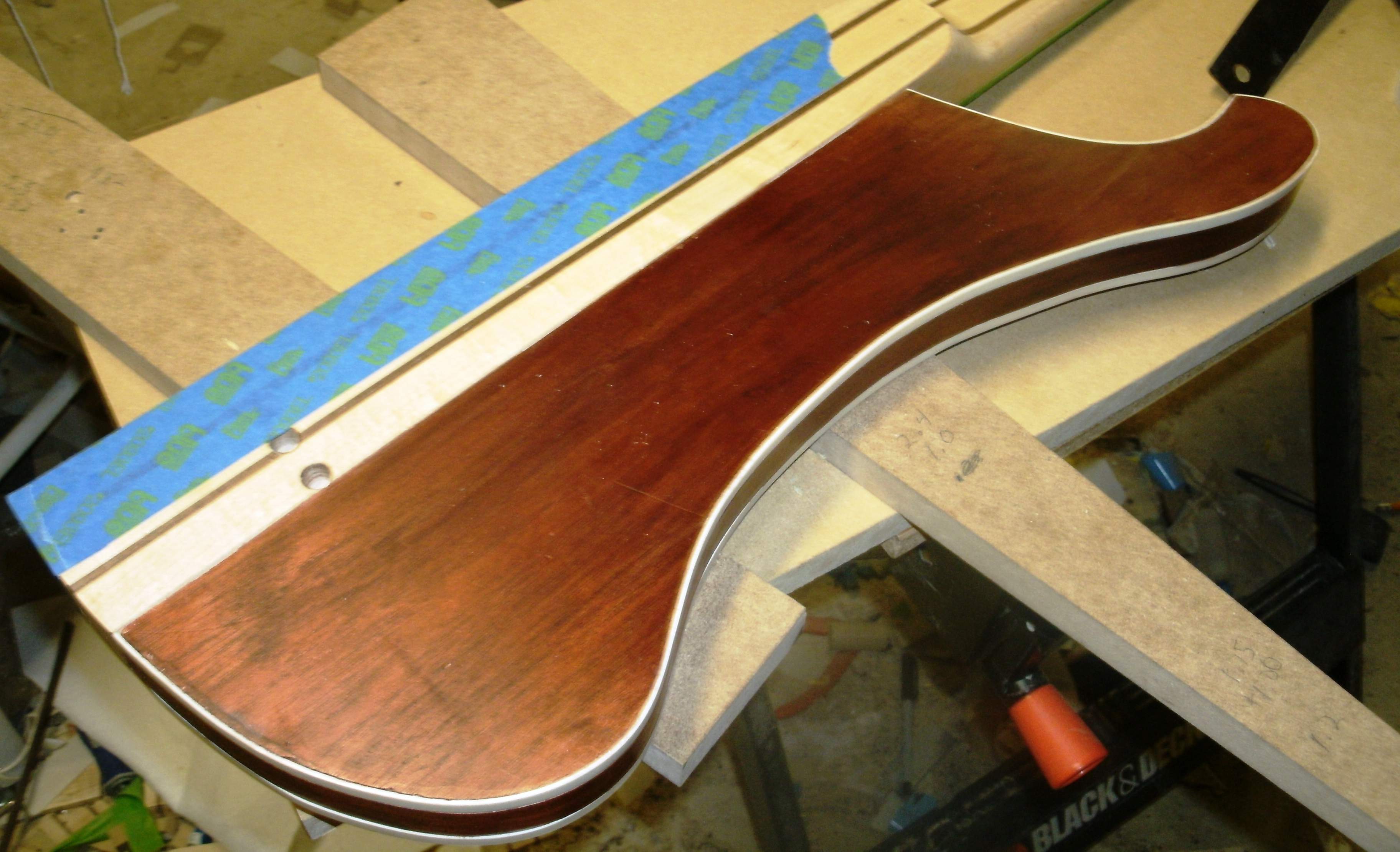

Upper wing going on:



[moonshinegtrs]

@Jon Clegg; those pickups look wider than stock Dano units (could be just me)... could you tell me how long they are?

The bass looks great!


Moonshine



[Jon Clegg]

@Jon Clegg; those pickups look wider than stock Dano units (could be just me)... could you tell me how long they are?

The bass looks great!


Moonshine

3-1/4"

Thanks!



[Jon Clegg]

Brief update, I'll be getting the other wing on tonight. Also been working on the TRC logo, I'll be going with a black TRC to match the pickguard, and using the following logo which matches the color of binding printed on waterslide decal paper

I plan to make 2 TRC's; one from the same black ABS I used for the pickguard and one from clear acrylic with the logo on the backside and see which I like better.



[Jon Clegg]

Halfway there:

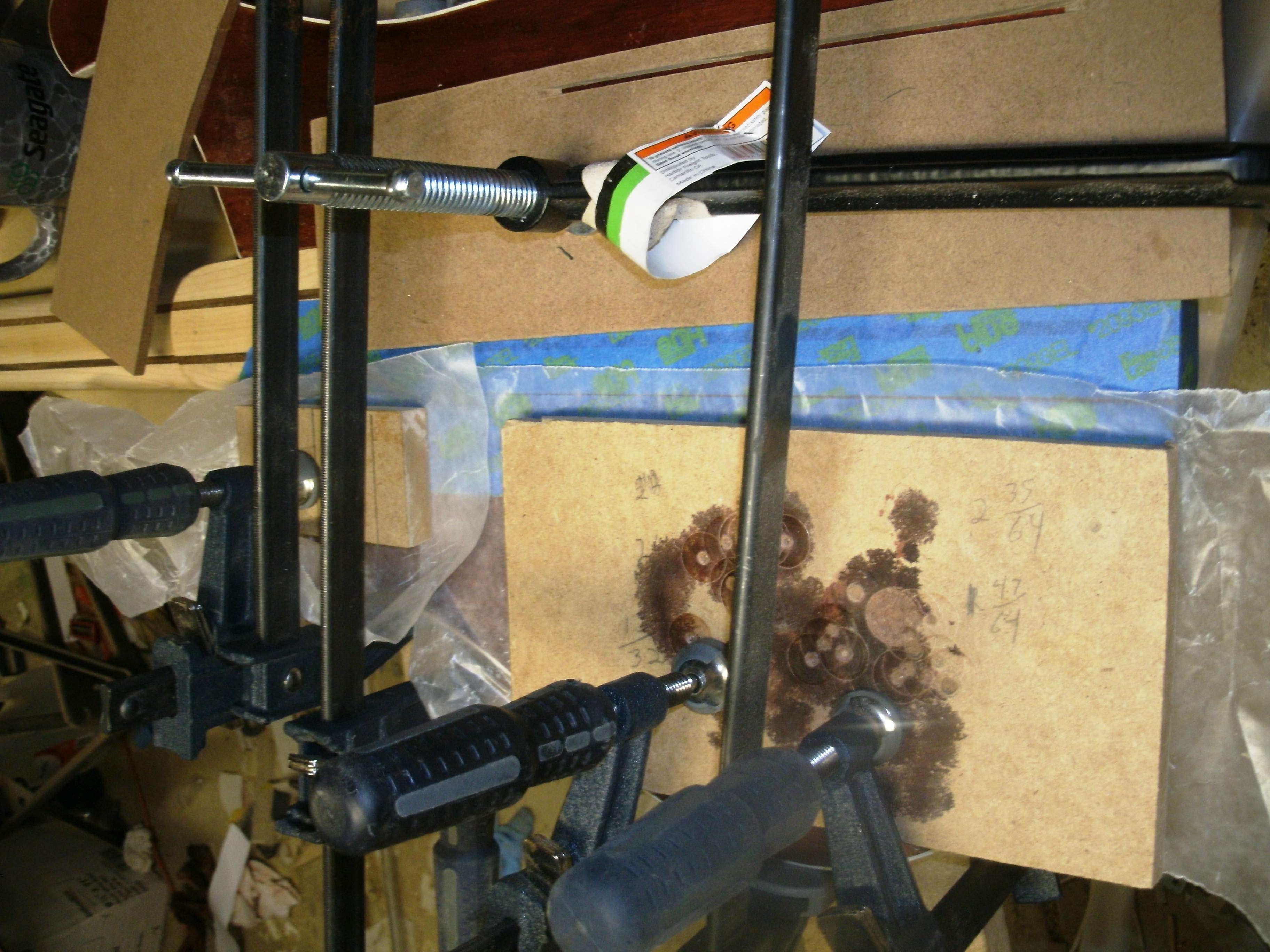

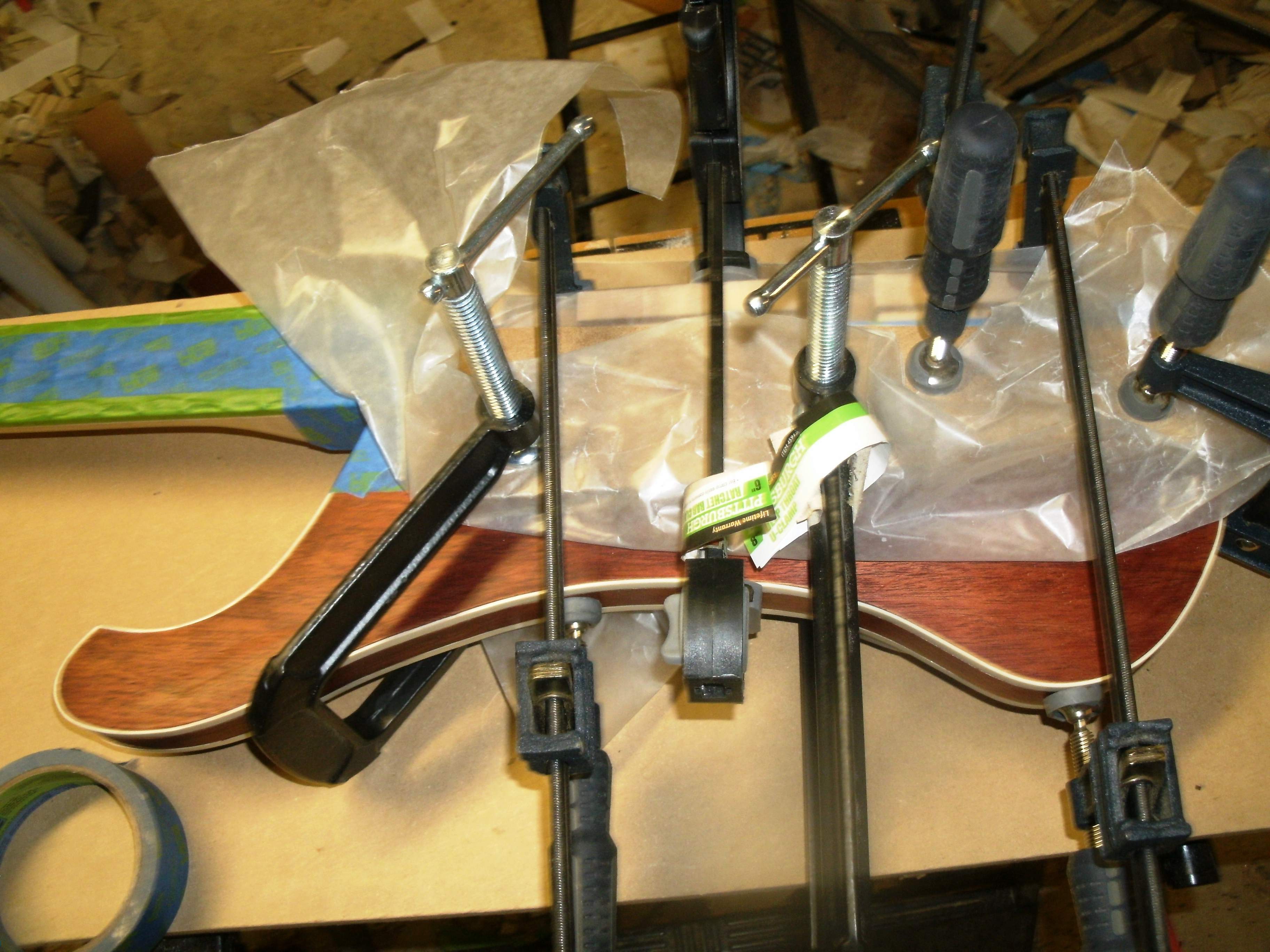

The other half in the clamps:

My gosh! It's a bass!

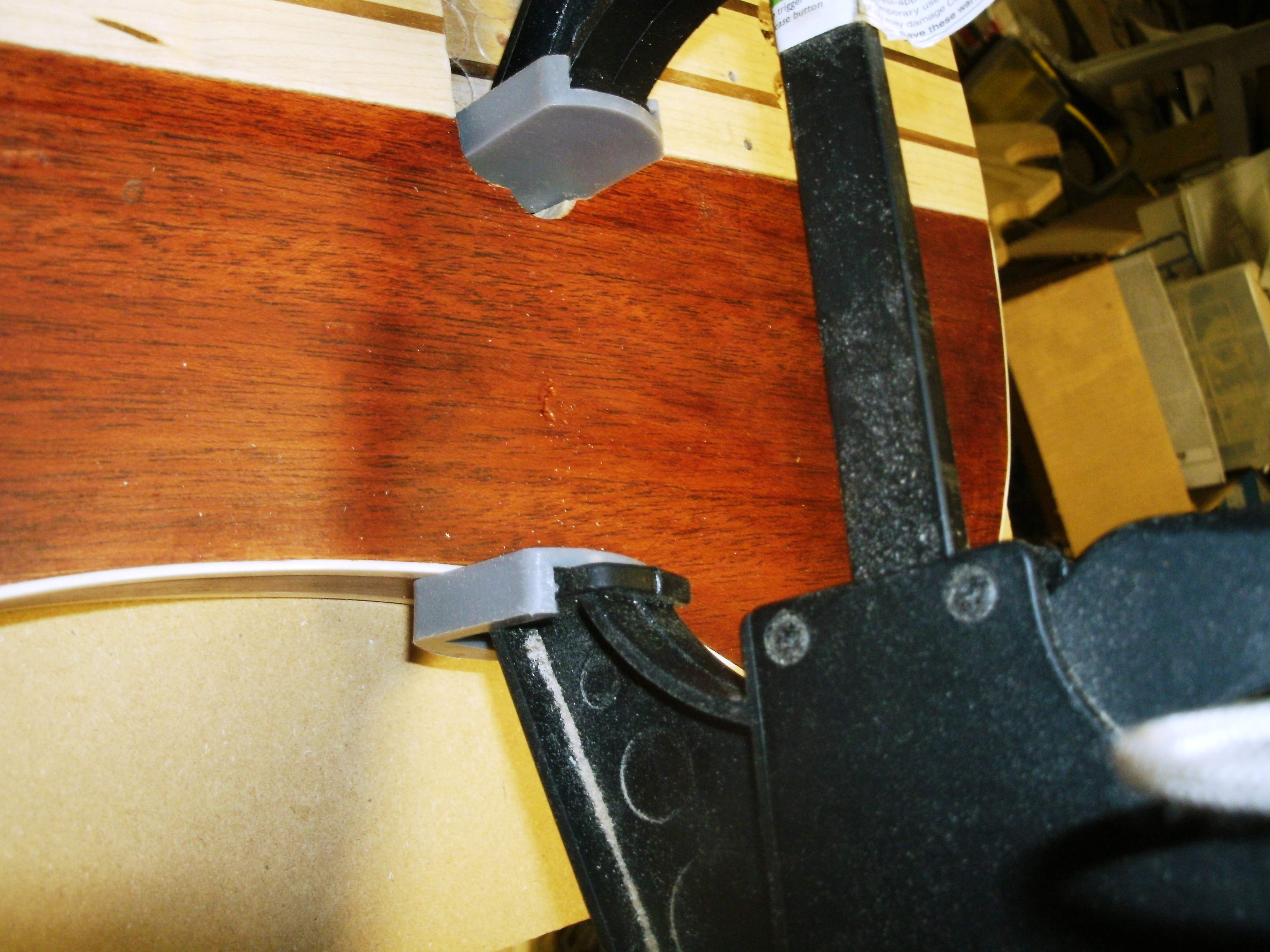

While I was clamping things together, I noticed that the binding wasn't quite stuck in a few spots, easily remedied with some super-glue and more clamps:

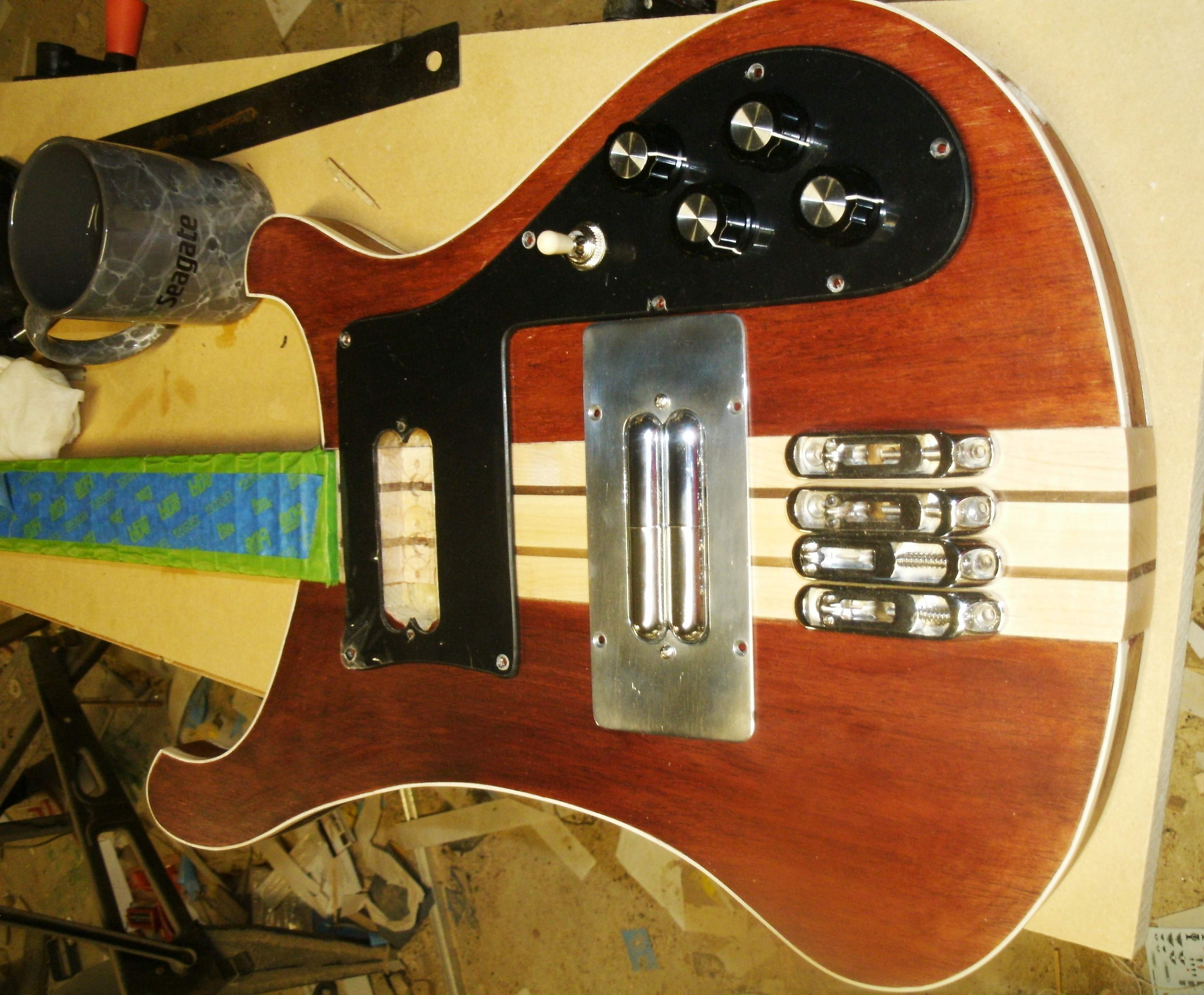

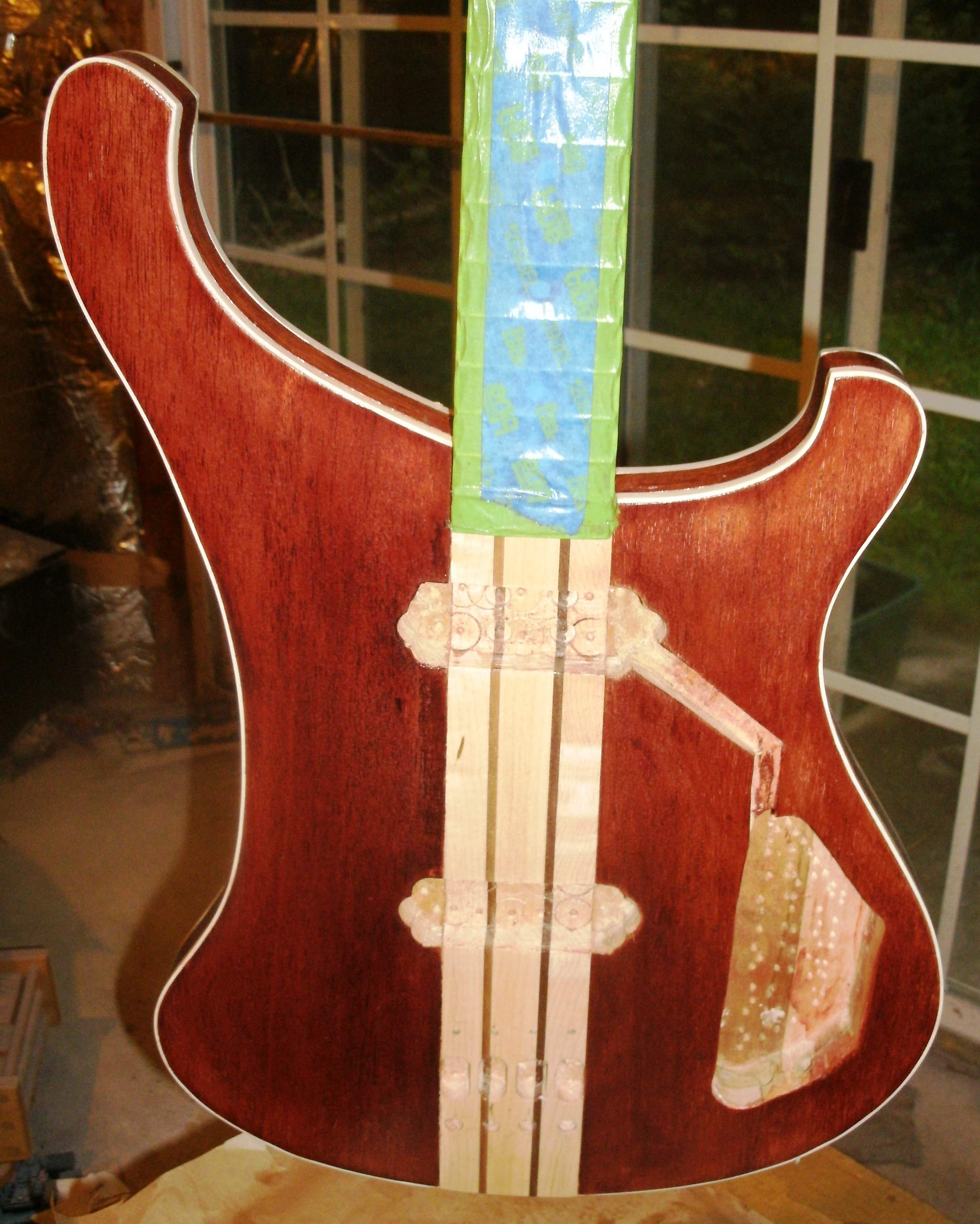

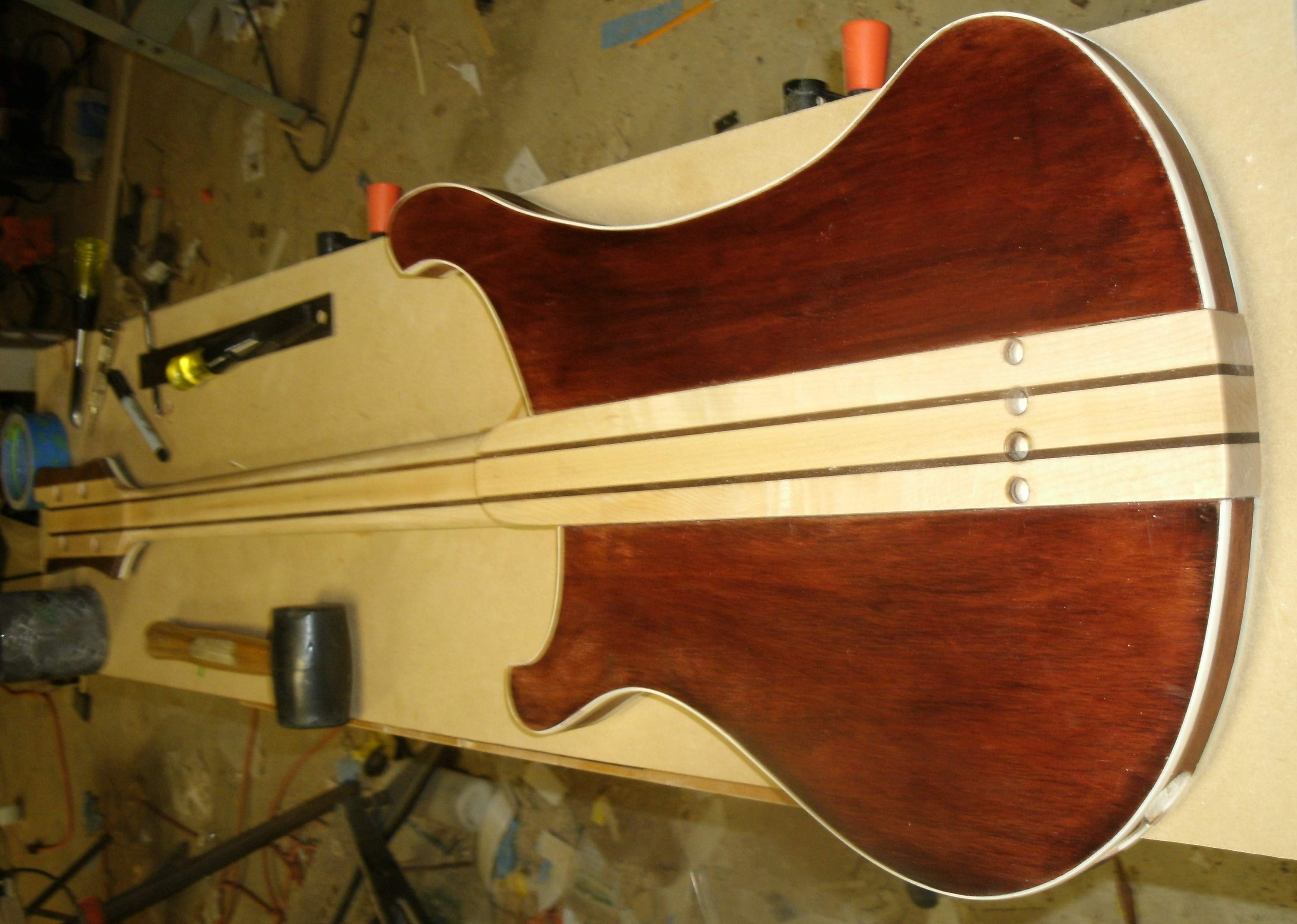

WIP Glamour shot:

Thanks to @JIO I was listening to some cool music as I worked.



[Jon Clegg]

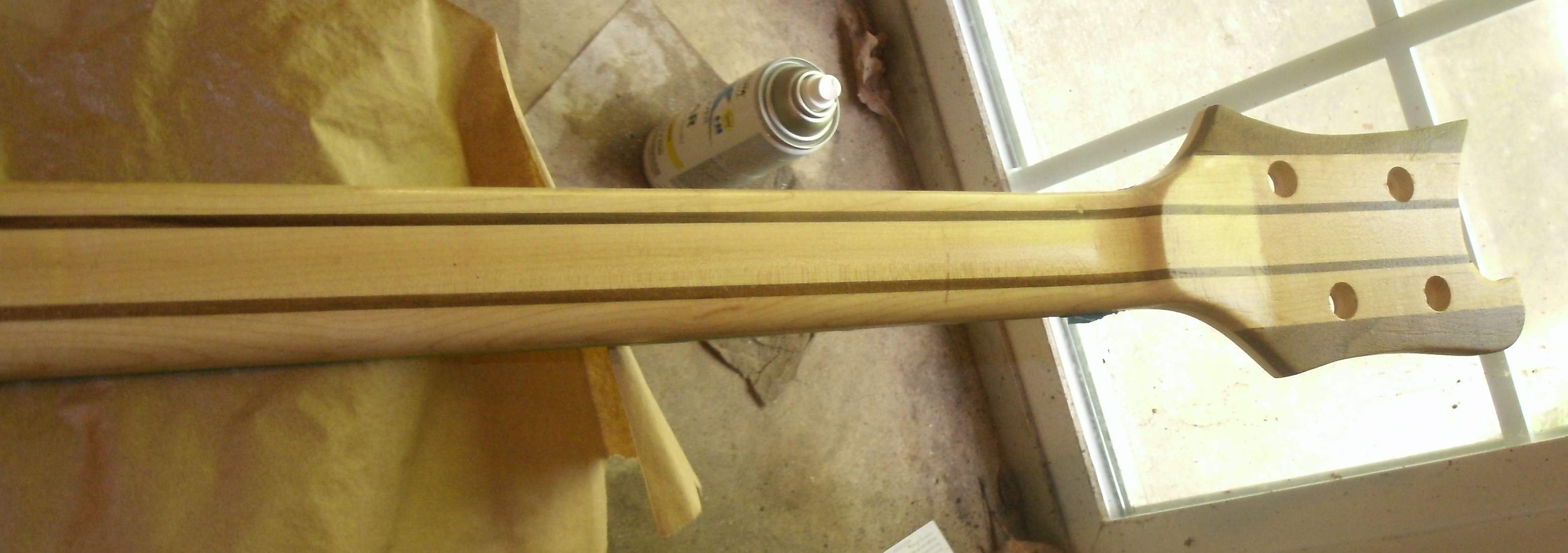

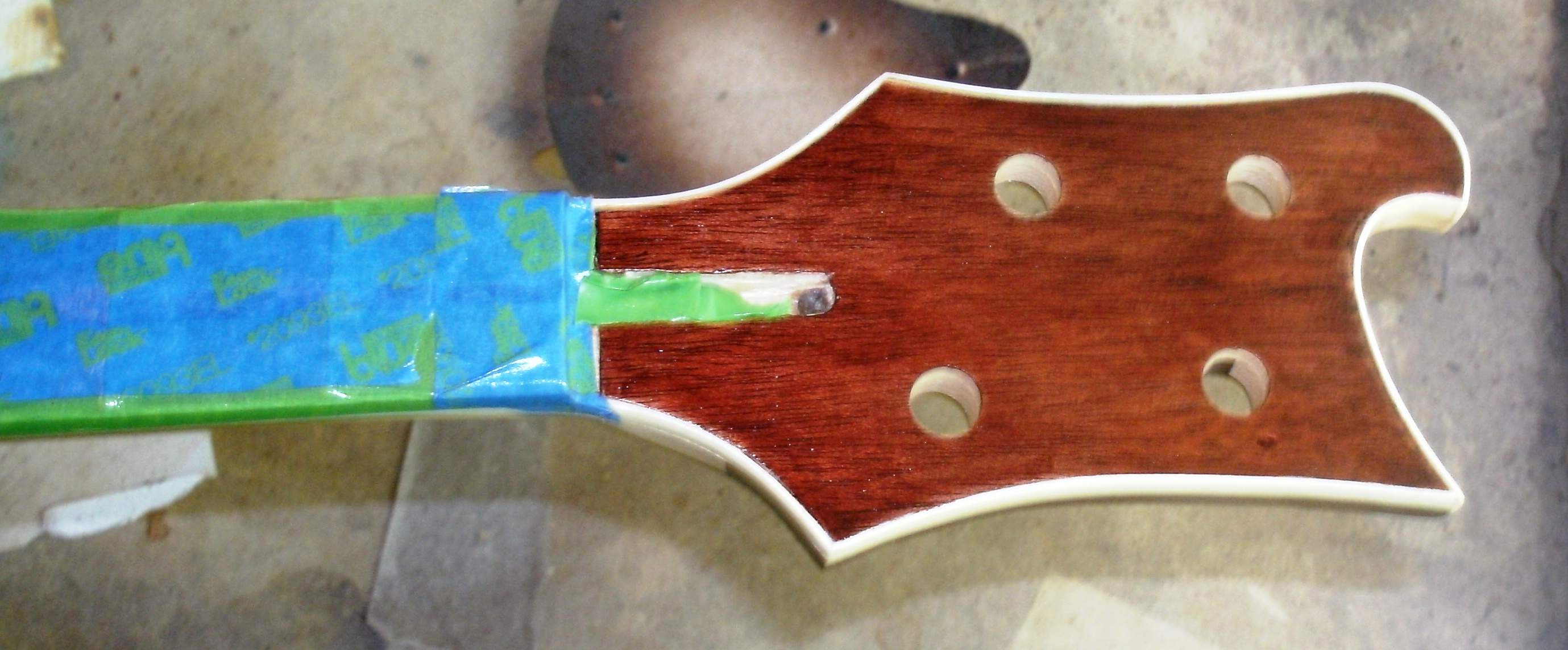

Made the TRC template and checked for fit with the nut, tuners etc. I ended up making a narrower TRC than what was on the plans to accommodate the headstock binding

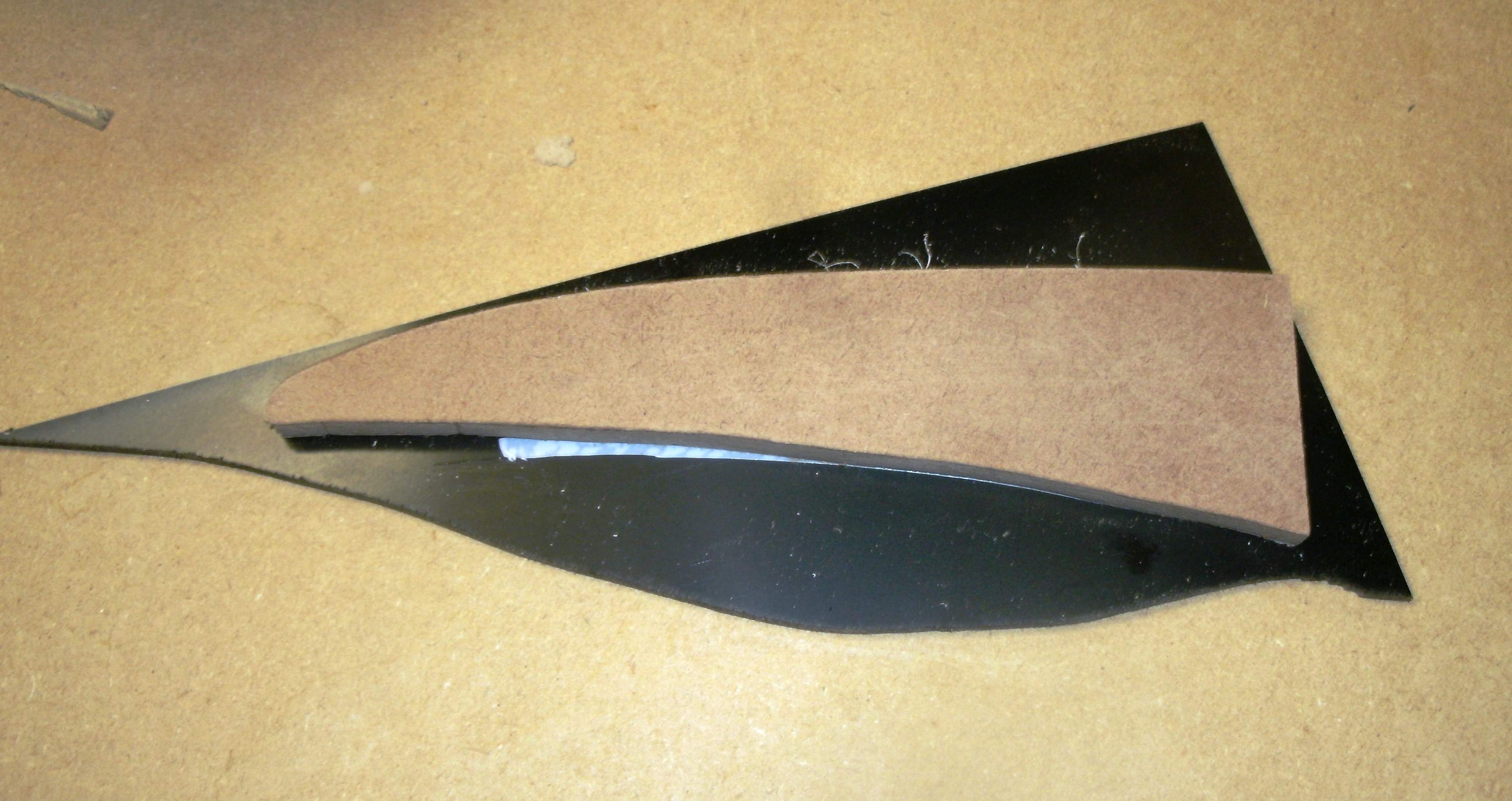

Template attached to the back of a scrap of the ABS leftover from the pickguard

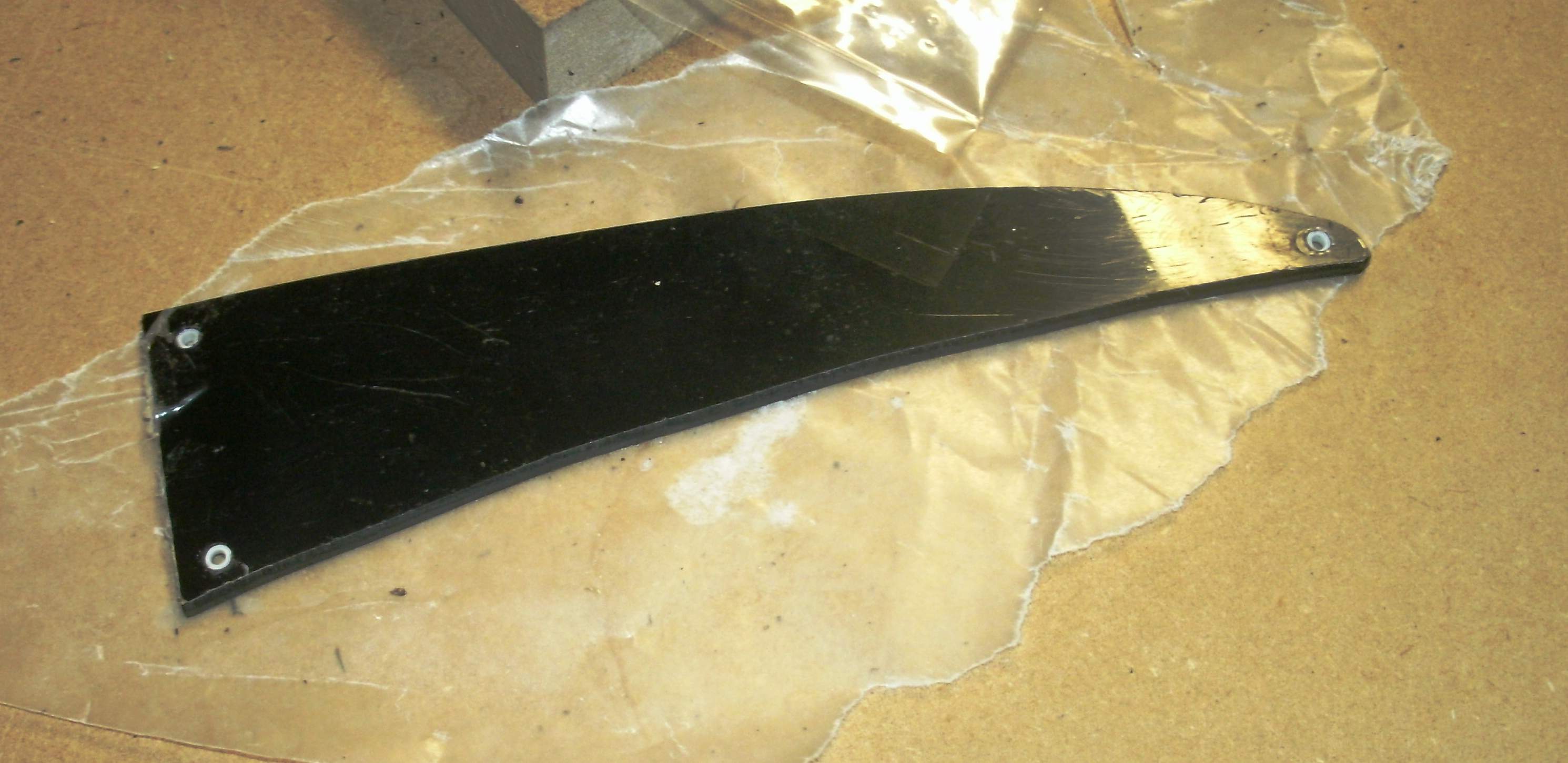

Trimmed, drilled, and ready for a decal

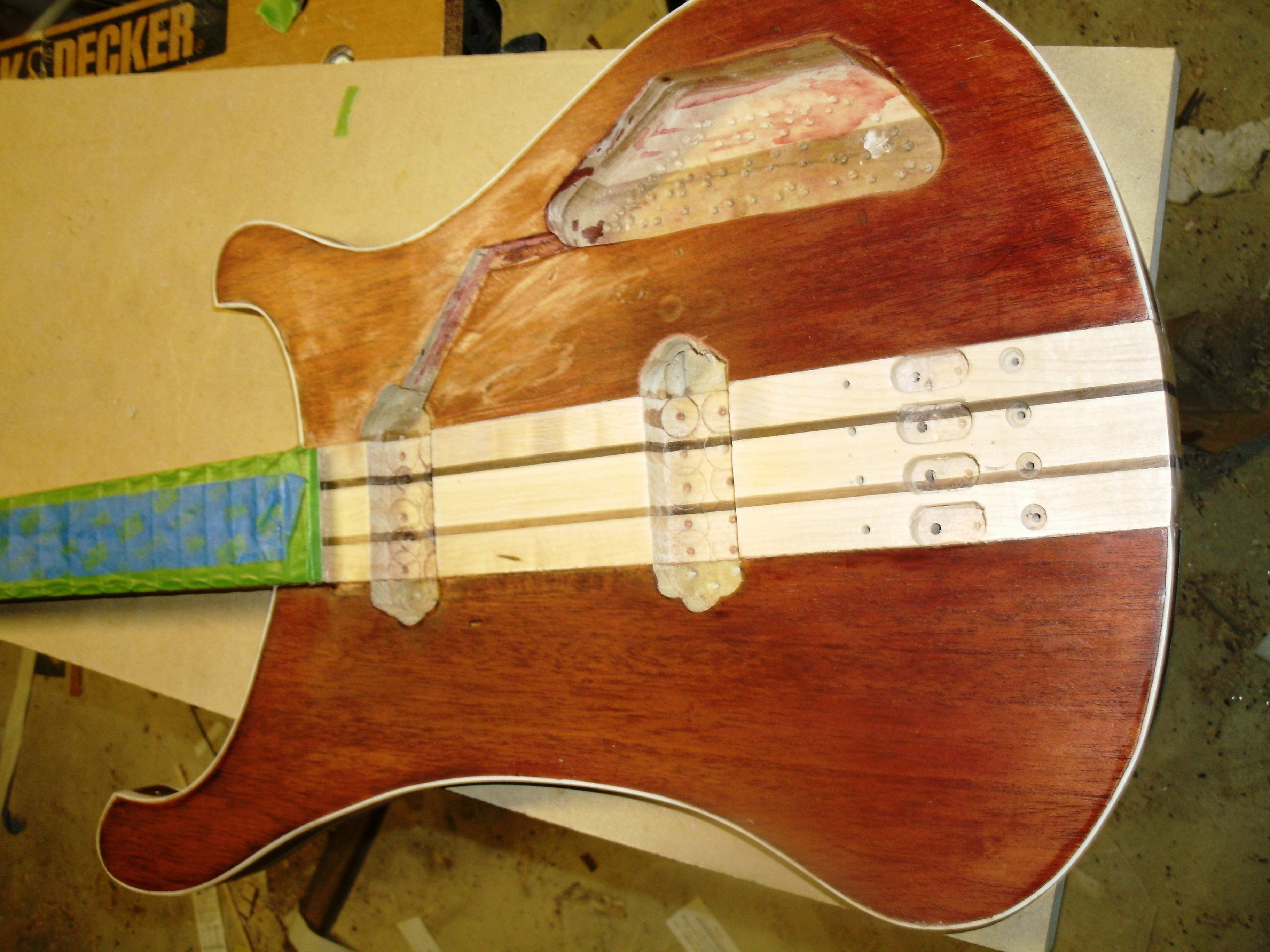

Meanwhile clearcoating begins:



[Jon Clegg]

TRC update:

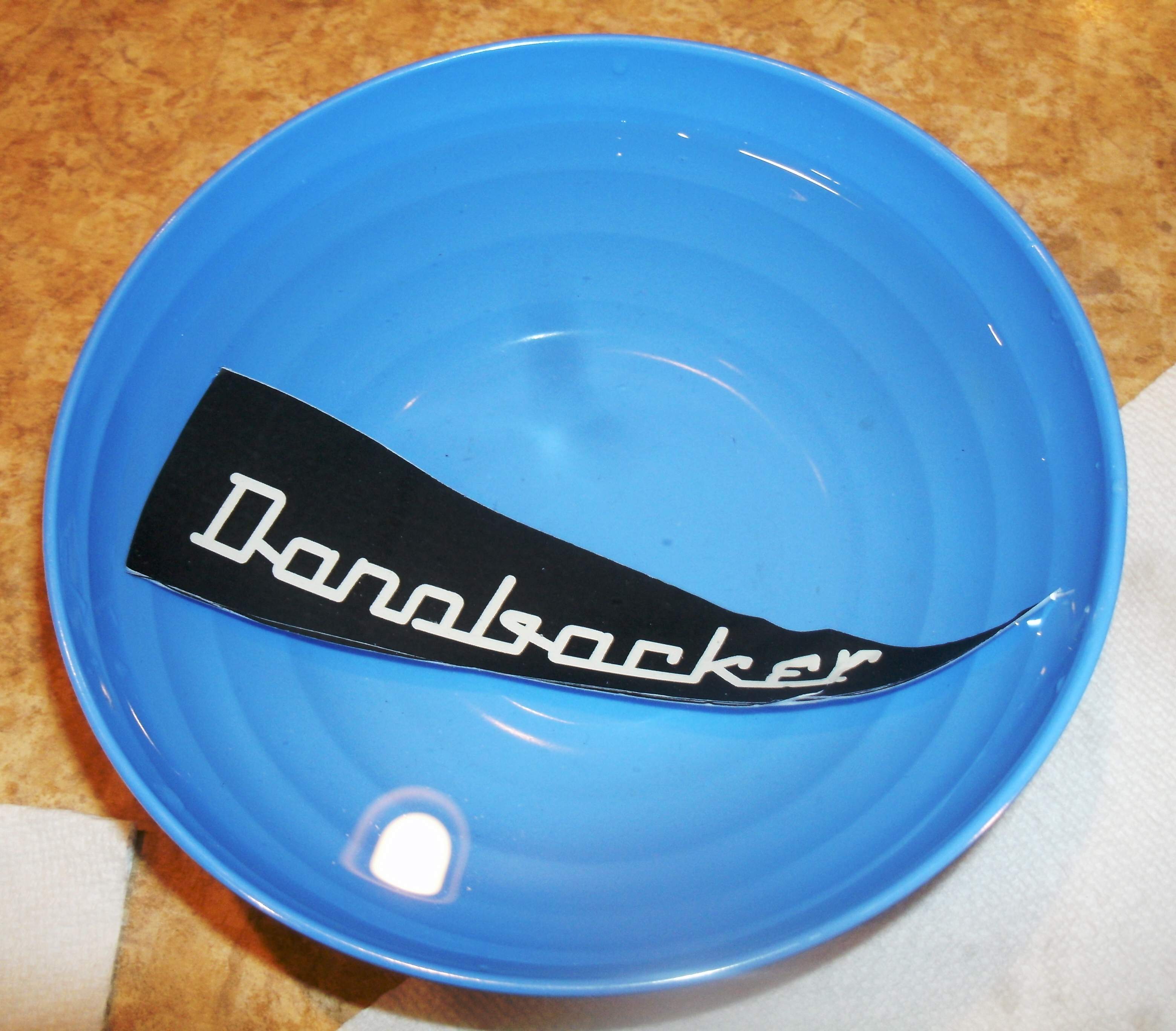

Decal applied:

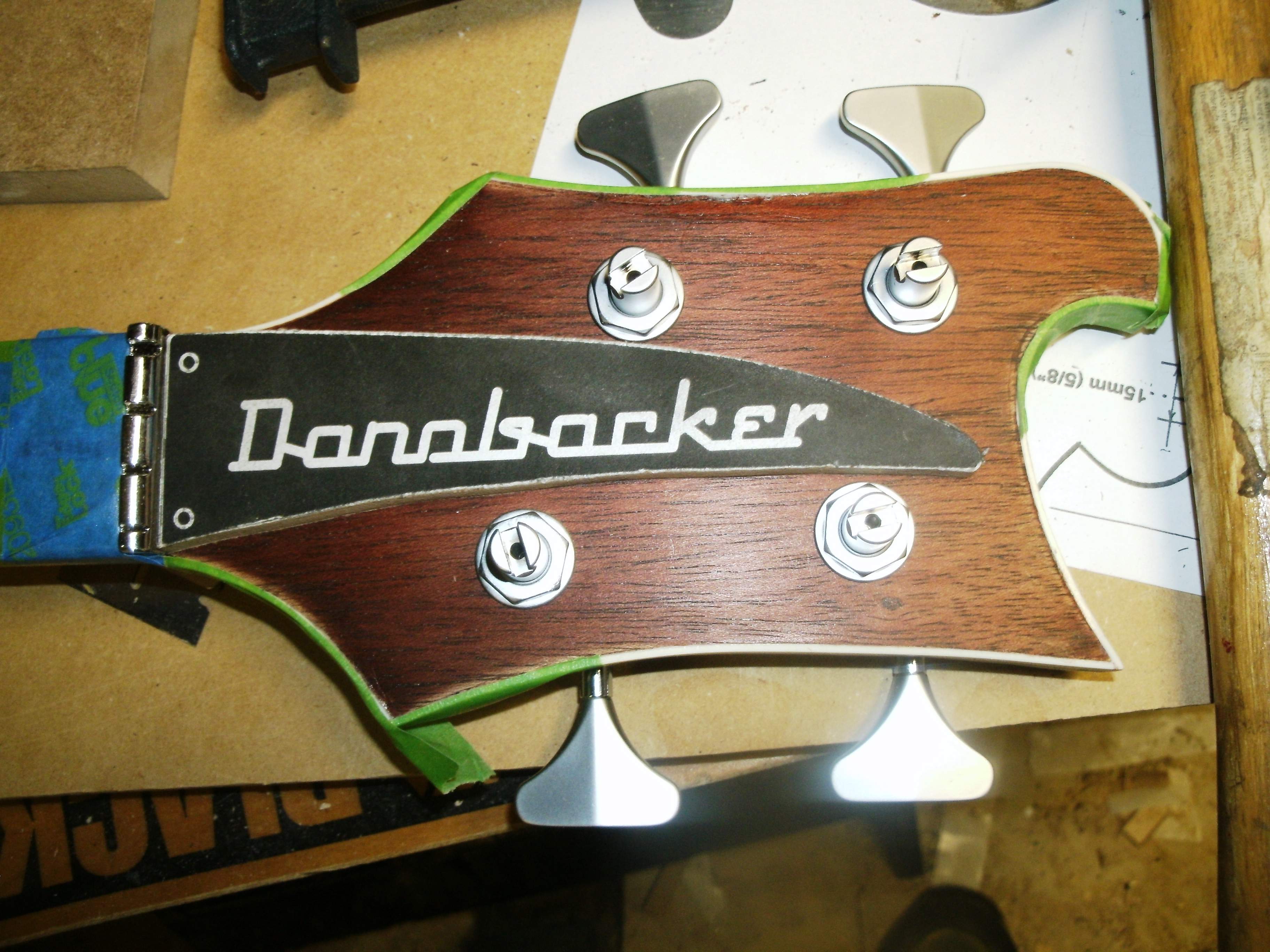

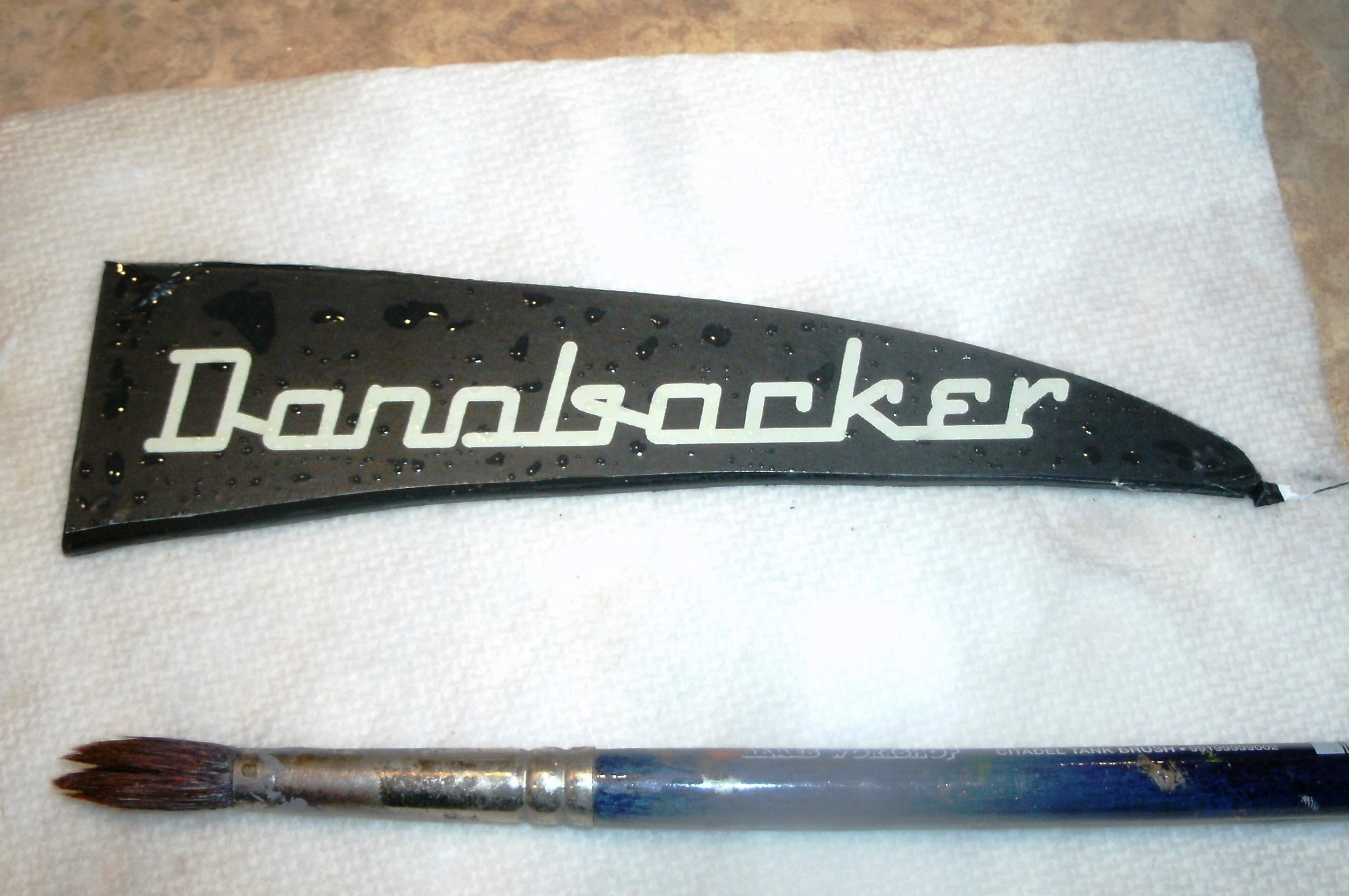

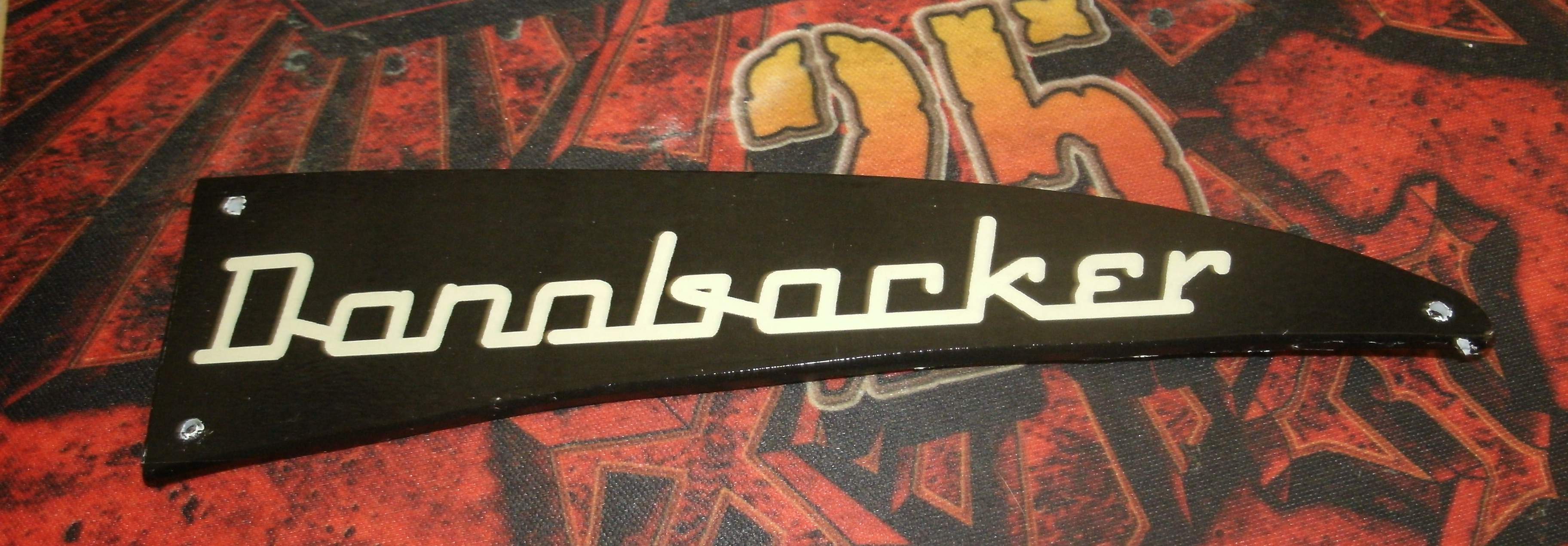

After clear-coating with gloss acrylic:

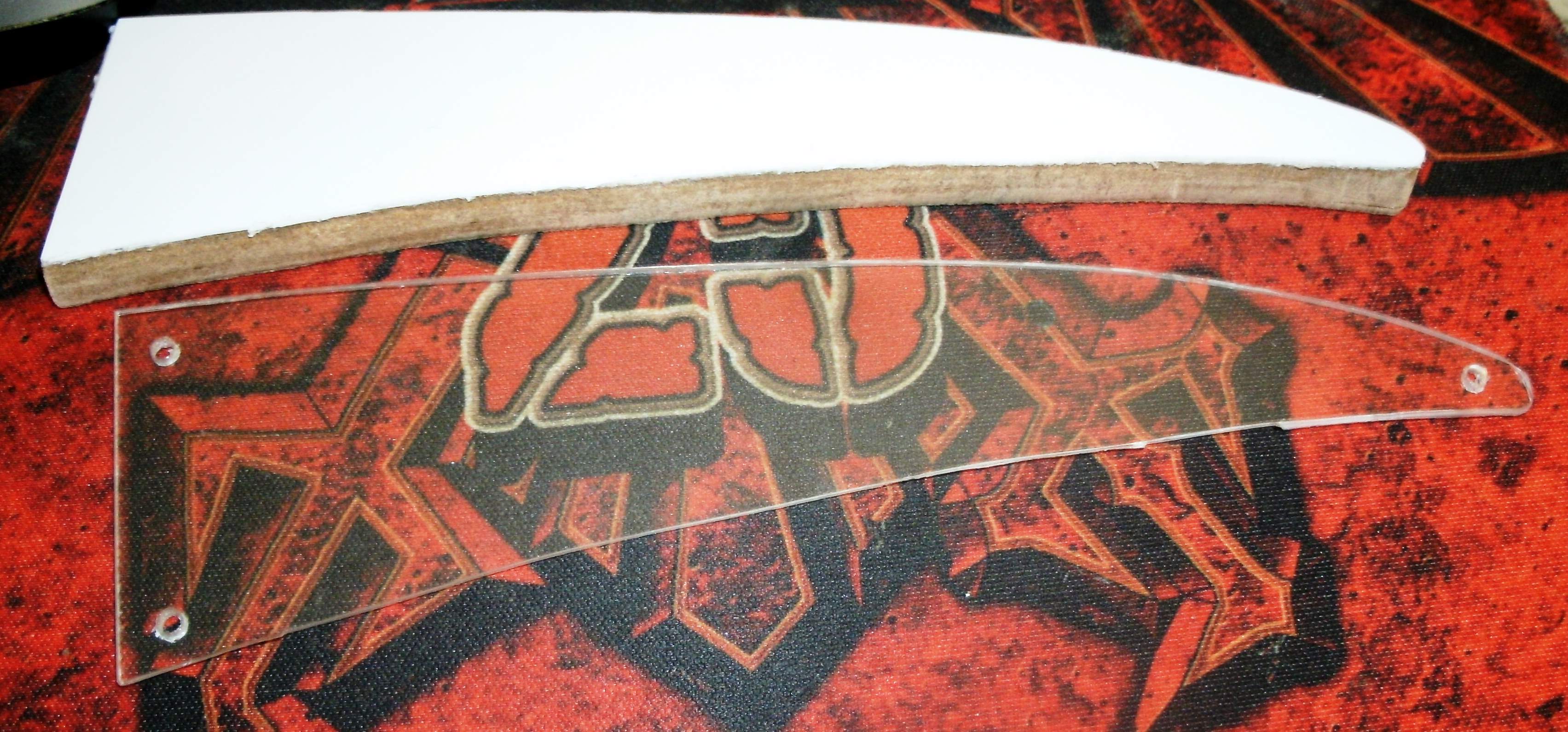

Applying to the back of an clear acrylic did not acheive desired results; I'm going to print a new sheet wednesday morning and try applying to a thin sheet of styrene whch I'll cover with the clear acrylic TRC and see which I like better



[Jon Clegg]

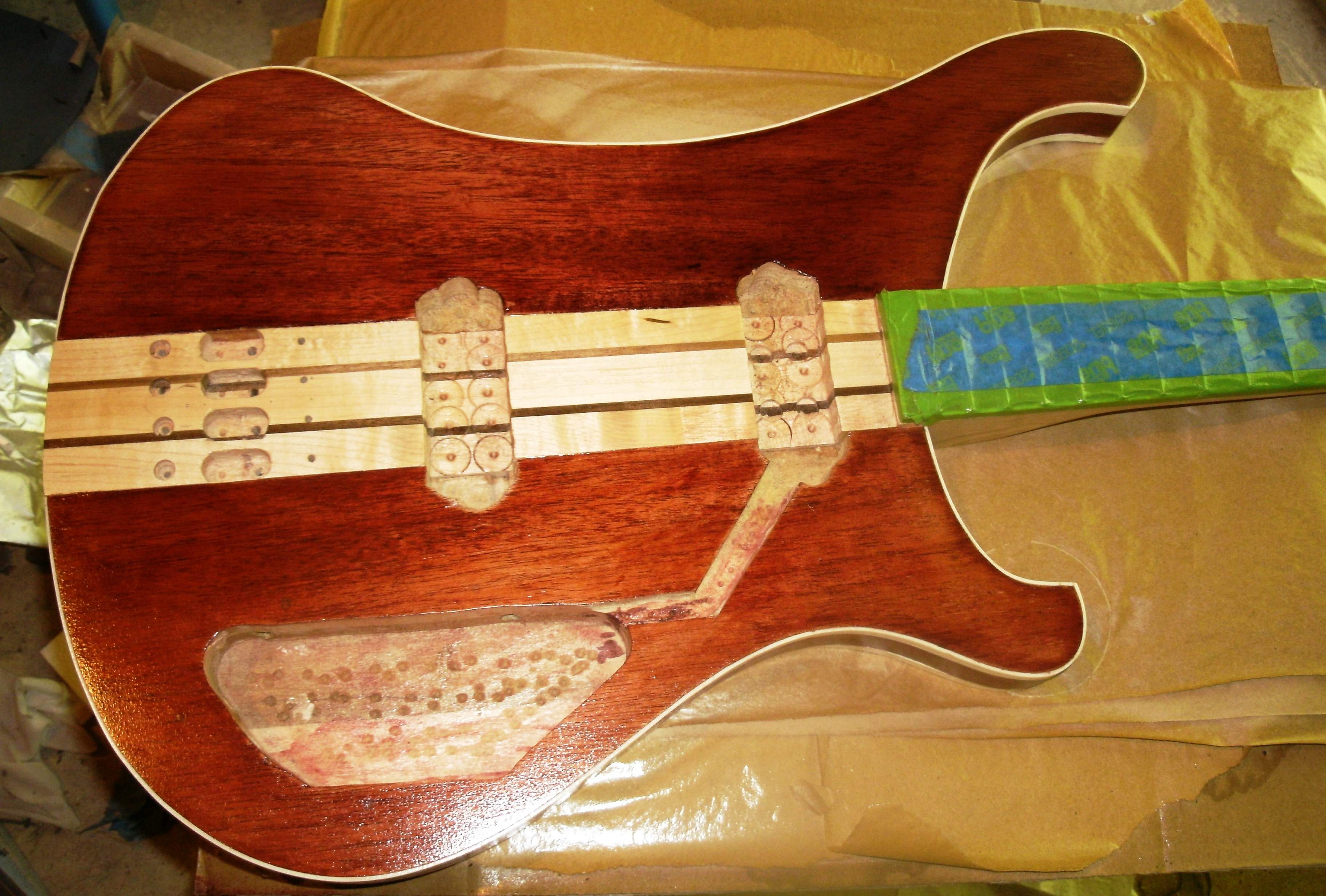

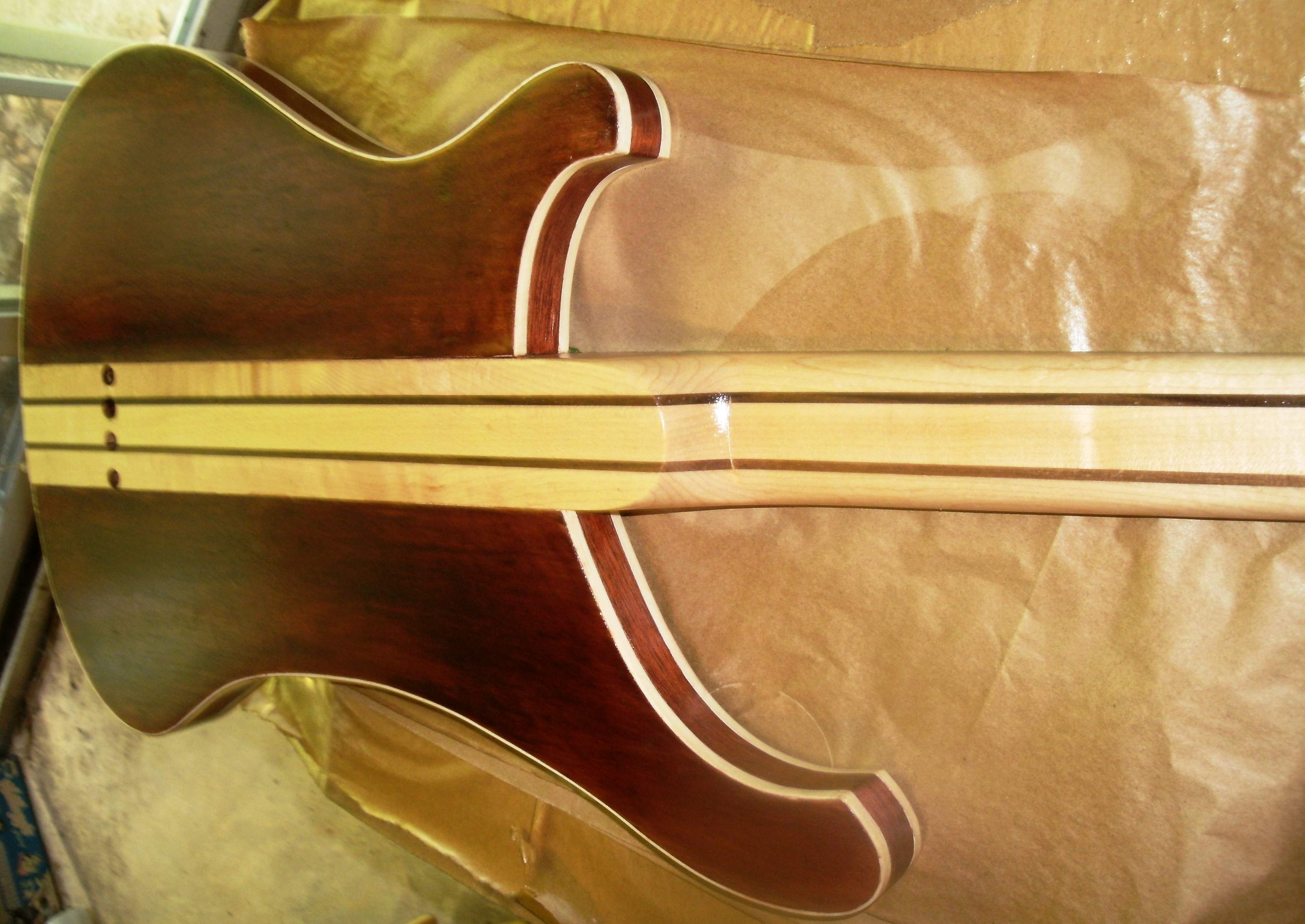

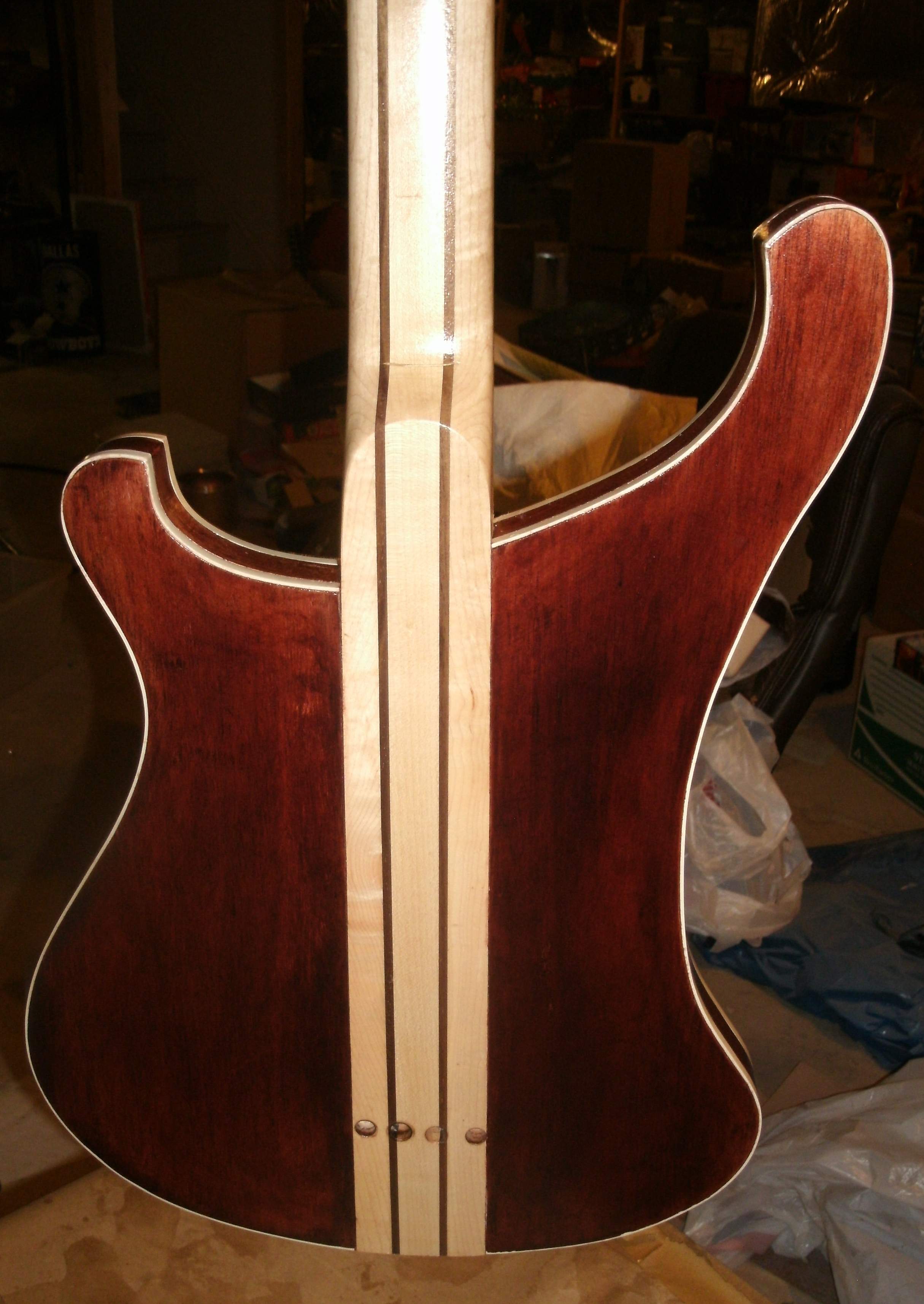

And here's where I'm at on the clear-coating; about 10 coats(?) using Varathane WB poly, the build up is slow and I was a bit concerned about the pebbly finish until I read some posts from others like @mapleglo that that's the nature of the beast with this stuff.

Back to spraying and waiting!



[mapleglo]

And here's where I'm at on the clear-coating; about 10 coats(?) using Varathane WB poly, the build up is slow and I was a bit concerned about the pebbly finish until I read some posts from others like @mapleglo that that's the nature of the beast with this stuff.
View attachment 1168969
View attachment 1168970 View attachment 1168967
View attachment 1168968
Back to spraying and waiting!

If it's getting rough more than "pebbly", you may want to sand a little between coats with 600 or 800. The smoother the base, the smoother the coats will go on.

Love the double binding



[Jon Clegg]

If it's getting rough more than "pebbly", you may want to sand a little between coats with 600 or 800. The smoother the base, the smoother the coats will go on.

Thanks for the advice, I'll give it a once over with 600 tomorrow morning. I wanted to get somewhat of a coat on it before doing any sanding since the stain tends to burn through if you stare at it too hard.

Love the double binding

Thank you! I was afraid it might be uncomfortable with no contouring. But the body is so skinny at 1 1/4" it feels fine.



[Jon Clegg]

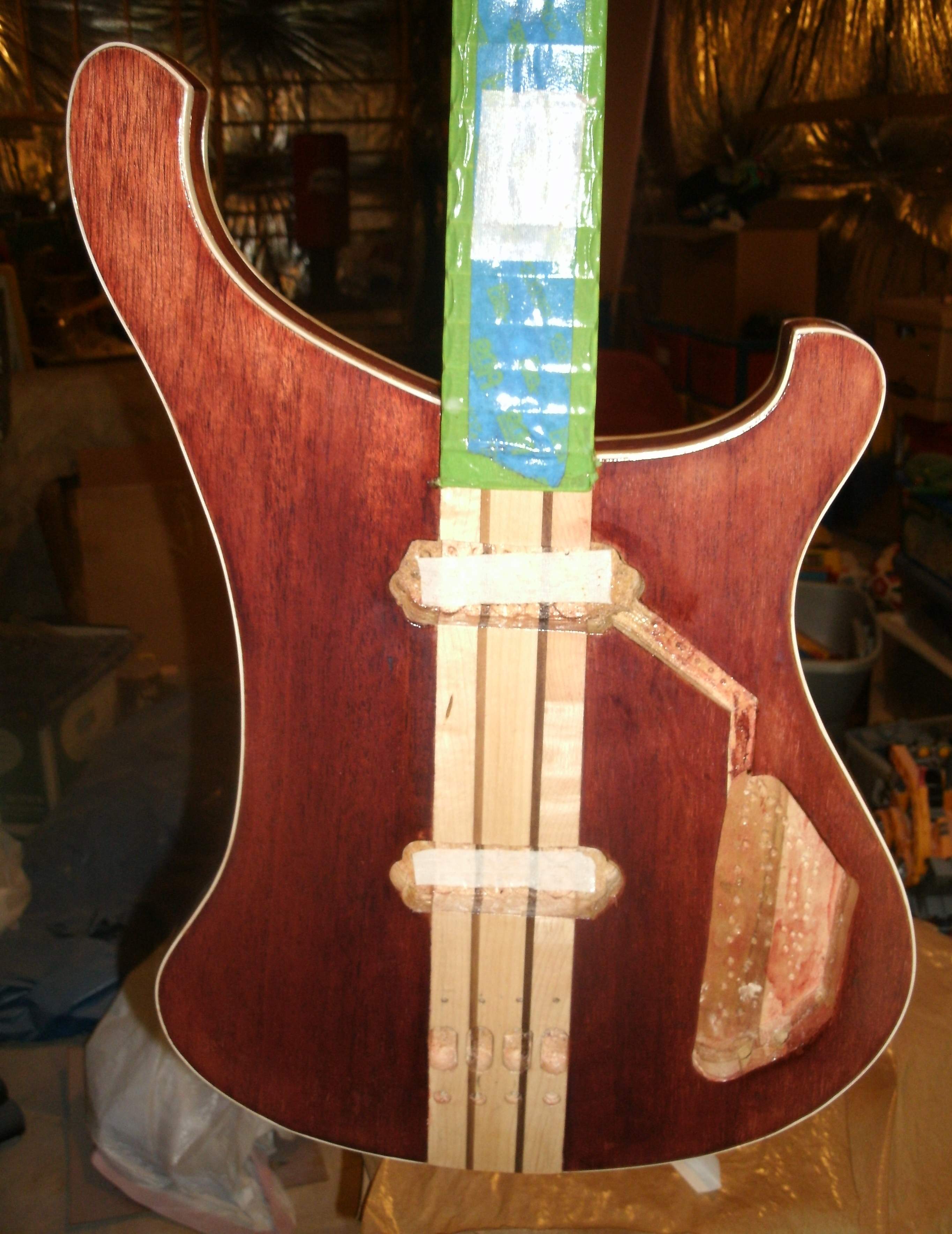

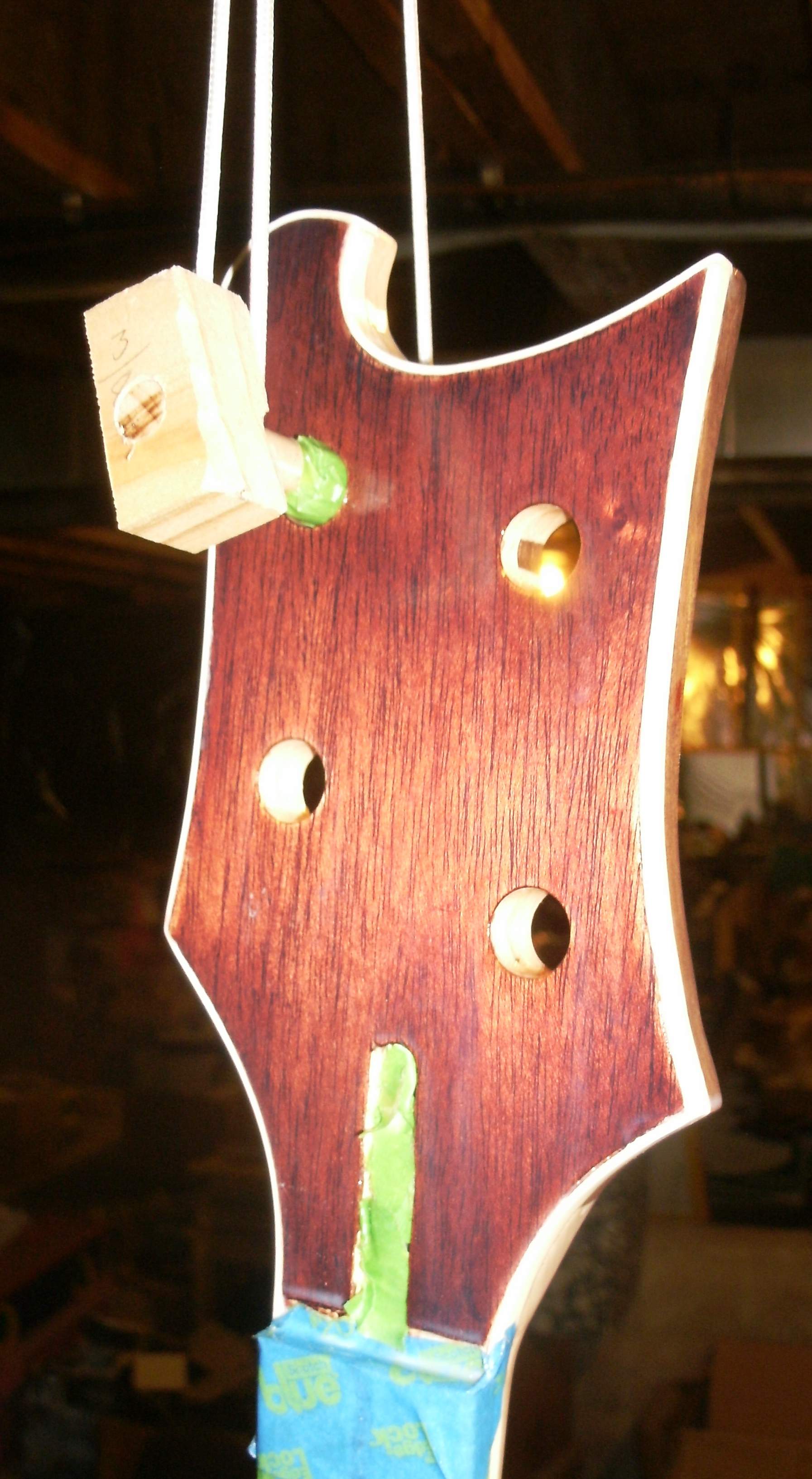

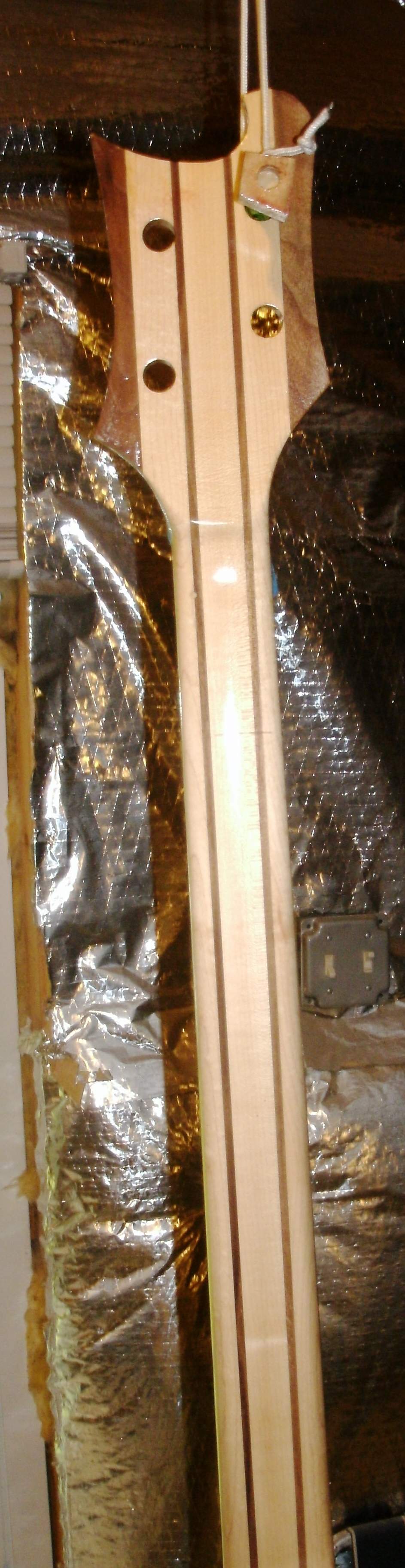

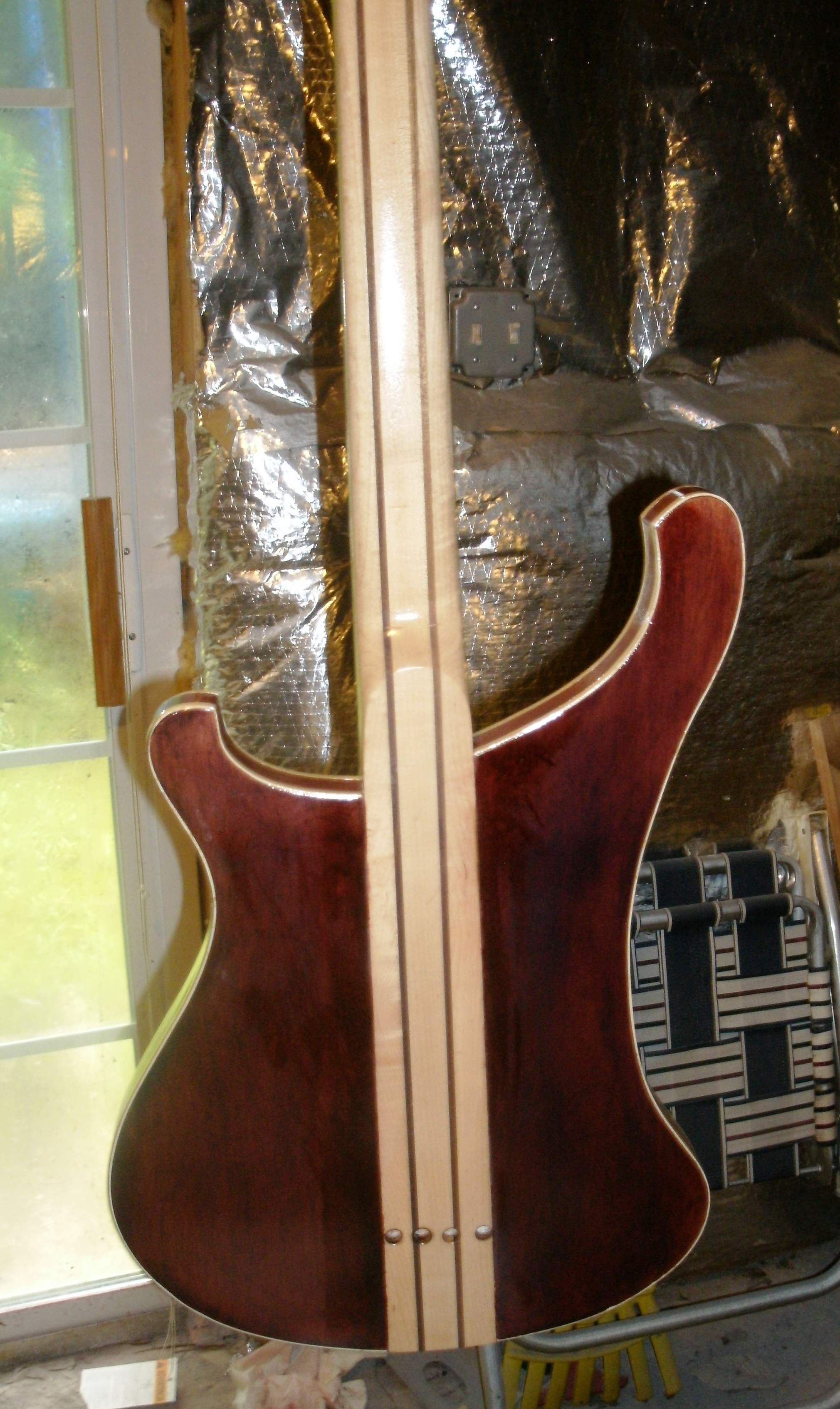

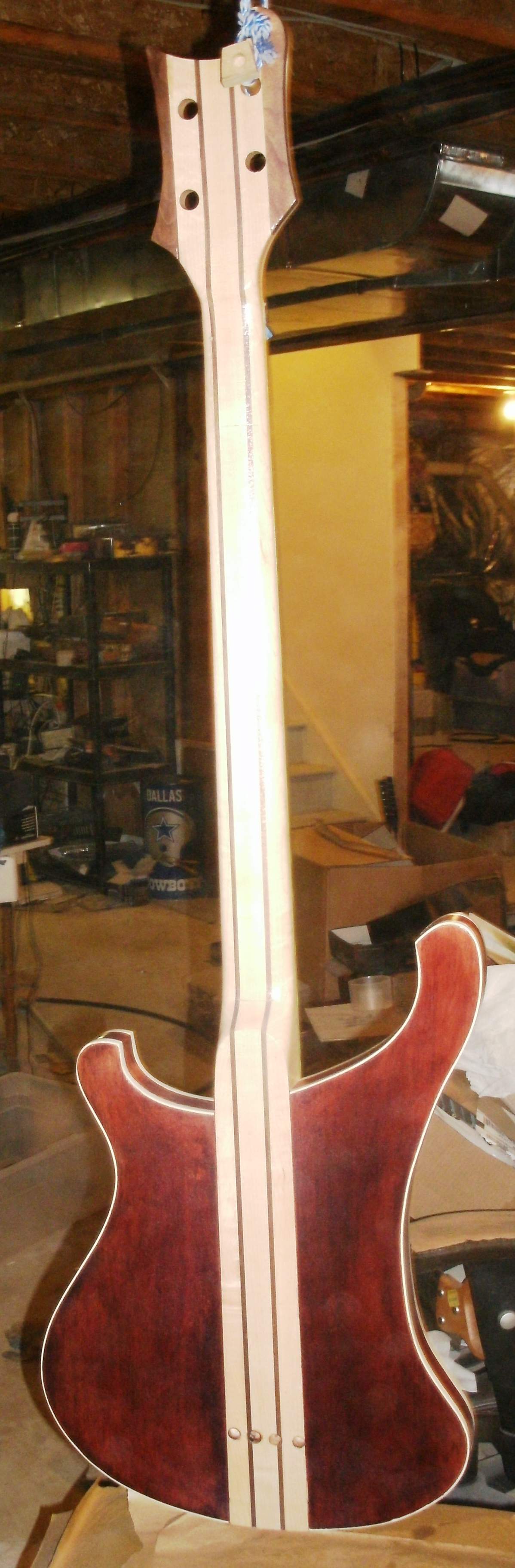

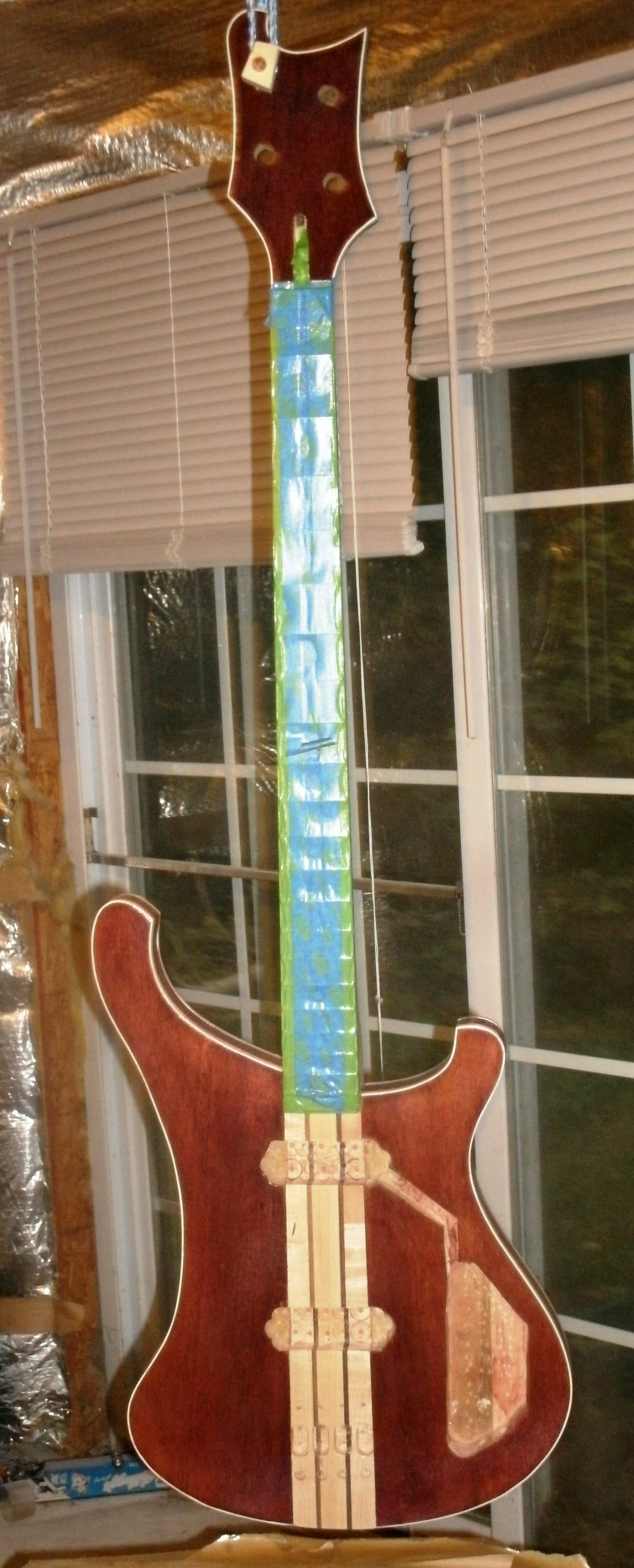

Did a little sanding with 600, also decided to hang it to spray, two more coats on

Shaping up nicely, I think.



[ICM]

What a great build, the mahogany really pops and it looks like you brought out a great colour from it. Also, a short scale, great idea, I've always dreamed of a shortscale Rick. The double binding ala tele custom is fantastic two, a 4003WBBS!



[Jon Clegg]

What a great build, the mahogany really pops and it looks like you brought out a great colour from it. Also, a short scale, great idea, I've always dreamed of a shortscale Rick. The double binding ala tele custom is fantastic two, a 4003WBBS!

Thanks, Ivan! For my first 'from just wood' build, I think it's turning out well.



[Jon Clegg]

Still working away, sanding after every 4th coat. Going to be a short pause since I'm running out of Varathane WB Poly, and will need to order a few more cans; thought 3 would do it but it won't



[Gilmourisgod]

Which version of the Varathane are you using? I had to order a 2qt pack of the gloss Heavy Use formula from Home Depot, none available locally. Im thrashing around with using it through a Harbor Freight HVLP turbine spray gun here,with mixed initial results:
Using water based products for instrument finishing, Target Coatings 9000 6000 and Varathane WB
Glad I didn't just jump in painting on my Ric build, steep learning curve on spraying finishes! What are you using for gun and compressor?



[Jon Clegg]

I'm using spray cans. I bought them from Invalid Link Removed



[Jon Clegg]

Getting close. A couple more coats and it will be done. This bad boy is thirsty; by the time I'm done I will have used 6 cans of WB poly.

I've decided to use the rest of the mahogany veneer I have to build a companion to this; A RIC-480 as a neck-through baritone. But that's far in the future as I have some other builds that need to get done first
