If you're talking about the bass, thanks! If you're talking about the ash, I can claim no credit other than being lucky.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
That is SO true. When word gets out, you'll get the wood.
I just recently got a garbage bag with some boards left in my office. First I was a little cheesed, but inside was a note - "real honduran mahogany, used to be a table". There were four 18" pieces of solid 2.5"x2.5" and four pieces that were about 46" long. Should make some nice stringers for a neck and some highlights for a body design or something...
... Well, at least it's for the proper clef.
Got around to flipping the polarity on two of the coils last night, turned out to be even easier than expected.

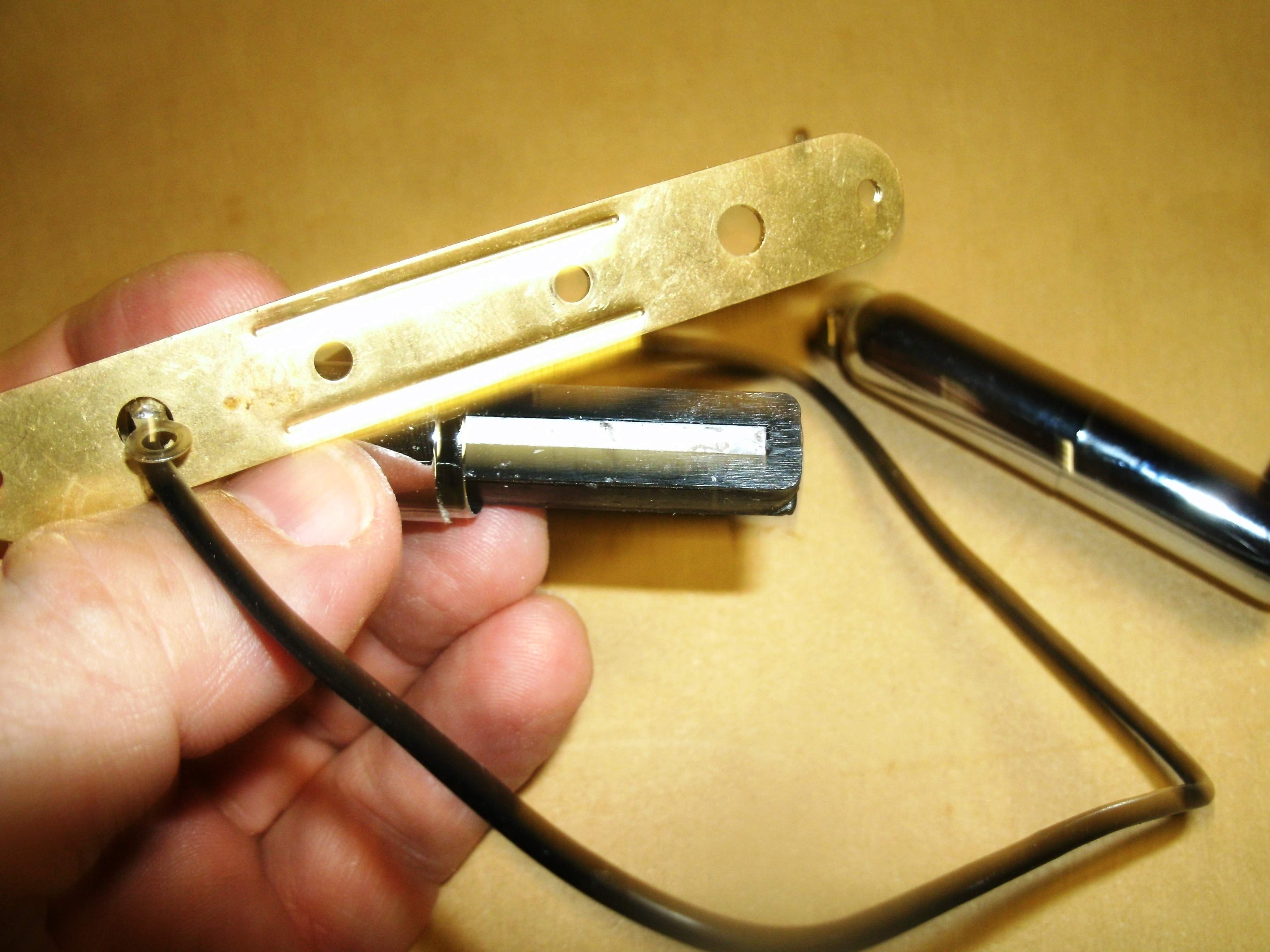

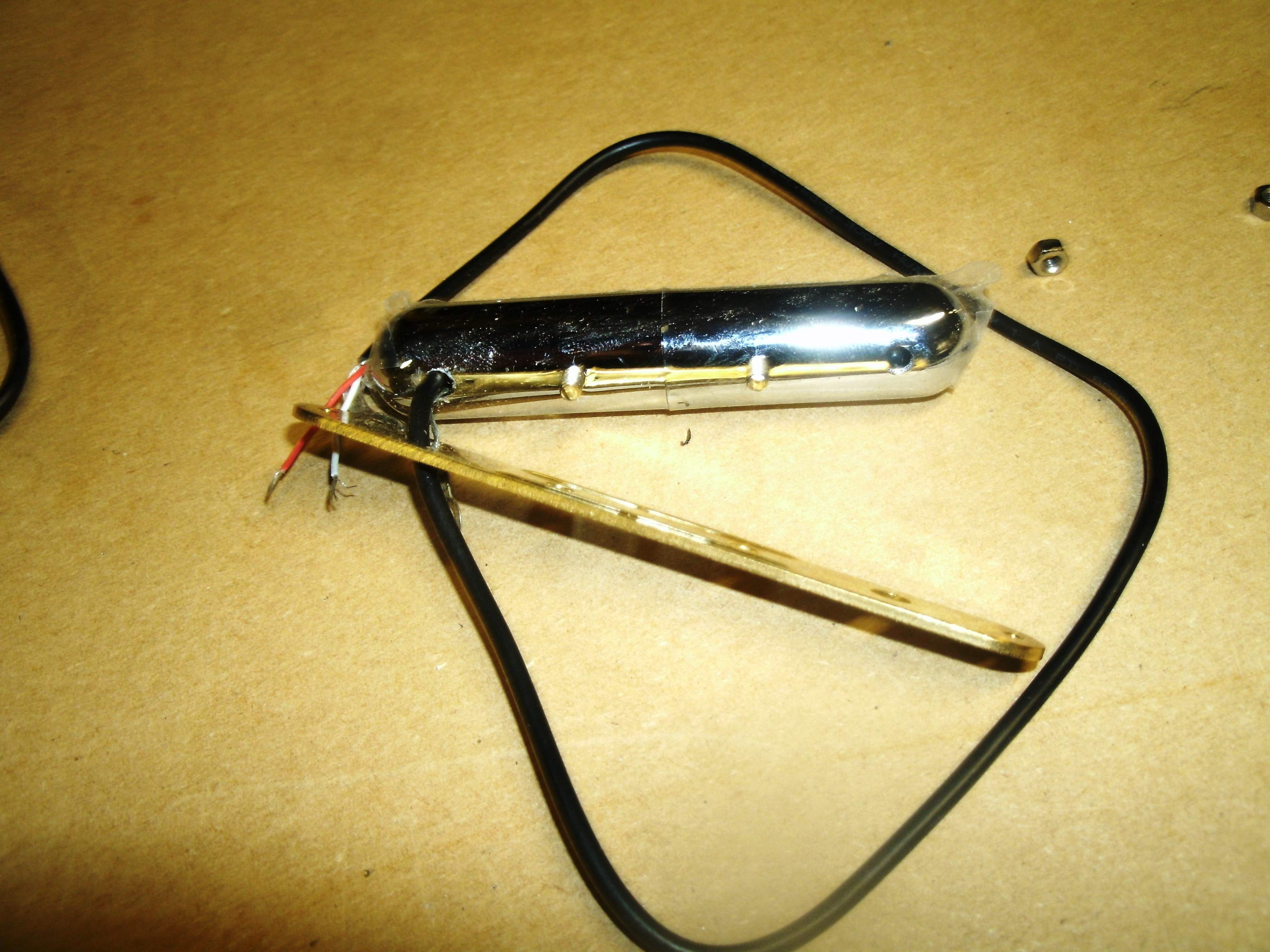

Start by removing the nuts from the back and pulling off the mounting plate:

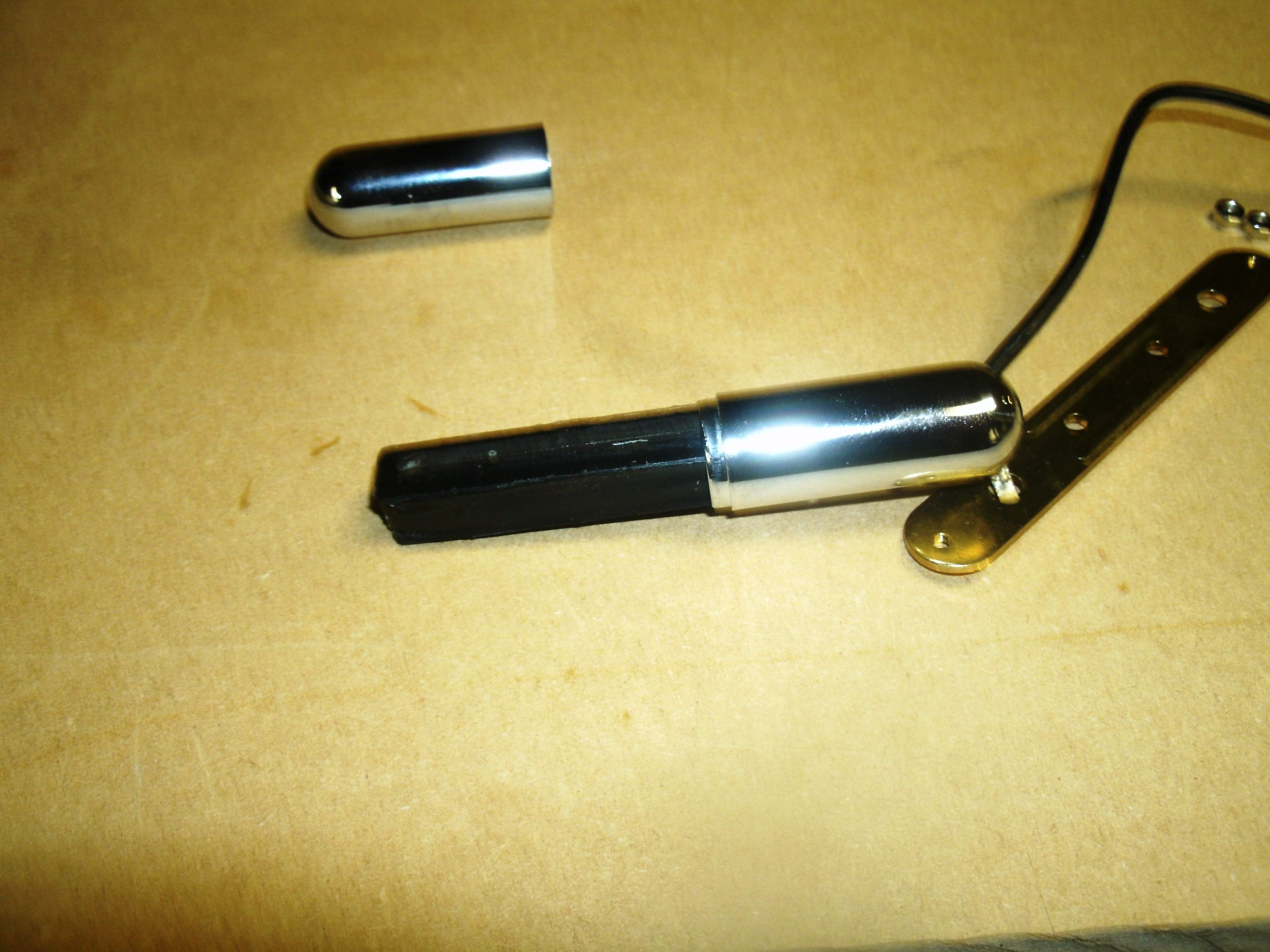

This is the part that was easier than expected; I was expecting to have to use a heat gun to soften the wax potting inside to loosen things up, instead, just a firm straight pull on the end without the wires opened it up, YMMV:

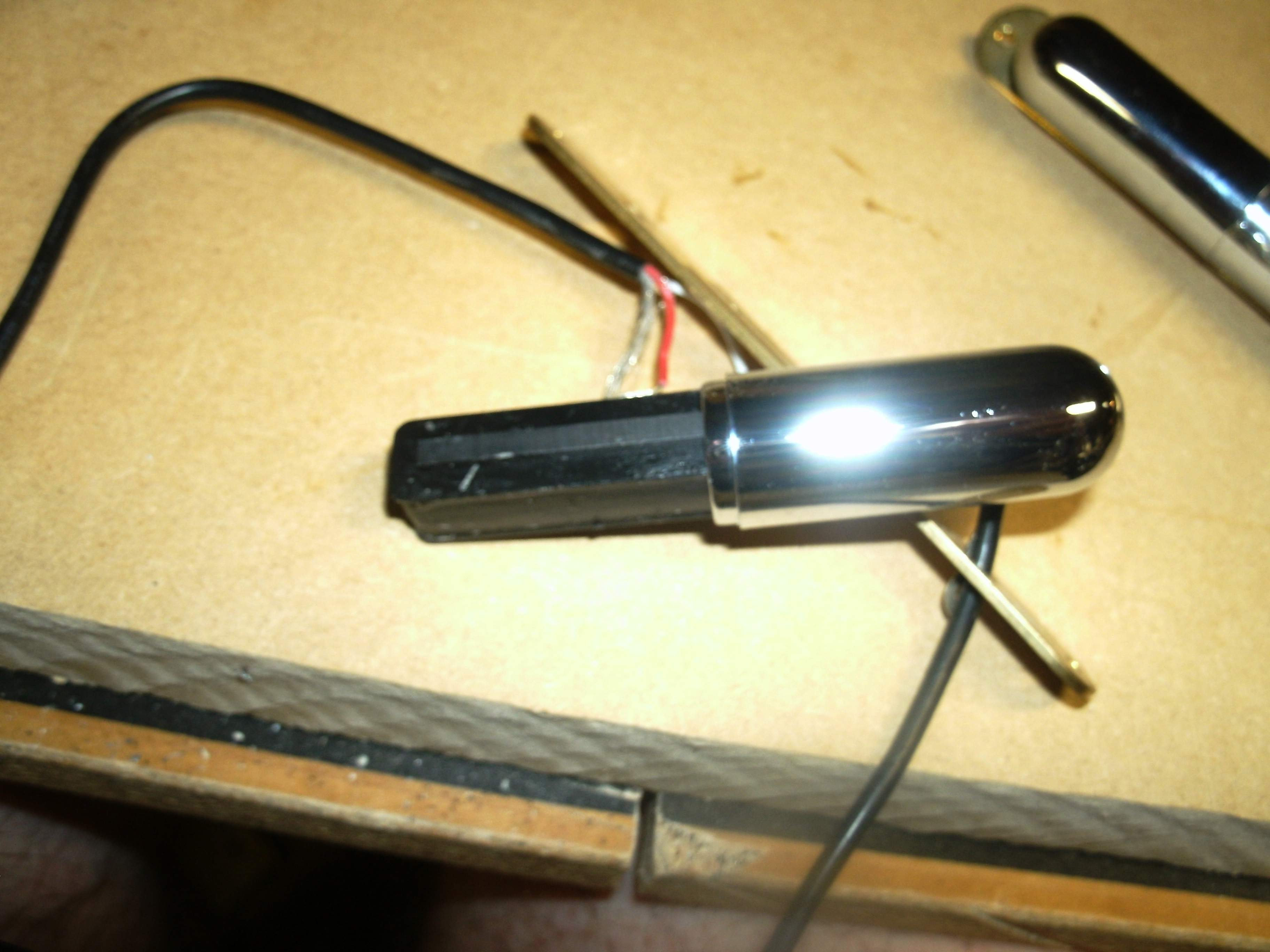

Looking out the underside, notice that the magnet is marked white on the underside. To reverse the polarity, this needs to be on top.

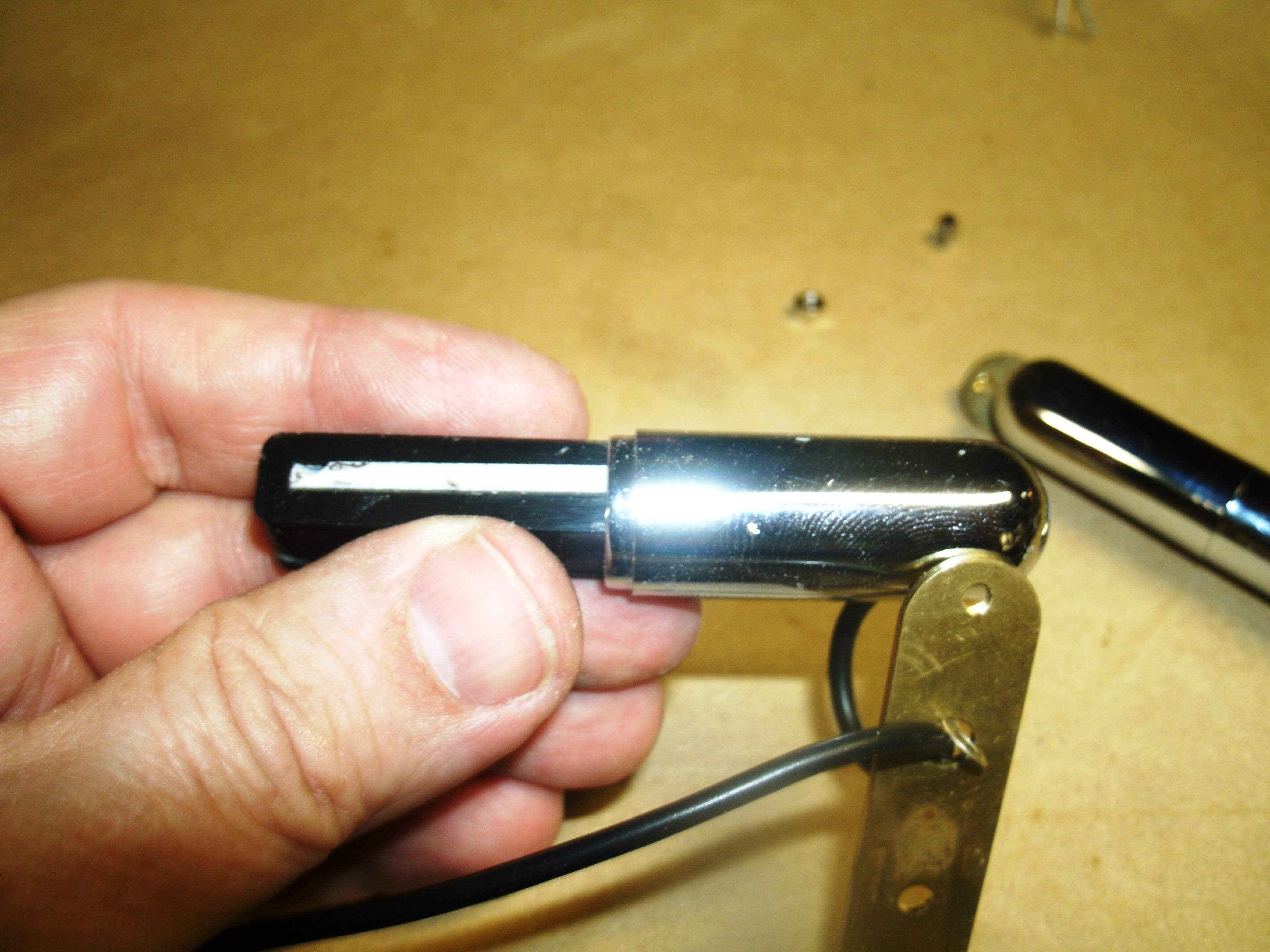

Fed a bit of the wire up into the tube and pulled the coil-magnet assembly out just enough to clear the screw head to and allow it to rotate 180 degrees, and pushed the assembly back into place. I also could have pulled it all the way out and slipped the magnet out and reversed it that way. Now its just a simple matter of pushing the other half of the tube back on.

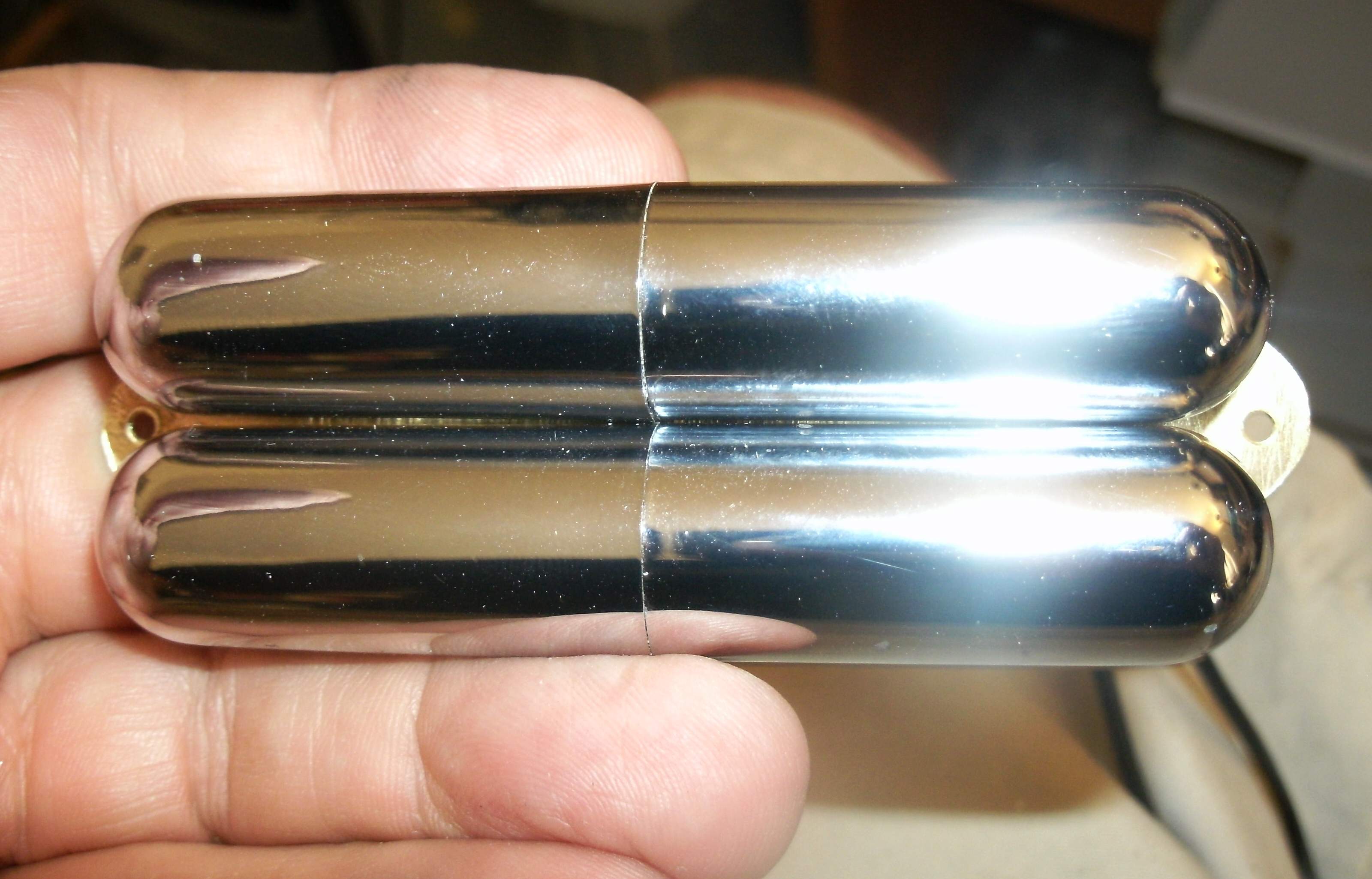

The reassembled reversed tube with it's non-reversed counterpart; Opposites attract:
Now to make a pair of brass mounting plates to hold the tubes together as an assembly with a single screw per side for height adjustment.
Attachments
Last edited:
I love these threads. Your work is just fantastic.
I have crazy respect for anyone who can visualize a bass locked inside a hunk of wood....and then remove anything that isn't that bass.
I have crazy respect for anyone who can visualize a bass locked inside a hunk of wood....and then remove anything that isn't that bass.
Thank you so much. I've learned a lot hanging out here in the LC and just seeing what others have done and how they did it.
Yes but, since the the coil is isolated from the ground, swapping the usage of the red and white wires compensates for it. Here, I confess I'll have to think about (and maybe just fiddle with
) how to hook the coils together for phase. Once I have one assembled on a plate, I'll try it out holding over the strings of an existing bass and work out the phasing.
Last edited:
Flipping a magnet won't buck hum, because it's the coils that pick up EMI. Also, and I could be wrong about this, but I thought that there was some kind of weird strength imbalance between N and S. The way I read it, you always want N up, and opposite coil winds to get hum bucking.
If you flipped the whole assembly I assume it'll work, but someone else will have to speak up on the finer points of magnetism and how opposite magnetic fields might change the sound.
If you flipped the whole assembly I assume it'll work, but someone else will have to speak up on the finer points of magnetism and how opposite magnetic fields might change the sound.

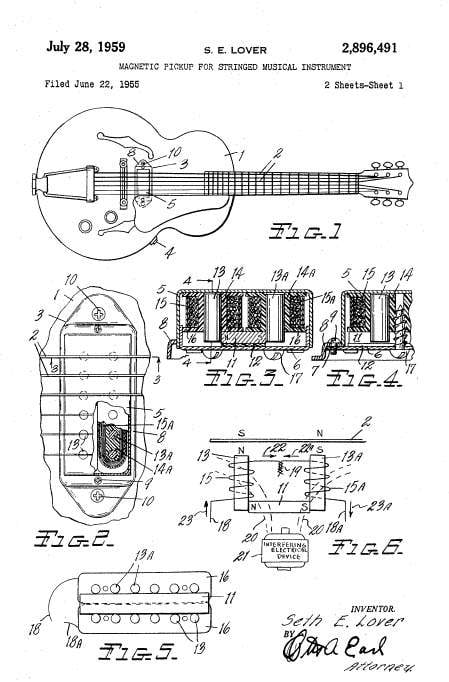

Apologies, I was clearly drawing on incomplete information, possibly for an unrelated use, clouded by time. Thanks for the cool (and very helpful) diagrams!
I realize now that I have access to a physics genius and he can answer my question about pole strength, but it appears that it isn't relevant to pickup design anyway.
I realize now that I have access to a physics genius and he can answer my question about pole strength, but it appears that it isn't relevant to pickup design anyway.
I'm not a physics genius by any means. Just remembering tidbits from my college physics.Apologies, I was clearly drawing on incomplete information, possibly for an unrelated use, clouded by time. Thanks for the cool (and very helpful) diagrams!
I realize now that I have access to a physics genius and he can answer my question about pole strength, but it appears that it isn't relevant to pickup design anyway.
- Jun 30, 2010
- 49,603
- 222,071
- Disclosures
- musician/artist/owner - Gildaxe

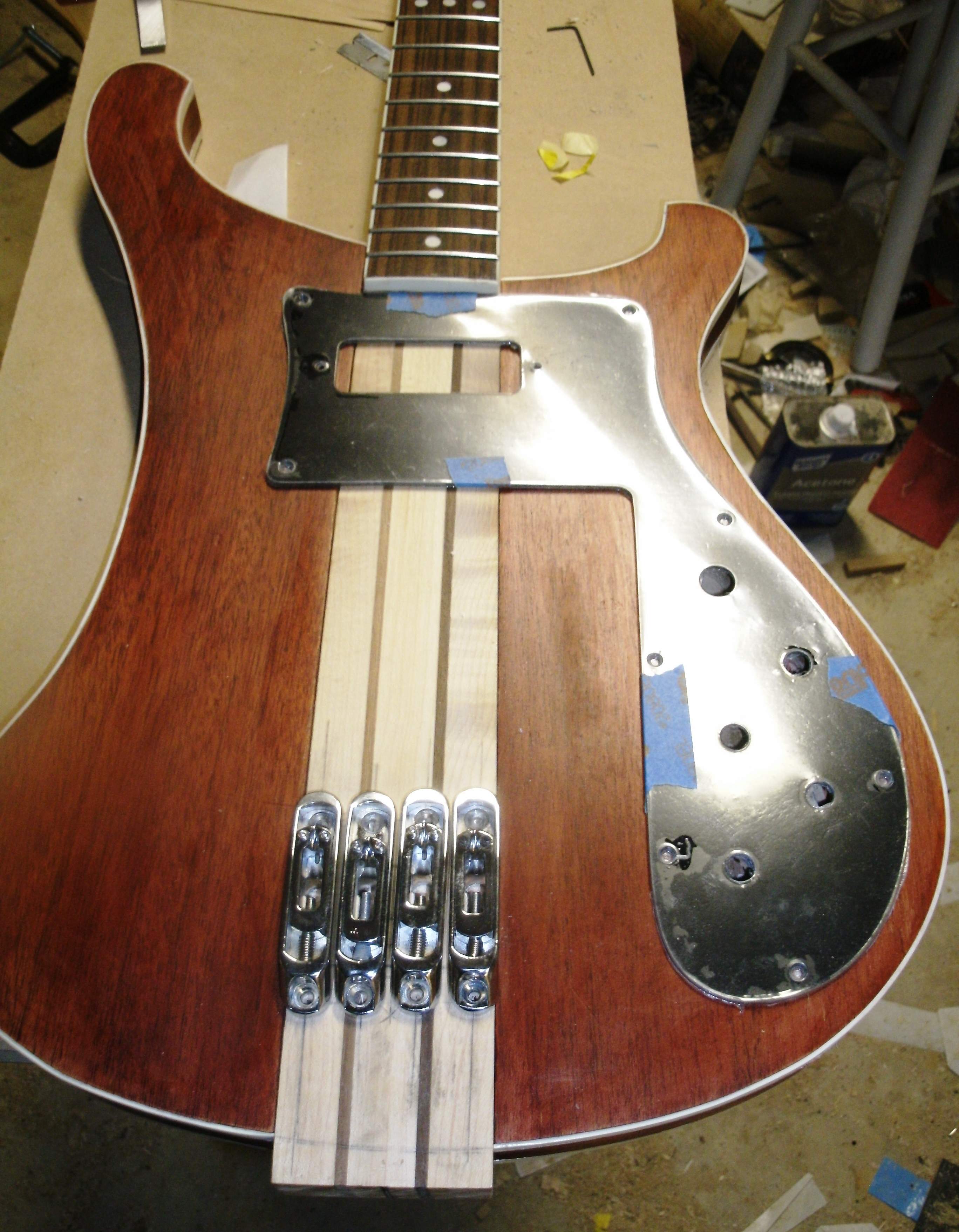

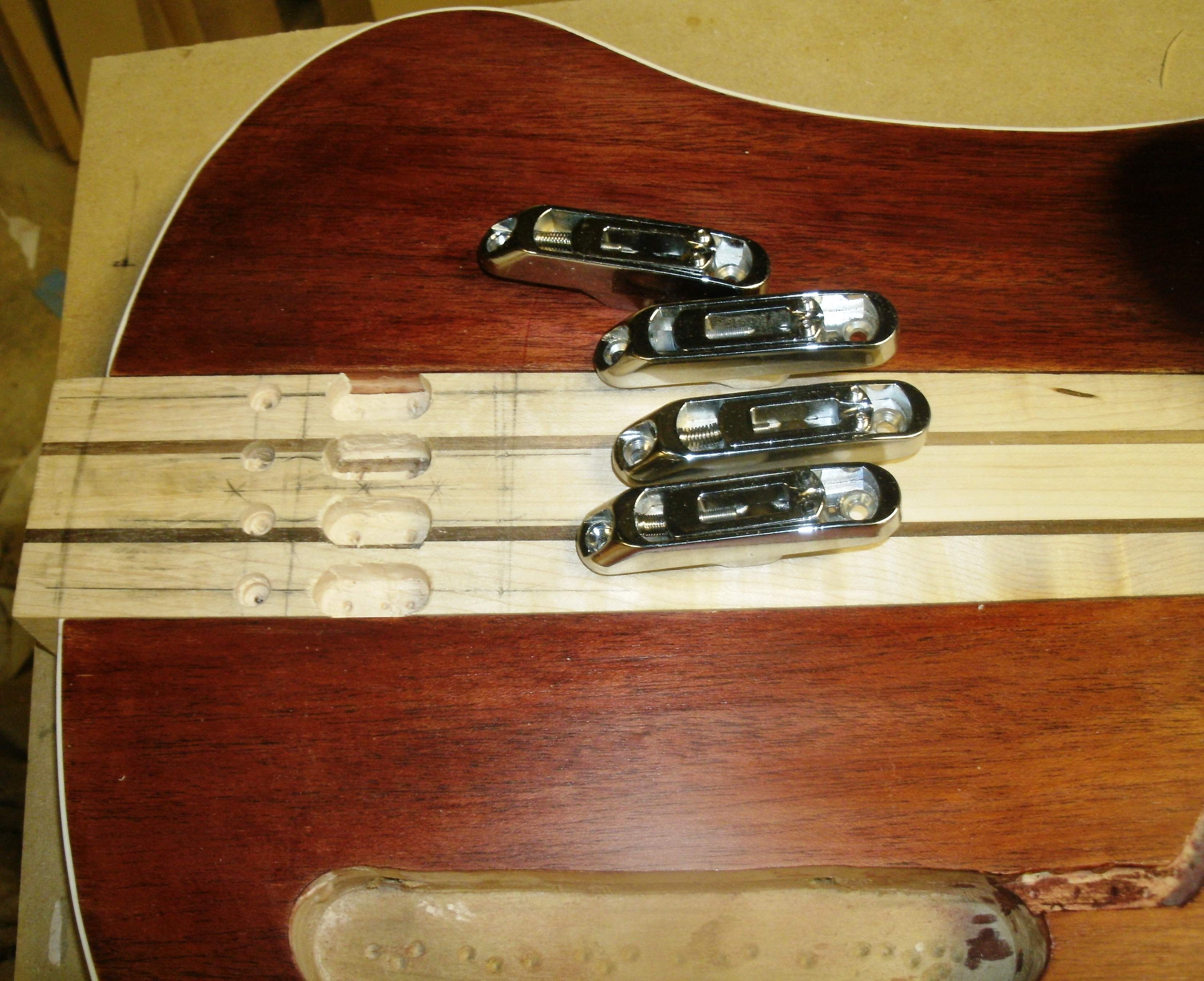

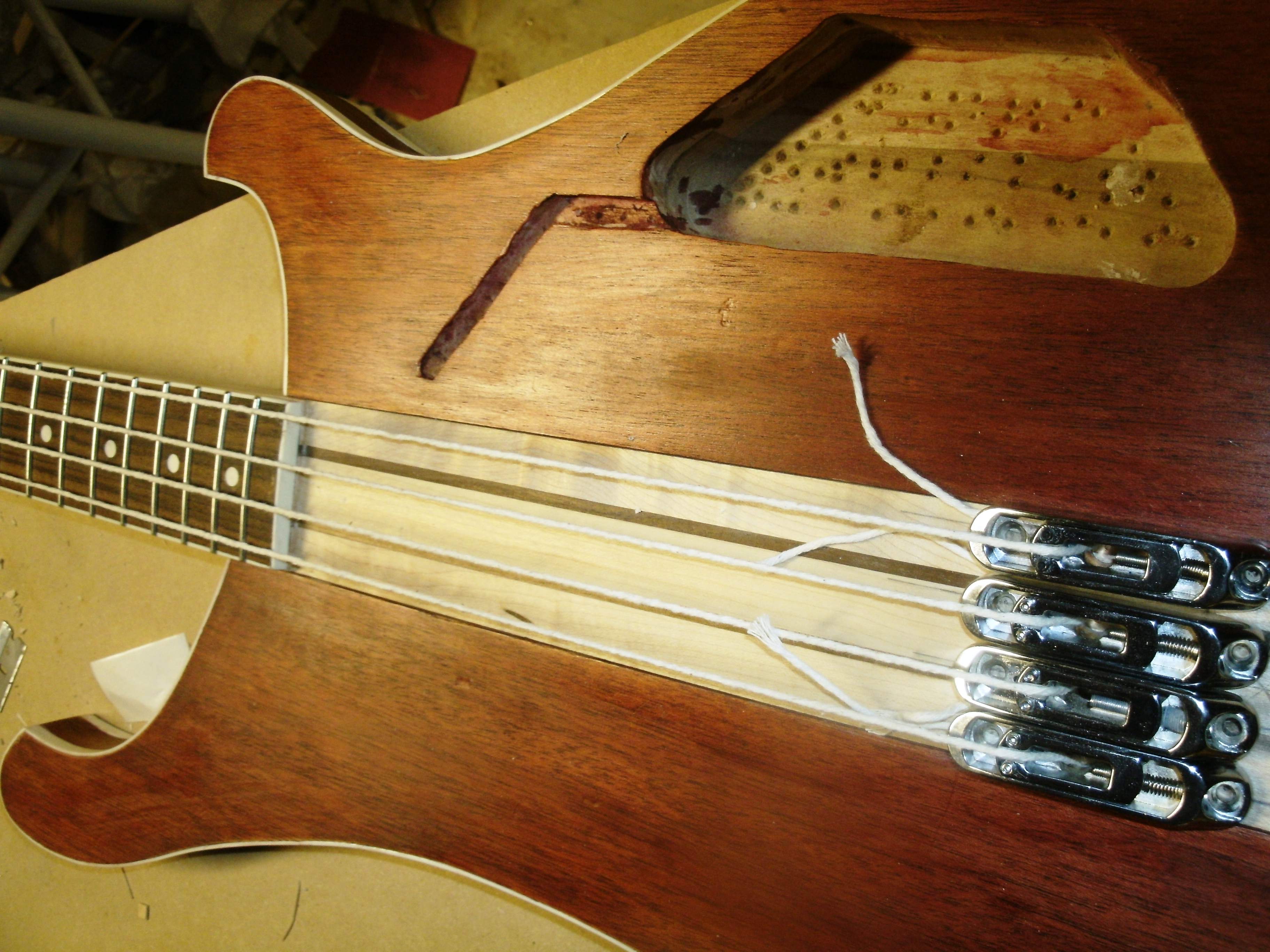

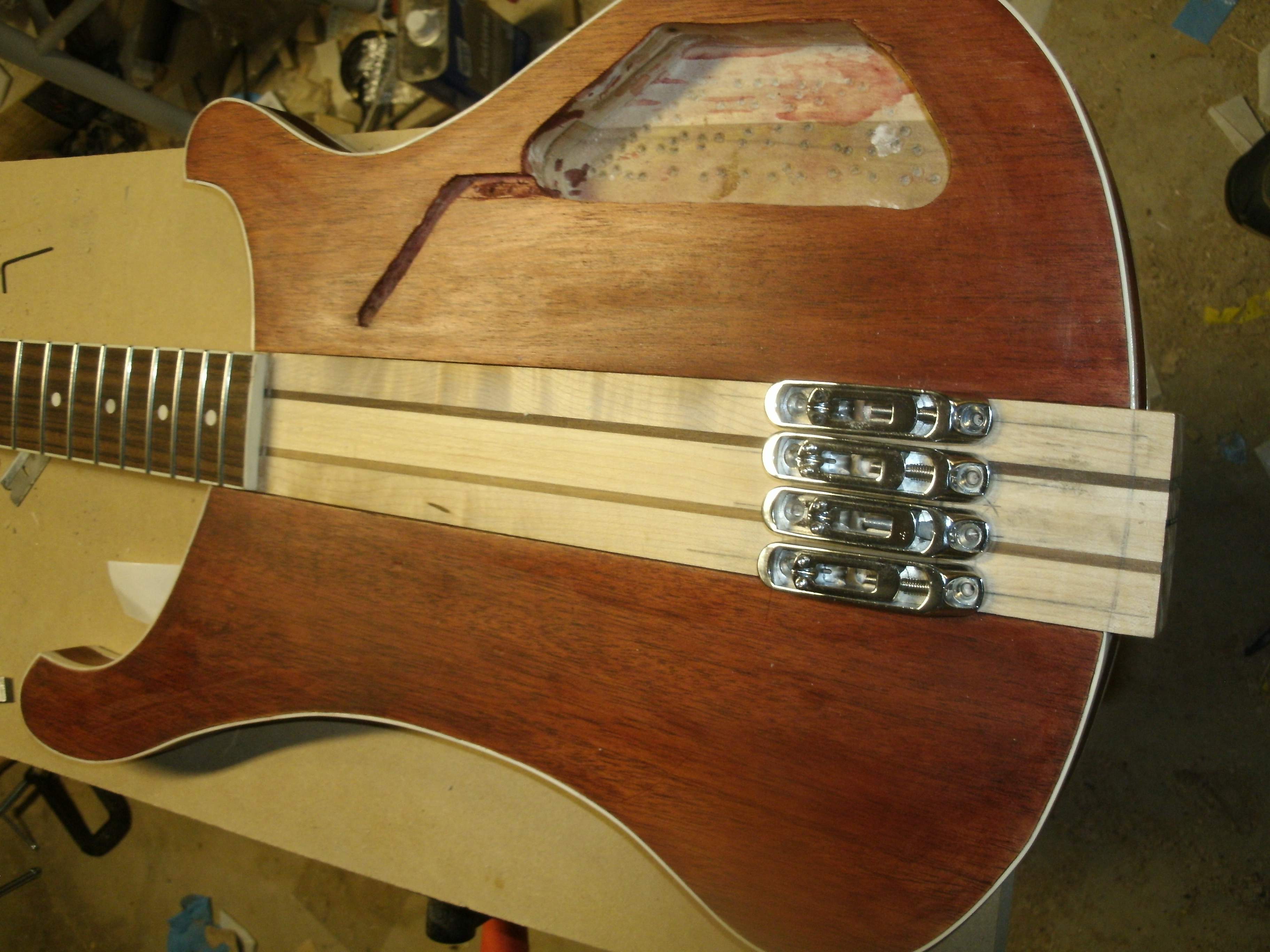

I've installed these on my SuperB 5'r and really like them. Very comfortable resting my right palm on, string-thru, and solid. I have sets in all finish options (black, gold, silver) and have used the silver and black so far.
Yeah, I like them a lot. I do want to make a couple of drilling/routing templates to simplify installation in future builds.I've installed these on my SuperB 5'r and really like them. Very comfortable resting my right palm on, string-thru, and solid. I have sets in all finish options (black, gold, silver) and have used the silver and black so far.

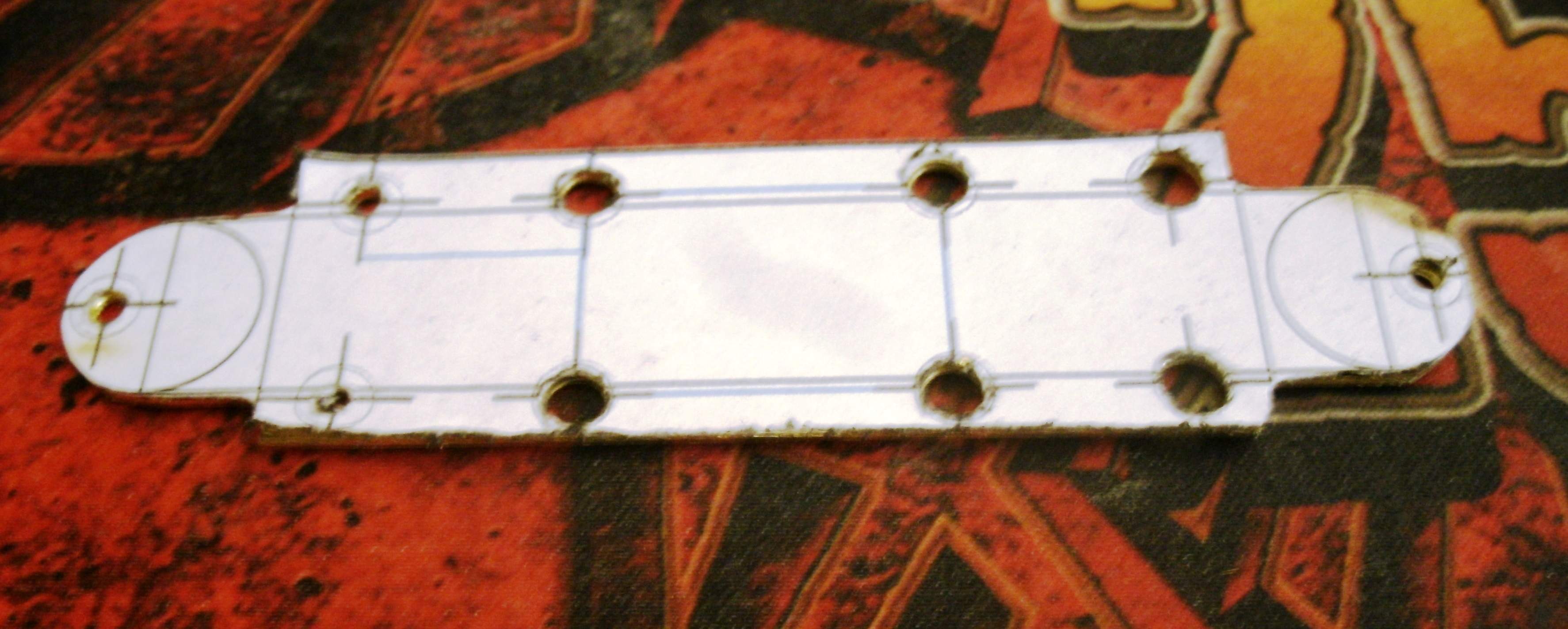

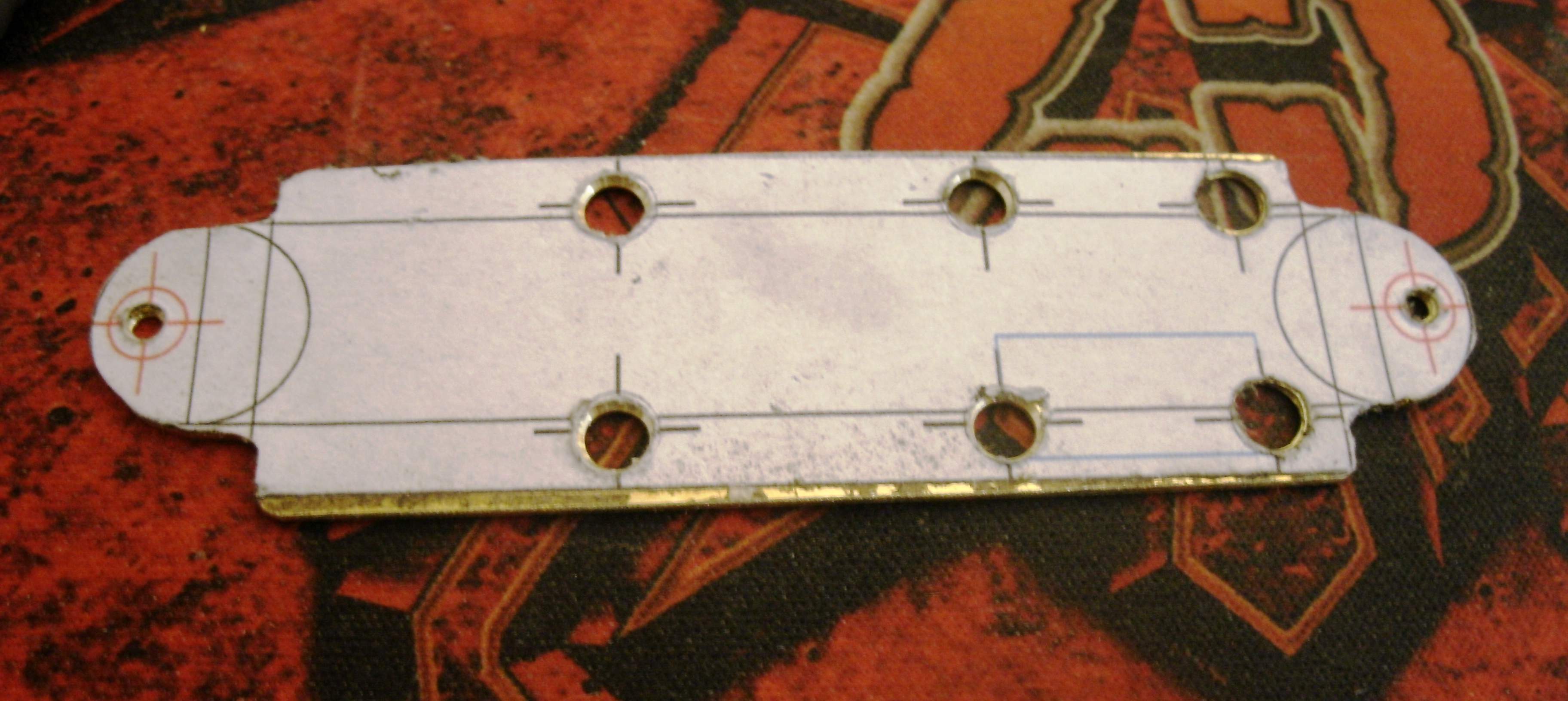

First lip-bucker assembly. Drew up a template glued it to a piece of brass stock and cut / ground to shape

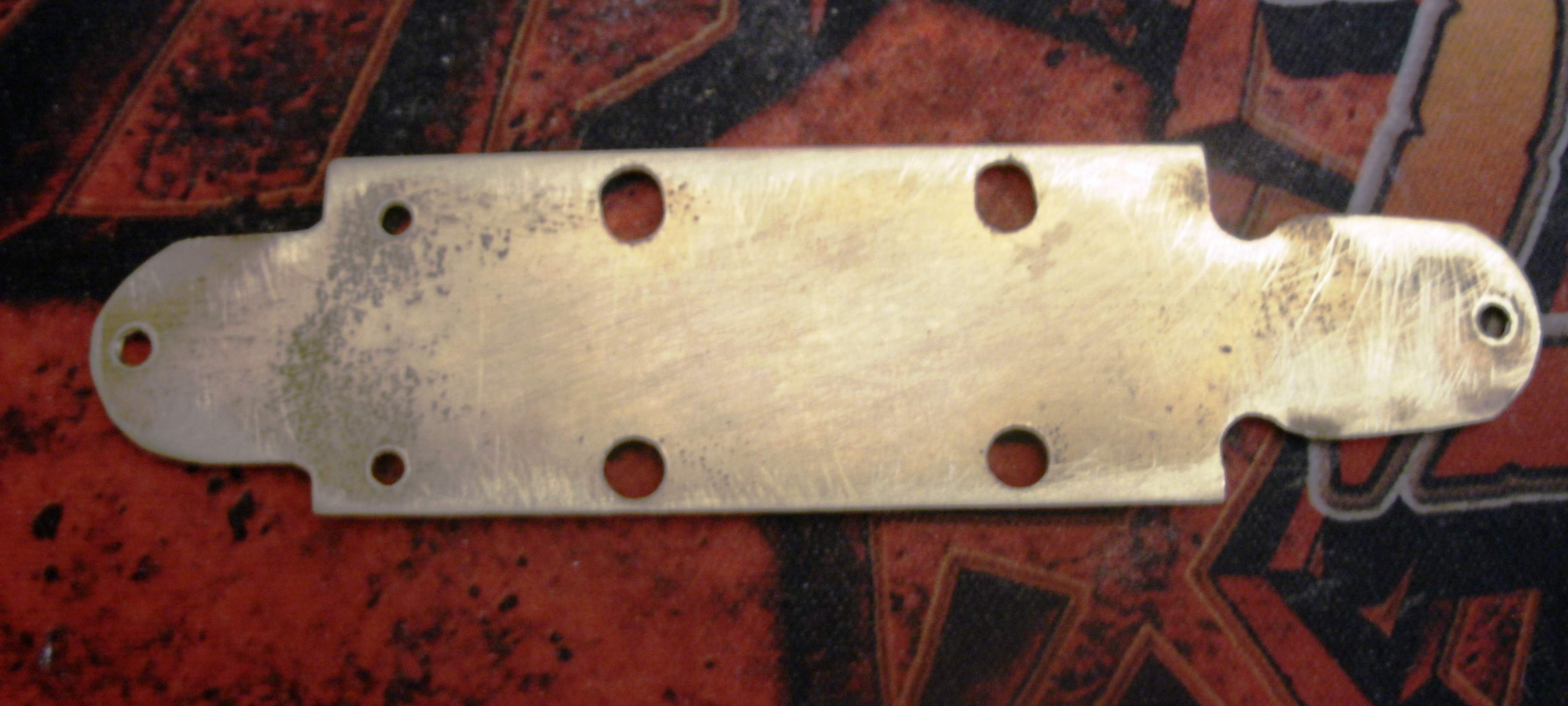

Just the brass:

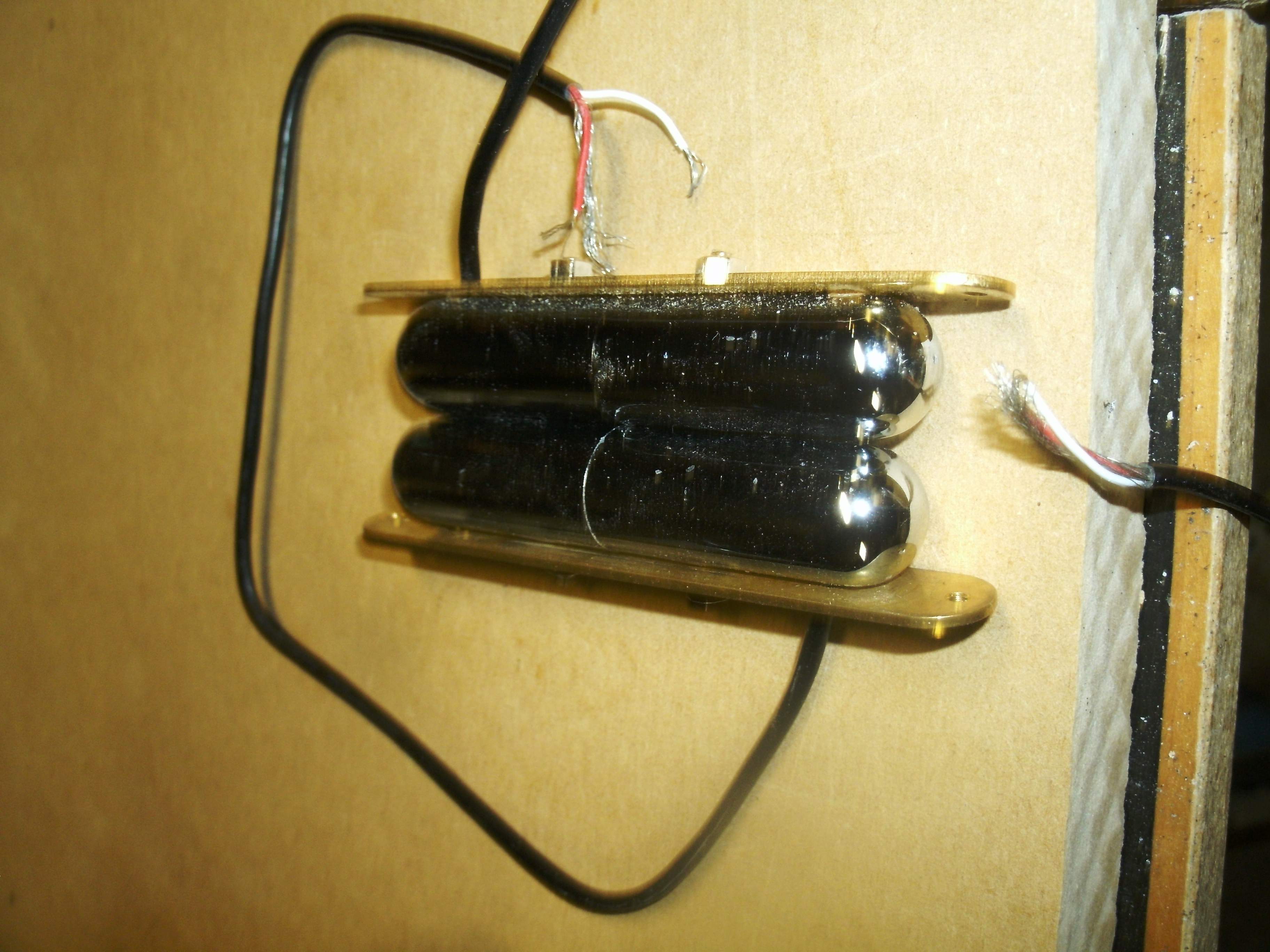

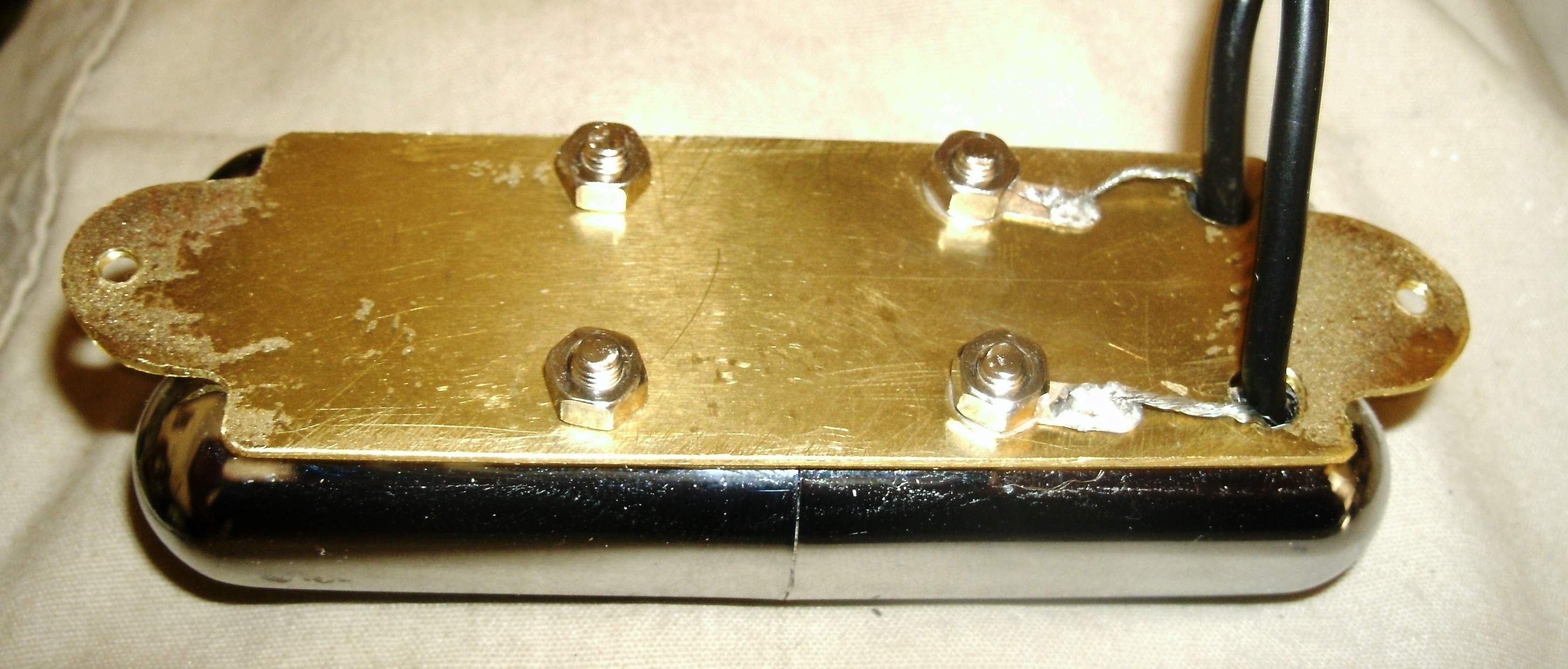

All bolted up:

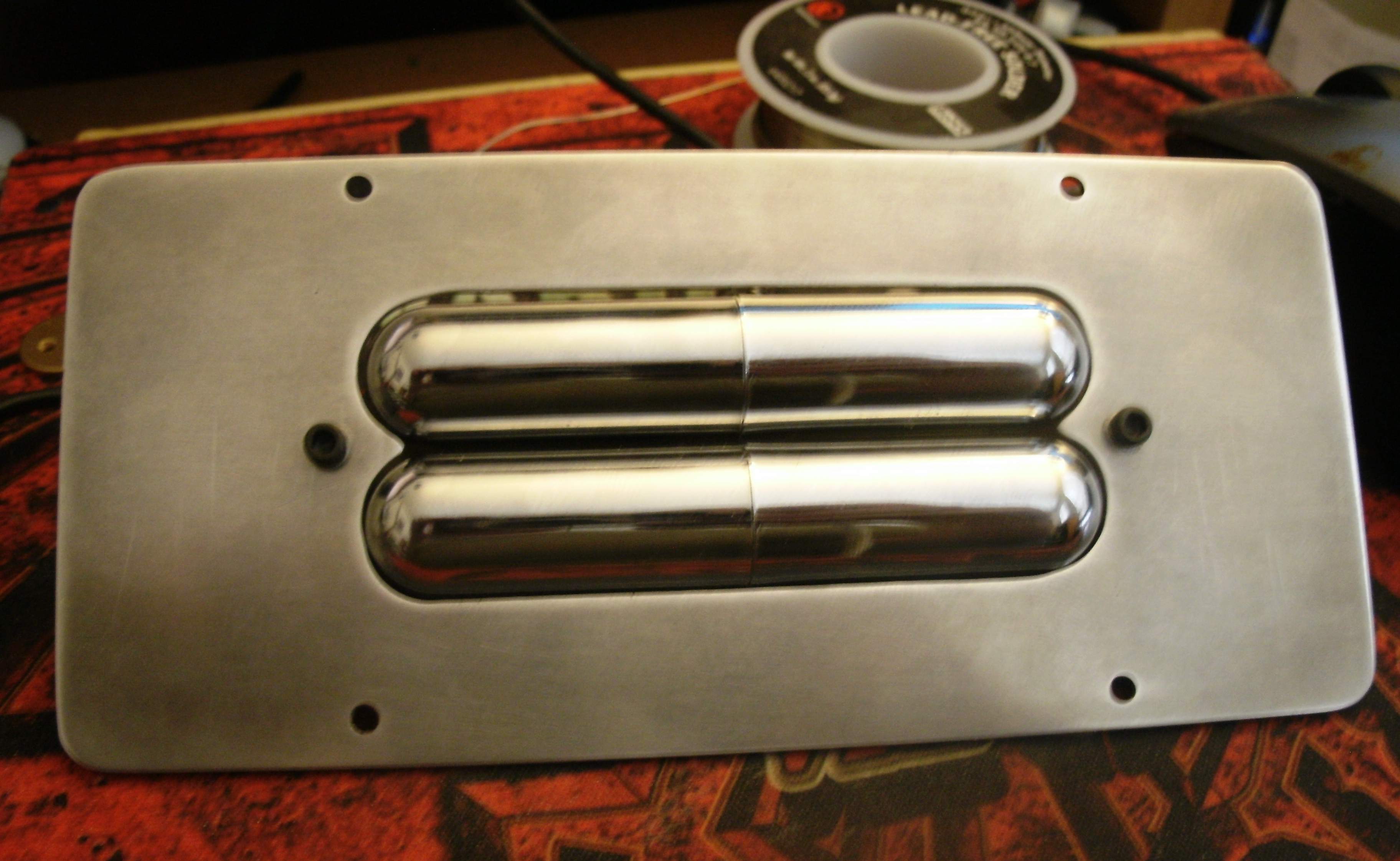

And from the front:

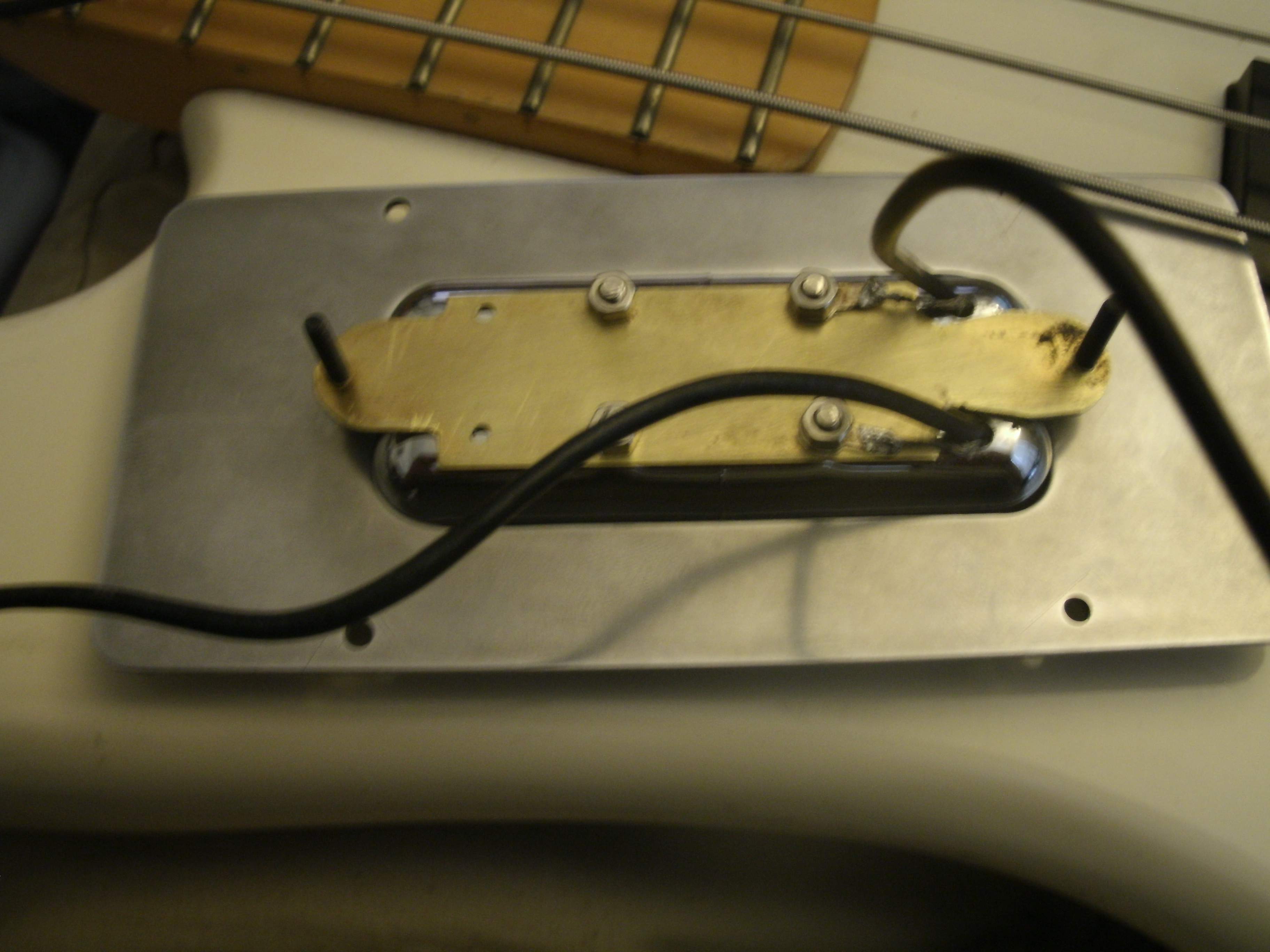

Quick test over my old PJ confirms that connecting white to red on the two pickups gives me a proper humbucker.
Next, the neck pickup.
Just the brass:
All bolted up:
Next, the neck pickup.
drool
And the neck pickup

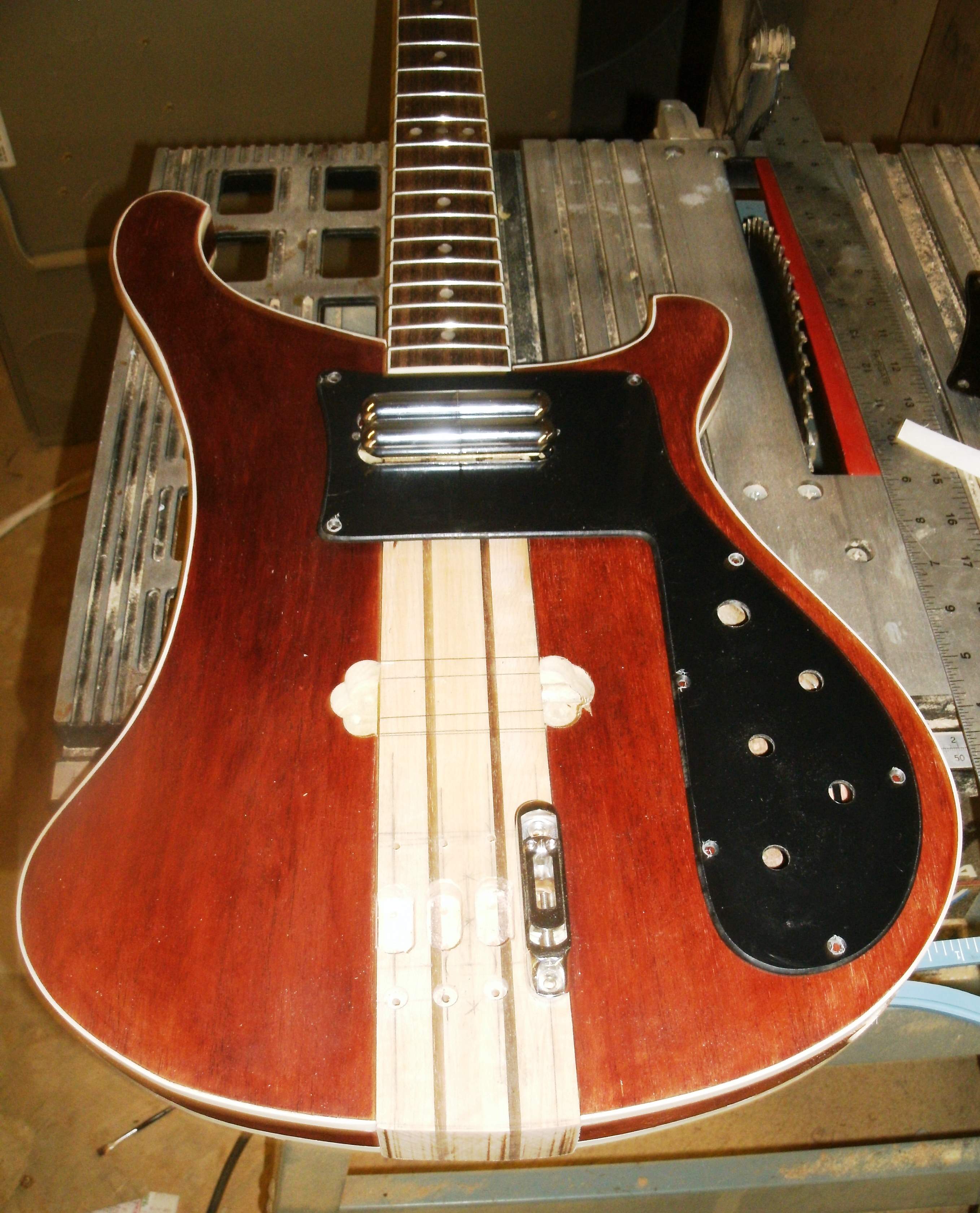

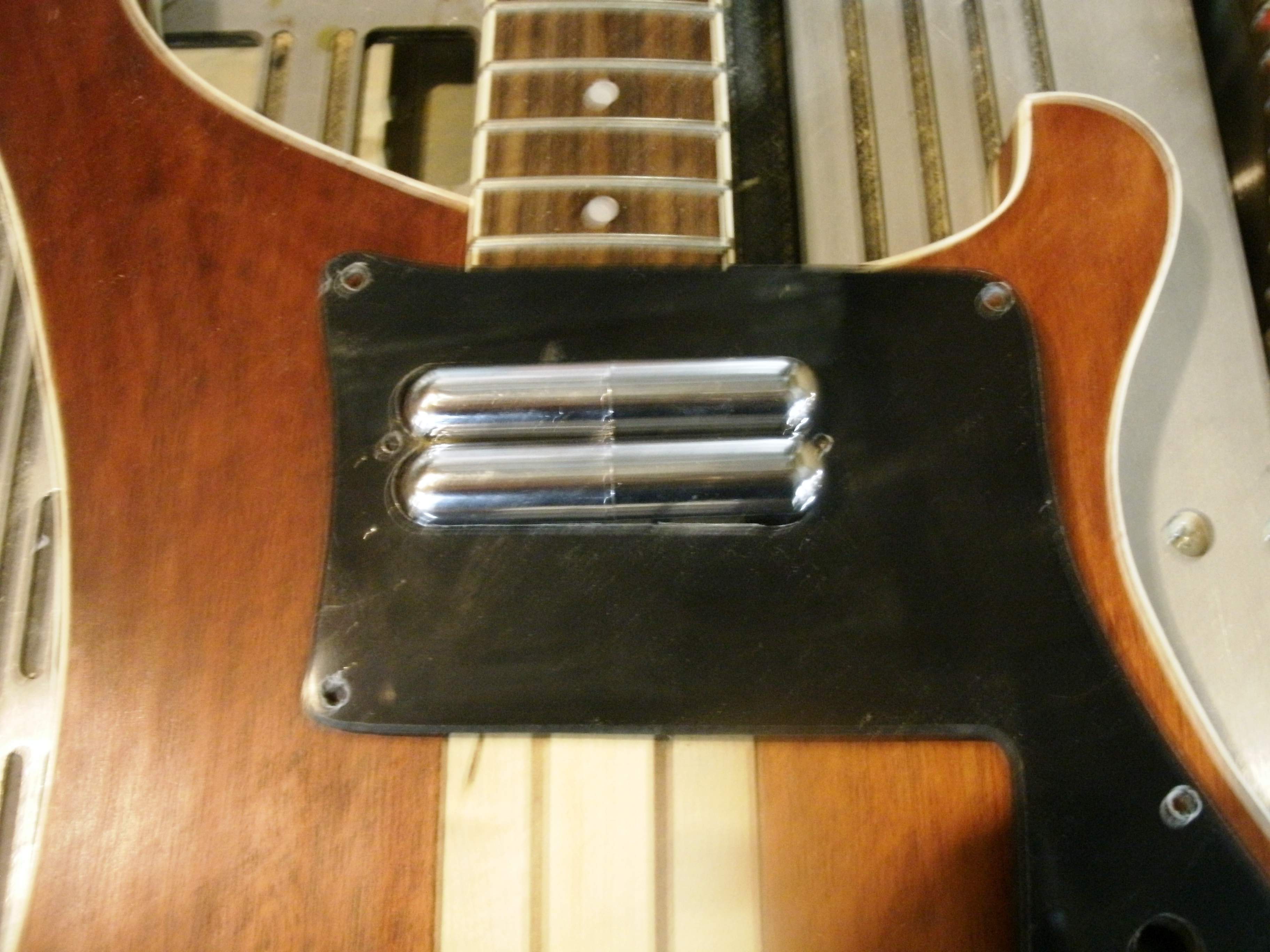

Here it is in the pickguard

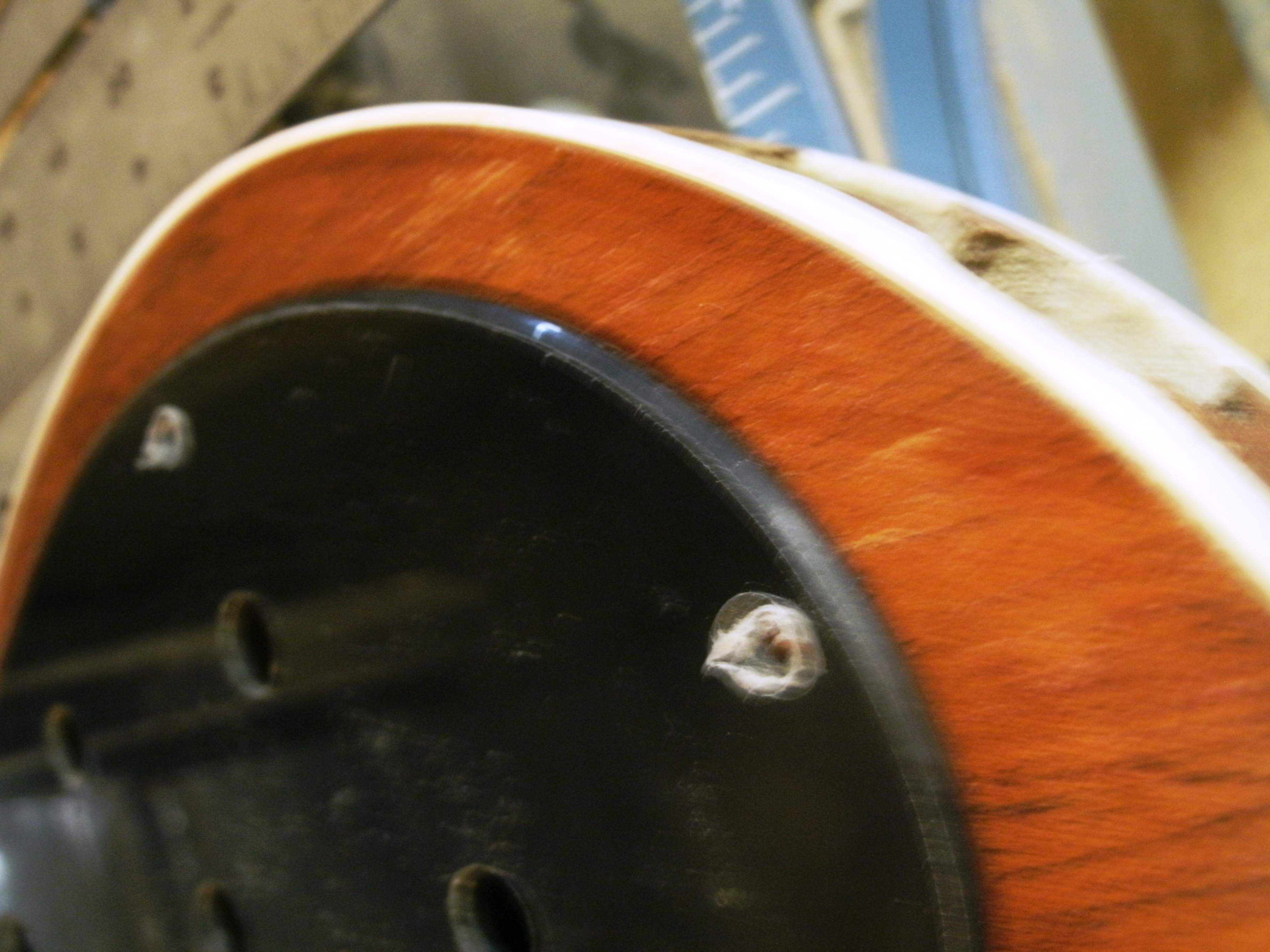

I used a 1/8" roundover to put a rounded bevel on the pickguard:
Here it is in the pickguard
I used a 1/8" roundover to put a rounded bevel on the pickguard:
