Behringer XR18 X-Air

#483
seamonkey said:
Yes that's it.
Blueboard sends bluetooth to IOS
Load the IOS app that converts this to midi. Your choice of what pedal sends what.
It sends to "core midi" which you can route USB, wireless, midi interface.
IK Multimedia has great support and user forum if you ever get confused.
Click to expand...

I'll check the forum out. I cannot find any references to anyone using that product with the XR yet and it was even brought up earlier in this thread (post #230) where it was posted that it wasn't possible:

"You can program it all you want but it will only control apps that have MIDI via Bluetooth support. AFAIK none of the Behringer X-Air apps do."

#484
Is there a way to reset certain effects back to factory defaults? I know that I can go into each effect and reconfigure them, but honestly, all of those controls make my eyes glaze over.
Would a reset on the board be the only route here? I hate to lose everything I have saved already, but we've only been using this for a few weeks. So, I guess it wouldn't be that big of a deal.
I'm really loving this board. Although, it's a whole new world for me.

#485
jchrisk1 said:
Is there a way to reset certain effects back to factory defaults? I know that I can go into each effect and reconfigure them, but honestly, all of those controls make my eyes glaze over.
Would a reset on the board be the only route here? I hate to lose everything I have saved already, but we've only been using this for a few weeks. So, I guess it wouldn't be that big of a deal.
I'm really loving this board. Although, it's a whole new world for me.
Click to expand...
Can't you save all settings to scenes and write them to USB stick? You can on all the X32 series.. Guess I need to RTFM ?

PS: See section "5.11 Shows" in the OM for iPad, "6.11 snapshots" in OM for Android and "7.12 Snapshot Page" in OM for PC?

#486
Um...yeah. I didn't know about that. This digital thing is so much to learn for us. I will look into that. Thanks for sharing that info with me. So far, we've only learned the very basics to run shows. I'm trying to get a local sound guy to come over and help us out with this thing, but until then, we are mostly just winging it.

#487
nervous said:
Thank you for this, I have seen these and some other homemade options and was hoping to avoid this whole new learning process. But your post tells me all I need to know about commercially available options. I'll look into this option a bit deeper now on yoru recommendation. It's working nicely and consistantly for you and that's a solid endorsement. I'd love to see pics and be able to possibly pick your brain at some point should I get stuck in the process. Not to mention teh codes and parts list would be awesome. I fear/loathe MIDI as much as DMX... Shame on Beheringer for not providing an option.
Click to expand...

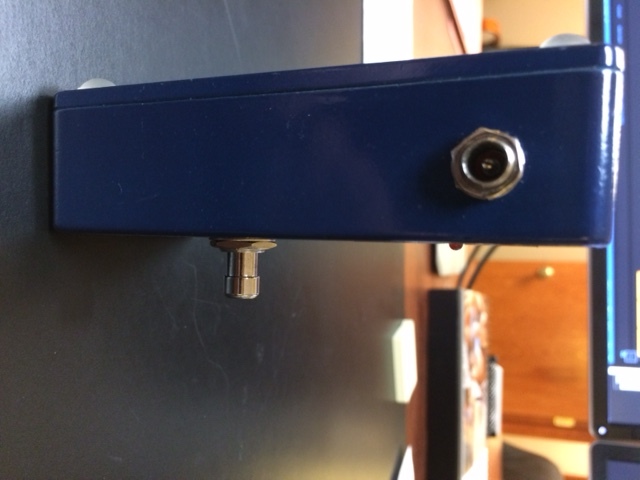

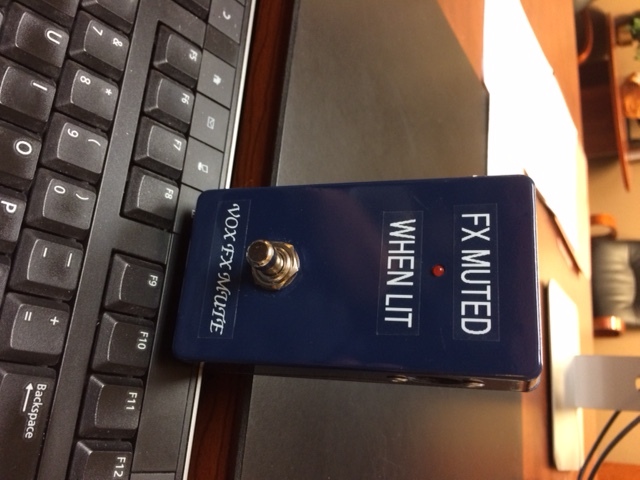

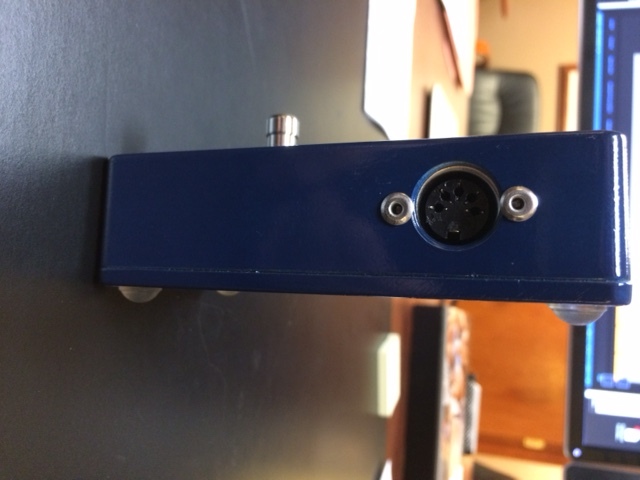

Here's a few pics. Nothing fancy but completely functional. I had to add the labels because our singer could never remember if the lit LED meant it was muted or unmuted. :D

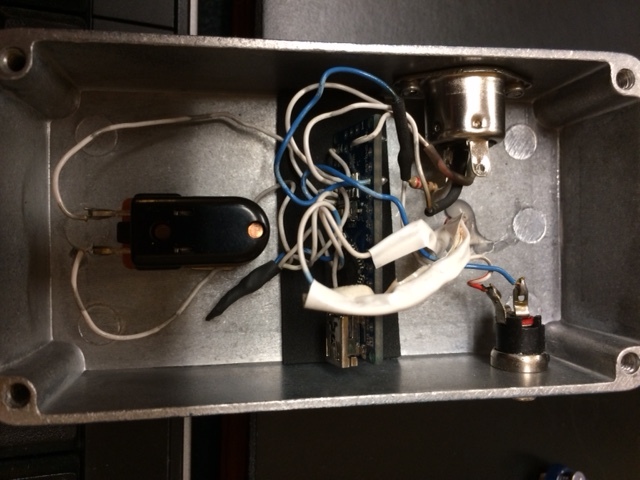

The board is held in place with a piece of double-sided tape (shown) and a piece of foam on the back cover that lightly compresses onto it (not shown). I wanted it fairly easy to remove in case I ever wanted/needed to reprogram it. Same reason for the longish wires. You need to access the USB port to do so but I did not want to try and hack a rectangular hole into the side for the port. Probably not the way a pro builder would do it but it works. I have not needed to remove the board it for any reason though. So if it ever does come loose I probably just hot glue it in place like the LED.

This was a rewarding little project and as I said it does exactly what I needed.

I'll pm the shopping list and other info to you so as to not clutter up the thread any further.


  • Like
Reactions: MuthaFunk, videomagician and seamonkey
#488
nervous said:
I'll check the forum out. I cannot find any references to anyone using that product with the XR yet and it was even brought up earlier in this thread (post #230) where it was posted that it wasn't possible:

"You can program it all you want but it will only control apps that have MIDI via Bluetooth support. AFAIK none of the Behringer X-Air apps do."
Click to expand...

That's wrong. The IK app reads the bluetooth, and sends out core midi
Route midi in ios just like you do now.

#492
I bought it directly from Music Group/Behringer eBay store with full three year warranty. It looked brand new in an original box. Only way to tell it wasn't new was power cord bag had been opened and box was re-taped. It also had a very old firmware. I've been running it day/night as a sound interface on my computer to check it out before I try it with my current band.

The only problem now is I want those Turbosound speakers to wire just with ultranet...

  • Like
Reactions: Robb Fesig, jimfist and s0c9
#493
videomagician said:
I bought it directly from Music Group/Behringer eBay store with full three year warranty. It looked brand new in an original box. Only way to tell it wasn't new was power cord bag had been opened and box was re-taped. It also had a very old firmware. I've been running it day/night as a sound interface on my computer to check it out before I try it with my current band.

The only problem now is I want those Turbosound speakers to wire just with ultranet...
Click to expand...
My church has the Turbosound iQ15's as mains, with an iQ18B as a sub. Great sounding system. Stays clean and sweet even when stupidly loud. If I had the money, I'd get a pair of the 12's with a 15 inch sub- I could fit it all in my sedan along with my bass gear. Soundman goals...

  • Like
Reactions: videomagician and jimfist
#495
a little reminder that ultimately the XR18 is an android device.

i recently wrangled an ipad mini with high hopes of making it my universal personal monitor mixer, figuring it had apps for all the different digital mixers out there.

well, it turns out the x-air app for ipad mostly sucks, especially for personal monitor use. even though my monitors with this band are set up as a linked stereo mix, the ipad has no ability to pan my individual monitor channels. i can pick my left or my right channel, and the channel faders adjust the level in both sides, but that's it. it also shows me a screen with a bunch of extraneous stuff on it (main level, EQ and comp stuff, mute buttons) all of which would wreck the out front mix if i accidentally touched them.

i guess it's back to my $75 samsung galaxy tab 4 7", which will run x-air Q, an app that works perfectly for tweaking my own monitor mix (including panning control).

  • Like
Reactions: videomagician and tkonbass
#496
walterw said:
a little reminder that ultimately the XR18 is an android device.

i recently wrangled an ipad mini with high hopes of making it my universal personal monitor mixer, figuring it had apps for all the different digital mixers out there.

well, it turns out the x-air app for ipad mostly sucks, especially for personal monitor use. even though my monitors with this band are set up as a linked stereo mix, the ipad has no ability to pan my individual monitor channels. i can pick my left or my right channel, and the channel faders adjust the level in both sides, but that's it. it also shows me a screen with a bunch of extraneous stuff on it (main level, EQ and comp stuff, mute buttons) all of which would wreck the out front mix if i accidentally touched them.

i guess it's back to my $75 samsung galaxy tab 4 7", which will run x-air Q, an app that works perfectly for tweaking my own monitor mix (including panning control).
Click to expand...
Behringer programming on the iOS side does seem to be a bit weak... no iPhone app either.

#498
walterw said:
a little reminder that ultimately the XR18 is an android device.

i recently wrangled an ipad mini with high hopes of making it my universal personal monitor mixer, figuring it had apps for all the different digital mixers out there.

well, it turns out the x-air app for ipad mostly sucks, especially for personal monitor use. even though my monitors with this band are set up as a linked stereo mix, the ipad has no ability to pan my individual monitor channels. i can pick my left or my right channel, and the channel faders adjust the level in both sides, but that's it. it also shows me a screen with a bunch of extraneous stuff on it (main level, EQ and comp stuff, mute buttons) all of which would wreck the out front mix if i accidentally touched them.

i guess it's back to my $75 samsung galaxy tab 4 7", which will run x-air Q, an app that works perfectly for tweaking my own monitor mix (including panning control).
Click to expand...

You are just trying to pan stuff between a linked pair of aux sends? You can do that. Look at the send page for the input you are trying to pan. If you have a pair of the aux sends linked the fader should be wider and have a pan control above it.
XR18 Screenshot

XR18 Screenshot

Panning across linked sends.

Last edited:
  • Like
Reactions: Ulf_Hansson and walterw
