de afwerking mk5-4f - blablas does another build diary

Discussion in 'Luthier's Corner' started by blablas, Sep 29, 2013.


  1. TeVbekI.

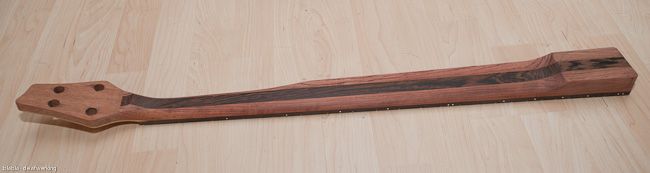

    Neck profile shaping is halfway there, I've done enough for today, will be continued tomorrow.

    Last edited: Aug 17, 2017
  2. YkvecTl.
    Rrhb3M7.

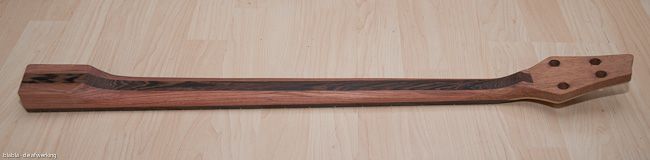

    The neck profile shaping is done.

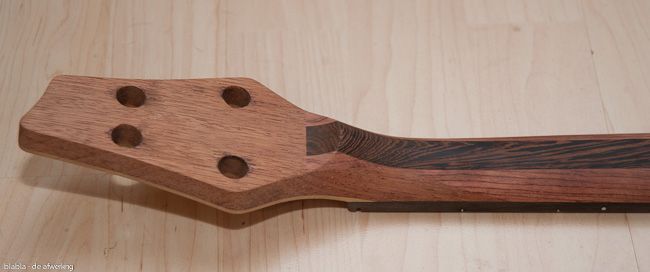

    fg1BSx1.
    The volute is also done.

    kLVuGYB.

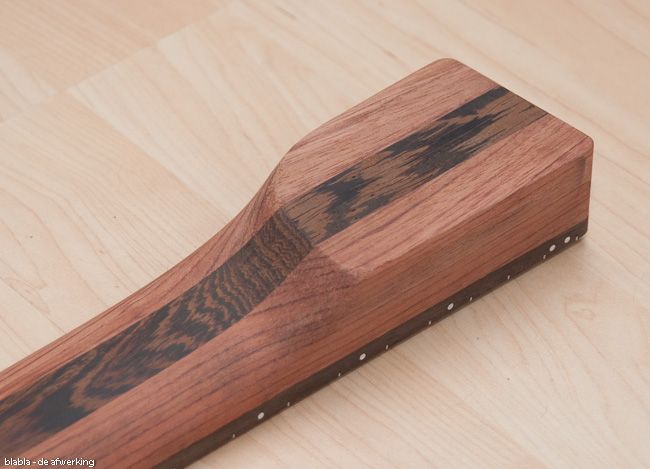

    The heel of the neck still needs to be fine-tuned to the body shape.

    Last edited: Aug 17, 2017

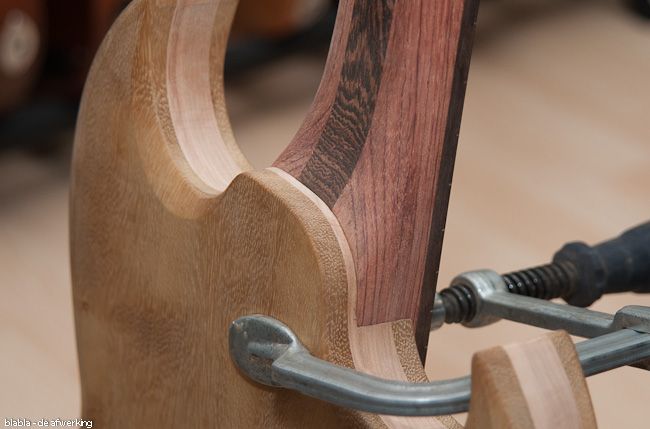

  3. nS85dfO.
    cp6TYN1.

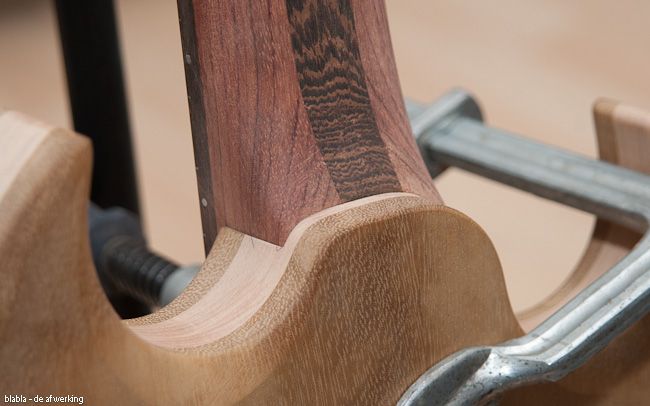

    And the heel is fine-tuned.

    Last edited: Aug 17, 2017
    Sartori likes this.
  4. HaMMerHeD

    HaMMerHeD

    May 20, 2005
    Norman, OK, USA
    That neck/heel looks pretty sweet, boss.

  5. Thanks.

    It still needs a little bit of final sanding, but that can be done once the neck is set in place.

  6. I've been busy for a couple of hours today with sanding the neck and the body, everything is at grain 600 now.

    Q4O47gv.

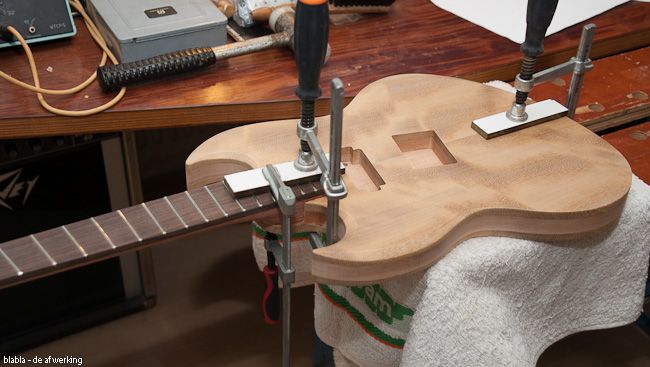

    After sanding I glued the neck to the body, tomorrow I need to do some final sanding in a few of places and drill all the necessary holes, then I can start putting on the Danish oil.

    Last edited: Aug 17, 2017
    Sartori likes this.
  7. wraub

    wraub

    Apr 9, 2004
    ennui, az
    deviated prevert
    Those heel pics look really, really nice. Clean lines, good color choices.

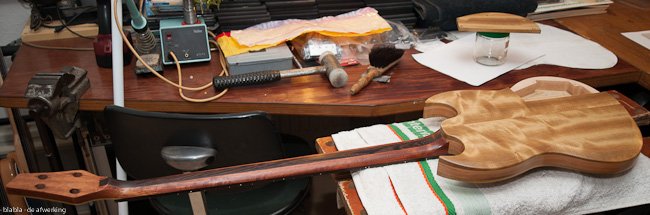

  8. LdVmL8j.
    j93dpK5.

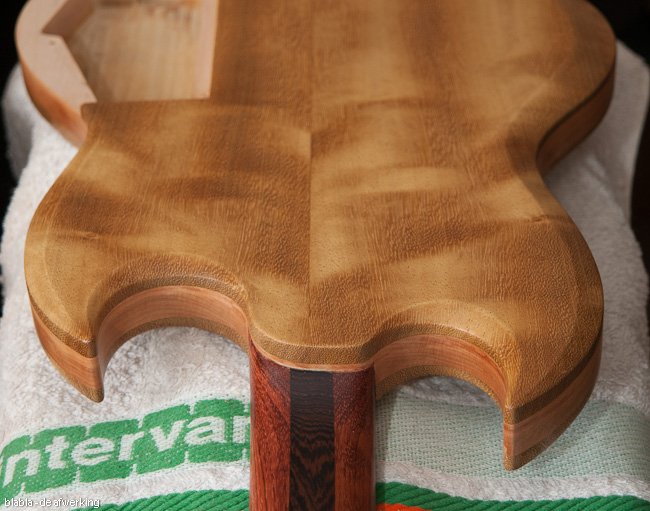

    I couldn't resist the urge tonight, the first two layers of Danish oil are on the back.

    Last edited: Aug 17, 2017
    Sartori likes this.
  9. All the holes that needed to be drilled beforehand are done.

    0ayh5FR.

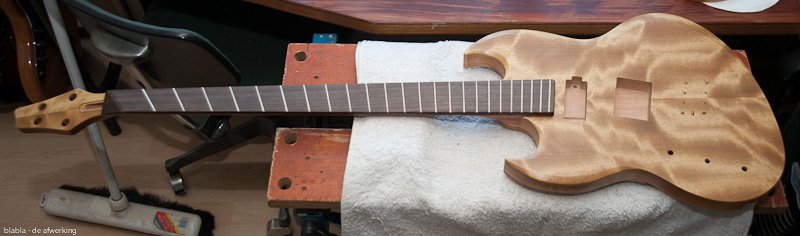

    Might as well show you the front view after two layers of Danish oil, still at least three layers to go on both sides.

    Last edited: Aug 17, 2017
    Sartori likes this.
  10. UHZANm9.

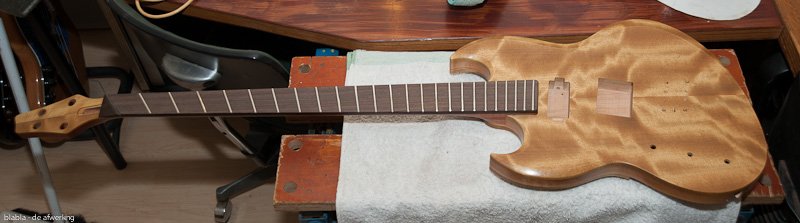

    The oiling is finished.

    dSbZshD.
    Leveled the frets.

    Next task: fret crowning and polishing.

    Last edited: Aug 17, 2017
    Sartori likes this.
  11. wraub

    wraub

    Apr 9, 2004
    ennui, az
    deviated prevert
    Ok, if that thing looked any hotter, you'd need to work on it in a special suit.

    I has want.

    Sartori likes this.

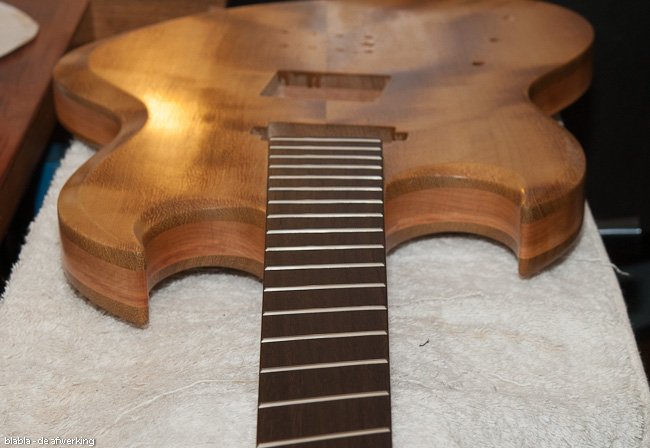

  12. 11njPrF.
    LENwfma.
    Frets are crowned and polished, put some furniture oil on the fingerboard.

    Last edited: Aug 17, 2017
    Sartori likes this.
  13. Wow!!! That is so beautiful! the top has the shimmer of a tiger/cats eye gem or a top quality opal.Also I'm glad you didn't color it,everyone has different tastes but I personally love natural oil finish on figured grain!!

  14. deRFKBY.

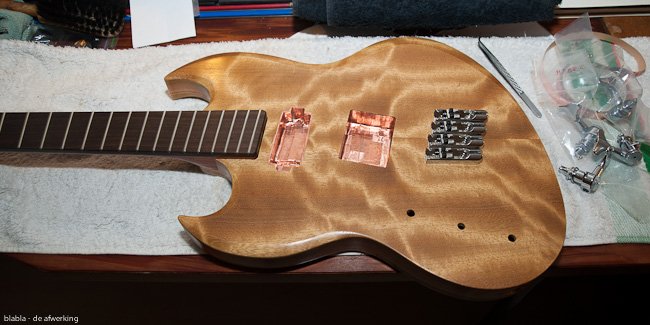

    Shielded the pickup cavities and mounted the single bridge parts.

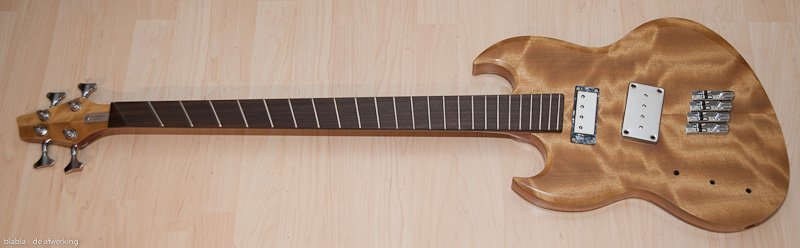

    yCwYEfE.
    Mounted the tuners and temporarily placed the pickups for this picture.

    Last edited: Aug 17, 2017
    Sartori likes this.
  15. ctmullins

    ctmullins fueled by beer and coconut Gold Supporting Member

    Apr 18, 2008
    MS Gulf Coast
    I'm highly opinionated and extremely self-assured
    Incredible! Dali meets Iommi!

  16. Beej

    Beej

    Feb 10, 2007
    Victoria, BC

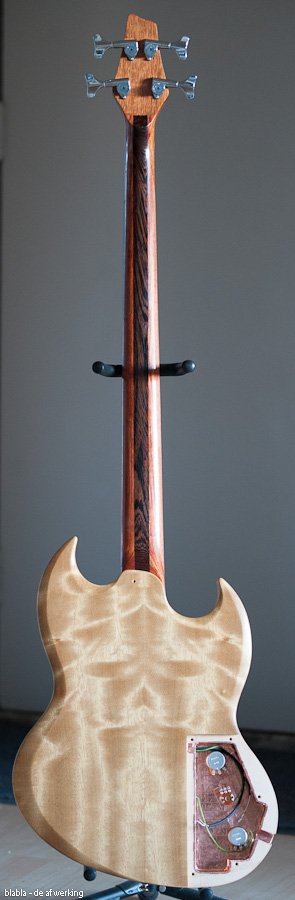

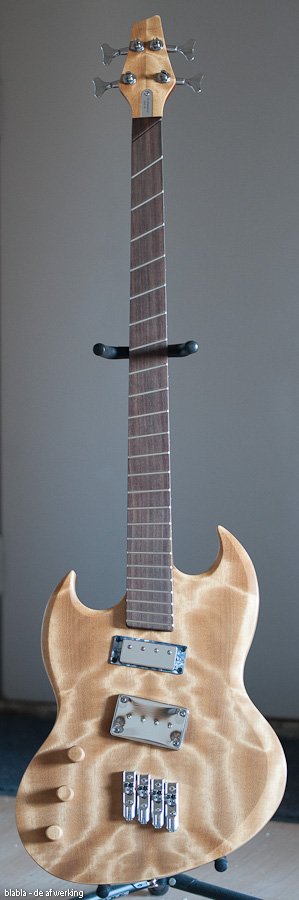

  17. Just able to make some pictures with the last bit of daylight.

    CtYtCIB. APhAxBc.
    Still to do: finish the nut, wiring everything up and do the shielding on the lid of the control cavity.

    Last edited: Aug 17, 2017
    Sartori likes this.

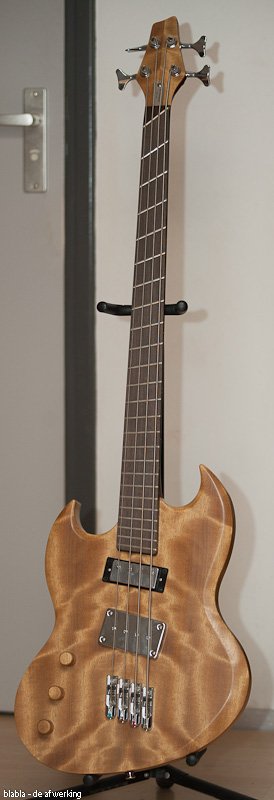

  18. And the beast has strings.
    8rsHKPM.
    Or... The nut is done. :)

    Last edited: Aug 17, 2017
    Sartori likes this.
  19. HaMMerHeD

    HaMMerHeD

    May 20, 2005
    Norman, OK, USA
    ....seems to be slightly backward.

  20. Splods

    Splods

    Oct 7, 2012
    Adelaide, SA
    That looks sweet blablas, now to do some sound files, and some pics of you rocking it out!

    Also, you have far too much money and free time. Give some of it to me :p
