Dingwall Owners Club

#28,243
Ranarion said:
I’m currently saving up for a Dingwall but I’m unsure whether to buy a NG-2 or NG-3. If I understand this correctly, the NG-2 can use both pickups in series, while the NG-3 has all three pickups in series in that position. Can someone explain what difference this makes or has even an audio clip for that?
Click to expand...


ng2 and ng3 controls from their website. shows all the positions.


Attachments

#28,245
Ranarion said:
I’m curious what that means tone-wise. The NG2’s bridge/neck in series combination is said to have a lot midrange. How does this compare to the NG3’s bridge/middle (parallel) with neck in series?
Click to expand...

The B/n in series does have lots of mids... very throaty and present in a metal mix. The "all on" setting on the Ng3 seems is perhaps more sooo but BIGGER! its a monstrous sound often stated as too much for a normal use setting.

  • Like
Reactions: BassBH
#28,246
BurningSkies said:

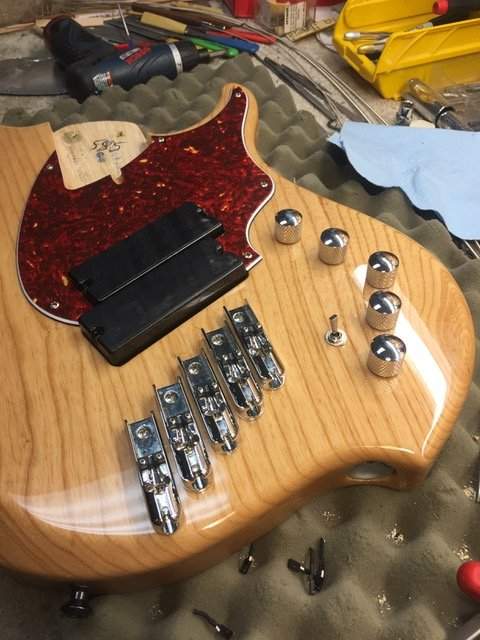

Maurilio Mina has started on my fretless Combustion,

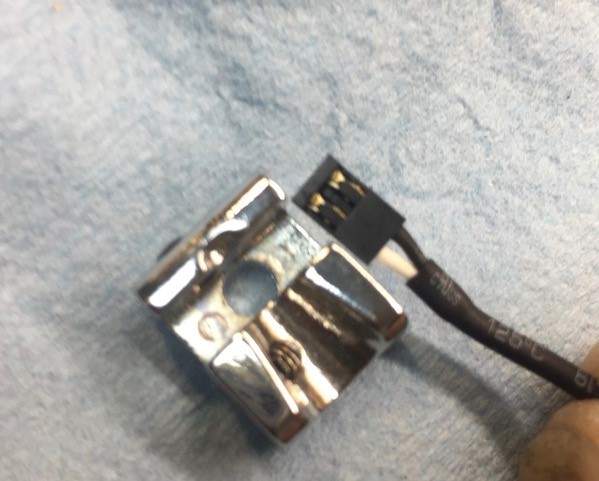

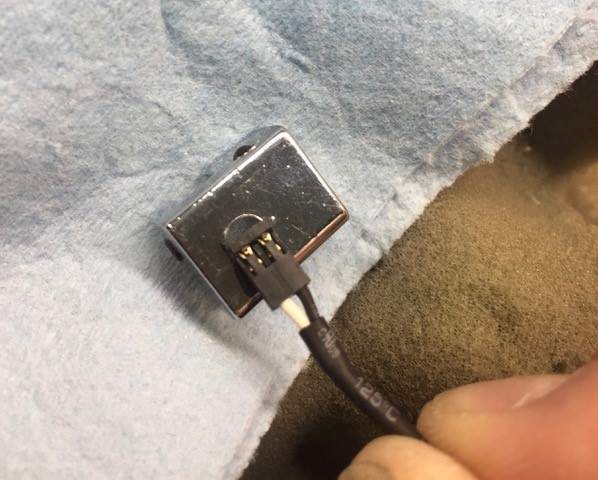

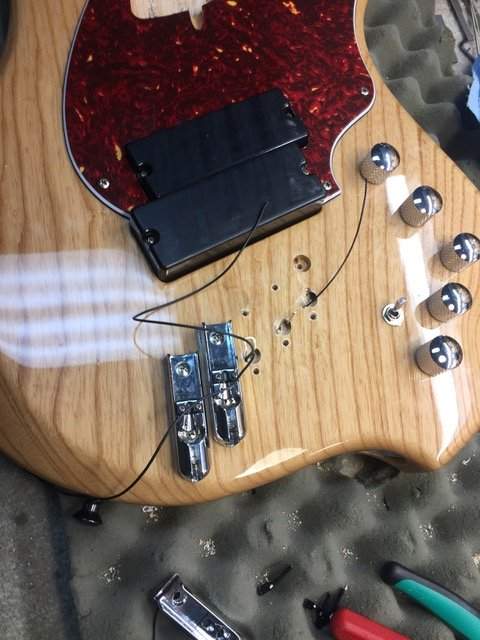

First off, the wiring clips didn’t fit in the bridge pieces with the saddles:

View attachment 3374769
View attachment 3374771
View attachment 3374779

Snipped soldered/hand wired.

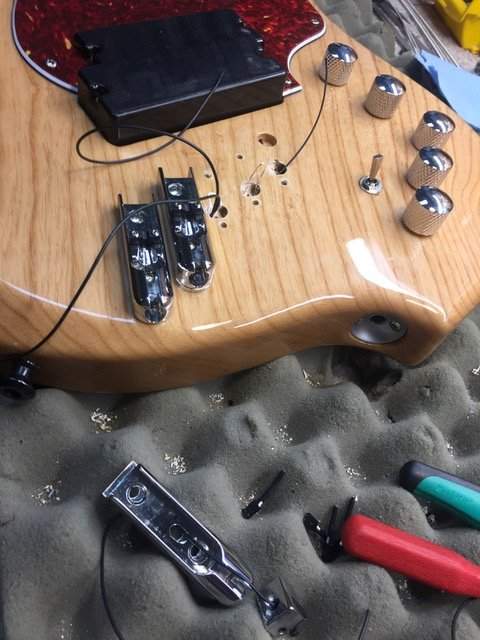

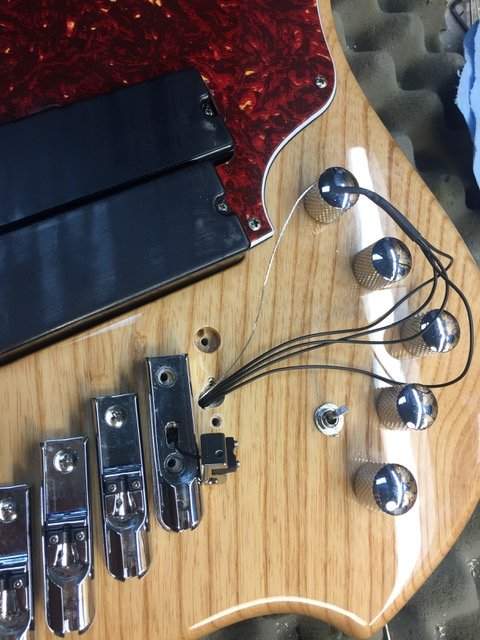

Next, bridge saddles needed to be drilled and ovaled so each saddle could be intonated wire channels drilled:

View attachment 3374782

View attachment 3374783

View attachment 3374784

View attachment 3374785

View attachment 3374787

Next up, integrating the second preamp. The plan is to stack the treble/bass and also use a push/pull on the mag. volume (preamp bypass) which allows the last pot hole to be push/pull for piezo volume and then only a switch gets added for pickup selector.
Click to expand...
Maurillo it the best. He's got one of mine now, probably next in line. So I'm not familiar with the Ghost system. Is your goal to expand your tonal palette? Does it also have midi capability?

  • Like
Reactions: BurningSkies
#28,247
Bassheart365 said:
Maurillo it the best. He's got one of mine now, probably next in line. So I'm not familiar with the Ghost system. Is your goal to expand your tonal palette? Does it also have midi capability?
Click to expand...

The Ghost system CAN do Midi, but in this case I'm not installing that board. There's a piggy-back board that works with the piezo preamp. In my case, I'm looking to capture some of the vibrational 'acoustic' tone of the instrument that I hear when I play it unamplified but I couldn't capture with the magnetic pickups alone.

What I'll get out of this is:
- 3-way switch that allows for:
  • magnetic Dingwall sound (with DG-TC preamp) that will operate as it always has.
  • Piezo system w/it's own preamp as a 'stand alone' with it's operation (volume plus a push/pull tone profile switch).
  • combined magnetic/DG-TC + piezo/pramp...both systems work as they normally would, but together. sort of like a Jazz bass, two volumes so you can blend them together.

The implementation will keep the control set in a very similar foot print. There will be a second toggle added (the 3-way as listed above). The DGTC's bass/treble will end up on a stacked pot, which opens a pot-hole for the piezo volume. We're adding a 'full system bypass' as well. Either the DGTC's original switch or the system bypass will end up on the DGTC's volume as a push/pull.

So the only real visible difference is the added 3-way and the single stacked-knob.
And Mo will probably have time for yours in between this 'stage one' of work on this bass and the 'stage 2' work on the neck. ;)

  • Like
Reactions: Bassheart365
#28,248
Oh yeah, some details of the customization that needed to be done at the 'bridge level."

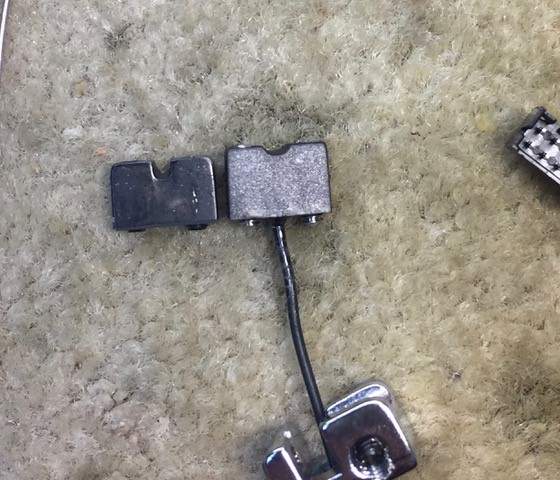

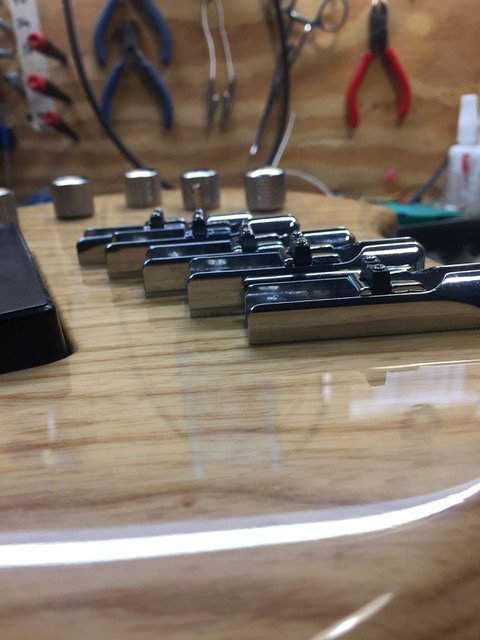

The connects for the bridge pieces didn't fit through the holes in the bridge carriages. Even so, they'd have hung out the bottom, so the clips were snipped and the wires were soldered to the piezo bridge pieces. Also, the bridge plates needed to be drilled out, but but to allow for intonation movement, a single hole wouldn't work...so Mo made larger oval openings for the wires to feed. You'll also note that the bridge pieces are a little taller than the original pieces. This will mean shimming the neck since the G saddle was already all the way down. That's fine since I'd already shimmed a little bit anyway. I'm totally not fussy about shims.






  • Like
Reactions: Peter Lufrano
#28,249
xnewyorka said:
EDIT: Sorry, I had not read the intervening posts. I see that others already had stated pretty much everything I had in this post. Sorry for the duplication. should have scrolled down first to see who else had replied before I bothered to respond. Seems like the bit about the green and black wire being connected is not valid on the old ones.
Click to expand...

No need to apologize! Your reply is appreciated.
BurningSkies said:
Unless otherwise noted, I would assume that FD-1's were wired in parallel from the shop, which is how the original FD3's were done.
Click to expand...

The nordstrands are designed for parallel fret basses, I could buy new pickups at bassdirect though.

There seems to be consenus that the FD-1´s are 2-lead and risky to mod. Regarding the series/paralell business different theories collide, series, paralell and series/paralell.

I was mainly curious. Maybie I have some time this weekend to do some recording, it would be fun to see the responses, I have a feeling it wont make things clearer due to the subjective nature of perception :)

Thanks all!

  • Like
Reactions: Peter Lufrano
#28,252
Peter Lufrano said:
Very nice! Who'd you have do the work?
Click to expand...

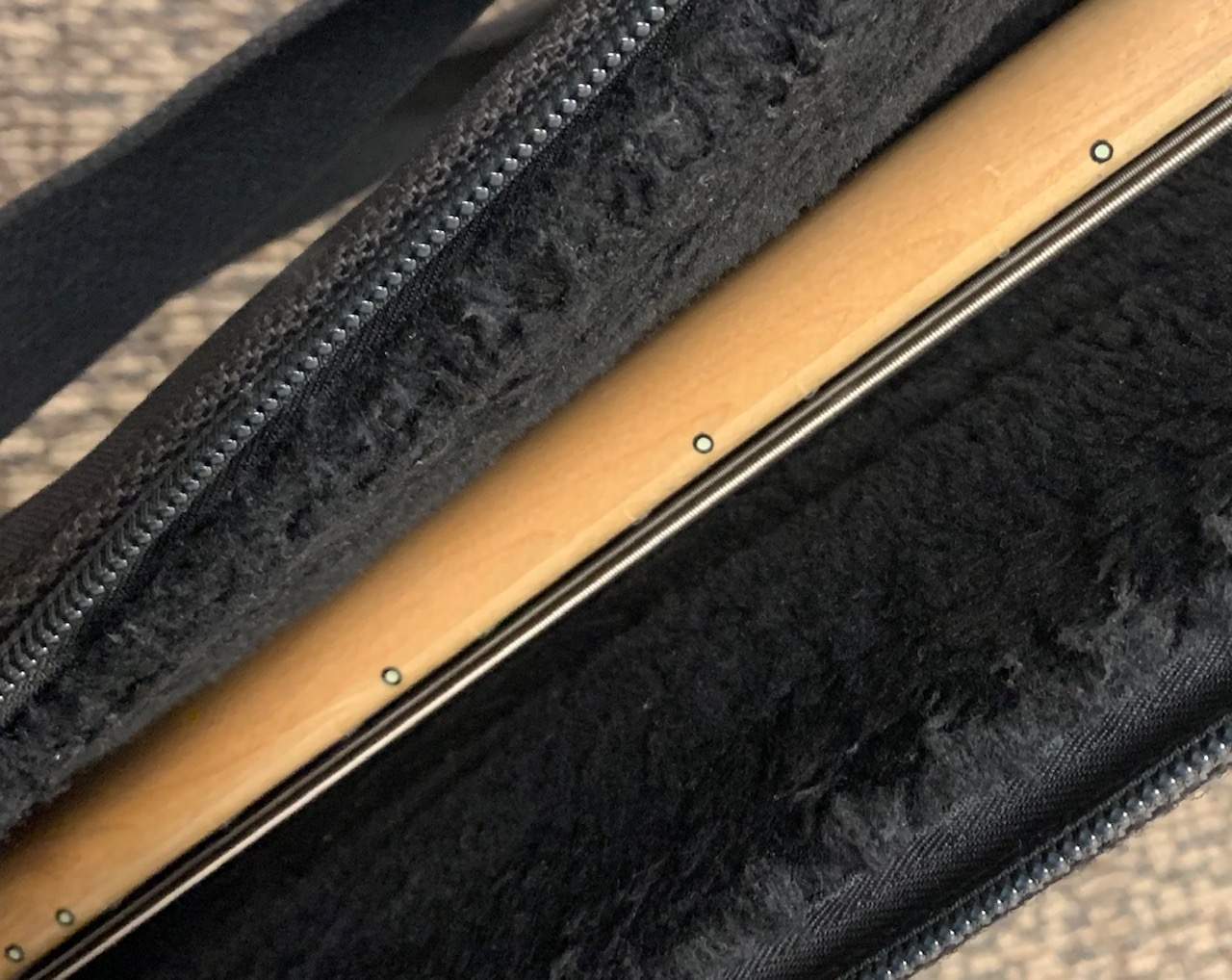

This one was just done locally. A guy who does a fair amount of classical instruments. I dropped off two instruments yesterday at 2pm and they were done this morning. No finish work needed to be done since I've mostly worn through the neck finish on the edges but you'd be hard pressed to figure out it's not original to the bass. The other bass is out west at Mo's (custom) Shop.

  • Like
Reactions: Smallmouth_Bass and Peter Lufrano
#28,258
packrat said:

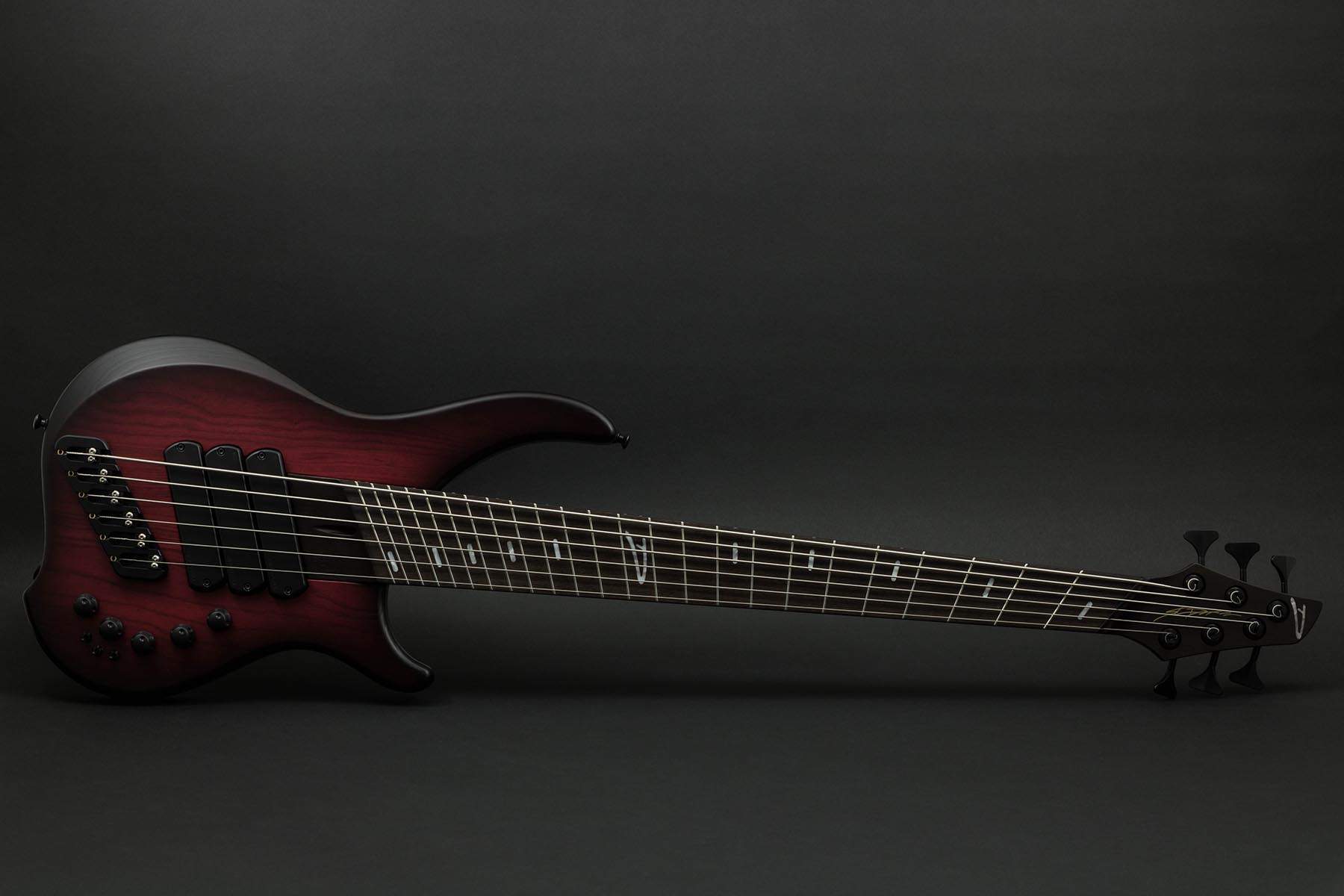

I'm just waiting for the final paperwork and shipping out here of this rather pretty looking beasty. Looks like the Dingwall folks are really hard up against their 18 month window for delivering custom basses at the moment.

View attachment 3375606
Click to expand...
Love the color combination! It looks very classy
