JGR's 1200 watt micro - let the madness begin!!!!!

Status
Not open for further replies.
#142
JGR said:
I'm going so do a brushed silver front faceplate with black lettering and put a black leather handle on top.
Click to expand...

I know what you stated earlier but I just have one question...

#144
agedhorse said:
For example, go ahead and EXPLAIN WHY AC line quality matters, and WHY standards are used in the industry, and HOW defects in the AC line alter the standardized baseline results. Explain the factors involved with attack and decay envelops in a bass guitar signal, explain the harmonic structure of a bass guitar signal, don't forget to explain HOW and WHY the harmonics levels often exceed the fundamental level and what that brings to the tone, and that a string vibrates within in a cylindrical boundery and not a flat plane. It might be informative to take this information in the context of a pickup's magnetic fields and how this might influence the shape of the waveform (and thus the tone and feel).
Click to expand...

We're probably getting way too off topic, here, Andy, so I'd be happy to continue this discussion in a PM or two.

But, to reiterate, we are talking about the context of an on-going column, not a stand-alone comprehensive tome. Plenty of time (and issues) to discuss AC line quality further on down the road (and in fact, Tom has already been working on several articles on this topic).

And, if you have read prior installments of From the Bench (and some other reviews/articles), Tom has already touched on the subjects of harmonic content, string vibration, and the impact of a string moving through a magnetic field upon the waveform. Much more to come on all of these topics, as well.

#146
wave rider said:
You could drive a certain TB segment wild by adding lovely hardwood sides to the box...

=wr=
Click to expand...

Dude, pimp my amp?


Don't think wood trim on the amp's for me, but it (the amp) certainly has my interest! Jonathan, sent you a PM.

On another note, do you feel that the smaller tubes give up anything to the 6SL7 in detail or "3D" quality?

#147
tombowlus said:
We're probably getting way too off topic, here, Andy, so I'd be happy to continue this discussion in a PM or two.

But, to reiterate, we are talking about the context of an on-going column, not a stand-alone comprehensive tome. Plenty of time (and issues) to discuss AC line quality further on down the road (and in fact, Tom has already been working on several articles on this topic).

And, if you have read prior installments of From the Bench (and some other reviews/articles), Tom has already touched on the subjects of harmonic content, string vibration, and the impact of a string moving through a magnetic field upon the waveform. Much more to come on all of these topics, as well.
Click to expand...


Hi Tom and Andy

Your discussion is interesting. Please don't take it to a PM, rather another thread.

B

  • Like
Reactions: will33 and monsterthompson
#149
MarkA said:
Dude, pimp my amp?


Don't think wood trim on the amp's for me, but it (the amp) certainly has my interest! Jonathan, sent you a PM.

On another note, do you feel that the smaller tubes give up anything to the 6SL7 in detail or "3D" quality?
Click to expand...


I've built identical preamps using 12ax7's and 6SL7's, and they are a lot closer than you would think. There is a video comparison on my YT page somewhere. So, as I always say, circuit design is KING!

This new front end is really cool, - the overall circuit/EQ topology is really unique - doesn't have a lineage to anything like a Fender, B15, or SVT. Love the tone/response of the 12au7. For this application, I don't think a 6SL7 would make it better - I tried it, and preferred the 12au7.

  • Like
Reactions: popgadget
#150
So I think I'm going to move this to a 16x12x4 chassis (the current one is 12x12x5) which will allow me to use the same front panel layout for a 2U rack format down the road (and avoid the Warwick aesthetics :) ). It also affords me a bit of space to further optimize the layout. I was playing with transformer location/orientations yesterday and with a bit more space, I can drop the noise floor even more.

Also going to 86 the aluminum mounting bracket for the tubes and move to a larger board so that I can mount the sockets directly to it similar to how I do in the BoT. It will be much tidier. Might move to a toroidal power tranny as well.

Last edited:
  • Like
Reactions: wave rider and tombowlus
#153
monsterthompson said:
I swear I'd buy one if I played enough to justify it. I can't imagine one of these rare, fine pieces being used for living room practice.


"Comparison is the thief of joy."
- Theodore Roosevelt
Click to expand...


Depends on how big your living room is! ;)

  • Like
Reactions: wave rider and monsterthompson
#155
Alright, the rest of the week is busy so I've been working since I got home to get the amp ready for Reading PA this weekend. Over the past few days I've torn the whole thing apart several times over for various reasons as things were being optimized. So it's no longer pretty inside, but I'm going to gut the whole thing after this weekend and build it again in another case with a different board and power supply.

I did a couple more tweaks this evening to make the low end punchier and add some more harmonic character and I'm very happy where it sits at this point. My custom inductors will be here Thursday and I'll evaluate them before I tear it apart.

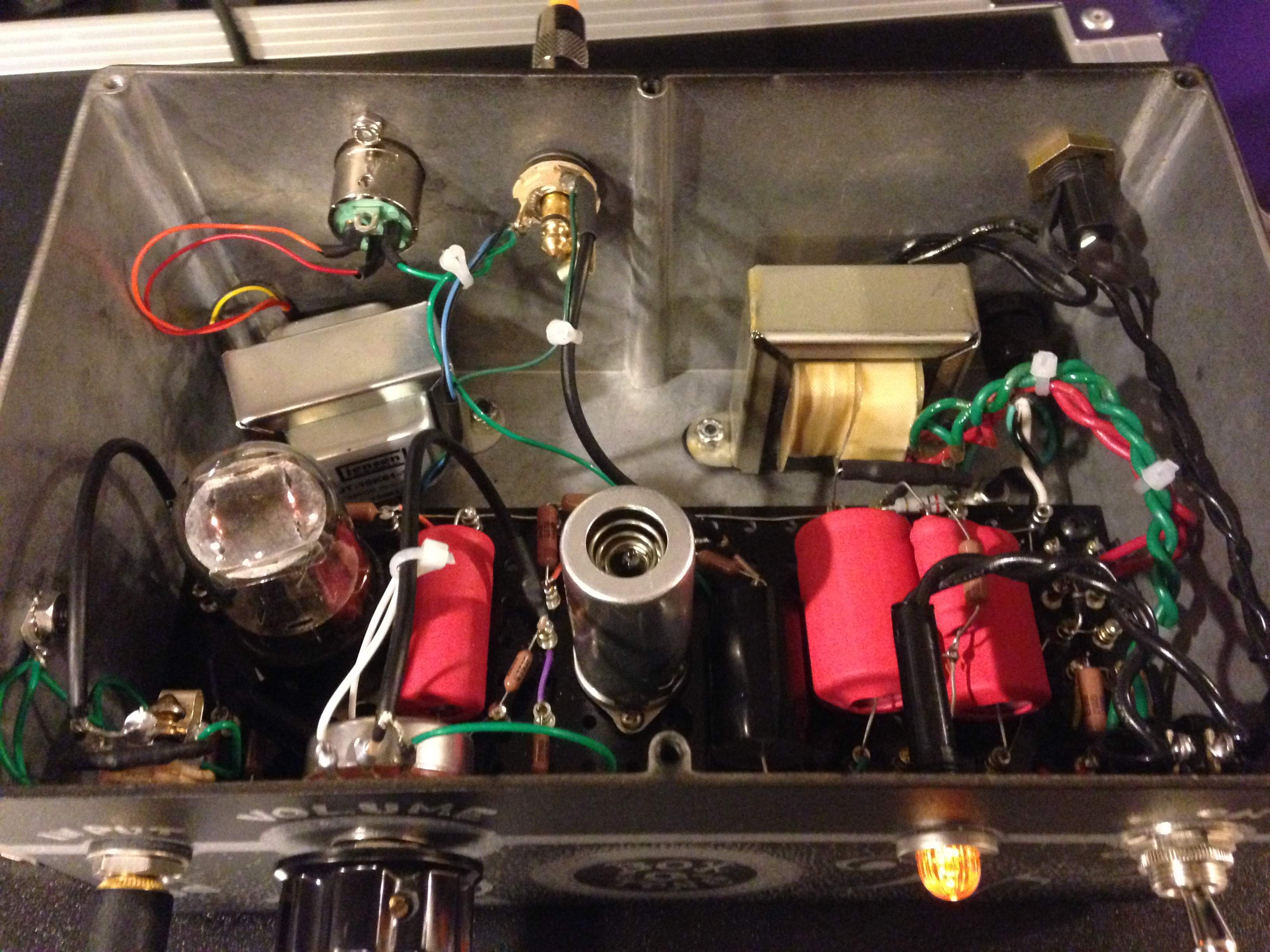

Guts:


Side of the case with my spiffy bumpers:



Rear with full DI and guards to protect protruding hardware:



Front, with retro clip indicator that matches my pilot light! (if I was keeping this case I'd add handles in the front for protection and a handle on top):



Bottom with lots of SS machine screw goodness:


Last edited:
  • Like
Reactions: Fuzzbass, tombowlus and wave rider
#157
Thanks Mark!

I was actually going to do a long bar! - but it didn't work with some of the internals. Will have more flexibility with the new case. I think it's good to have some protection on the sides and rear of the unit.

Last edited:
