source audio c4

#861
honotron said:
Sadly my new C4 is useless to me at the moment as I cant get my midi raider to change patches via the neuro hub. Its installed in a rack so i cant even use 1 effect!

Both the midi raider and C4 are on the same midi channel (5) and the C4 is connected to the neuro hub.
I tried sending the CC command 102 with the correct value to engage and bypass it....and nothing, doesnt do anything.

Tried changing the midi channel to match the hubs midi channel (2) and it still didnt work.

I've got a rocktron all access here which I just bought as a backup which I can try but by my understanding it's just a midi raider in a different enclosure so i cant see how it would work, I think the problem is me :laugh:
Click to expand...
Make sure you have the hub presets set to the correct channel for c4 as well, if not, the midi communication will stop at the hub and not reach the c4. Watch that the light on the hub and c4 are flashing when you send midi commands, this will tell if the pedals are even receiving the messages.

  • Like
Reactions: Goatrope
#862
Gibs210 said:
Make sure you have the hub presets set to the correct channel for c4 as well, if not, the midi communication will stop at the hub and not reach the c4. Watch that the light on the hub and c4 are flashing when you send midi commands, this will tell if the pedals are even receiving the messages.
Click to expand...
Thanks, how would I do this? I'm a bit confused! At the moment the hub light is flashing when I send midi commands but the c4 light is not

#863
honotron said:
Sadly my new C4 is useless to me at the moment as I cant get my midi raider to change patches via the neuro hub. Its installed in a rack so i cant even use 1 effect!

Both the midi raider and C4 are on the same midi channel (5) and the C4 is connected to the neuro hub.
I tried sending the CC command 102 with the correct value to engage and bypass it....and nothing, doesnt do anything.

Tried changing the midi channel to match the hubs midi channel (2) and it still didnt work.

I've got a rocktron all access here which I just bought as a backup which I can try but by my understanding it's just a midi raider in a different enclosure so i cant see how it would work, I think the problem is me :laugh:
Click to expand...

Looks like the Rocktron does do CC and PC, So that’s good. Seen some that don’t do CC messages. It also runs Midi channels 1-16 but you can set it to run 0-15 so watch out for that.
Needs to be set to display 1-16.

The C4 needs to be on a different channel than the Neuro hub if you are going to pass CC info via TRRS instead of using scenes from the hub itself. (At least I think so, it’s how I run mine even after the scene addition update). Otherwise the hub will ignore the midi data instead of passing it on. So I’ve got my HX Stomp on Ch1, Neuro Hub on Ch2, and C4 on Ch3.

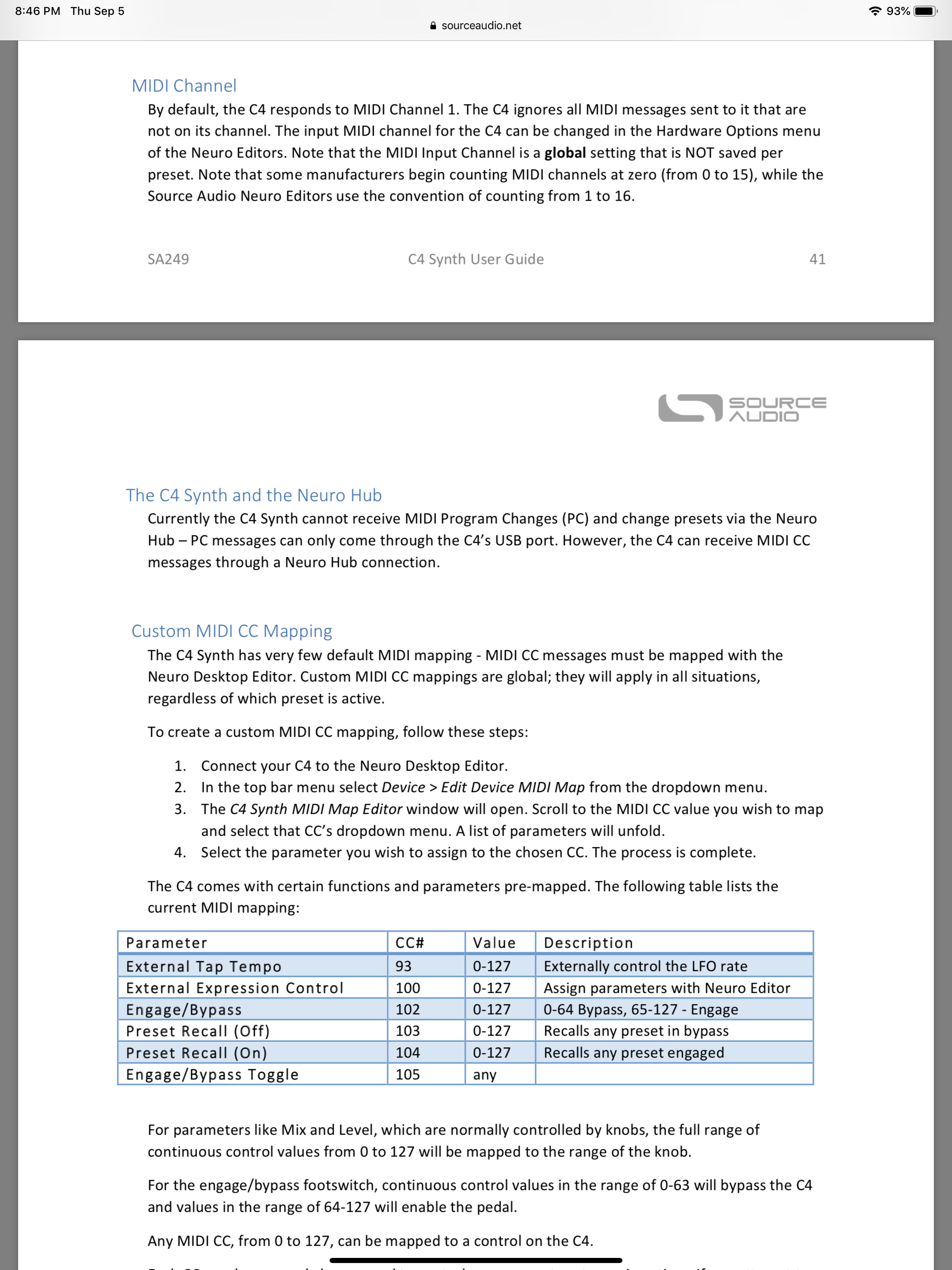

I’ve been using a Soleman- but have had much better success using CC 104 (on) and CC105 (off) to turn presets on and off instead of 102. CC 102 is set up for just on/off for whatever is loaded (CC102 -0-64 bypass, 65-127 engage). I remember that not working as expected when I first set everything up.

I set up switches to send CC104+(preset number -1) to recall and turn on a specific preset. Next press then sends CC104+0 to turn it off. The minus 1 is to make up for the fact that C4’s physical presets use 001-128 and midi uses 000-127 to represent those slots.

anyway TL;DR- make sure C4 is on it’s own channel, make sure Rocktron is showing correct channel, and use CC104+(preset #-1) to engage.

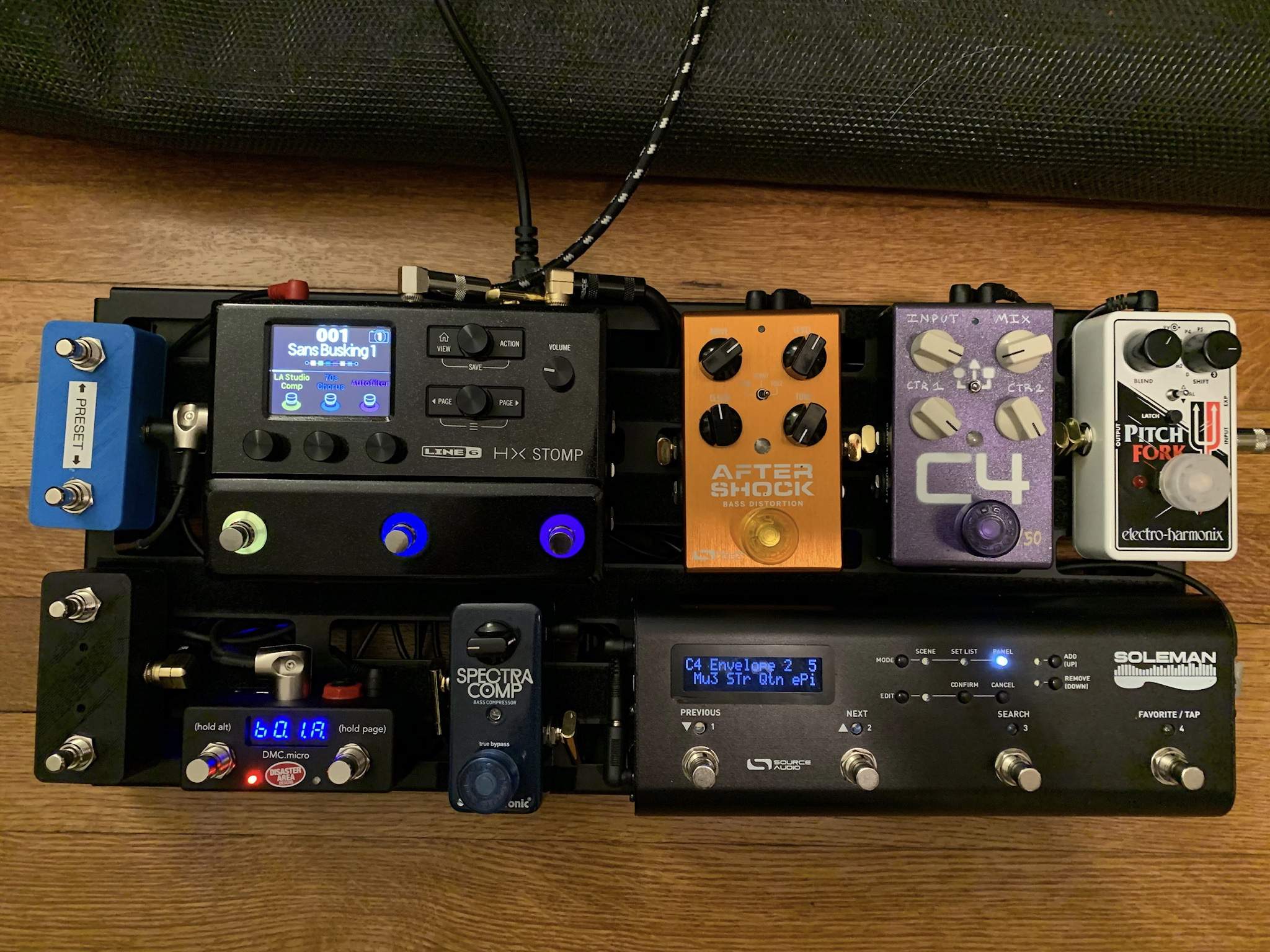

Bonus: downsized my board to a Tres 3.1, Neuro hub is mounted underneath this time. This setup makes a ton of good noises:

  • Like
Reactions: Mohawk, eaglemachine, AlvarHanso and 1 other person
#864
Proton Lenny said:
Well hot damn, I finally got my C4 in today and after 5 minutes I can say this is the first synth pedal I've ever played that tracks fast enough to not be distracting. This thing pops! The stock sounds are solid, and I can't wait to dig into the editor and check out all of you guys presets! I might actually have found a synth pedal that I will keep on my board! Cheers to @rsmith601 and team!
Click to expand...

I'm sure I'm not the only one to say that I'll definitely look forward to your demo of it! I'm a little surprised you just got one! ha ha I've been having a ton of fun programming both personal and cover band presets, so I'll be interested to see what you do with it, and I'll enjoy checking out any patches you post to the Neuro Community.

Here's a personal challenge to you sir, since you're an effects savant... The Take On Me bass sound! I've been working on a patch for quite a while now and I think it's close (as close as it's going to actually get to the original Yamaha DX7 Preset #15 anyway), but I'd be really interested to see what you come up with for it.

5sg.

  • Like
Reactions: eaglemachine and AlvarHanso
#866
Cuzzie said:
This may be a silly question and one that has been answered but is making a sound/patch on an iPad exactly the same and as easy as in a PC/Mac?
Click to expand...
Not a silly question. Go to [Invalid or Expired Link Removed]. Download and install the Mac version to see if the iPad supports the full Mac version. Otherwise you can download the Neuro App at the Apple store.

#868
Tried it and the desktop version doesn’t load up.
Am I right in thinking the app version is exactly the same as the desktop version, just looks different?

if so, then it should be the same should it not aside from sliders instead of dials?

#870
Proton Lenny said:
Well hot damn, I finally got my C4 in today and after 5 minutes I can say this is the first synth pedal I've ever played that tracks fast enough to not be distracting. This thing pops! The stock sounds are solid, and I can't wait to dig into the editor and check out all of you guys presets! I might actually have found a synth pedal that I will keep on my board! Cheers to @rsmith601 and team!
Click to expand...
I guess we're not going to hear much from you over the next week or so as you deep dive!

#873
Cuzzie said:
Tried it and the desktop version doesn’t load up.
Am I right in thinking the app version is exactly the same as the desktop version, just looks different?

if so, then it should be the same should it not aside from sliders instead of dials?
Click to expand...
The Neuro App on phone or iPad will only allow one way communication and is not as easy to use imo. For deep editing you will want a pc or laptop.

  • Like
Reactions: Cuzzie, fivestringgecko and Goatrope
#874
honotron said:
Thanks, how would I do this? I'm a bit confused! At the moment the hub light is flashing when I send midi commands but the c4 light is not
Click to expand...

So, I don't think you want your controller on the same channel as the Hub on the same channel as the C4. I have my Hub on 5, the C4 on Channel 1 and my main controller set to 6 (though that doesn't really matter since I'm not sending anything from a pedal to the controller and picked 6 just to get it out of the way).

My experience is that you don't need to tell the Hub what channel you have your C4 on, but you do need to pick channel for the C4 to be on that none others are 'sharing'.

It sounds like you have not much more than your controller, the hub and the C4? Why not leave the controller on 5 (because whatev, that's easy). Set the C4 to Channel 1 and the Hub to 2?

Your hub is really acting as a midi pass-through or 'host' for the C4, so you don't need to send MIDI commands to it. Send CC messages on MIDI 1 to the C4 and see if that works for you.

#880
Proton Lenny said:
Definitely plan on posting all my patches!
Click to expand...

Made a comment on your IG...but I'll do it here too. My favorite Future Impact patch (and the one I've used most in a band setting) was your Vangelis Blade Runner patch. Any chance of you massaging something close for us for the C4?

  • Like
Reactions: AlvarHanso
