Source Audio Sorcerers Society (S.A.S.S) Part 3

#14,301
Gibs210 said:
By default, preset mode will be set to default mode (true presets that ignore the physical knobs, cannot be saved over from the pedal) the main led will blink if changes are made to indicate that the pedal is no longer in the saved preset state. WYSIWYG mode the physical knobs will override whatever preset settings you have for those 4 knobs (primary only, secondary will obey preset saved settings). Preset mode is like default, but if you make changes, you can save them by holding down the footswitch.
Click to expand...

Thanks! Didn't realize that there was a wysiwyg mode.

  • Like
Reactions: jam.majors
#14,302

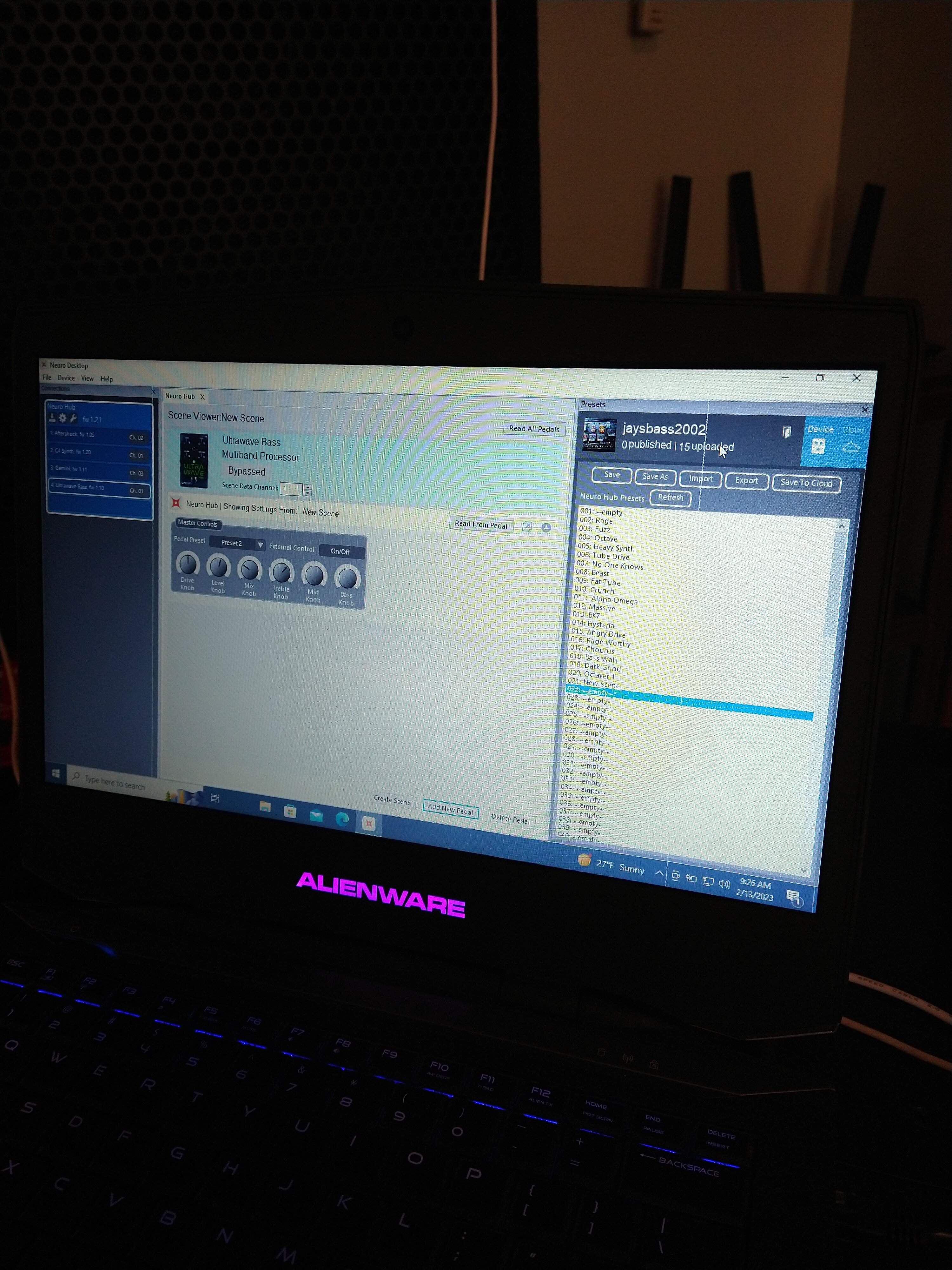

this is all I get. Just reset the pedal as well. Might reinstall the editor.

#14,303
jaysbass2002 said:
View attachment 4967784this is all I get. Just reset the pedal as well. Might reinstall the editor.
Click to expand...
That is all that is available through the Hub for the Ultrawave, as the full controls for it are too complex for the Hub. You need to connected directly to the Ultrawave to set up presets, and then use the Neuro Hub UI that you see there to include it in a scene.

  • Like
Reactions: odarellmc, jaysbass2002 and jam.majors
#14,304
jam.majors said:
I have the dmc and the same SA pedals. You’ll need either the midi adaptors or the neuro hub. Either would work to translate the midi for the pedals. That’s all I use the neuro for as the scenes have been less useful to me.
I use my exp pedal via midi. I don’t think there’s another way once the control input is taken for midi.
If I had the money at the moment, I’d check out a Morningstar. But the dmc does an awful lot of what I need, so I haven’t.
You can use a Name mode for presets
The editor works on pro, maybe on the older micro.
I can’t watch the video at the moment, but I remember watching several similar to it that were still helpful.
Click to expand...

Thanks.

The video shows the dmc micro working without adapter nor the hub. Thats why it appeals.

Can anyone please verify that?

#14,309
Billyears IV said:
The dmc site seems to say you can just link 2 SA pedals together, so they can both be accessed.....??

Im so easily muddled!!

Trying to find out what the dmc micro pro can do that the dmc micro cant do? Is it just a size difference?
Click to expand...
As far as I know, you can't really "daisy chain" the Source Audio pedals without the new adapter. But with that adapter (or the Hub), you can definitely control more than one pedal.

If you go to the dmc support page, you can look at the difference in the software releases. I think that the LED4 version (no longer produced) caps out at 1.05 and the PRO is on the current sw 2.02a. So at the very least, there's a whole version number's worth of difference.
Also there's a much nicer screen on the newer one.

  • Like
Reactions: Billyears IV
#14,310
Billyears IV said:
The dmc site seems to say you can just link 2 SA pedals together, so they can both be accessed.....??

Im so easily muddled!!

Trying to find out what the dmc micro pro can do that the dmc micro cant do? Is it just a size difference?
Click to expand...
You should be able to control 2 SA pedals with the DMC without a hub. One is connected by USB and the other is by using the cable that comes with the pedal out from the TRS on the micro and in to the TRRS on the SA pedal. The pedal connected by the TRS-TRRS can only access the 6 onboard presets. Disaster Area used some Voodoo magic to accomplish this and I think it is what inspired SA to create the new midi dongle.

  • Like
Reactions: Gibs210 and Billyears IV
#14,311
benevan said:
You should be able to control 2 SA pedals with the DMC without a hub. One is connected by USB and the other is by using the cable that comes with the pedal out from the TRS on the micro and in to the TRRS on the SA pedal. The pedal connected by the TRS-TRRS can only access the 6 onboard presets. Disaster Area used some Voodoo magic to accomplish this and I think it is what inspired SA to create the new midi dongle.
Click to expand...

Hey thanks, v helpful

#14,312
jam.majors said:
As far as I know, you can't really "daisy chain" the Source Audio pedals without the new adapter. But with that adapter (or the Hub), you can definitely control more than one pedal.

If you go to the dmc support page, you can look at the difference in the software releases. I think that the LED4 version (no longer produced) caps out at 1.05 and the PRO is on the current sw 2.02a. So at the very least, there's a whole version number's worth of difference.
Also there's a much nicer screen on the newer one.
Click to expand...

Thank you for the detail

#14,314
benevan said:
You should be able to control 2 SA pedals with the DMC without a hub. One is connected by USB and the other is by using the cable that comes with the pedal out from the TRS on the micro and in to the TRRS on the SA pedal. The pedal connected by the TRS-TRRS can only access the 6 onboard presets. Disaster Area used some Voodoo magic to accomplish this and I think it is what inspired SA to create the new midi dongle.
Click to expand...
My understanding is that the TRS MIDI in the DMC gives full access to MIDI messaging, not just access to 6 presets.

  • Like
Reactions: Billyears IV
#14,315
Billyears IV said:
Thank you for the detail
Click to expand...
FYI- you cannot daisy-chain multiple SA pedals with the new MIDI dongle, it only allows control of one at a time. The MIDI Thru connection doesn’t offer translation for a second SA pedal. Only the Neuro Hub will allow connection of multiple SA pedals like this. I believe it is correct that the DMC Micro Pro will only be able to interface independently with one SA pedal using either USB Host or the 1/4” TRS out because of the channel limitation described, but might be a better question to email DMC about to be sure

Last edited:
  • Like
Reactions: Billyears IV and jam.majors
#14,316
benevan said:
You should be able to control 2 SA pedals with the DMC without a hub. One is connected by USB and the other is by using the cable that comes with the pedal out from the TRS on the micro and in to the TRRS on the SA pedal. The pedal connected by the TRS-TRRS can only access the 6 onboard presets. Disaster Area used some Voodoo magic to accomplish this and I think it is what inspired SA to create the new midi dongle.
Click to expand...
It can access 128, 6 is only for the older pedals that use the “SOne” driver on the dmc. For c4 and newer pedals, use the c4 driver to access 128 presets over the multi jack.

jam.majors said:
Fwiw, I couldn't get that to work. My experience is that one can only use the USB on the 1st channel, and can only use the TRS output on the 1st channel. So you could only work one of the pedals via that method at a time. It's why I ended up purchasing a Hub.
Click to expand...

depends on the pedal, I’d reach out to disaster area, but the usb connection definitely needs to be channel 1, the multi jack connection can work with other channels but it depends on the pedal, can’t remember which ones Matthew found to be temperamental.

#14,317
Gibs210 said:
depends on the pedal, I’d reach out to disaster area, but the usb connection definitely needs to be channel 1, the multi jack connection can work with other channels but it depends on the pedal, can’t remember which ones Matthew found to be temperamental.
Click to expand...
I found the aftershock to be temperamental when I tried this last. That was beginning of '22, though. Haven't bothered to try since I got the Hub.
