I had the pickguard custom made by a local luthier, however there is a UK pickguard maker on Ebay who ships internationally that makes custom pickguards, they are based in Glasgow, Scotland. If I were to just mod the pickguard without shaping it for the humbucker I would give them a try.
[This invalid link has been removed]

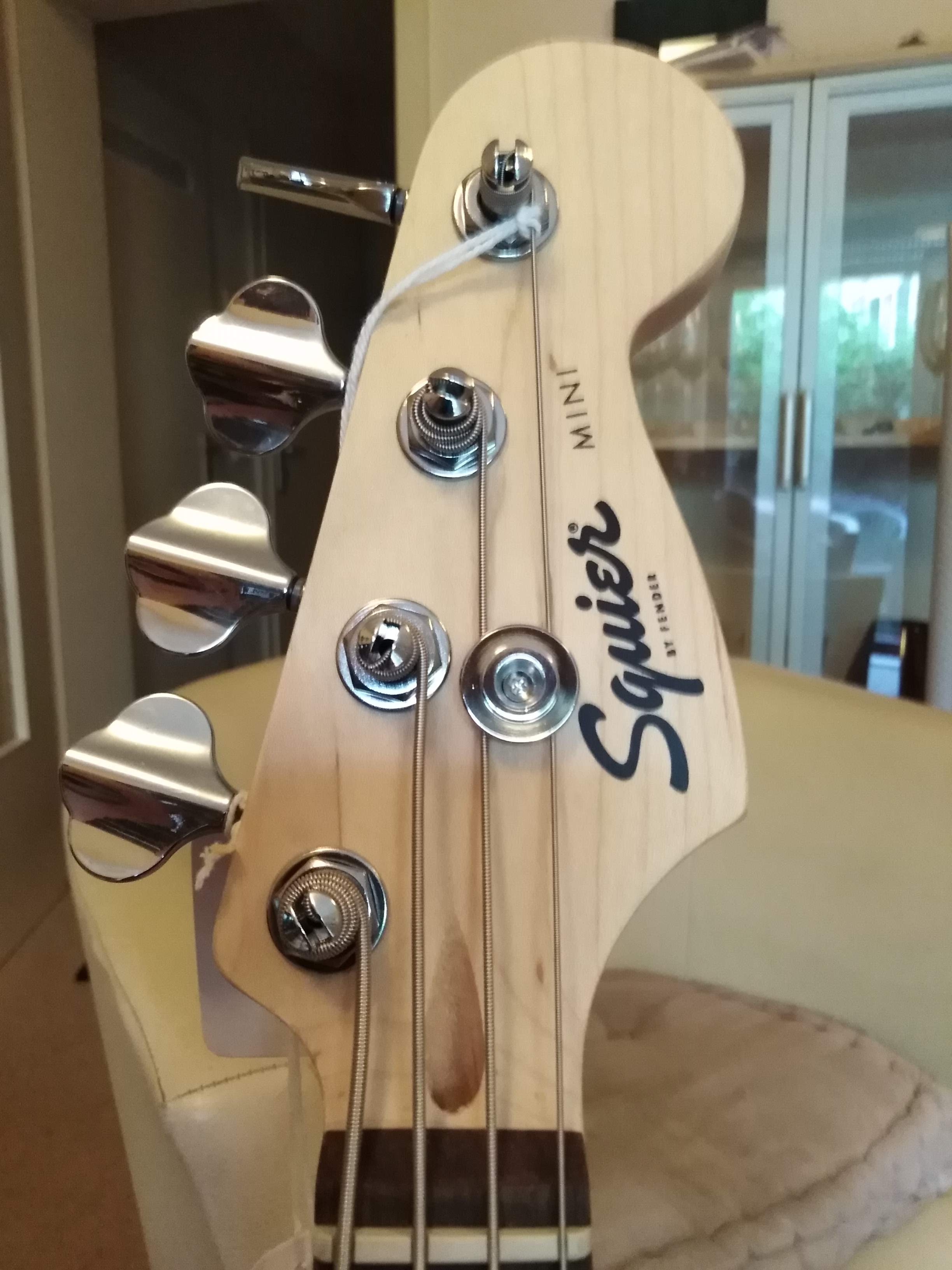

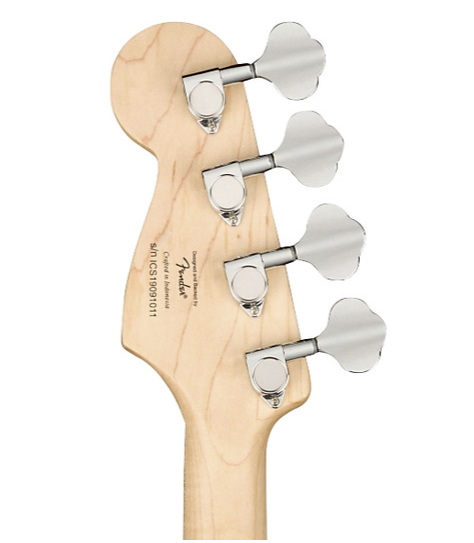

I also had to redrill the holes for the tuners and drill new holes for the bridge. The Schaller bridge needed about half centimeter more distance and I used as reference the thin line track left by the original bridge:

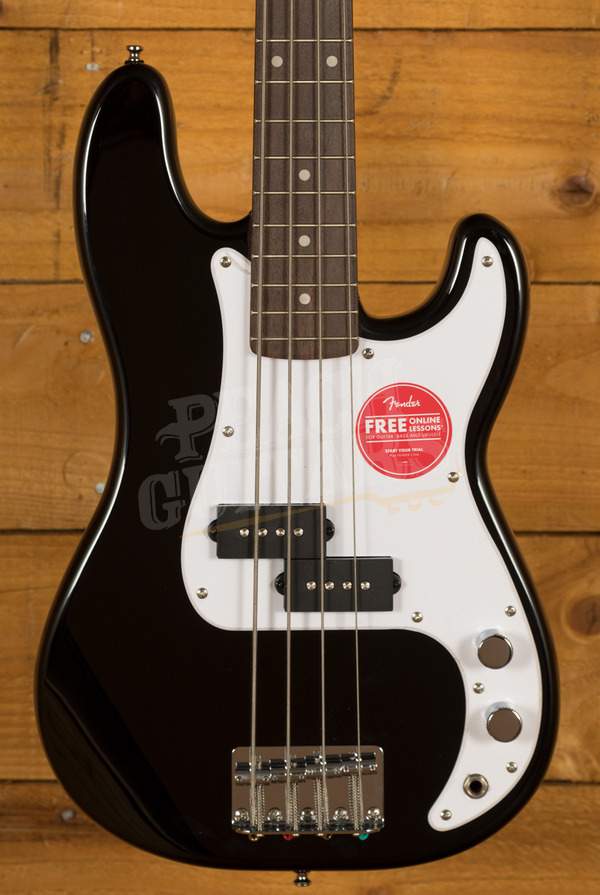

As for the pickup I had to enlarge the cavity which is already made to fit a EMG 35HZ type of humbucker. If I were to do it again I would go with a EMG 35HZ. I went with TBHZ because Thomann sell it with all the pots and cables made by EMG while the 35HZ is sold only with two screws and no pots. I wrote to EMG and they confirmed the magnets on the 35HZ and the TBHZ are the same ceramic bar magnets, only in different housings. Anyway, if one is going to install the EMG 35HZ, or any 35HZ sized soapbar for the matter, the cavity is already there under the Bronco pickguard, possibly requiring only a little adjustment.
Fantastic job. If I was modding a Bronco, I'd do something similar. Great job.
Where did you get the pickguard? [I really despise white pickguards.]
I don't think I can properly copy-paste the web page, just trying:I got the pickups on Amazon for under $15 each. They sound really good to me.
Excellent job on your Bronco. Where did you get the BWB pickguard?
[This invalid link has been removed]
I also had to redrill the holes for the tuners and drill new holes for the bridge. The Schaller bridge needed about half centimeter more distance and I used as reference the thin line track left by the original bridge:
As for the pickup I had to enlarge the cavity which is already made to fit a EMG 35HZ type of humbucker. If I were to do it again I would go with a EMG 35HZ. I went with TBHZ because Thomann sell it with all the pots and cables made by EMG while the 35HZ is sold only with two screws and no pots. I wrote to EMG and they confirmed the magnets on the 35HZ and the TBHZ are the same ceramic bar magnets, only in different housings. Anyway, if one is going to install the EMG 35HZ, or any 35HZ sized soapbar for the matter, the cavity is already there under the Bronco pickguard, possibly requiring only a little adjustment.
Dunno. I've only played it sitting at this point. If/when I do, and have issues, you can rest assured that I'll post it.
